SAP R/3 integration model

FI Finanč- nictví. SD Odbyt. MM Materiálové hospodářství. CO Controlling. PP Plánování výroby. AM Správa in- vest. majetku. R/3. Client / Server ABAP/4. PS Projekční systém. QM Management jakosti. PM Údržba. WF Workflow. HR Lidské zdroje. IS Odvětvová řešení.

omar-sexton
Télécharger la présentation

SAP R/3 integration model

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. FI Finanč- nictví SD Odbyt MM Materiálové hospodářství CO Controlling PP Plánování výroby AM Správa in- vest. majetku R/3 Client / Server ABAP/4 PS Projekční systém QM Management jakosti PM Údržba WF Workflow HR Lidské zdroje IS Odvětvová řešení SAP R/3 integration model

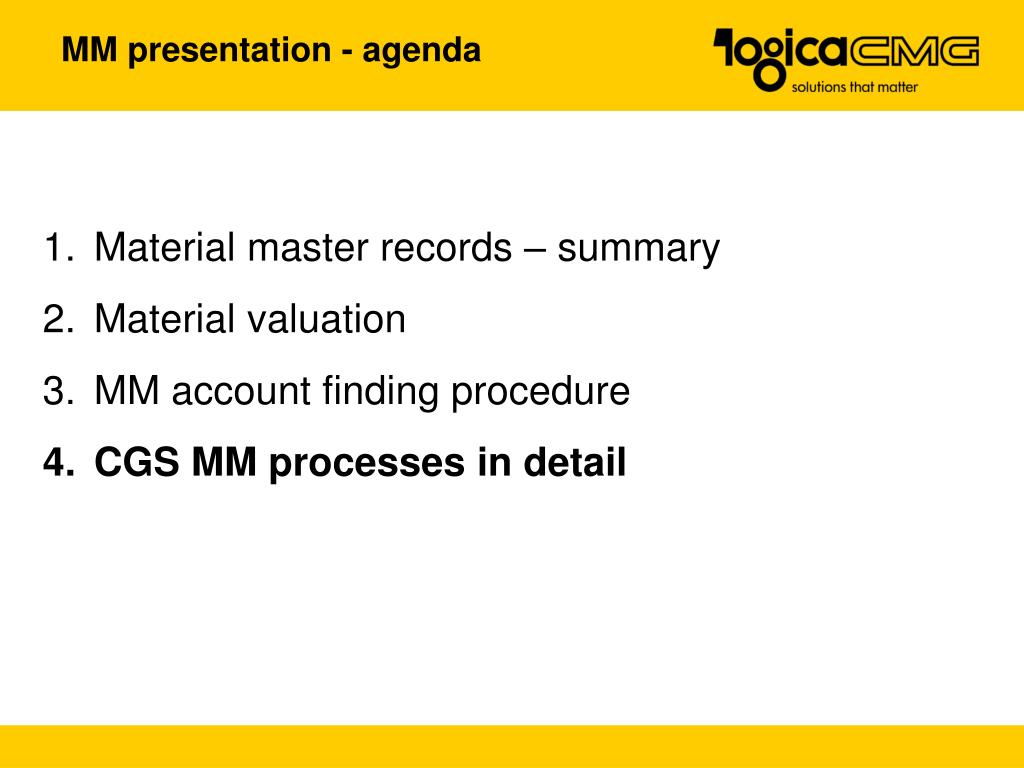

  2. MM presentation - agenda • Material master records – summary • Material valuation • MM account finding procedure • CGS MM processes in detail

  3. SAP R/3 basic organization structure logic Client MTP 400 Company code P001 Company code DE01 Company code GB01 Plant 1 (Praha) Plant 1 (Praha) Storage location 1 Plant 2 (Zlín) Plant 2 (Zlín) Storage location 2 Plant 4 (Otrokovice)

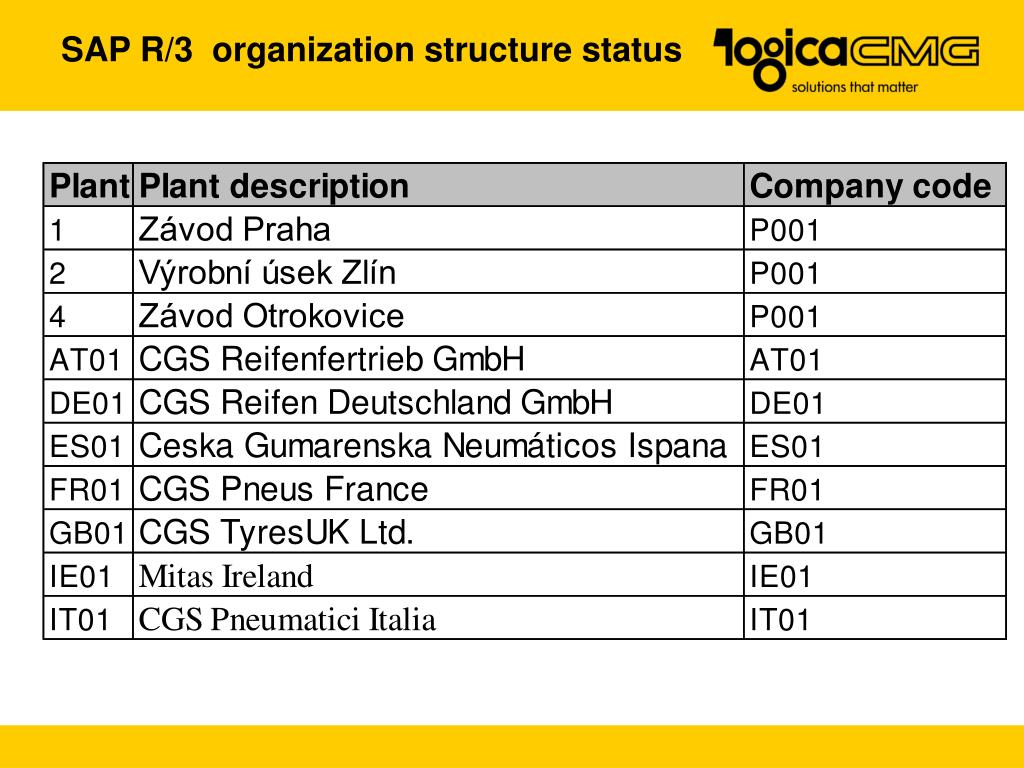

  4. SAP R/3 organization structure status

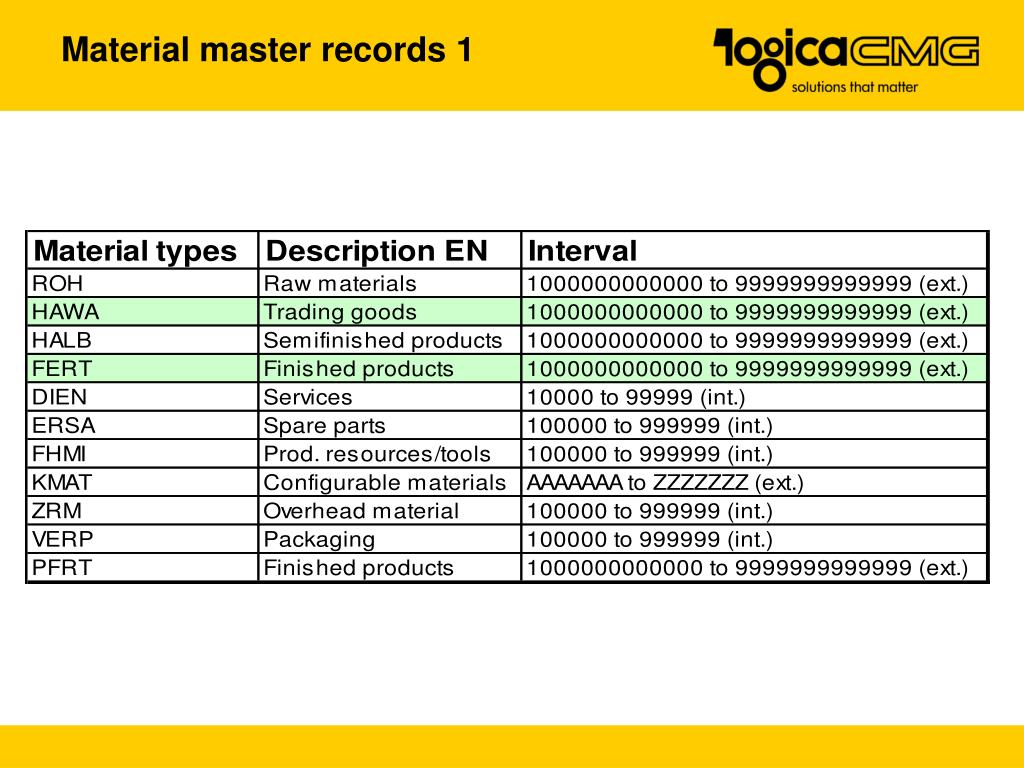

  5. Material master records 1

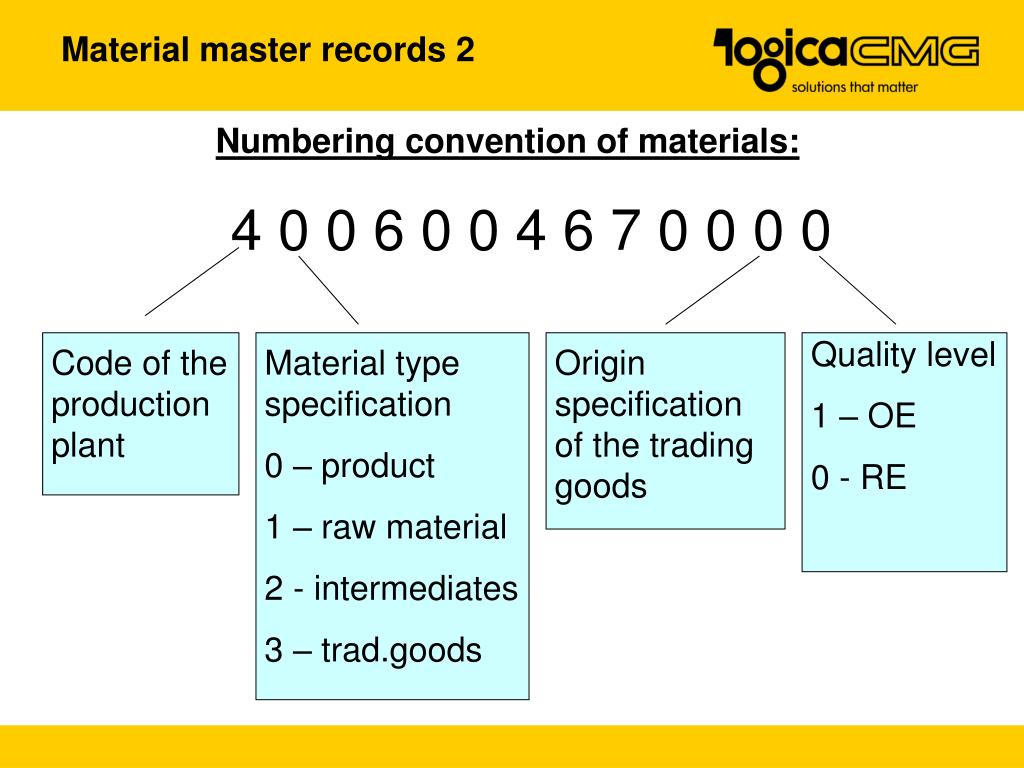

  6. Material master records 2 Numbering convention of materials: 4 0 0 6 0 0 4 6 7 0 0 0 0 Quality level 1 – OE 0 - RE Code of the production plant Material type specification 0 – product 1 – raw material 2 - intermediates 3 – trad.goods Origin specification of the trading goods

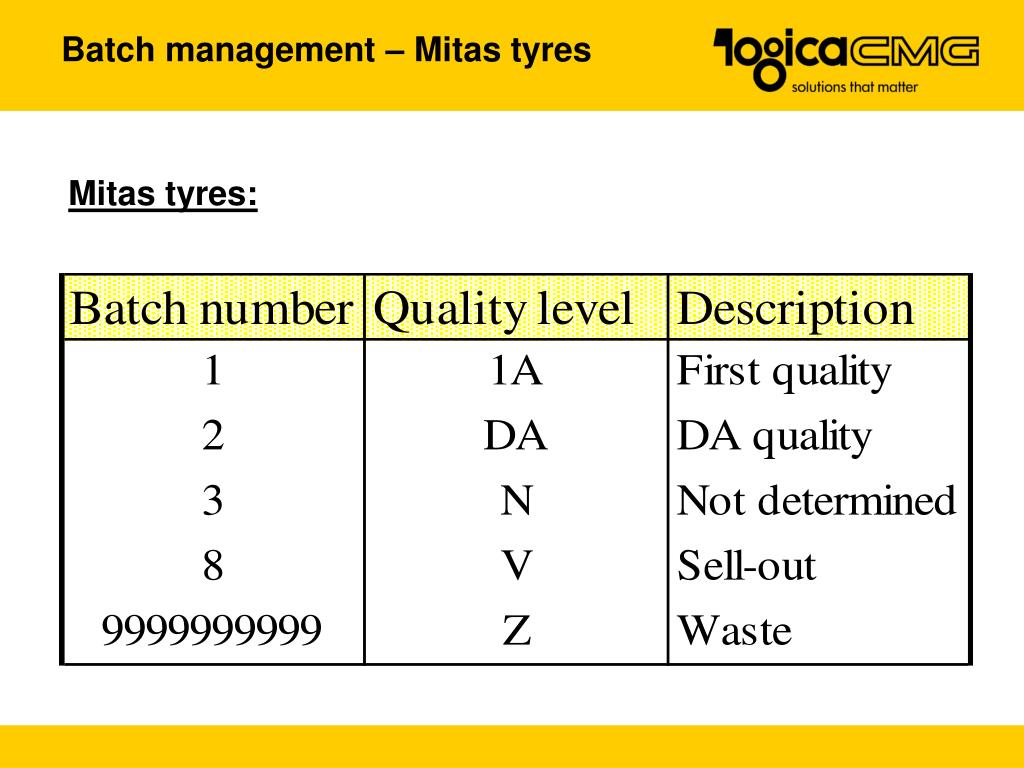

  7. Batch management – Mitas tyres Mitas tyres:

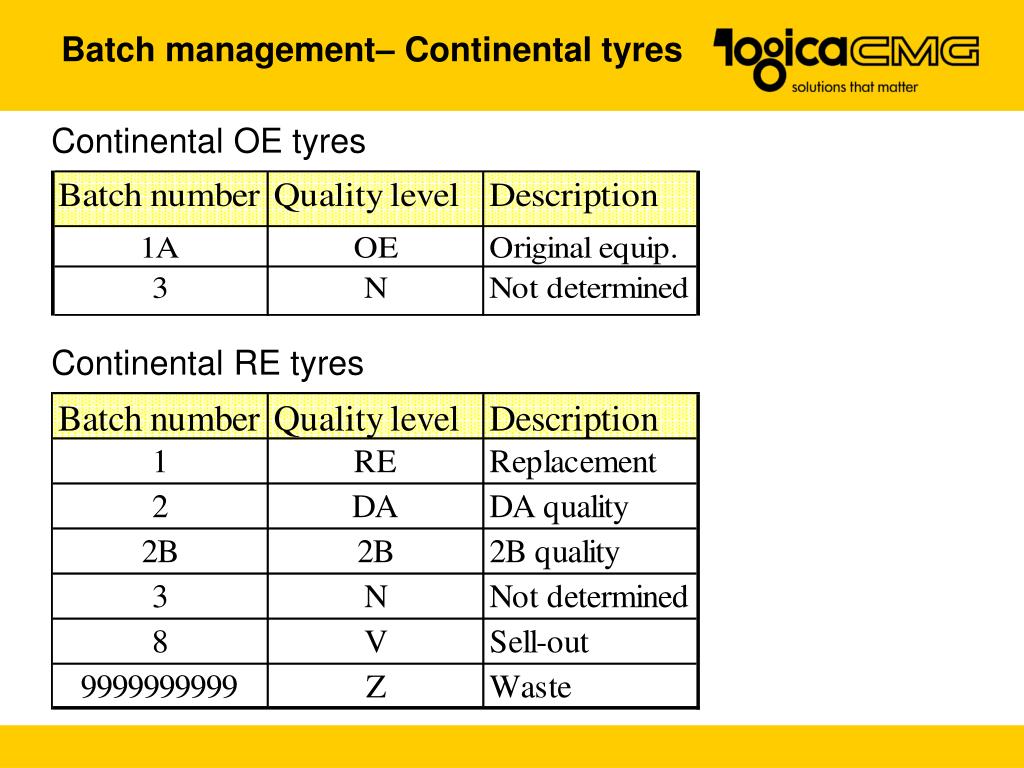

  8. Batch management– Continental tyres Continental OE tyres Continental RE tyres

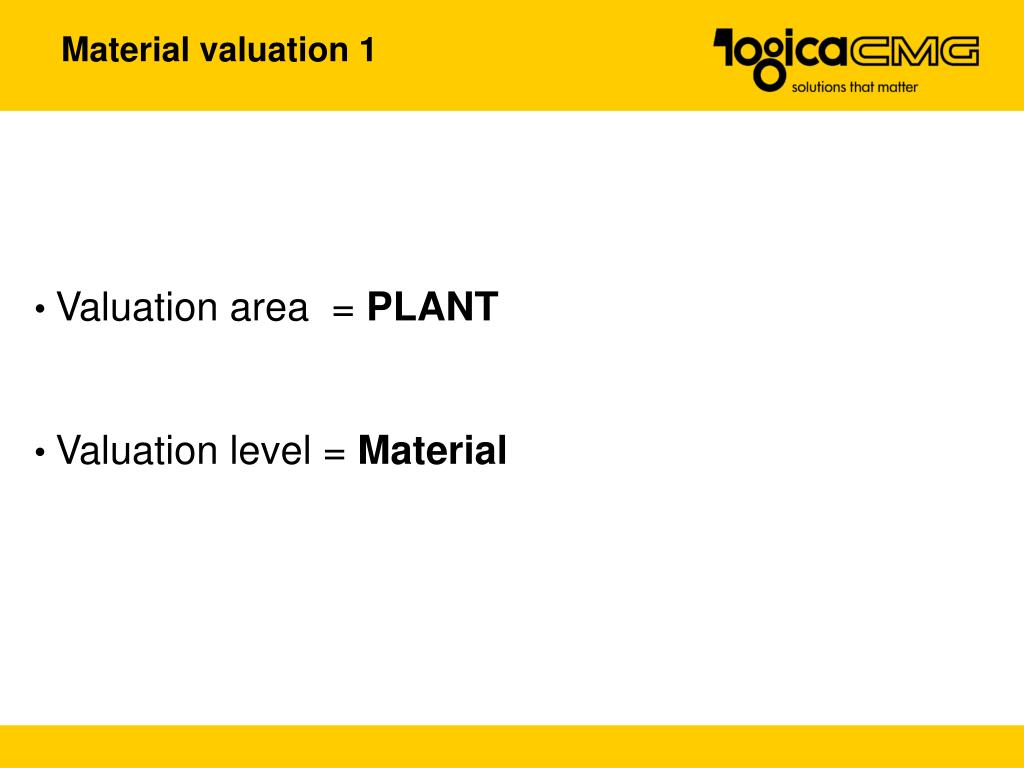

  9. Material valuation 1 • Valuation area = PLANT • Valuation level= Material

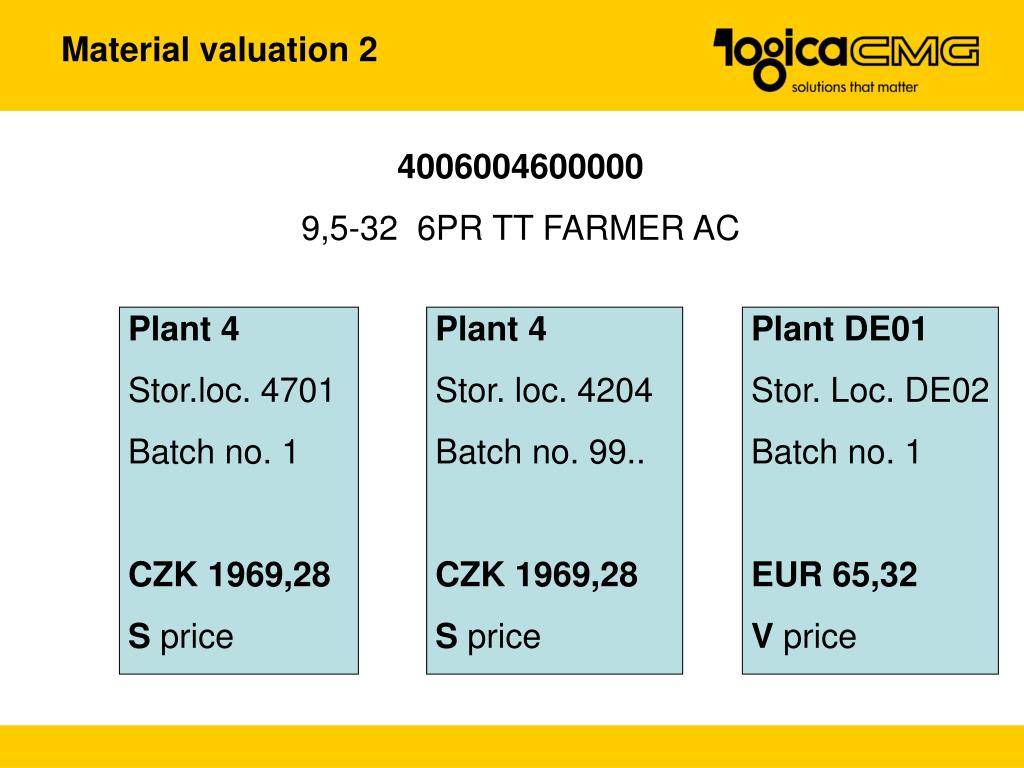

  10. Material valuation 2 4006004600000 9,5-32 6PR TT FARMER AC Plant 4 Stor.loc. 4701 Batch no. 1 CZK 1969,28 S price Plant 4 Stor. loc. 4204 Batch no. 99.. CZK 1969,28 S price Plant DE01 Stor. Loc. DE02 Batch no. 1 EUR 65,32 V price

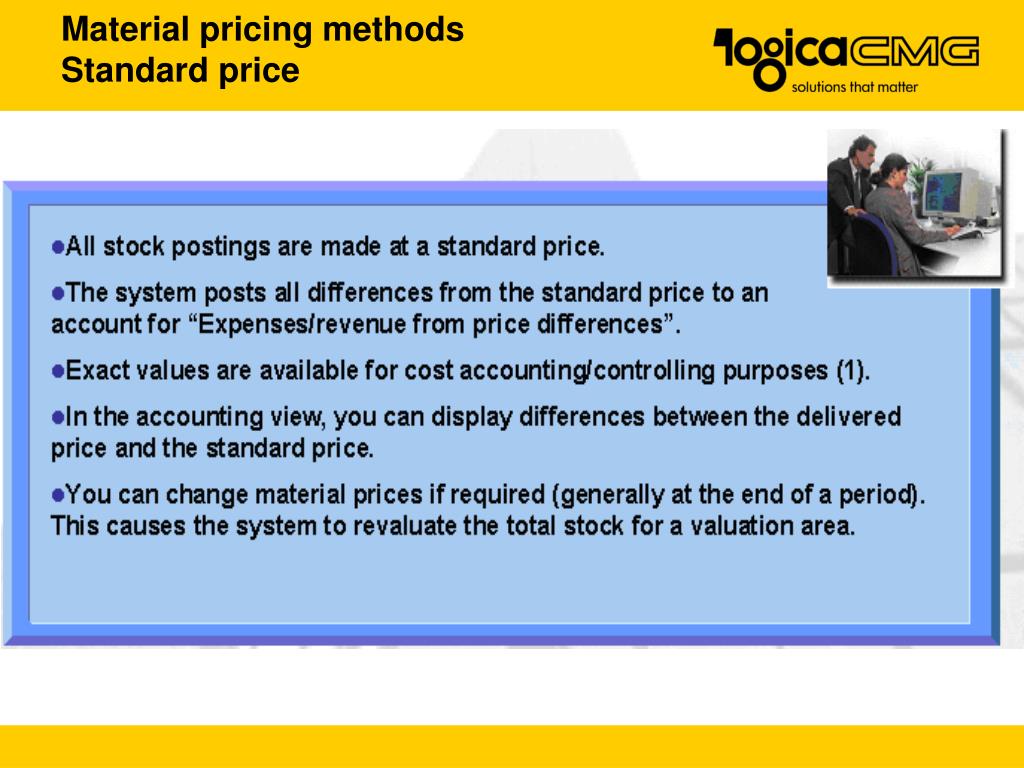

  11. Material pricing methods Standard price

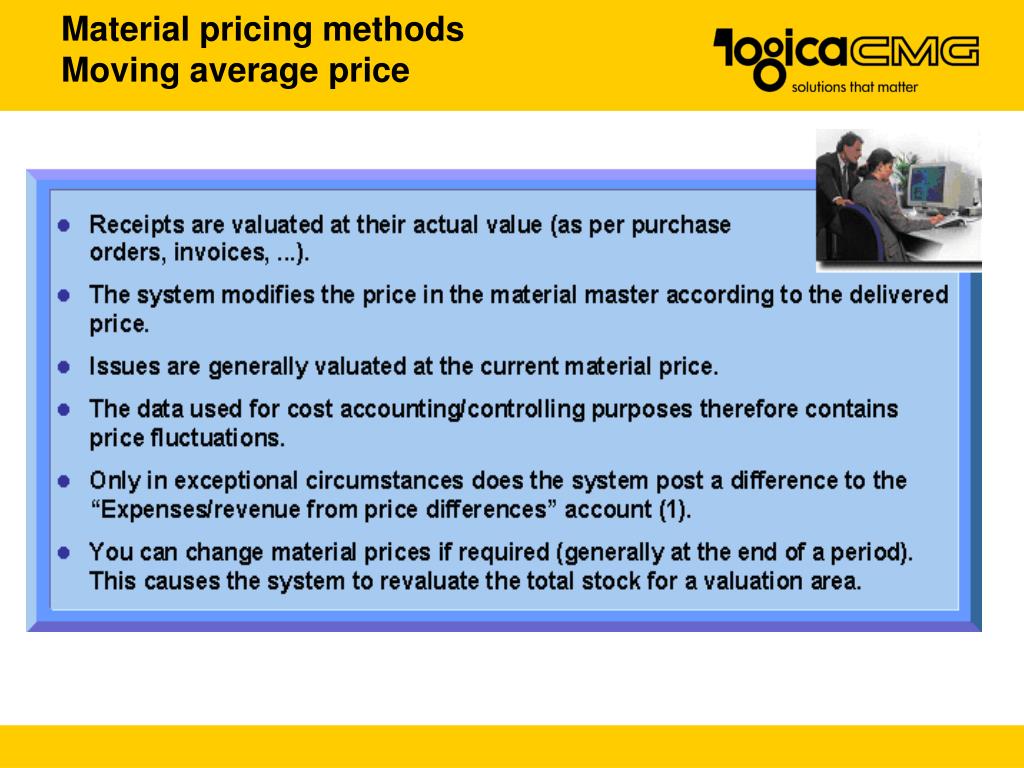

  12. Material pricing methods Moving average price

  13. Material pricing methods Example of the V price

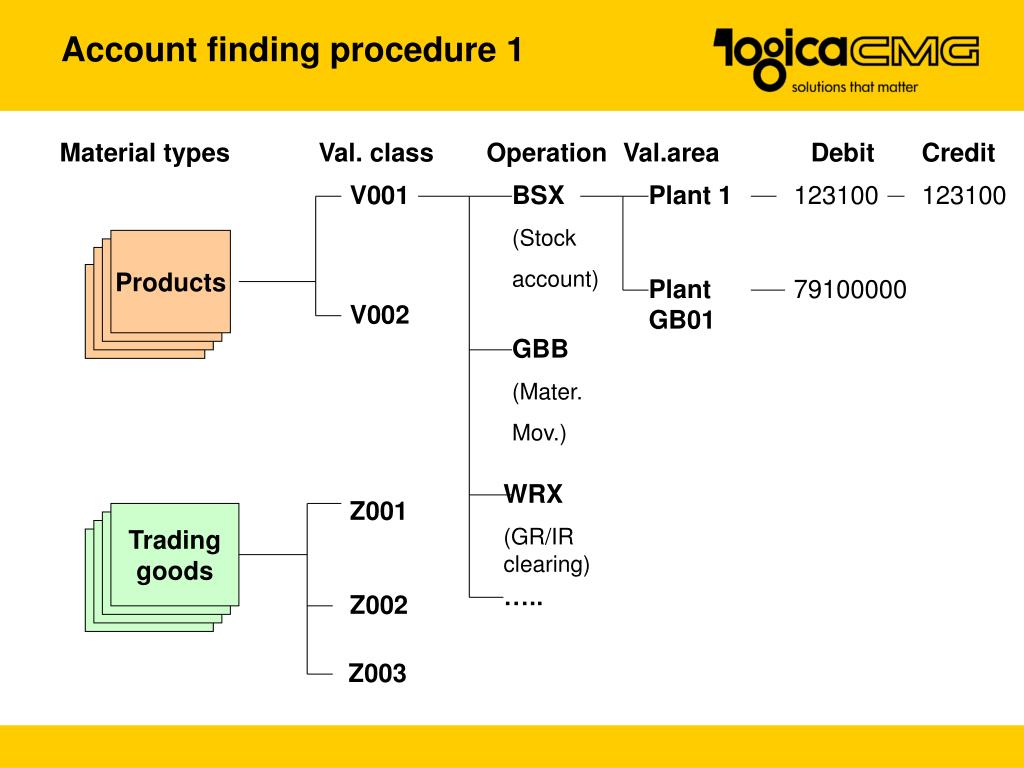

  14. Account finding procedure 1 Material types Val. class Operation Val.area Debit Credit V001 BSX (Stock account) Plant 1 123100 123100 Products Plant GB01 79100000 V002 GBB (Mater. Mov.) WRX (GR/IR clearing) Z001 Trading goods ….. Z002 Z003

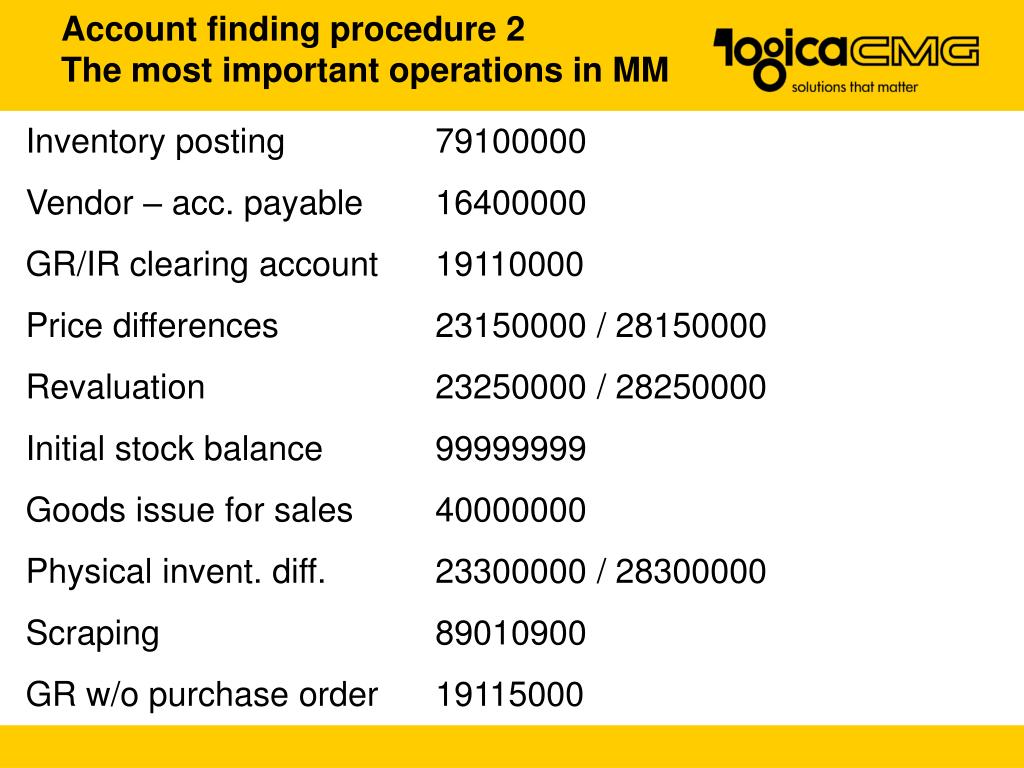

  15. Account finding procedure 2The most important operations in MM Inventory posting 79100000 Vendor – acc. payable 16400000 GR/IR clearing account 19110000 Price differences 23150000 / 28150000 Revaluation 23250000 / 28250000 Initial stock balance 99999999 Goods issue for sales 40000000 Physical invent. diff. 23300000 / 28300000 Scraping 89010900 GR w/o purchase order 19115000

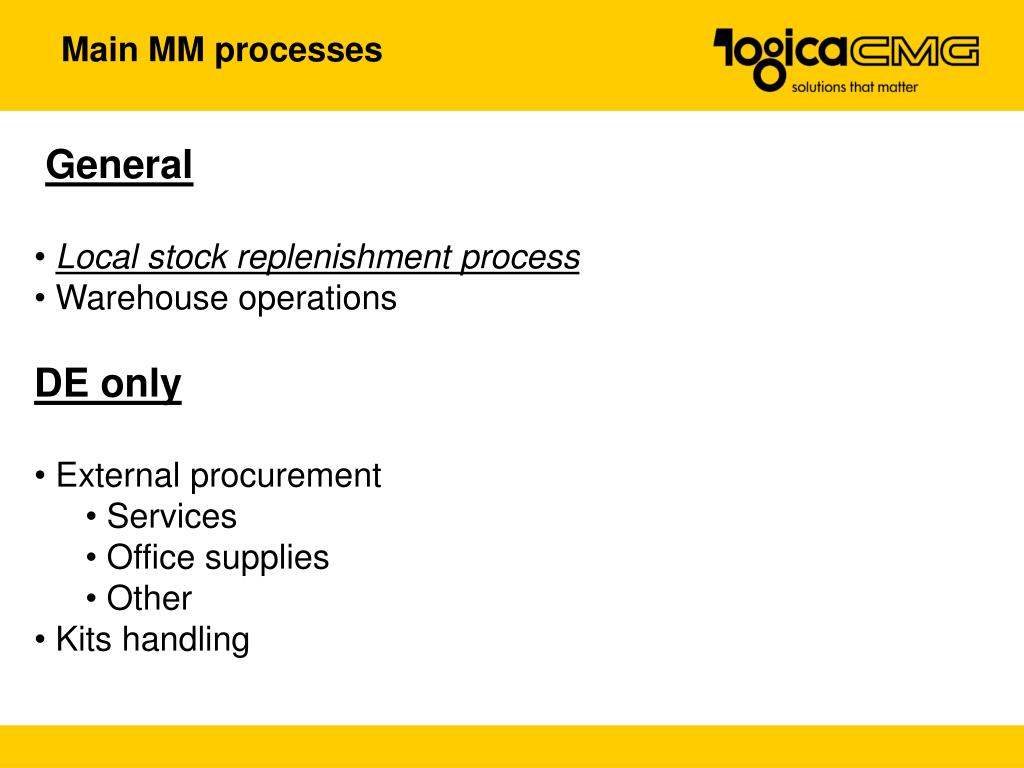

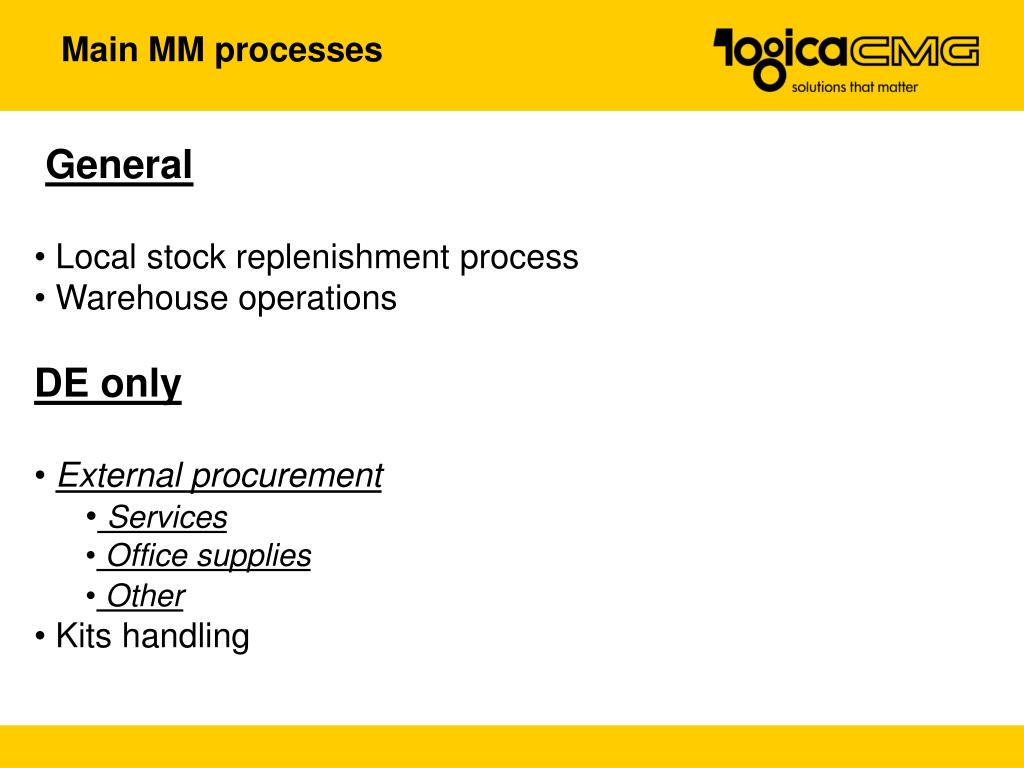

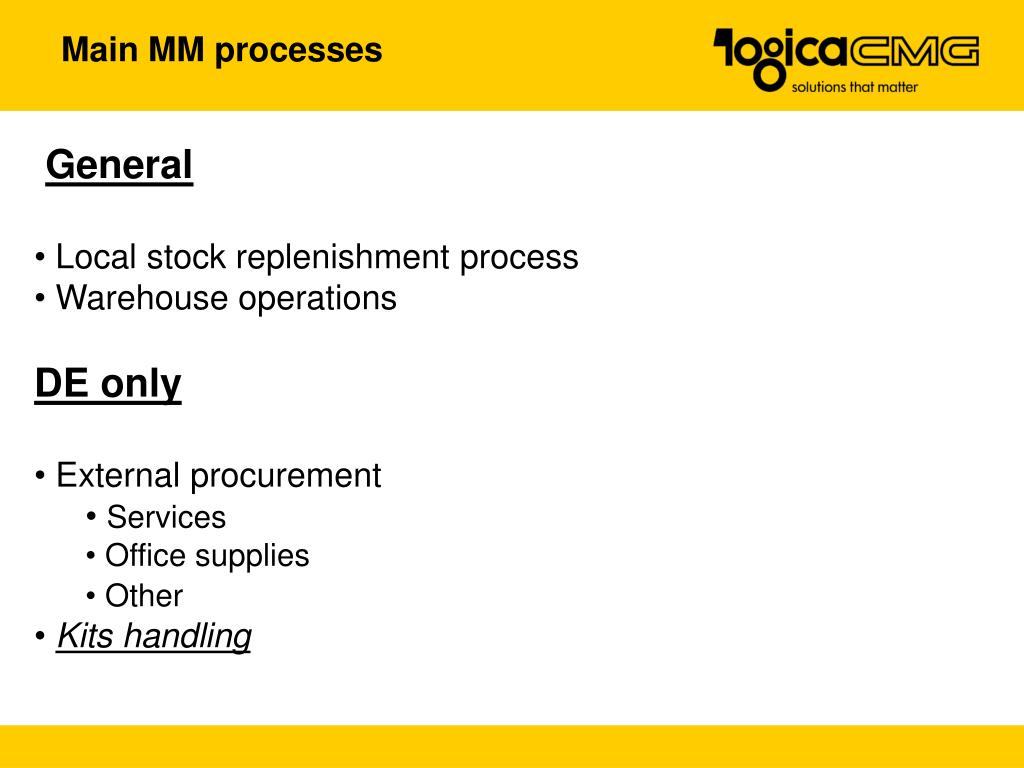

  16. Main MM processes • General • Local stock replenishment process • Warehouse operations • DE only • External procurement • Services • Office supplies • Other • Kits handling

  17. Local stock replenishment process Local stock replenishment process Step 1 – what should be ordered to Italy ? Step 2 – create purchase order (PO) in Italy Step 3 – transfer PO into sales order in CZ Step 4 – sales activities in CZ Step 5 – post goods receipt to the warehouse in Italy Step 6 – post vendor invoice in Italy

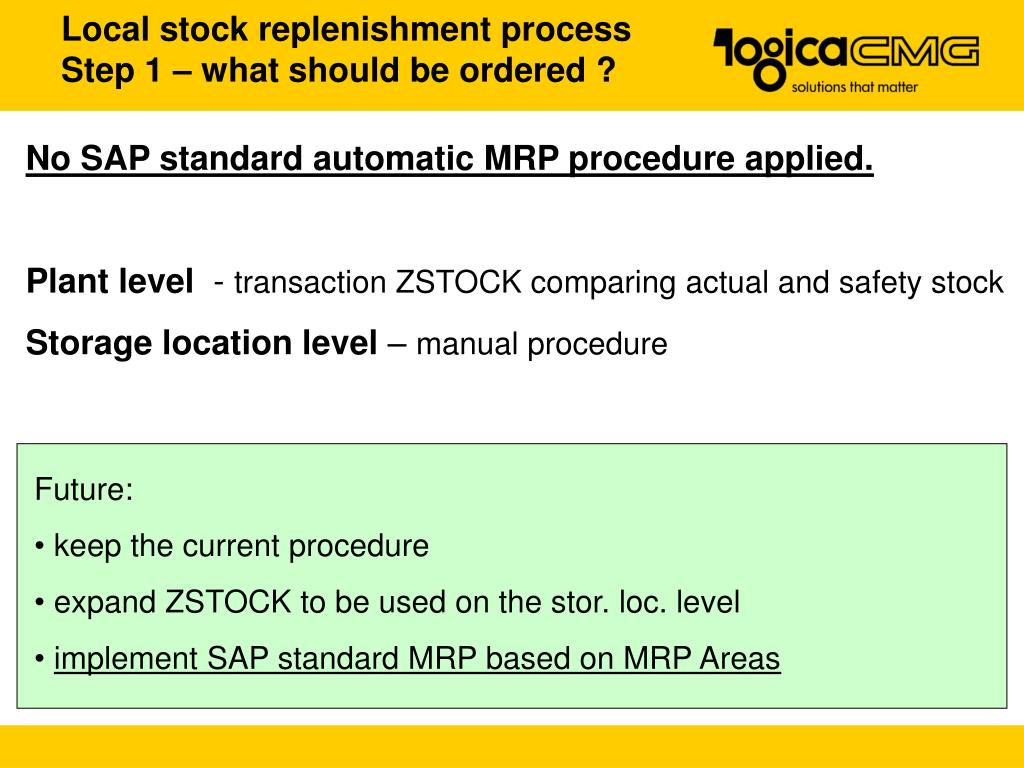

  18. Local stock replenishment processStep 1 – what should be ordered ? No SAP standard automatic MRP procedure applied. Plant level - transaction ZSTOCK comparing actual and safety stock Storage location level – manual procedure • Future: • keep the current procedure • expand ZSTOCK to be used on the stor. loc. level • implement SAP standard MRP based on MRP Areas

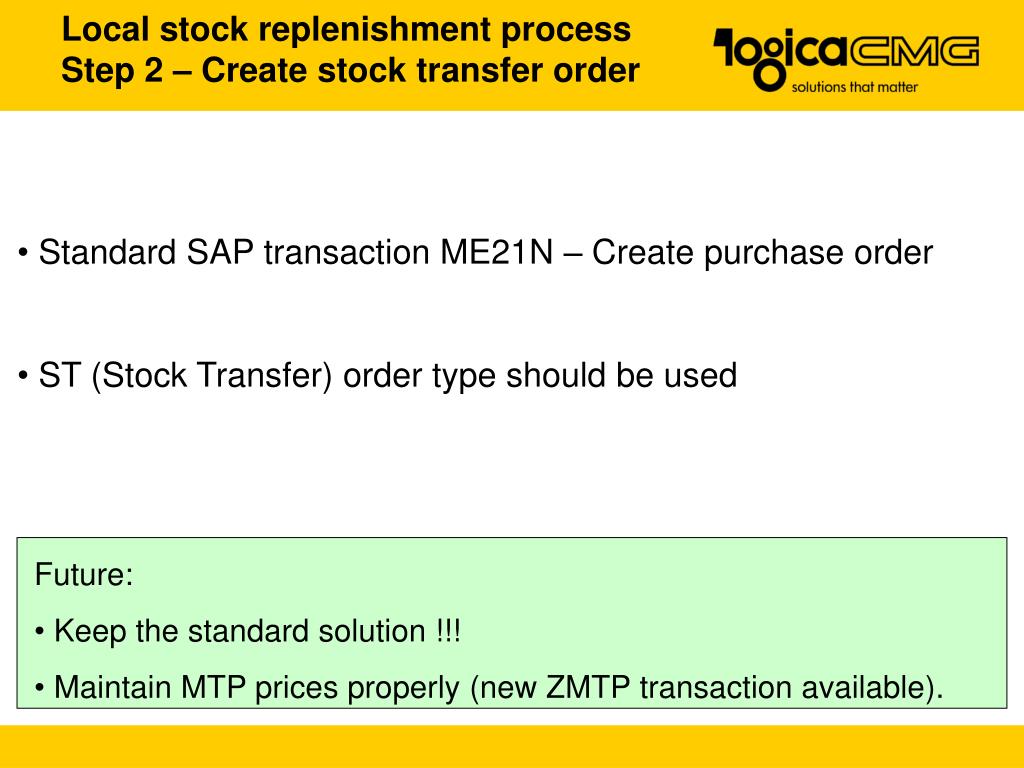

  19. Local stock replenishment processStep 2 – Create stock transfer order • Standard SAP transaction ME21N – Create purchase order • ST (Stock Transfer) order type should be used • Future: • Keep the standard solution !!! • Maintain MTP prices properly (new ZMTP transaction available).

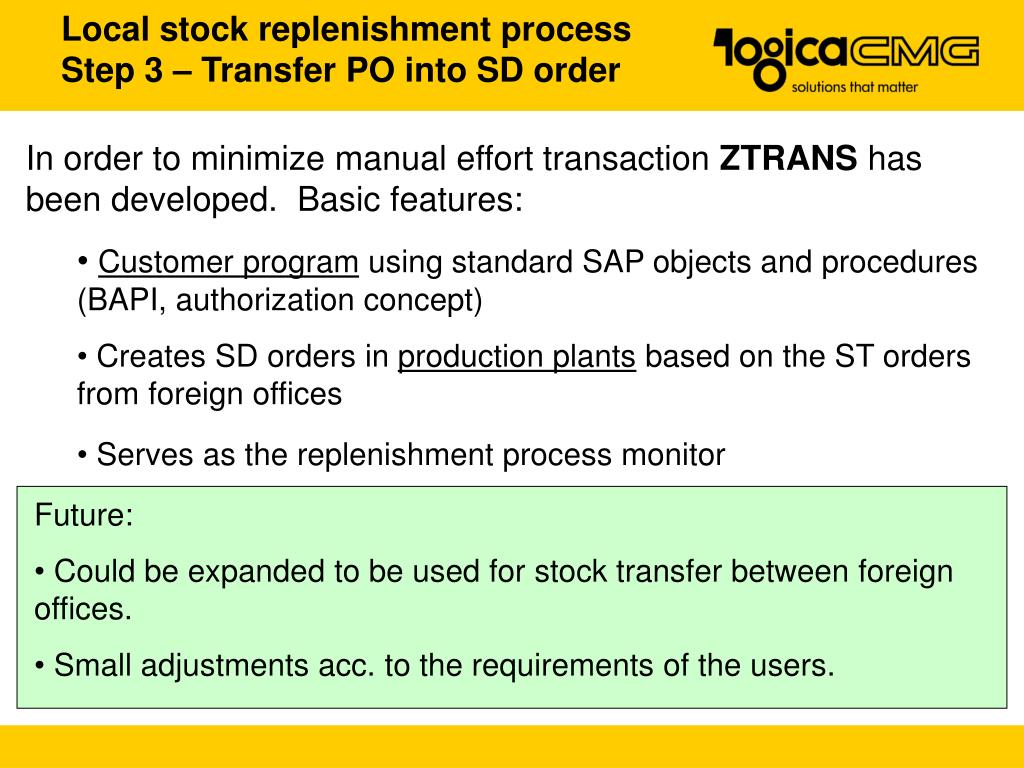

  20. Local stock replenishment processStep 3 – Transfer PO into SD order • In order to minimize manual effort transaction ZTRANS has been developed. Basic features: • Customer program using standard SAP objects and procedures (BAPI, authorization concept) • Creates SD orders in production plants based on the ST orders from foreign offices • Serves as the replenishment process monitor • Future: • Could be expanded to be used for stock transfer between foreign offices. • Small adjustments acc. to the requirements of the users.

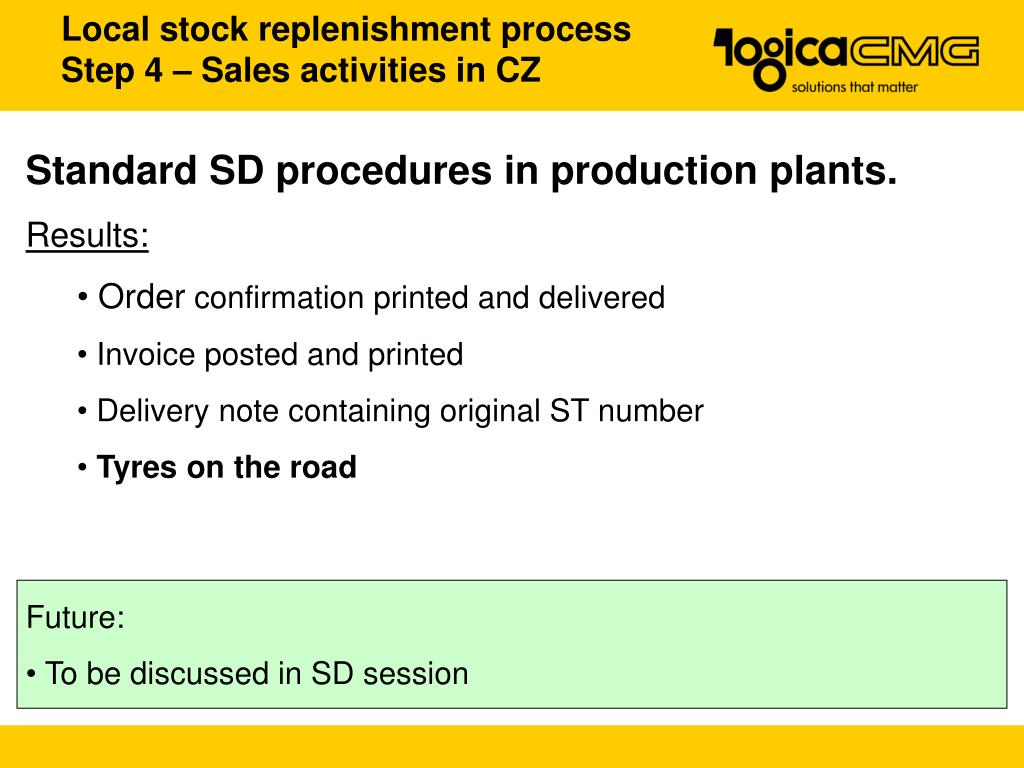

  21. Local stock replenishment processStep 4 – Sales activities in CZ • Standard SD procedures in production plants. • Results: • Order confirmation printed and delivered • Invoiceposted and printed • Delivery note containing original ST number • Tyres on the road • Future: • To be discussed in SD session

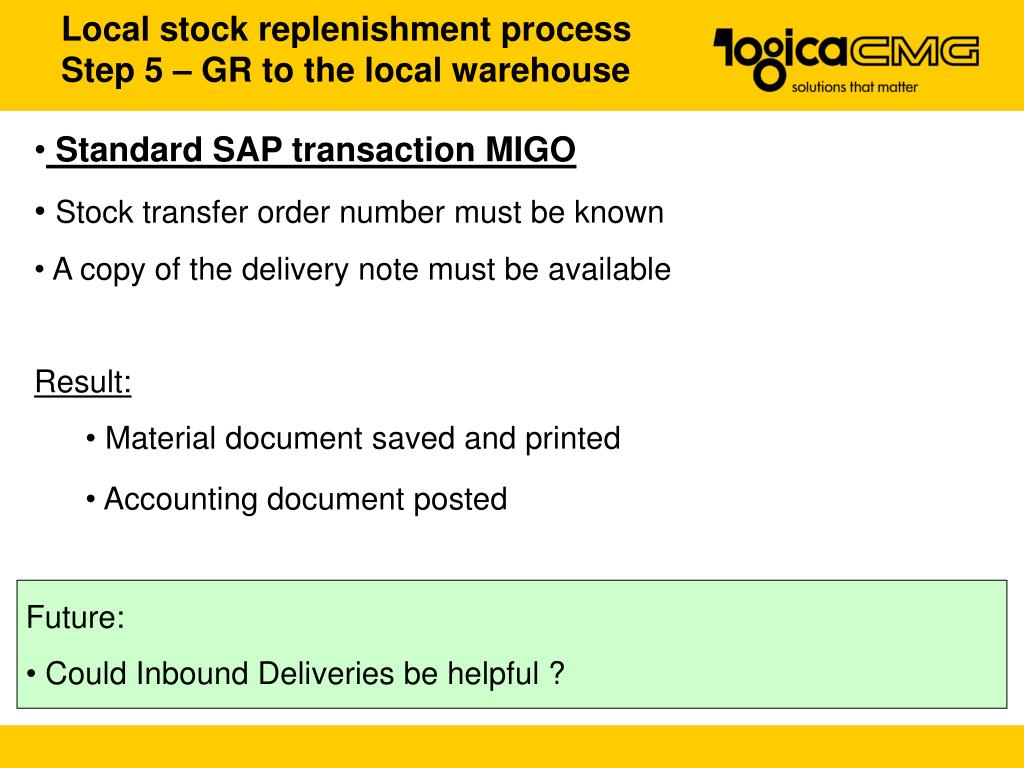

  22. Local stock replenishment processStep 5 – GR to the local warehouse • Standard SAP transaction MIGO • Stock transfer order number must be known • A copy of the delivery note must be available • Result: • Material document saved and printed • Accounting document posted • Future: • Could Inbound Deliveries be helpful ?

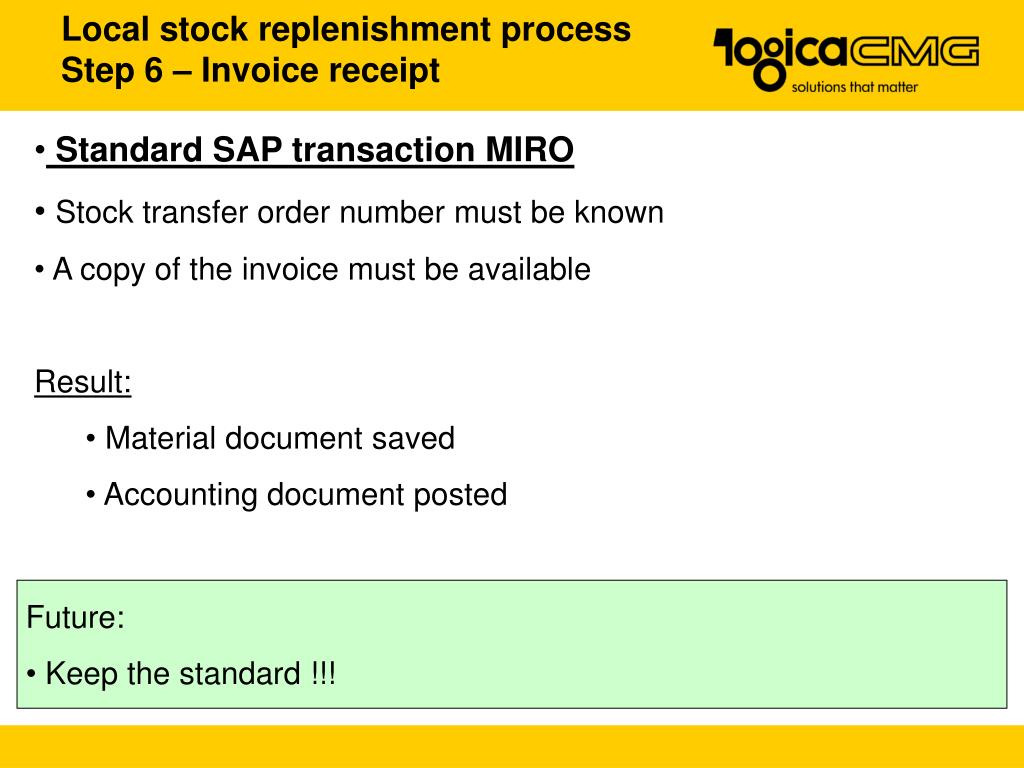

  23. Local stock replenishment processStep 6 – Invoice receipt • Standard SAP transaction MIRO • Stock transfer order number must be known • A copy of the invoice must be available • Result: • Material document saved • Accounting document posted • Future: • Keep the standard !!!

  24. Main MM processes • General • Local stock replenishment process • Warehouse operations • DE only • External procurement • Services • Office supplies • Other • Kits handling

  25. Warehouse operations 1 • Goods receipt: • Goods receipt for purchase order (mov.type 101) • Initial stock entry (mov.type 561) • Return delivery from customer (mov.type 651) • Positive physical inventory differences (mov. type 701) • Goods receipt without purchase order (mov.type 501)

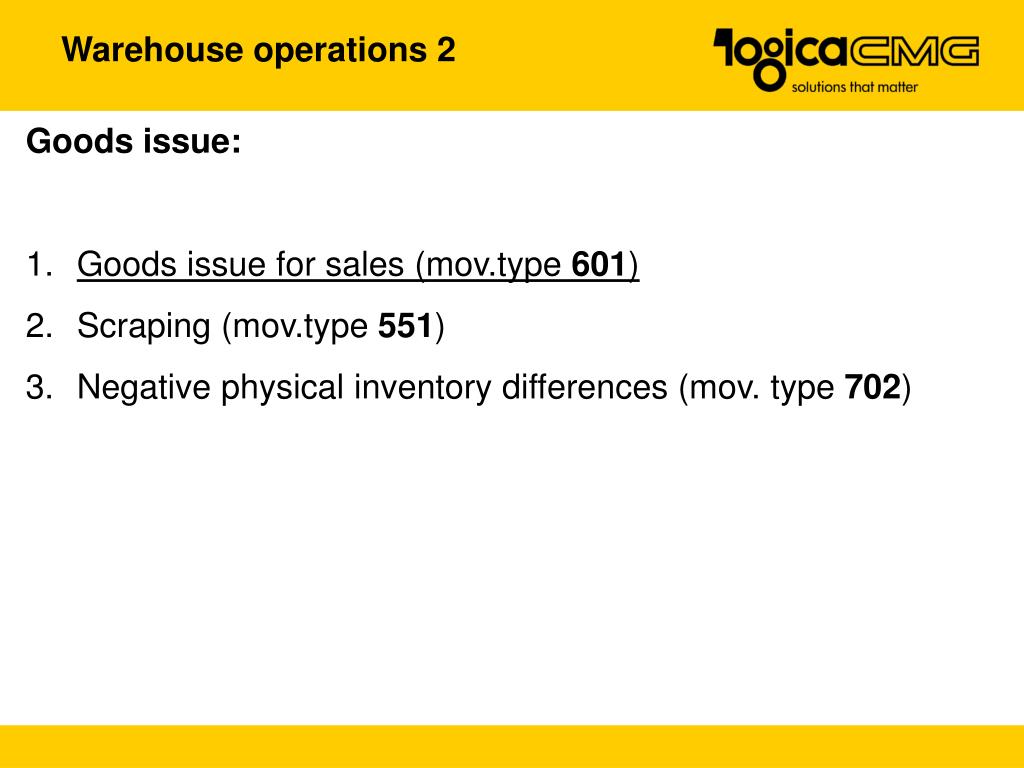

  26. Warehouse operations 2 • Goods issue: • Goods issue for sales (mov.type 601) • Scraping (mov.type 551) • Negative physical inventory differences (mov. type 702)

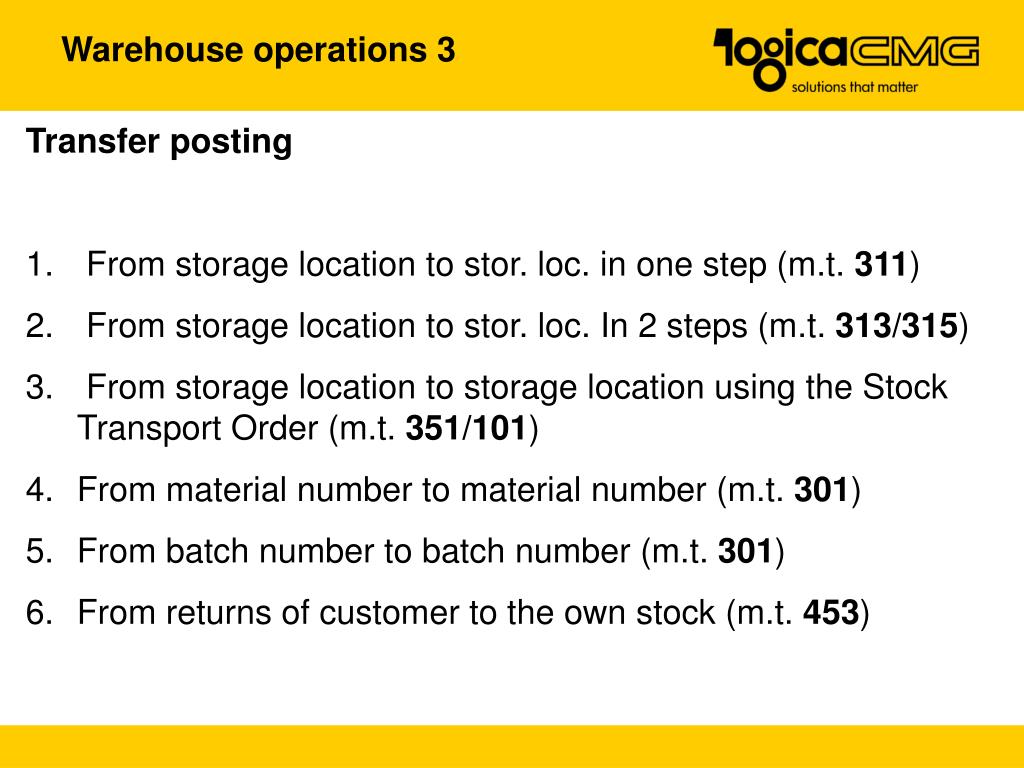

  27. Warehouse operations 3 • Transfer posting • From storage location to stor. loc. in one step (m.t. 311) • From storage location to stor. loc. In 2 steps (m.t. 313/315) • From storage location to storage location using the Stock Transport Order (m.t. 351/101) • From material number to material number (m.t. 301) • From batch number to batch number (m.t. 301) • From returns of customer to the own stock (m.t. 453)

  28. Main MM processes • General • Local stock replenishment process • Warehouse operations • DE only • External procurement • Services • Office supplies • Other • Kits handling

  29. Main MM processes • General • Local stock replenishment process • Warehouse operations • DE only • External procurement • Services • Office supplies • Other • Kits handling

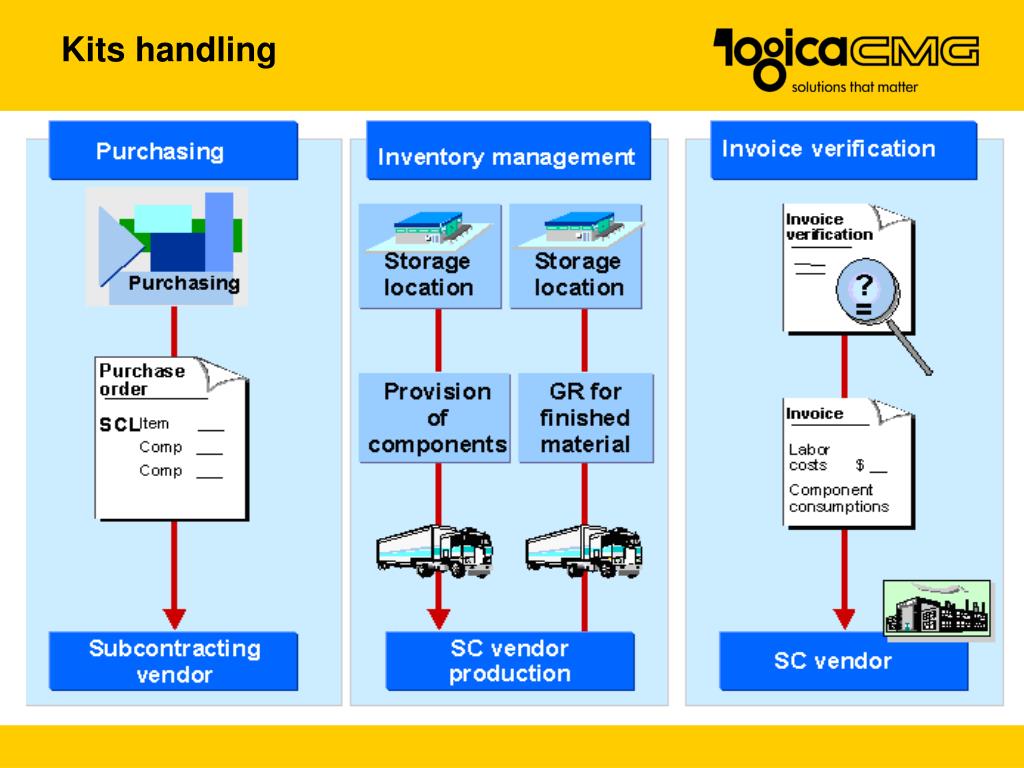

  30. Kits handling
