Momentum/Impulse

Momentum/Impulse. Momentum Recap. Momentum: The product of the mass and velocity of an object “How hard it is to stop something” Equation: p = mv Units: p = kgm/s m = kg v = m/s Vector: When describing the momentum of an object, the direction matters. Momentum Recap.

omar
Télécharger la présentation

Momentum/Impulse

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Momentum/Impulse

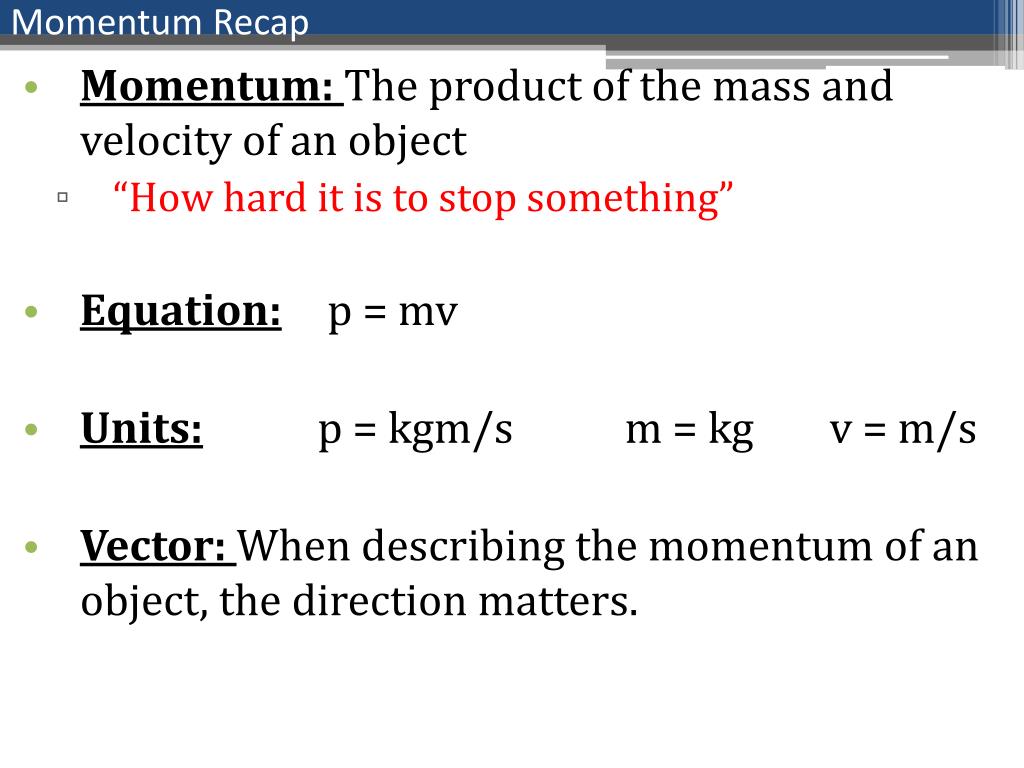

  2. Momentum Recap • Momentum: The product of the mass and velocity of an object • “How hard it is to stop something” • Equation: p = mv • Units: p = kgm/s m = kg v = m/s • Vector: When describing the momentum of an object, the direction matters.

  3. Momentum Recap

  4. Would you rather Would you rather? 1 m/s 100 m/s http://www.youtube.com/watch?v=JK81Ej5hm8s http://www.youtube.com/watch?v=iMq0Wyl-3ho

  5. Would you rather? 10 m/s 10 m/s

  6. Would you rather? 100 m/s 5 m/s

  7. Momentum Recap • Collision: When 2 objects interact and “exchange” momentum • 2 Moving (Bounce off) • 1 Moving (bounce off) • 1 moving (stick together) • “Explosion

  8. Momentum Recap • Conservation of Momentum: The sum of the total momentum BEFORE a collision, is the same as the sum of the total momentum AFTER a collision Momentum Before = Momentum After pi = pf p1i +p2i + p3i = p1f+p2f + p3f

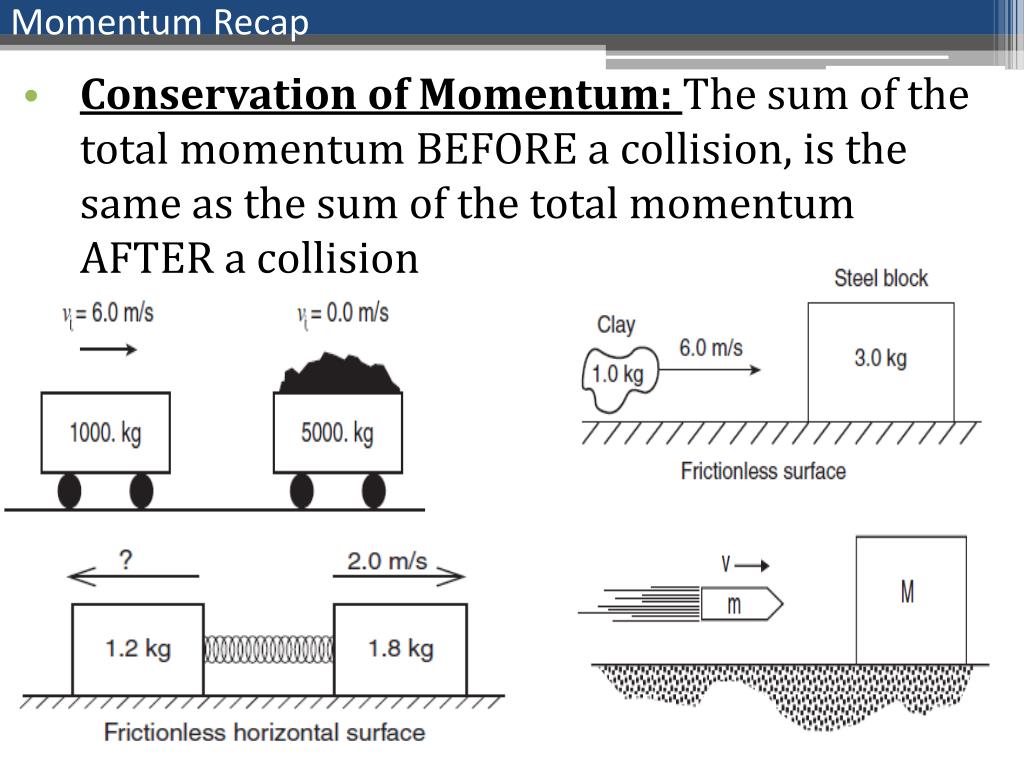

  9. Momentum Recap • Conservation of Momentum: The sum of the total momentum BEFORE a collision, is the same as the sum of the total momentum AFTER a collision

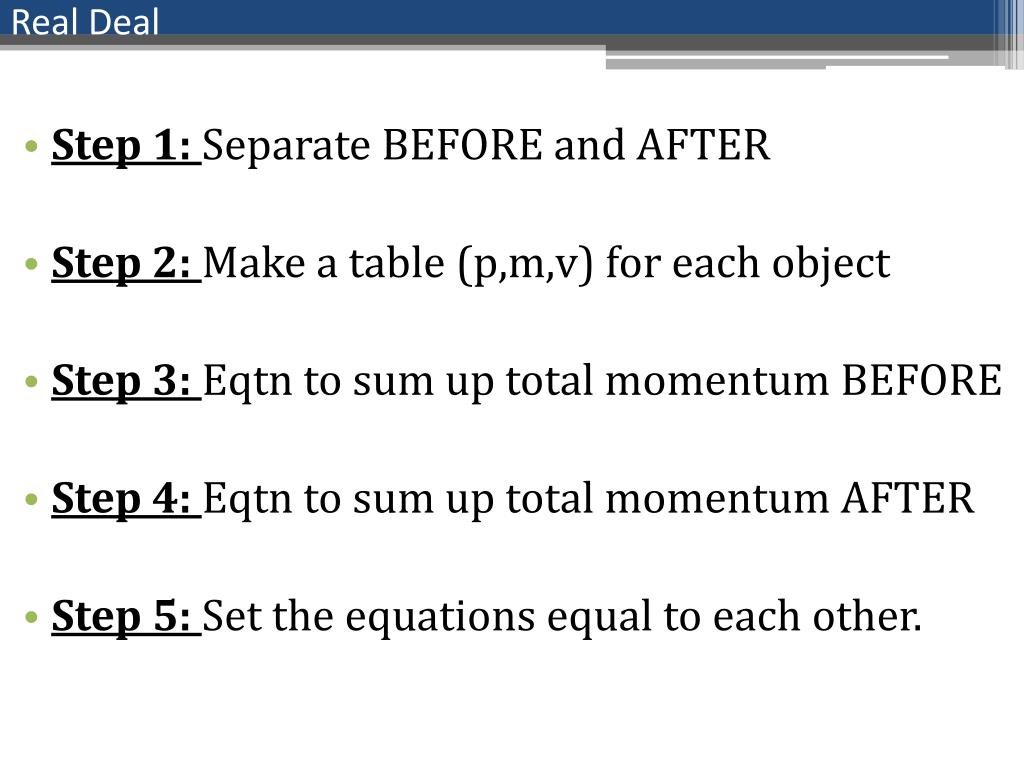

  10. Real Deal • Step 1: Separate BEFORE and AFTER • Step 2: Make a table (p,m,v) for each object • Step 3: Eqtn to sum up total momentum BEFORE • Step 4: Eqtn to sum up total momentum AFTER • Step 5: Set the equations equal to each other.

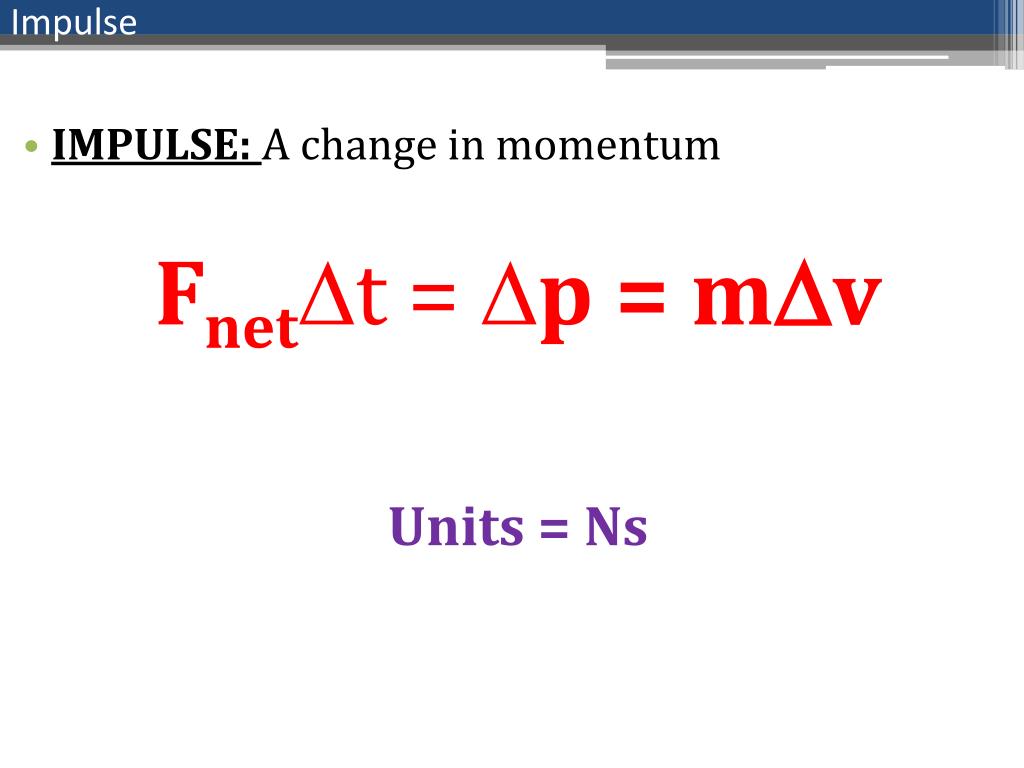

  11. Impulse • IMPULSE: A change in momentum Fnett = p = mv Units = Ns

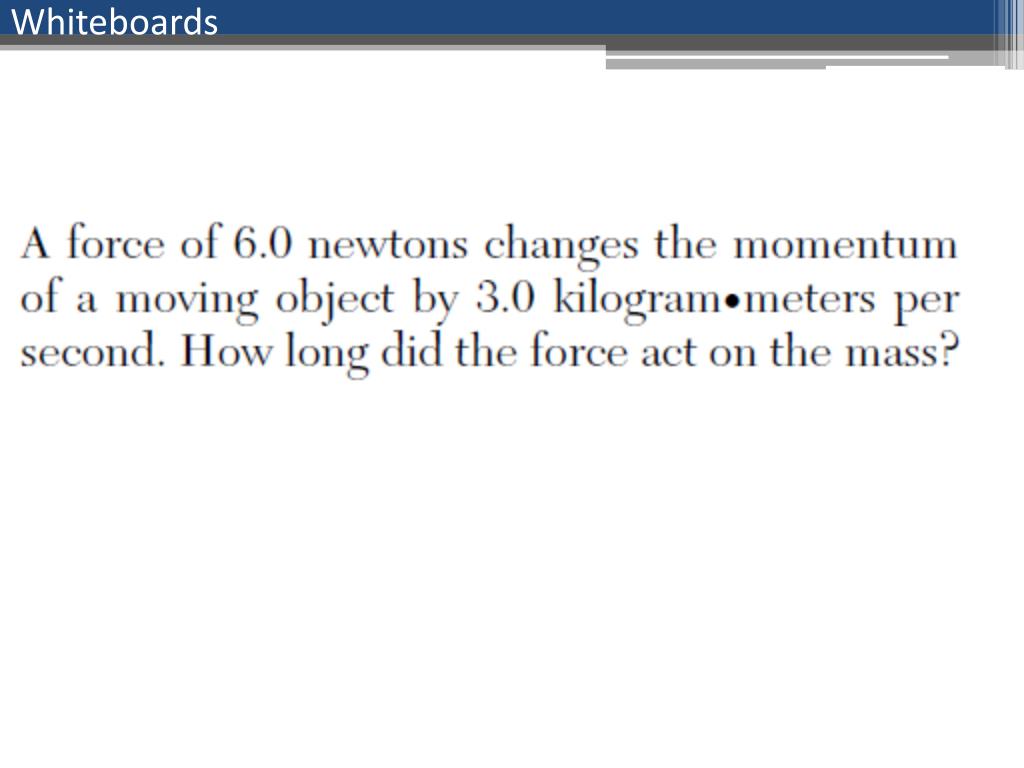

  12. Whiteboards

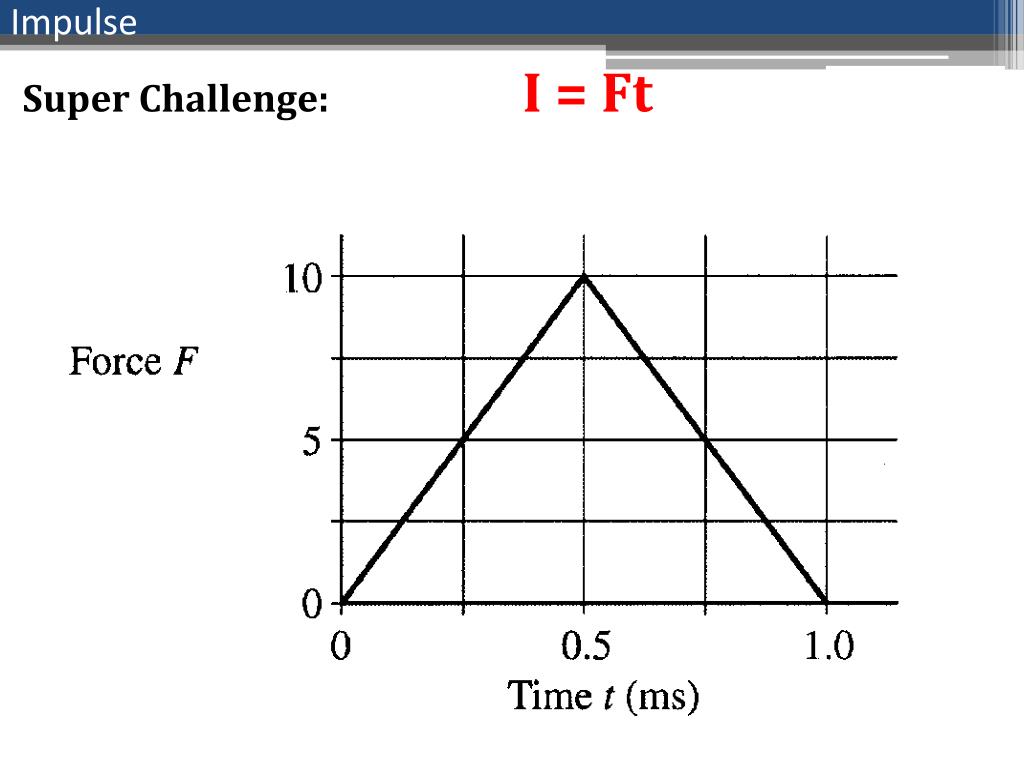

  13. Impulse Super Challenge: I = Ft
