Safe Working Procedure - Excavations

Safe Working Procedure - Excavations . Learning Objectives: By the end of this program participants will be able to demonstrate their understanding of the control measures to be followed , as detailed in the safe working procedure, when working in and around excavations.

omer
Télécharger la présentation

Safe Working Procedure - Excavations

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

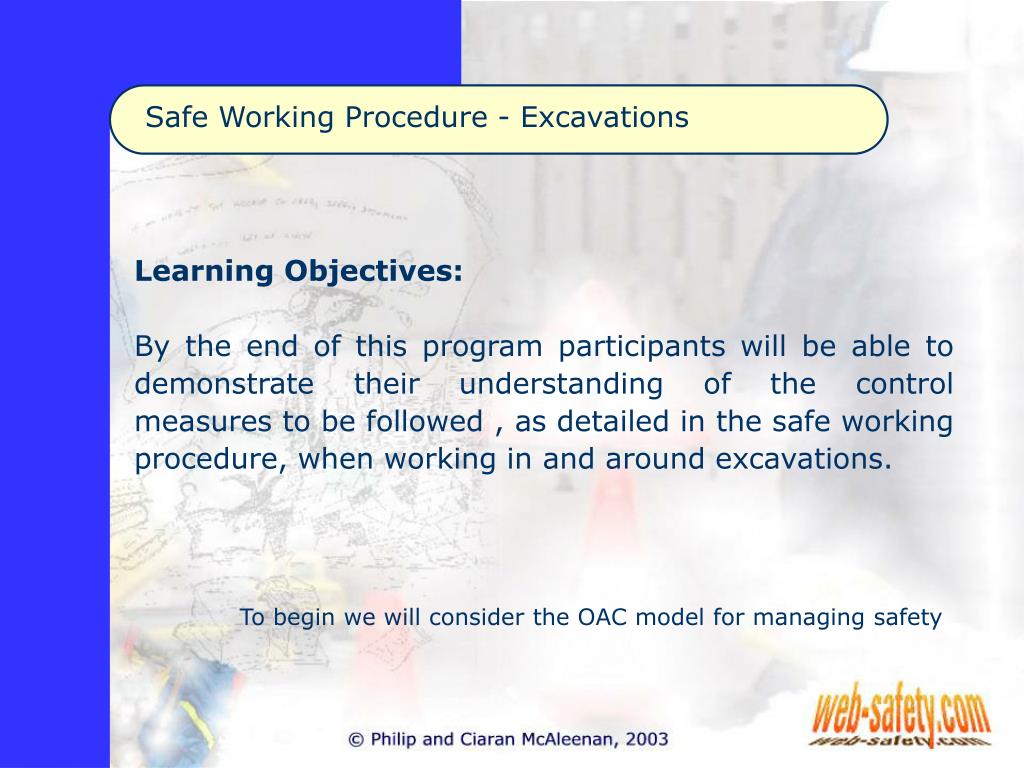

  1. Safe Working Procedure - Excavations Learning Objectives: By the end of this program participants will be able to demonstrate their understanding of the control measures to be followed , as detailed in the safe working procedure, when working in and around excavations. To begin we will consider the OAC model for managing safety

  2. Safe Working Procedure - Excavations

  3. Safe Working Procedure - Excavations Set your work objectives to include; “...tasks/ activities are to be completed on time and in a manner that does not cause harm to the employees, customers, other non-employees, or the company/ organisation.” • Three key questions to start with are… • What can cause harm? • What are you doing about it? • Is it enough? Remember the process is simple but it is NOT to be considered simplistic.

  4. Safe Working Procedure - Excavations The OAC e-learning package can be accessed free at www.confinedspaces.com; Click here to open the "Work Safety - Manage Safely" e-learning program. (Work Safety - Manage Safely) also A 5 Minute Safety Seminar (PowerPoint) is available from www.web-safety.com; Click here to link to Safety Exchange - Then open the 5 minute Safety Seminar.

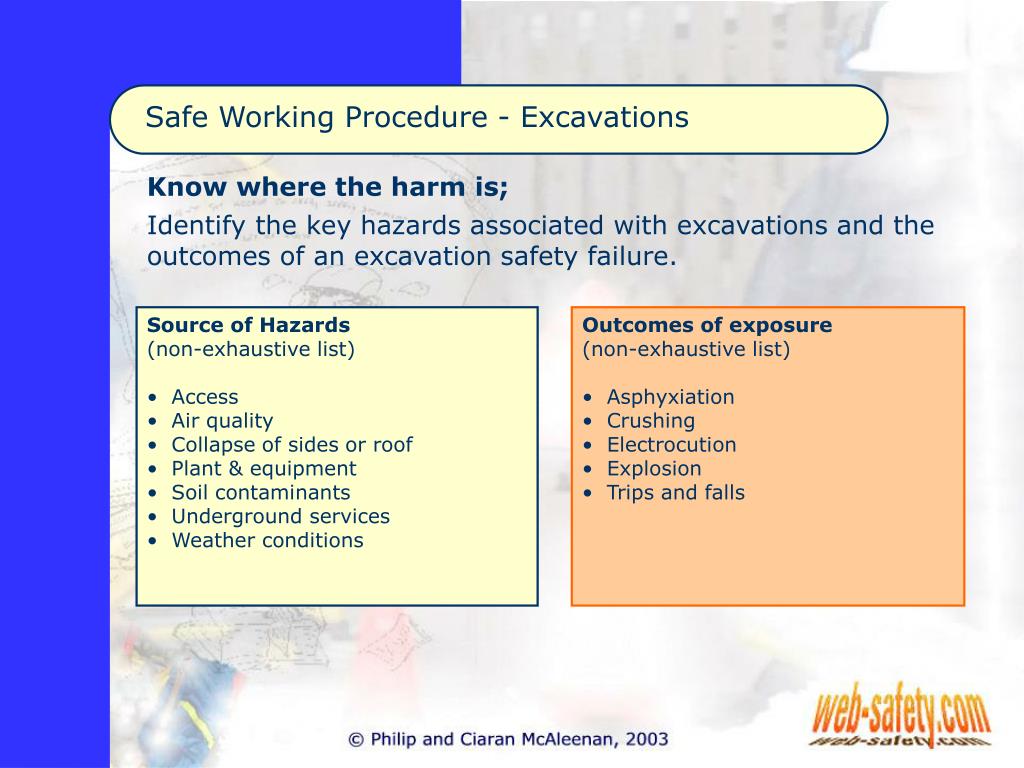

  5. Safe Working Procedure - Excavations Know where the harm is; Identify the key hazards associated with excavations and the outcomes of an excavation safety failure. • Source of Hazards(non-exhaustive list) • Access • Air quality • Collapse of sides or roof • Plant & equipment • Soil contaminants • Underground services • Weather conditions • Outcomes of exposure(non-exhaustive list) • Asphyxiation • Crushing • Electrocution • Explosion • Trips and falls

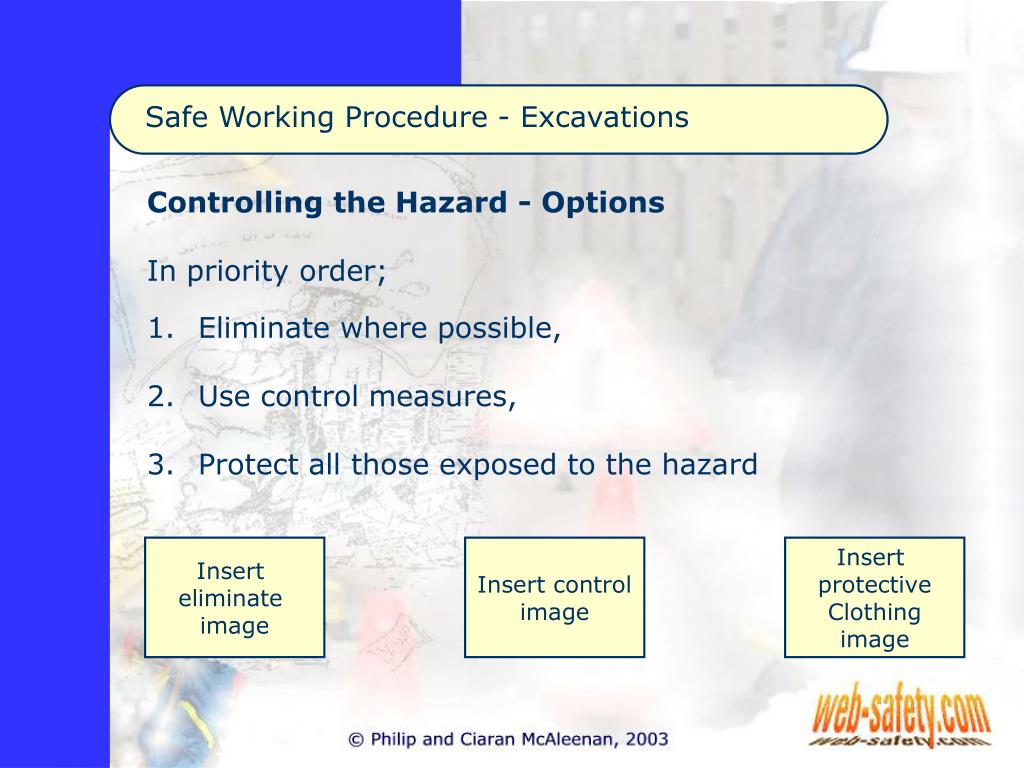

  6. Safe Working Procedure - Excavations • Controlling the Hazard - Options • In priority order; • Eliminate where possible, • Use control measures, • Protect all those exposed to the hazard Insert eliminate image Insert control image Insert protective Clothing image

  7. Safe Working Procedure - Excavations • Systems and Equipment • Proper design, construction and maintenance. • Employ competent staff. • Maintain competence. • Inspections and tests. • Pre-use visual checks. REMEMBER to:Locate and mark any underground services in the vicinity of the excavation before the excavation work starts.

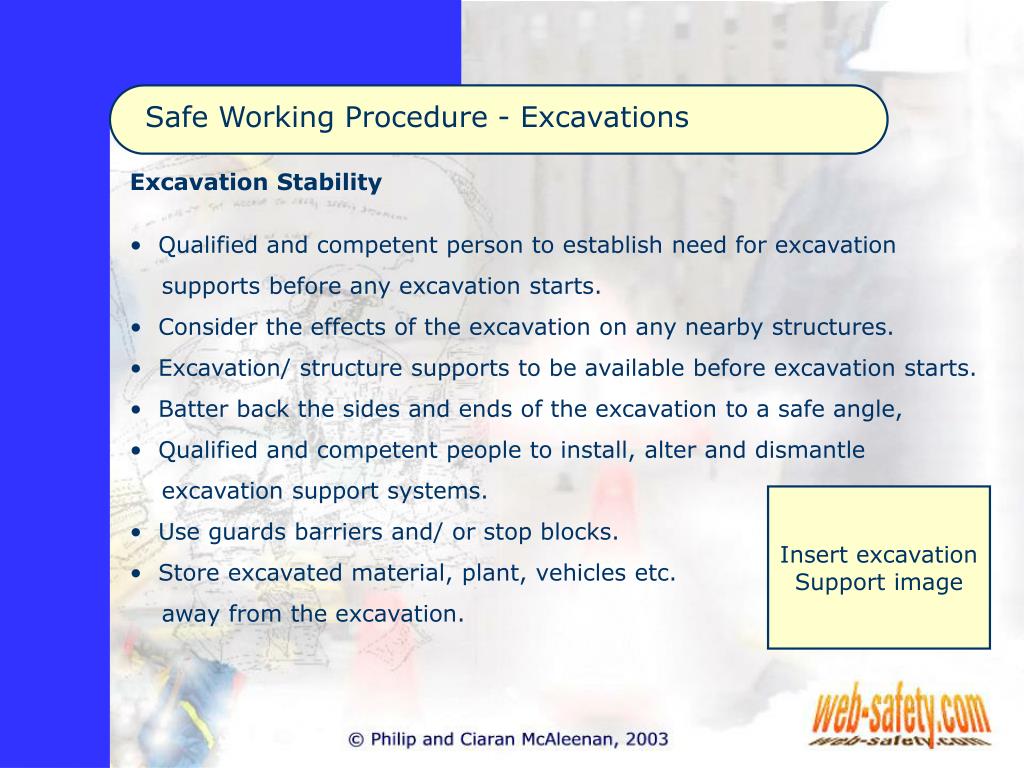

  8. Safe Working Procedure - Excavations • Excavation Stability • Qualified and competent person to establish need for excavation supports before any excavation starts. • Consider the effects of the excavation on any nearby structures. • Excavation/ structure supports to be available before excavation starts. • Batter back the sides and ends of the excavation to a safe angle, • Qualified and competent people to install, alter and dismantle excavation support systems. • Use guards barriers and/ or stop blocks. • Store excavated material, plant, vehicles etc. away from the excavation. Insert excavation Support image

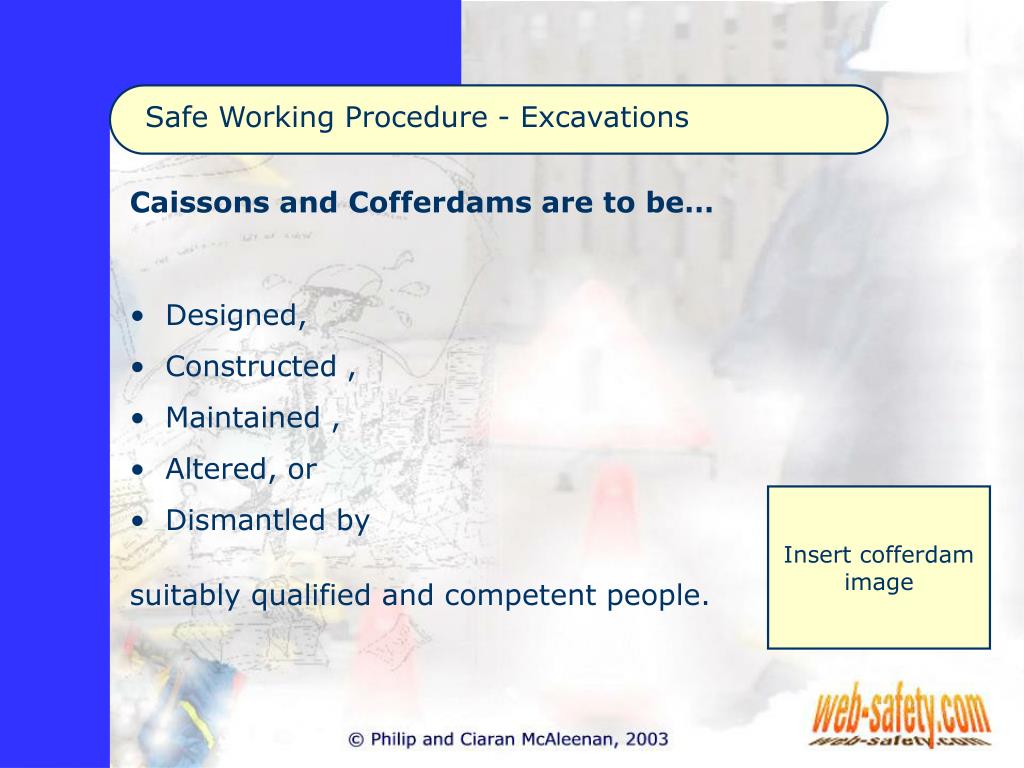

  9. Safe Working Procedure - Excavations • Caissons and Cofferdams are to be… • Designed, • Constructed , • Maintained , • Altered, or • Dismantled by • suitably qualified and competent people. Insert cofferdam image

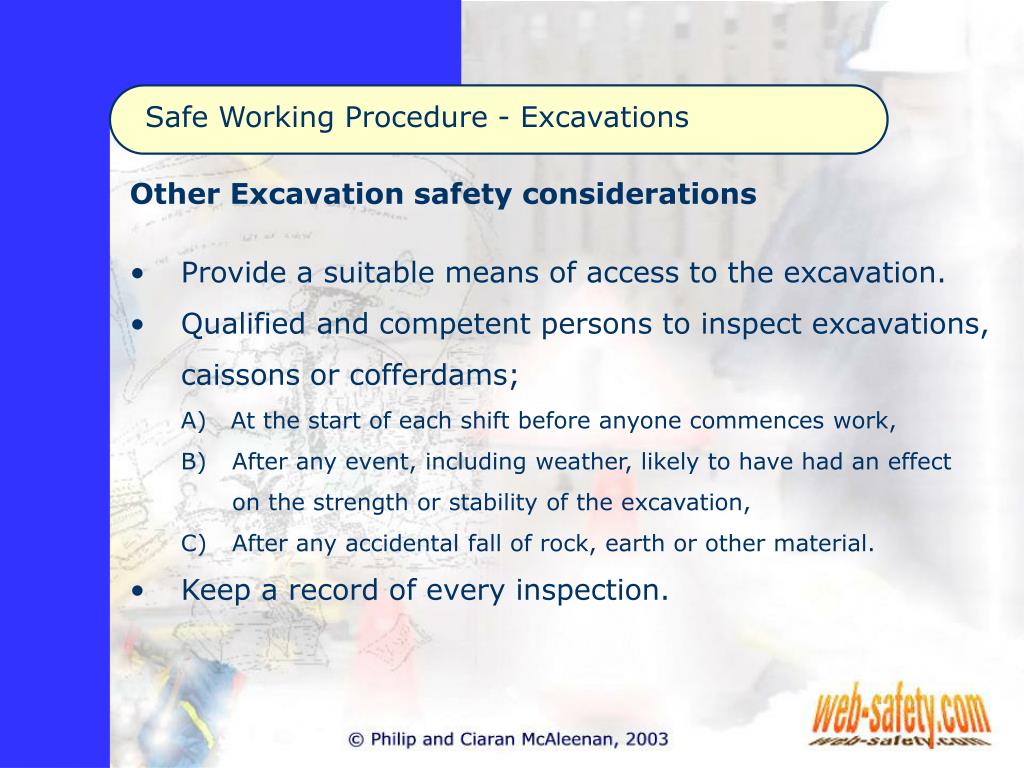

  10. Safe Working Procedure - Excavations • Other Excavation safety considerations • Provide a suitable means of access to the excavation. • Qualified and competent persons to inspect excavations, caissons or cofferdams; • A)At the start of each shift before anyone commences work, • After any event, including weather, likely to have had an effecton the strength or stability of the excavation, • After any accidental fall of rock, earth or other material. • Keep a record of every inspection.

  11. Safe Working Procedure - Excavations • Air quality in Excavations • Provide a sufficient supply of fresh or purified air. • Prevent the ingress of hazardous fumes from engine exhausts or other sources. • Determine the likely effects of soil contaminants. • Monitor the air quality, as necessary.  • Provided an alternate breathable air source if the atmosphere in the excavation is found to be outside the breathable limits. REMEMBER:Confined Spaces procedures will apply where an actual or potential IDLH 1 atmosphere exists 1 IDLH = Immediately dangerous or hazardous to health

  12. Safe Working Procedure - Excavations Duty Holders Responsible for… Managing Director Ensuring compliance. Safety Managers Providing professional safety advice. Business Activity Managers Complying with the requirements. Employees Co-operating with the requirements.

  13. Safe Working Procedure - Excavations • Documentation • Inspection logs, such as… • Excavations, • Cofferdams, and • Caissons.
