1. Time Complexity Dr. Jicheng Fu Department of Computer Science University of Central Oklahoma

2. Objectives (Section 7.6) • The concepts of space complexity and time complexity • Use the step count to derive a function of the time complexity of a program • Asymptotics and orders of magnitude • The big-O and related notations • Time complexity of recursive algorithms

3. Motivation n arr: sorted

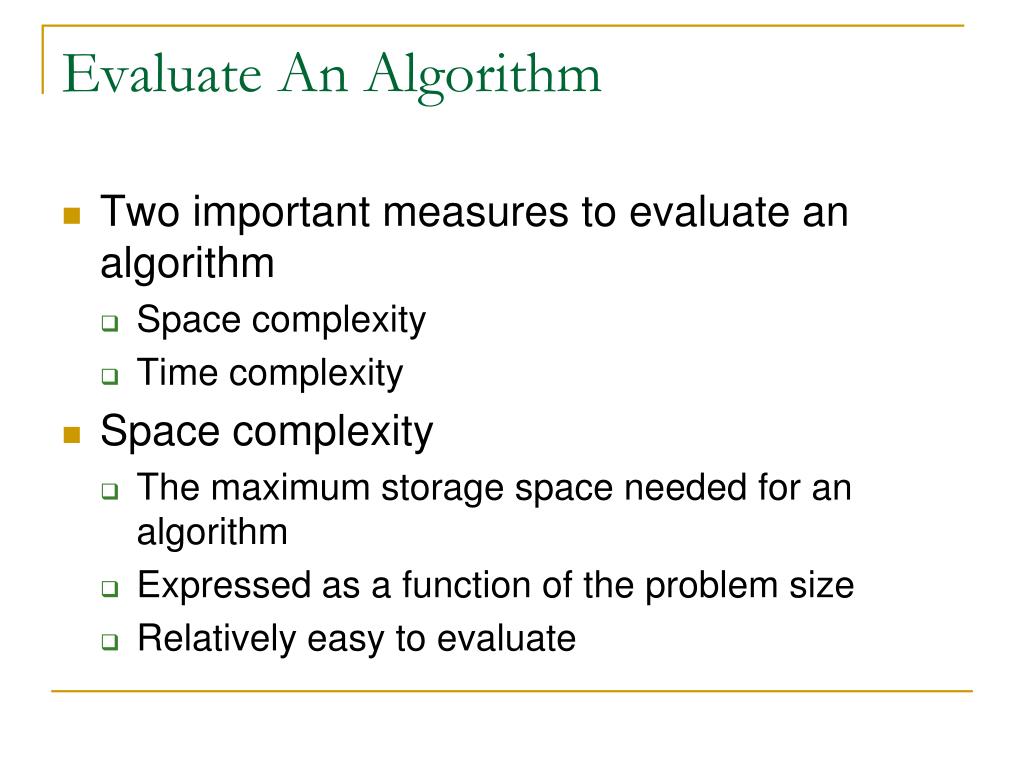

4. Evaluate An Algorithm • Two important measures to evaluate an algorithm • Space complexity • Time complexity • Space complexity • The maximum storage space needed for an algorithm • Expressed as a function of the problem size • Relatively easy to evaluate

5. Time complexity • Determining the number of steps (operations) needed as a function of the problem size • Our focus

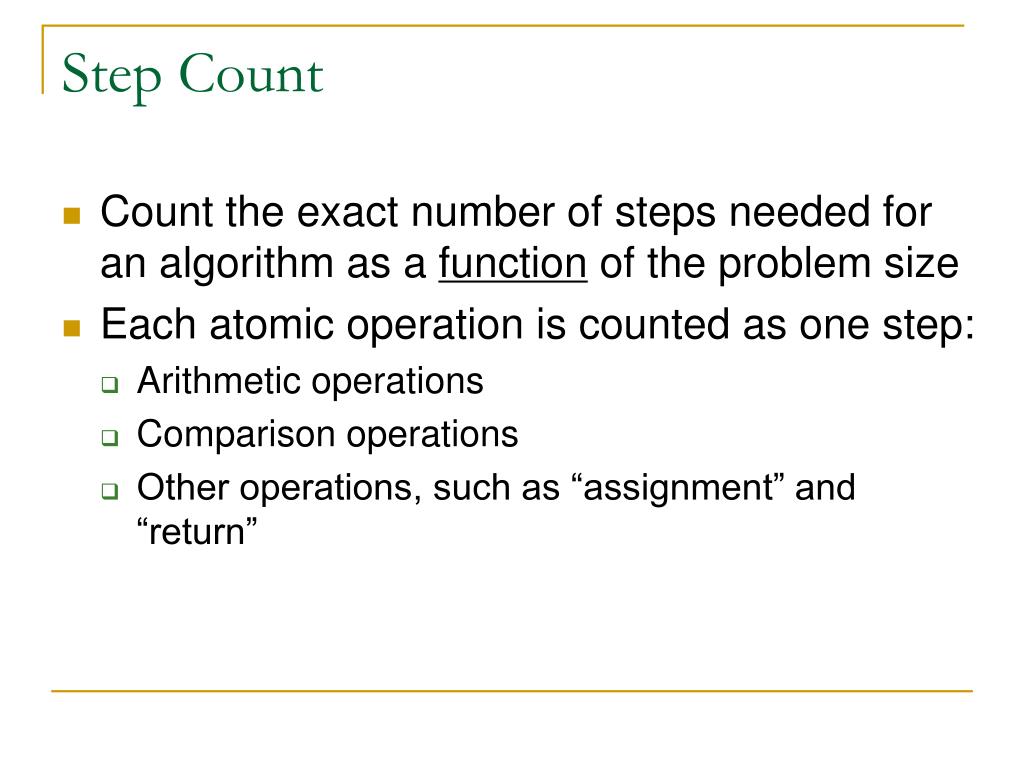

6. Step Count • Count the exact number of steps needed for an algorithm as a function of the problem size • Each atomic operation is counted as one step: • Arithmetic operations • Comparison operations • Other operations, such as “assignment” and “return”

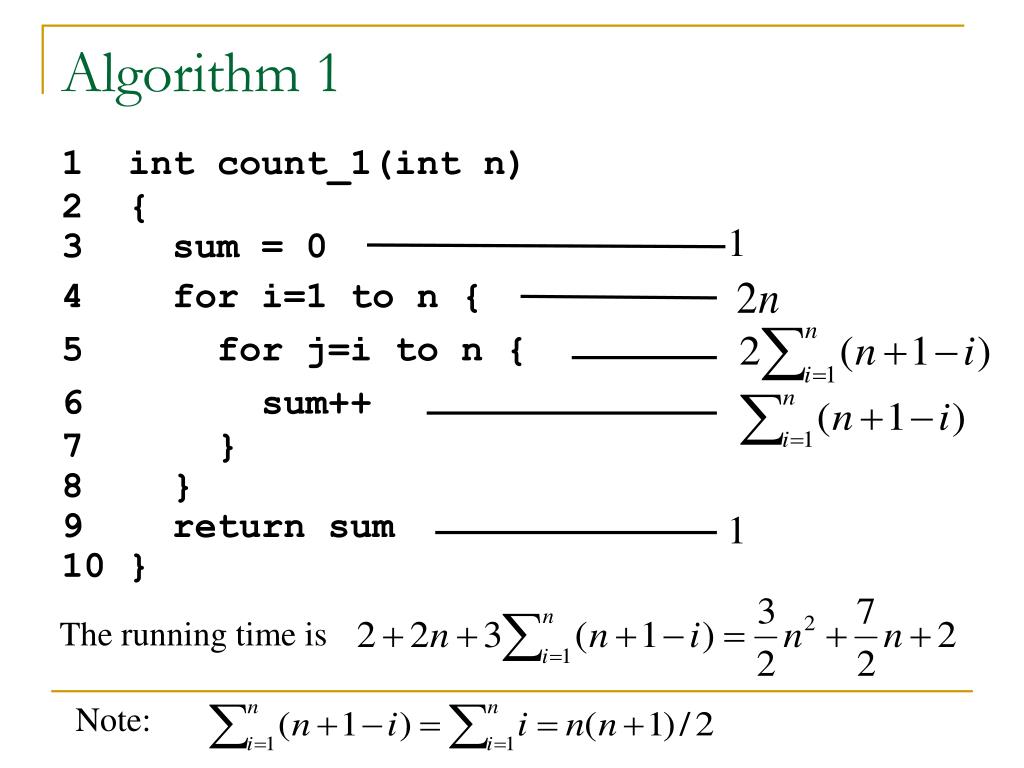

7. Algorithm 1 1 int count_1(int n) 2 { 3 sum = 0 4 for i=1 to n { 5 for j=i to n { 6 sum++ 7 } 8 } 9 return sum 10 } 1 1 The running time is Note:

8. Algorithm 2 1 int count_2(int n) 2 { 3 sum = 0 4 for i=1 to n { 5 sum += n+1-i 6 } 7 return sum 8 } 1 1 The running time is

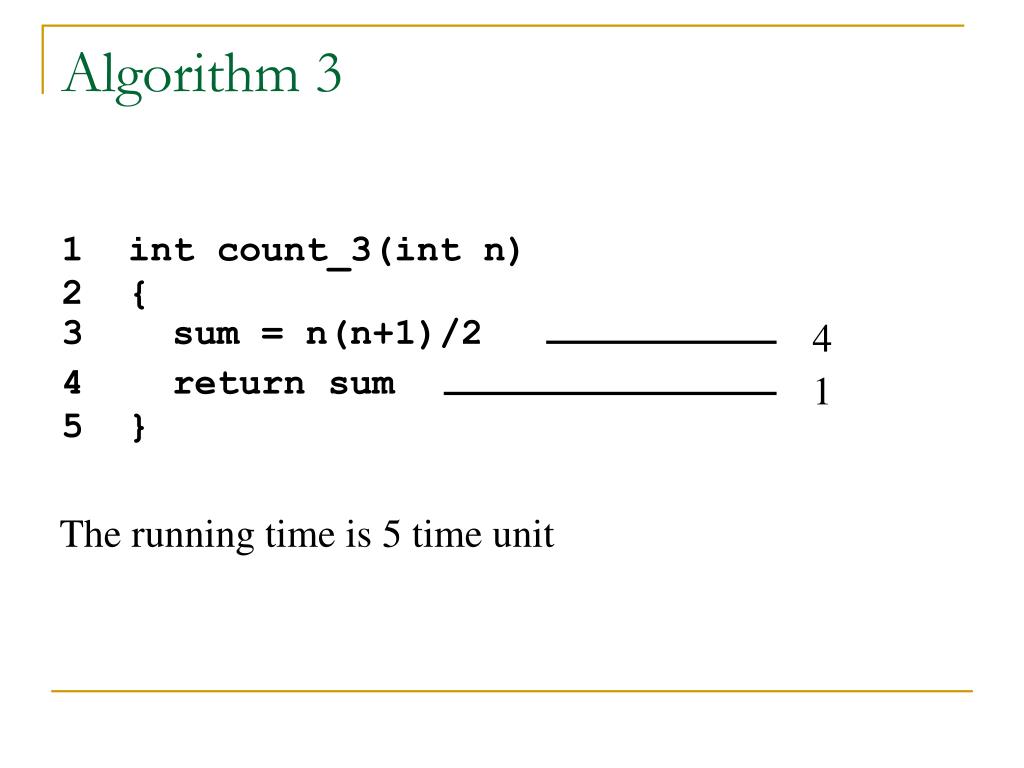

9. Algorithm 3 1 int count_3(int n) 2 { 3 sum = n(n+1)/2 4 return sum 5 } 4 1 The running time is 5 time unit

10. Asymptotics • An exact step count is usually unnecessary • Too dependent on programming languages and programmer’s style • But make little difference in whether the algorithm is feasible or not • A change in fundamental method can make a vital difference • If the number of operations is proportional to n, then double n will double the running time • If the number of operations is proportional to 2n, doubling n will square the number of operations

11. Example: • Assume that a computation that takes 1 second may involve 106 operations • Also assume that double the problem size will require 1012 operations • Increase running time from 1 second to 11.5 days • 1012 operations / 106 operations per second = 106 second  11.5 days

12. Instead of an exact step count, we want a notation that • accurately reflects the increase of computation time with the size, but • ignores details that has little effect on the total • Asymptotics: the study of functions of a parameter n, as n becomes larger and larger without bound

13. Orders of Magnitude • The idea: • Suppose function f(n)measures the amount of work done by an algorithm on a problem of size n • Compare f(n) for large values of n, with some well-known function g(n) whose behavior we already understand • To compare f(n) against g(n): • take the quotient f(n) / g(n), and • take the limit of the quotient as n increases without bound

14. Definition • If then: f(n)has strictly smaller order of magnitudethan g(n). • If is finite and nonzero then: f(n)has the same order of magnitudeas g(n). • If then: f(n)has strictly greater order of magnitudethan g(n).

15. Common choices for g(n): • g(n) = 1 Constant function • g(n) = log n Logarithmic function • g(n) = n Linear function • g(n) = n2 Quadratic function • g(n) = n3 Cubic function • g(n) = 2n Exponential function

16. Notes: • The second case, when f(n) and g(n) have the same order of magnitude, includes all values of the limit except 0 and  • Changing the running time of an algorithm by any nonzero constant factor will not affect its order of magnitude

17. Polynomials • If f(n) is a polynomial in n with degree r , then f(n) has the same order of magnitude as nr • If r < s, then nrhas strictly smaller order of magnitude than ns • Example 1: • 3n2 - 100n - 25 has strictly smaller order than n3

18. Example 2: • 3n2 - 100n - 25 has strictly greater order than n • Example 3: • 3n2 - 100n - 25 has the same order as n2

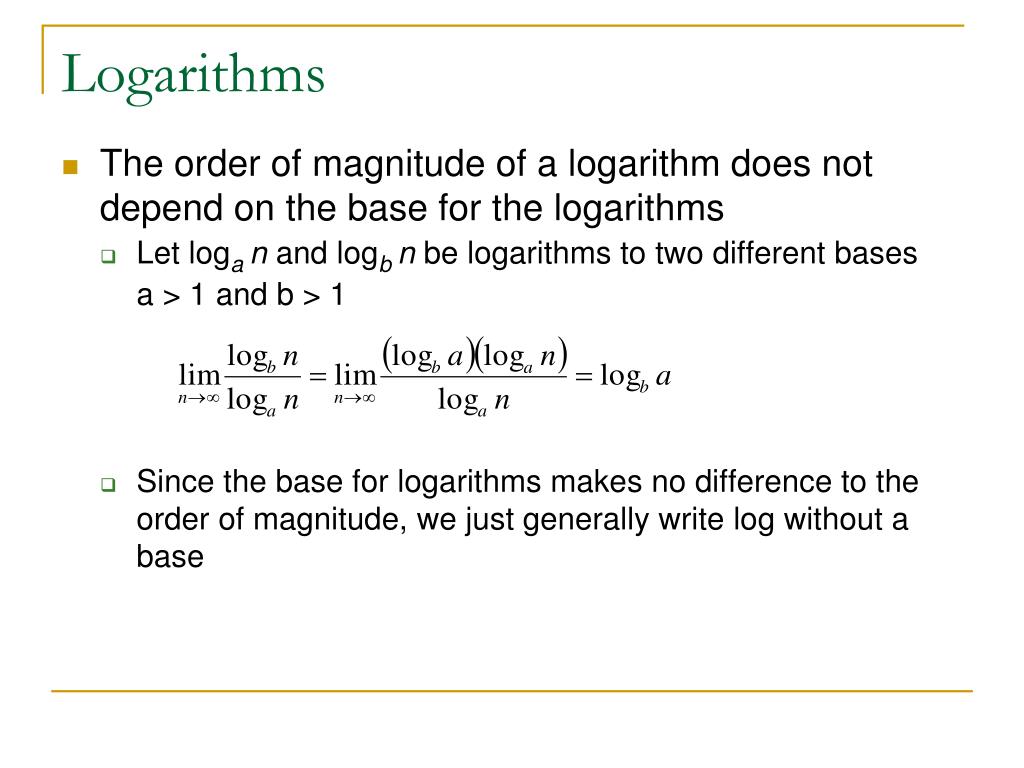

19. Logarithms • The order of magnitude of a logarithm does not depend on the base for the logarithms • Let loga n and logb n be logarithms to two different bases a > 1 and b > 1 • Since the base for logarithms makes no difference to the order of magnitude, we just generally write log without a base

20. Compare the order of magnitude of a logarithm log n with a power of n, say nr (r > 0) • It is difficult to calculate the quotient log n / nr • Need some mathematical tool • L’Hôpital’s Rule • Suppose that: f(n)and g(n)are differentiable functions for all sufficiently large n, with derivatives f’(n)and g’(n), respectively • and • exists • Then exists and

21. Use L’Hôpital’s Rule • Conclusion • log n has strictly smaller order of magnitude than any positive power nrof n, r > 0.

22. Exponential Functions • Compare the order of magnitude of an exponential function an with a power of n, and nr (r > 0) • Use L’Hôpital’s Rule again (pp. 308) • Conclusion: • Any exponential function anfor any real number a > 1 has strictly greater order of magnitude than any power nrof n, for any positive integer r

23. Compare the order of magnitude of two exponential functions with different bases, an and bn • Assume 0  a < b, • Conclusion: • If 0 a < b then anhas strictly smaller order of magnitude than bn

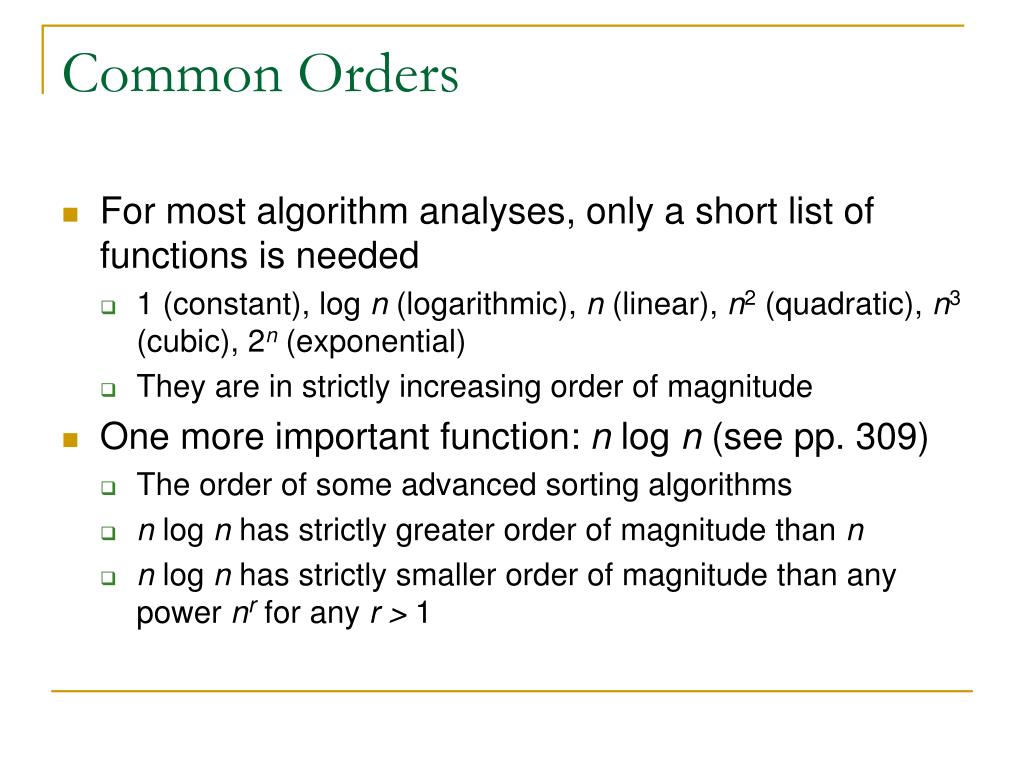

24. Common Orders • For most algorithm analyses, only a short list of functions is needed • 1 (constant), log n (logarithmic), n (linear), n2 (quadratic), n3 (cubic), 2n (exponential) • They are in strictly increasing order of magnitude • One more important function: n log n (see pp. 309) • The order of some advanced sorting algorithms • n log n has strictly greater order of magnitude than n • n log n has strictly smaller order of magnitude than any power nrfor any r > 1

25. Growth Rate of Common Functions

27. The Big-O and Related Notations • These notations are pronounced “little oh”, “Big Oh”, “Big Theta”, and “Big Omega”, respectively.

28. Examples • On a list of length n, sequential search has running time (n) • On an ordered list of length n, binary search has running time (log n) • Retrieval from a contiguous list of length n has running time O(1) • Retrieval from a linked list of length n has running time O(n). • Any algorithm that uses comparisons of keys to search a list of length n must make (log n)comparisons of keys

29. If f(n) is a polynomial in n of degree r , then f(n) is (nr) • If r < s, then nris o(ns) • If a > 1 and b > 1, then loga(n) is (logb(n)) • log n is o(nr)for any r > 0 • For any real number a > 1 and any positive integer r, nris o(an) • If 0 a < b then anis o(bn)

30. Algorithm 4 1 int count_0(int n) 2 { 3 sum = 0 4 for i=1 to n { 5 for j=1 to n { 6 If i<=j then 7 sum++ 8 } 9 } 10 return sum 11 } O(1) O(n) O(n2) O(n2) O(n2) O(1) The running time is O(n2)

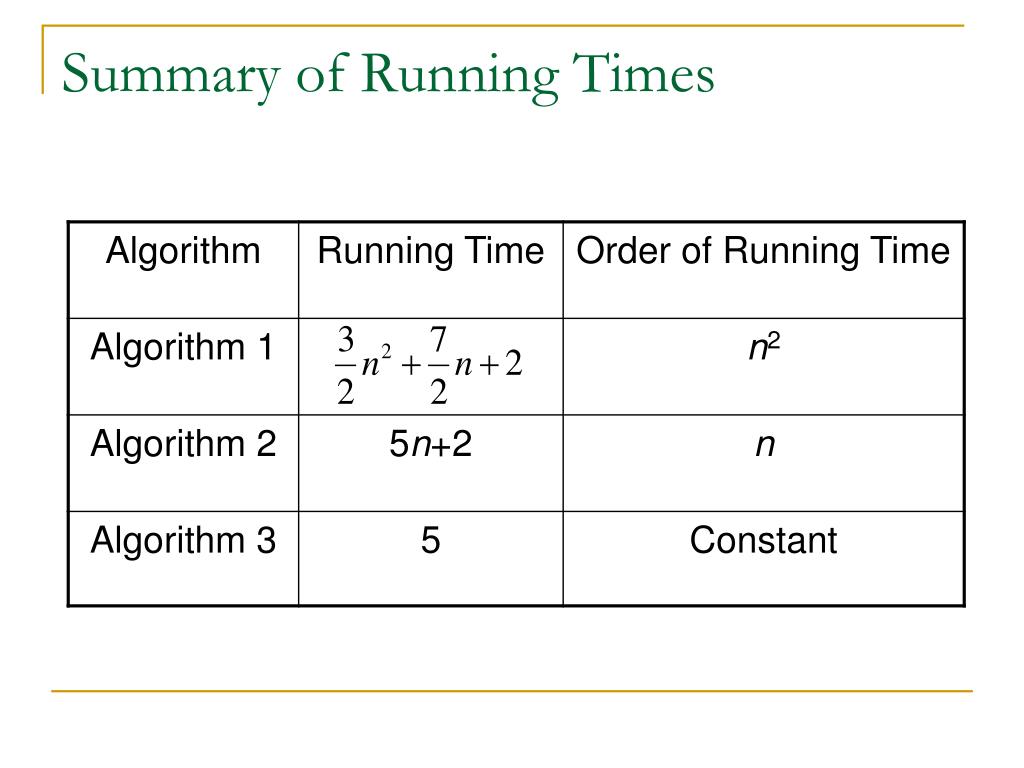

31. Summary of Running Times

32. Asymptotic Running Times

33. More Examples 1) int x = 0; for (int i = 0; i < 100; i++) x += i; 2) int x = 0; for (int i = 0; i < n2; i++) x += i; * Assume that the value of n is the size of the problem

34. 3) int x = 0; for (int i = 1; i < n; i *= 2) x += i; 4) int x = 0; for (int i = 1; i < n; i++) for (int j = 1; j < i; j++) x += i + j;

35. 5) int x = 0; for (int i = 1; i < n; i++) for (int j = i; j < 100; j++) x += i + j; 6) int x = 0; for (int i = 1; i < n; i++) for (int j = n; j > i; j /= 3) x += i + j; 7) int x = 0; for (int i = 1; i < n * n; i++) for (int j = 1; j < i; j++) x += i + j;

36. Review: Arithmetic Sequences/Progressions • An arithmetic sequence is a sequence of numbers such that the difference of any two successive members of the sequence is a constant • If the first term of an arithmetic sequence is a1 and the common difference of successive members is d, then the nth term an of the sequence is:

37. Analyzing Recursive Algorithms • Often a recurrence equation is used as the starting point to analyze a recursive algorithm • In the recurrence equation, T(n) denotes the running time of the recursive algorithm for an input of size n • We will try to convert the recurrence equation into a closed form equation to have a better understanding of the time complexity • Closed Form: No reference to T(n) on the right side of the equation • Conversions to the closed form solution can be very challenging

38. Example: Factorial int factorial (int n) /* Pre: n is an integer no less than 0 Post: The factorial of n (n!) is returned Uses: The function factorial recursively */ { if (n == 0) return 1; else return n * factorial (n - 1); } } 1

39. The time complexity of factorial(n) is: • T(n) is an arithmetic sequence with the common difference 4 of successive members and T(0) equals 2 • The time complexity of factorial is O(n) 3+1: The comparison is included

40. Recurrence Equations Examples • Divide and conquer: Recursive merge sorting template <class Record> void Sortable_list<Record> :: recursive_merge_sort( int low, int high) /* Post: The entries of the sortable list between index low and high have been rearranged so that their keys are sorted into non-decreasing order. Uses: The contiguous List */ { if (high > low) { recursive_merge_sort(low, (high + low) / 2); recursive_merge_sort((high + low) / 2 + 1, high); merge(low, high); } }

41. The time complexity of recursive_merge_sort is: • To obtain a closed form equation for T(n), we assume n is a power of 2 • When i = log2n, we have: • The time complexity is O(nlogn)

42. Fibonacci numbers int fibonacci(int n) /* fibonacci : recursive version */ { if (n <= 0) return 0; else if (n == 1) return 1; else return fibonacci(n − 1) + fibonacci(n − 2); }

43. The time complexity of fibonacci is: • Theorem (in Section A.4): If F(n) is defined by a Fibonacci sequence, then F(n) is (gn), where • The time complexity is exponential: O(gn)
