  1. Parani-MSP1000 Firmware Upgrade v1.2.0 Notes 2008-05-20 Sena Technologies

  2. Contents • New Features • Repeater mode • Serial Hub mode • Vertex mode • Control Commands • Others • Serial modem card support • VFAT support • Enhanced handling of Bluetooth FTP • RFC2217 support • Bug Fix List

  3. Repeater Mode • New mode added to the list of Operation mode • Menu: Bluetooth -> Operation Mode • Parani-MSP1000 in Repeater mode can be used to function as a Repeater in order to extend the range of Bluetooth transmission or avoid obstacles between Parani-MSP1000 and Bluetooth devices • Manual 4.2.2 Repeater Mode > page 28

  4. Repeater Mode Typical Application: • Extend the transmission range when there is an obstacle between MSP1000 and ESD100-embedded devices • PC can manage both 3 ESD’s connected to the station and the other 3 ESD’s connected to the repeater at the same time ESD1 MSP Repeater MSP Station PC ESD2 ESD4 ESD5 ESD6 ESD3

  5. SD B SD A SD C SD D Fig. Serial hub mode (SD A~D : Parani-SD100s) Serial Hub mode • New mode added to the list of Service Category • Menu: Serial Port Profile -> Port configuration -> Service Category • In Serial Hub mode, one SD connected to MSP1000 can communicate with multiple SD’s connected to MSP1000 can communicate with each other, 1:N multi-serial connection • Ideal for the cable replacement of RS422/485 Multi-Drop network • Manual 5.5.4 & 5.5.8

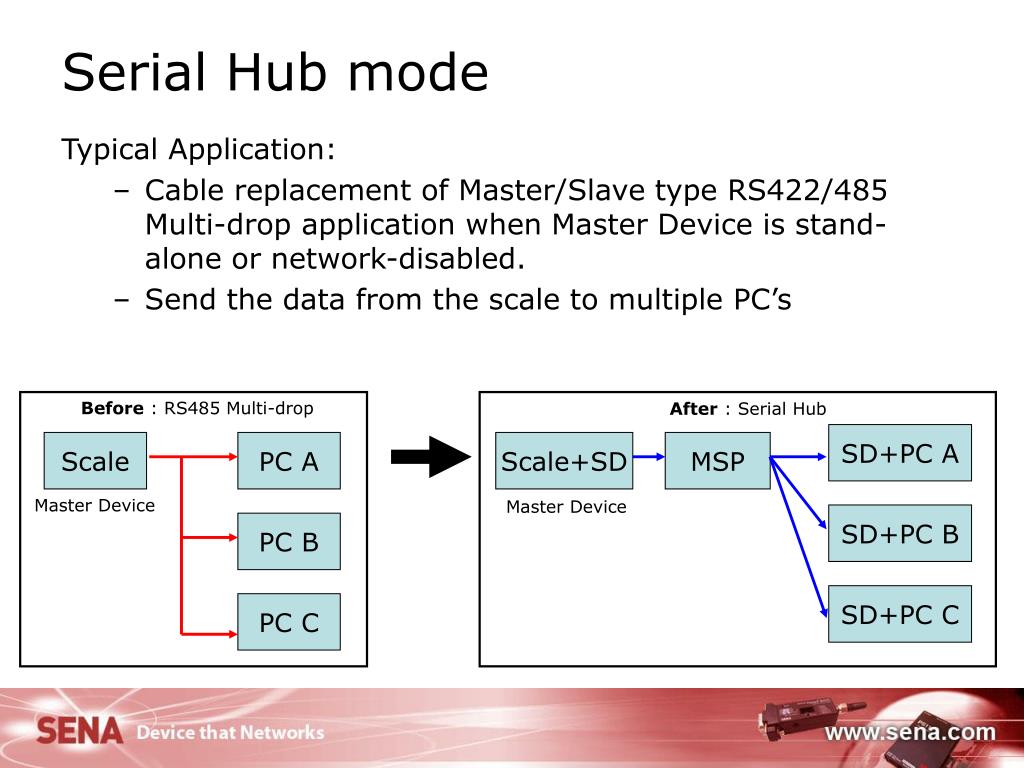

  6. Serial Hub mode Typical Application: • Cable replacement of Master/Slave type RS422/485 Multi-drop application when Master Device is stand-alone or network-disabled. • Send the data from the scale to multiple PC’s Before : RS485 Multi-drop After : Serial Hub SD+PC A Scale PC A Scale+SD MSP Master Device Master Device SD+PC B PC B SD+PC C PC C

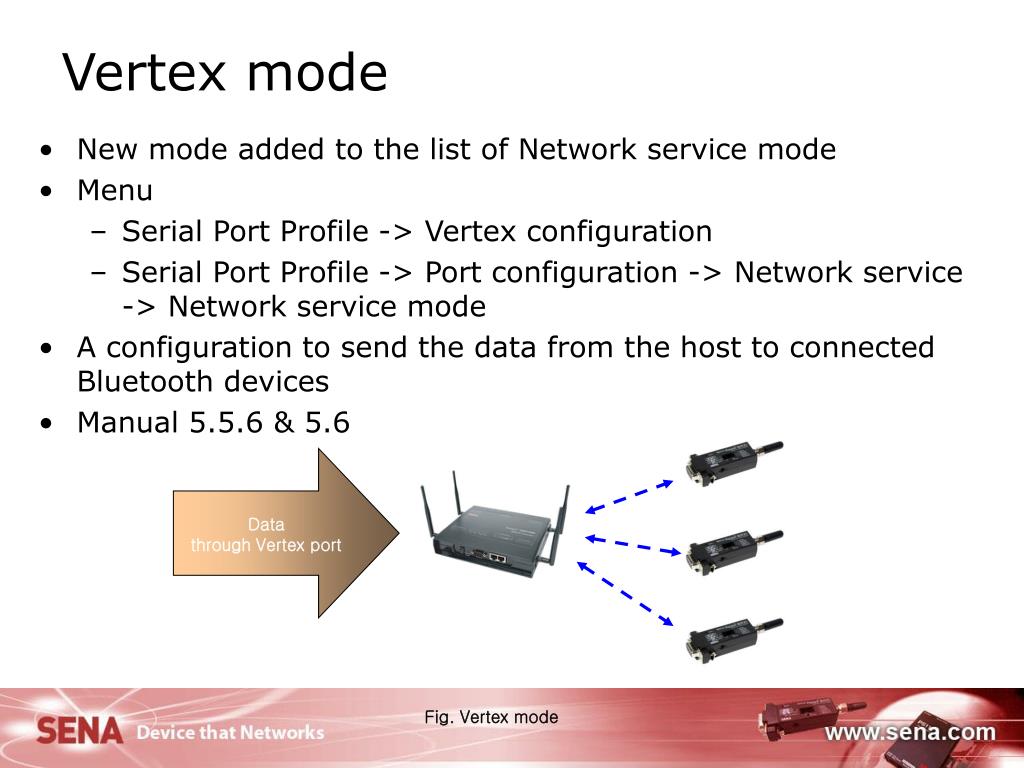

  7. Data through Vertex port Fig. Vertex mode Vertex mode • New mode added to the list of Network service mode • Menu • Serial Port Profile -> Vertex configuration • Serial Port Profile -> Port configuration -> Network service -> Network service mode • A configuration to send the data from the host to connected Bluetooth devices • Manual 5.5.6 & 5.6

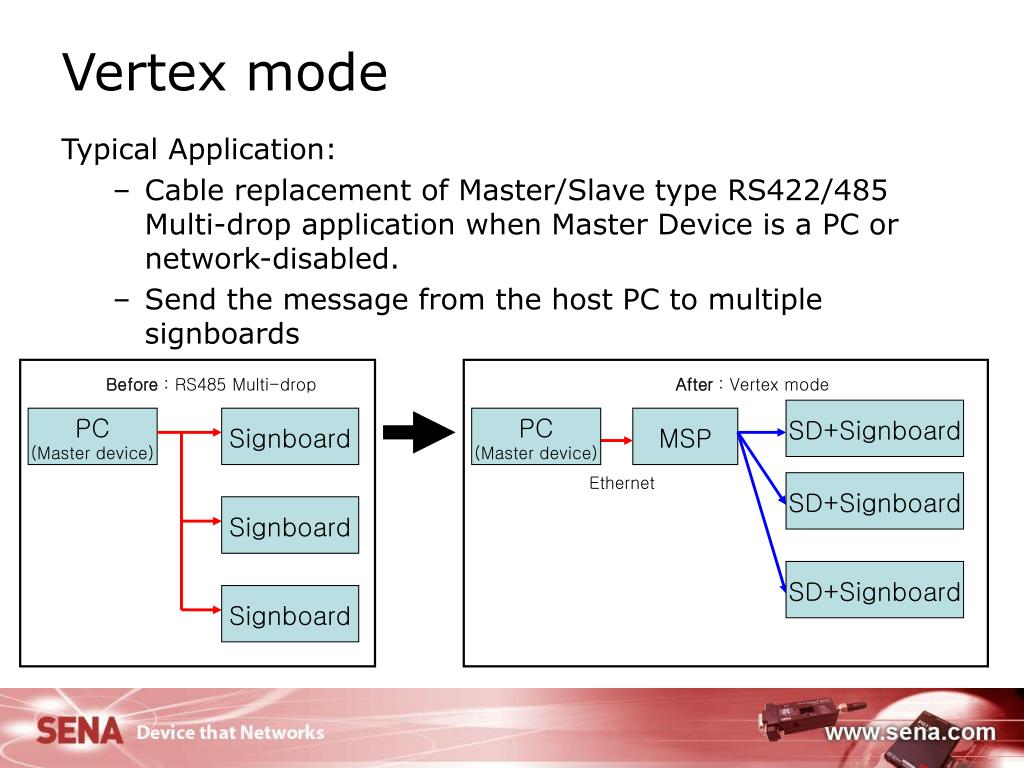

  8. Vertex mode Typical Application: • Cable replacement of Master/Slave type RS422/485 Multi-drop application when Master Device is a PC or network-disabled. • Send the message from the host PC to multiple signboards Before : RS485 Multi-drop After : Vertex mode SD+Signboard PC (Master device) Signboard PC (Master device) MSP Ethernet SD+Signboard Signboard SD+Signboard Signboard

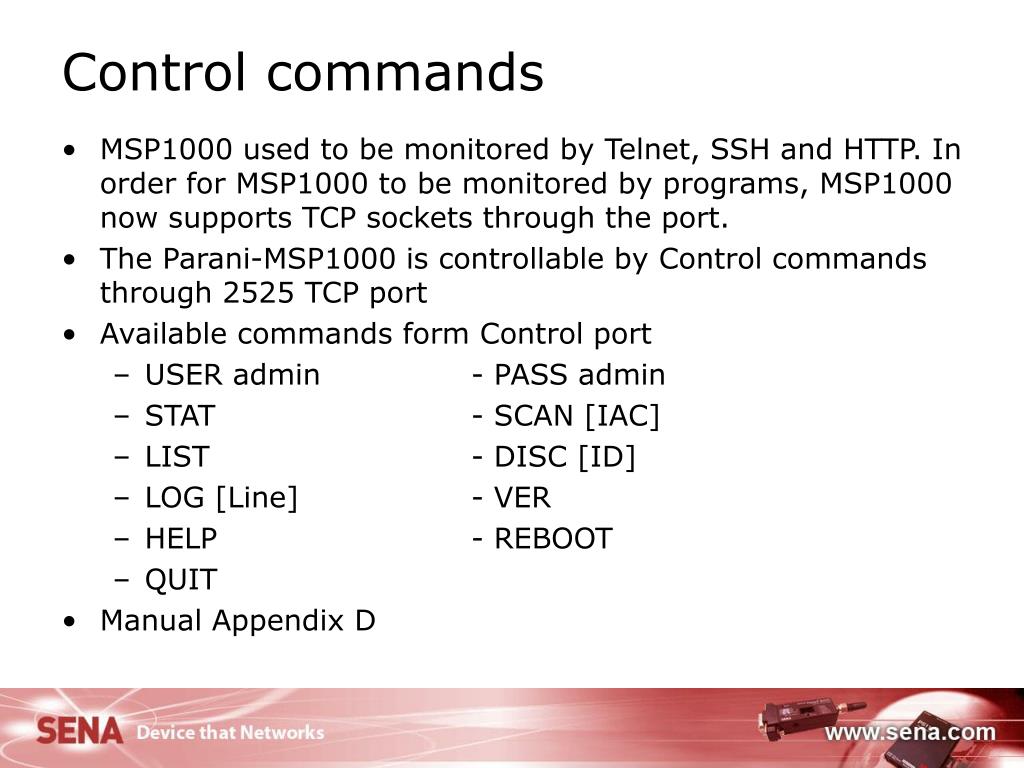

  9. Control commands • MSP1000 used to be monitored by Telnet, SSH and HTTP. In order for MSP1000 to be monitored by programs, MSP1000 now supports TCP sockets through the port. • The Parani-MSP1000 is controllable by Control commands through 2525 TCP port • Available commands form Control port • USER admin - PASS admin • STAT - SCAN [IAC] • LIST - DISC [ID] • LOG [Line] - VER • HELP - REBOOT • QUIT • Manual Appendix D

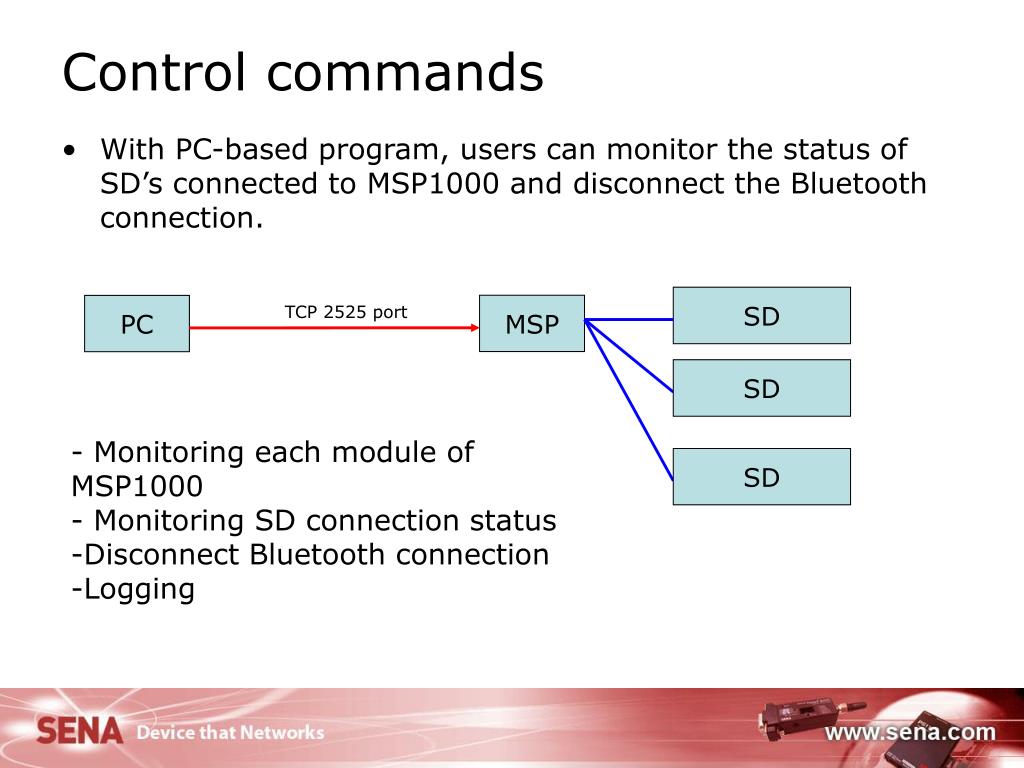

  10. Control commands • With PC-based program, users can monitor the status of SD’s connected to MSP1000 and disconnect the Bluetooth connection. SD MSP PC TCP 2525 port SD • - Monitoring each module of MSP1000 • - Monitoring SD connection status • Disconnect Bluetooth connection • Logging SD

  11. Others • CF Serial modem card • Support PPP communication through Serial modem • Manual 6.2 Serial modem card configuration • Supports modem list • COMPAQ CFVFM-5614RD. • VFAT • The Parani-MSP1000 supports VFAT (windows file system format) as CF Flash memory file format. • Enhanced handling of Bluetooth FTP • When use Bluetooth FTP, you can choose CF Memory Card as Base directory • RFC-2217(Telnet COM Port Control Protocol) Support

  12. Bug Fix List • Fixed the kernel panic problem occurring when the Parani-MSP1000 transfers many data through bluetooth module   • Fixed the problem that the Portlog was not displayed in the Web correctly • SPP IN/OUT display error • Display error in Readable binary • Added Month / Date to the logging time   • Fixed the problem that the text of Portlog was not cleared • Portlog Clear error on Webpage  • Fixed the problem that the Portlog was not logged to CF card.

  13. Bug Fix List • Fixed the problem that the syslogd logs '-- MARK --' to syslog server. • Fixed the problem that the Date and Time configuration was not set correctly. • Daylight saving time support
