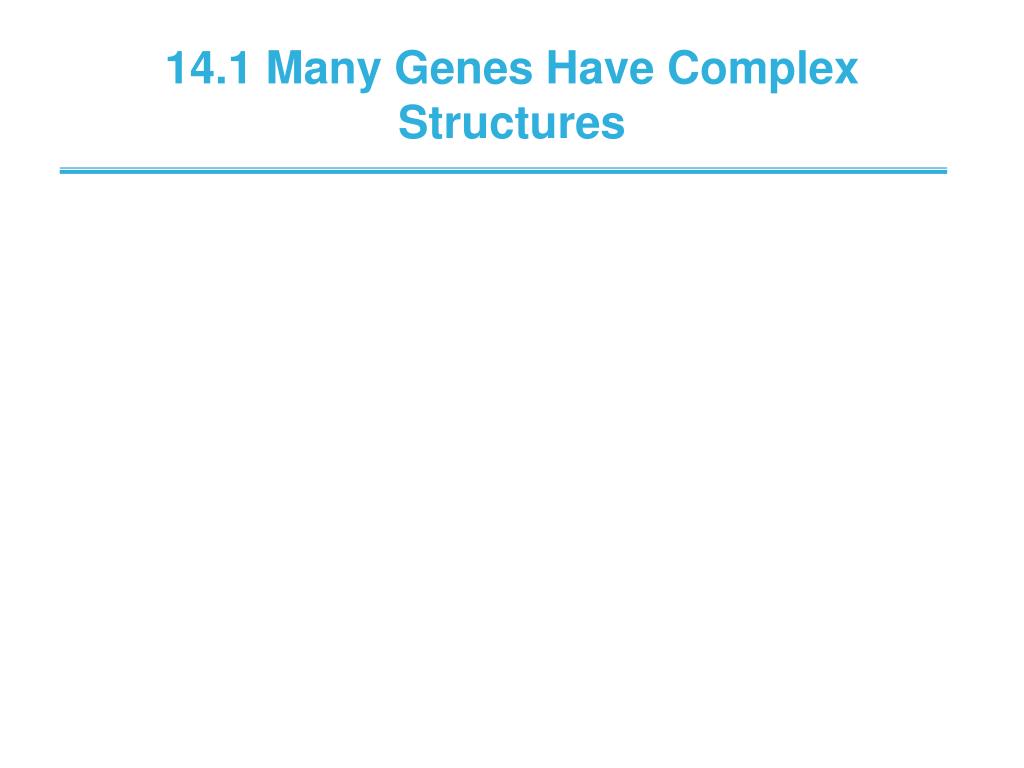

  1. 14.1 Many Genes Have Complex Structures

  2. Gene Organization • The concept of colinearity and noncolinearity

  3. Gene Organization • Introns • Regions of RNA that are not reflected in protein sequence • INTervening sequences • Exons • Regions of RNA that are reflected in protein sequence • EXpressed sequences

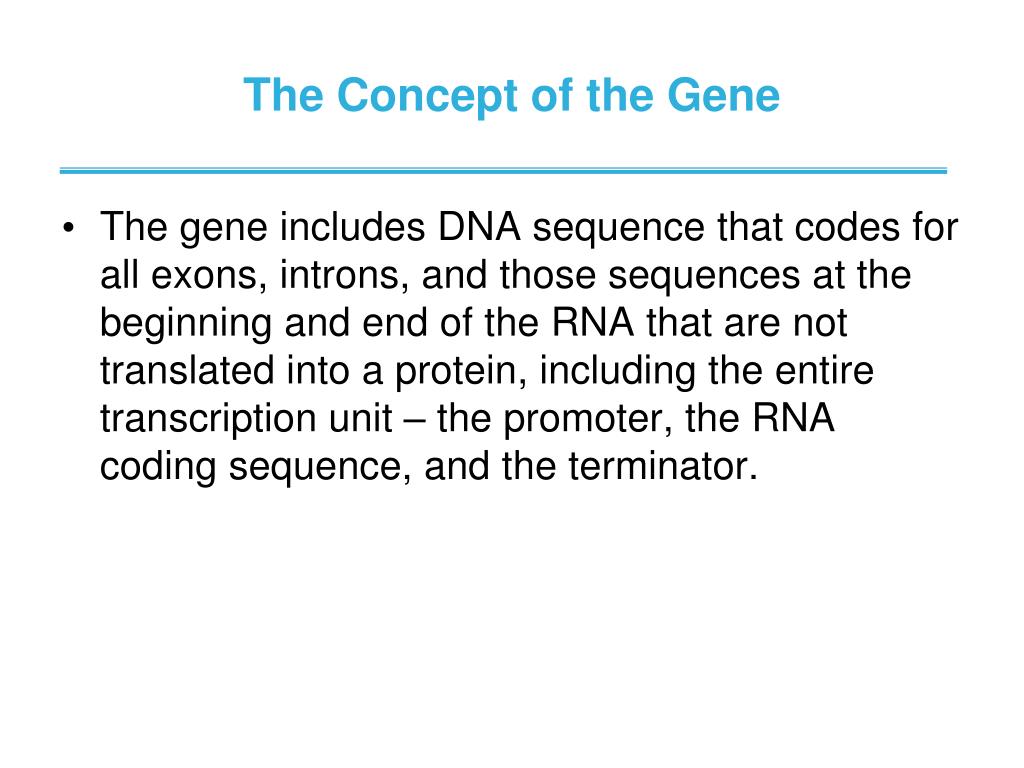

  4. The Concept of the Gene • The gene includes DNA sequence that codes for all exons, introns, and those sequences at the beginning and end of the RNA that are not translated into a protein, including the entire transcription unit – the promoter, the RNA coding sequence, and the terminator.

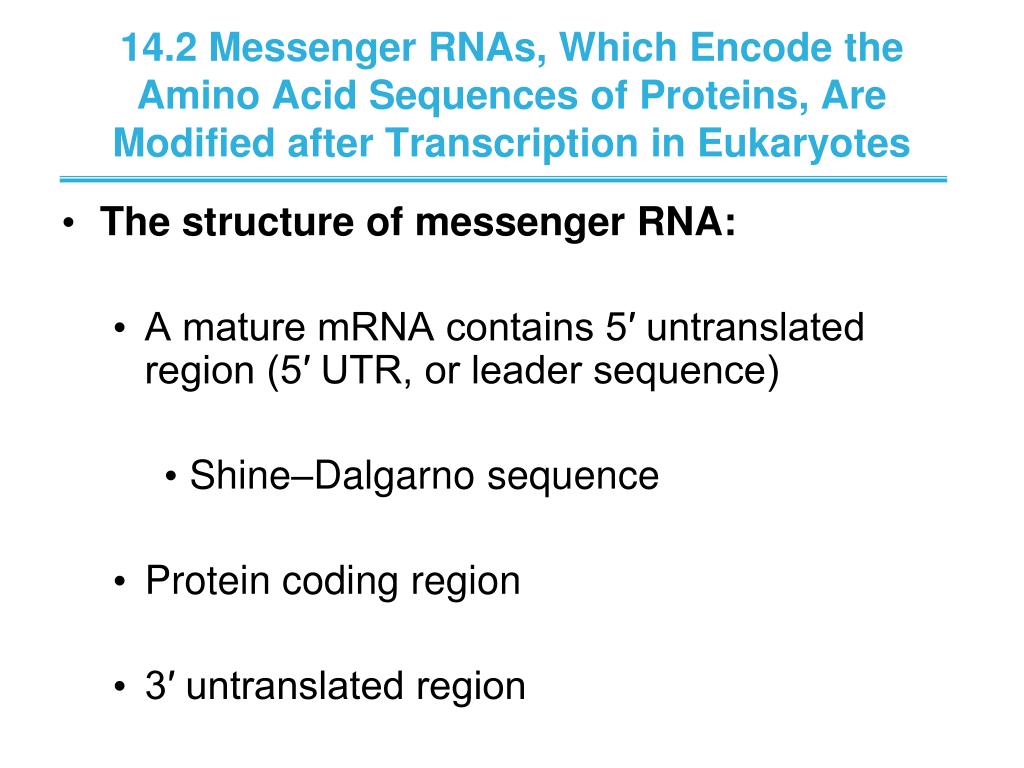

  5. 14.2 Messenger RNAs, Which Encode the Amino Acid Sequences of Proteins, Are Modified after Transcription in Eukaryotes • The structure of messenger RNA: • A mature mRNA contains 5′ untranslated region (5′ UTR, or leader sequence) • Shine–Dalgarno sequence • Protein coding region • 3′ untranslated region

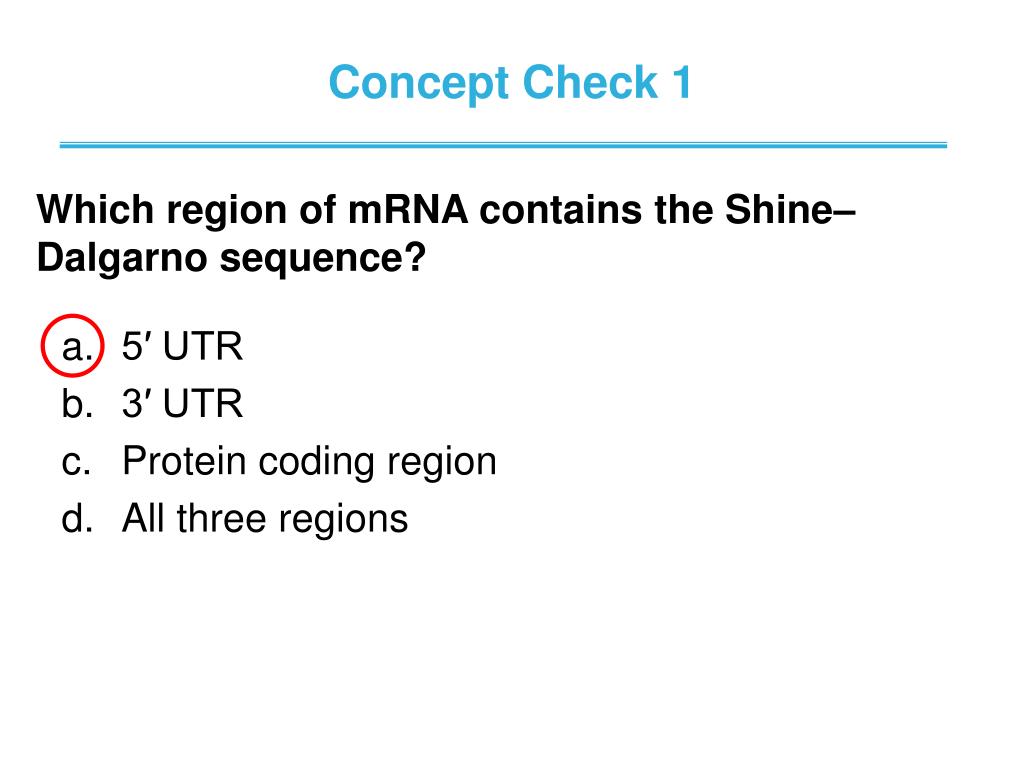

  6. Concept Check 1 Which region of mRNA contains the Shine–Dalgarno sequence? • 5′ UTR • 3′ UTR • Protein coding region • All three regions

  7. Concept Check 1 Which region of mRNA contains the Shine–Dalgarno sequence? • 5′ UTR • 3′ UTR • Protein coding region • All three regions

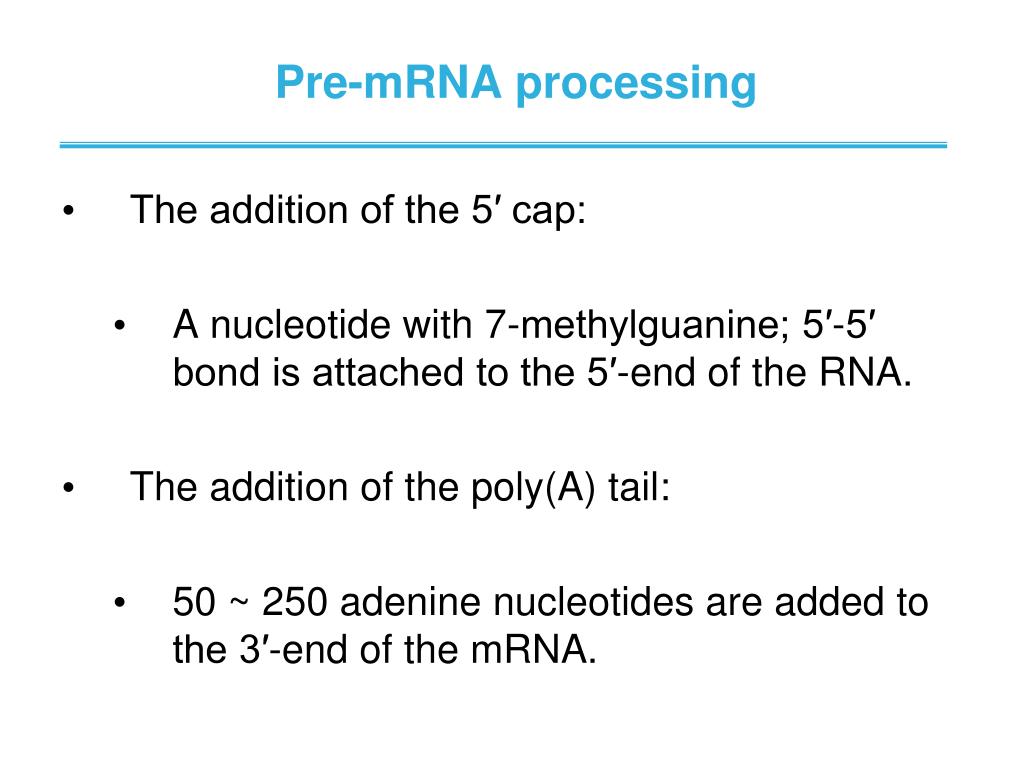

  8. Pre-mRNA processing • The addition of the 5′ cap: • A nucleotide with 7-methylguanine; 5′-5′ bond is attached to the 5′-end of the RNA. • The addition of the poly(A) tail: • 50 ~ 250 adenine nucleotides are added to the 3′-end of the mRNA.

  9. Pre-mRNA processing • RNA splicing: • Consensus sequences: • 5′ consensus sequence: GU A/G AGU: 5′ splice site • 3′ consensus sequence: CAGG • Branch point: the adenine “A”: 18 ~ 40 nucleotides upstream of 3′-splicing site • Spliceosome: five RNA molecules + 300 proteins • The process of splicing

  10. Intron removal, mRNA processing, and transcription take place at the same site in the nucleus. • Self-splicing introns happen in some rRNA genes in protists and in mitochondria genes in fungi. • There are alternative processing pathways for processing pre-mRNA.

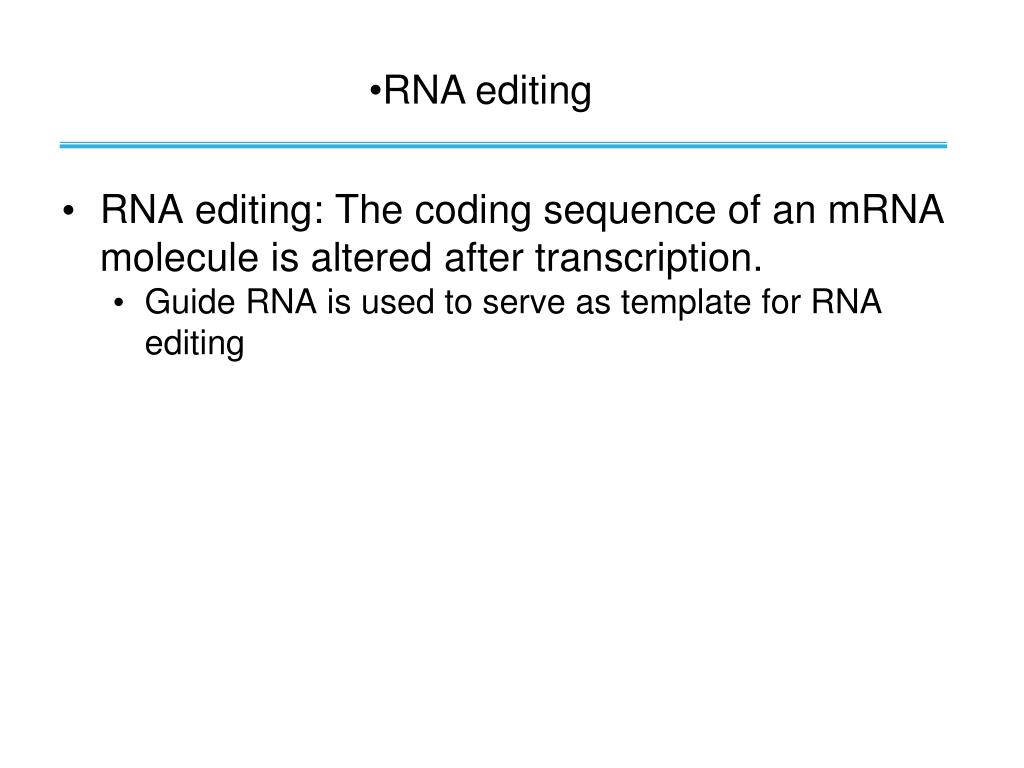

  11. RNA editing • RNA editing: The coding sequence of an mRNA molecule is altered after transcription. • Guide RNA is used to serve as template for RNA editing

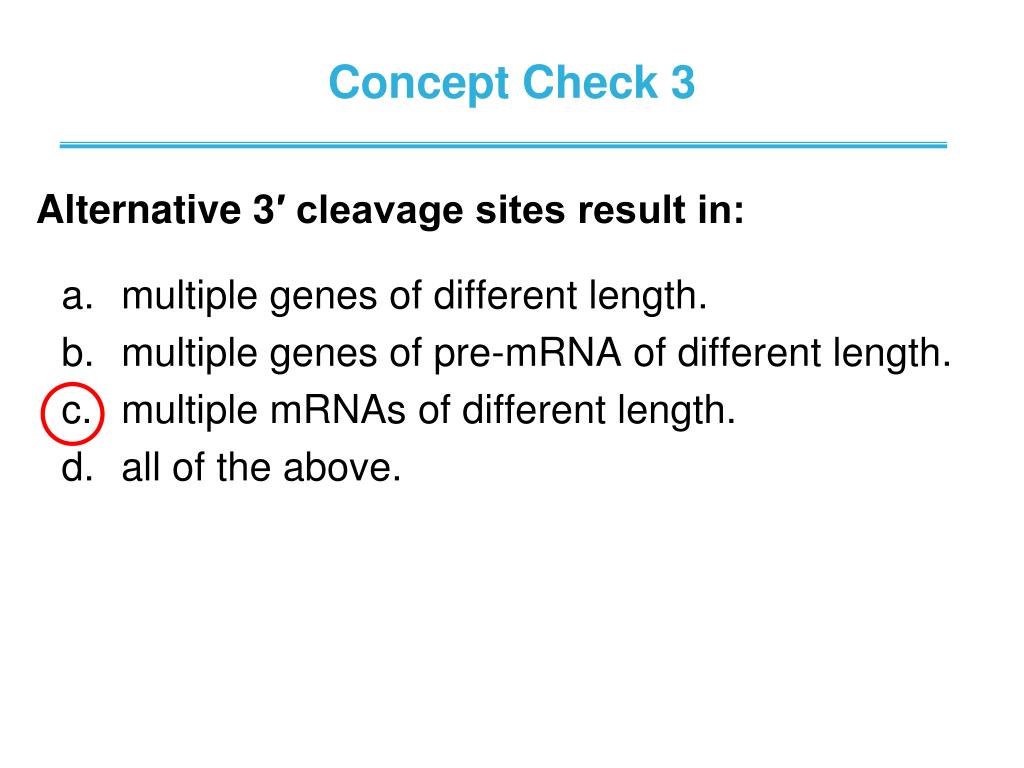

  12. Concept Check 3 Alternative 3′ cleavage sites result in: • multiple genes of different length. • multiple genes of pre-mRNA of different length. • multiple mRNAs of different length. • all of the above.

  13. Concept Check 3 Alternative 3′ cleavage sites result in: • multiple genes of different length. • multiple genes of pre-mRNA of different length. • multiple mRNAs of different length. • all of the above.

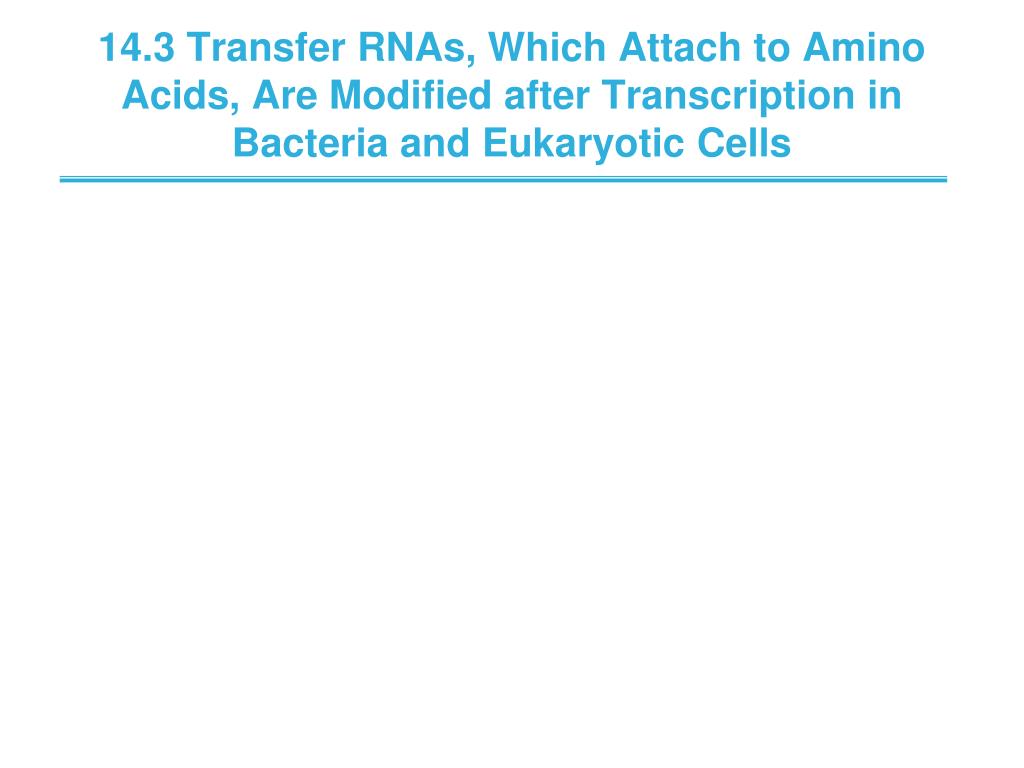

  14. 14.3 Transfer RNAs, Which Attach to Amino Acids, Are Modified after Transcription in Bacteria and Eukaryotic Cells

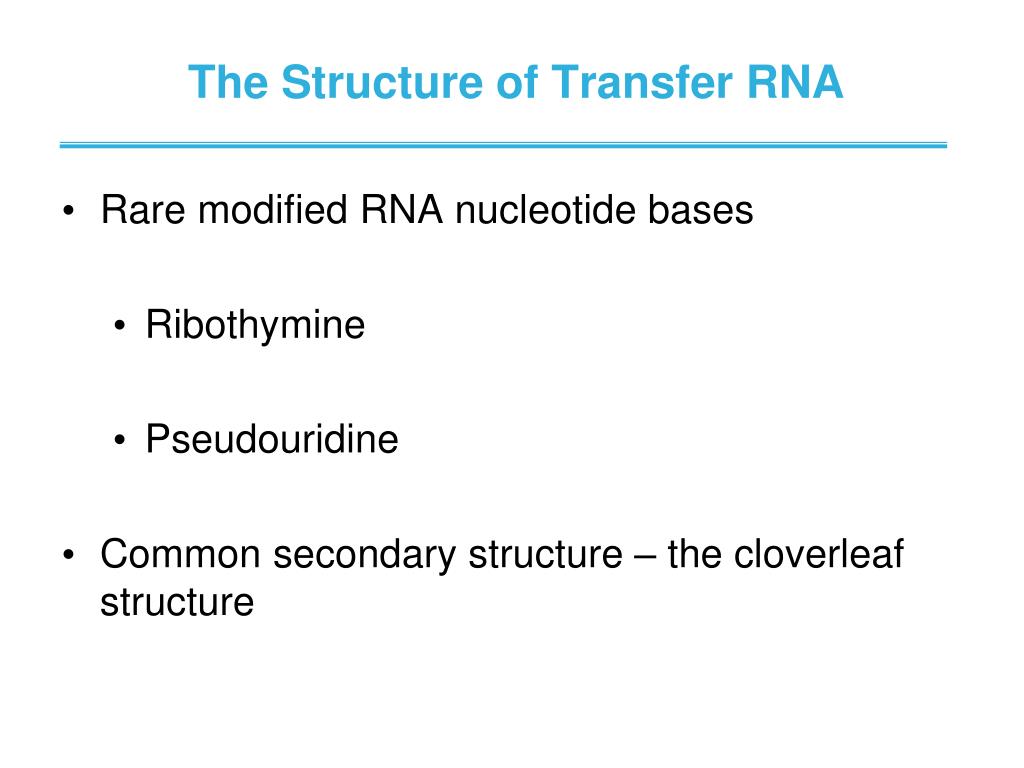

  15. The Structure of Transfer RNA • Rare modified RNA nucleotide bases • Ribothymine • Pseudouridine • Common secondary structure – the cloverleaf structure

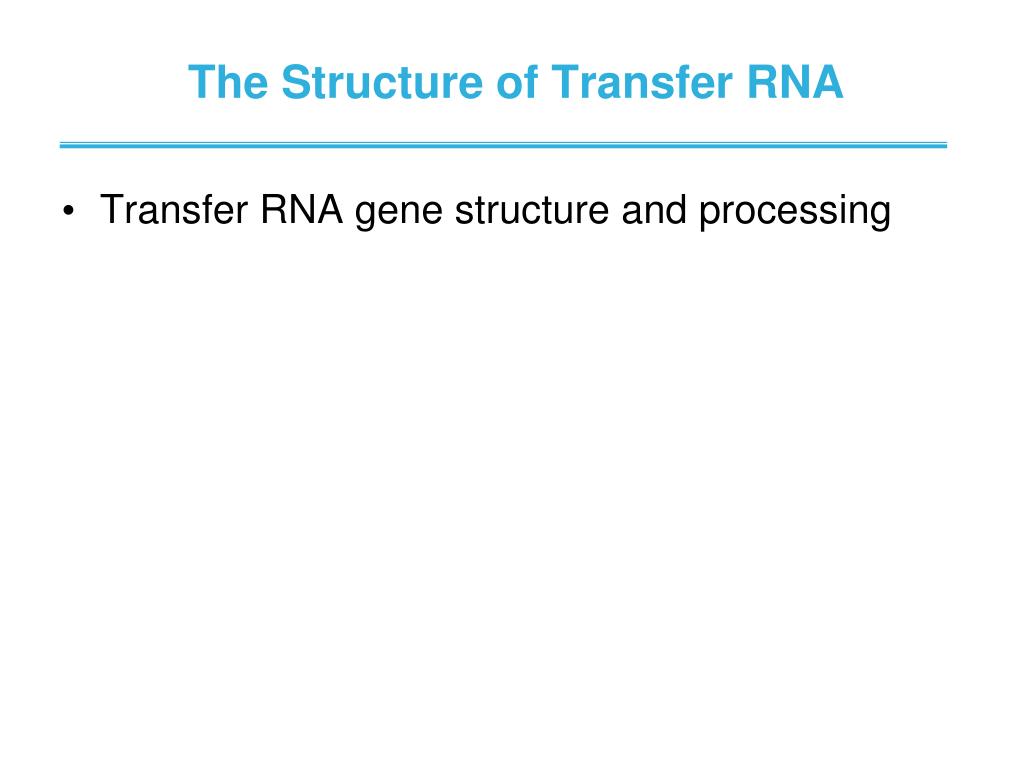

  16. The Structure of Transfer RNA • Transfer RNA gene structure and processing

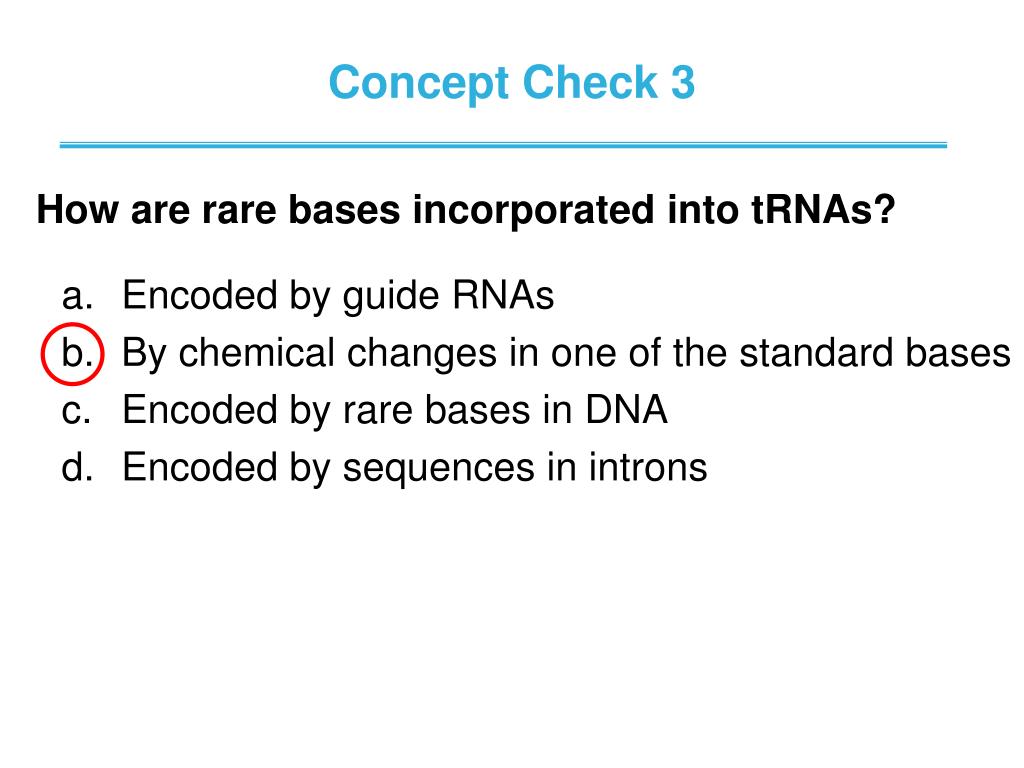

  17. Concept Check 3 How are rare bases incorporated into tRNAs? • Encoded by guide RNAs • By chemical changes in one of the standard bases • Encoded by rare bases in DNA • Encoded by sequences in introns

  18. Concept Check 3 How are rare bases incorporated into tRNAs? • Encoded by guide RNAs • By chemical changes in one of the standard bases • Encoded by rare bases in DNA • Encoded by sequences in introns

  19. 14.4 Ribosome RNA, a Component of the Ribosome, Also Is Processed after Transcription

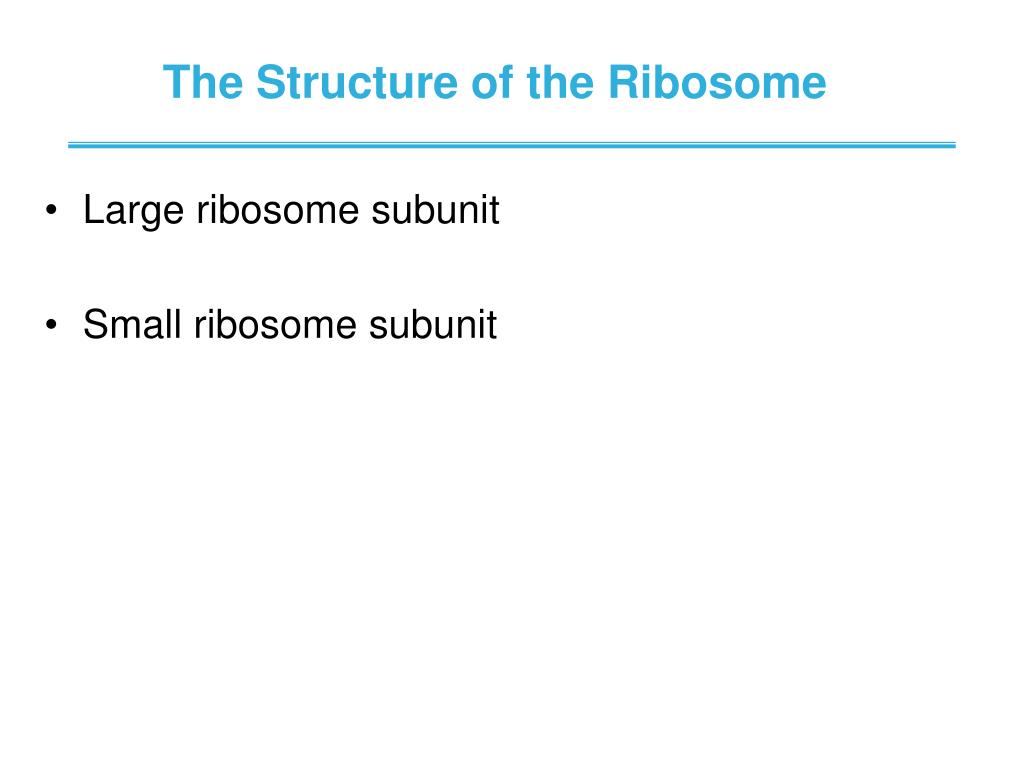

  20. The Structure of the Ribosome • Large ribosome subunit • Small ribosome subunit

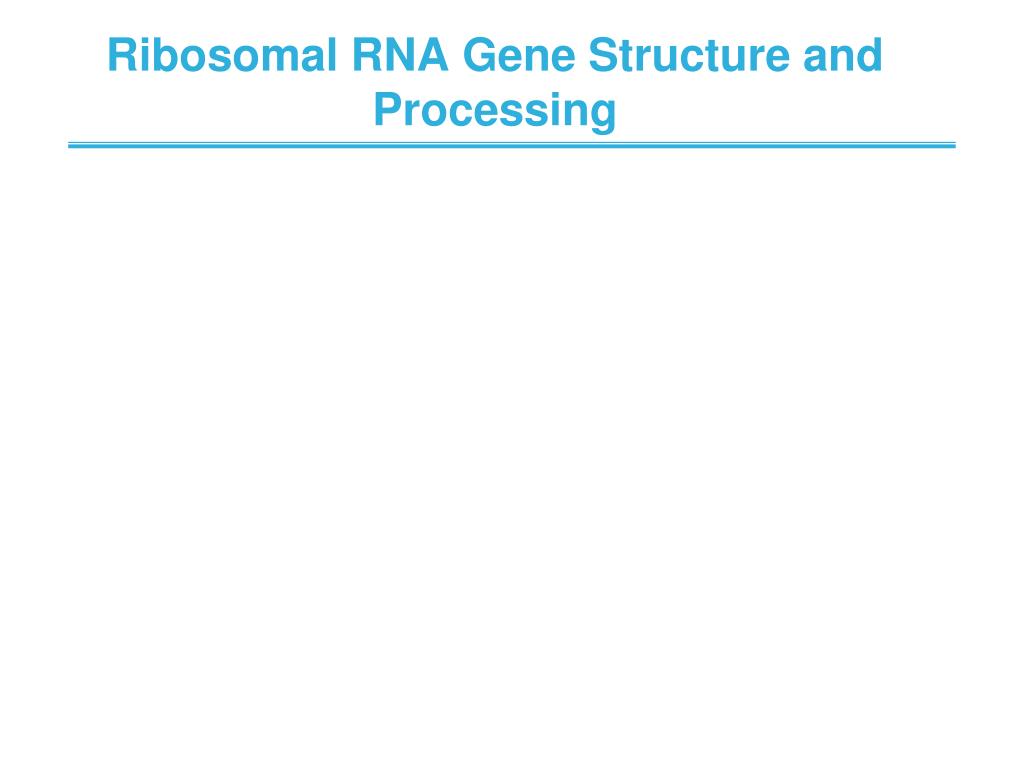

  21. Ribosomal RNA Gene Structure and Processing

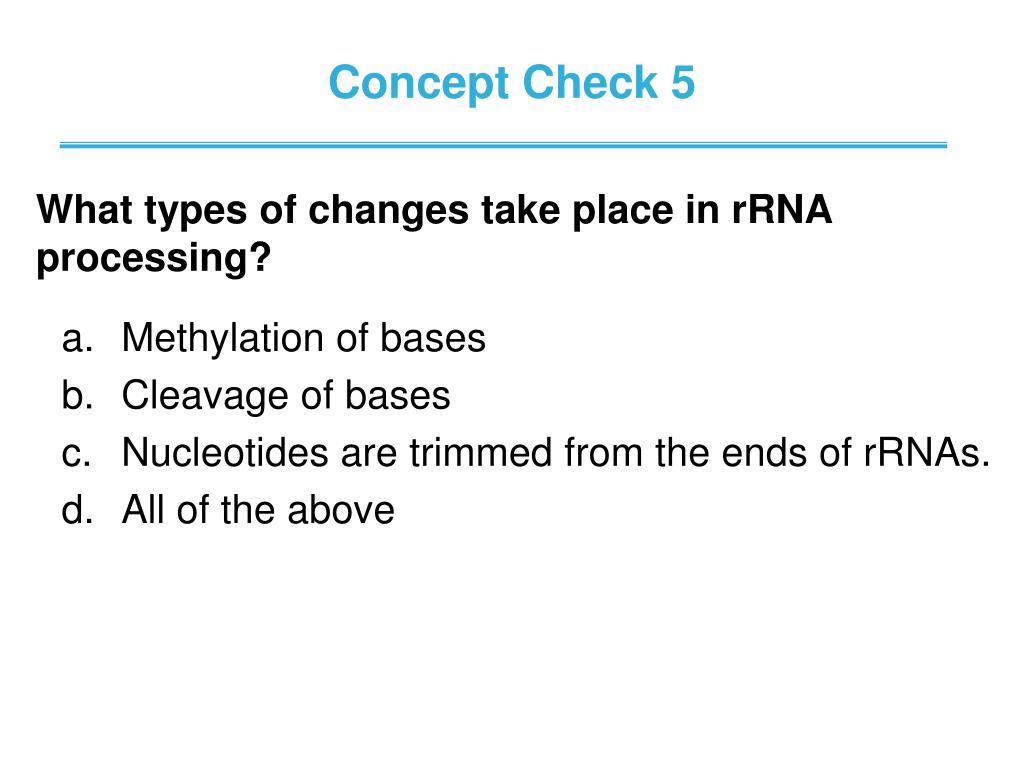

  22. Concept Check 5 What types of changes take place in rRNA processing? • Methylation of bases • Cleavage of bases • Nucleotides are trimmed from the ends of rRNAs. • All of the above

  23. Concept Check 5 What types of changes take place in rRNA processing? • Methylation of bases • Cleavage of bases • Nucleotides are trimmed from the ends of rRNAs. • All of the above

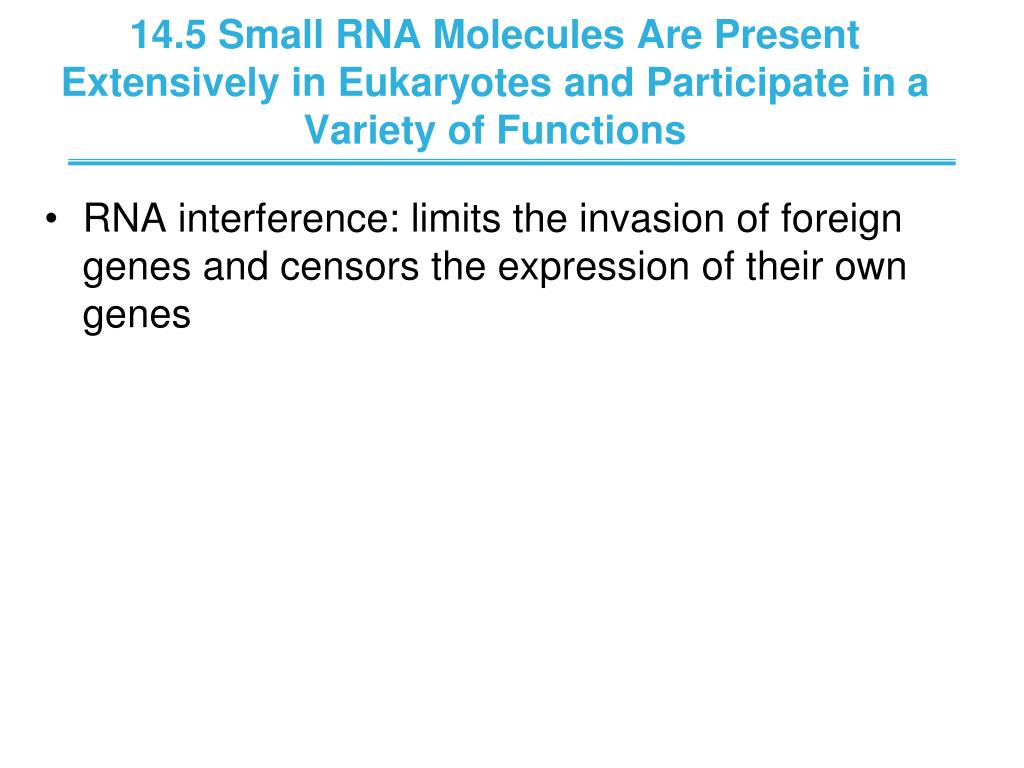

  24. 14.5 Small RNA Molecules Are Present Extensively in Eukaryotes and Participate in a Variety of Functions • RNA interference: limits the invasion of foreign genes and censors the expression of their own genes

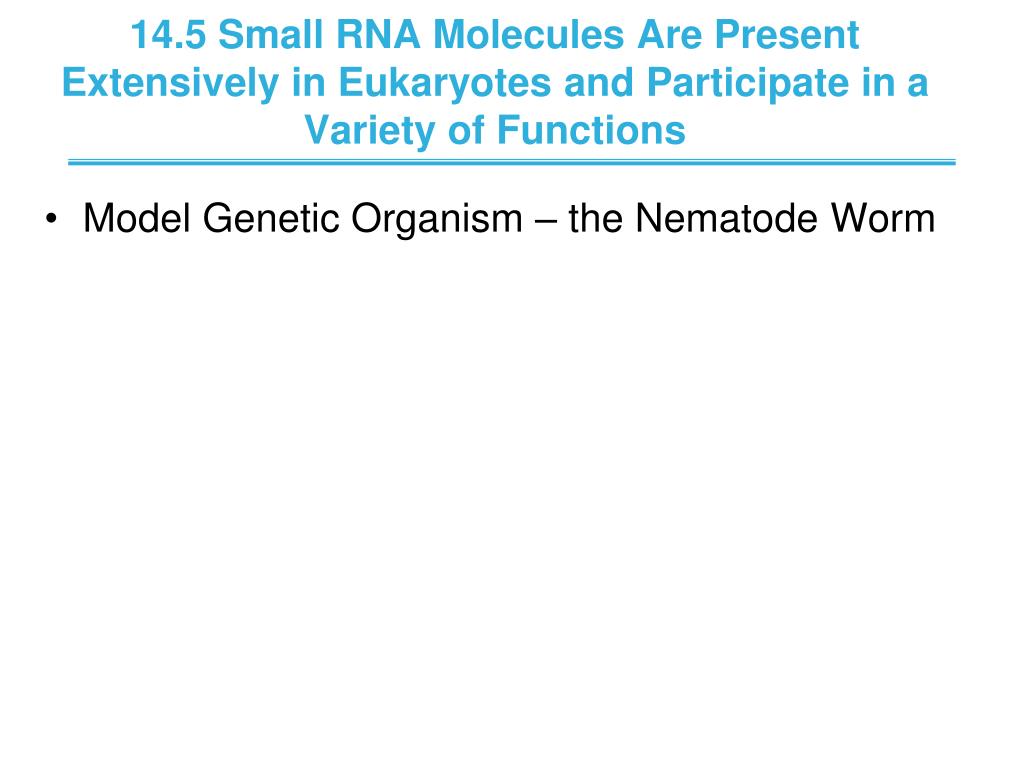

  25. 14.5 Small RNA Molecules Are Present Extensively in Eukaryotes and Participate in a Variety of Functions • Model Genetic Organism – the Nematode Worm
