  1. North Zone Communications Committee Motorola 05 Control Head North Zone – Communications

  2. Radio ON/OFF 1. The power button is located to the left of the display and nearest the bottom 2. Press the button to turn the radio on or off North Zone – Communications

  3. Setting Volume 1. Rotate the left Volume Knob clockwise to increase the volume or counter-clockwise to decrease the volume North Zone – Communications

  4. Selecting a Talkgroup 1. To select a talkgroup, rotate the Mode Knob in either direction until the desired talkgroup name is displayed North Zone – Communications

  5. Selecting a Zone 1. Press the Soft Menu Key under “ZONE” 2. Use the Mode Knob or Navigation Keys to change between zones 3. To select the zone, press the Home key to set the radio to that zone North Zone – Communications

  6. Transmit & Receive 1. Select the desired zone and talkgroup. The selected zone and talkgroup appear on the display 2. Listen for ongoing conversation. When the talkgroup becomes available, proceed with your call 3. Press the Push-To-Talk (PTT) on the microphone and wait for the Talk Permit Tones (3 quick beeps). Begin speaking with the microphone 1 inch from your mouth North Zone – Communications

  7. Transmit & Receive 3a. If you hear a phone-type busy signal, release the PTT and wait for the system to call you back with the Call Back Tones (similar to the Talk Permit) 3b. If you hear a steady low-pitched tone, release the PTT and wait until the talkgroup is available. When the talkgroup is available, return to step 3 4. Release the PTT to receive North Zone – Communications

  8. Scan ON/OFF Note: If you turn the scan on and hear a continuous low tone with the words “EMPTY LIST” on the display, turn the scan off and program a scan list. Each “System” (e.g. County RCS, San Diego City, and Conventional) requires its own scan list. Remember that you can not scan between “Systems”. North Zone – Communications

  9. Scan ON/OFF 1. To turn Scan ON, press the Soft Menu Key under “SCAN”. SCANNING ON should display momentarily. A “Z” will be display constantly 2. To turn Scan OFF, press the Soft Menu Key under “SCAN”. SCANNING OFF will display on the screen momentarily. The “Z” will no longer be displayed North Zone – Communications

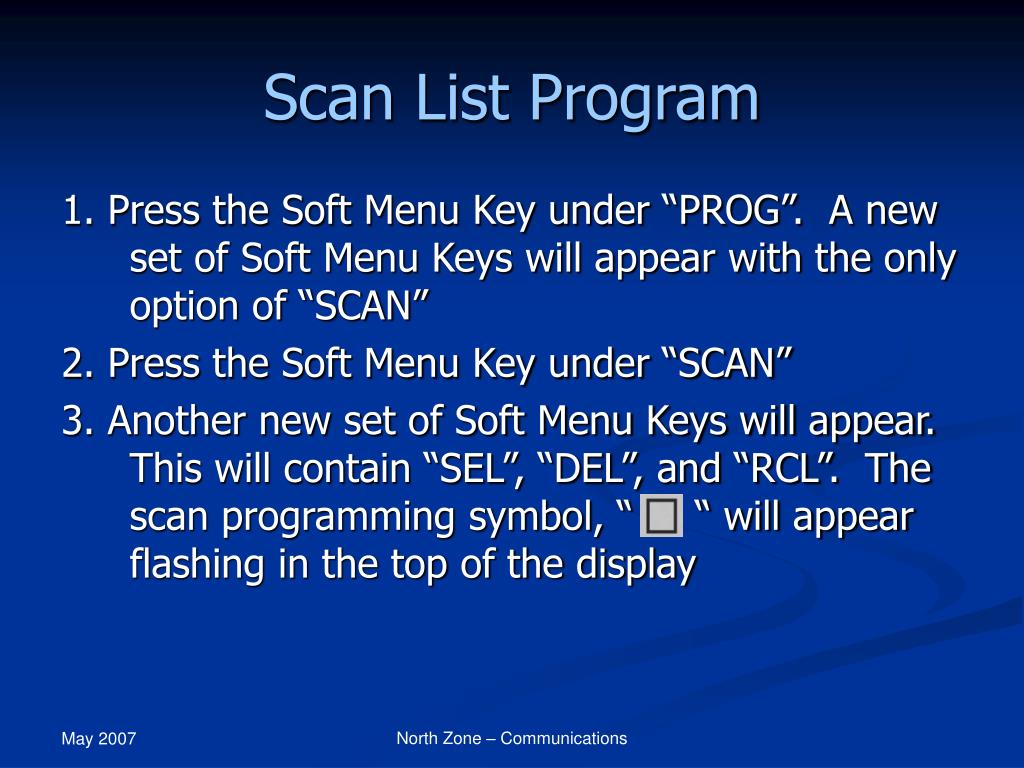

  10. Scan List Program 1. Press the Soft Menu Key under “PROG”. A new set of Soft Menu Keys will appear with the only option of “SCAN” 2. Press the Soft Menu Key under “SCAN” 3. Another new set of Soft Menu Keys will appear. This will contain “SEL”, “DEL”, and “RCL”. The scan programming symbol, “ “ will appear flashing in the top of the display North Zone – Communications

  11. Scan List Program 4. Use the Navigation Keys and Mode Knob to display the talkgroup you wish to scan 5. Press the Soft Menu Keys under “SEL” once to add the displayed talkgroup to the scan list as a Non-Priority talkgroup North Zone – Communications

  12. Scan List Program 5a. When the talkgroup is added as a Non-Priority, the scan symbol “Z” will appear in the top of the display 5b. To increase the priority of that talkgroup to a priority 2, press the Soft Menu Key “SEL” again. You will notice a small dot appear next to the scan symbol “Z.” (Only one talkgroup can be Priority 2, so this should be your dispatch or HOME channel) North Zone – Communications

  13. Scan List Program 6. To remove a talkgroup, press the Soft Menu Key under “DEL” 7. To view your current scan list while programming, press the Soft Menu Key under “RCL”. Press this consecutively to see each talkgroup in your scan list 8. You can scan up to 10 talkgroups in each system 9. If you have added too many talkgroups, the radio will emit a low-pitched tone North Zone – Communications

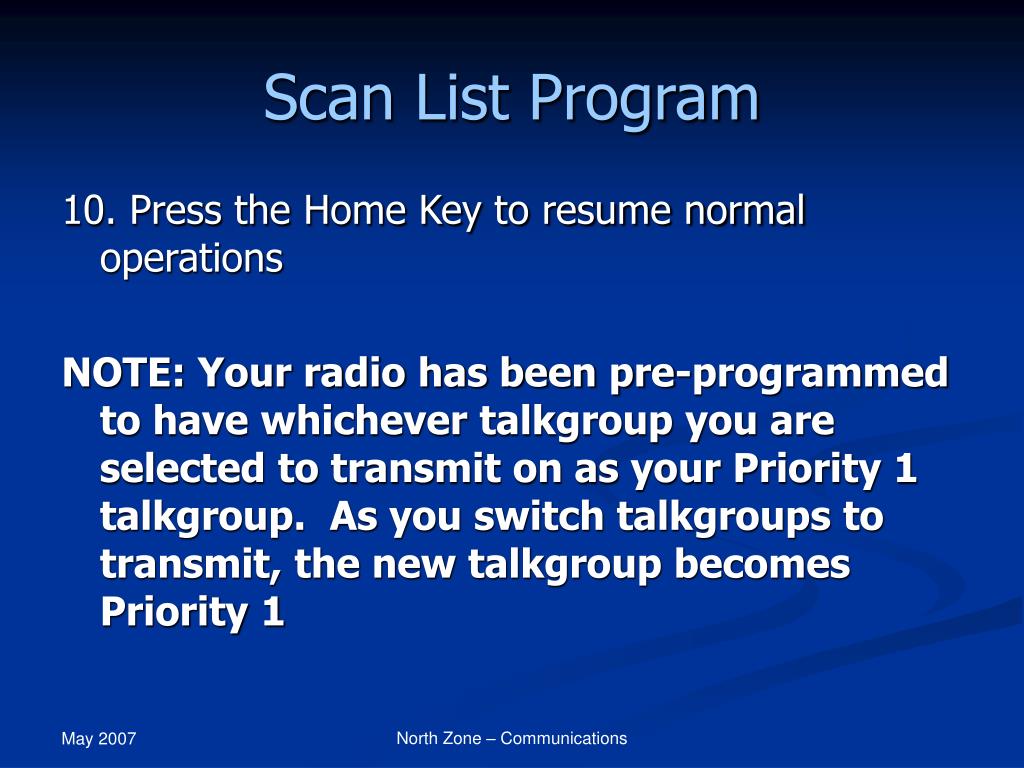

  14. Scan List Program 10. Press the Home Key to resume normal operations NOTE: Your radio has been pre-programmed to have whichever talkgroup you are selected to transmit on as your Priority 1 talkgroup. As you switch talkgroups to transmit, the new talkgroup becomes Priority 1 North Zone – Communications

  15. View Scan List 1. Press the Soft Menu Key under “VIEW” 2. A new set of Soft Menu Keys will appear with the only option of “SCAN” 3. Press the Soft Menu Key under “SCAN” North Zone – Communications

  16. View Scan List 4. Use the Mode Knob or Navigation Key to scroll through the current scan list 5. Press the Home Key to resume normal operations North Zone – Communications

  17. Nuisance Delete When a particular talkgroup you are scanning becomes annoying, you can temporarily delete the talkgroup from the scan list. This is called “Nuisance Delete.” 1. Use the Navigation Key to locate “NUIS” as a Soft Menu Key option 2. While scanning, wait until the talkgroup you wish to “Nuisance Delete” is receiving and is displayed North Zone – Communications

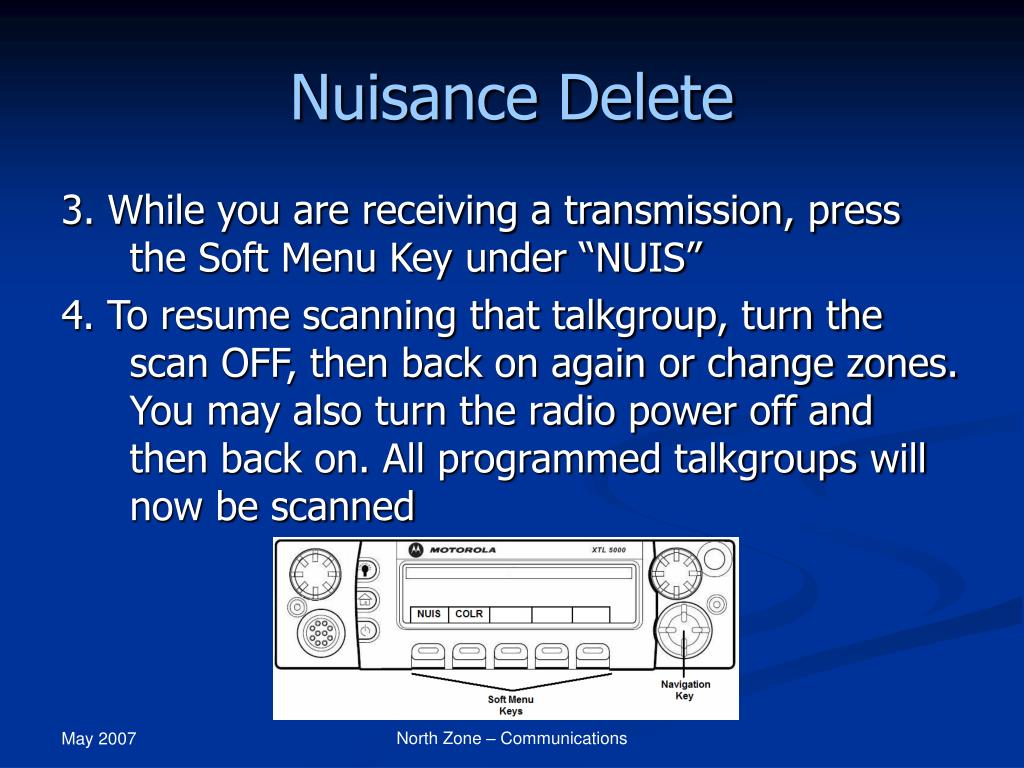

  18. Nuisance Delete 3. While you are receiving a transmission, press the Soft Menu Key under “NUIS” 4. To resume scanning that talkgroup, turn the scan OFF, then back on again or change zones. You may also turn the radio power off and then back on. All programmed talkgroups will now be scanned North Zone – Communications

  19. EMERGENCY Receive Feature Your radio has the ability to be notified if another user presses the EMERGENCY button When another user on your talkgroup presses their EMERGENCY button and then presses their PTT button: 1. Your radio will emit a single beep tone, and will display EMER RCVD alternating with your talkgroup North Zone – Communications

  20. EMERGENCY Receive Feature 2. Your radio will clear the EMER RCVDonly when: 2a. The user that initiated the EMERGENCY cancels it, or 2b. You switch to another talkgroup North Zone – Communications

  21. PAGING Feature Your radio has the ability to receive a page from a dispatch console or base station Receiving a Page: 1. When your radio is paged by another radio or dispatch console, you will hear 4 beep tones. The radio display will alternate between the talkgroup you are selected on and “PAGE RECEIVED”. The radio will beep at you every 5 seconds until you clear the page North Zone – Communications

  22. PAGING Feature 2. To clear the page, switch to your dispatch or home talkgroup and contact your dispatcher North Zone – Communications

  23. Display Light ON/OFF 1. Your radio has 4 levels of display brightness intensity: High, Medium, Low, and OFF. Press the DIM button to change the display intensity NOTE: While the display and keyboard backlights are OFF, the radio is still fully operational 2. Press the DIM button repeatedly through each level of intensity North Zone – Communications

  24. Changing Display Color 1. Use the Navigation Key to locate “COLR” above the Soft Menu Keys 2. Press the Soft Menu Key under “COLR” 3. A new set of Soft Menu Keys will be displayed. The keys will be “SEL” and “CNCL” 4. Use Mode Knob or Navigation Key to change color selection North Zone – Communications

  25. Changing Display Color 5. Color choices are Red, Green, Amber, Orange, Custom, and My Color 1 thru 5. Use Soft Menu Key “SEL” to make your choice 6. If you select My Color, you can save 5 different colors you can create (My Color 1-5) 7. To do so, select “EDIT” and adjust color options with the Mode Knob North Zone – Communications

  26. Changing DisplayColor 8. You will be given a new Soft Menu Key option to change between the colors RED and GRN 9. Use the Mode Knob to change percentages of green and red colors to create My Color 10. Once you have created your My Color, select Soft Menu Key “SAVE” North Zone – Communications

  27. Changing Display Color 11. To activate your My Color you created, press the Soft Menu Key “SEL” 12. Once you have made your selection, or decide no longer to change the color, press the HOME key North Zone – Communications

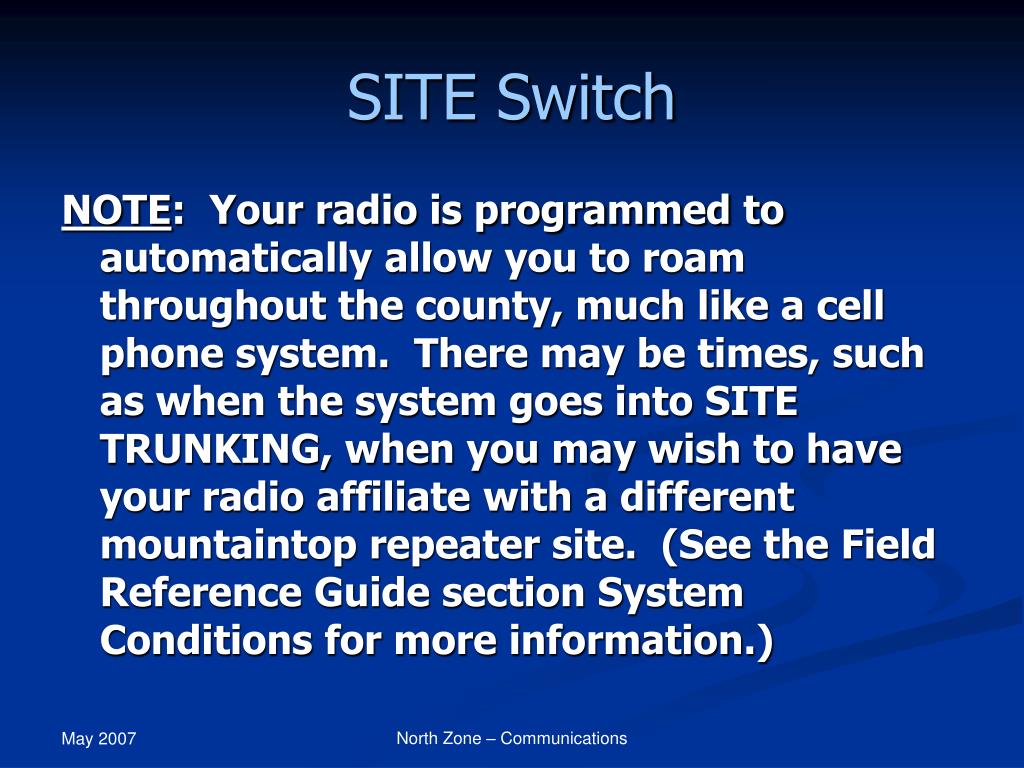

  28. SITE Switch NOTE: Your radio is programmed to automatically allow you to roam throughout the county, much like a cell phone system. There may be times, such as when the system goes into SITE TRUNKING, when you may wish to have your radio affiliate with a different mountaintop repeater site. (See the Field Reference Guide section System Conditions for more information.) North Zone – Communications

  29. SITE Switch 1. Press the Soft Menu Key under “RSSI” 1a. The radio will display the repeater site you are affiliated with for approximately 2 seconds 1b. The radio will then display the Received Signal Strength Indicator, or RSSI, and a number between 0 and 150. (Any number above 50 is considered good.) 1c. After approximately 2 seconds, the radio will return to normal operation North Zone – Communications

  30. SITE Switch 2. To force the radio to affiliate with a different repeater site, press and hold the “RSSI” Soft Menu Key until SCANNING appears in the display. The radio will attempt to affiliate with a different repeater site. The radio may affiliate with a different site, or it may re-affiliate with the same site North Zone – Communications

  31. SITE Switch 3. Repeat Step 1 to confirm which site you are now affiliated with. If you need to affiliate with a different site, repeat Step 2 until you affiliate with a different site North Zone – Communications

  32. DIRECT Operation Your radio has the ability to operate directly with other radios on a conventional channel, without going through the repeaters NOTE: Remember that while operating in DIRECT, you will not be able to speak with your dispatcher or units a long distance away. DIRECT is only good for approximately 1-5 miles, depending on terrain, etc. North Zone – Communications

  33. DIRECT Operation 1. Switch your radio to a conventional talkgroup by following previous instructions (Selecting a Zone) 2. Press the “DIR” Soft Menu Key. 3. “ “ will be seen on the top of your display and DIRECT MODE will display momentarily 4. To exit DIRECT operation, press the “DIR” Soft Menu Key again. The “ “ will be removed and REPEATER MODE will display momentarily North Zone – Communications

  34. Monitor When you are on a conventional frequency, you should press the monitor button (prior to transmitting) to ensure no one else is using the same frequency. This is especially important when using your radio in a different state or county North Zone – Communications

  35. Monitor 1. Use the Navigation Key to obtain the Monitor Soft Menu Key option 2. Press the “MON” Soft Menu Key to determine if the talkgroup is busy, or 2a. Press and hold the Monitor Soft Menu Key for about 2 seconds to lock the squelch open 2b. Use the Mode Knob to change the squelch level 2c. Press the Home Key to exit North Zone – Communications

  36. Monitor 3. When the talkgroup is clear, press the PTT button and speak into the microphone North Zone – Communications

  37. Any Questions? Please be safe out there! REMEMBER… Lookouts Communications Escape Routes Safety Zones North Zone – Communications
