  1. ENGINEERING GRAPHICS1E7 Lecture 5: Isometric Projections

  2. Isometric Terminology • The three coordinate axes are called isometric axes • Any line parallel to isometric axes is called isometric line • A  non-isometric line is a line not parallel   to   any   one   of   the three isometric axis • In isometric projection of cube, the faces of the cube and any plane parallel to them is called isometric planes

  3. Notes • Objects composed entirely of isometric lines can be drawn by taking all measurements parallel to main edges of the enclosing box. • In  an  isometric  drawing,  an angle never appears in its true size. • Non-isometric lines are drawn by transferring the ordinates (which are on isometric lines) of the end of the lines

  4. Objects with Normal Surfaces Make an Isometric Drawing with corner A at the bottom

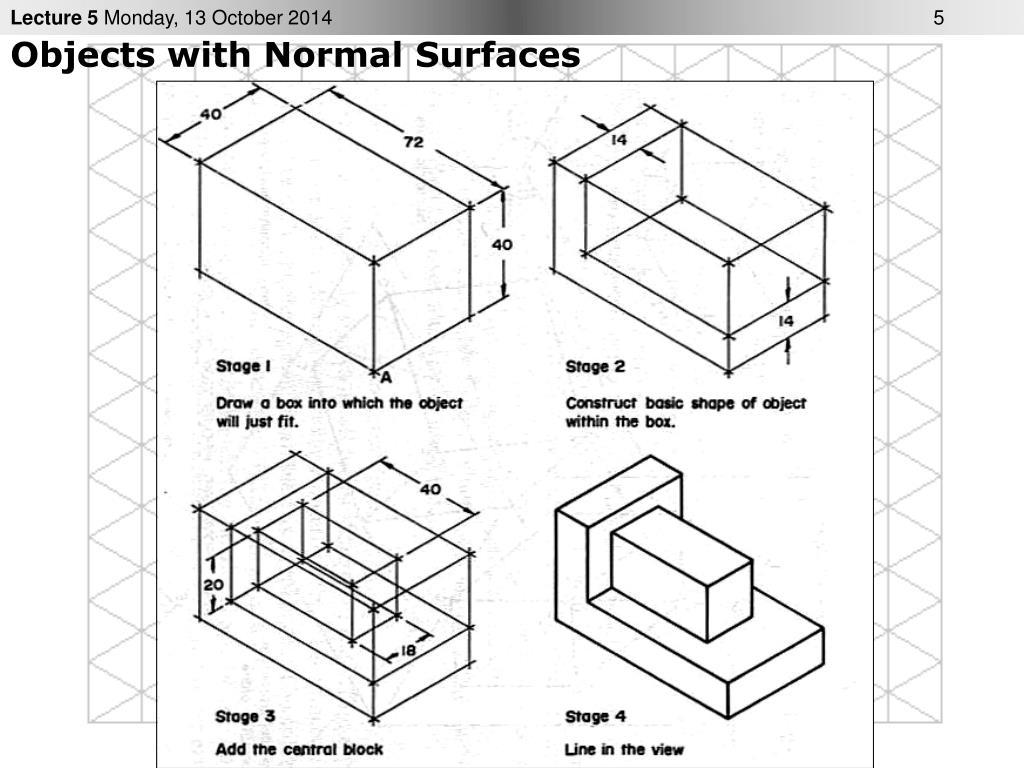

  5. Objects with Normal Surfaces

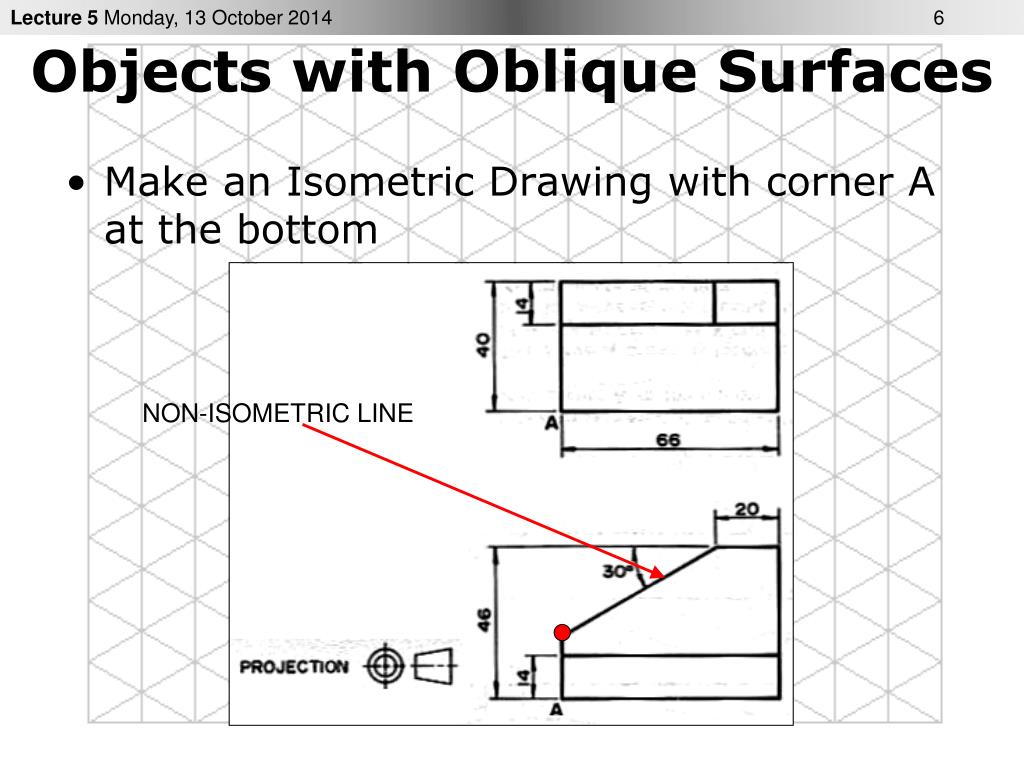

  6. NON-ISOMETRIC LINE Objects with Oblique Surfaces • Make an Isometric Drawing with corner A at the bottom

  7. Objects with Oblique Surfaces

  8. Objects with Non-isometric Lines • Make an Isometric Drawing with apex A facing front

  9. Objects with Non-isometric Lines • Non-isometric lines are drawn with box construction and offset measurements • Non-isometric lines are not drawn in true length in isometric drawing (BA is shorter than CA in this drawing)

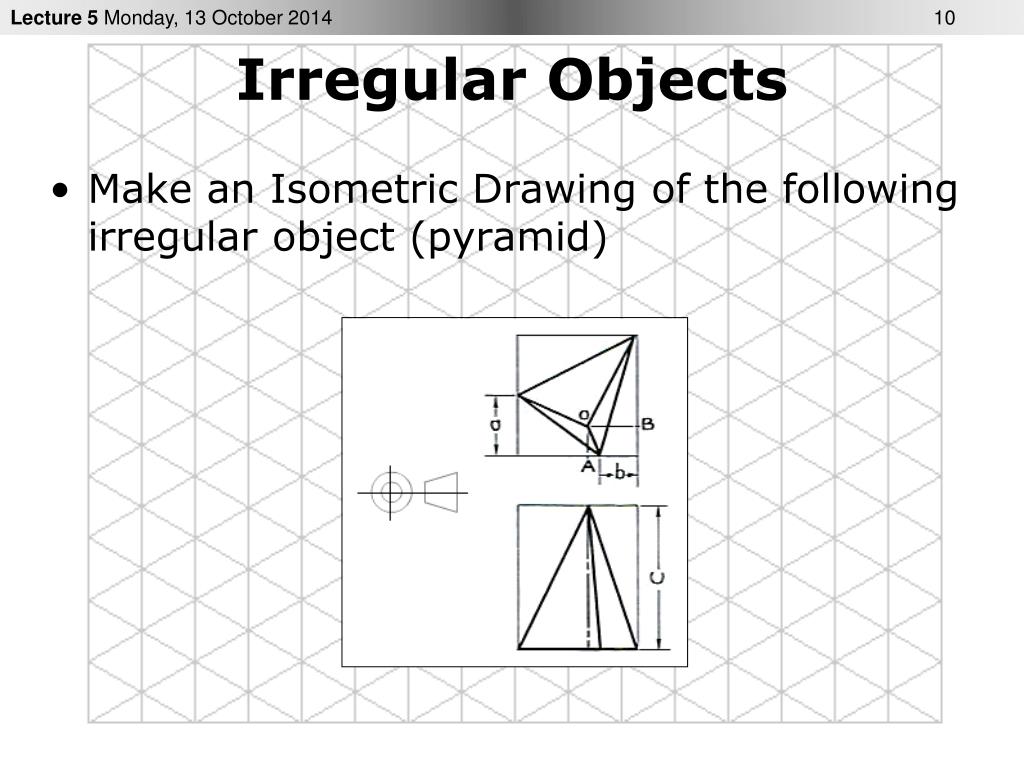

  10. Irregular Objects • Make an Isometric Drawing of the following irregular object (pyramid)

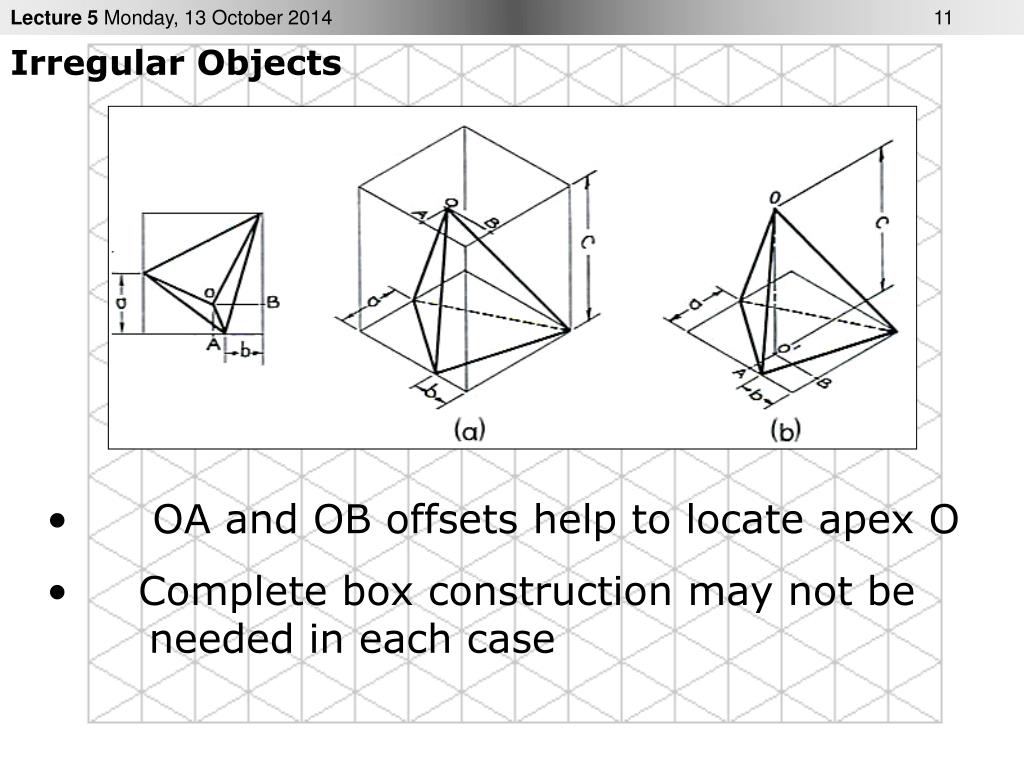

  11. Irregular Objects • OA and OB offsets help to locate apex O • Complete box construction may not be needed in each case

  12. Notes • Axonometric projection shows all 3 dimensions, length, width and height • The isometric lines are only drawn to scale. • Inclined and oblique surfaces are drawn using end coordinates • Angles, irregular curves require special techniques • Box construction and offset measurements are common methods
