Presentation Transcript

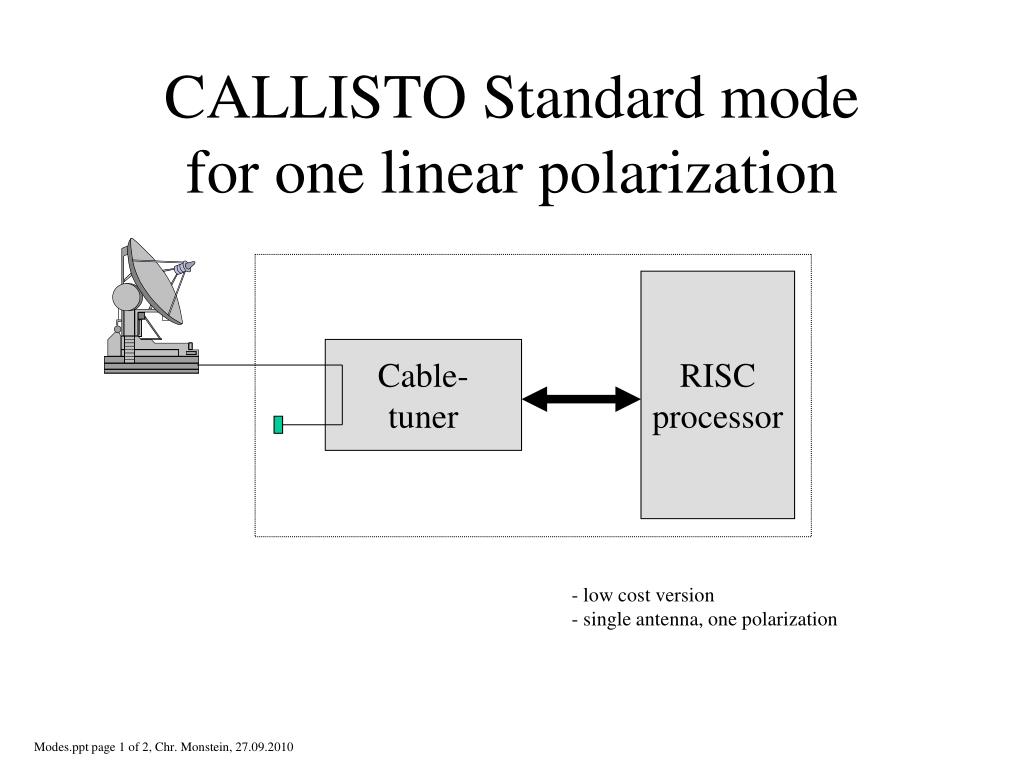

  1. CALLISTO Standard modefor one linear polarization RISC processor Cable- tuner - low cost version - single antenna, one polarization Modes.ppt page 1 of 2, Chr. Monstein, 27.09.2010

  2. CALLISTO cirular polarization Cable- tuner RISC processor L Isol Preamp 90° hybrid Preamp Inp R Cable- tuner RISC processor 2 separate Callisto to measure 2 polarizations at the same time Modes.ppt page 2 of 2, Chr. Monstein, 27.09.2010
