  1. Experience-BasedSurface-Discernment by aQuadruped Robot by Lars Holmstrom, Drew Toland, and George Lendaris Portland State University, Portland, OR

  2. Motivation for the Research • Enhance our Understanding of Intelligence • Study aspects of how our minds work by implementing intelligent behavior in software and hardware • Application • Create intelligent tools and algorithms to solve complex problems in a more “human-like” way

  3. Desirable Human-Like Abilities 1. Efficient transfer of knowledge from one problem domain to another

  4. Desirable Human-Like Abilities 2. Rapid Context Discernment (System Identification)

  5. Desirable Human-Like Abilities 3. The more knowledge one obtains, the more efficient one becomes at accessing and using that knowledge O(log n) search for binary trees

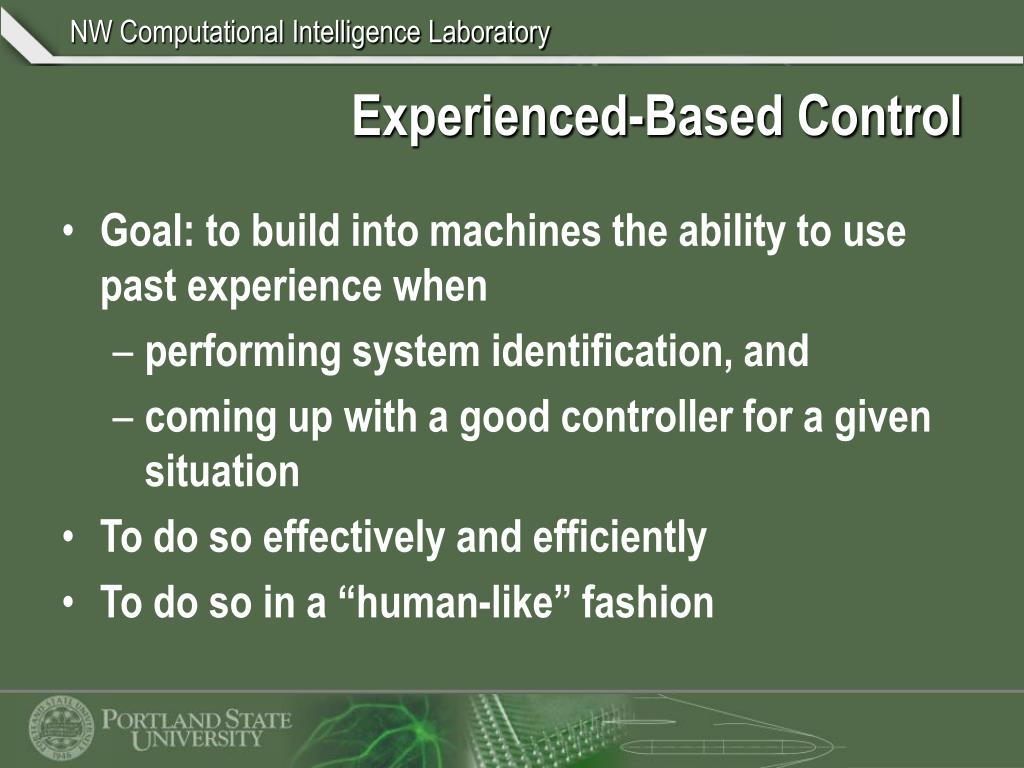

  6. Experienced-Based Control • Goal: to build into machines the ability to use past experience when • performing system identification, and • coming up with a good controller for a given situation • To do so effectively and efficiently • To do so in a “human-like” fashion

  7. Sony AIBO

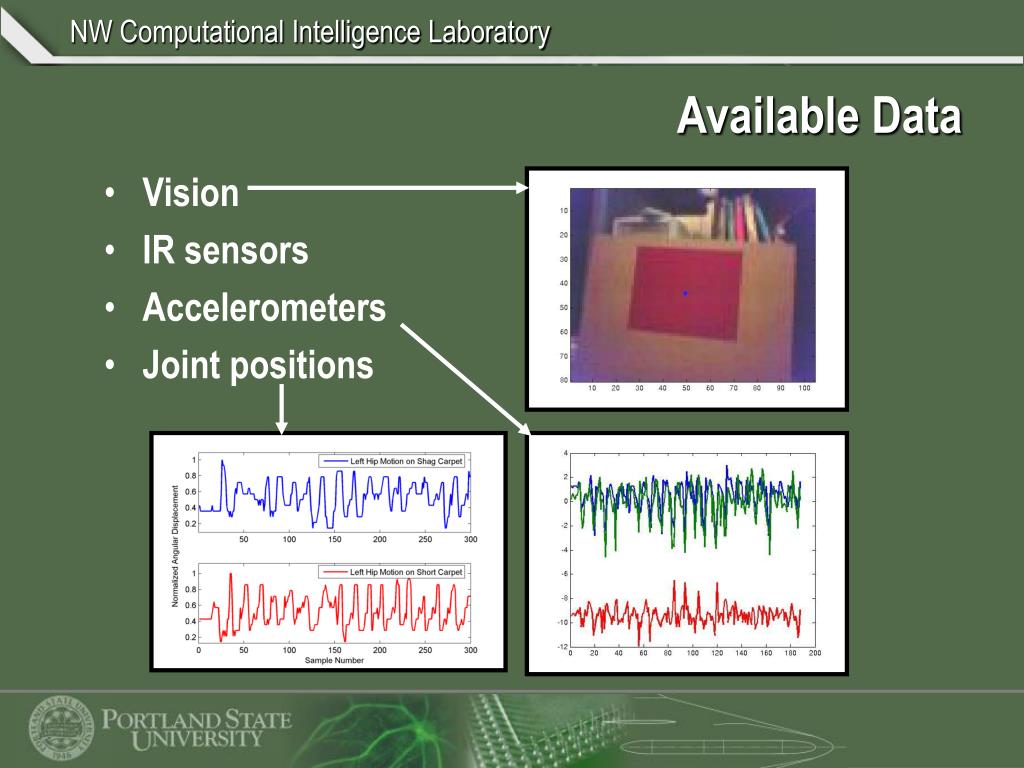

  8. Available Data • Vision • IR sensors • Accelerometers • Joint positions

  9. AIBO Experience-Based Algorithm • Goal: AIBO to change gait based on surface type • Identify change in surface • Use only information available from joint actuators • Implement proper change to gait parameters • Recall gaits from previously-experienced surfaces • Desire to generalize to novel surfaces • Both tasks are to be based on past experiences with similar surfaces

  10. How Do We Endow AIBO with Experience? • Base capability for walking behavior is provided by Sony (hardware) and Tekkotsu (software) • Train AIBO to develop “good” gaits (gait parameters) for a selected set of distinct surfaces

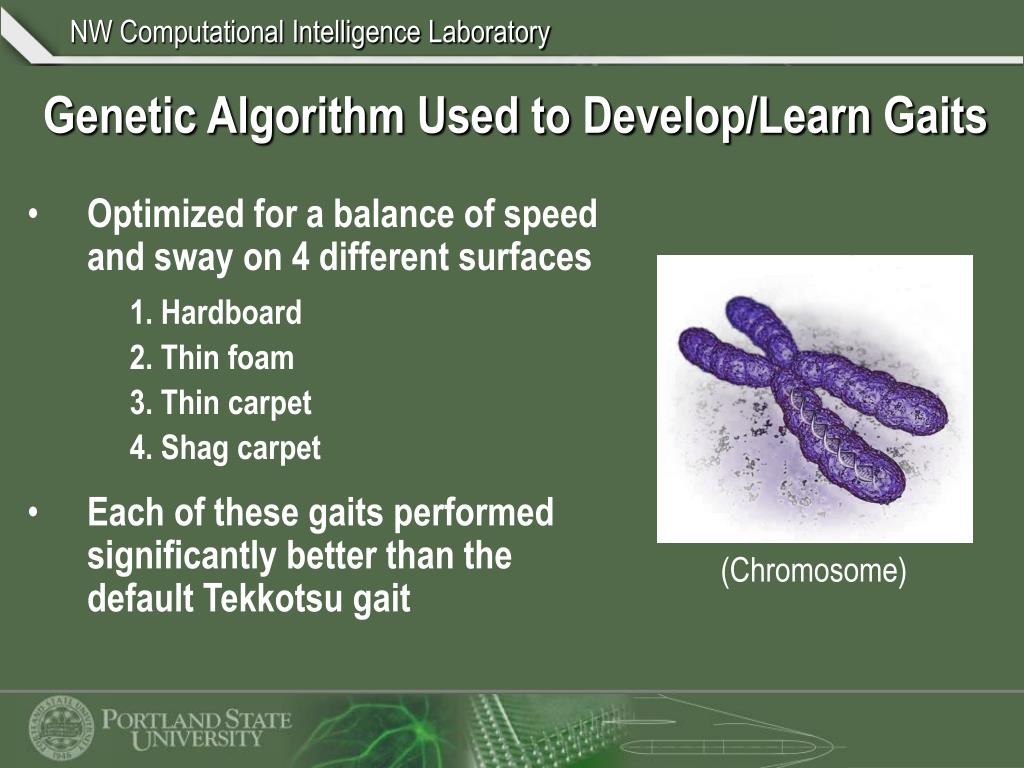

  11. Genetic Algorithm Used to Develop/Learn Gaits • Optimized for a balance of speed and sway on 4 different surfaces 1. Hardboard 2. Thin foam 3. Thin carpet 4. Shag carpet • Each of these gaits performed significantly better than the default Tekkotsu gait (Chromosome)

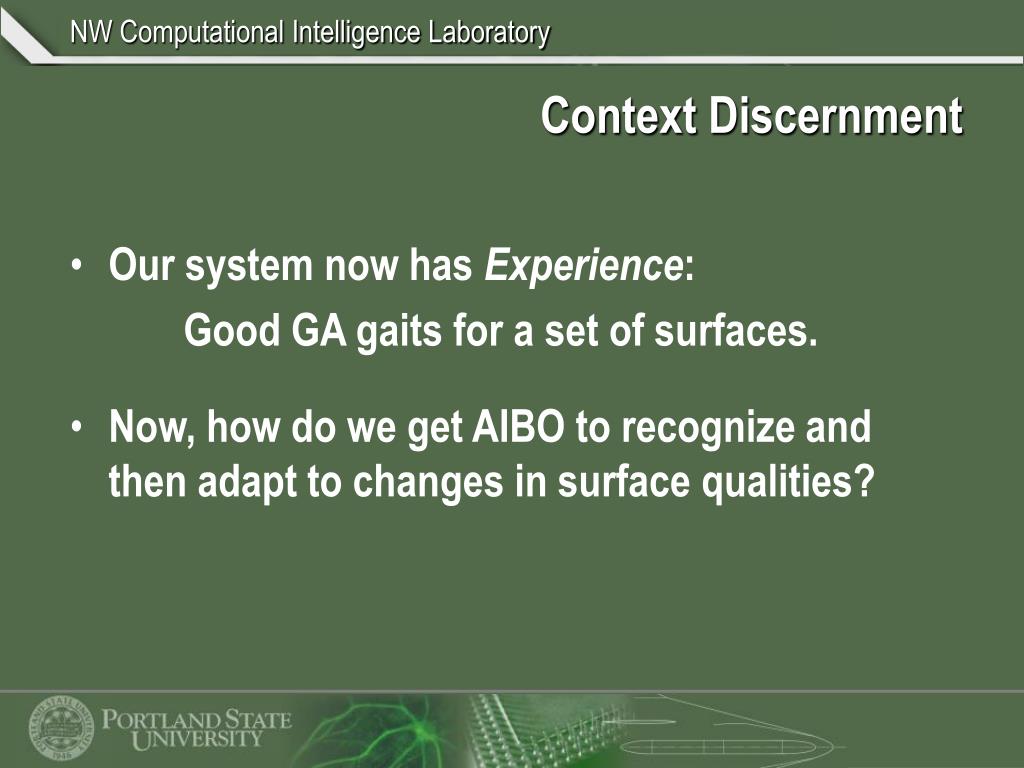

  12. Context Discernment • Our system now has Experience: Good GA gaits for a set of surfaces. • Now, how do we get AIBO to recognize and then adapt to changes in surface qualities?

  13. Available Data • Vision • IR sensors • Accelerometers • Joint positions

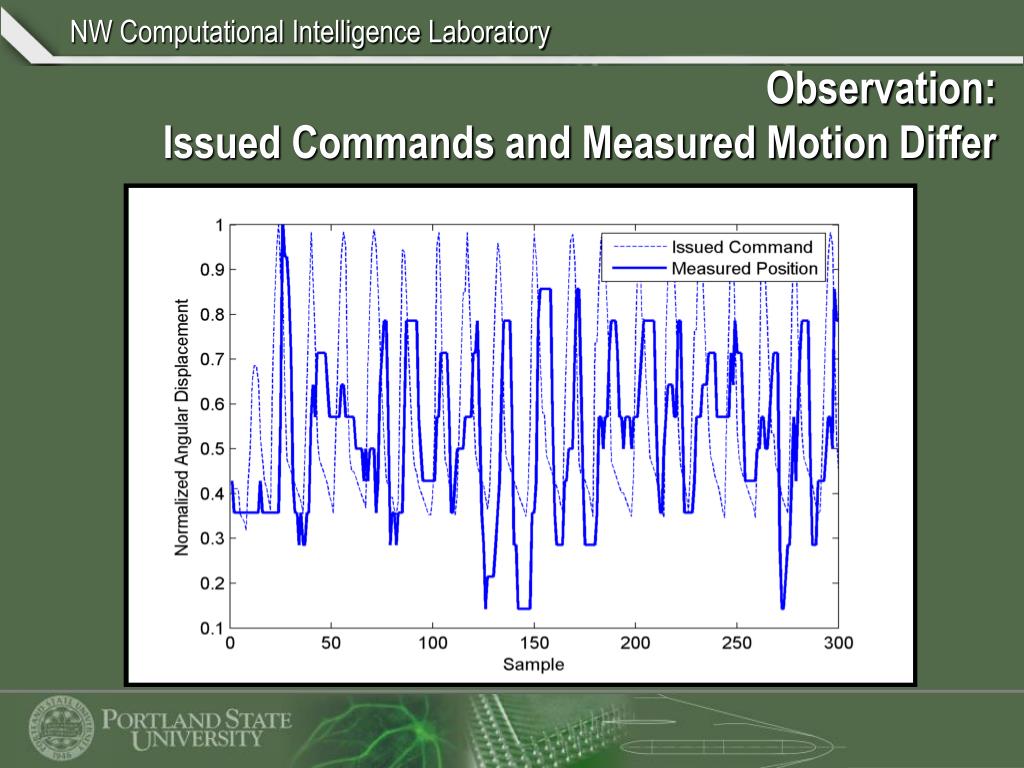

  14. Observation: Issued Commands and Measured Motion Differ

  15. Are There Measurable Differences Between the Kinesthetic Responses for Different Surface Types?

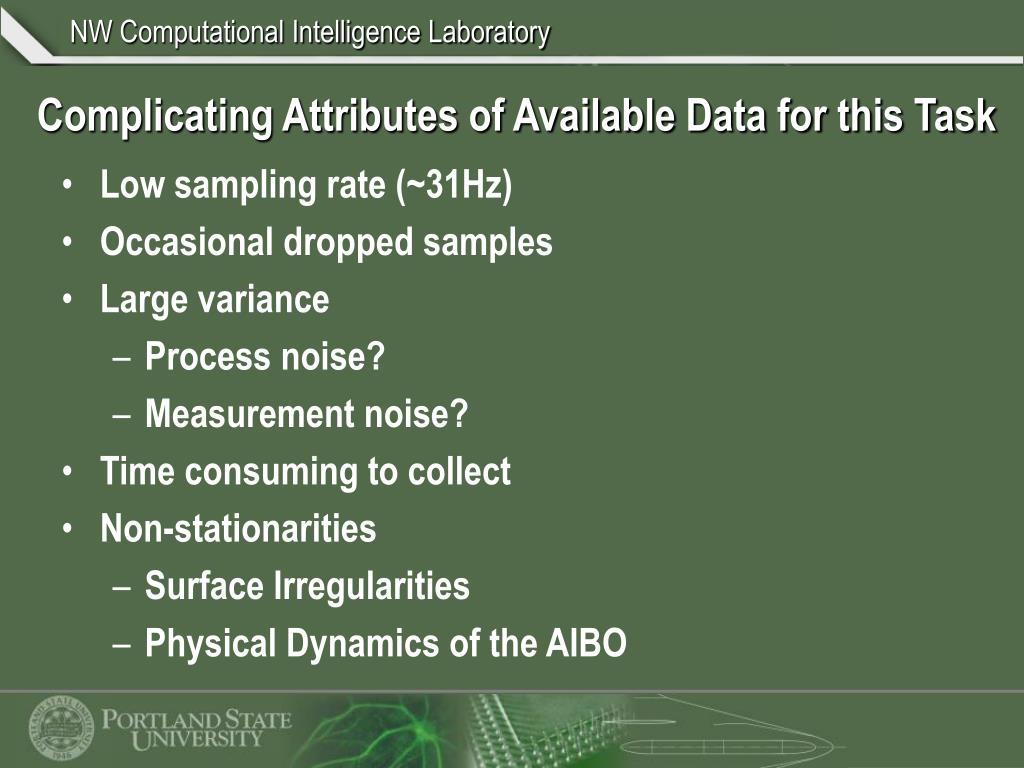

  16. Complicating Attributes of Available Data for this Task • Low sampling rate (~31Hz) • Occasional dropped samples • Large variance • Process noise? • Measurement noise? • Time consuming to collect • Non-stationarities • Surface Irregularities • Physical Dynamics of the AIBO

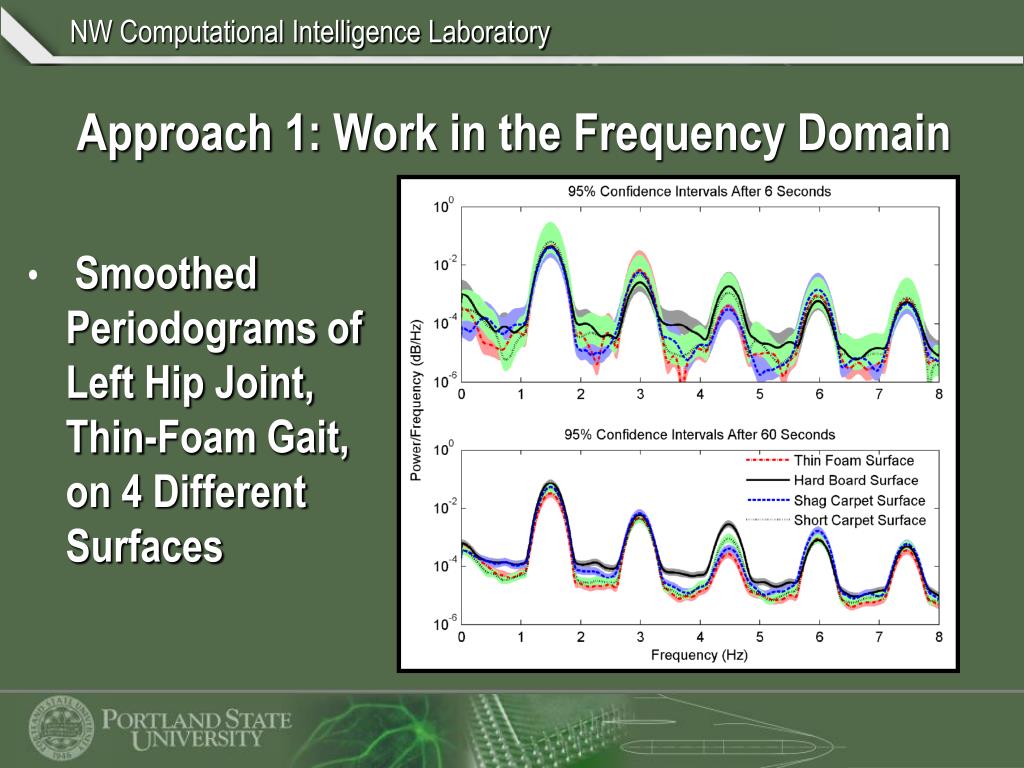

  17. Approach 1: Work in the Frequency Domain Smoothed Periodograms of Left Hip Joint, Thin-Foam Gait, on 4 Different Surfaces

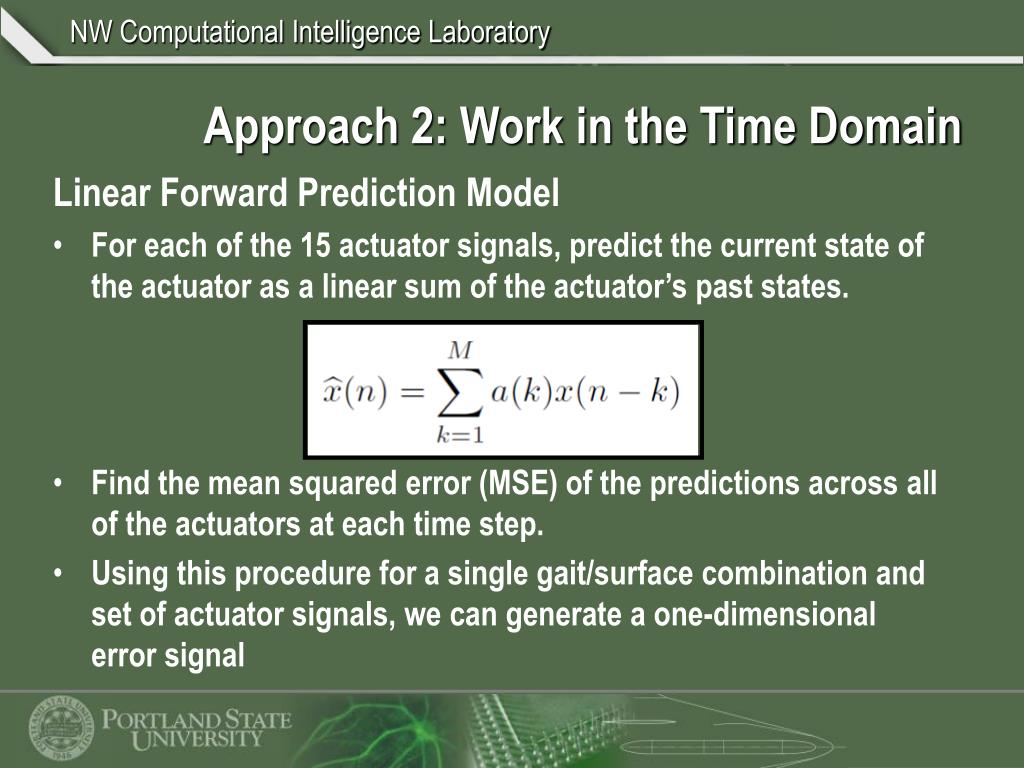

  18. Approach 2: Work in the Time Domain Linear Forward Prediction Model • For each of the 15 actuator signals, predict the current state of the actuator as a linear sum of the actuator’s past states. • Find the mean squared error (MSE) of the predictions across all of the actuators at each time step. • Using this procedure for a single gait/surface combination and set of actuator signals, we can generate a one-dimensional error signal

  19. Fitting the Models • Fit one model on the data collected for each gait/surface combination • Solution of the Normal Equationsis performed to quickly find the unique and optimal model parameters for the given training data • Above properties motivated use of linear models (for computational ease)

  20. Kinesthetic Experience(over all modeled gait/surface combinations) • The Kinesthetic Experience is the (#gaits • #surfaces) dimensional signal indicating each model’s MSE as it unfolds over time • In figure, error signal corres-ponding to the actual gait being used and surface being traversed is the minimum in each of these cases, indicating perfect classification

  21. Implemented Discernment of Surface Transition • The algorithm can discern surface transitions in novel data within 2-4 seconds with 92% accuracy • Accuracy increased as time increases

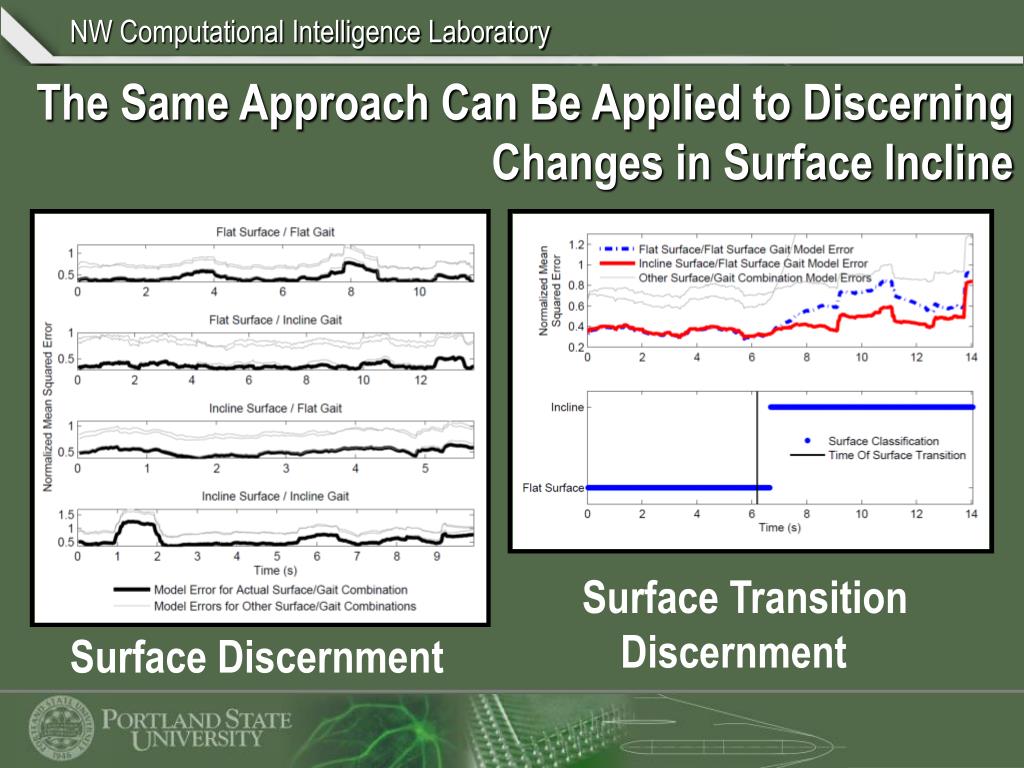

  22. The Same Approach Can Be Applied to Discerning Changes in Surface Incline Surface Transition Discernment Surface Discernment

  23. Experience Based Discernment and Control In Action

  24. Future Directions • Use a set of gait/surface experiences as the base for discerning novel surface types • The Kinesthetic Experience acts as a parametric “description” of the surface being experienced • Use the Kinesthetic Experience to generalize to new control policies to match new surfaces
