  1. Camera Usage Photography I COM 241

  2. Single lens reflex camera • Uses interchangeable lenses • Higher quality image than point and shoot cameras • Greater resolution • DSLR • Digital single lens reflex

  3. Exposure • Shutter speed + aperture = exposure • Basically correct exposure tells camera how much light to let in camera to produce the best possible image

  4. Shutter speed controlled in camera • Shutter opens and closes • F-stop controlled by lens • Size of hole that light comes thru • Both control how much light let into camera

  5. Shutter • Amount of time the shutter is open • Controls amount of light that enters camera • Settings are in fractions of a second • So a shutter speed of 4 = 1/4 of a second • A shutter speed of 60 = 1/60 of a second

  6. Each shutter setting is half (or double) the next • Typical shutter speeds • 1, 2, 4, 8, 15, 30, 60, 125, 250, 500 • Little different on digital cameras

  7. Slow shutter speed – 1/8 to 1/30 of a second Fast shutter speed – 1/125 to1/500 of a second

  8. Bike rider: slow shutter speed during the day (pan shot) Car lights: slow shutter speed at night (time exposure)

  9. Fast shutter speeds during the day

  10. Camera motion • Faster shutter speed, less camera movement • Longer the focal length of lens, more have to worry about camera movement • General rule of thumb • Shutter speed greater than or equal to focal length of lens*

  11. Aperture • Opening in the lens thru which light enters camera • Control this by making opening larger or smaller • Measured by f-stops • f/1.4, f/2, f/2.8, f/4, f/5.6….f/64

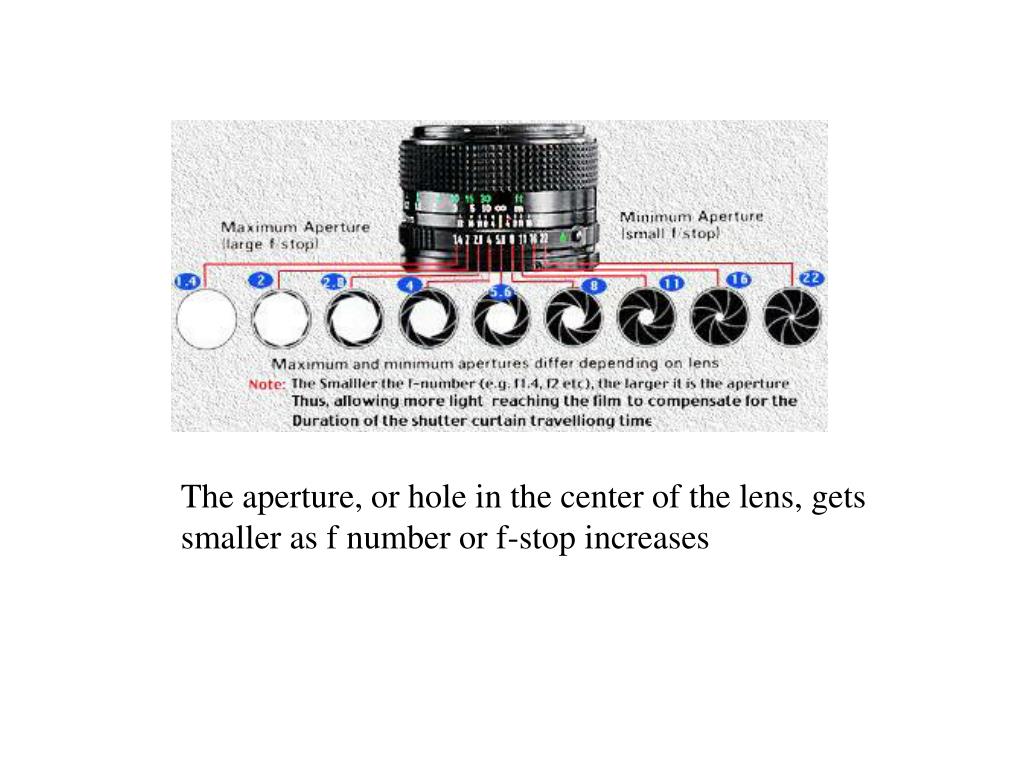

  12. The aperture, or hole in the center of the lens, gets smaller as f number or f-stop increases

  13. Each f-stop is half as fast as the previous one • f/1.4 is largest and “fastest” • Admits the most light • When go from f/2 to f2.8, that’s referred to as “stopping down”

  14. Shutter closed Shutter open

  15. Depth of field/aperture • Area of focus is known as depth of field • As decrease size of aperture, depth of field increases • More in photo (background and foreground) is in focus

  16. Shallow depth of field, lower f-stop

  17. Greater depth of field, higher f-stop

  18. shot at f/2.8 • focus is on boy in middle • aperture setting is f/16 • focus is on boy in middle

  19. Determinates of depth of field • Aperture • Smaller aperture, greater depth of field • Lens • Shorter the lens, the greater depth of field • Wide angle vs. telephoto • Distance from subject • Greater distance from subject, greater depth of field

  20. Aperture / shutter speed • Each smaller f-stop cuts amount of light in half • Each increase in shutter speed cuts amount of light in half • Maintain the same exposure by: • Increasing shutter speed, decreasing f-stop • Or vice versa

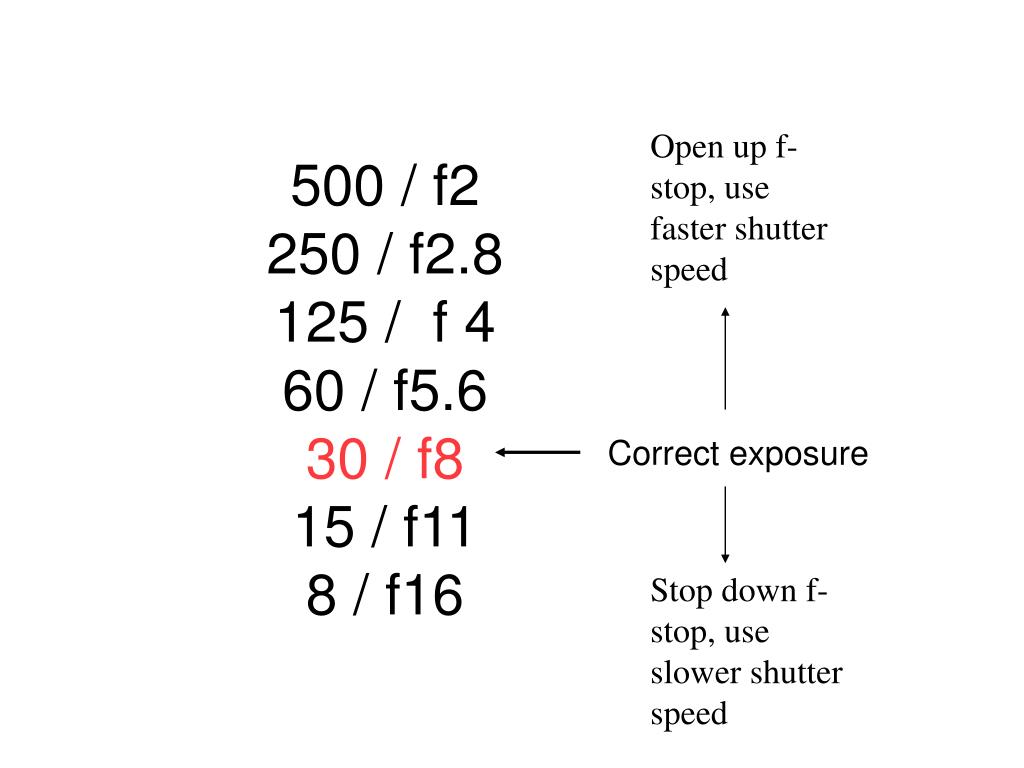

  21. Open up f-stop, use faster shutter speed 500 / f2 250 / f2.8 125 / f 4 60 / f5.6 30 / f8 15 / f11 8 / f16 Correct exposure Stop down f-stop, use slower shutter speed

  22. Difference is in motion and depth of field • Faster the shutter speed less blurring • Higher the f/stop (f/16) greater the depth of field

  23. 1/4 sec, f/16 • Small aperture (f/16) produces great depth of field • But bird’s wings are blurred

  24. 1/250 sec, f/2.8 • Freezes bird’s wings • Background is now out of focus

  25. ISO • Sensitivity to light • Higher ISO, more sensitive to light • Good for low light, fast action • Makes image look more coarse, grainy

  26. Low ISO gives better resolution • 100, 200, 400, 800, 1600 • Can change on each shot • Digital camera

  27. Determinates of exposure • Shutter speed • Faster shutter speed, less light strikes film • Stop action • F-stop • Smaller aperture (f/16), less light strikes film • Depth of field • ISO • Sensitivity to light • 800 ISO is more sensitive than 200 ISO • Also looks a little grainer

  28. Light meters • Reflected • Meters light reflected from subject • Built into cameras • Incident • Measures light falling on subject

  29. What light meter “sees” • Averages all tones in a scene • Converts them to 18 percent gray

  30. High contrast scenes • Light background • Causes subject to be underexposed • Dark backgrounds • Causes subject to be overexposed

  31. How to compensate • Move in closer • Meter the palm of your hand • For landscapes tilt the camera down
