  1. The Reveal Turn-KeyFormal Verification System Zaher Andraus, Karem Sakallah University of Michigan, Ann Arbor Dagstuhl Seminar 09461Algorithms and Applications for Next Generation SAT SolversNov. 8-13, 2009

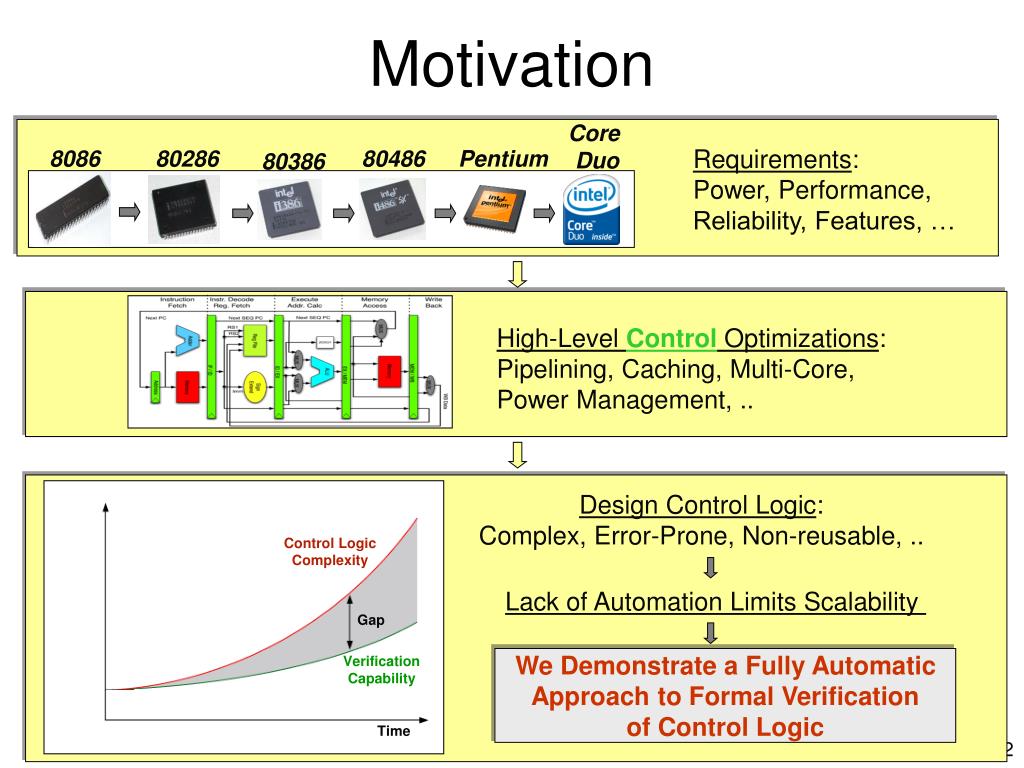

  2. Motivation Core Duo Requirements: Power, Performance, Reliability, Features, … 8086 80286 80486 Pentium 80386 High-Level Control Optimizations: Pipelining, Caching, Multi-Core, Power Management, .. Design Control Logic: Complex, Error-Prone, Non-reusable, .. Control Logic Complexity Lack of Automation Limits Scalability Gap Verification Capability We Demonstrate a Fully Automatic Approach to Formal Verification of Control Logic Time

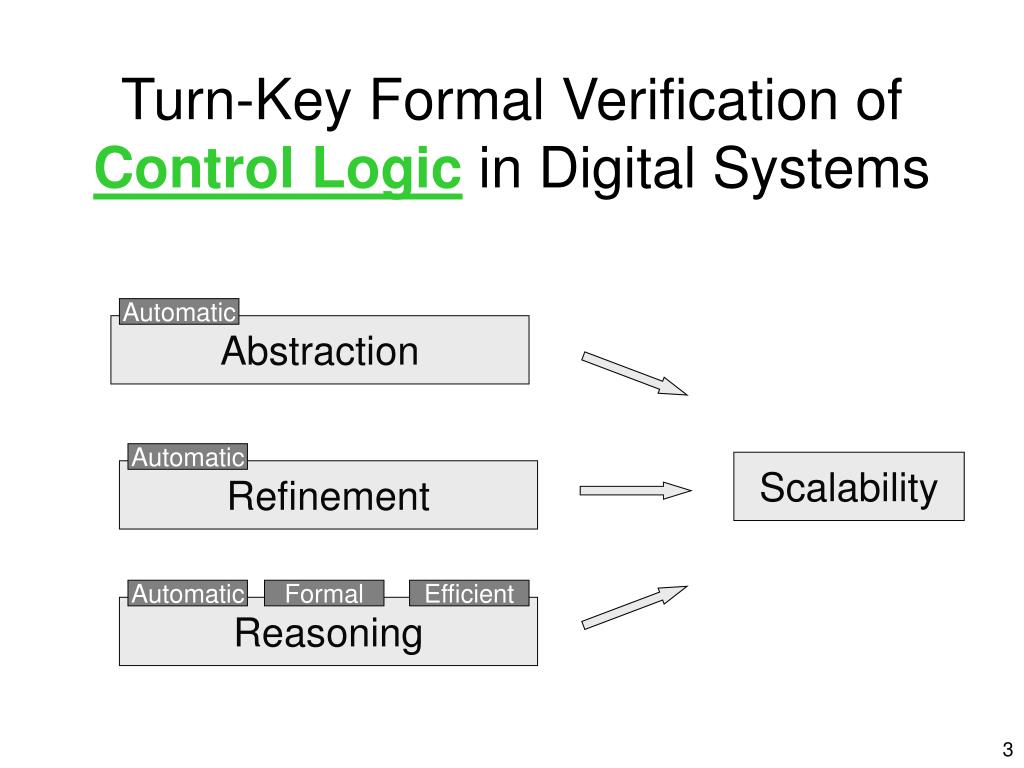

  3. Turn-Key Formal Verification of Control Logic in Digital Systems Automatic Abstraction Automatic Scalability Refinement Automatic Formal Efficient Reasoning

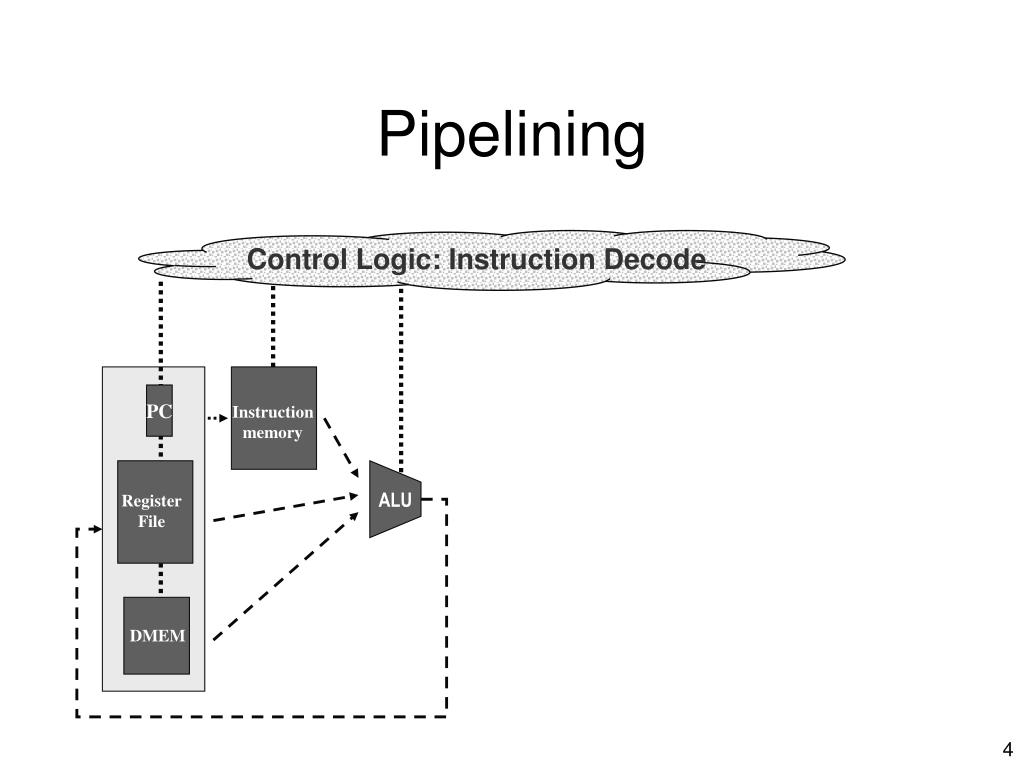

  4. Instruction memory DMEM Register File Pipelining Control Logic: Instruction Decode PC ALU

  5. Instruction memory DMEM Register File Pipelining Control Logic: Instruction Decode PC ALU

  6. Instruction memory DMEM Register File Control Logic: Decoding, Bypassing/Forwarding, Stalling PC ALU

  7. Instruction memory Instruction memory DMEM DMEM Register File Register File SPEC Control Logic IMPL Control Logic PC PC ALU Equivalence ALU

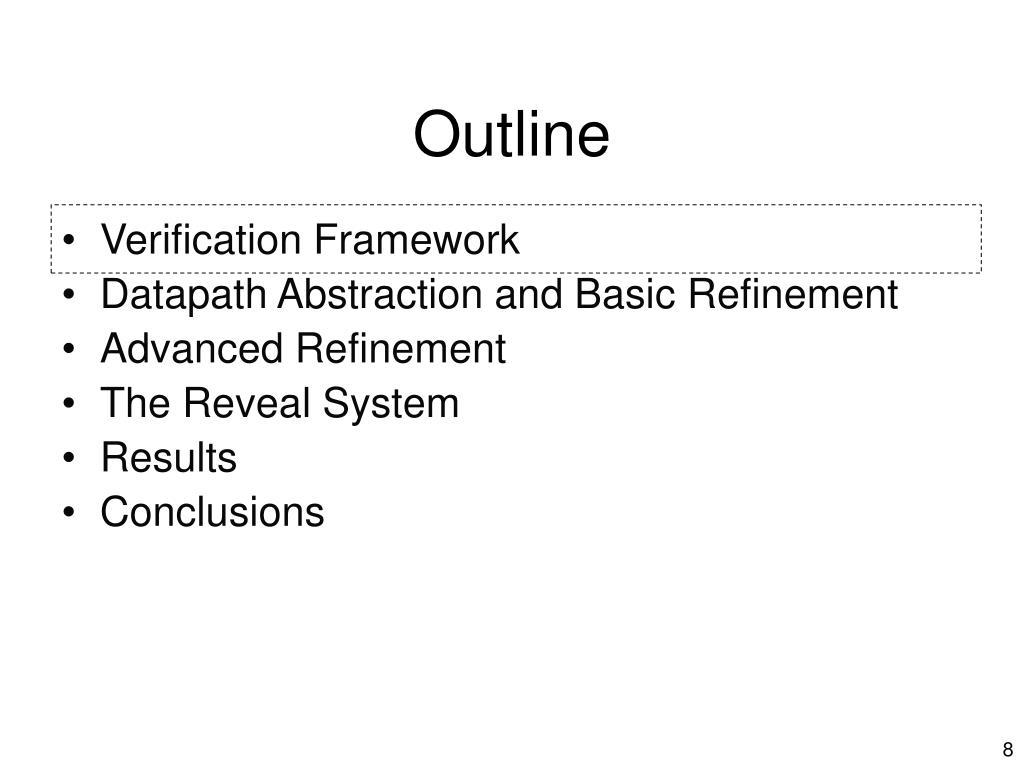

  8. Outline • Verification Framework • Datapath Abstraction and Basic Refinement • Advanced Refinement • The Reveal System • Results • Conclusions

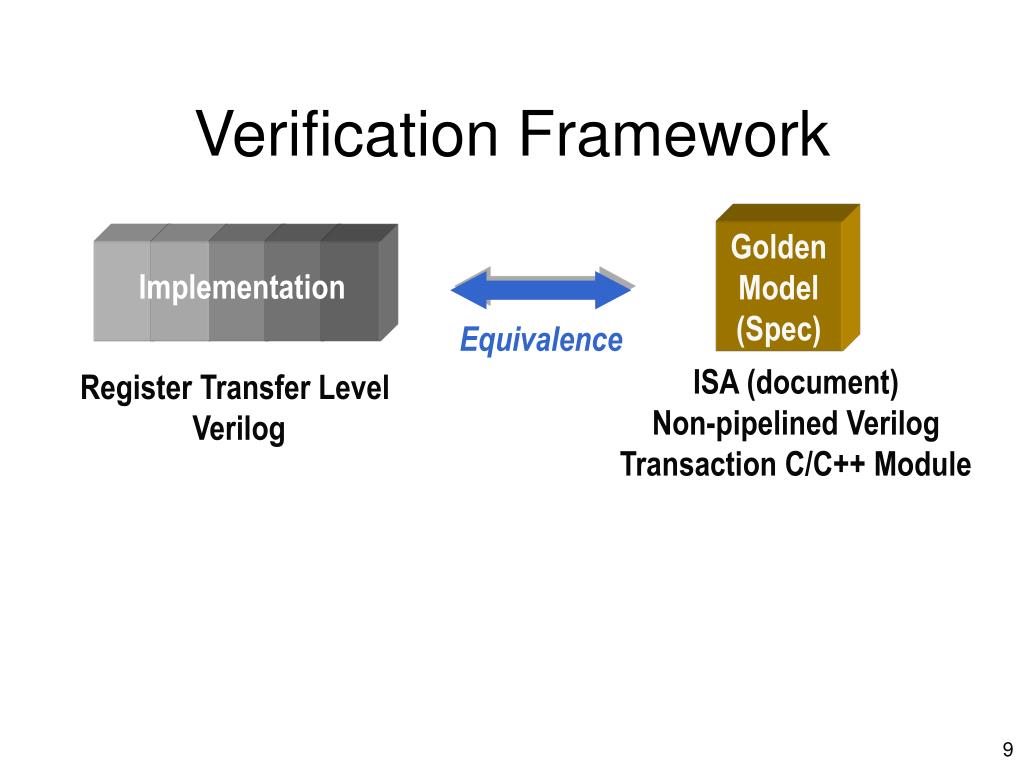

  9. Verification Framework Golden Model (Spec) Implementation Equivalence ISA (document) Non-pipelined Verilog Transaction C/C++ Module Register Transfer Level Verilog

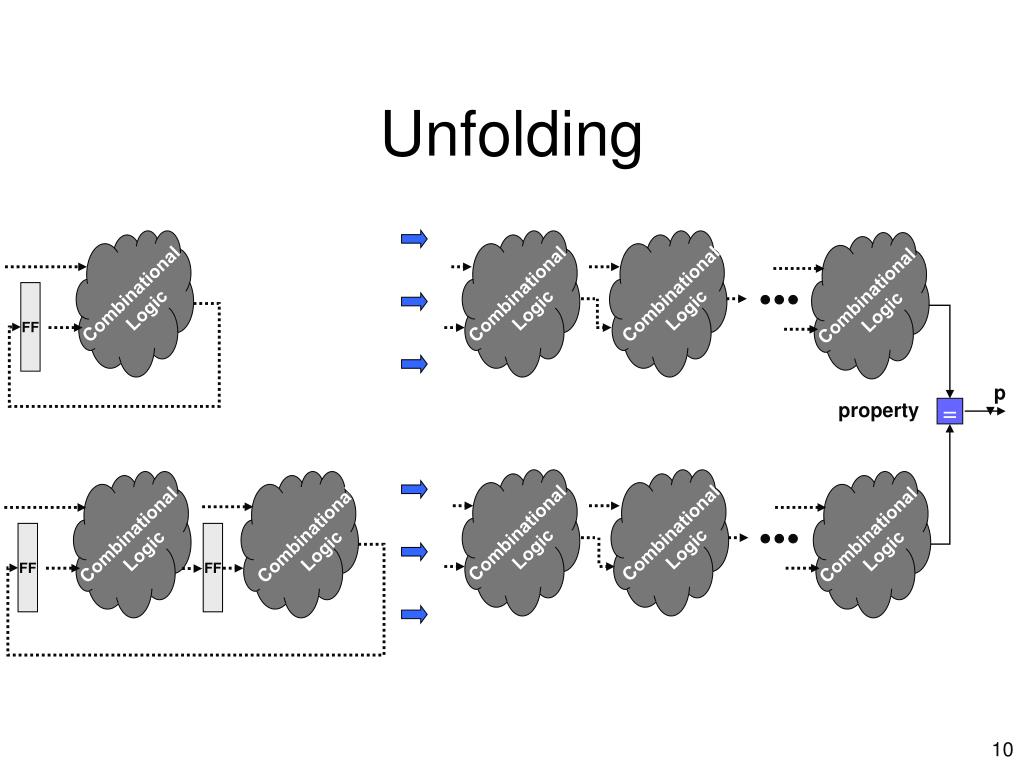

  10. Unfolding Combinational Logic Combinational Logic Combinational Logic Combinational Logic FF p property = Combinational Logic Combinational Logic Combinational Logic Combinational Logic Combinational Logic FF FF

  11. Unfolding Combinational Logic Combinational Logic Combinational Logic Combinational Logic FF p property Combinational Logic Combinational Logic Combinational Logic Combinational Logic Combinational Logic FF FF

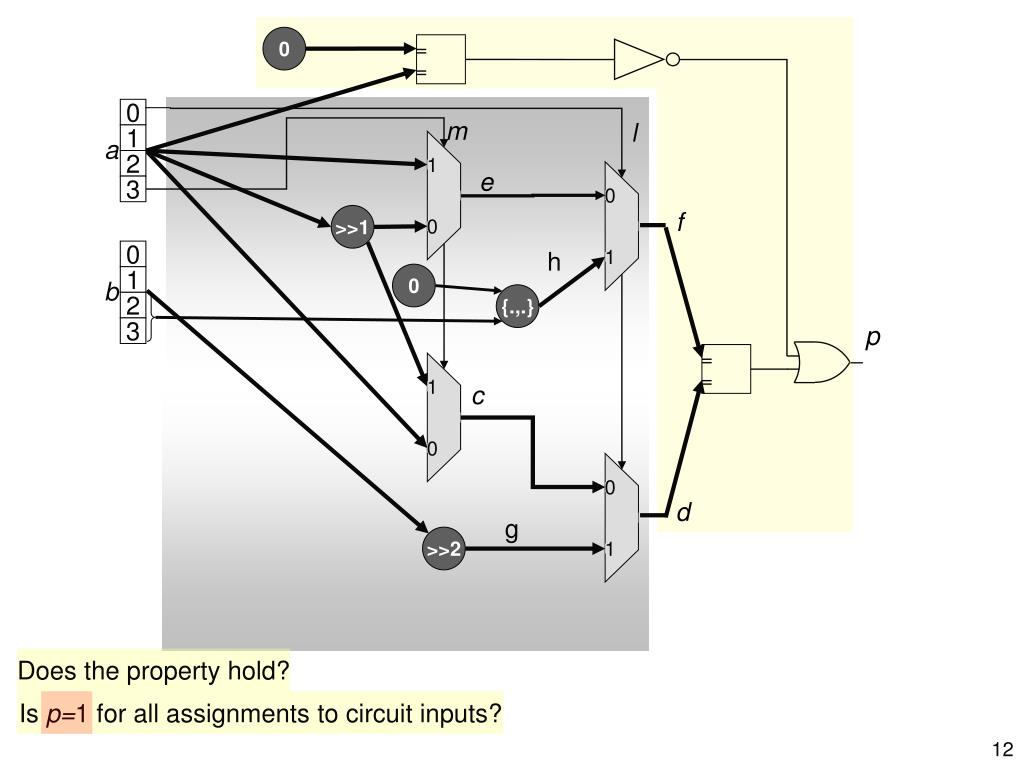

  12. 0 0 a 1 1 2 2 3 3 1 1 0 0 = = = = 1 0 0 1 0 >>1 h 0 b {.,.} g >>2 Does the property hold? Is p=1 for all assignments to circuit inputs?

  13. 0 0 a 1 1 2 2 3 3 1 1 0 0 = = = = 1 0 1 0 0 >>1 h 0 b {.,.} g >>2 Is p=1 for all assignments to circuit inputs? Is Ep=1 for all variable assignments?

  14. Impl p in Spec SAT-based Verification Formula Generation YES Bug Witness State Explosion NO Design is Correct

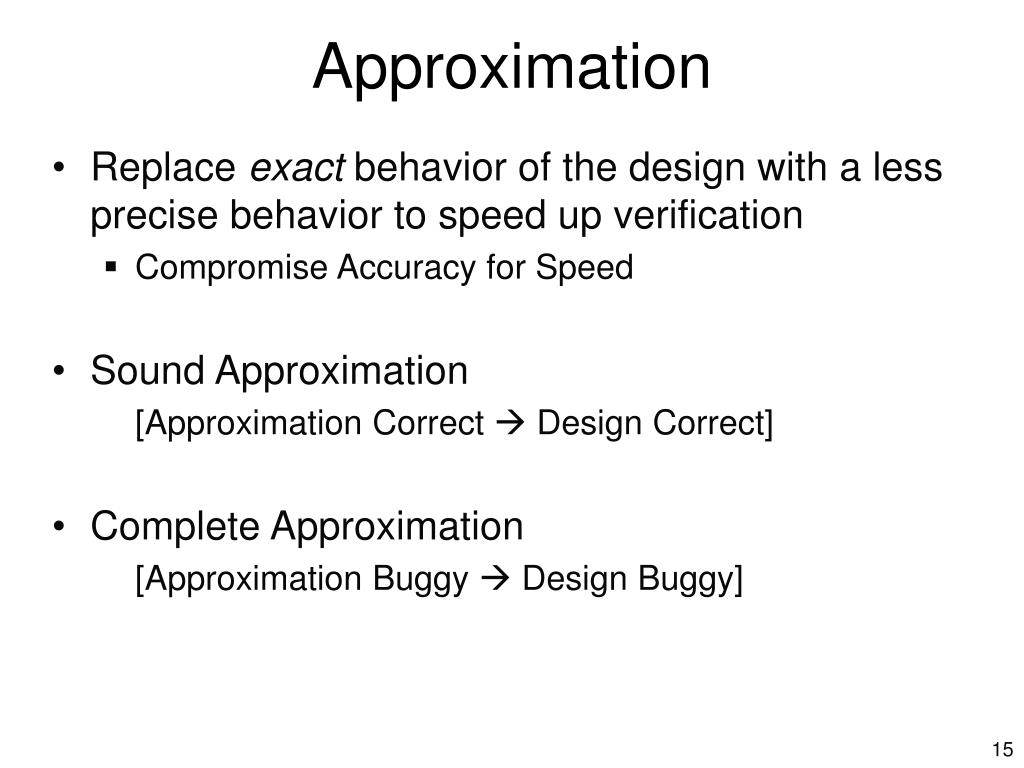

  15. Approximation • Replace exact behavior of the design with a less precise behavior to speed up verification • Compromise Accuracy for Speed • Sound Approximation [Approximation Correct  Design Correct] • Complete Approximation [Approximation Buggy  Design Buggy]

  16. Outline • Verification Framework • Datapath Abstraction and Basic Refinement • Advanced Refinement • The Reveal System • Results • Conclusions

  17. Datapath Abstraction 32 x x ADD x+y ADD(x,y) y y Functional Consistency: x1=y1 & x2=y2 ADD(x1,y1)=ADD(x2,y2) Adder Un-interpreted Function PC 32 PC ADD ADD(PC,four) four 4 succ4 succ4(PC) PC Counting Aritmetic: pred(succ(PC))=PC Memory Consistency: Dout presents the last Din written to same address Mem 32 Mem Din Din Dout Dout Ain Ain

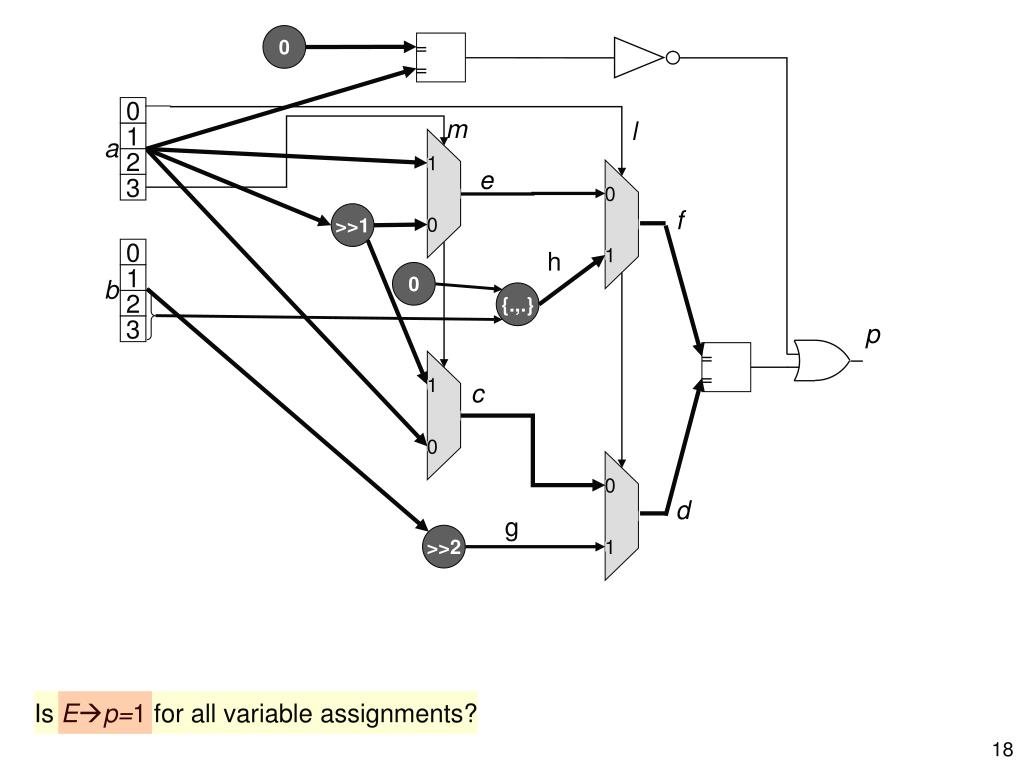

  18. 0 0 a 1 1 2 2 3 3 1 1 0 0 = = = = 0 1 1 0 0 >>1 h 0 b {.,.} g >>2 Is Ep=1 for all variable assignments?

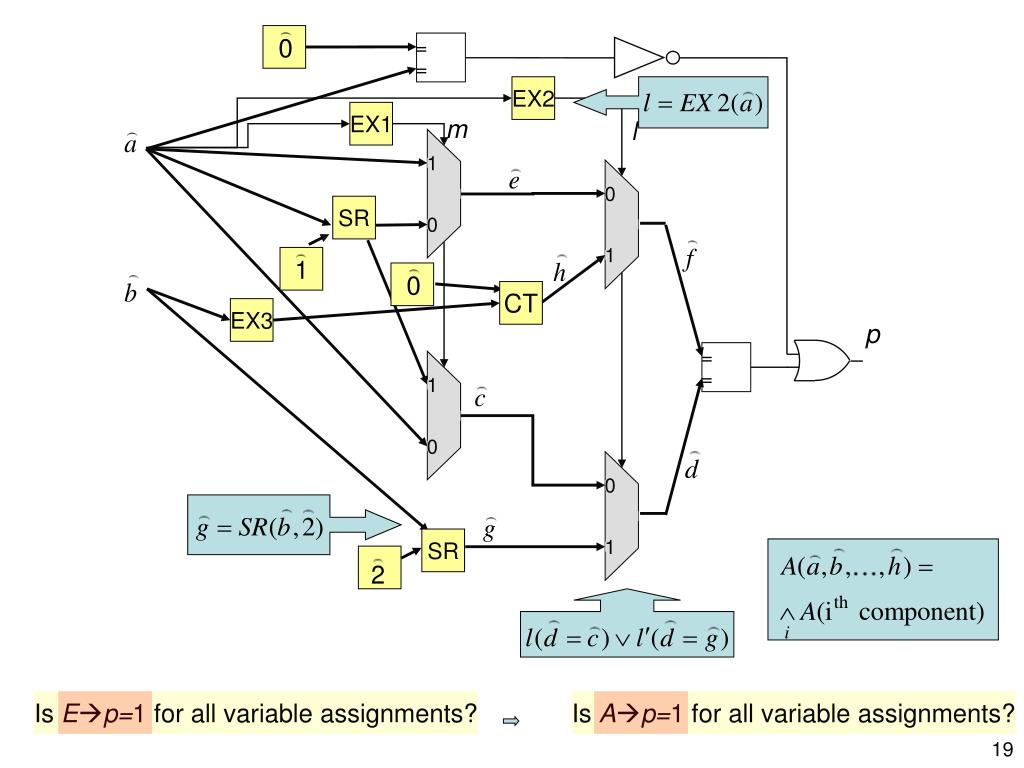

  19. 0 0 1 1 = = = = 1 1 0 0 EX2 EX1 SR CT EX3 SR Is Ep=1 for all variable assignments? Is Ap=1 for all variable assignments?

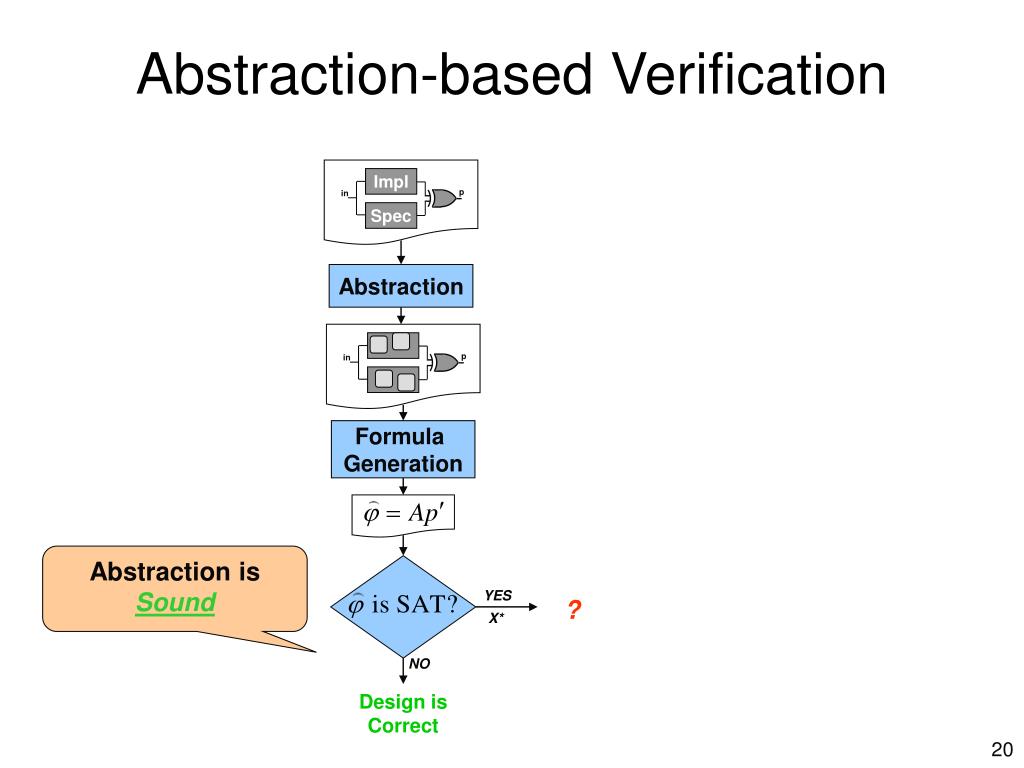

  20. Impl p p in in Spec Abstraction-based Verification Abstraction Formula Generation Abstraction is Sound YES ? X* NO Design is Correct

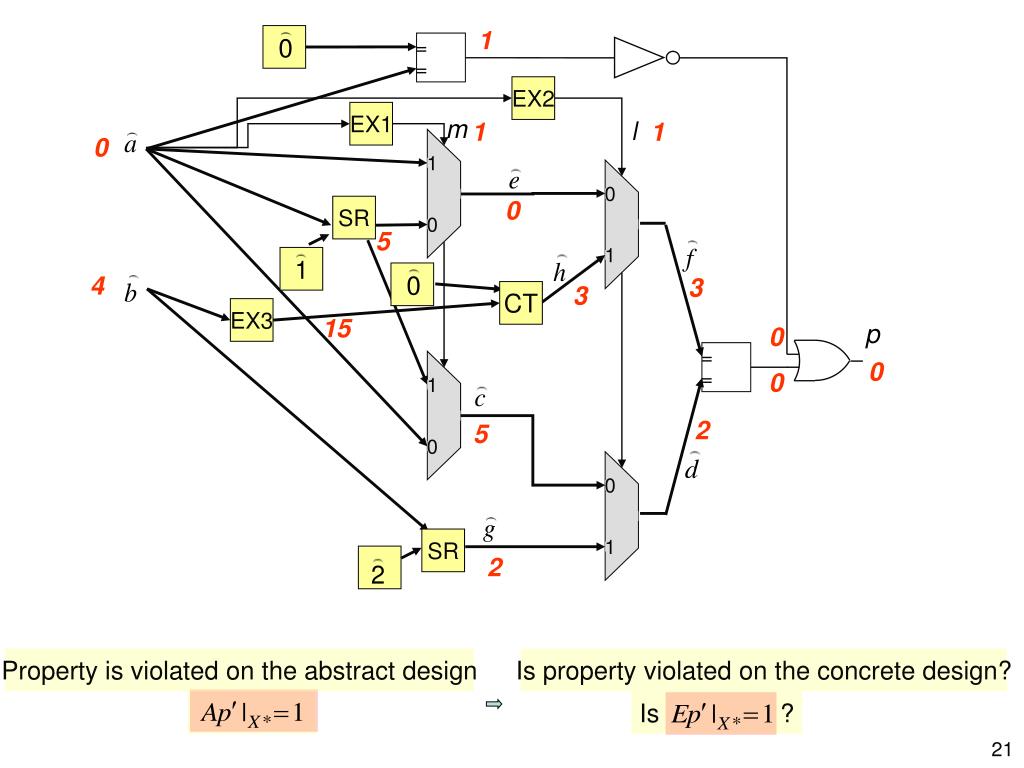

  21. 0 1 0 1 = = = = 1 1 0 0 1 EX2 EX1 1 1 0 0 SR 5 4 3 3 CT EX3 15 0 0 0 2 5 SR 2 Property is violated on the abstract design Is property violated on the concrete design? Is ?

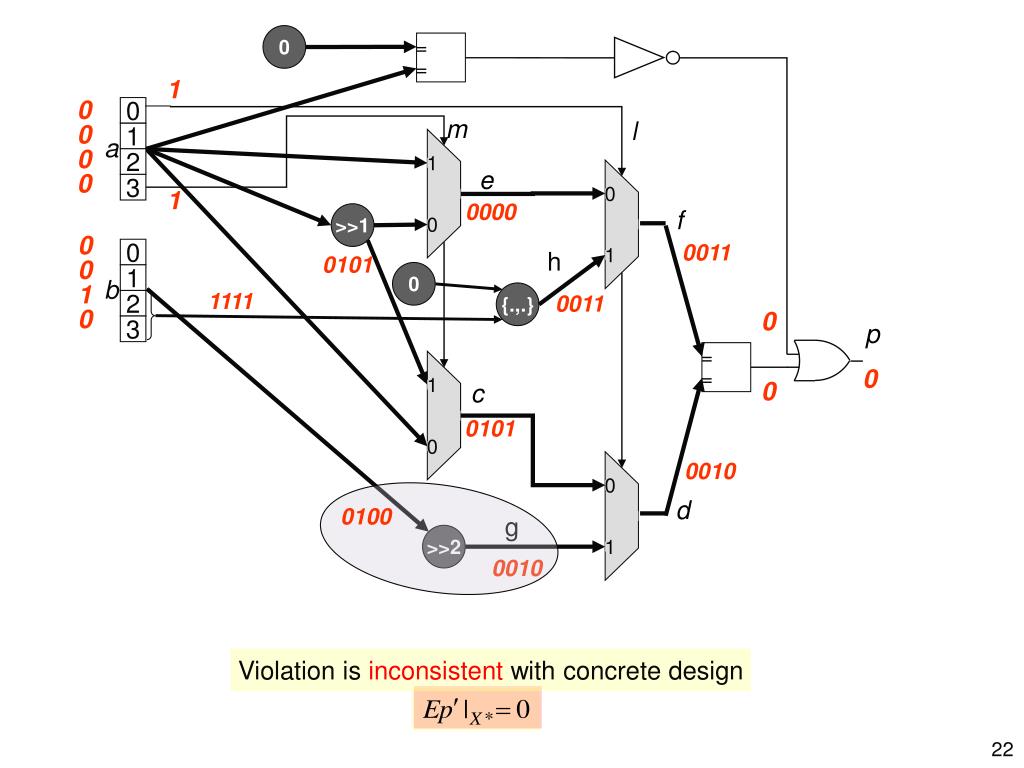

  22. 0 0 a 1 1 2 2 3 3 0 1 0 1 = = = = 0 0 1 1 0 1 0 0 0 0 1 0000 >>1 0 0 1 0 0011 h 0101 0 b 1111 {.,.} 0011 0 0 0 0101 0010 0100 g >>2 0010 Violation is inconsistent with concrete design

  23. Impl p p in in Spec Counterexample Guided Abstraction Refinement Abstraction Refine by Refuting the Counterexample Formula Generation Running example: 14148 iterations Check Feasibility No YES X* Yes NO Bug Witness Design is Correct

  24. Outline • Verification Framework • Datapath Abstraction and Basic Refinement • Advanced Refinement • The Reveal System • Results • Conclusions

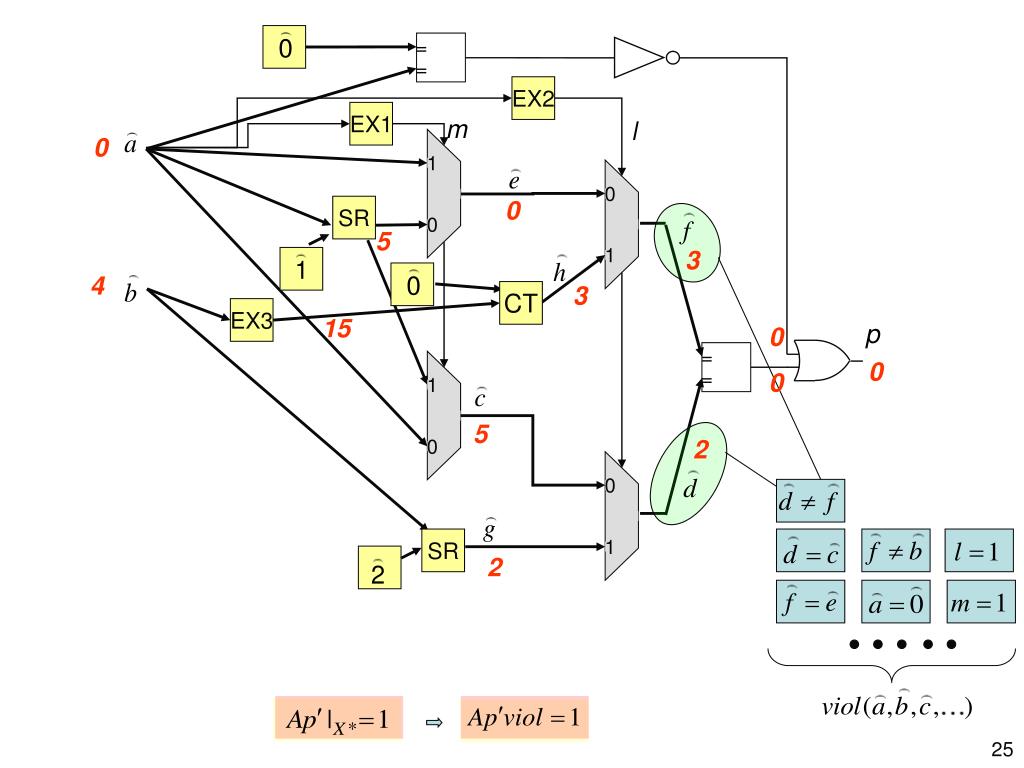

  25. 0 0 1 1 = = = = 1 1 0 0 EX2 EX1 0 0 SR 5 3 4 3 CT EX3 15 0 0 0 5 2 SR 2

  26. Impl p in Spec Counterexample Guided Abstraction Refinement Abstraction & Formula Generation Refute a Family of Counterexamples Similarity to Learning in SMT Running example: 444 iterations Generalization YES X* NO viol Design is Correct No Yes Bug Witness

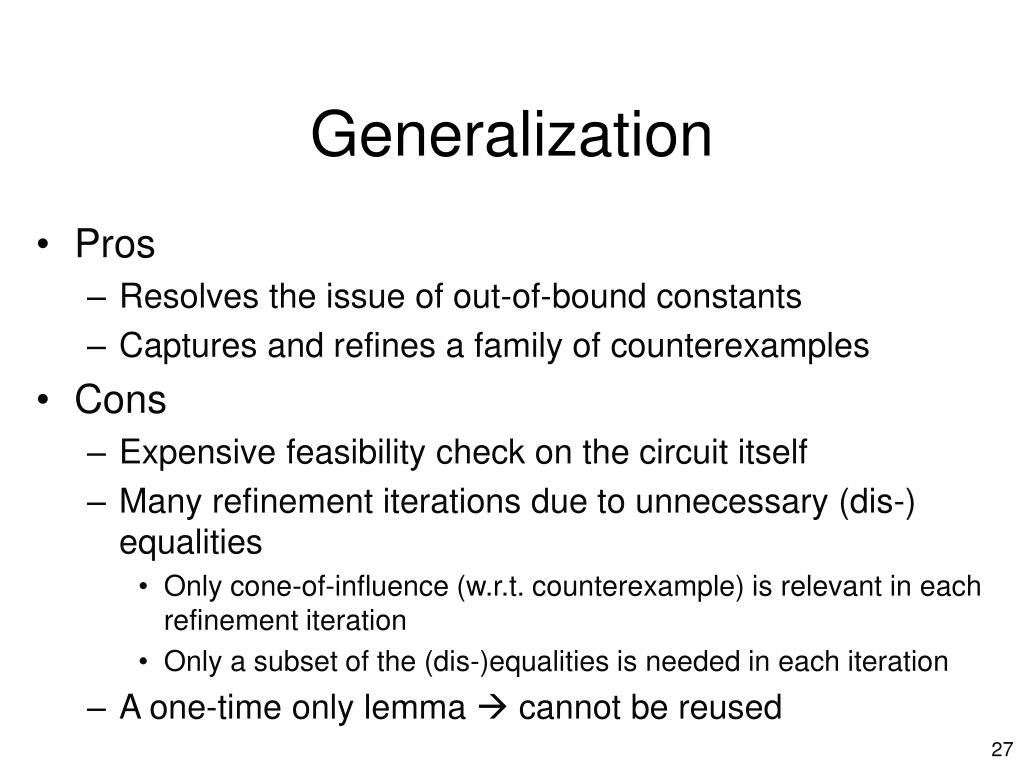

  27. Generalization • Pros • Resolves the issue of out-of-bound constants • Captures and refines a family of counterexamples • Cons • Expensive feasibility check on the circuit itself • Many refinement iterations due to unnecessary (dis-) equalities • Only cone-of-influence (w.r.t. counterexample) is relevant in each refinement iteration • Only a subset of the (dis-)equalities is needed in each iteration • A one-time only lemma  cannot be reused

  28. 0 1 1 0 = = = = 0 0 1 1 1 EX2 EX1 SR 0 CT EX3 0 0 SR

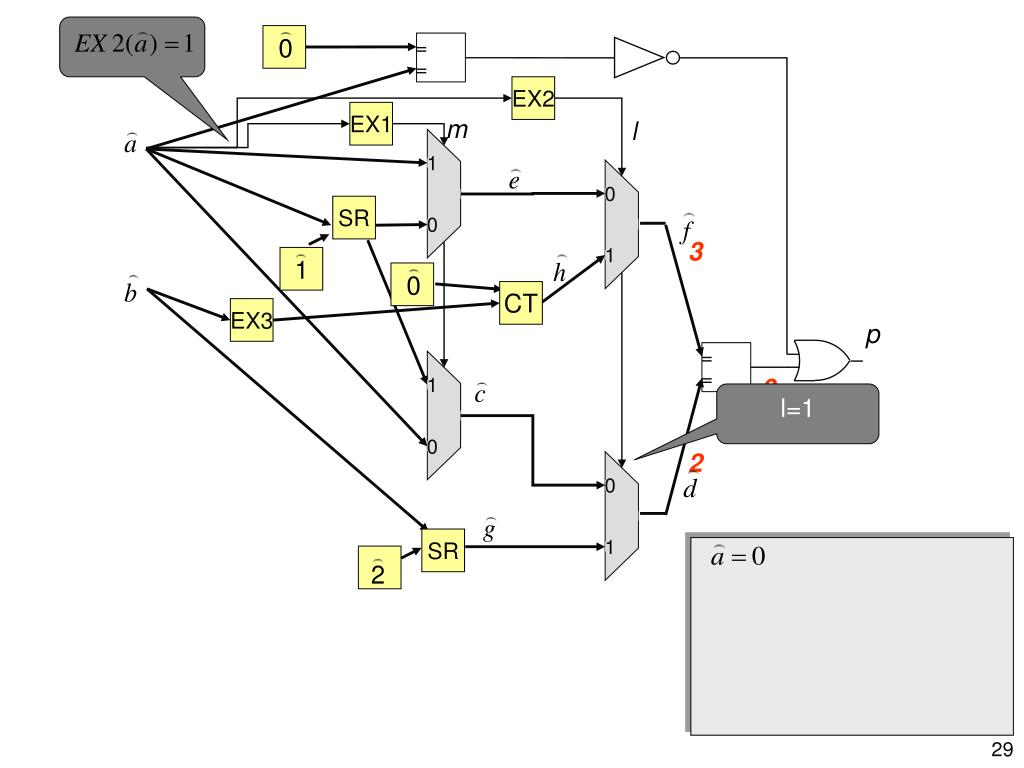

  29. 0 1 1 0 = = = = 0 0 1 1 EX2 EX1 SR 3 CT EX3 0 l=1 2 SR

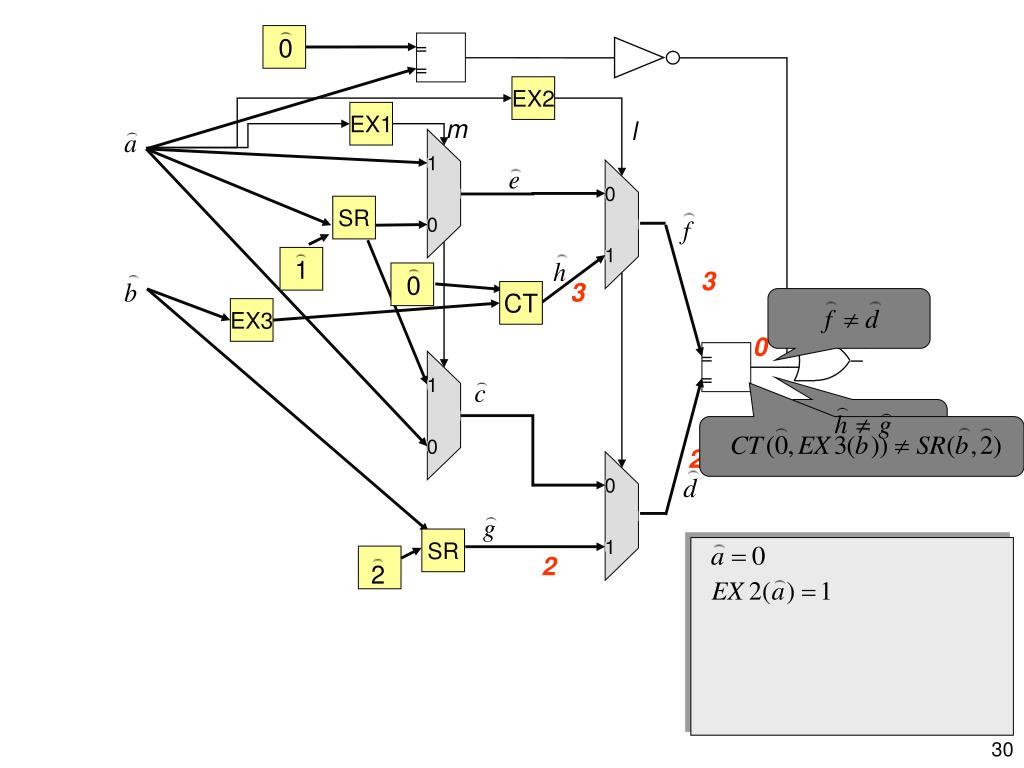

  30. 0 1 0 1 = = = = 1 1 0 0 EX2 EX1 SR 3 3 CT EX3 0 2 SR 2

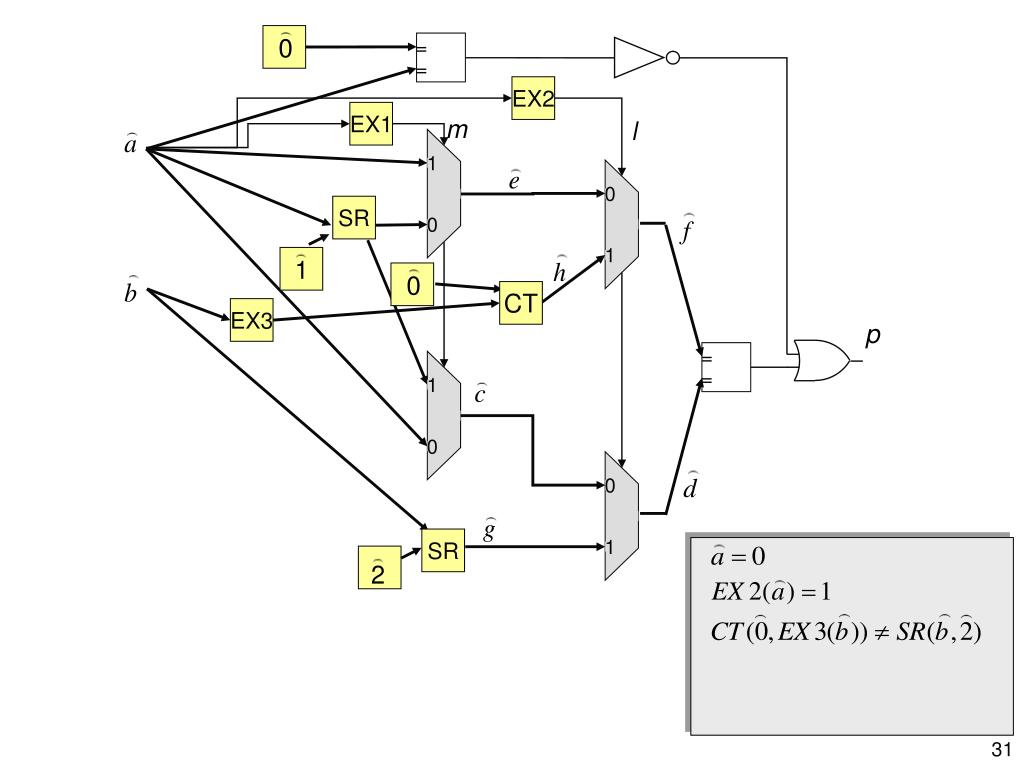

  31. 0 1 1 0 = = = = 0 1 1 0 EX2 EX1 SR CT EX3 SR

  32. Feasibility/Refinement based on Explaining the Abstract Counterexample • Distill a simplified expression • Include only equalities/dis-equalities • Exclude logic that is not in the cone-of-influence • Exclude numeric values • Exclude Control Logic • Based on Primary Inputs  allow independent feasibility checking

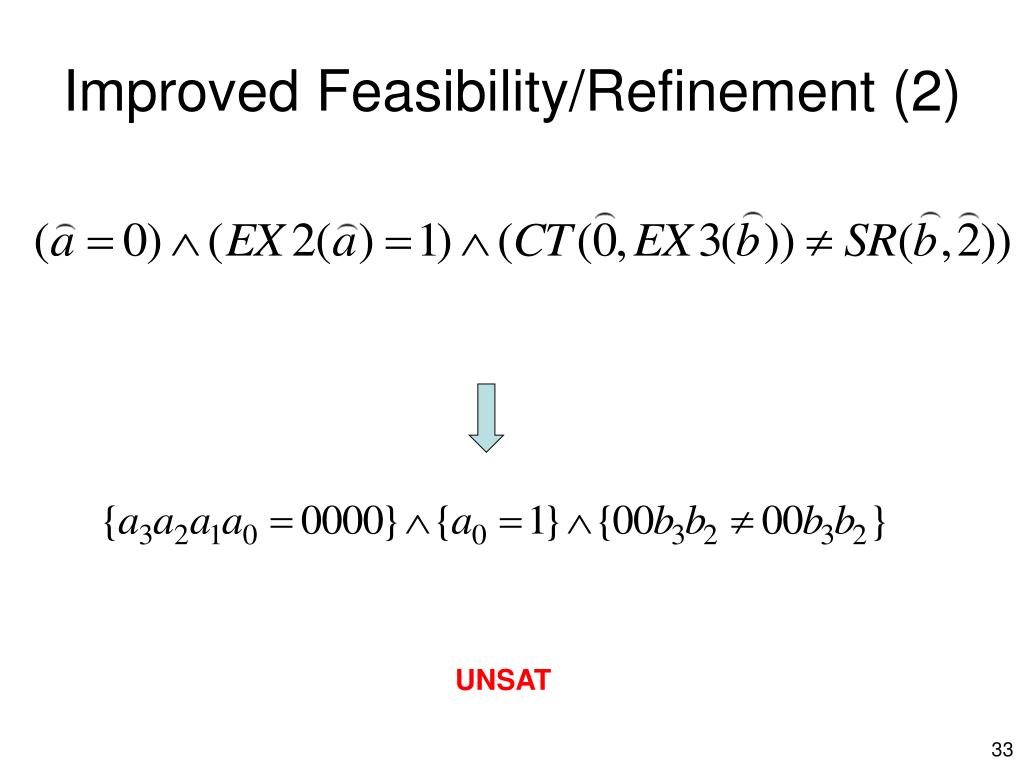

  33. Improved Feasibility/Refinement (2) UNSAT

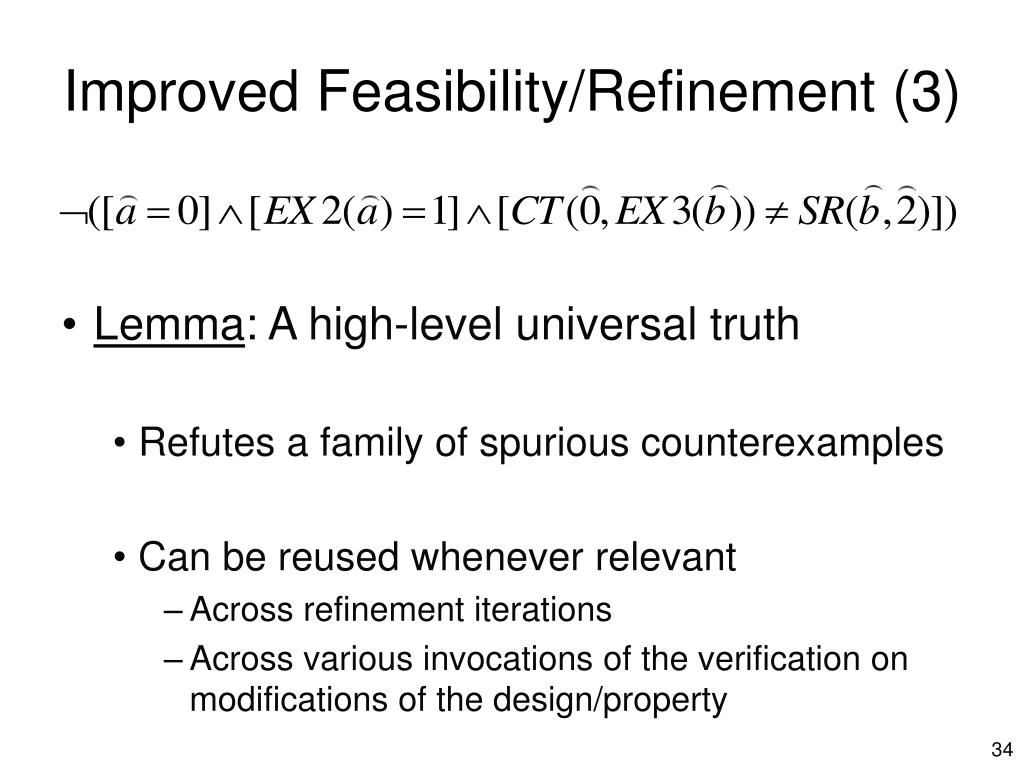

  34. Improved Feasibility/Refinement (3) • Lemma: A high-level universal truth • Refutes a family of spurious counterexamples • Can be reused whenever relevant • Across refinement iterations • Across various invocations of the verification on modifications of the design/property

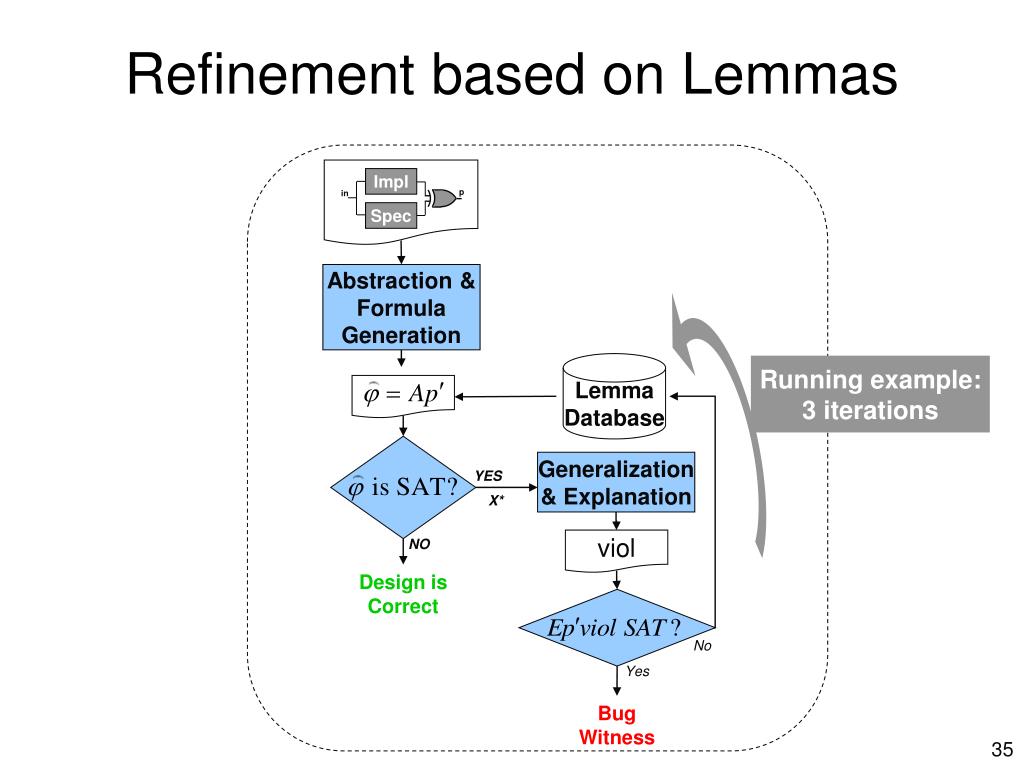

  35. Impl p in Spec Refinement based on Lemmas Abstraction & Formula Generation Lemma Database Running example: 3 iterations Generalization & Explanation YES X* NO viol Design is Correct No Yes Bug Witness

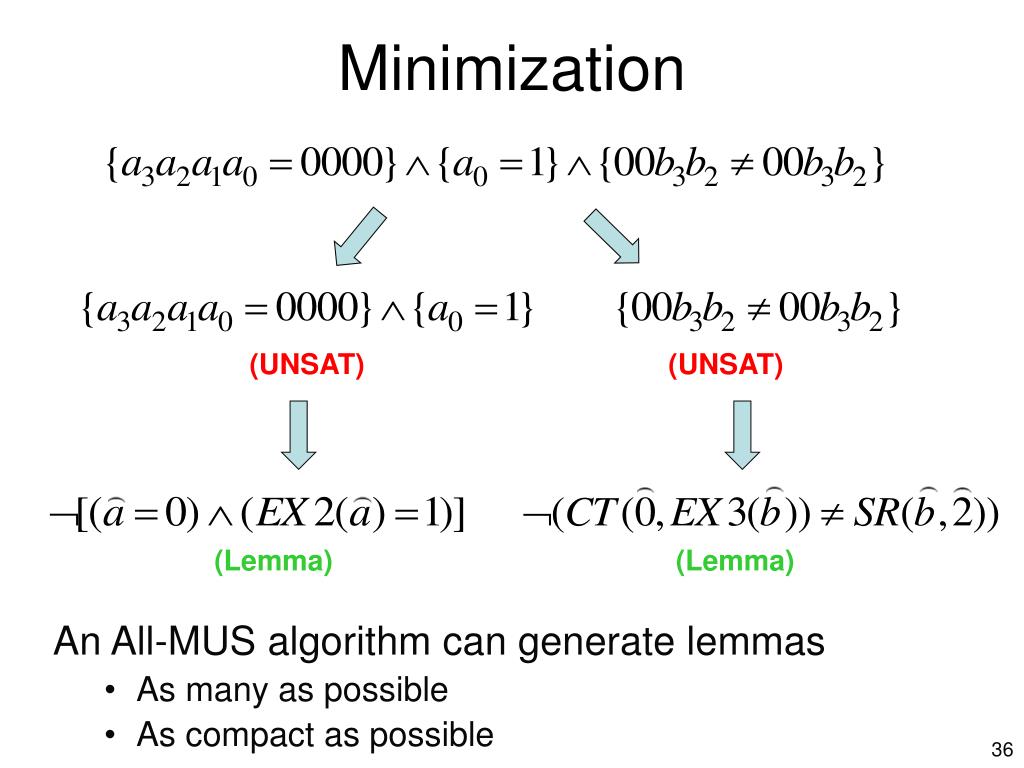

  36. Minimization An All-MUS algorithm can generate lemmas • As many as possible • As compact as possible (UNSAT) (UNSAT) (Lemma) (Lemma)

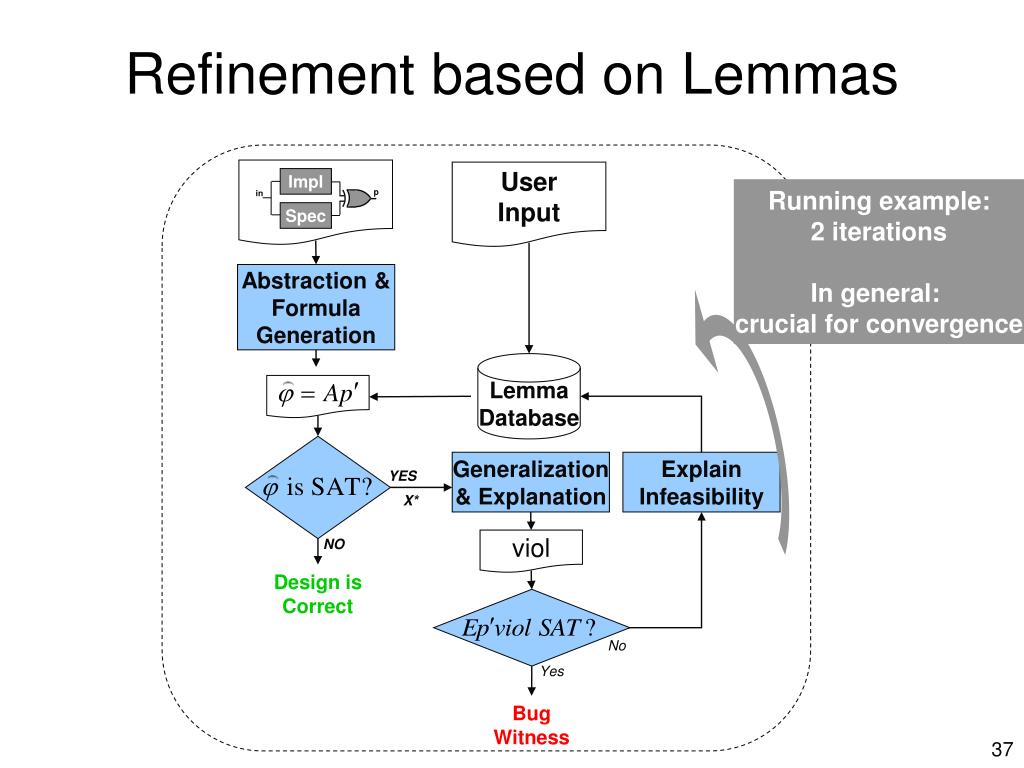

  37. Impl p in Spec Refinement based on Lemmas User Input Running example: 2 iterations In general: crucial for convergence Abstraction & Formula Generation Lemma Database Generalization & Explanation Explain Infeasibility YES X* NO viol Design is Correct No Yes Bug Witness

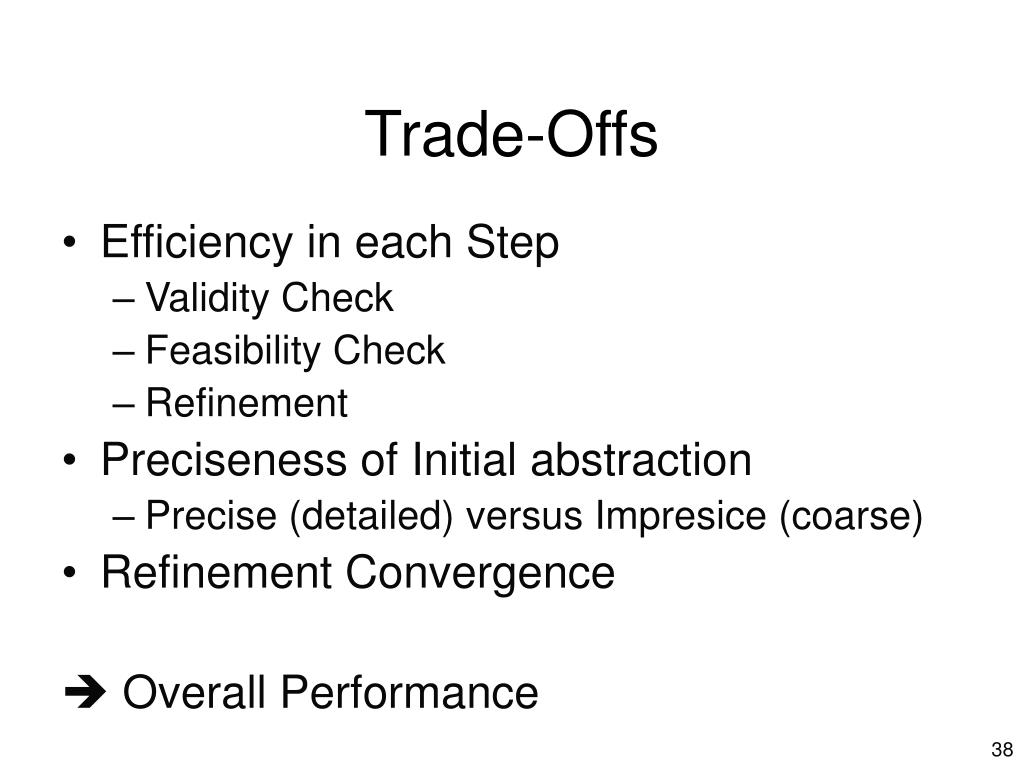

  38. Trade-Offs • Efficiency in each Step • Validity Check • Feasibility Check • Refinement • Preciseness of Initial abstraction • Precise (detailed) versus Impresice (coarse) • Refinement Convergence  Overall Performance

  39. Outline • Verification Framework • Datapath Abstraction and Basic Refinement • Advanced Refinement • The Reveal System • Results • Conclusions

  40. RTL Verilog User Input Impl Abstraction & Formula Generation p in Spec Lemma Database Generalization & Explanation Explain Infeasibility YES X* YICES SMT Solver NO viol CAMUS: Extraction of MUSES based on SMT Solving Design is Correct No YICES using the BV Theory Yes Bug Witness The Reveal System C++ Implementation

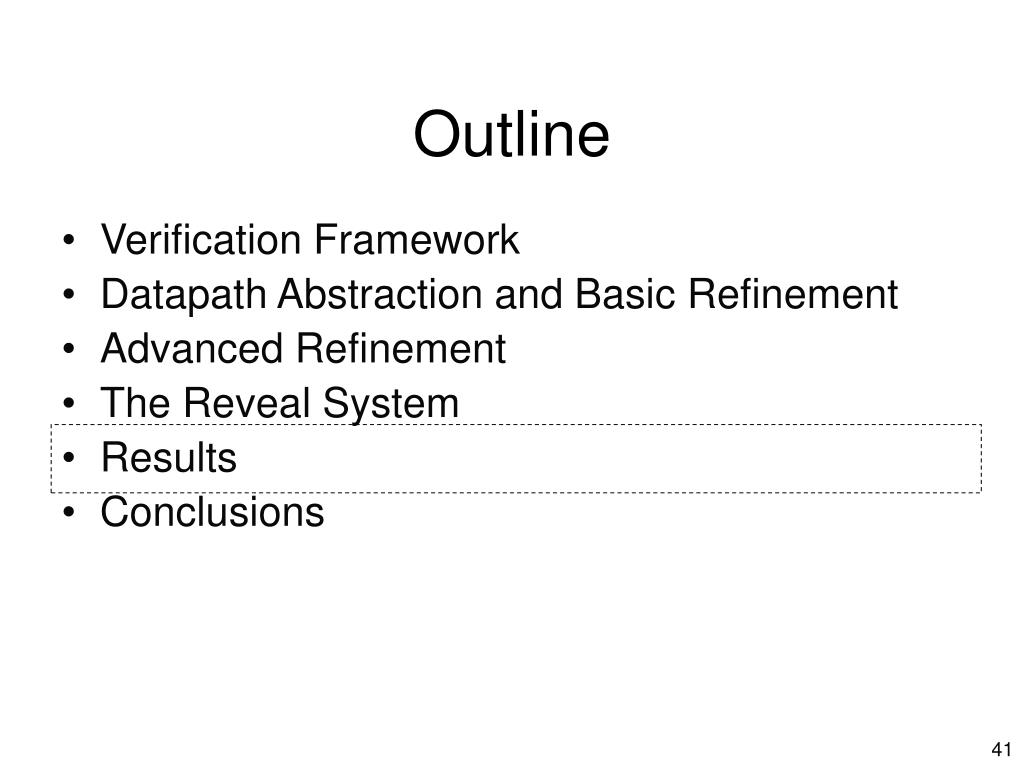

  41. Outline • Verification Framework • Datapath Abstraction and Basic Refinement • Advanced Refinement • The Reveal System • Results • Conclusions

  42. Test Cases and Setup Setup: 2.2 GHz AMD Opteron Processor, 8GB RAM, Linux

  43. 1 0 1 0 Test Case1: Sorter Sort2 d1>d2 d1 res1 res1 d1 d2 d1>d2 res2 d2 d2 res2 d1

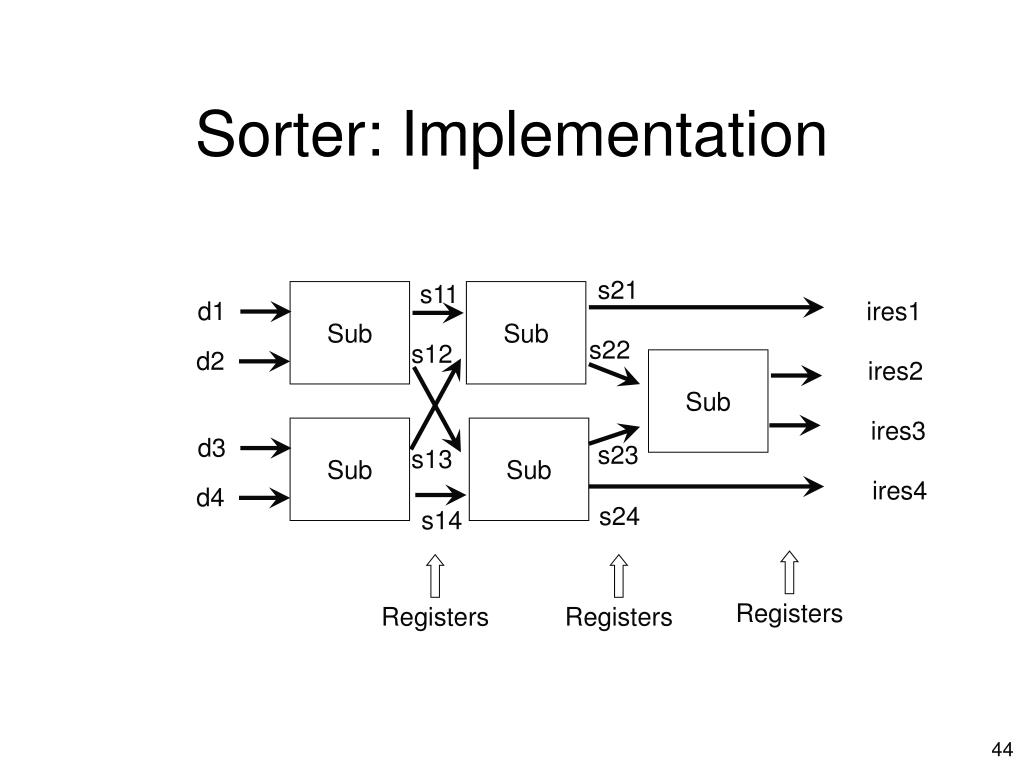

  44. s21 s11 Sub Sub d1 ires1 s22 s12 d2 Sub ires2 ires3 Sub Sub d3 s23 s13 ires4 d4 s24 s14 Sorter: Implementation Registers Registers Registers

  45. C O N T R O L s1 Sub d1 sres1 s2 d2 sres2 s3 Sub sres3 d3 s4 d4 sres4 Registers Sorter: Specification

  46. Sorter Equivalence Implementation d1 d2 Equivalent? d3 d4 Specification

  47. Test Case 1: Sorter • A Sort Algorithm for 4 W-bits vectors • Equivalence between 2 Implementations

  48. Test Case2: RISC16F84 • A Microcontroller from OpenCores.org • 213x14-bit I-Mem, 29x8-bit D-Mem • 34 Op-codes • 4-stage pipeline • Property: Equivalence to a 1-stage Spec starting from an arbitrary state:

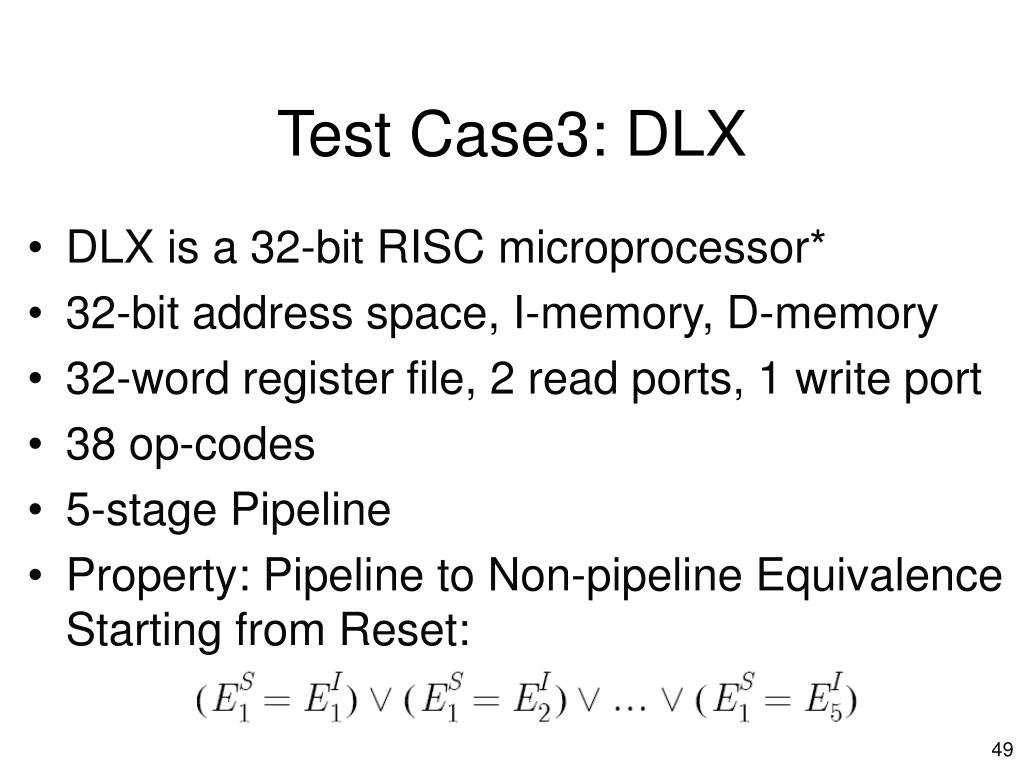

  49. Test Case3: DLX • DLX is a 32-bit RISC microprocessor* • 32-bit address space, I-memory, D-memory • 32-word register file, 2 read ports, 1 write port • 38 op-codes • 5-stage Pipeline • Property: Pipeline to Non-pipeline Equivalence Starting from Reset:

  50. Test Case4: X86* * http://vlsi.cs.iitm.ernet.in/x86_proj/x86HomePage.html
