the redox ladder

Nir Krakauer 2/’04. the redox ladder. half-reaction coupling:. 1. O 2. H 2 O. clockwise: spontaneous, can produce free energy (catabolic). 0.5. NO 3 -. NO 2 -. NO 2 -. NH 4 +. ccw: requires free energy (anabolic). Mn +4. Mn +2. 0. FeOOH. Fe +2. SO 4 -2. HS -. CH 4.

oshin
Télécharger la présentation

the redox ladder

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

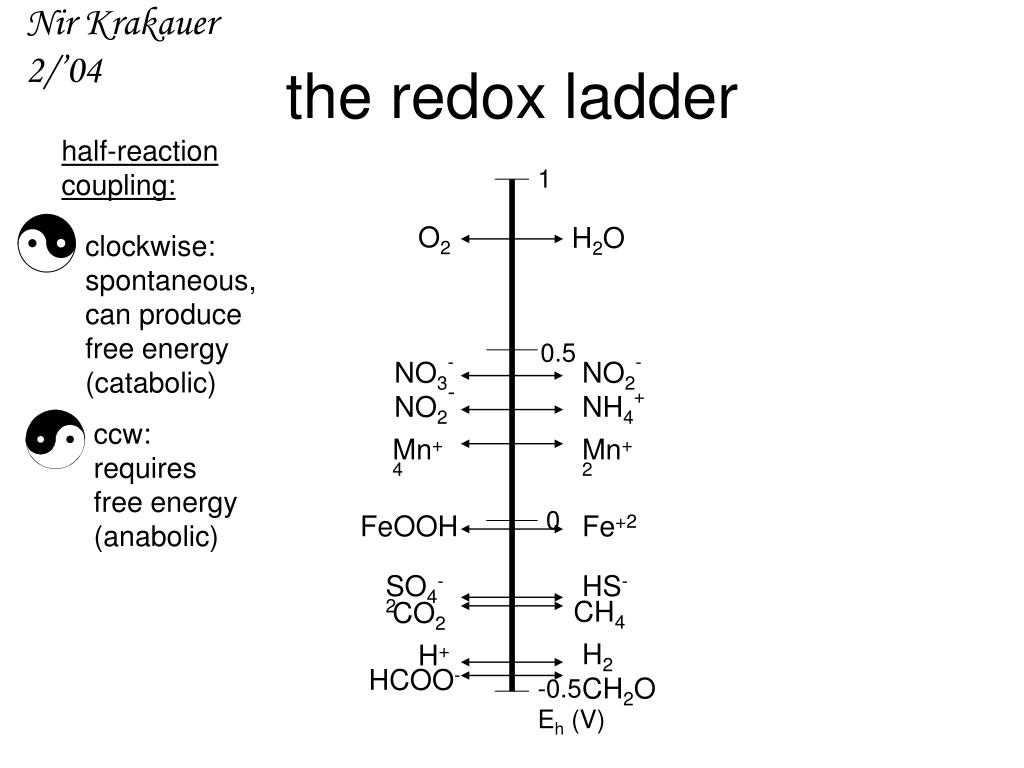

  1. Nir Krakauer 2/’04 the redox ladder half-reaction coupling: 1 O2 H2O clockwise: spontaneous, can produce free energy (catabolic) 0.5 NO3- NO2- NO2- NH4+ ccw: requires free energy (anabolic) Mn+4 Mn+2 0 FeOOH Fe+2 SO4-2 HS- CH4 CO2 H2 H+ HCOO- CH2O -0.5 Eh (V)

  2. Oxygen units • In air (sea level): 0.21 atm = 160 Torr = present atmospheric level (PAL) • In water at equilibrium with PAL: 9 ml/l at 0 °C, 5 ml/l at 25 °C

  3. Geochemical evidence for atmospheric O2 • >2.3 Gy BP: detrital UO2, FeCO3, FeS2; photolytic? Mass-independent fractionation of S → O2 at <~0.01 PAL (Berkner and Marshall [1965]: photolysis of H2O generates <<10-3 PAL) • 2.3> Gy: red beds, MnO2 fields → O2 at >0.01 PAL

  4. Oxygen in the Proterozoic • Canfield and Teske (1996) argue based on sedimentary S isotopes for around 0.1 PAL in the Late Proterozoic, so that there would be just enough O2 to oxidize sulfide on shelf bottoms • Anbar and Knoll (2002):

  5. Eukaryotes evolved in an oxic world • Eukaryote anaerobic respiration uses organic electron acceptors like pyruvate, so that it is inefficient • Sterols, eukaryotic cell membrane constituents, are always made with O2 • The first eukaryotes likely didn’t have plastids and couldn’t produce O2 • Aerobic respiration can occur quite well at ~0.01 PALO2, the Pasteur point

  6. so why aren’t there big eukaryotes much before the Cambrian? • Berkner and Marshall (1965): not enough oxygen for land and sea surface UV shielding • Towe (1969): making collagen demands a lot of oxygen • Rhodes and Morse (1971): products of anaerobic metabolism inhibit calcification • Runnegar (1981): oxygen levels not high enough to diffuse into complex organisms • Anbar and Knoll (2002): metal and N limitation
