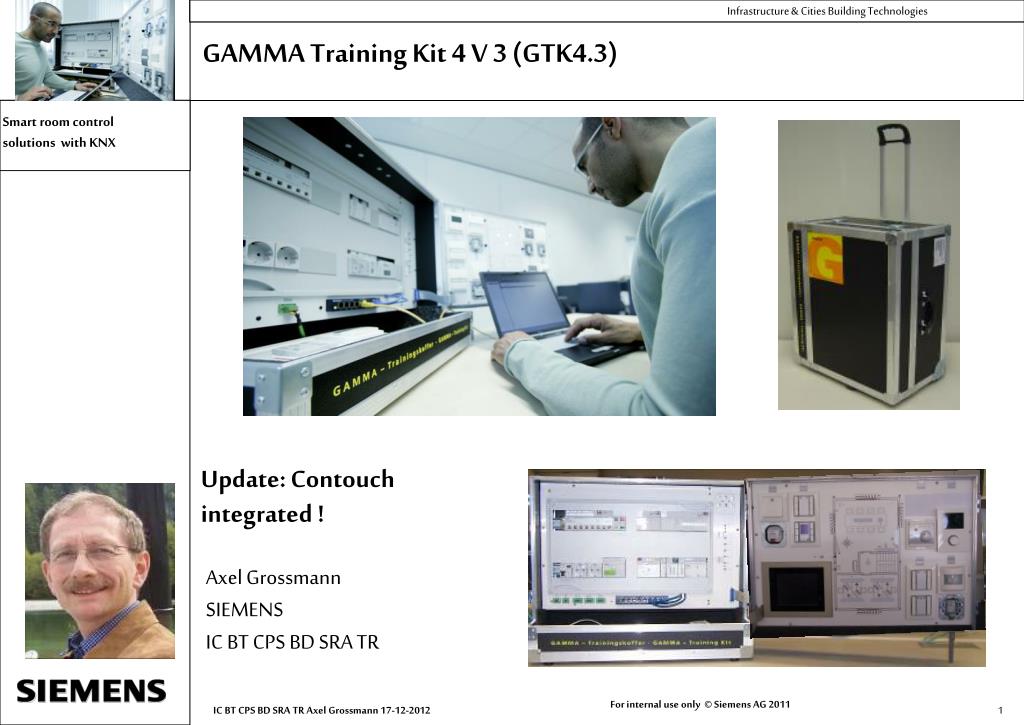

  1. GAMMA Training Kit 4 V 3 (GTK4.3) Update: Contouchintegrated ! • Axel Grossmann • SIEMENS • IC BT CPS BD SRA TR

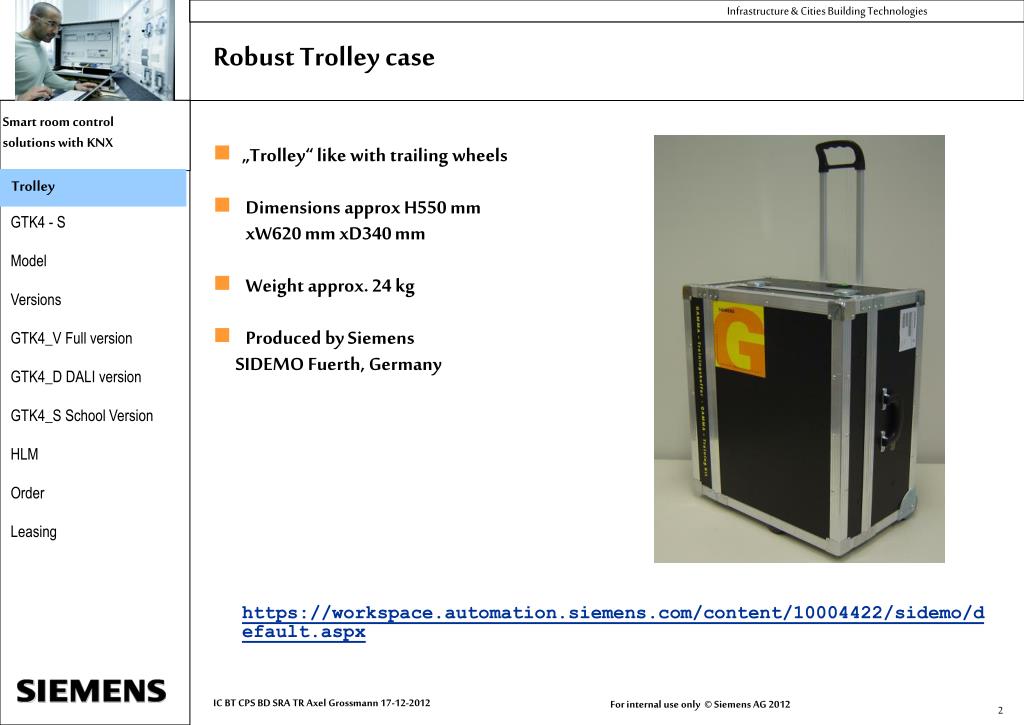

  2. Robust Trolley case • „Trolley“ like with trailing wheels • Dimensions approx H550 mm • xW620 mm xD340 mm • Weight approx. 24 kg • Produced by Siemens • SIDEMO Fuerth, Germany • https://workspace.automation.siemens.com/content/10004422/sidemo/default.aspx Trolley

  3. GTK4.3 – Distribution board DALI Error simulation N526E/02 N141/02 N501 GTK 4-S DALI ECG N146/02 N148/11 N305 8 Switches for N501 inputs N350E N125/22 N151 DALI-Sockets KNX-Sockets Image shows GTK4.3_S230 School version 230 V

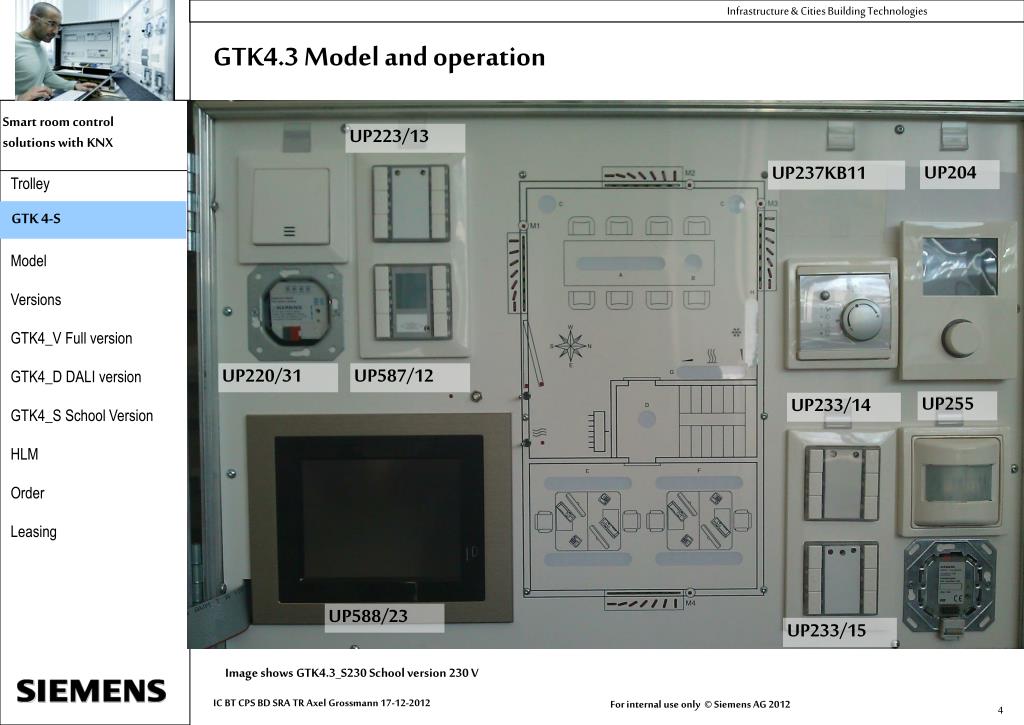

  4. GTK4.3 Model and operation UP223/13 UP204 UP237KB11 GTK 4-S UP220/31 UP587/12 UP255 UP233/14 UP588/23 UP233/15 Image shows GTK4.3_S230 School version 230 V

  5. Model • Conference room • 3x Lighting dimmable • 3x Blinds proportional control • Heating analog • Air Con analog • Window contact • Wind alarm • Stair case • Lighting (dimmable) • Office • 2x Lighting dimmable • Blinds proportional control • Studio • 6x lighting with DALI • Error simulation Model

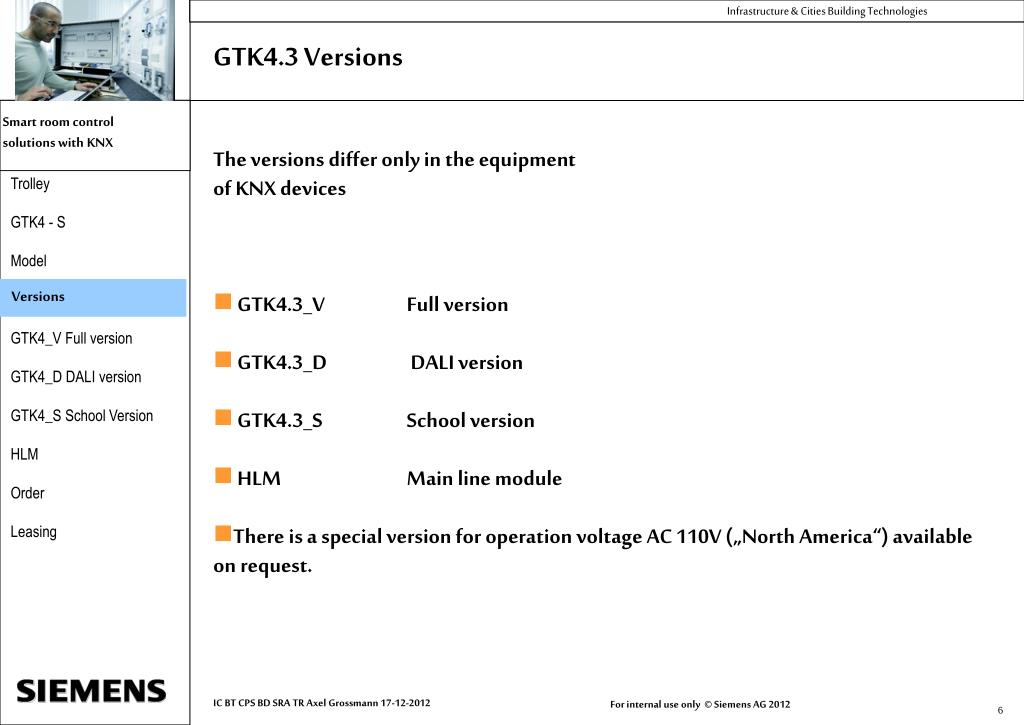

  6. GTK4.3 Versions • The versions differ only in the equipment of KNX devices • GTK4.3_V Full version • GTK4.3_D DALI version • GTK4.3_S School version • HLM Main line module • There is a special version for operation voltage AC 110V („North America“) available on request. Versions

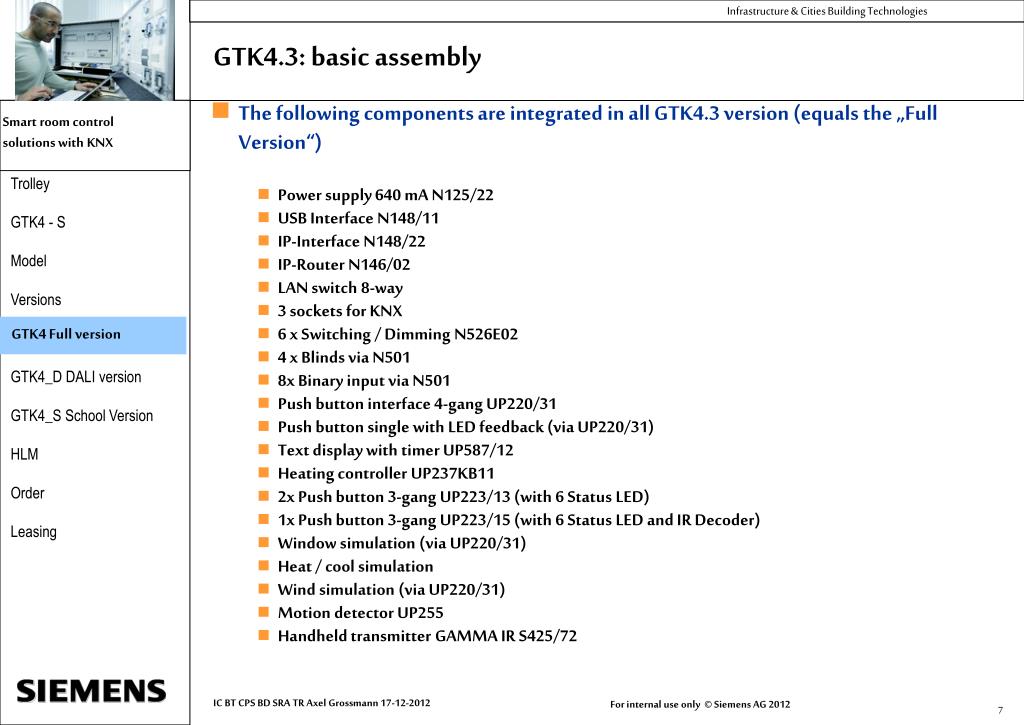

  7. GTK4.3: basic assembly • The following components are integrated in all GTK4.3 version (equals the „Full Version“) • Power supply 640 mA N125/22 • USB Interface N148/11 • IP-Interface N148/22 • IP-Router N146/02 • LAN switch 8-way • 3 sockets for KNX • 6 x Switching / Dimming N526E02 • 4 x Blinds via N501 • 8x Binary input via N501 • Push button interface 4-gang UP220/31 • Push button single with LED feedback (via UP220/31) • Text display with timer UP587/12 • Heating controller UP237KB11 • 2x Push button 3-gang UP223/13 (with 6 Status LED) • 1x Push button 3-gang UP223/15 (with 6 Status LED and IR Decoder) • Window simulation (via UP220/31) • Heat / cool simulation • Wind simulation (via UP220/31) • Motion detector UP255 • Handheld transmitter GAMMA IR S425/72 GTK4 Full version

  8. GTK4.3_V Full version useful for training and presentation of: • switching, dimming, shutter, value controlcentral control • Motion detection • heating, cooling, window contact, display, communication via IP with 3 integrated IP devicesand LAN switch 8 way • Handheld transmitter GAMMA IR for wireless remote control via infrared • Alarm function „Wind“ • Weekly schedules via display UP587 • Annual schedules and logic/event control via N350E GTK4 Full version

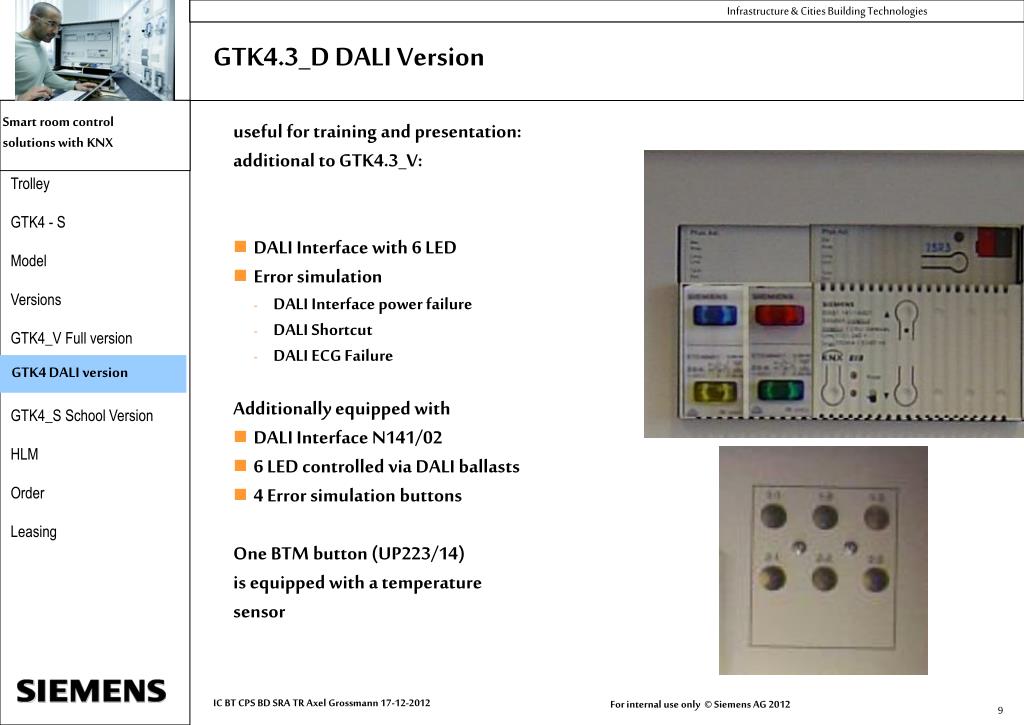

  9. GTK4.3_D DALI Version useful for training and presentation: additional to GTK4.3_V: • DALI Interface with 6 LED • Error simulation • DALI Interface power failure • DALI Shortcut • DALI ECG Failure Additionally equipped with • DALI Interface N141/02 • 6 LED controlled via DALI ballasts • 4 Error simulation buttons One BTM button (UP223/14) is equipped with a temperature sensor GTK4 DALI version

  10. GTK4.3_S School Version useful for training and presentation: additionally to GTK4.3_D: • Scene & Event controller N305 • IP viewer N151 (web browser) • Touch panel UP588/23 (KNX TP) • Contouch UP204 operation panel & room temp. controller • With the above listed device additionally one can show the benefits of simple operation via scene and event control, remote control and monitoring via web browser and via KNX TP (small visualisation functions). • The Contouch Multifunction touch panel demonstrates the all-in-one option of smart room control. GTK4 School version

  11. HLM for certified KNX training:connectable to GTK4.3: • Coupling via line coupler • Main line module • Choke N120/02 • Line coupler N140/13 • BTM button UP221/13 • Connection kit Dim: H9xW21xD17 cm³ HLM

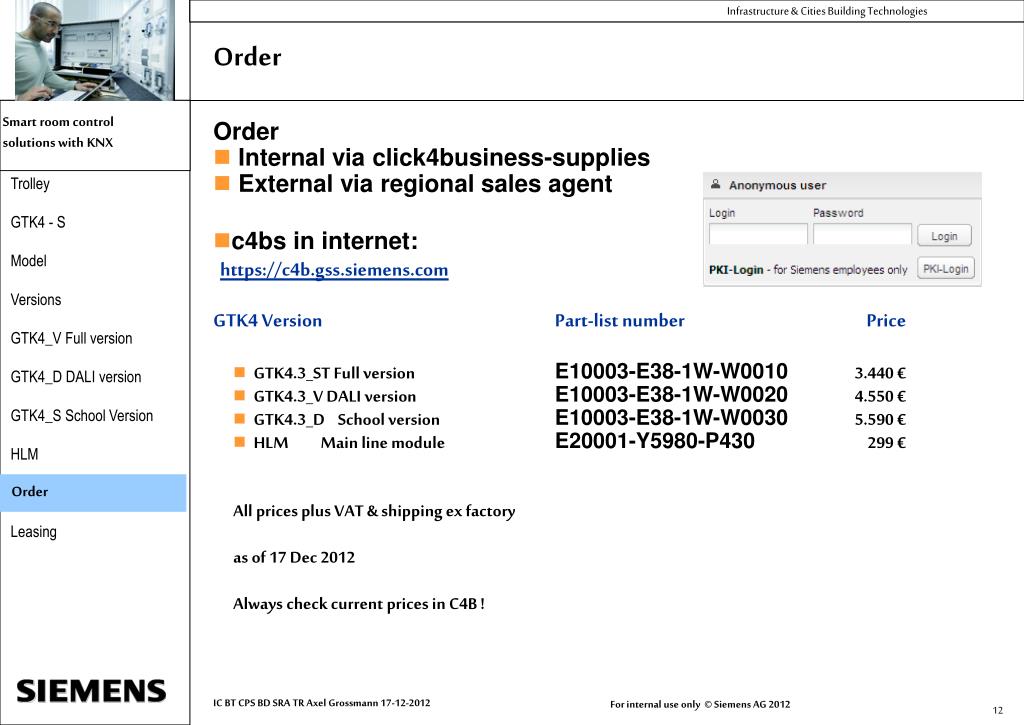

  12. Order • Order • Internal via click4business-supplies • External via regional sales agent • c4bs in internet:https://c4b.gss.siemens.com • GTK4 Version Part-list number Price • GTK4.3_ST Full version E10003-E38-1W-W0010 3.440 € • GTK4.3_V DALI version E10003-E38-1W-W0020 4.550 € • GTK4.3_D School version E10003-E38-1W-W0030 5.590 € • HLM Main line module E20001-Y5980-P430 299 € All prices plus VAT & shipping ex factory as of 17 Dec 2012 Always check current prices in C4B ! Order

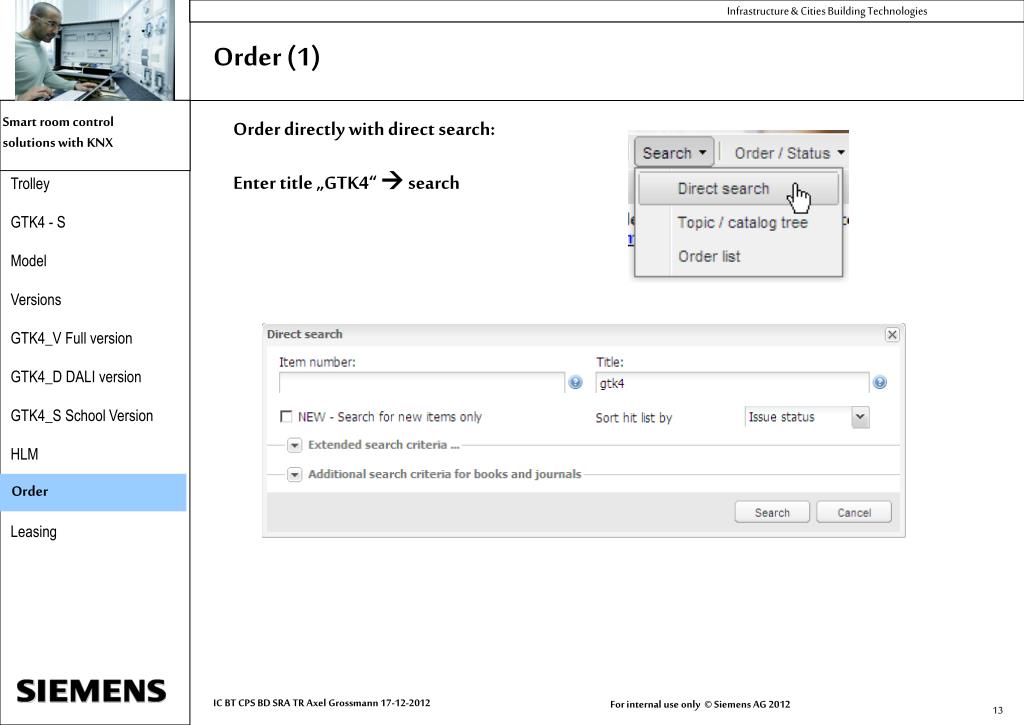

  13. Order (1) Order directly with direct search: Enter title „GTK4“  search Order

  14. Order (2) Order directly with quick search: Select version  enter quantity  add to shopping cart  place your order! Order

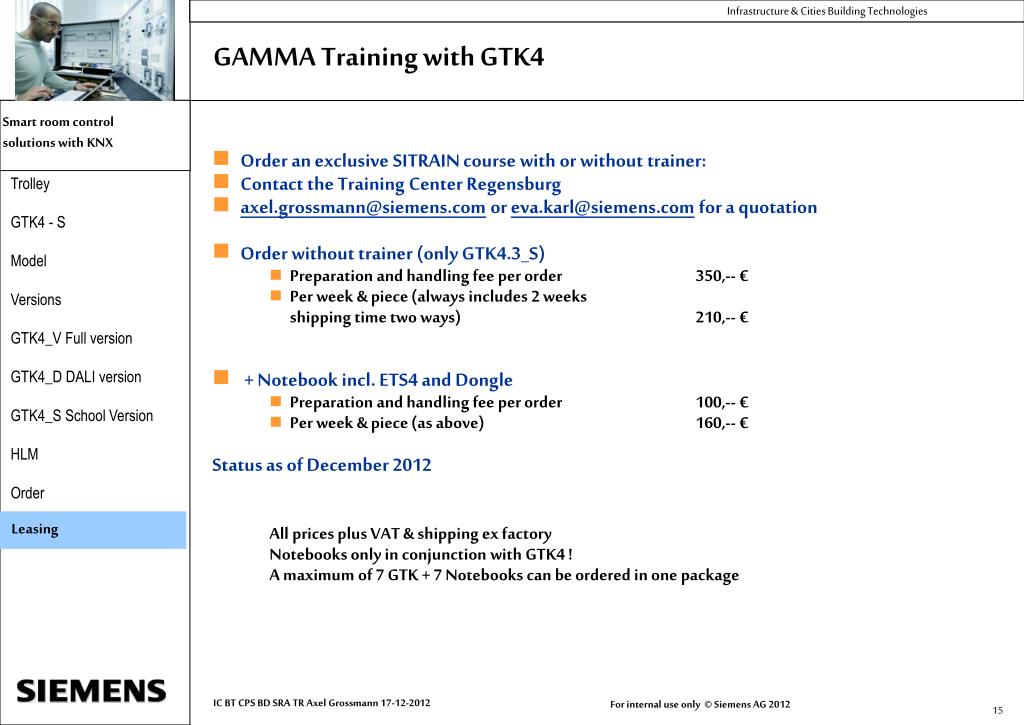

  15. GAMMA Training with GTK4 • Order an exclusive SITRAIN course with or without trainer: • Contact the Training Center Regensburg • axel.grossmann@siemens.com or eva.karl@siemens.com for a quotation • Order without trainer (only GTK4.3_S) • Preparation and handling fee per order 350,-- € • Per week & piece (always includes 2 weeks shipping time two ways) 210,-- € • + Notebook incl. ETS4 and Dongle • Preparation and handling fee per order 100,-- € • Per week & piece (as above) 160,-- € • Status as of December 2012 All prices plus VAT & shipping ex factory Notebooks only in conjunction with GTK4 ! A maximum of 7 GTK + 7 Notebooks can be ordered in one package Leasing
