1 / 8

III. neuron

IV. neuron. g. postcentralis a 3,1,2. ncll. intralaminares. ncl. posterior. III. neuron. ncl. VPL. I. neuron. spinální ganglia. II. neuron. ncl. proprius. ANTEROLATERÁLNÍ SYSTÉM. tr. spino-tectalis. mesencephalon. pons. tr. spino-reticularis. oblongata. tr. spino-thalamicus.

ossie
Télécharger la présentation

III. neuron

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

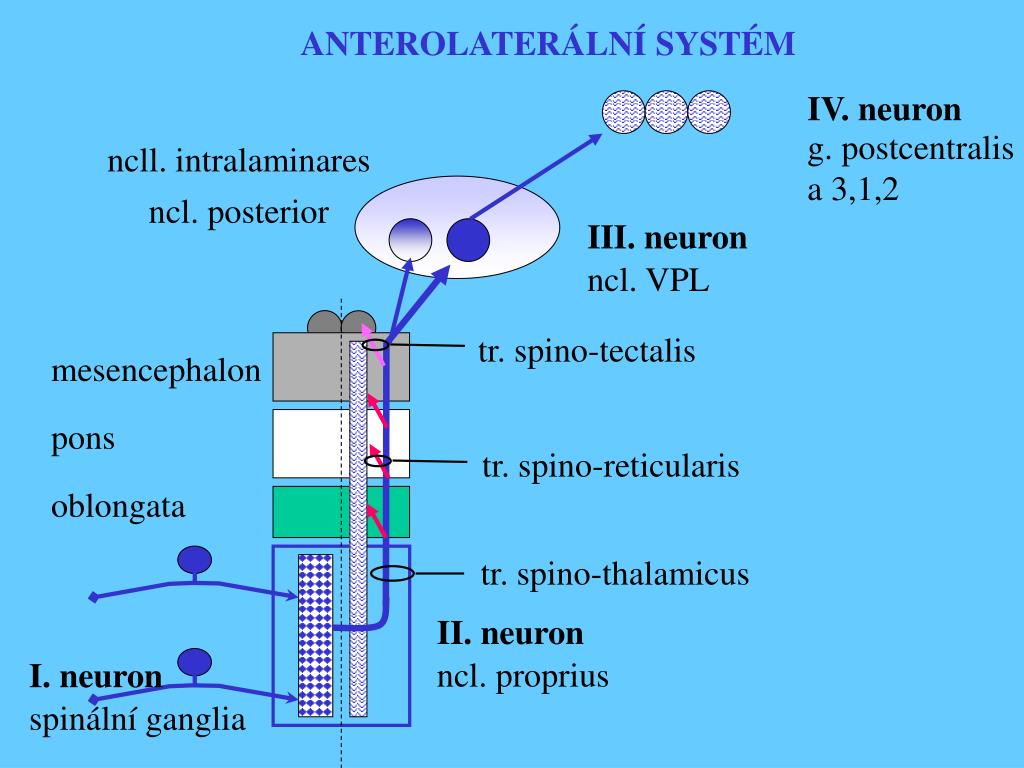

  1. IV. neuron g. postcentralis a 3,1,2 ncll. intralaminares ncl. posterior III. neuron ncl. VPL I. neuron spinální ganglia II. neuron ncl. proprius ANTEROLATERÁLNÍ SYSTÉM tr. spino-tectalis mesencephalon pons tr. spino-reticularis oblongata tr. spino-thalamicus

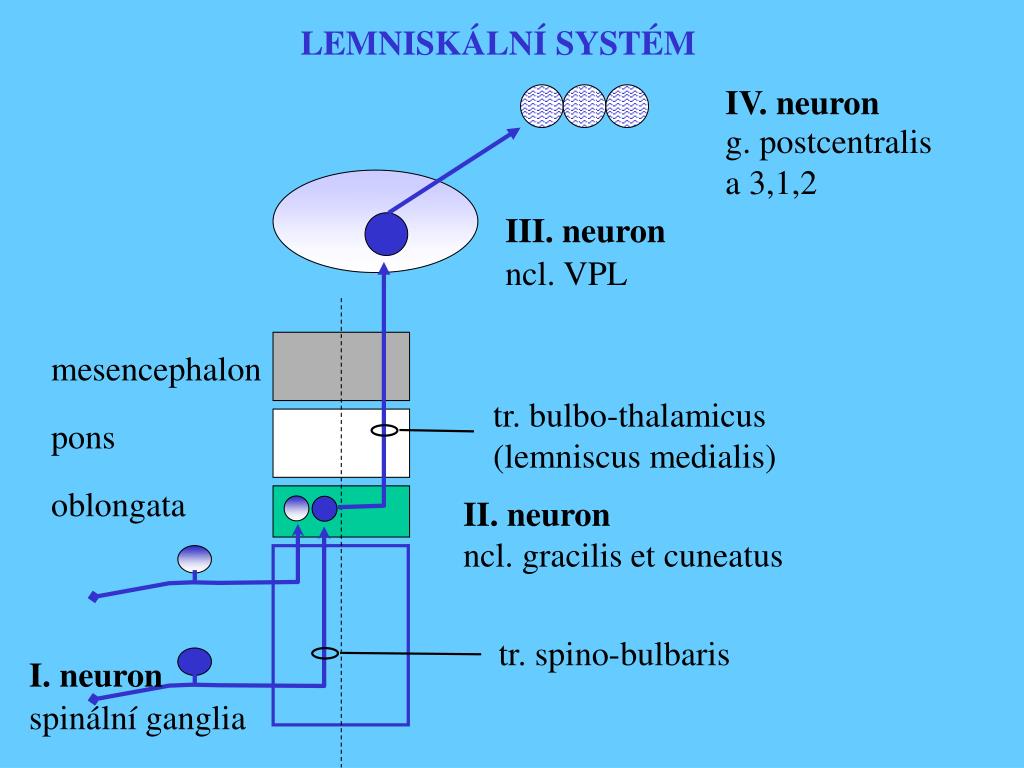

  2. IV. neuron g. postcentralis a 3,1,2 III. neuron ncl. VPL mesencephalon pons I. neuron oblongata spinální ganglia LEMNISKÁLNÍ SYSTÉM tr. bulbo-thalamicus (lemniscus medialis) II. neuron ncl. gracilis et cuneatus tr. spino-bulbaris

  3. IV. neuron g. postcentralis a 3,1,2 III. neuron ncl. P I. neuron spinální ganglia DRÁHA STATICKÝCH PROPRIOCEPTIVNÍCH INFORMACÍ ncl. VL M-cortex tr. bulbo-thalamicus (lemniscus medialis) tr. bulbo- cerebellaris II. neuron, ncl. gracilis et cuneatus fasciculus cuneatus tr. spino-bulbaris fasciculus gracilis

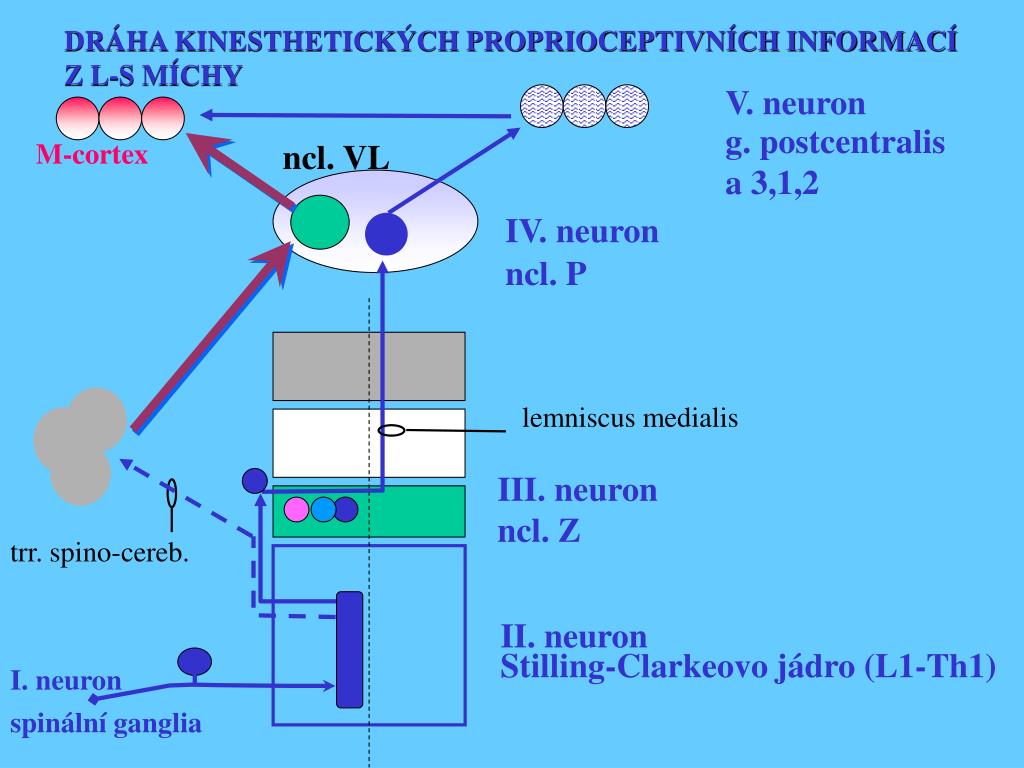

  4. V. neuron g. postcentralis a 3,1,2 IV. neuron ncl. P I. neuron spinální ganglia II. neuron Stilling-Clarkeovo jádro (L1-Th1) DRÁHA KINESTHETICKÝCH PROPRIOCEPTIVNÍCH INFORMACÍ Z L-S MÍCHY M-cortex ncl. VL lemniscus medialis III. neuron ncl. Z trr. spino-cereb.

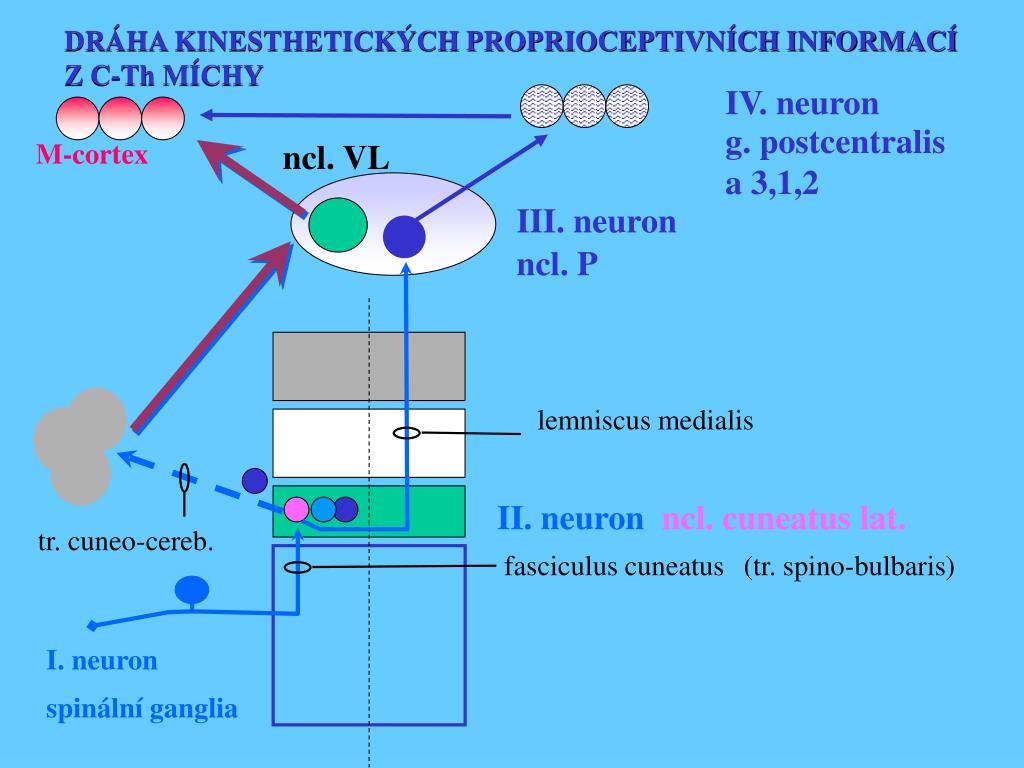

  5. IV. neuron g. postcentralis a 3,1,2 III. neuron ncl. P I. neuron spinální ganglia DRÁHA KINESTHETICKÝCH PROPRIOCEPTIVNÍCH INFORMACÍ Z C-Th MÍCHY M-cortex ncl. VL lemniscus medialis II. neuron ncl. cuneatus lat. tr. cuneo-cereb. fasciculus cuneatus (tr. spino-bulbaris)

  6. IV. neuron g. postcentralis a 3,1,2 TRIGEMINÁLNÍ DRÁHA PRO HRUBOU CITLIVOST I. neurony ggl. trigeminale III. neuron ncl. VPM II. neuron ncl. tractus spinalis n. V. ggl. geniculi FR IL ggl. sup. n. IX et X

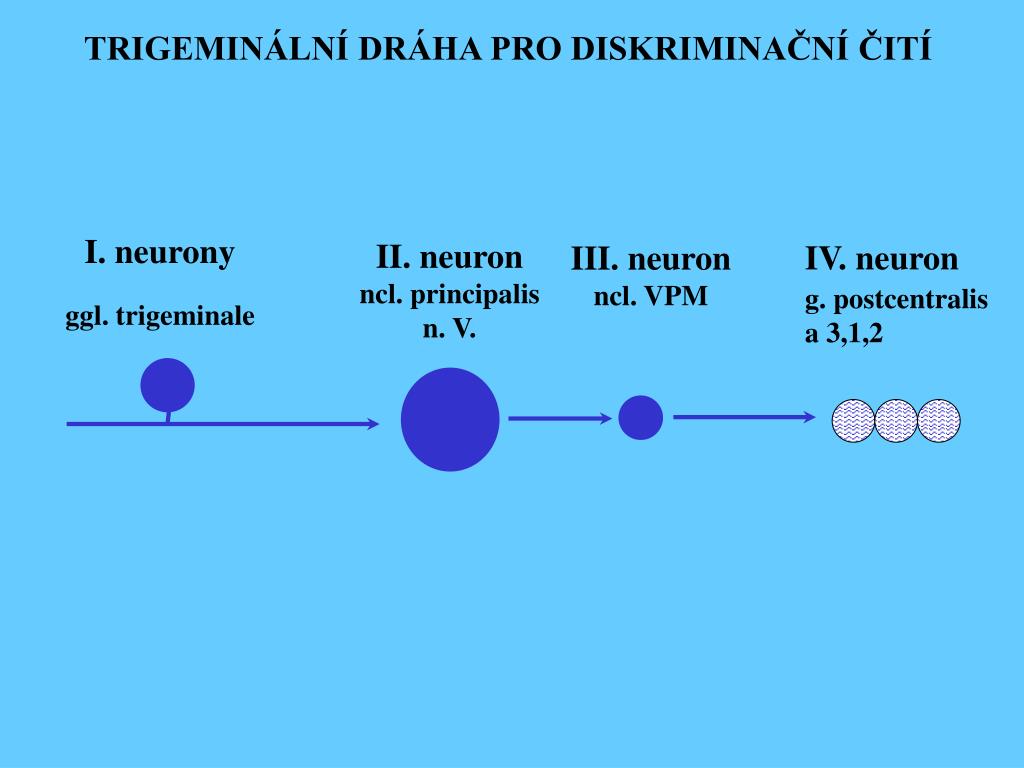

  7. IV. neuron g. postcentralis a 3,1,2 TRIGEMINÁLNÍ DRÁHA PRO DISKRIMINAČNÍ ČITÍ I. neurony II. neuron ncl. principalis n. V. III. neuron ncl. VPM ggl. trigeminale

  8. IV. neuron g. postcentralis a 3,1,2 TRIGEMINÁLNÍ DRÁHA PRO PROPRIOCEPCI I. neurony ncl. mesencephalicus n.V. cerebellum II. neurony FR III. neuron ncl. VPM ncl. masticatorius
