  1. Basic Principles of HPLC Martin R. Hackman NJ- DEP Office of Quality Assurance

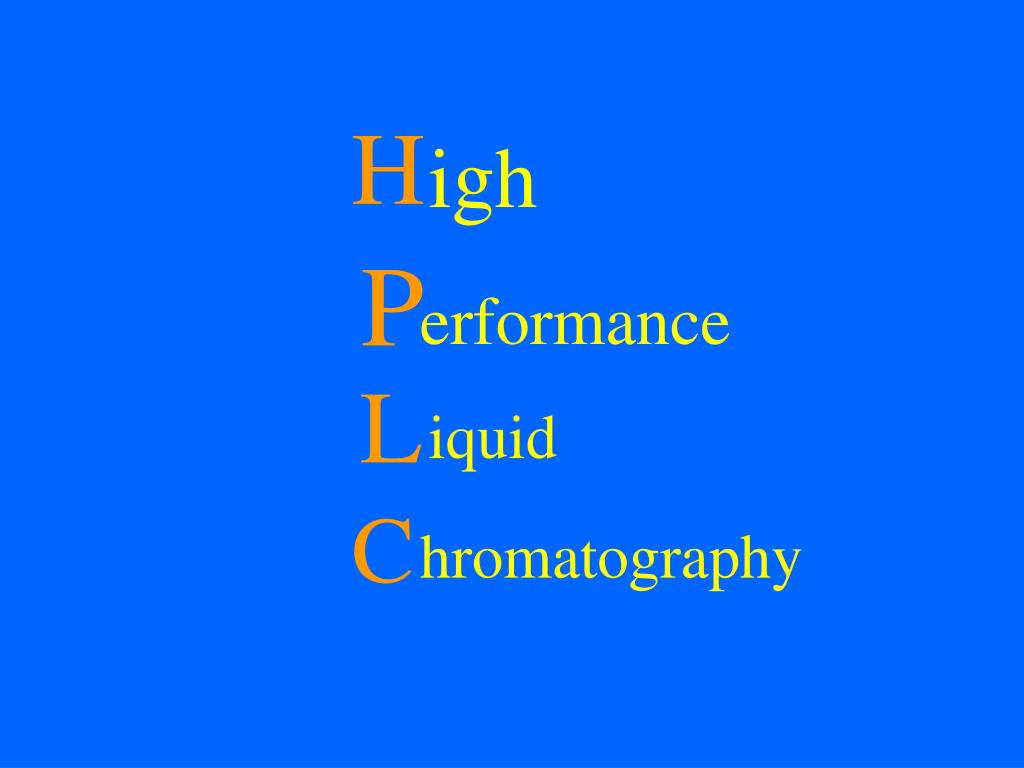

  2. igh H erformance L iquid P C hromatography

  3. igh H ressure L iquid P C hromatography

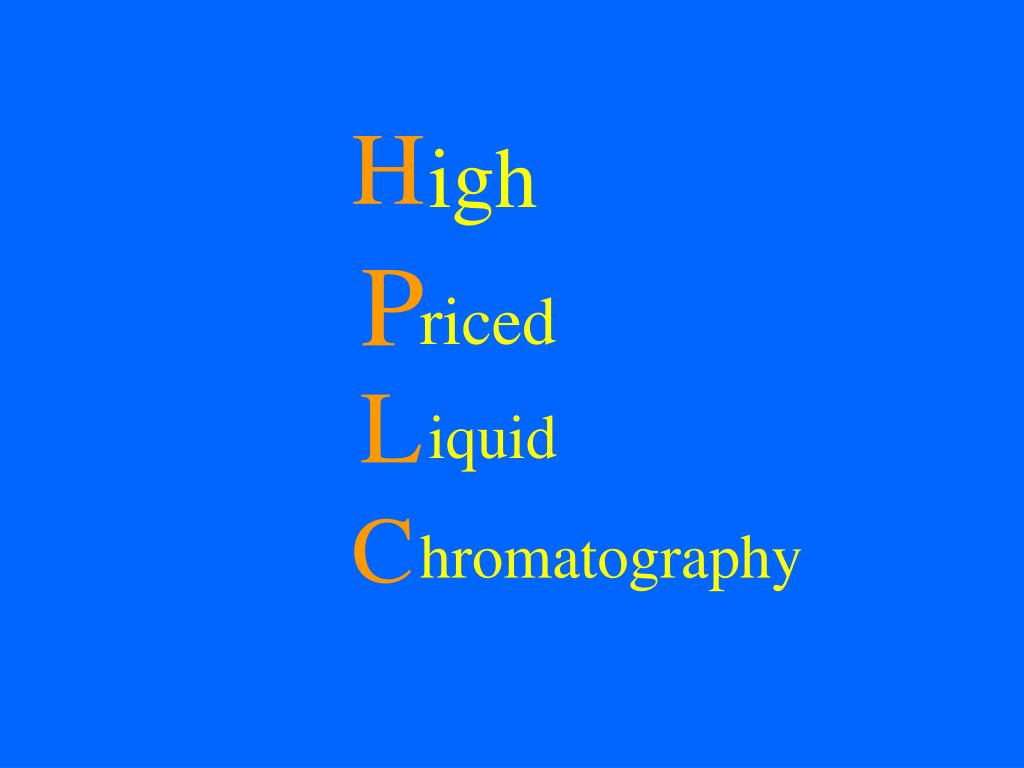

  4. igh H riced L iquid P C hromatography

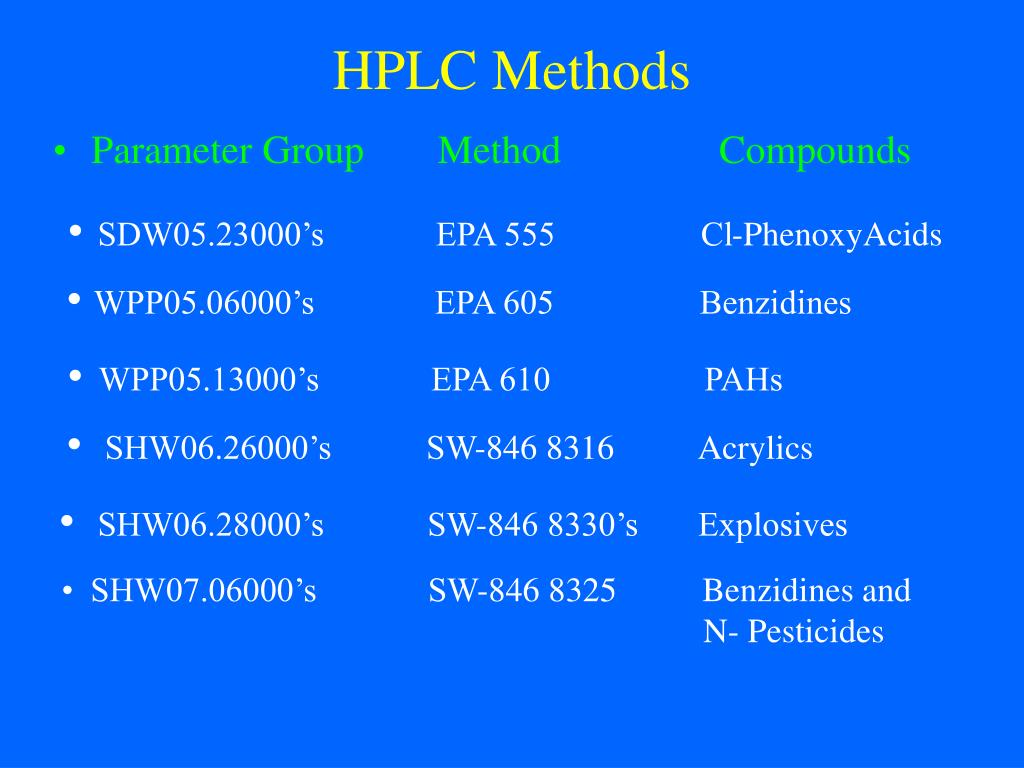

  5. HPLC Methods • SDW05.23000’s EPA 555 Cl-PhenoxyAcids • Parameter Group Method Compounds • WPP05.06000’s EPA 605 Benzidines • WPP05.13000’s EPA 610 PAHs • SHW06.26000’s SW-846 8316 Acrylics • SHW06.28000’s SW-846 8330’s Explosives • SHW07.06000’s SW-846 8325 Benzidines and N- Pesticides

  6. Compounds 2,4,5-T Benzidine Fluorene

  7. Compounds TNT (2,4,6-Trinitrotoluene) H2C=CH-CN Acrylonitrile Carbaryl

  8. Partitioning • Separation is based on the analyte’s relative solubility between two liquid phases Mobile Phase Stationary Phase Solvent Bonded Phase

  9. HPLC - Modes • Normal Phase.- Polar stationary phase and non-polar solvent. • Reverse Phase. - Non-polar stationary phase and a polar solvent.

  10. Common Reverse Phase Solvents CH3OH • Methanol • Acetonitrile CH3CN • Tetrahydrofuran • Water H2O

  11. Columns • Solid Support - Backbone for bonded phases. • Usually 10µ, 5µ or 3µ silica or polymeric particles. • Bonded Phases - Functional groups firmly linked (chemically bound) to the solid support. • Extremely stable • Reproducible • Guard - Protects the analytical column: • Particles • Interferences • Prolongs the life of the analytical column • Analytical - Performs the separation.

  12. Bonded Phases • C-2 Ethyl Silyl -Si-CH2-CH3 • C-8 Octyl Silyl -Si-(CH2)7-CH3 • C-18 Octadecyl Silyl -Si-(CH2)17-CH3 • CN Cyanopropyl Silyl -Si-(CH2)3-CN

  13. Instrumentation Gradient Controller • Column Pump Detector Injector Mobile Phases

  14. Detectors • UV • Single wavelength (filter) [610, 8330] • Variable wavelength (monochromator) [8316, 8325] • Multiple wavelengths (PDA) [555] • Fluorescence [610] • Electrochemical [605] • Mass Spectrometric [8325]

  15. Chromatograms Restek® ULTRA C-18 and CN Columns (250mm x 4.6mm, 5µ), Mobile Phase: (1:1 Methanol:Water), 1.5 mL/min.

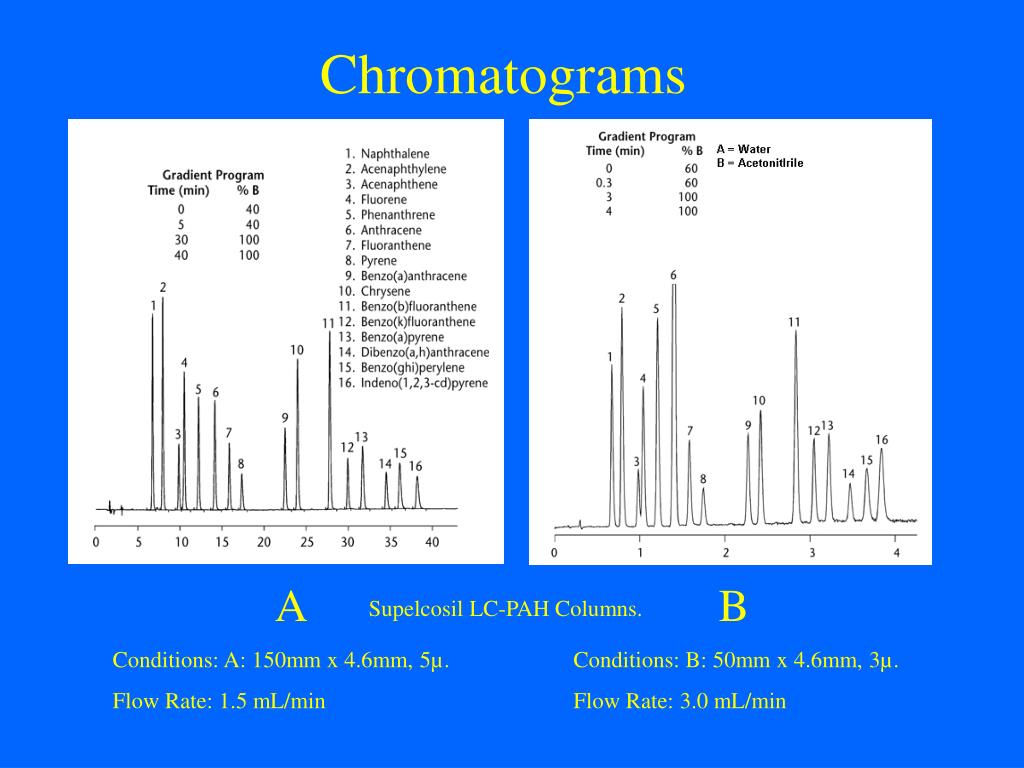

  16. Chromatograms A B Supelcosil LC-PAH Columns. Conditions: A: 150mm x 4.6mm, 5µ. Flow Rate: 1.5 mL/min Conditions: B: 50mm x 4.6mm, 3µ. Flow Rate: 3.0 mL/min
