  1. IP Telephony Applications for Handhelds Keith Weiner DiamondWare

  2. The hard sell

  3. Technogeek on steroids

  4. Presentation goals • Differentiate from cellular • What is IP telephony for PDAs? • Why use it? • How does it work? • Issues: technical and business • My predictions for a new model

  5. PDA telephony is not cellular • Those are cool Devices! • Samsung I300, Nokia Communicator, Handspring Treo • It’s a cool Application… • Combine two functions into 1 device • …But different.

  6. Cellular advantages • Nationwide WAN coverage • Roaming at 90mph • Low capex • Free or near-free • But no advantage within enterprise space

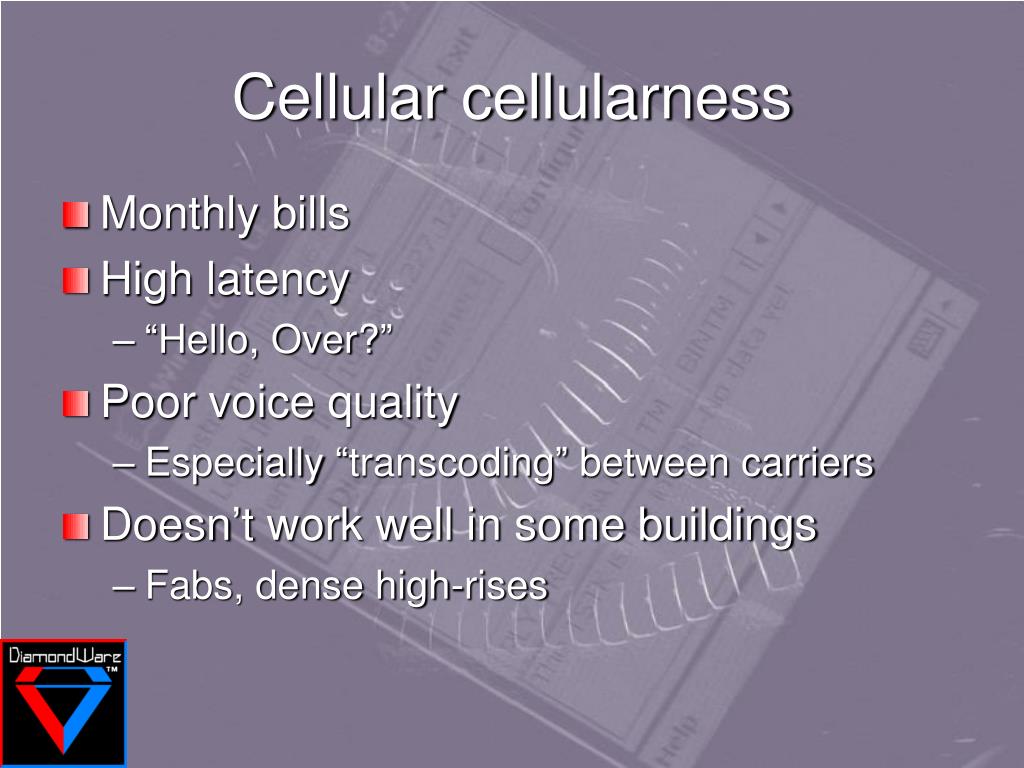

  7. Cellular cellularness • Monthly bills • High latency • “Hello, Over?” • Poor voice quality • Especially “transcoding” between carriers • Doesn’t work well in some buildings • Fabs, dense high-rises

  8. But everyone uses it • On the road • At lunch • In coworkers’ offices • Out of habit, even at their own desks! • Give out one number: the mobile • Mgmt. losing control and predictability • PSTN minutes negotiated in bulk

  9. We need to do better

  10. IP telephony for handhelds • PDA is becoming mission-critical • With decent CPU, audio chip, wireless NIC • Leverage it with a softphone • Inherently cheaper than dedicated phone • Cheaper to build and to upgrade • More powerful

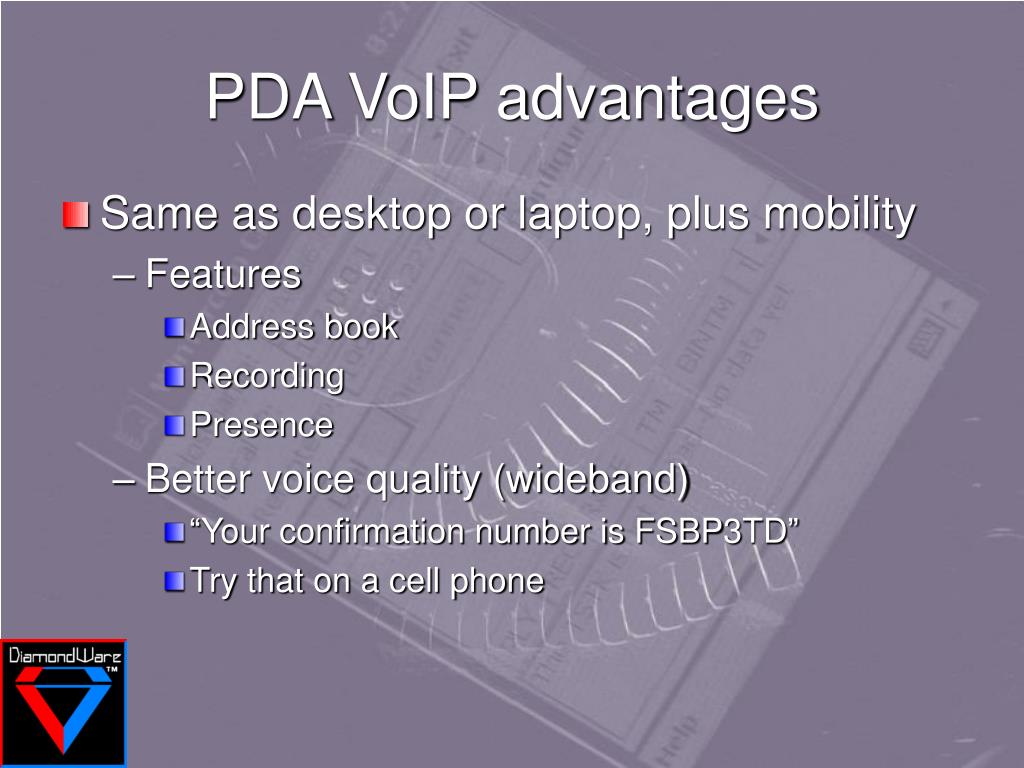

  11. PDA VoIP advantages • Same as desktop or laptop, plus mobility • Features • Address book • Recording • Presence • Better voice quality (wideband) • “Your confirmation number is FSBP3TD” • Try that on a cell phone

  12. Applications • Workforce communication in factory floors, warehouses, campuses • Walking over to the next office • Desktop phone replacement • Wired call becomes mobile when you get up • Take it with you to Starbucks, airports, hotels and other hotspots

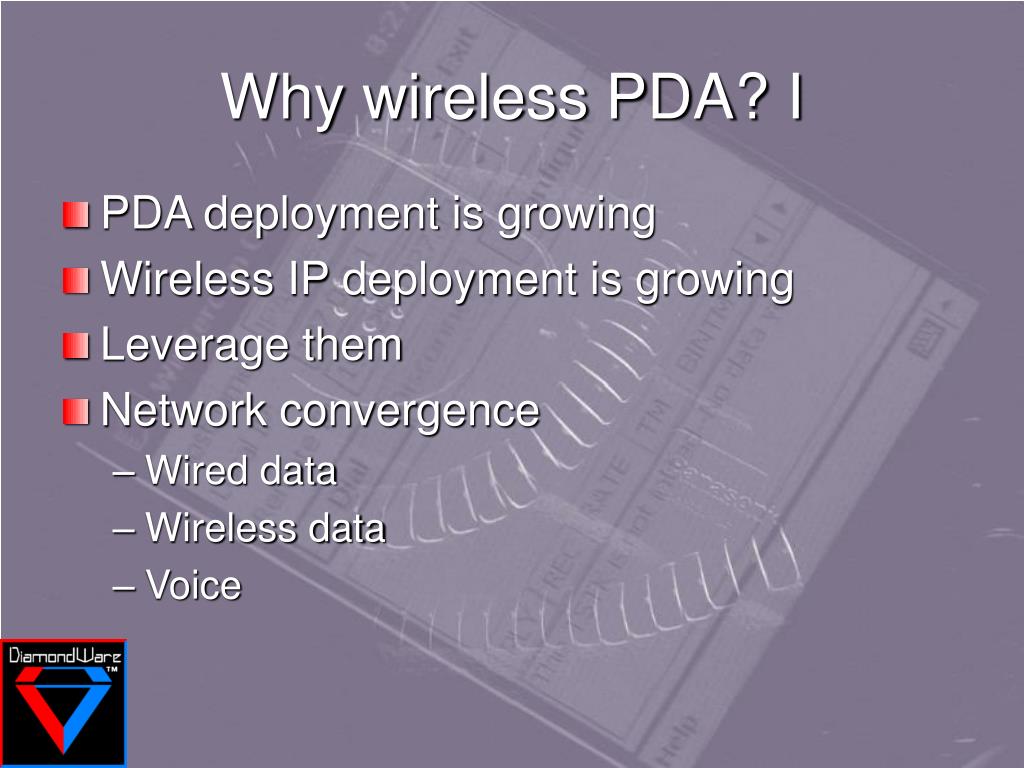

  13. Why wireless PDA? I • PDA deployment is growing • Wireless IP deployment is growing • Leverage them • Network convergence • Wired data • Wireless data • Voice

  14. Why wireless PDA? II • See list of conference attendees • Control your availability as seen by others • Whiteboard, Text (IM) • Often begin with IM, can escalate to voice • N-way calling • “Line” is never busy • Why limit to just 3-way?

  15. Softphone architecture I • IP connectivity • Call control protocol • SIP (H.323 if abs. necessary, or even MGCP) • Realtime audio transport (i.e. RTP) • Audio is broken into packets

  16. Softphone architecture II • Microphone capture • Process (e.g. echo, AGC, disguise/effects) • Compress (e.g. G.711, G.729) • Wrap in an RTP header • Send to remote host

  17. Softphone architecture III • Network receive • Decompress • Process (e.g. dejitter, echo) • Send to audio chip

  18. What does it take? • Real computer (PocketPC, Zaurus, Webpad), with a real audio chip • Sorry Palm • Headphones • Wireless network, typically 802.11b • 802.11a gets cheaper (under twice 802.11b) • For PSTN calls, IP-PBX gateway

  19. 802.11 issues I • Bandwidth Constrained • 802.11b has only 11 Mbps • 802.11a has 54 Mbps • 802.11g has 54 Mbps also, but 2.4GHz • QoS • Cannot add segments, like w/wired LANs • “Sto dow..oading so I .c.. ta..k” • No standard yet

  20. 802.11 issues II • Airwave contention • NICs hidden from each other • RTS/CTS • RF Interference • 802.11b uses 2.4ghz, not great spectrum • 802.11a uses 5ghz, better spectrum

  21. 802.11 issues III • Security • “Wired Equivalency Privacy” is a toy • “Warchalking” • MAC address filtering helps, somewhat • Access controllers • Built-in authentication • Connect to auth server (e.g. RADIUS, LDAP) • Painless subnet roaming

  22. VoIP issues • For IP calls to or from the outside • NAT • Firewall • Proxy • Some solutions • Outside server (e.g. Ridgeway) • UPnP NAT • Back-to-back peering agent (e.g. Jasomi)

  23. PocketPC issues I • Speaker and mic coupled • Headphones req’d • Mic-less headphones • 50 lashes with a wet noodle • Compute-limited for echo cancellation

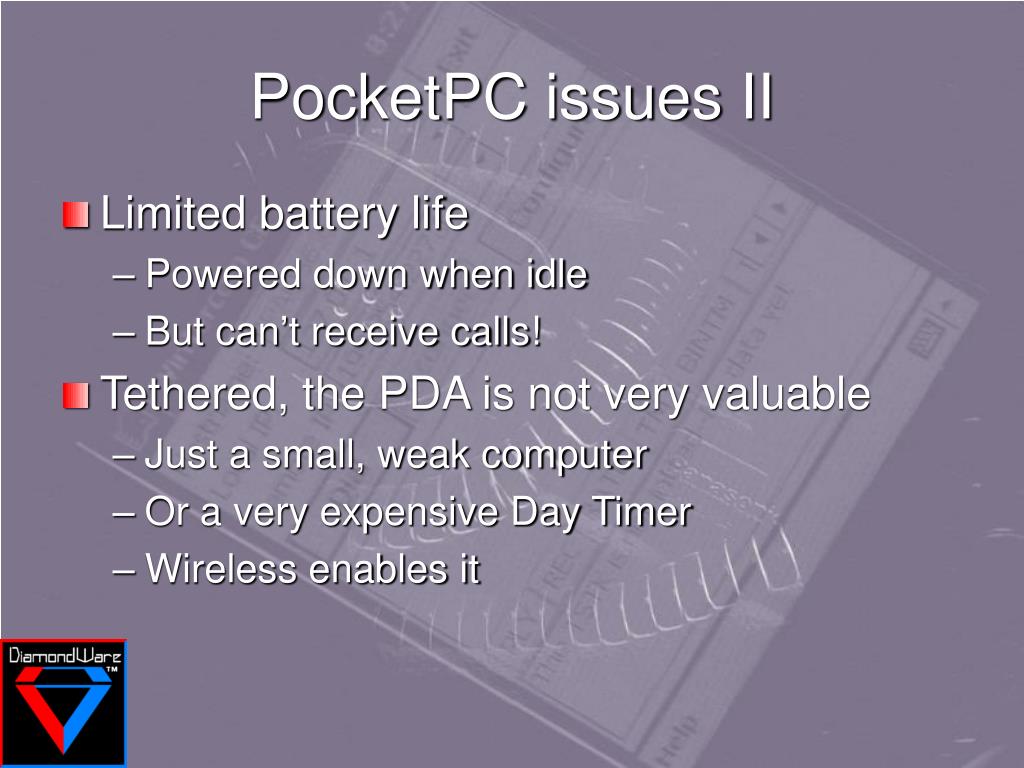

  24. PocketPC issues II • Limited battery life • Powered down when idle • But can’t receive calls! • Tethered, the PDA is not very valuable • Just a small, weak computer • Or a very expensive Day Timer • Wireless enables it

  25. Other issues • Inside your space, build what you want • Not many outside hotspots yet • Roaming problem • Dynamic routing • Mesh Networks • Mass acceptance req’d for business model • 200 users at airport gate—holy QoS, Batman!

  26. Marketscape • Existing products • Avaya, support for their PBX • VTGO, supports Cisco Call Manager • SoftJoy Labs, supports H.323 and SIP • Telesym, connects to 3rd party PBXs • In Development • DiamondWare, lowest latency • Others

  27. Resistance is futile! • (You will be assimilated) • The PDA is/will be mission-critical • You will carry it for many reasons • Why not use it for the voice function? • No worse off than before • Within wireless zones, much better

  28. Necessary next steps • Ubiquitous wireless access points • Outside the enterprise • Answers on the business side • 30 free minutes with every cup at Starbucks? • By the hour at airports? • 1000 minutes/month like cellular? • By the day at hotels? • Drive Miami to Seattle while on VoIP call?

  29. A New Model I • Who makes $$$ when I email john@dw.com? • What makes voice fundamentally different?

  30. A New Model II • Enhanced voice services? • Enhanced web services? • Enhanced email services? • Enhanced FTP services?

  31. The Connectivity Model I • It’s the pipe, stupid!

  32. The Connectivity Model II • DNS record for yourdomain.com • Optionally, host the website • MX record for email • Optionally, host the email server • SIP server record • Optionally, host the SIP server • Less file storage than email server • Low compute burden

  33. The Connectivity Model III • Savvy consumers, SOHO • If they can do yourdomain.com now • Larger enterprises • In-house or outsourced, based on • Finance objectives • Resource management • Not “enhanced services” • Just database administration

  34. New Economic Model I • Buy software • unlimited use until new version is compelling • Rent the wire • By the month • Rent the wireless • By the month • More’s Law

  35. New Economic Model II • Innovation at the edge • Wideband • Voice processing • 7-way calling • Not captive to carrier • Multibilliondollar network, 30 yr amort. sched. • App development, network provision • Different businesses, models

  36. Drivers • Deregulation • SIP • Wireless IP • Handheld computers • Lion batteries • VoIP technology • GPS

  37. Conclusion • Take control back of your communications • New life/work style • Decades-long logjam is breaking up • Look forward to rapid innovation • Unheard-of features • Unheard-of computer wiz kids • PDA encourages and leverages it all

  38. About me • CEO of DiamondWare • Developers of VoIP building blocks • mailto:keith@dw.com • cell: (602) 478-9275 • SIP:keith@dw.com (coming soon)
