Case Study V: Help Desk Service

otis avatar
otis
27 diapositives · 581 Views · Aug 24, 2014

Case Study V: Help Desk Service. CSCI 8710 Fall 2008. Help Desk System. A high-tech company w/ 21,600 employees who access a variety of resources A new help-desk application is being designed: Access to a DB of Frequently Asked Questions (FAQ). Keyword-based search.

#case study v: help desk service #case study v: help desk service ppt #powerpoint #presentation
Case Study V: Help Desk Service - slide 1
01 / 27Case Study V: Help Desk Service
1 / 17

Télécharger la présentation

Case Study V: Help Desk Service
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Case Study V: Help Desk Service CSCI 8710 Fall 2008

  2. Help Desk System • A high-tech company w/ 21,600 employees who access a variety of resources • A new help-desk application is being designed: • Access to a DB of Frequently Asked Questions (FAQ). Keyword-based search. • Creation of help tickets. If the FAQ DB does not solve the problem a help ticket is created. • Tracking and verification of the status of open help tickets.

  3. Help Desk System

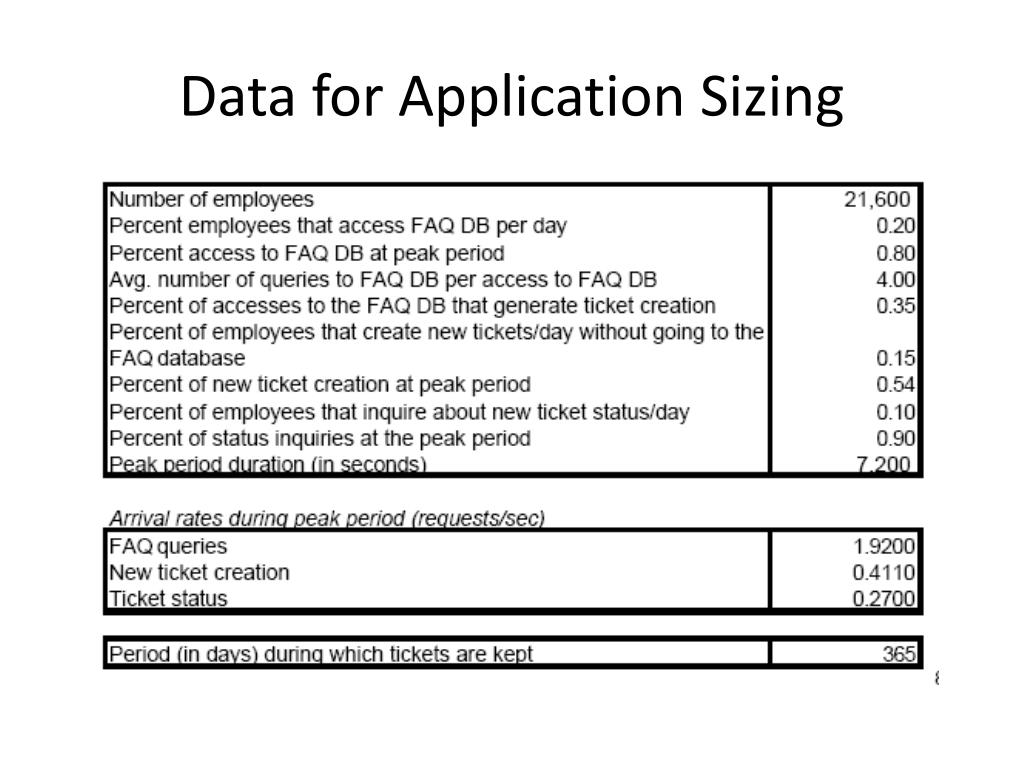

  4. Data for Application Sizing

  5. Worload Intensities • Calculate λ for FAQ, ticket, and status functions during peak period … • Design E-R model of DB to hold FAQs, tickets, etc. • Translate E-R model to DB design (tables) • Estimate cardinality of tables (rows * row size)

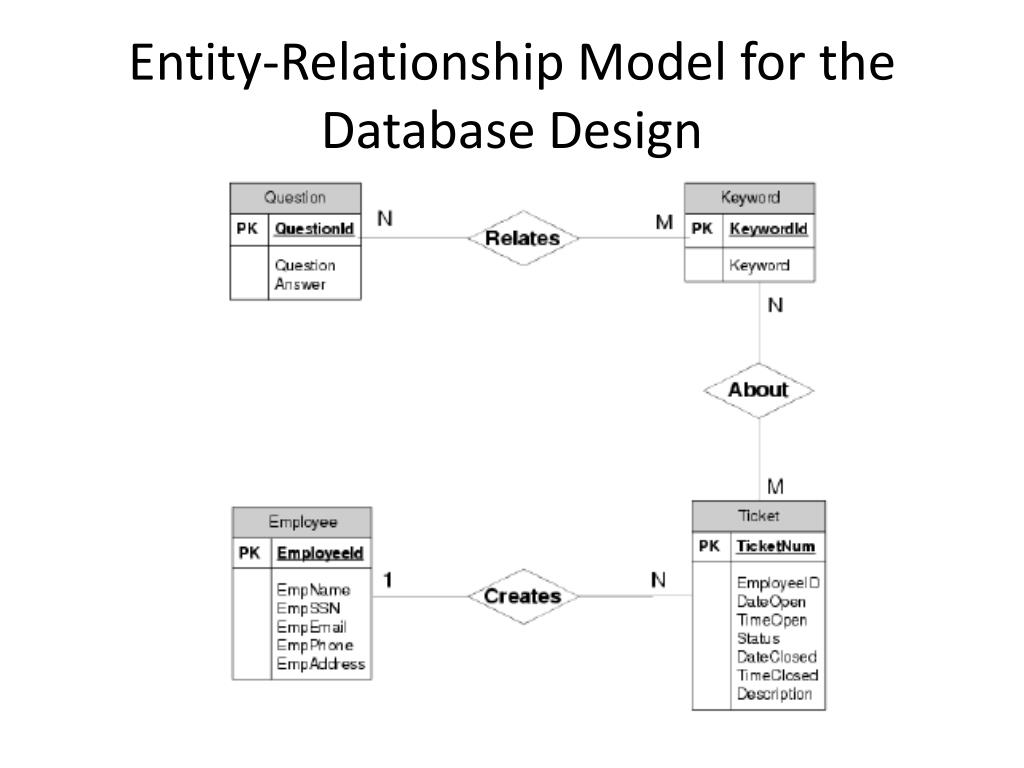

  6. Entity-Relationship Model for theDatabase Design

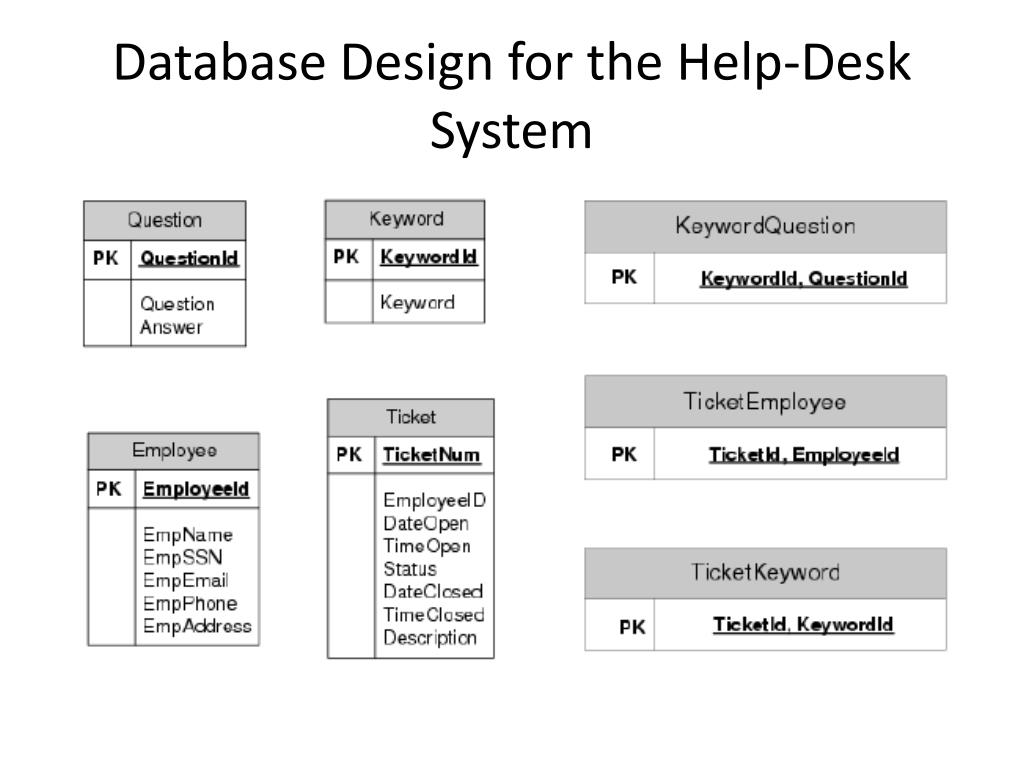

  7. Database Design for the Help-DeskSystem

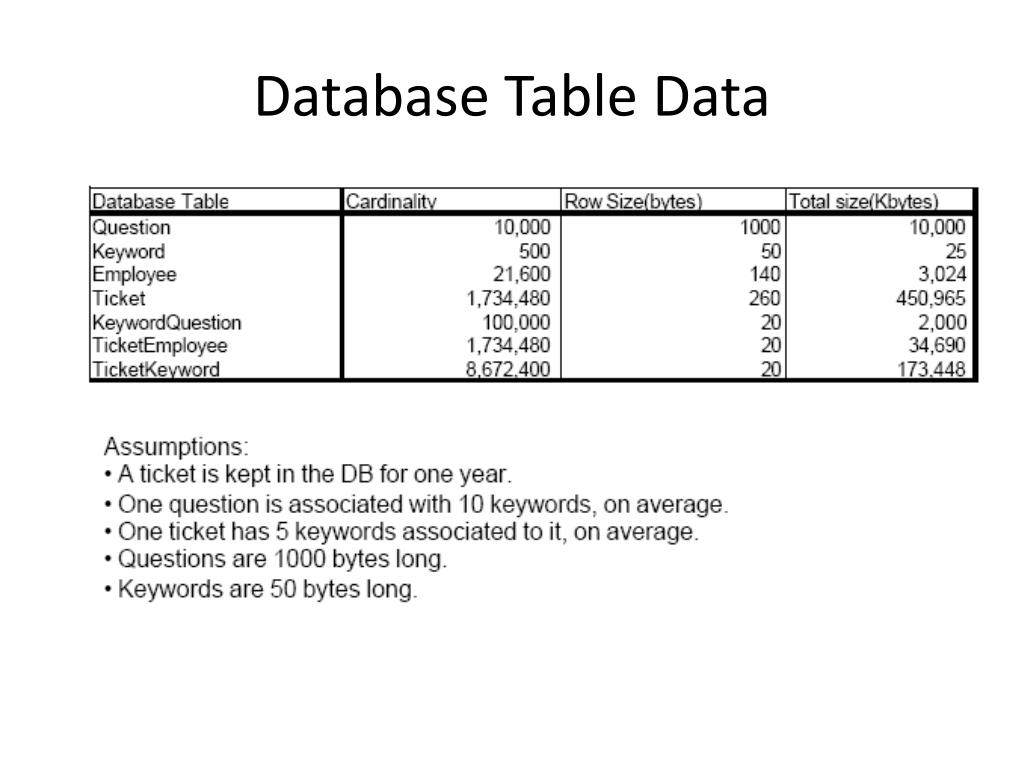

  8. Database Table Data

  9. Specifying Transaction Logic forSPE Purposes • Use a language that captures the major structural components of a transaction. • Loops and average number of times executed. • Branch statements and branching probabilities. • Switch statements and case probabilities. • Database access (i.e., select and update) statements. • Estimate number of I/Os per transaction • Use benchmark data and number of i/os to estimate the CPU time • Example of such a language: Clisspe

  10. Transaction Logic for Query onFAQ Database

  11. Transaction Logic for the Creationof a New Ticket

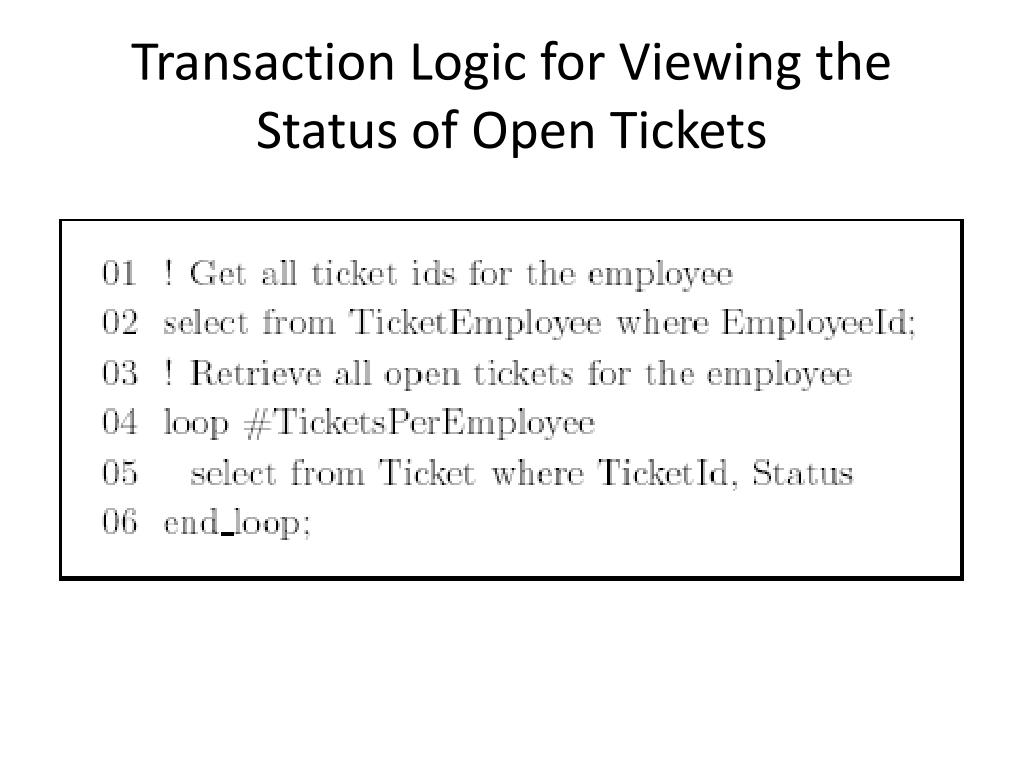

  12. Transaction Logic for Viewing theStatus of Open Tickets

  13. Estimating Number of I/Os • Estimate the number of I/Os per database access statement. • Consider the existence and types of indexes on the tables. • Estimate the number of index blocks accessed. • Estimate the number of data pages accessed.

  14. B*-Tree Indexes

  15. B-Tree Calculations

  16. Indexes for the Database Tables

  17. Estimating No. I/Os Due to a SelectStatement

  18. Database Table Sizes

  19. Computing Number of I/Os

  20. Computing Number of I/Os

  21. Computing Number of I/Os

  22. Computing Service Demands

  23. The Software Development Life Cycle and Inputs to SPE

  24. Traditional Software Development Life Cycle • Common approach: • consider Functional Requirements only during development and check Performance Requirements at the end. • fix the system if performance is not good! • Problem: • it is very costly and time consuming to fix the problem after the system is ready! • fixing the problem may imply major software rewrites.

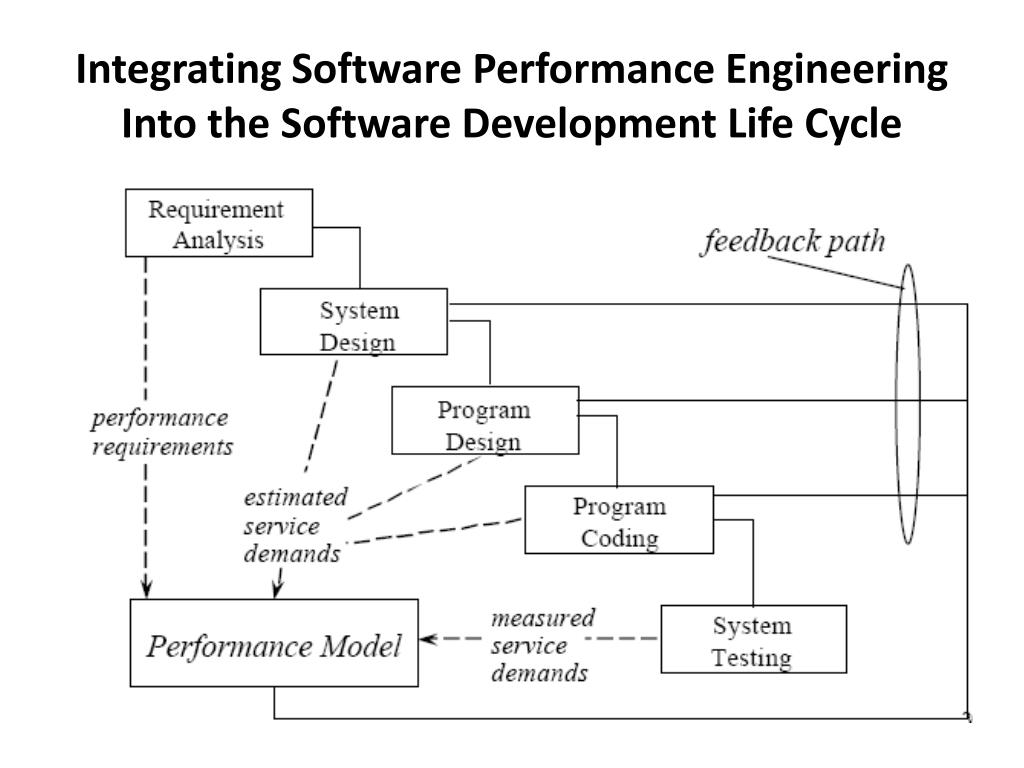

  25. Integrating Software Performance EngineeringInto the Software Development Life Cycle

  26. Service Demand Generation
