West Coast Precipitation Forecasting through Atmospheric River Analysis

otylia avatar
otylia
15 diapositives · 206 Views · Feb 25, 2014

The forecasting of heavy precipitation events on the West Coast using the Atmospheric Rivers Retrospective Forecasting Experiment (ARRFEX). By retrospectively forecasting cool-season Atmospheric River events from September 17-28, 2012, the research aims to evaluate operational and experimental datasets, discuss improved forecast information provision during extreme events, and assess the benefits of probabilistic quantitative precipitation forecasts (PQPF). The experiment involves daily activities such as 24-hour PQPF, AR duration forecasting, and precipitation timing assessment, while results indicate the effectiveness of higher-resolution datasets like reforecast and HMT-ensemble. Despite challenges in AR duration forecasting due to model timing issues, PQPF emerges as a promising approach for mid-range lead time extreme precipitation forecasts. The study concludes with acknowledgments to key contributors in the field.

#atmospheric rivers #west coast #precipitation forecasting #arrfex #probabilistic forecasting #heavy rainfall #midrange lead time #dataset evaluation
West Coast Precipitation Forecasting through Atmospheric River Analysis - slide 1
01 / 15West Coast Precipitation Forecasting through Atmospheric River Analysis
1 / 17

Télécharger la présentation

West Coast Precipitation Forecasting through Atmospheric River Analysis
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

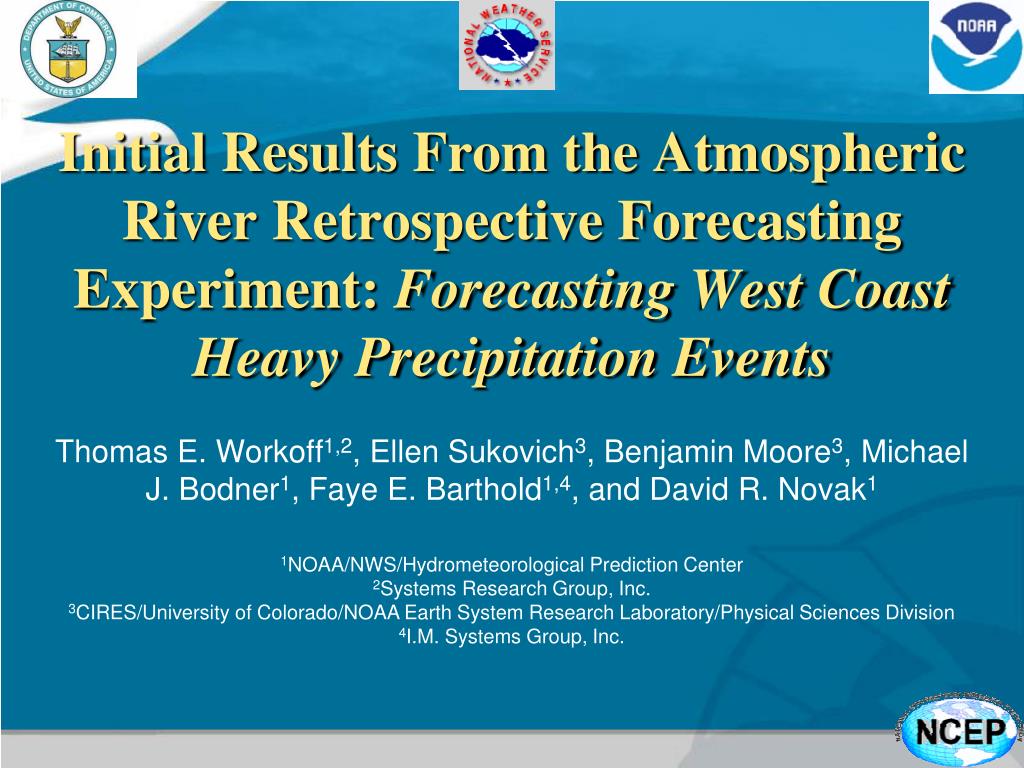

  1. Initial Results From the Atmospheric River Retrospective Forecasting Experiment: Forecasting West Coast Heavy Precipitation Events Thomas E. Workoff1,2, Ellen Sukovich3, Benjamin Moore3, Michael J. Bodner1, Faye E. Barthold1,4, and David R. Novak1 1NOAA/NWS/Hydrometeorological Prediction Center 2Systems Research Group, Inc. 3CIRES/University of Colorado/NOAA Earth System Research Laboratory/Physical Sciences Division 4I.M. Systems Group, Inc.

  2. Motivation Atmospheric Rivers are the dominant form of meridional moisture transport in the atmosphere 7-15 times the moisture flux than at the mouth of the Mississippi River Increased understanding and predictability of ARs is beneficial in several areas Flood control, emergency management, water resources, etc. QPFs are challenging Underestimate amounts Location & timing difficult Influence on HPC products Excessive rainfall Medium Range QPF

  3. Atmospheric Rivers Retrospective Forecasting Experiment (ARRFEX)September 17-28 2012 • *Retrospectively forecast 8 cool-season AR events* • GOALS: • Evaluate operational and experimental datasets in forecasting West Coast heavy precipitation • Discuss ways to provide better forecast information to users in extreme events • With a focus on: • Mid-range timeframe (3-5 days) • Viability of probabilistic QPF (PQPF) • Benefits of experimental datasets in extreme precipitation forecasting

  4. Atmospheric Rivers Retrospective Forecasting Experiment (ARRFEX)September 17-28 2012 • Daily Activities: • 24 hr probability of QPF (PQPF) • Day 5 and Day 3 • 10% and 40% probability of >3” • 72 hr (Day 1-3) QPF • Forecast AR duration • Precipitation start/stop timing • Subjective Verification • Experimental forecasts • Deterministic/ensemble guidance

  5. Numerical Model Guidance 12Z 12Z 12Z 00Z 00Z 00Z 00Z 24 hr PQPF 24 hr PQPF 72 hr QPF

  6. Experimental Guidance • HMT Ensemble (9 km) • ARW core, multiple physics schemes • ESRL Reforecast Dataset • 2nd generation GEFS (version 9.0.1); 1985-2010 • 10 members plus control run; archive 00Z initializations • Ranked analog method at each grid point to find dates of closest 50 matches • NARR precipitation data (32 km) • 24 hr PQPF and mean QPF http://www.esrl.noaa.gov/psd/forecasts/reforecast2/

  7. Results: PQPF Verification GEFS CMCE ECENS MMENS RFCST HMT

  8. Results: PQPF Verification

  9. Results: PQPF Verification  Reforecast deemed ‘most helpful’ in 6 cases (CMCE: 1, HMT: 2)

  10. Results: 72 h QPF Verification Stage IV ECMWF NAM HMT

  11. Results: 72 h QPF Verification

  12. Preliminary Results: Objective Verification Day 3 24 h QPF Threat Score Threat Score Threshold (inches)

  13. Preliminary Results: Objective Verification Day 3 24 h QPF Bias Score Bias Score Threshold (inches)

  14. Results: Point Forecast Verification • How accurate can we really be with timing issues? • Do higher resolution models hurt more than help with this problem? “High” confidence (2 of 7 cases) did not lead to better results (50% success) • No ‘low’ confidence forecasts indicated

  15. Experiment Summary • Higher-resolution data is beneficial, especially in West Coast/terrain driven events • Reforecast (PQPF) and HMT-ensemble data largely considered the best guidance • HMT could be too wet (?) • HPC currently working with ESRL to make the reforecast dataset operational • PQPF seems to be a worthwhile way to explore extreme QPF at mid-range lead times • Forecasting AR duration is problematic  model timing issues Acknowledgments: Mary Ralph, PSD/ESRL Tom Hamill, PSD/ESRL Keith Brill, HPC
