European Data Grid DIT & Schema Global Grid Forum - October 2001
supportedFileSystem - multi-valued, ces batchSystem - multi-valued, ces massStorageDescription - cis experimentalSoftware - multi-valued, ces siteName - cis sysAdminContact - cis userSupportContact - cis dataGridVersion - ces installationDate - time cpuResourceDescription - cis diskResourceDescription - cis The European Data Gridobjectclass=siteinfo Global Grid Forum - October 2001
Data Grid Site Global Grid Forum - October 2001
CEId - cis GlobusResourceContactString - cis GRAMVersion - cis Architecture - cis OpSys - cis MinPhysicalMemory - int MinLocalDiskSpace - int TotalCPUs - int FreeCPUs - int NumSMPs - int MinSPUProcessors - int MaxSPUProcessors - int TotalJobs - int RunningJobs – int IdleJobs - int MaxTotalJobs - int MaxRunningJobs - int WorstTraversalTime - float The Computing Elementobjectclass=ComputingElement Global Grid Forum - October 2001
EstimatedTraversalTime - float Active - boolean Priority - int MaxCPUTime - float MaxWallClockTime - float AverageSI00 - float MinSI00 - float MaxSI00 - float AuthorizedUsersList - multi-valued cis RunTimeEnvironmentsList - multi-valued cis AFSAvailable - boolean OutboundIP - boolean InboundIP - boolean QueueName - cis LRMSType - cis LRMSVersion - cis The Computing Elementobjectclass=ComputingElement Global Grid Forum - October 2001

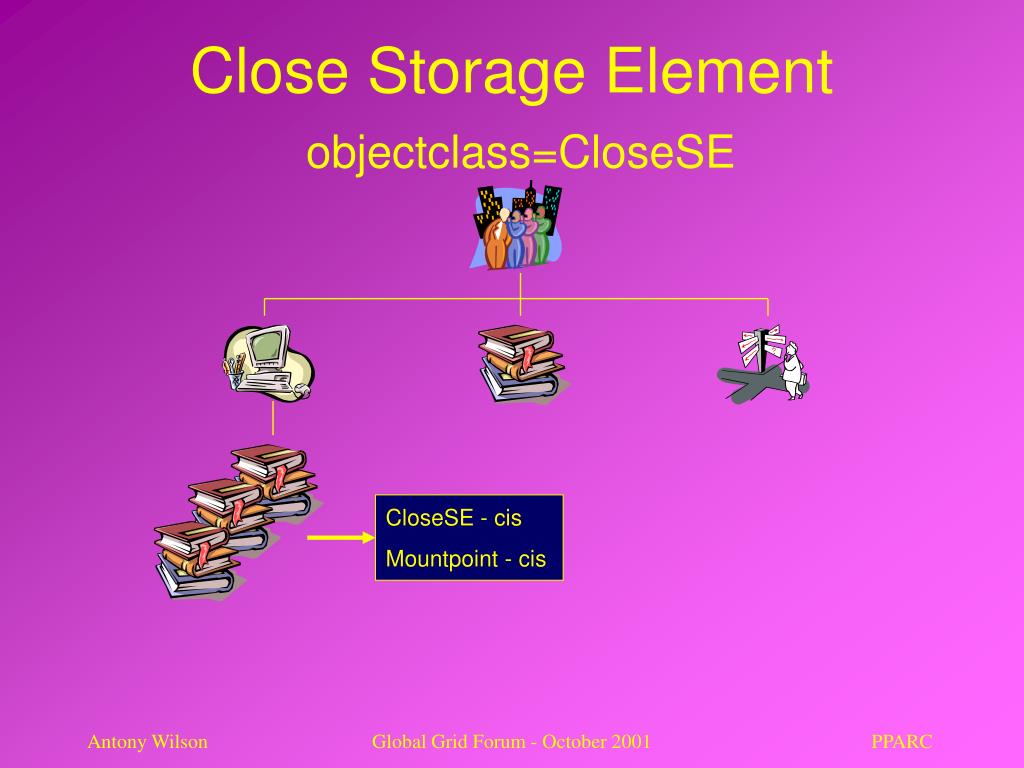

CloseSE - cis Mountpoint - cis Close Storage Elementobjectclass=CloseSE Global Grid Forum - October 2001
SEid - cis CloseCE - mutli-valued cis SEtypearchitecture - cis SEsize - int SEResourceContactString - cis SEmaxfilesize - int SEmaxdata - int SEmaxnumfile - int The Storage Elementobjectclass=StorageElement Global Grid Forum - October 2001
SEProtocol - cis SEid - cis Port - int Storage Element Protocolsobjectclass=StorageElementProtocol Global Grid Forum - October 2001
SEfreespace - int SEsccesstime - int Sefilequeuelength - int Storage Element Status objectclass=StorageElementStatus Global Grid Forum - October 2001
localfilename - ces filecreatedate - cis filemodifydate - cis fileaccessdate - cis filesize - int filelatency - int filelifetime - int fileownname - cis The File Element objectclass=FileElement Global Grid Forum - October 2001
Network Monitoring Global Grid Forum - October 2001
rou - cis rttmax - float rttavg - float rttmin - float rttmdev - float rttlastmodified - float lossmin - cisfloat lossmax - cisfloat lossavg - cisfloat losslastmodified - cis Remote Organisational Units objectclass=NetworkMonitorHost,NetworkMonitorRTT,NetworkMonitorLoss Global Grid Forum - October 2001
Tools Global Grid Forum - October 2001
tool - cis toolname - cis toolversion - cis rttmax - float rttavg - float rttmin - float rttmdev - float rttlastmodified - float lossmin - cisfloat lossmax - cisfloat lossavg - cisfloat losslastmodified - cis Pinger objectclass= NetworkMonitorTool,NetworkMonitorRTT,NetworkMonitorLoss Global Grid Forum - October 2001
rttpacketsize - int rttmax - float rttavg - float rttmin - float rttmdev - float rttlastmodified - float RTT Packet Size objectclass=NetworkMonitorRTTPacketSize Global Grid Forum - October 2001
losspacketsize - int lossmin - cisfloat lossmax - cisfloat lossavg - cisfloat losslastmodified - cis Loss Packet Size objectclass= NetworkMonitorLossPacketSize Global Grid Forum - October 2001
tool - cis toolname - cis toolversion - cis throughputtransmax - float throughputtransavg - float throughputtransmin - float throughputlastmodified - float Iperf objectclass= NetworkMonitorTool,NetworkMonitorThroughput Global Grid Forum - October 2001
throughputbuffersize - int throughputtransmax - float throughputtransavg - float throughputtransmin - float throughputlastmodified - float Throughput Buffer Size objectclass= NetworkMonitorThroughputBufferSize Global Grid Forum - October 2001
The European Data Grid Global Grid Forum - October 2001
The European Data Grid dc=ph,dc=qmw,dc=ac,dc=uk,o=Grid ceId=hepbf1.ph.qmw.ac.uk:2119/jobmanager-pbs, dc=ph,dc=qmw,dc=ac,dc=uk,o=Grid seId=hepbf1.ph.qmw.ac.uk, dc=ph,dc=qmw,dc=ac,dc=uk,o=Grid in=netmon, dc=ph,dc=qmw,dc=ac,dc=uk,o=Grid closeSE=hepbf1.ph.qmw.ac.uk, ceId=localhost:2119/jobmanager-lsf-grid01, dc=ph,dc=qmw,dc=ac,dc=uk,o=Grid in=status, seId=hepbf1.ph.qmw.ac.uk, dc=ph,dc=qmw,dc=ac,dc=uk,o=Grid See next slide seProtocol=gridftp, seId=hepbf1.ph.qmw.ac.uk, dc=ph,dc=qmw,dc=ac,dc=uk,o=Grid in=files, seId=hepbf1.ph.qmw.ac.uk, dc=ph,dc=qmw,dc=ac,dc=uk,o=Grid in=siteinfo, dc=ph,dc=qmw,dc=ac,dc=uk,o=Grid Global Grid Forum - October 2001
in=netmon, dc=ph,dc=qmw,dc=ac,dc=uk,o=Grid rou=hepwww.ph.qmw.ac.uk, in=netmon, dc=ph,dc=qmw,dc=ac,dc=uk,o=Grid tool=pinger, rou=hepwww.ph.qmw.ac.uk, in=netmon, dc=ph,dc=qmw,dc=ac,dc=uk,o=Grid tool=iperfr, rou=hepwww.ph.qmw.ac.uk, in=netmon, dc=ph,dc=qmw,dc=ac,dc=uk,o=Grid rttpacketsize=100, tool=pinger, rou=hepwww.ph.qmw.ac.uk, in=netmon, dc=ph,dc=qmw,dc=ac,dc=uk,o=Grid Losspacketsize=100, tool=pinger, rou=hepwww.ph.qmw.ac.uk, in=netmon, dc=ph,dc=qmw,dc=ac,dc=uk,o=Grid Throughputbuffersize tool=iperfr, rou=hepwww.ph.qmw.ac.uk, in=netmon, dc=ph,dc=qmw,dc=ac,dc=uk,o=Grid rttpacketsize=1000, tool=pinger, rou=hepwww.ph.qmw.ac.uk, in=netmon, dc=ph,dc=qmw,dc=ac,dc=uk,o=Grid Losspacketsize=1000, tool=pinger, rou=hepwww.ph.qmw.ac.uk, in=netmon, dc=ph,dc=qmw,dc=ac,dc=uk,o=Grid Global Grid Forum - October 2001
