  1. Simulink A Simple Intro

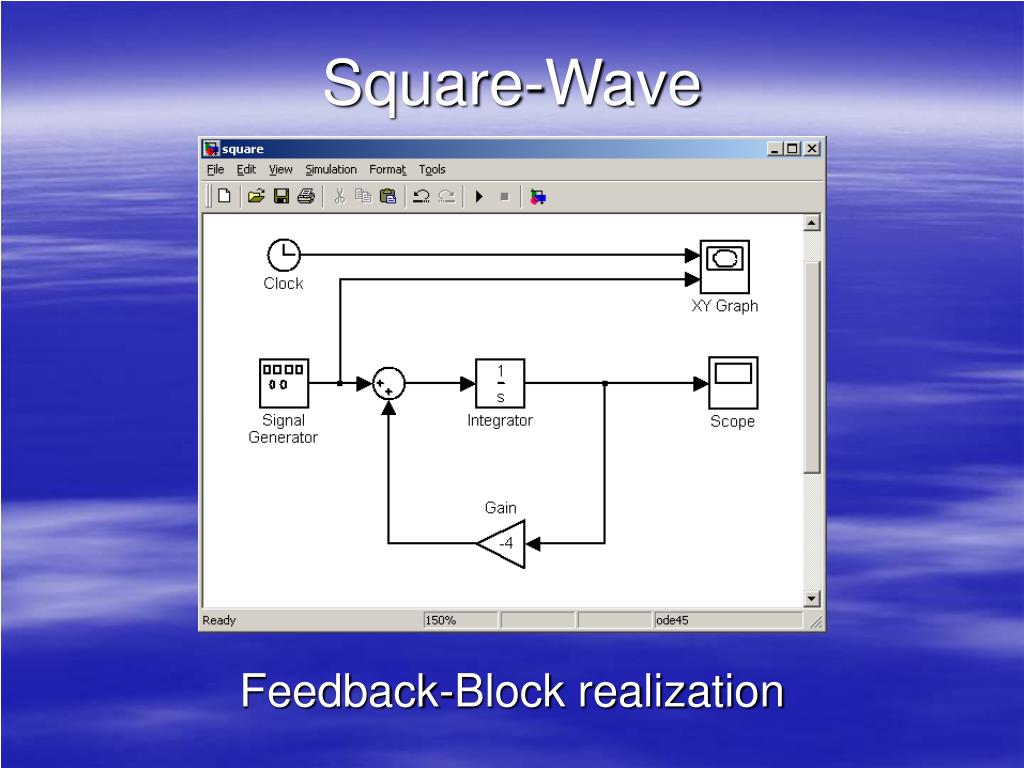

  2. Square-Wave Feedback-Block realization

  3. Plots

  4. Laplace form of Transfer Function

  5. Rectified Sine

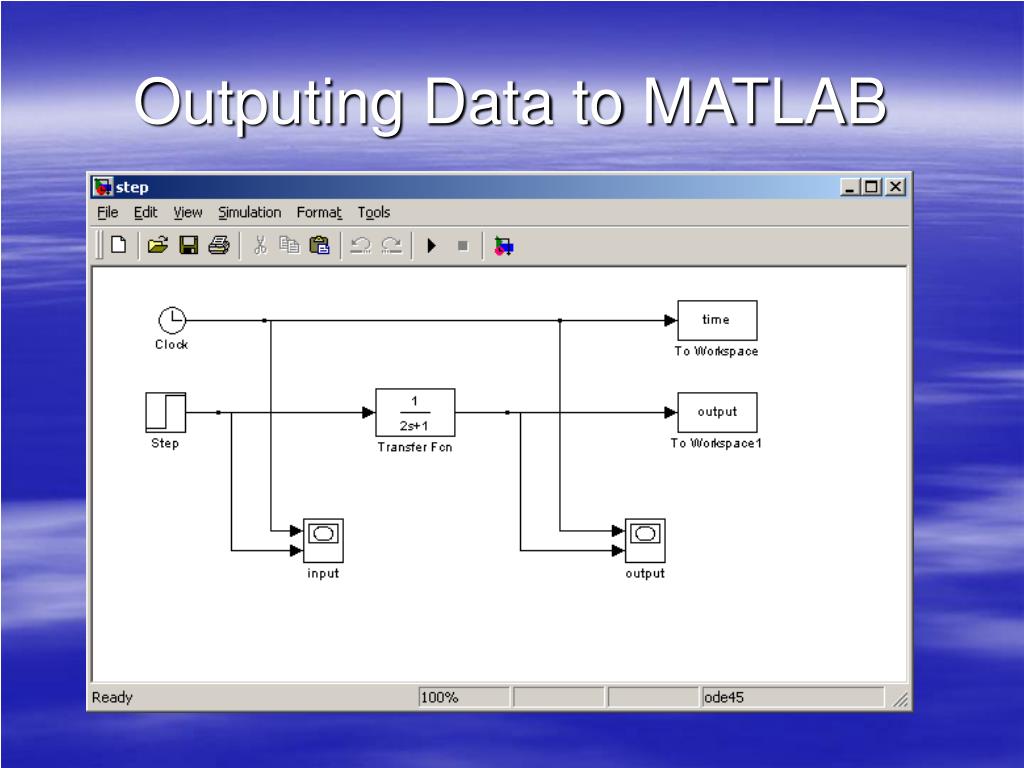

  6. Outputing Data to MATLAB

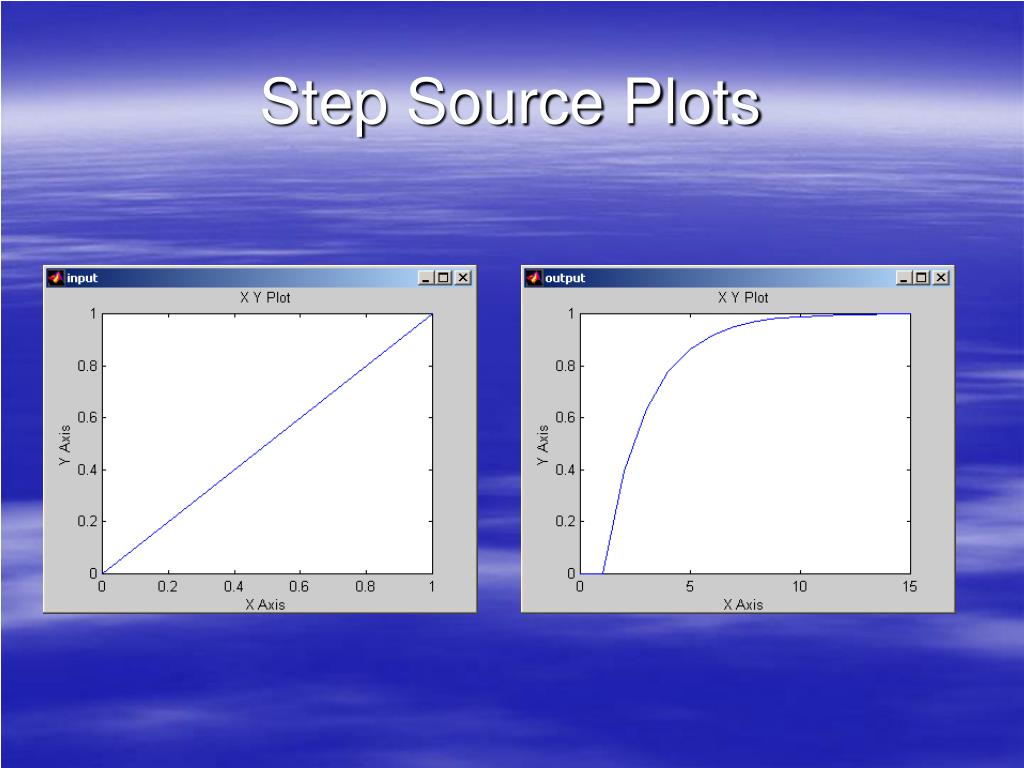

  7. Step Source Plots

  8. MATLAB Workspace » time time = time: [] signals: [1x1 struct] blockName: 'step/To Workspace' » output output = time: [] signals: [1x1 struct] blockName: 'step/To Workspace1'

  9. Higher Order Transfer Function

  10. MATLAB CONSOLE » num = [10 5 1 0]; » den = [100 1 20 4 1 1]; » H = TF(num, den) Transfer function: 10 s^3 + 5 s^2 + s -------------------------------------- 100 s^5 + s^4 + 20 s^3 + 4 s^2 + s + 1 » bode(H) » nyquist(H)

  11. Bode

  12. Nyquist

  13. Output Data to MATLAB
