ModellingMacropores Philipp Kraft

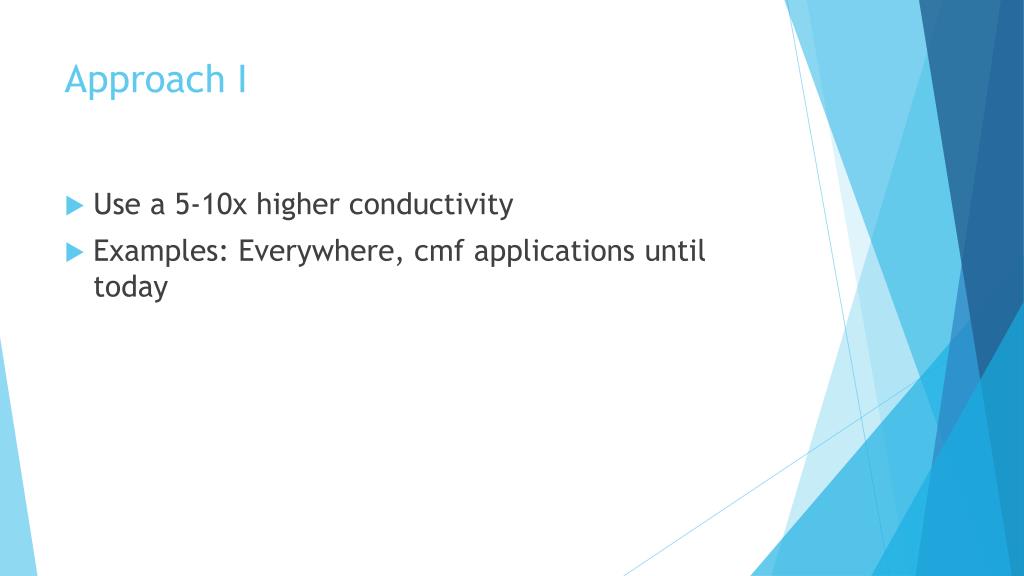

Approach I • Use a 5-10x higherconductivity • Examples: Everywhere, cmfapplicationsuntiltoday

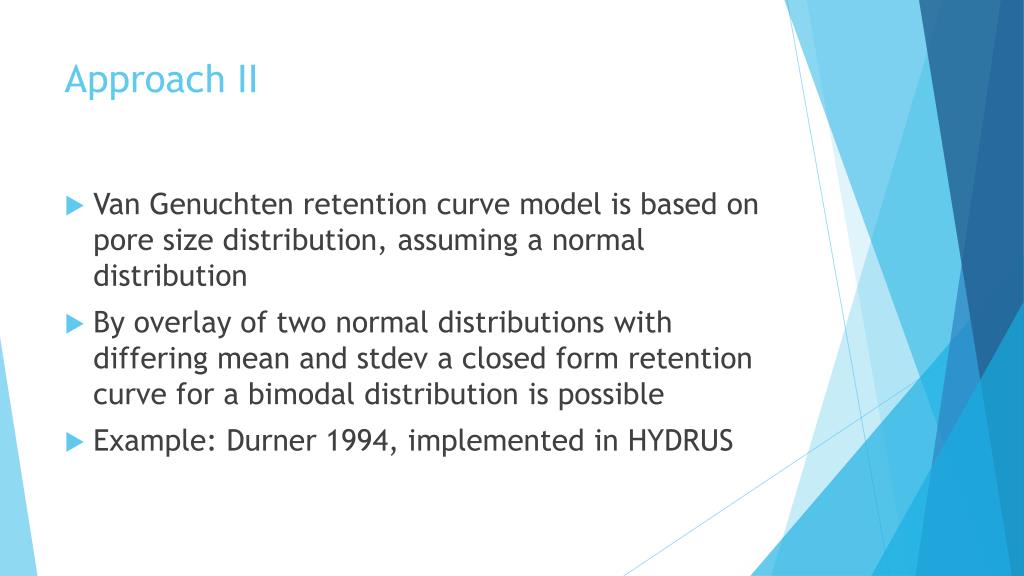

Approach II • Van Genuchtenretentioncurvemodelisbased on poresizedistribution, assuming a normal distribution • Byoverlayoftwo normal distributionswithdifferingmeanandstdev a closed form retentioncurvefor a bimodaldistributionispossible • Example: Durner 1994, implemented in HYDRUS

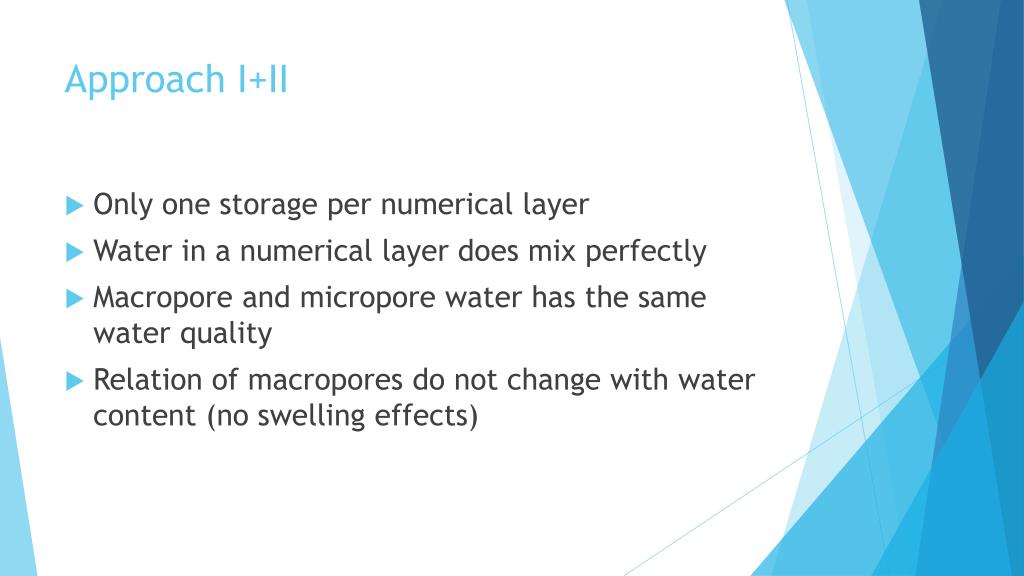

Approach I+II • Onlyonestorage per numericallayer • Water in a numericallayerdoes mix perfectly • Macroporeandmicroporewaterhasthe same waterquality • Relation ofmacropores do not changewithwatercontent (noswellingeffects)
Approach III • Waterinfiltratesthroughmacroporesintodeeperlayers • No additional waterstorage, infiltrationhas a by pass aroundthe top soil • Example: BROOK 90, cmf.LayerByPass

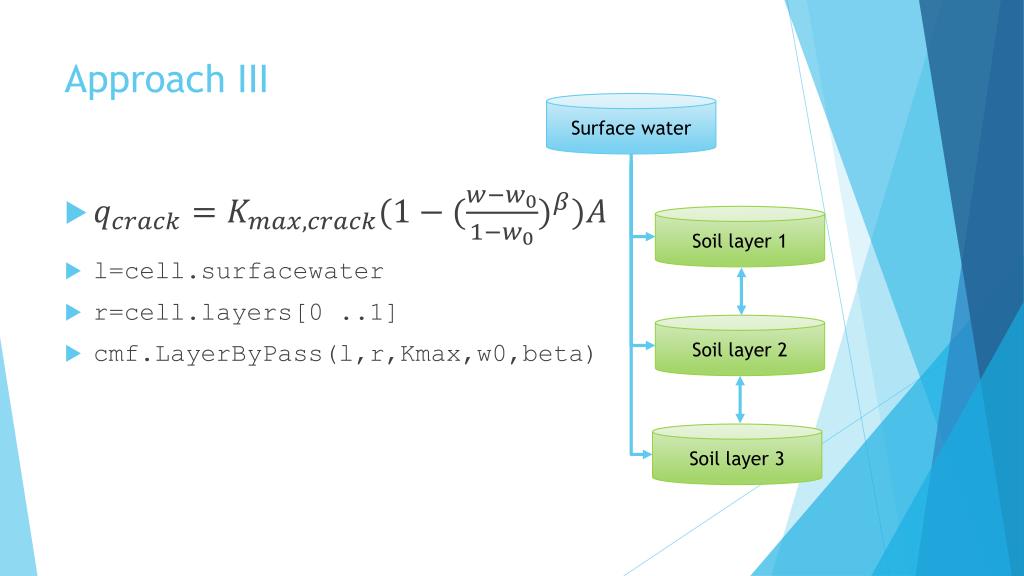

Approach III Surface water • l=cell.surfacewater • r=cell.layers[0 ..1] • cmf.LayerByPass(l,r,Kmax,w0,beta) Soillayer 1 Soillayer 2 Soillayer 3
Approach IV • Distinctmodelsofmacroporespaceandmicroporespace. • Resultsgetaveraged • Example: someHydrus 1D/2D applications

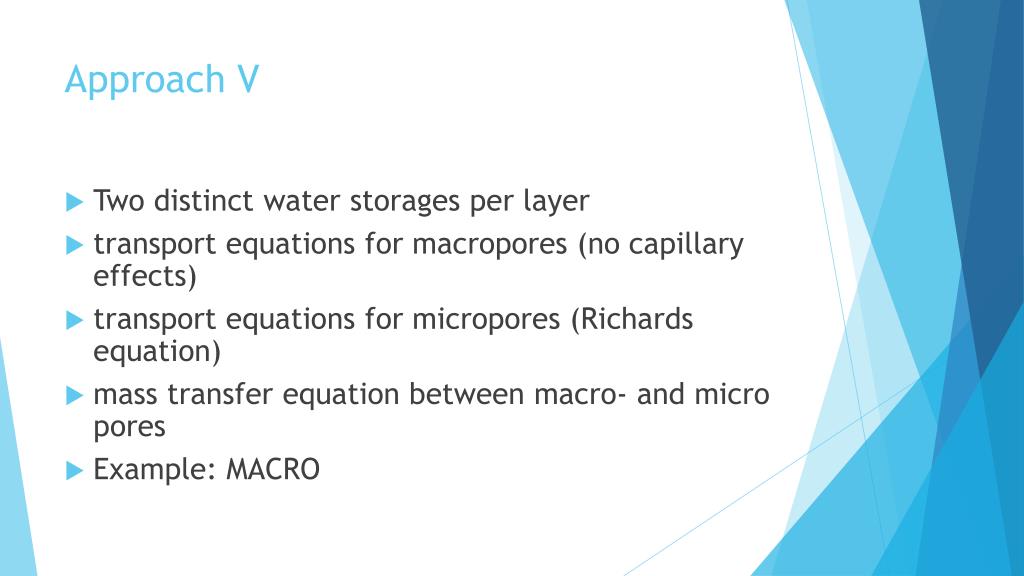

Approach V • Twodistinctwaterstorages per layer • transportequationsformacropores (nocapillaryeffects) • transportequationsformicropores (Richards equation) • masstransferequationbetweenmacro- andmicropores • Example: MACRO

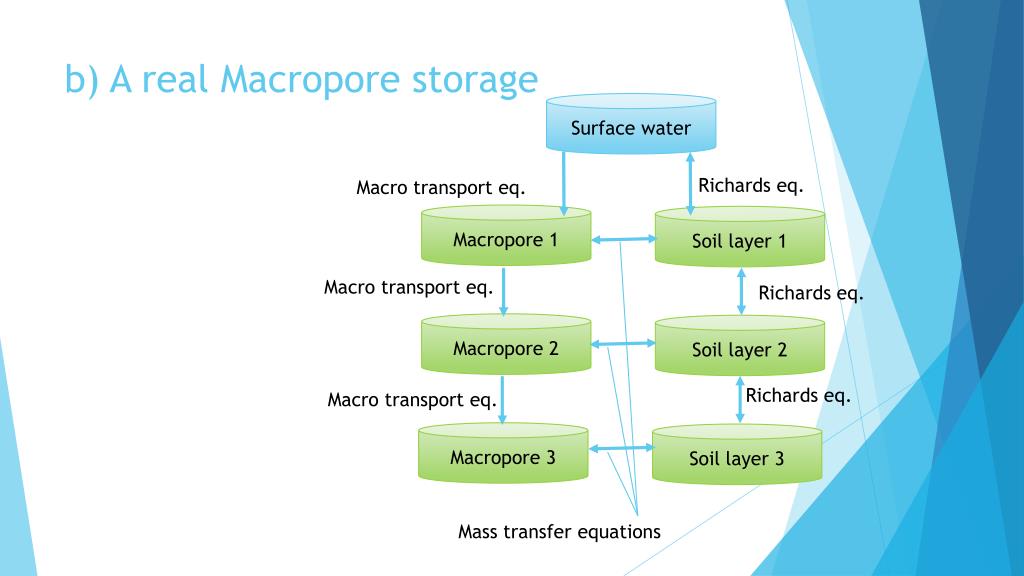

b) A real Macroporestorage Surface water Richards eq. Macrotransporteq. Macropore 1 Soillayer 1 Macrotransporteq. Richards eq. Macropore 2 Soillayer 2 Richards eq. Macrotransporteq. Macropore 3 Soillayer 3 Masstransferequations
Macroporetransport • Withoutcapillaryrise, kinematicwaveisusable • cmf: • V – actualstored Volume • C – Capacityoflayer
Masstransfer • saturationbased • headbased

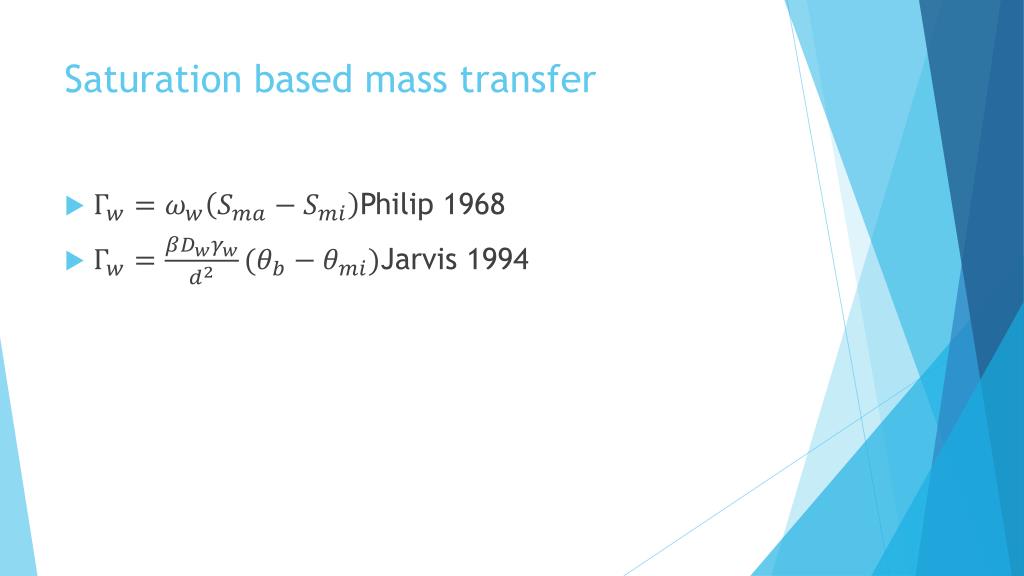

Saturation basedmasstransfer • Philip 1968 • Jarvis 1994
Head basedmasstransfer • Gerke & Van Genuchten
cmf.GradientMacroMicroExchangeforMacro/Microporeexchange Δx Ψ(Macro) Aggregate Macropore z Ψ(Micro)

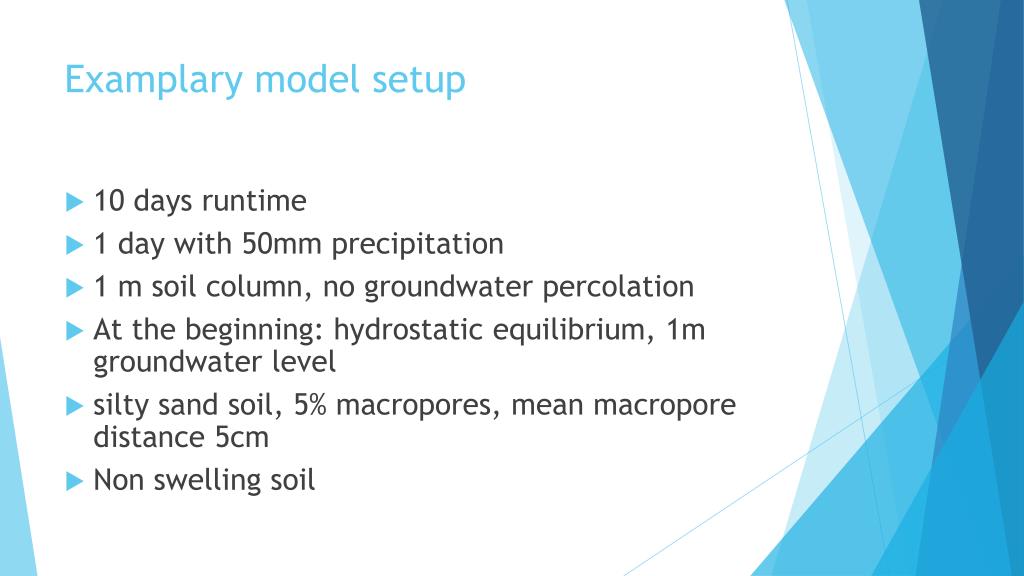

Examplarymodelsetup • 10 daysruntime • 1 daywith 50mm precipitation • 1 m soilcolumn, nogroundwaterpercolation • At thebeginning: hydrostaticequilibrium, 1m groundwaterlevel • siltysandsoil, 5% macropores, meanmacroporedistance 5cm • Non swellingsoil

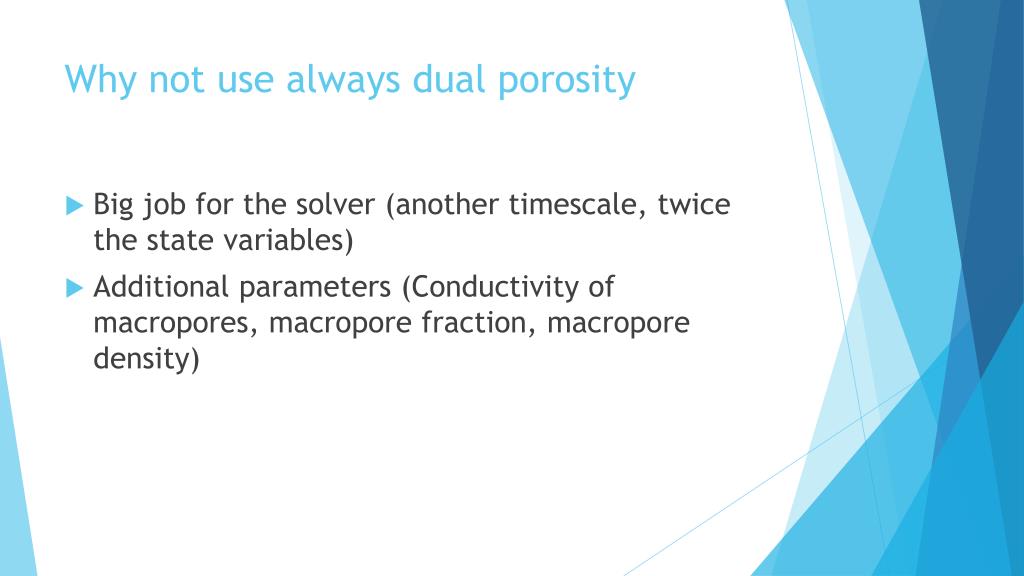

Why not usealways dual porosity • Big jobforthesolver (anothertimescale, twicethestate variables) • Additional parameters (Conductivityofmacropores, macroporefraction, macroporedensity)
