Understanding OP-AMP Circuits: Integrators, Differentiators, and Difference Amplifiers

This guide covers the fundamental principles of operational amplifier (OP-AMP) circuits, focusing on integrator, differentiator, and voltage subtractor configurations. By applying Kirchhoff's Current Law (KCL) at critical nodes, we derive relationships between input and output voltages. Key equations are provided, along with example problems to illustrate the application of these concepts in various circuits. The guide aims to enhance your understanding of OP-AMP behavior and its practical applications in electronic circuit design.

paley
Télécharger la présentation

Understanding OP-AMP Circuits: Integrators, Differentiators, and Difference Amplifiers

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Practical OP-AMP Circuits

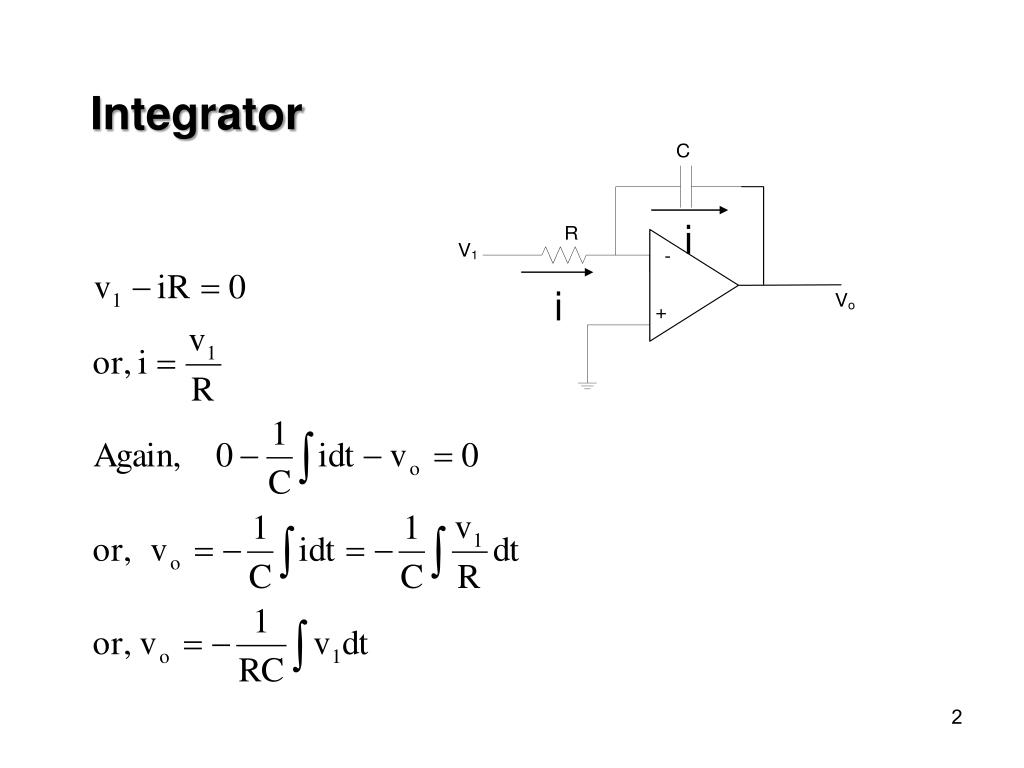

  2. Integrator i i

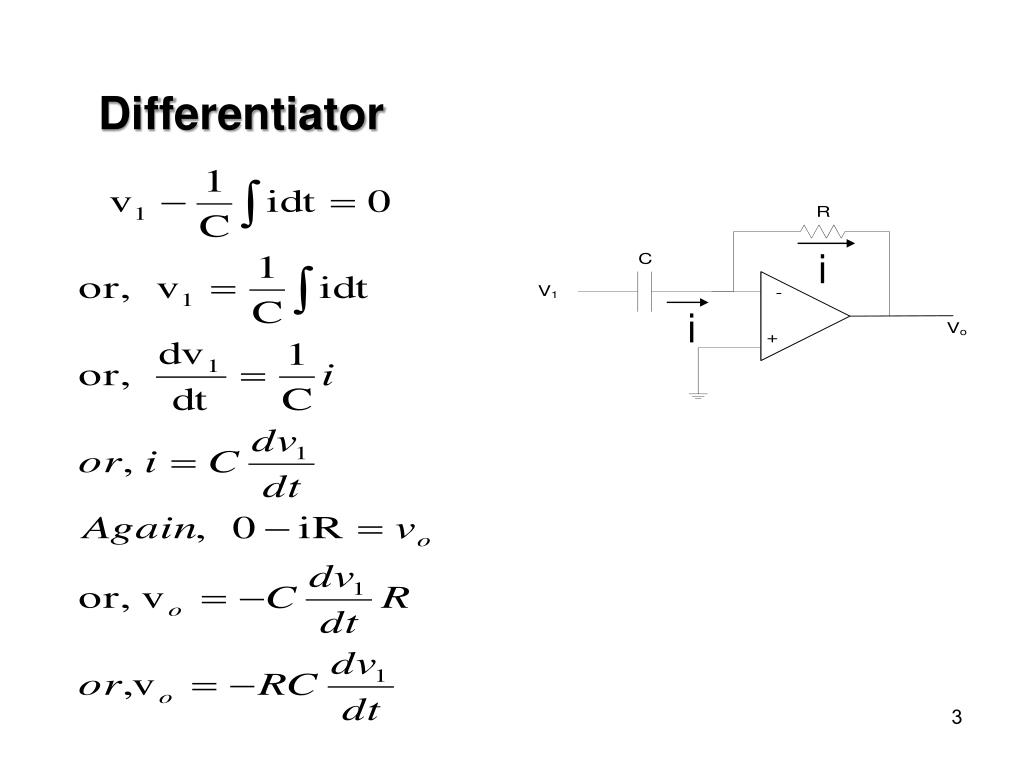

  3. Differentiator i i

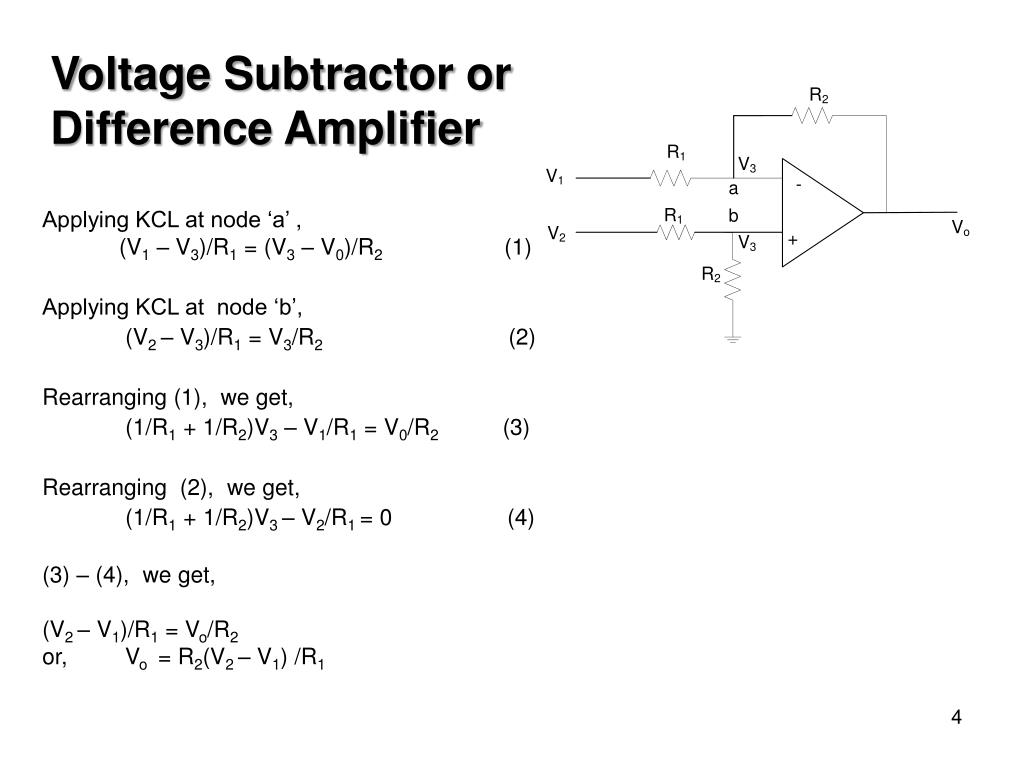

  4. Voltage Subtractor or Difference Amplifier Applying KCL at node ‘a’, (V1 – V3)/R1 = (V3 – V0)/R2 (1) Applying KCL at node ‘b’, (V2 – V3)/R1 = V3/R2 (2) Rearranging (1), we get, (1/R1 + 1/R2)V3 – V1/R1 = V0/R2 (3) Rearranging (2), we get, (1/R1 + 1/R2)V3 – V2/R1 = 0 (4) (3) – (4), we get, (V2 – V1)/R1 = Vo/R2 or, Vo = R2(V2 – V1) /R1

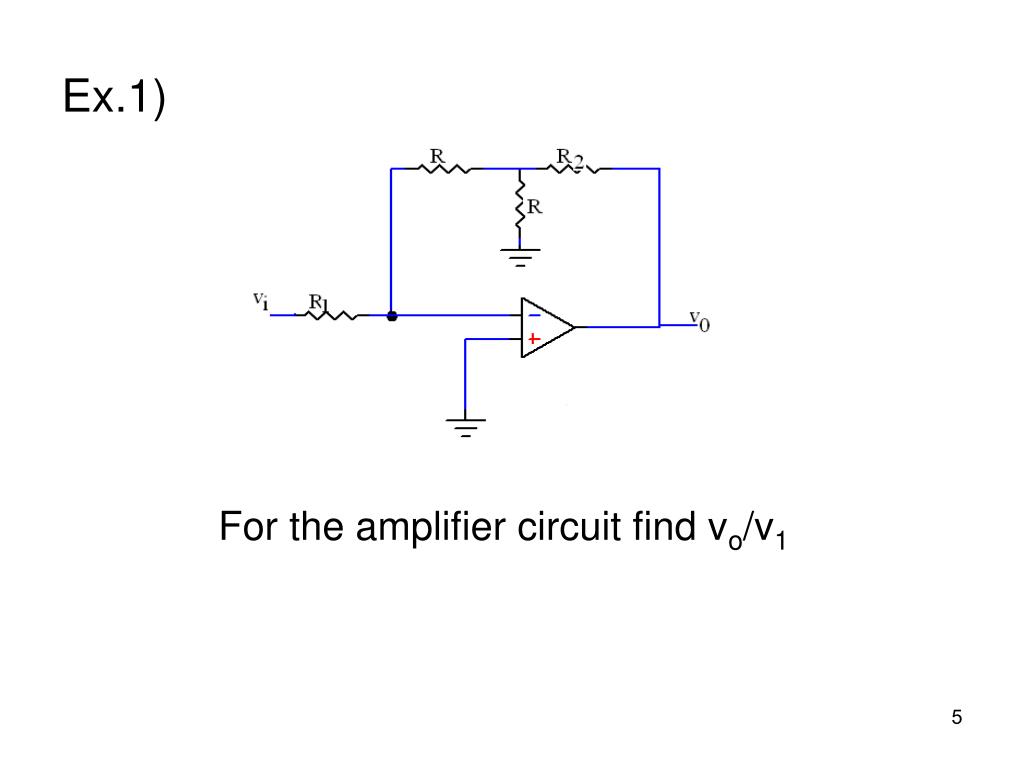

  5. Ex.1) For the amplifier circuit find vo/v1

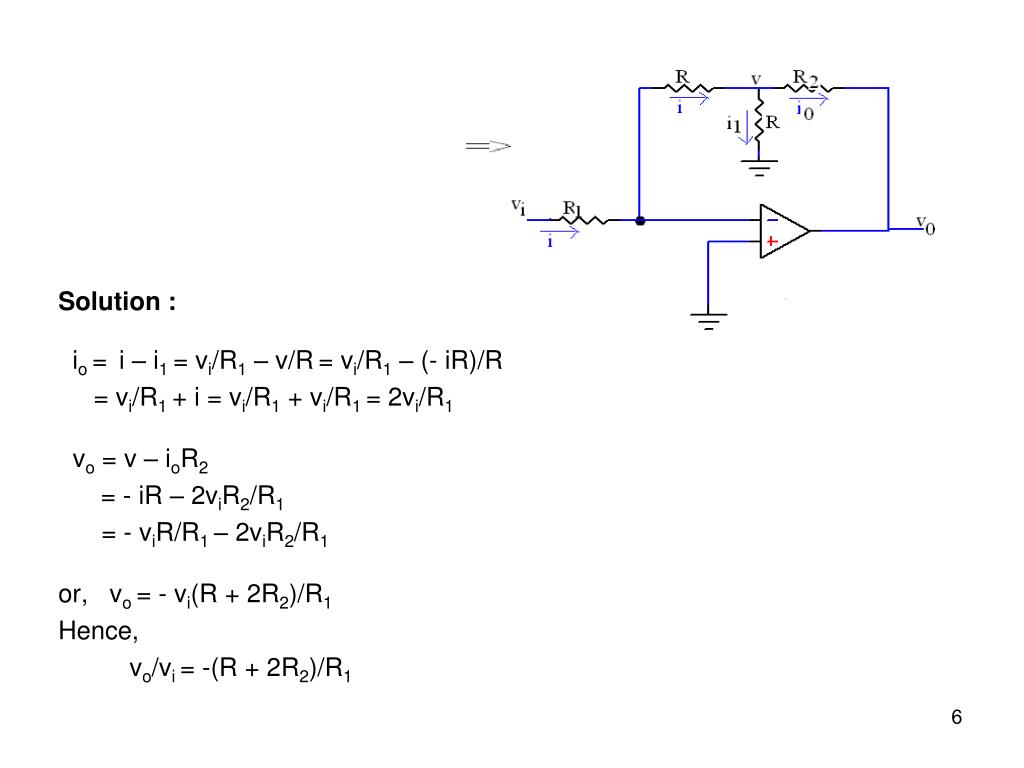

  6. Solution : io = i – i1 = vi/R1 – v/R= vi/R1 – (- iR)/R = vi/R1 + i = vi/R1 + vi/R1 = 2vi/R1 vo = v – ioR2 = - iR – 2viR2/R1 = - viR/R1 – 2viR2/R1 or, vo = - vi(R + 2R2)/R1 Hence, vo/vi = -(R + 2R2)/R1

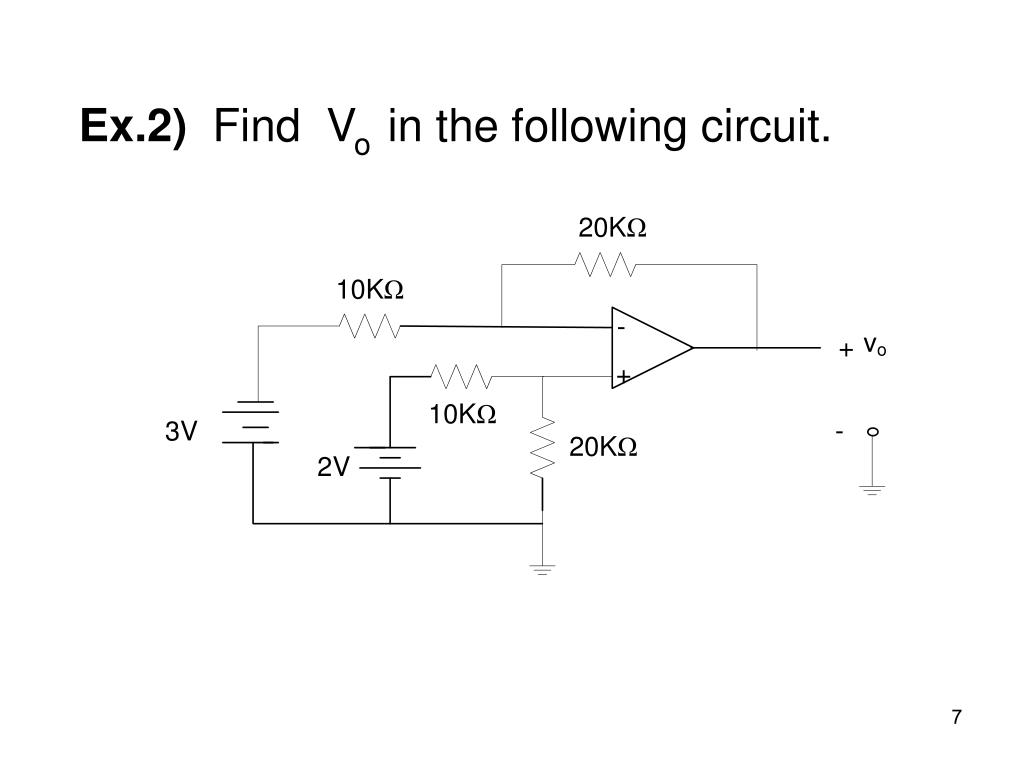

  7. Ex.2) Find Vo in the following circuit.

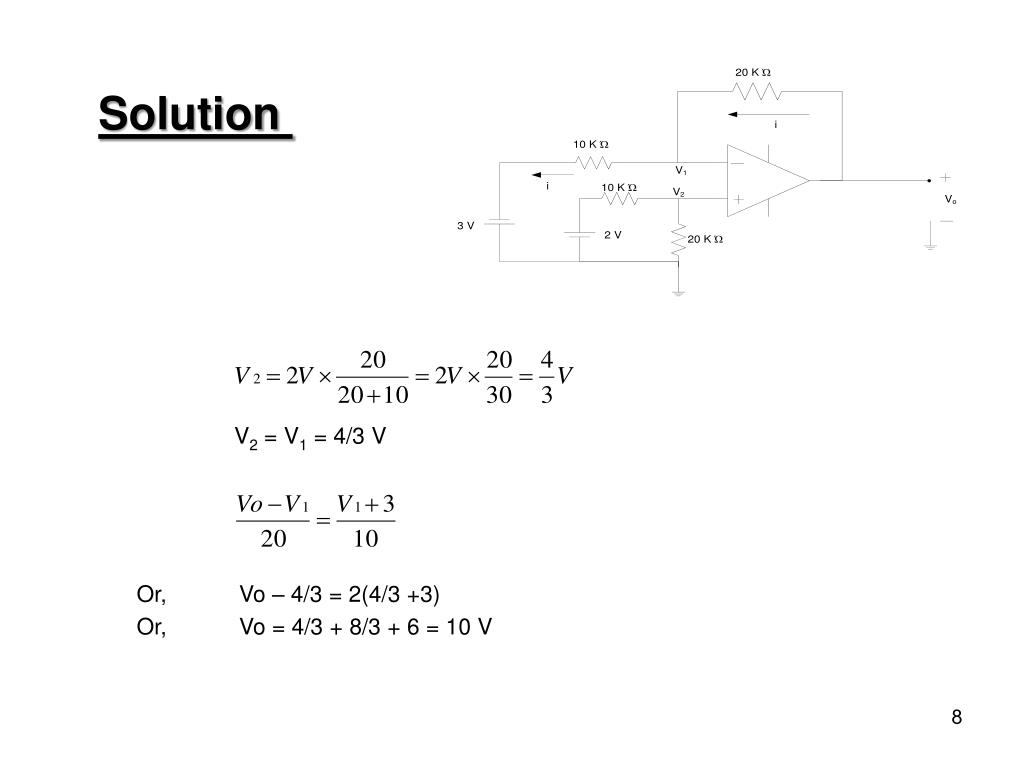

  8. Solution V2 = V1 = 4/3 V Or, Vo – 4/3 = 2(4/3 +3) Or, Vo = 4/3 + 8/3 + 6 = 10 V
