  1. ReviewLecture 30

  2. Administrivia • Office hours 1:30 – 2:15 today • Final Exam May 16 8-11 a.m. • Location: 22 Warren • Topics since Midterm 2 • Transactions, concurrency control, locking, recovery • Logical design, ER Modeling, Functional Dependencies, Normalization, Data Mining • Guest lectures • Cumulative questions from semester Review today Review Tuesday

  3. Concurrency • Concurrent users introduce anomalies • Dirty reads (WR): T2 reads a value A that T1 wrote but didn’t commit • Unrepeatable Reads (RW): T1 reads a value A that is then written by T2 • Lost Updates (WW): T2 overwrites a write by T1 • Serializable schedules: • A schedule that is equivalent to some serial execution of the transactions. • Definition: Two operations conflictif: • They are by different transactions, • they are on the same object, • and at least one of them is a write. R(B) W(B) W(A) T1: R(A) R(A) W(A) R(B) W(B) T2:

  4. R(B) W(B) W(B) R(B) R(A) W(A) R(A) W(A) Conflict Serializability – Intuition • A schedule S is conflict serializable if: • You are able to transform S into a serial schedule by swapping consecutive non-conflictingoperations of different transactions. • Example: R(B) T1: R(A) W(B) W(A) T2: R(A) W(A) W(B) R(B) T1: R(A) R(B) W(B) W(A) T2: R(A) W(A) W(B) R(B)

  5. Dependency Graph Ti Tj • Dependency graph: • One node per Xact • Edge from Ti to Tj if: • An operation Oi of Ti conflicts with an operation Oj of Tj and • Oi appears earlier in the schedule than Oj. • Theorem: Schedule is conflict serializable if and only if its dependency graph is acyclic.

  6. A B Another Example • A schedule that is not conflict serializable: • The cycle in the graph reveals the problem. • The output of T2 depends on T1’s value of A, and the output of T1 depends on T2’s value of B. T1: R(A), W(A), R(B), W(B) T2: T1: R(A), W(A), R(B), W(B) T2: R(A), W(A), R(B), W(B) T1: R(A), W(A), R(B), W(B) T2: R(A), W(A), R(B), W(B) T1: R(A), W(A), R(B), W(B) T2: R(A), W(A), R(B), W(B) T1: R(A), W(A), R(B), W(B) T2: R(A), W(A), R(B), W(B) T1 T2 Dependency graph

  7. Review: Lock-Based Concurrency Control Two-phase Locking (2PL) Protocol: • Each Xact must obtain: • a S (shared) lock on object before reading, and • an X (exclusive) lock on object before writing. • If an Xact holds an X lock on an object, no other Xact can get a lock (S or X) on that object. • System can obtain these locks automatically • Two phases: acquiring locks, and releasing them • No lock is ever acquired after one has been released • “Growing phase” followed by “shrinking phase”. • Ensures acyclic dependency graphs • Allows only conflict serializable schedules

  8. Review: Strict 2 Phase Locking • Strict Two-phase Locking (Strict 2PL) Protocol: • Same as 2PL, except All locks held are released only when the transaction completes • Advantage: no other transaction reads anything you write until you commit. • e.g a transaction will only read committed data. • Disadvantage: transactions end up waiting. • Ensures acyclic dependency graphs • Allows only conflict serializable schedules • Allows only strict schedules • No values written by an Xact T can be read or overwritten until T commits or aborts.

  9. Deadlocks • Deadlock: Cycle of transactions waiting for locks to be released by each other. • Two ways of dealing with deadlocks: • Deadlock prevention • Wait-die: new transactions aren’t allowed to wait • Wound-wait: old transactions don’t have to wait • Deadlock detection • Create a waits-for graph: • There is an edge from Ti to Tj if Ti is waiting for Tj to release a lock • Periodically check for cycles in the waits-for graph

  10. Deadlock Detection (Continued) Example: T1: S(A), S(D), S(B) T2: X(B) X(C) T3: S(D), S(C), X(A) T4: X(B) S(B) S(A) S(D) X(B) T1 T2 X(B) X(C) X(A) S(D) S(C) T4 T3

  11. Database Tables Pages Tuples Lock Management contains • Multi-granularity locking • Use database containment hierarchy to vary granularity of locks • Full table insert: lock table vs read 1 row: lock record • Locking in indexes • don’t want to lock a B-tree root for a whole transaction! • actually do non-2PL “latches” in B-trees • CC w/out locking • “optimistic” concurrency control

  12. Multiple Granularity Lock Protocol • Each Xact starts from the root of the hierarchy. • Special SIX lock used when reading many records, and updating a few. • SIX lock conflicts are all S and IX conflicts (e.g. only compatible with IS locks). • To get S or IS lock on a node, must hold IS or IX on parent node. • To get X or IX or SIX on a node, must hold IX or SIX on parent node. • Must release locks in bottom-up order.

  13. IX SIX S X IS IS Ö Ö Ö Ö IX Ö Ö SIX Ö Ö S Ö X Multi-Granularity Example • Rules • Each Xact starts from the root of the hierarchy. • To get S or IS lock, must hold IS or IX on parent. • To get X or IX or SIX, must hold IX or SIX on parent. • Must release locks in bottom-up order. T2:IS • T1 wants to read & change tuple 2 • T2 wants to read all of Page 1 • T1 gets IX lock on DBMS, Sailor, Page 1 • T1 gets X lock on Tuple 2 & changes it • T2 gets IS lock on DBMS, Sailor • T2 tries to get S lock on Page 1, but S conflicts with IX lock. T2 blocks. • What if T2 had started first? T1:IX Database T2:IS T1:IX Sailor Table T1:IX Page 1 Page 2 T2:wait Tuple 2 Tuple 3 Tuple 4 Tuple 1 T1:X

  14. IX SIX S X IS IS Ö Ö Ö Ö IX Ö Ö SIX Ö Ö S Ö X Multi-Granularity Example • Rules • Each Xact starts from the root of the hierarchy. • To get S or IS lock, must hold IS or IX on parent. • To get X or IX or SIX, must hold IX or SIX on parent. • Must release locks in bottom-up order. T2:IS • T1 wants to read & change tuple 2 • T2 wants to read all of Page 1 • T2 gets IS lock on DBMS, Sailor • T2 gets S lock on Page 1 • T1 gets IX lock on DBMS, Sailor • T1 tries to get IX lock on Page 1, waits T1:IX Database T2:IS T1:IX Sailor Table T1:waits Page 1 Page 2 T2:S Tuple 2 Tuple 3 Tuple 4 Tuple 1

  15. Locking in B+ Trees • Higher levels of the tree only direct searches for leaf pages. • For inserts: • a node must be X locked only if a split can propagate up to it from the modified leaf. • Example: insert 9 vs insert 15 20 30 24 13 15 9 7 14 16 15 16 • We can exploit these observations to design efficient locking protocols that guarantee serializability even though they violate 2PL.

  16. Simple Locking in B+ Trees • Search: Start at root and go down; • S lock node. • Unlock its parent. • Insert/Delete: Start at root and go down, • X lock node. • If node is safe, release all locks on ancestors. • Safe node: Node such that changes will not propagate up beyond this node. • Inserts: Node is not full. • Deletes: Node is not half-empty.

  17. ROOT T1: Search 38 T2: Insert 45 T3: Insert 25 A 20 Example T1:S T3:X T2:X • Search: • S lock node. • Unlock its parent. • Insert/Delete: • X lock node. • If node is safe, release all locks on ancestors. T1:S B 35 T2:X T3:X T3:X F T1:S C 23 38 44 T2:X H G I D E 20* 22* 23* 24* 35* 36* 38* 41* 44* T3:X T3:X T1:S T2:X

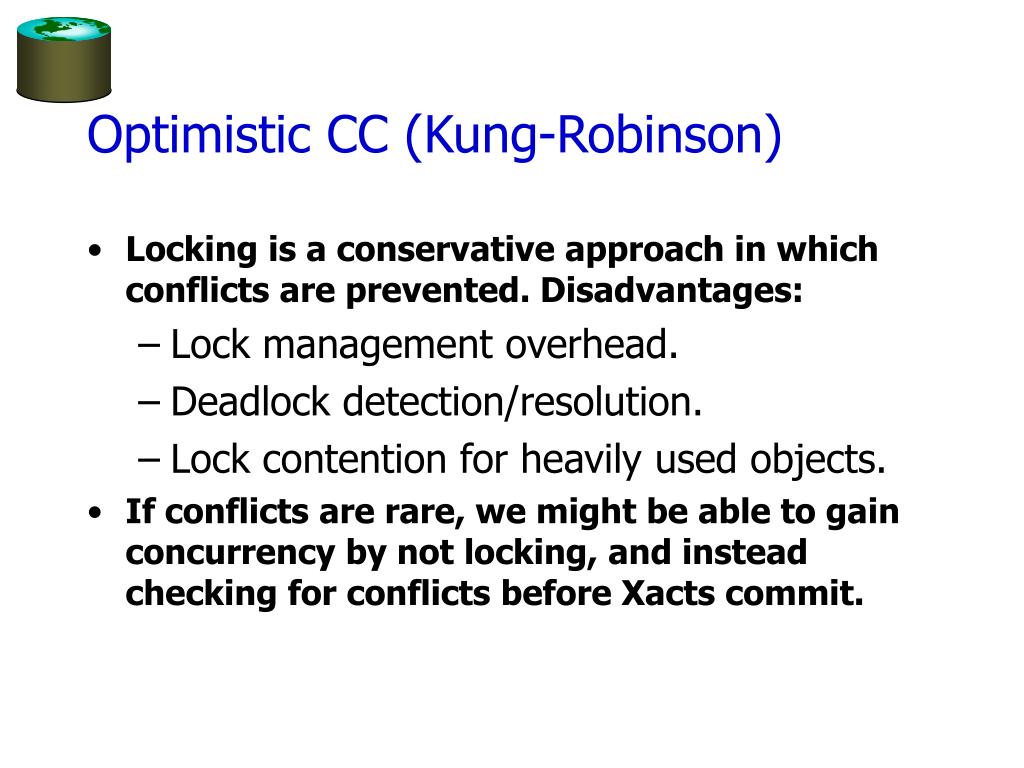

  18. Optimistic CC (Kung-Robinson) • Locking is a conservative approach in which conflicts are prevented. Disadvantages: • Lock management overhead. • Deadlock detection/resolution. • Lock contention for heavily used objects. • If conflicts are rare, we might be able to gain concurrency by not locking, and instead checking for conflicts before Xacts commit.

  19. Buffer Pool Kung-Robinson Model 14 23 27 • Xacts have three phases: • READ: Xacts read from the database, but make changes to private copies of objects. • VALIDATE: Check for conflicts. • WRITE: Make local copies of changes public. Reads from Writes back Tj W R V Writes to 14 23 Tj private copies • Validation, and Write phase are done inside a critical section! • i.e., Nothing else goes on concurrently.

  20. Validation Phase • Tests conditions that are sufficient to ensure that no conflict occurred. • If conflict did occur, restart transaction. • Each Xact is assigned a timestamp at end of READ phase, just before validation begins. • Also keep track of xact phase begin & end times • Compute • ReadSet(Tj): Set of objects read by Xact Tj. • WriteSet(Tj): Set of objects modified by Tj.

  21. Validation Test 1 for Tj: no overlap • For all i and j such that Ti < Tj, check that Ti completes write phase before Tj begins read phase. Ti Tj R V W R V W • Implies a serial order for Ti and Tj; Ti came first.

  22. Validation Test 2 for Tj: Overlapping read phase • For all i and j such that Ti < Tj, check that: • Ti completes before Tj begins its Write phase + • WriteSet(Ti) ReadSet(Tj) is empty. Ti R V W Tj R V W • Ensures Tj does not read any object written by Ti. • Implies a serial order; Tj might write same set of objects, but writes are in a serial order; Ti’s writes come first.

  23. Validation Test 3 for Tj: Overlapping write phase • For all i and j such that Ti < Tj, check that: • Ti completes Read phase before Tj does + • WriteSet(Ti) ReadSet(Tj) is empty + • WriteSet(Ti) WriteSet(Tj) is empty. Ti R V W Tj R V W • Ensures Tj does not read or write any object written by Ti. • Implies a serial order; Tj reads and writes are to different objects than those written by Ti.

  24. Optimistic CC Overhead • Must record read/write activity in ReadSet and WriteSet per Xact. • Must create and destroy these sets as needed. • Must check for conflicts during validation, and must make validated writes ``global’’. • Critical section can reduce concurrency. • Scheme for making writes global can reduce clustering of objects. • Optimistic CC restarts Xacts that fail validation. • Work done so far is wasted; requires clean-up.

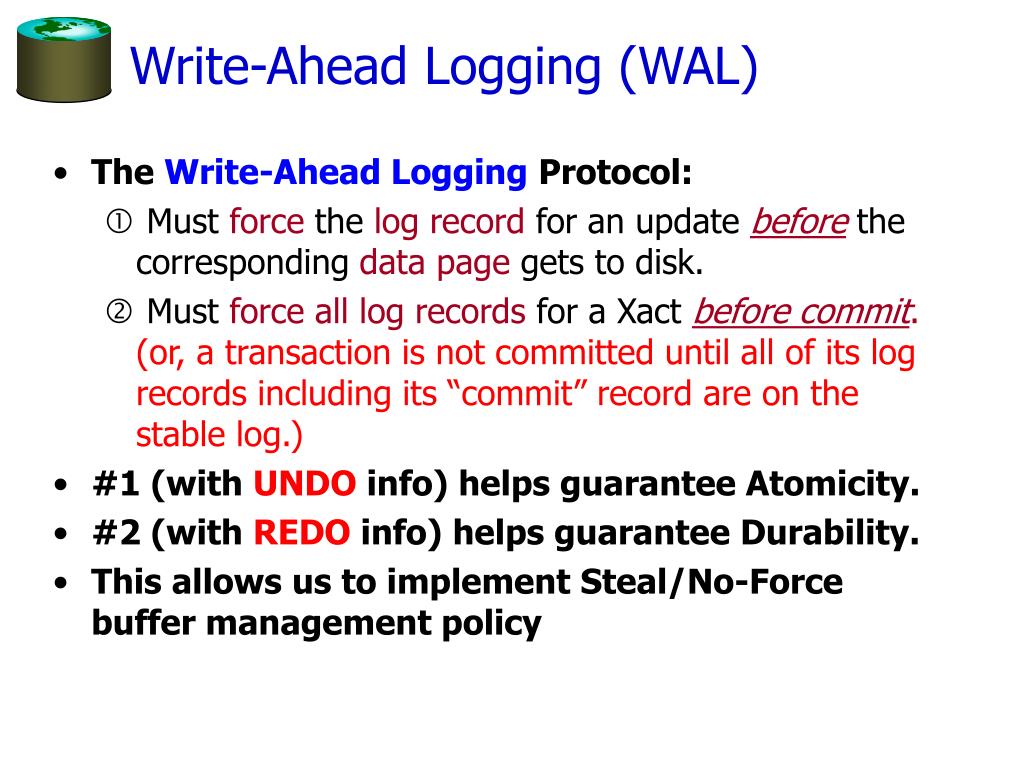

  25. Write-Ahead Logging (WAL) • The Write-Ahead Logging Protocol: • Must force the log record for an update before the corresponding data page gets to disk. • Must force all log records for a Xact beforecommit. (or, a transaction is not committed until all of its log records including its “commit” record are on the stable log.) • #1 (with UNDO info) helps guarantee Atomicity. • #2 (with REDO info) helps guarantee Durability. • This allows us to implement Steal/No-Force buffer management policy

  26. No UNDO UNDO REDO REDO No UNDO UNDO No REDO No REDO Buffer Management summary No Steal No Steal Steal Steal No Force Fastest No Force Force Slowest Force Performance Implications Logging/Recovery Implications

  27. RAM DB WAL & the Log LSNs pageLSNs flushedLSN • Each log record has a unique Log Sequence Number (LSN). • LSNs always increasing. • Each data pagecontains a pageLSN. • The LSN of the most recent log record for an update to that page. • System keeps track of flushedLSN. • The max LSN flushed so far. • WAL: Before page i is written to DBlog must satisfy: pageLSNi£ flushedLSN Log records flushed to disk flushedLSN pageLSN “Log tail” in RAM

  28. Log Records LogRecord fields: prevLSN is the LSN of the previous log record written by this Xact (so records of an Xact form a linked list backwards in time) Possible log record types: • Update, Commit, Abort • Checkpoint (for log maintenance) • Compensation Log Records (CLRs) • for UNDO actions • End (end of commit or abort) LSN prevLSN XID type pageID length update records only offset before-image after-image

  29. Other Log-Related State • Two in-memory tables: • Transaction Table • One entry per currently active Xact. • entry removed when Xact commits or aborts • Contains XID, status (running/committing/aborting), and lastLSN (most recent LSN written by Xact). • Dirty Page Table: • One entry per dirty page currently in buffer pool. • Contains recLSN -- the LSN of the log record which firstcaused the page to be dirty.

  30. DB The Big Picture: What’s Stored Where LOG RAM LogRecords Xact Table lastLSN status Dirty Page Table recLSN flushedLSN LSN prevLSN Data pages each with a pageLSN XID type pageID length Master record offset before-image after-image

  31. DEF Page 2 LSN:11 Page 2 LSN:14 WXY GDE Page 1 LSN:2 Page 2 LSN:4 ABC Page 2 LSN:4 Page 2 LSN:11 DEF ABC GDE HIJ Page 3 LSN:6 Page 1 LSN:13 QRS Page 1 LSN:2 Page 3 LSN:12 KLM Page 3 LSN:6 Page 3 LSN:12 KLM HIJ OPQ Page 4 LSN:8 RST Page 4 LSN:16 Page 4 LSN:8 OPQ Example BEGIN_CHKPT To disk END_CHKPT • T1 update 2 (DEF) • (assume written to disk) • T2 update 3 (KLM) • T2 update 1 (QRS) • T1 update 2 (WXY) • T2 commit • T1 update 4 (RST) • SYSTEM CRASH 11 null T1 update 2 ABC DEF 12 null T2 update 3 HIJ KLM 13 12 T2 update 1 GDE QRS 14 11 T1 update 2 DEF WXY 15 13 T2 commit and end 16 14 T1 update 4 OPQ RST SYSTEM CRASH Buffer Frame 1 Buffer Frame 2 Buffer Frame 3

  32. Crash Recovery: Big Picture Oldest log rec. of Xact active at crash • Start from a checkpoint (found via master record). • Three phases. Need to do: • Analysis - Figure out which Xacts committed since checkpoint, which failed. • REDOall actions. (repeat history) • UNDO effects of failed Xacts. Smallest recLSN in dirty page table after Analysis Last chkpt CRASH A R U

  33. GDE Page 1 LSN:2 QRS Page 1 LSN:2 ABC Page 2 LSN:4 HIJ Page 3 LSN:6 KLM Page 3 LSN:12 OPQ Page 4 LSN:8 End result – goal of recovery • T1 update 2 (DEF) • T2 update 3 (KLM) • T2 update 1 (QRS) • T1 update 2 (WXY) • T2 commit • T1 update 4 (RST) • SYSTEM CRASH • T1 aborts • Roll back updates if they made it to disk. • T2 commits • Re-apply updates if needed

  34. Recovery: The Analysis Phase • Re-establish knowledge of state at checkpoint. • via transaction table and dirty page table stored in the checkpoint • Scan log forward from checkpoint. • End record: Remove Xact from Xact table. • All Other records: Add Xact to Xact table, set lastLSN=LSN, change Xact status on commit. • also, for Update records: If page P not in Dirty Page Table, Add P to DPT, set its recLSN=LSN. • At end of Analysis… • transaction table says which xacts were active at time of crash. • DPT says which dirty pages might not have made it to disk

  35. Page 2 LSN:11 WXY Page 2 LSN:14 DEF GDE Page 1 LSN:2 Page 2 LSN:4 ABC Page 2 LSN:11 DEF QRS Page 3 LSN:12 HIJ Page 3 LSN:6 Page 1 LSN:2 Page 1 LSN:13 KLM KLM Page 3 LSN:12 GDE Page 3 LSN:6 HIJ Page 4 LSN:8 OPQ Page 4 LSN:16 OPQ Page 4 LSN:8 RST Analysis BEGIN_CHKPT END_CHKPT Xact Table 11 null T1 update 2 ABC DEF 12 null T2 update 3 HIJ KLM T1 14 U T1 11 U 13 12 T2 update 1 GDE QRS T2 13 U T2 12 U T2 15 C 14 11 T1 update 2 DEF WXY 15 13 T2 commit and end Buffer Frame 1 Buffer Frame 2 Buffer Frame 3 1. Create entries the Xact table with xacts active at time of crash.

  36. Page 2 LSN:14 WXY DEF Page 2 LSN:11 GDE Page 1 LSN:2 Page 2 LSN:4 DEF Page 2 LSN:11 ABC Page 1 LSN:13 KLM HIJ Page 3 LSN:6 QRS HIJ Page 3 LSN:6 GDE Page 1 LSN:2 KLM Page 3 LSN:12 Page 3 LSN:12 OPQ OPQ Page 4 LSN:8 Page 4 LSN:8 RST Page 4 LSN:16 Analysis BEGIN_CHKPT END_CHKPT Xact Table 11 null T1 update 2 ABC DEF 12 null T2 update 3 HIJ KLM T1 14 U 13 12 T2 update 1 GDE QRS 14 11 T1 update 2 DEF WXY 15 13 T2 commit and end Dirty Page Table 2 11 3 12 1 13 Buffer Frame 1 Buffer Frame 2 Buffer Frame 3 2. Create entries in the Dirty Page table with pages that might not have made it to disk.

  37. Phase 2: The REDO Phase • We Repeat History to reconstruct state at crash: • Reapply allupdates (even of aborted Xacts!), redo CLRs. • Scan forward from log rec containing smallest recLSN in DPT. Q: why start here? • For each update log record or CLR with a given LSN, REDO the action unless: • Affected page is not in the Dirty Page Table, or • Affected page is in D.P.T., but has recLSN > LSN, or • pageLSN (in DB) ³ LSN. (this last case requires I/O) • To REDO an action: • Reapply logged action. • Set pageLSN to LSN. No additional logging, no forcing!

  38. Page 2 LSN:14 WXY DEF Page 2 LSN:11 GDE Page 1 LSN:2 Page 2 LSN:4 DEF Page 2 LSN:11 ABC Page 1 LSN:13 KLM HIJ Page 3 LSN:6 QRS HIJ Page 3 LSN:6 GDE Page 1 LSN:2 KLM Page 3 LSN:12 Page 3 LSN:12 OPQ OPQ Page 4 LSN:8 Page 4 LSN:8 RST Page 4 LSN:16 Redo BEGIN_CHKPT END_CHKPT Xact Table 11 null T1 update 2 ABC DEF 12 null T2 update 3 HIJ KLM T1 14 U 13 12 T2 update 1 GDE QRS 14 11 T1 update 2 DEF WXY 15 13 T2 commit and end Dirty Page Table 2 11 3 12 1 13 Buffer Frame 1 Buffer Frame 2 Buffer Frame 3 Step 1. Find lowest rec LSN in Dirty Page Table.

  39. Page 2 LSN:14 WXY DEF Page 2 LSN:11 GDE Page 1 LSN:2 Page 2 LSN:4 DEF Page 2 LSN:11 ABC Page 1 LSN:13 KLM HIJ Page 3 LSN:6 QRS HIJ Page 3 LSN:6 GDE Page 1 LSN:2 KLM Page 3 LSN:12 Page 3 LSN:12 OPQ OPQ Page 4 LSN:8 Page 4 LSN:8 RST Page 4 LSN:16 Redo BEGIN_CHKPT END_CHKPT Xact Table 11 null T1 update 2 ABC DEF 12 null T2 update 3 HIJ KLM T1 14 U 13 12 T2 update 1 GDE QRS 14 11 T1 update 2 DEF WXY 15 13 T2 commit and end Dirty Page Table 2 11 3 12 1 13 Buffer Frame 1 Buffer Frame 2 Buffer Frame 3 Step 2. Scan forward and redo all redoable log records.

  40. Page 2 LSN:11 DEF WXY Page 2 LSN:14 Page 1 LSN:2 GDE DEF Page 2 LSN:4 ABC DEF Page 2 LSN:11 Page 2 LSN:11 HIJ Page 3 LSN:6 KLM KLM Page 3 LSN:12 Page 3 LSN:6 Page 3 LSN:12 Page 1 LSN:2 HIJ KLM Page 3 LSN:12 QRS Page 1 LSN:13 GDE RST Page 4 LSN:8 OPQ OPQ Page 4 LSN:8 Page 4 LSN:16 Redo BEGIN_CHKPT END_CHKPT Xact Table 11 null T1 update 2 ABC DEF 12 null T2 update 3 HIJ KLM T1 14 U 13 12 T2 update 1 GDE QRS 14 11 T1 update 2 DEF WXY 15 13 T2 commit and end Dirty Page Table 2 11 3 12 1 13 Buffer Frame 1 Buffer Frame 2 Buffer Frame 3 1. Reapply LSN 11 T1 update 2 (DEF) 2. Reapply LSN 12 T2 update 3 (KLM)

  41. Page 2 LSN:11 Page 2 LSN:14 WXY DEF GDE Page 1 LSN:2 Page 1 LSN:13 QRS Page 1 LSN:2 GDE ABC Page 2 LSN:11 DEF DEF Page 2 LSN:11 Page 2 LSN:4 WXY Page 2 LSN:14 HIJ Page 3 LSN:12 Page 3 LSN:6 Page 3 LSN:6 Page 3 LSN:12 GDE KLM HIJ KLM Page 3 LSN:12 Page 1 LSN:2 QRS Page 1 LSN:13 KLM OPQ OPQ Page 4 LSN:8 Page 4 LSN:8 RST Page 4 LSN:16 Redo BEGIN_CHKPT END_CHKPT Xact Table 11 null T1 update 2 ABC DEF 12 null T2 update 3 HIJ KLM T1 14 U 13 12 T2 update 1 GDE QRS 14 11 T1 update 2 DEF WXY 15 13 T2 commit and end Dirty Page Table 2 11 3 12 1 13 Buffer Frame 1 Buffer Frame 2 Buffer Frame 3 3. Reapply LSN 13 T2 update 1 (QRS) 4. Reapply LSN 14 T1 update 2 (WXY)

  42. DEF Page 2 LSN:14 WXY Page 2 LSN:11 GDE Page 1 LSN:2 Page 1 LSN:13 QRS DEF Page 2 LSN:11 Page 2 LSN:14 WXY ABC Page 2 LSN:4 Page 2 LSN:11 DEF Page 3 LSN:12 Page 1 LSN:13 Page 1 LSN:2 Page 3 LSN:6 KLM Page 3 LSN:12 HIJ HIJ Page 3 LSN:6 KLM GDE Page 3 LSN:12 QRS KLM OPQ OPQ Page 4 LSN:8 Page 4 LSN:8 RST Page 4 LSN:16 Redo BEGIN_CHKPT END_CHKPT Xact Table 11 null T1 update 2 ABC DEF 12 null T2 update 3 HIJ KLM T1 14 U 13 12 T2 update 1 GDE QRS 14 11 T1 update 2 DEF WXY 15 13 T2 commit and end Dirty Page Table 2 11 3 12 1 13 Buffer Frame 1 Buffer Frame 2 Buffer Frame 3 5. Reapply T2 commit (and we’ll write dirty pages to disk.)

  43. Phase 3: The UNDO Phase We undo actions of all active but not committed xacts at the time of the crash. • May even need to undo some of what we did in REDO phase! ToUndo={lastLSNs of all Xacts in the Trans Table} a.k.a. “losers” Repeat: • Choose (and remove) largest LSN among ToUndo. • If this LSN is a CLR and undonextLSN==NULL • Write an End record for this Xact. • If this LSN is a CLR, and undonextLSN != NULL • Add undonextLSN to ToUndo • Else this LSN is an update. Undo the update, write a CLR, add prevLSN to ToUndo. Until ToUndo is empty. • CLRs will help us remember where we are in case of system crash during recovery.

  44. Page 2 LSN:14 WXY Page 2 LSN:11 DEF GDE Page 1 LSN:2 QRS Page 1 LSN:13 DEF DEF Page 2 LSN:11 Page 2 LSN:16 ABC ABC Page 2 LSN:4 ABC Page 2 LSN:4 Page 2 LSN:11 Page 3 LSN:6 KLM HIJ Page 3 LSN:12 Page 3 LSN:12 KLM Page 3 LSN:6 HIJ Page 4 LSN:16 Page 4 LSN:8 OPQ Page 4 LSN:8 OPQ RST Undo BEGIN_CHKPT END_CHKPT Xact Table 11 null T1 update 2 ABC DEF 12 null T2 update 3 HIJ KLM T1 14 U 13 12 T2 update 1 GDE QRS 14 11 T1 update 2 DEF WXY 15 13 T2 commit and end ToUndo 16 undoNextLSN=null T1 CLR 2 DEF ABC 14 11 Buffer Frame 1 Buffer Frame 2 Buffer Frame 3 1. Add last LSN for all transactions in Xact table 2. Recursively Process each last LSN in To Undo table.
