  1. OSCARS Architecture OverviewApril 2012 ESnet OSCARS Development Team Energy Sciences Network (ESnet) Lawrence Berkeley National Laboratory

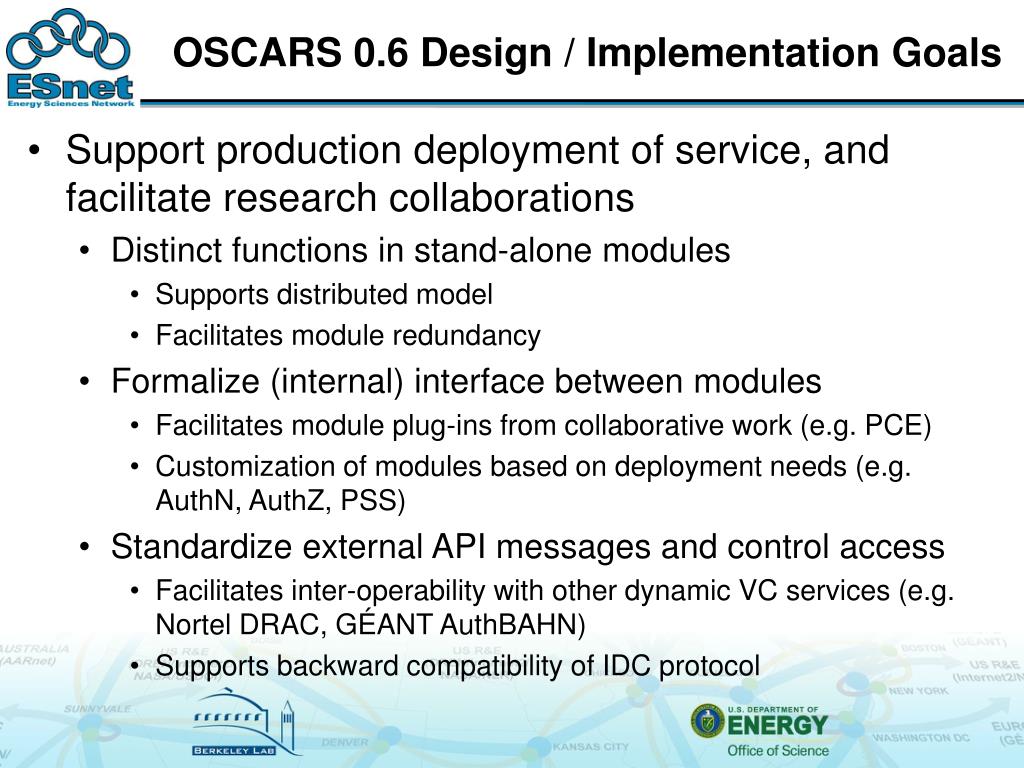

  2. OSCARS 0.6 Design / Implementation Goals • Support production deployment of service, and facilitate research collaborations • Distinct functions in stand-alone modules • Supports distributed model • Facilitates module redundancy • Formalize (internal) interface between modules • Facilitates module plug-ins from collaborative work (e.g. PCE) • Customization of modules based on deployment needs (e.g. AuthN, AuthZ, PSS) • Standardize external API messages and control access • Facilitates inter-operability with other dynamic VC services (e.g. Nortel DRAC, GÉANT AuthBAHN) • Supports backward compatibility of IDC protocol

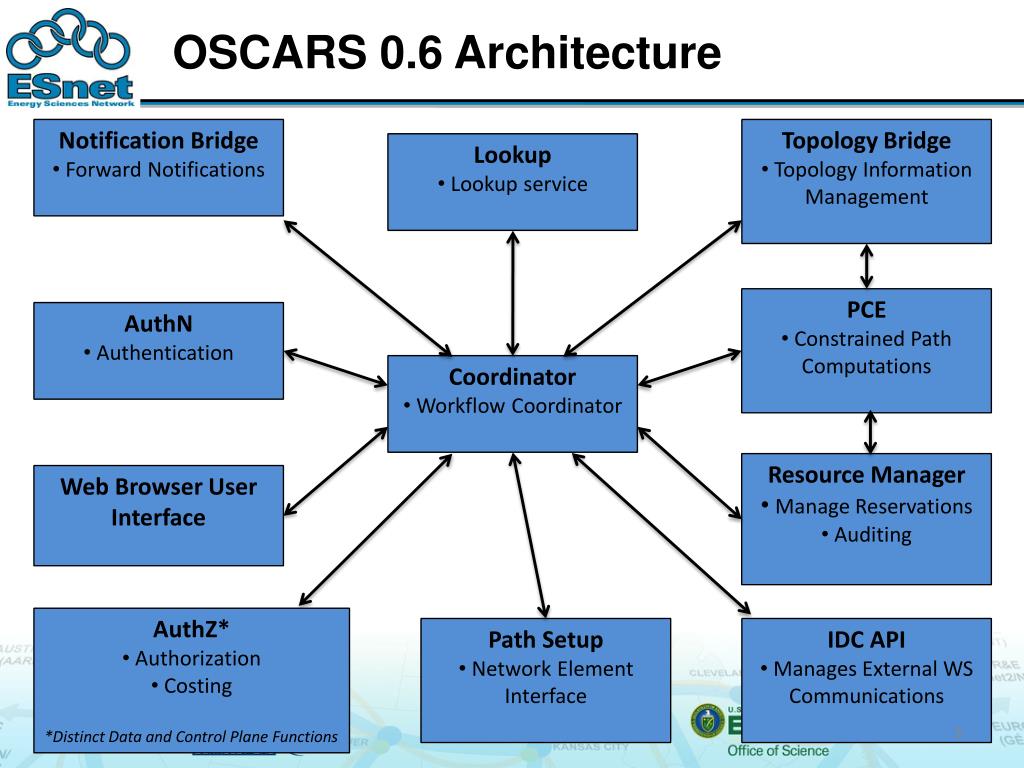

  3. OSCARS 0.6 Architecture • Notification Bridge • Forward Notifications • Topology Bridge • Topology Information Management • Lookup • Lookup service • PCE • Constrained Path Computations • AuthN • Authentication • Coordinator • Workflow Coordinator • Resource Manager • Manage Reservations • Auditing Web Browser User Interface • AuthZ* • Authorization • Costing • *Distinct Data and Control Plane Functions • Path Setup • Network Element Interface • IDC API • Manages External WS Communications

  4. OSCARS 0.6 Module APIs

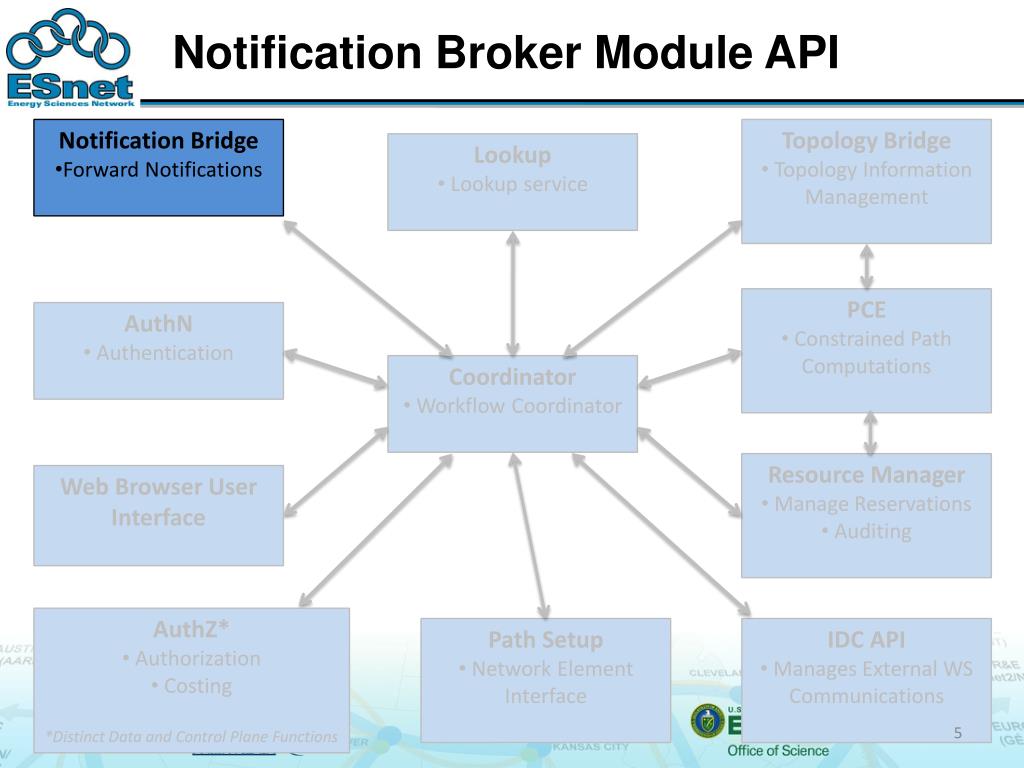

  5. Notification Broker Module API • Notification Bridge • Forward Notifications • Topology Bridge • Topology Information Management • Lookup • Lookup service • PCE • Constrained Path Computations • AuthN • Authentication • Coordinator • Workflow Coordinator • Resource Manager • Manage Reservations • Auditing Web Browser User Interface • AuthZ* • Authorization • Costing • *Distinct Data and Control Plane Functions • Path Setup • Network Element Interface • IDC API • Manages External WS Communications

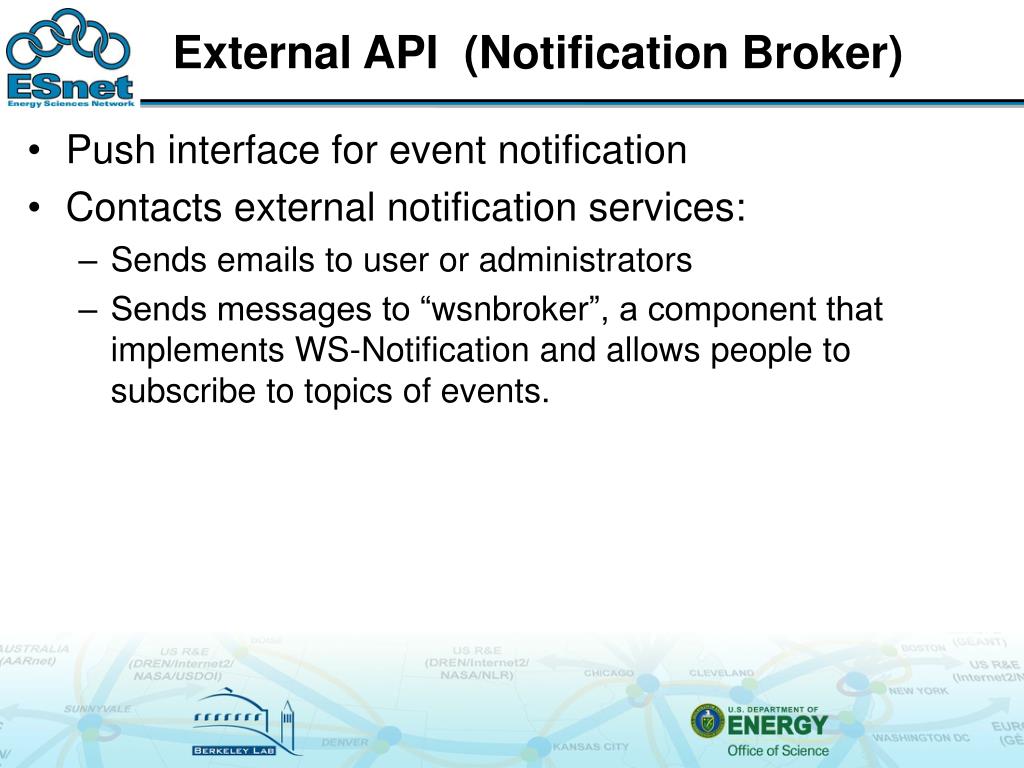

  6. External API (Notification Broker) • Push interface for event notification • Contacts external notification services: • Sends emails to user or administrators • Sends messages to “wsnbroker”, a component that implements WS-Notification and allows people to subscribe to topics of events.

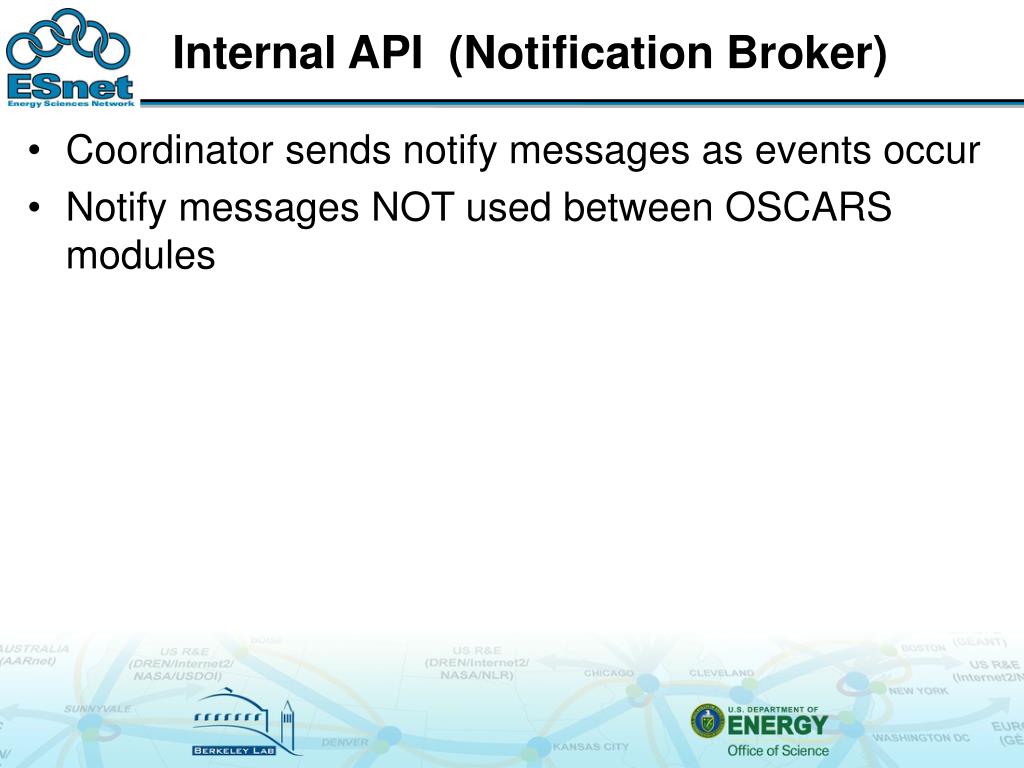

  7. Internal API (Notification Broker) • Coordinator sends notify messages as events occur • Notify messages NOT used between OSCARS modules

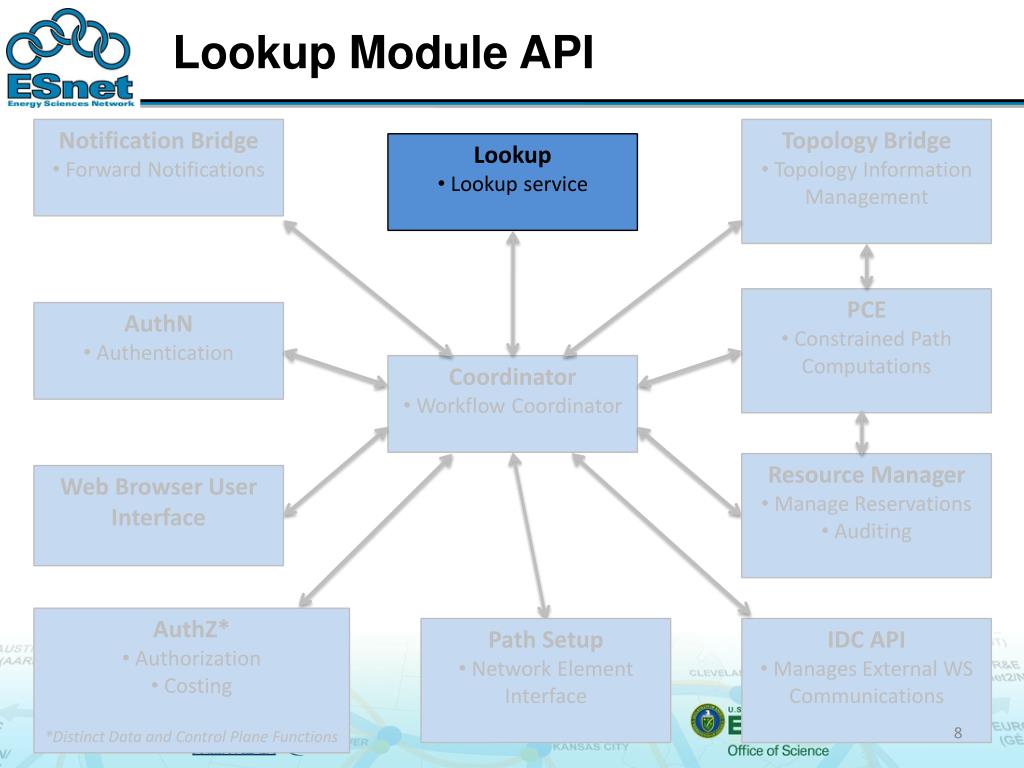

  8. Lookup Module API • Notification Bridge • Forward Notifications • Topology Bridge • Topology Information Management • Lookup • Lookup service • PCE • Constrained Path Computations • AuthN • Authentication • Coordinator • Workflow Coordinator • Resource Manager • Manage Reservations • Auditing Web Browser User Interface • AuthZ* • Authorization • Costing • *Distinct Data and Control Plane Functions • Path Setup • Network Element Interface • IDC API • Manages External WS Communications

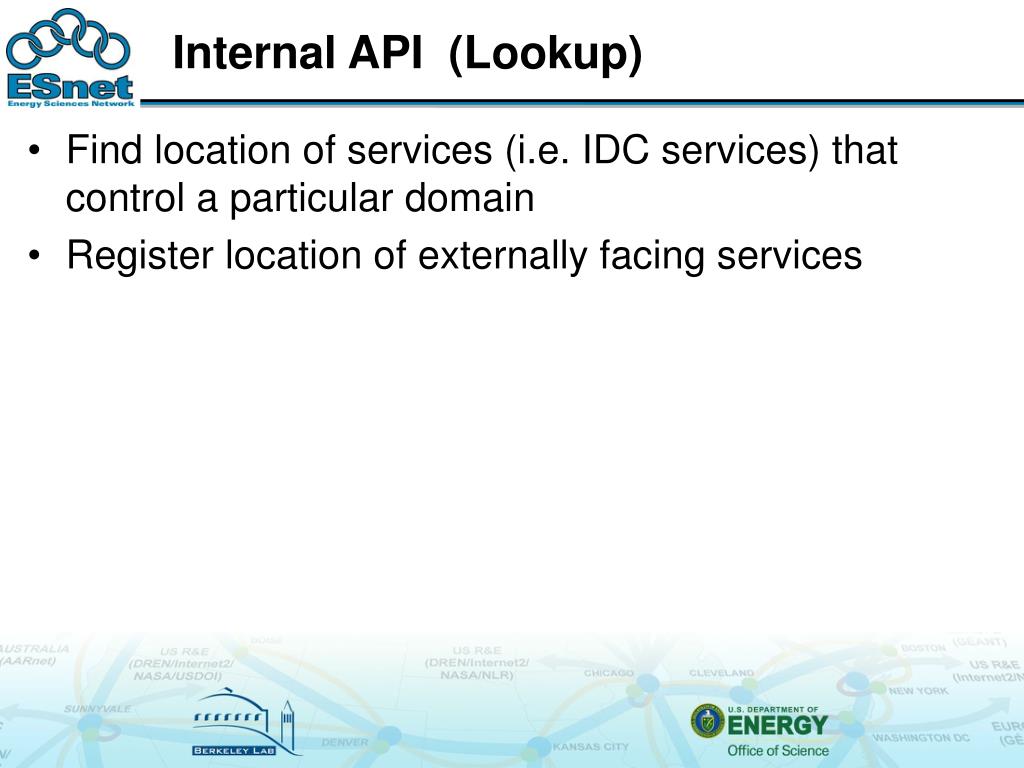

  9. Internal API (Lookup) • Find location of services (i.e. IDC services) that control a particular domain • Register location of externally facing services

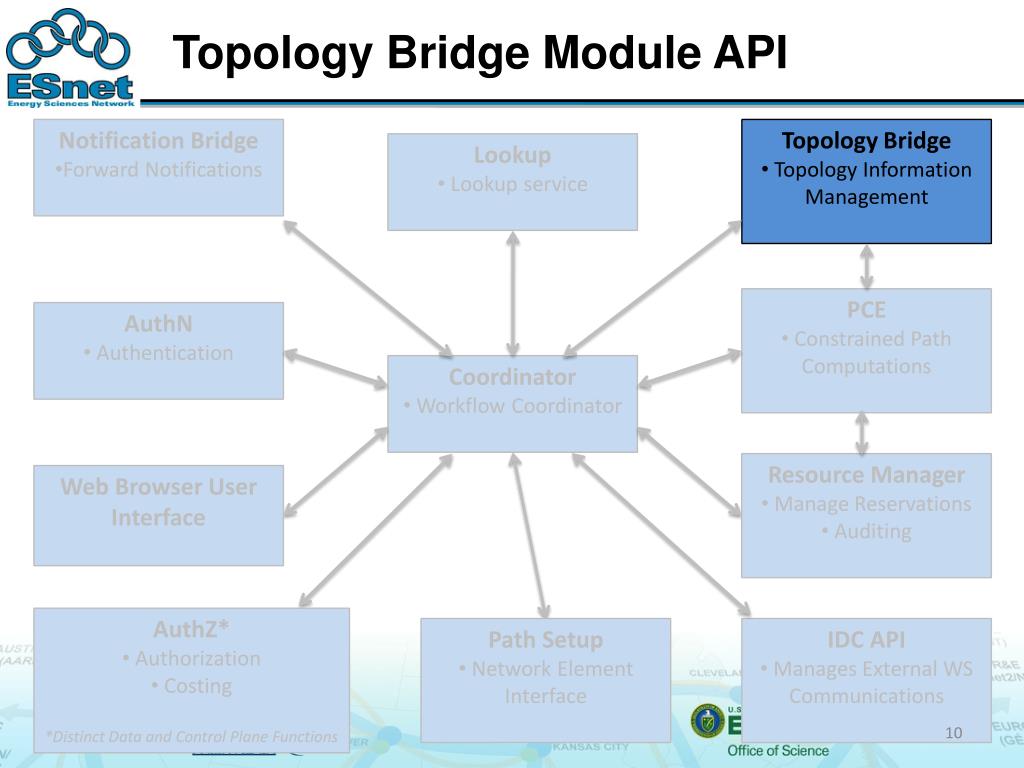

  10. Topology Bridge Module API • Notification Bridge • Forward Notifications • Topology Bridge • Topology Information Management • Lookup • Lookup service • PCE • Constrained Path Computations • AuthN • Authentication • Coordinator • Workflow Coordinator • Resource Manager • Manage Reservations • Auditing Web Browser User Interface • AuthZ* • Authorization • Costing • *Distinct Data and Control Plane Functions • Path Setup • Network Element Interface • IDC API • Manages External WS Communications

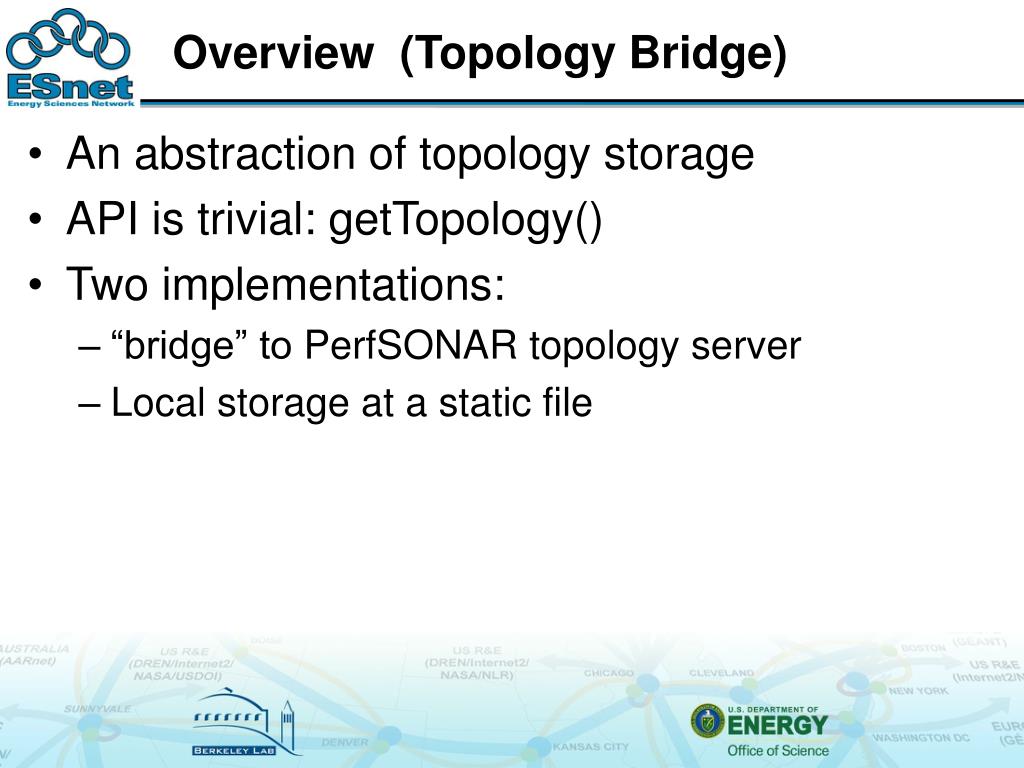

  11. Overview (Topology Bridge) • An abstraction of topology storage • API is trivial: getTopology() • Two implementations: • “bridge” to PerfSONAR topology server • Local storage at a static file

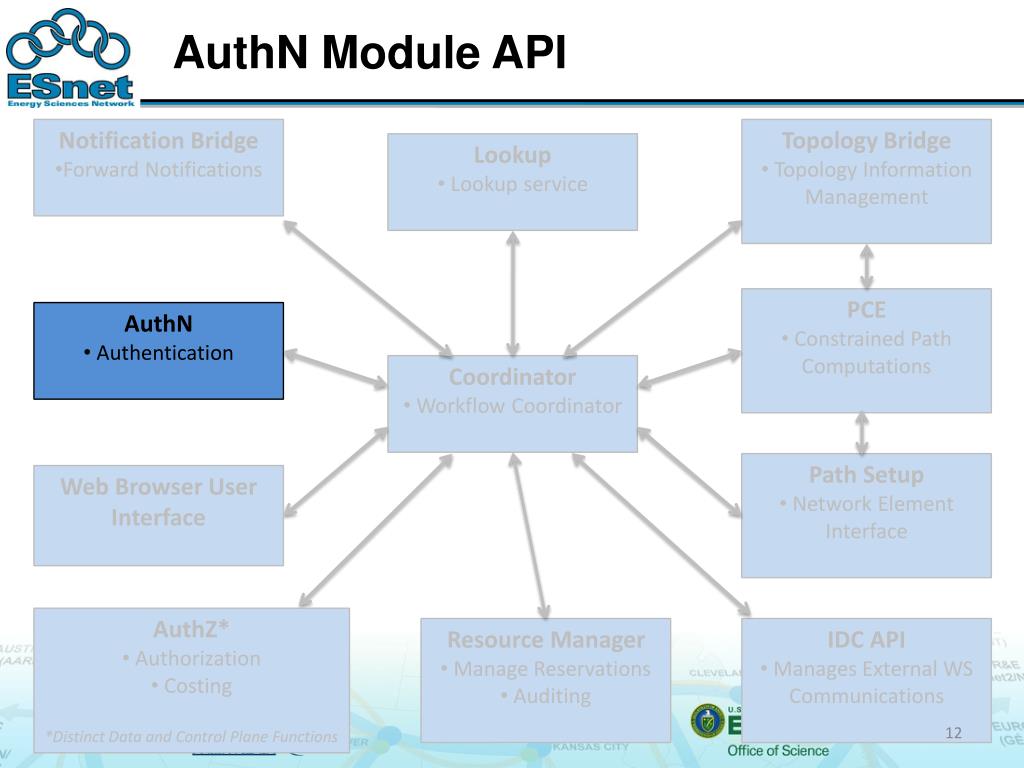

  12. AuthN Module API • Notification Bridge • Forward Notifications • Topology Bridge • Topology Information Management • Lookup • Lookup service • PCE • Constrained Path Computations • AuthN • Authentication • Coordinator • Workflow Coordinator • Path Setup • Network Element Interface Web Browser User Interface • AuthZ* • Authorization • Costing • *Distinct Data and Control Plane Functions • Resource Manager • Manage Reservations • Auditing • IDC API • Manages External WS Communications

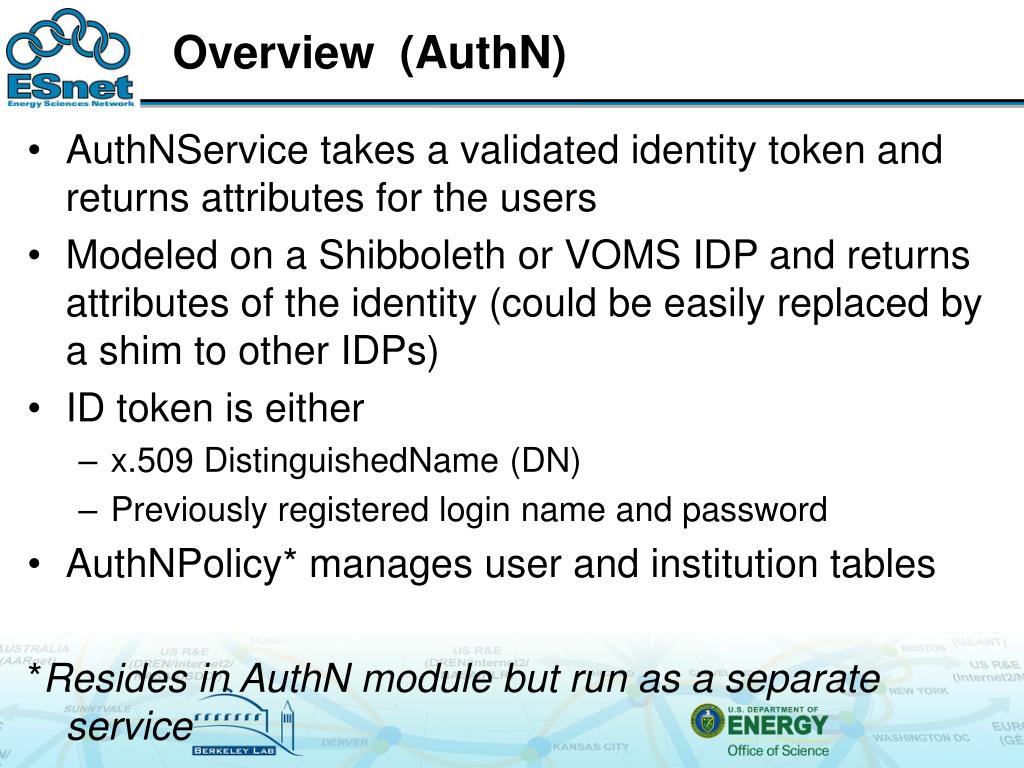

  13. Overview (AuthN) • AuthNService takes a validated identity token and returns attributes for the users • Modeled on a Shibboleth or VOMS IDP and returns attributes of the identity (could be easily replaced by a shim to other IDPs) • ID token is either • x.509 DistinguishedName (DN) • Previously registered login name and password • AuthNPolicy* manages user and institution tables *Resides in AuthN module but run as a separate service

  14. Internal API (AuthN) • VerifyDN is called by the IDC API (v0.5 and 0.6), and passes the user attributes* to all its calls in the Coordinator • VerifyLogin is called by the WBUI, and passes on the user attributes* to all its calls to other modules *User attributes are SAML 2 AttributeTypes which contain a name and a value. The login name of the user and his/her institution are always included in the attribute list

  15. AuthZ Module API • Notification Bridge • Forward Notifications • Topology Bridge • Topology Information Management • Lookup • Lookup service • PCE • Constrained Path Computations • AuthN • Authentication • Coordinator • Workflow Coordinator • Path Setup • Network Element Interface Web Browser User Interface • AuthZ* • Authorization • Costing • *Distinct Data and Control Plane Functions • Resource Manager • Manage Reservations • Auditing • IDC API • Manages External WS Communications

  16. Overview (AuthZ) • AuthZ takes a list of user attributes, a resource and a requested action and returns an AuthorizationDecision which may be DENIED, ALLUSERS, SELFONLY, SITEONLY and a list of Auth Conditions consisting of name, values pairs • AuthConditons • permittedLoginId/loginName, • permittedDomains/.institutionName, • internatlHopsAllowed/true • AuthZPolicy manages permissions, actions and attributes

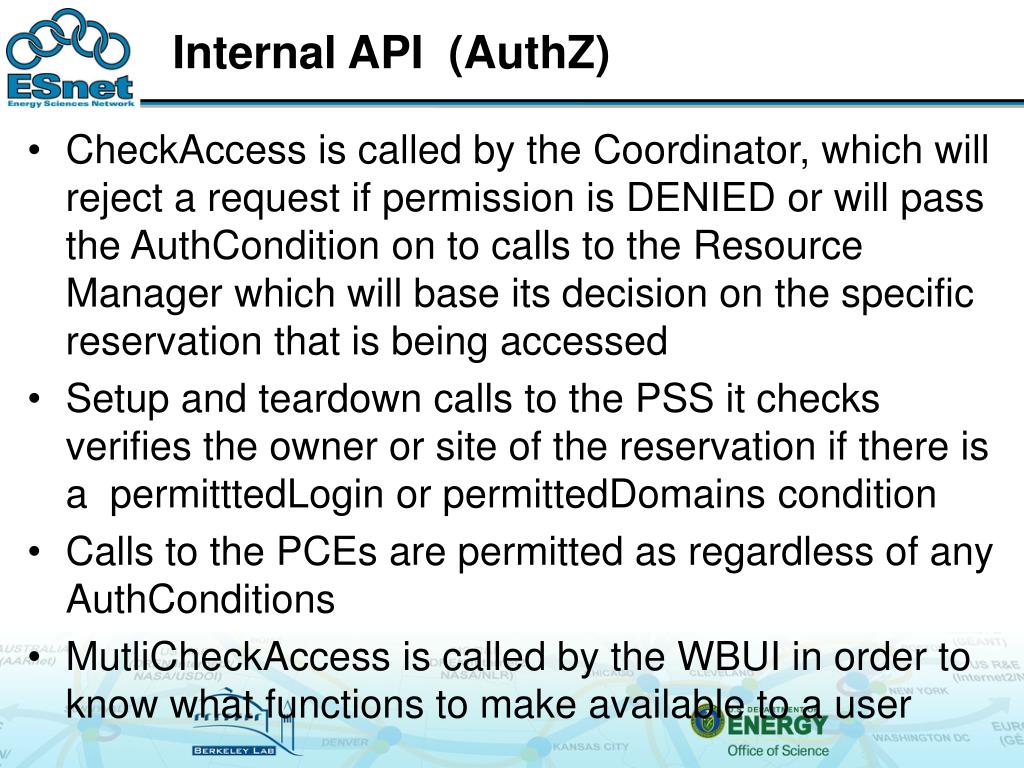

  17. Internal API (AuthZ) • CheckAccess is called by the Coordinator, which will reject a request if permission is DENIED or will pass the AuthCondition on to calls to the Resource Manager which will base its decision on the specific reservation that is being accessed • Setup and teardown calls to the PSS it checks verifies the owner or site of the reservation if there is a permitttedLogin or permittedDomains condition • Calls to the PCEs are permitted as regardless of any AuthConditions • MutliCheckAccess is called by the WBUI in order to know what functions to make available to a user

  18. Coordinator Module API • Notification BridgeForward Notifications • Topology Bridge • Topology Information Management • Lookup • Lookup service • PCE • Constrained Path Computations • AuthN • Authentication • Coordinator • Workflow Coordinator • Resource Manager • Manage Reservations • Auditing Web Browser User Interface • AuthZ* • Authorization • Costing • *Distinct Data and Control Plane Functions • Path Setup • Network Element Interface • IDC API • Manages External WS Communications

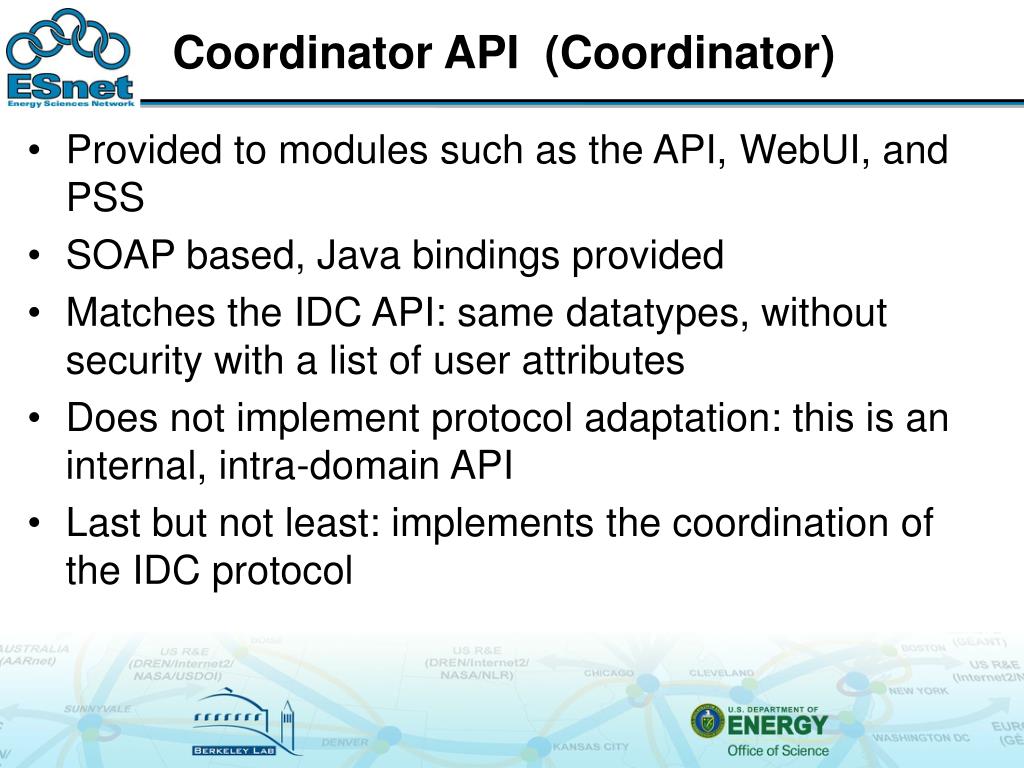

  19. Coordinator API (Coordinator) • Provided to modules such as the API, WebUI, and PSS • SOAP based, Java bindings provided • Matches the IDC API: same datatypes, without security with a list of user attributes • Does not implement protocol adaptation: this is an internal, intra-domain API • Last but not least: implements the coordination of the IDC protocol

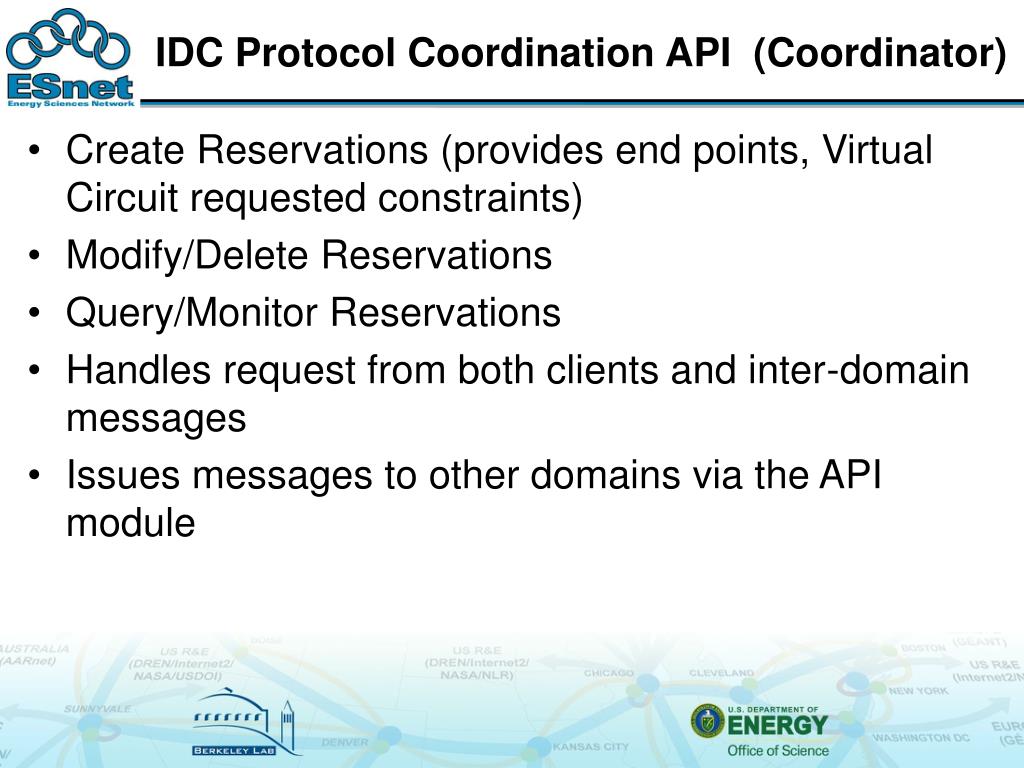

  20. IDC Protocol Coordination API (Coordinator) • Create Reservations (provides end points, Virtual Circuit requested constraints) • Modify/Delete Reservations • Query/Monitor Reservations • Handles request from both clients and inter-domain messages • Issues messages to other domains via the API module

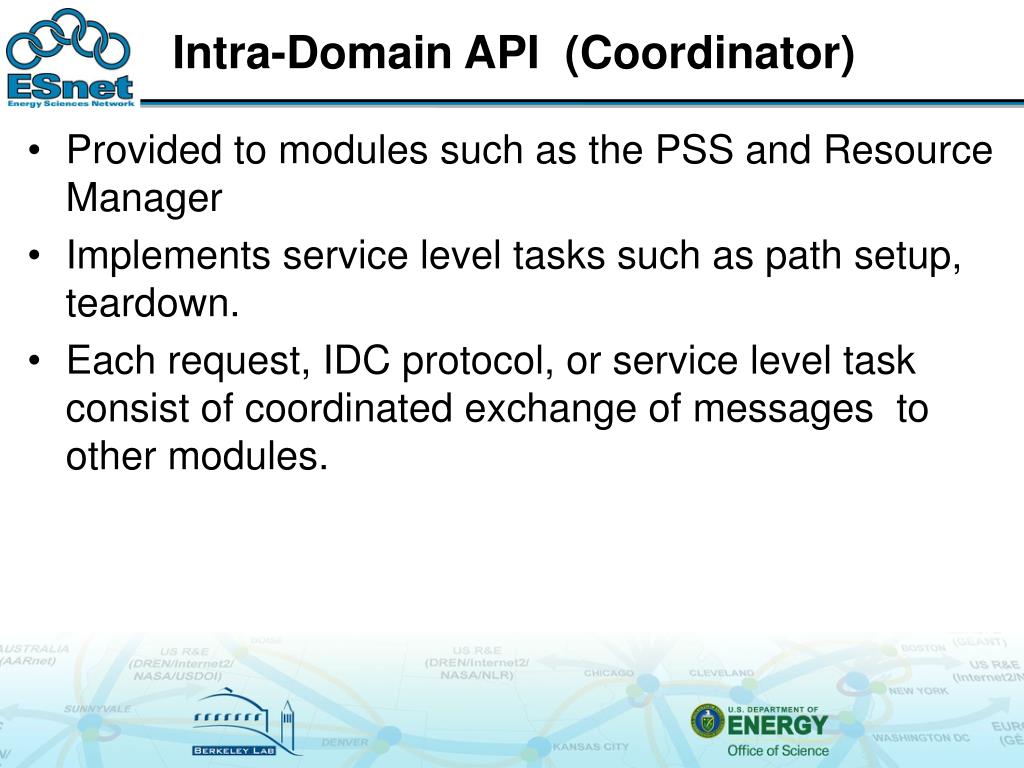

  21. Intra-Domain API (Coordinator) • Provided to modules such as the PSS and Resource Manager • Implements service level tasks such as path setup, teardown. • Each request, IDC protocol, or service level task consist of coordinated exchange of messages to other modules.

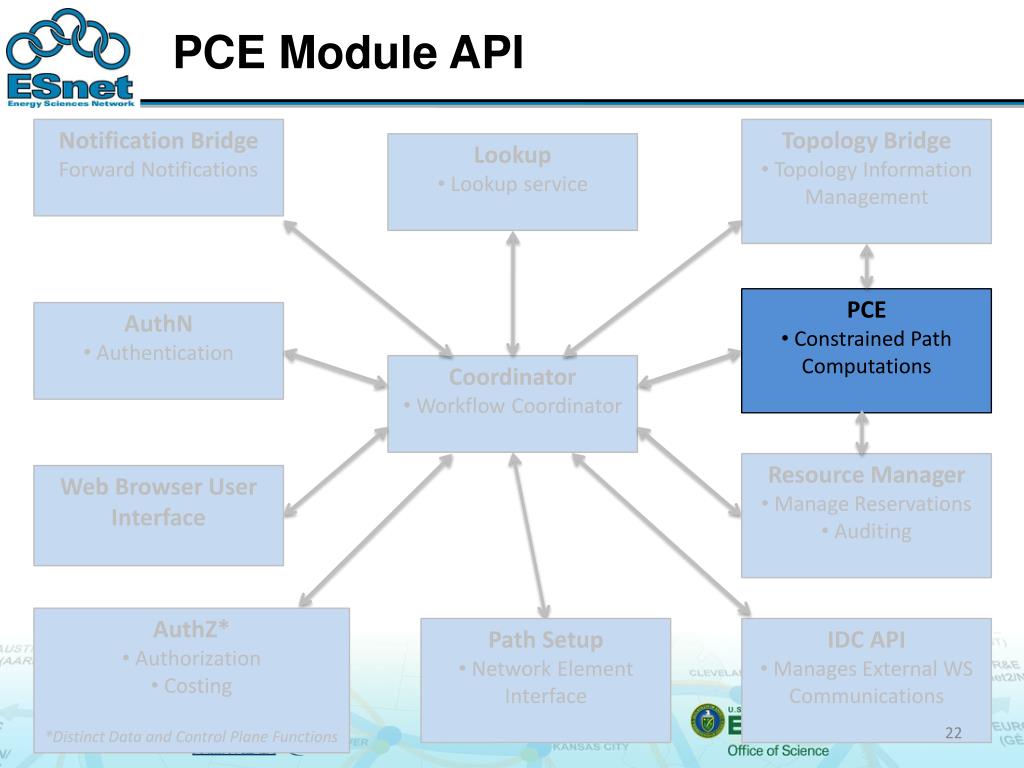

  22. PCE Module API • Notification Bridge Forward Notifications • Topology Bridge • Topology Information Management • Lookup • Lookup service • PCE • Constrained Path Computations • AuthN • Authentication • Coordinator • Workflow Coordinator • Resource Manager • Manage Reservations • Auditing Web Browser User Interface • AuthZ* • Authorization • Costing • *Distinct Data and Control Plane Functions • Path Setup • Network Element Interface • IDC API • Manages External WS Communications

  23. Semi-Public PCE API (PCE) • Provided to the modules implementing intra-domain path computation • SOAP based, Java bindings provided • Implements the tree of PCE’s used to resolve a path. • Implements flow of messages between PCE’s in an enforced asynchronous model • Translate path into topologies and vice-versa • Implemented within the Coordinator for performance reason, but could be separated • Provides hook for co-scheduling

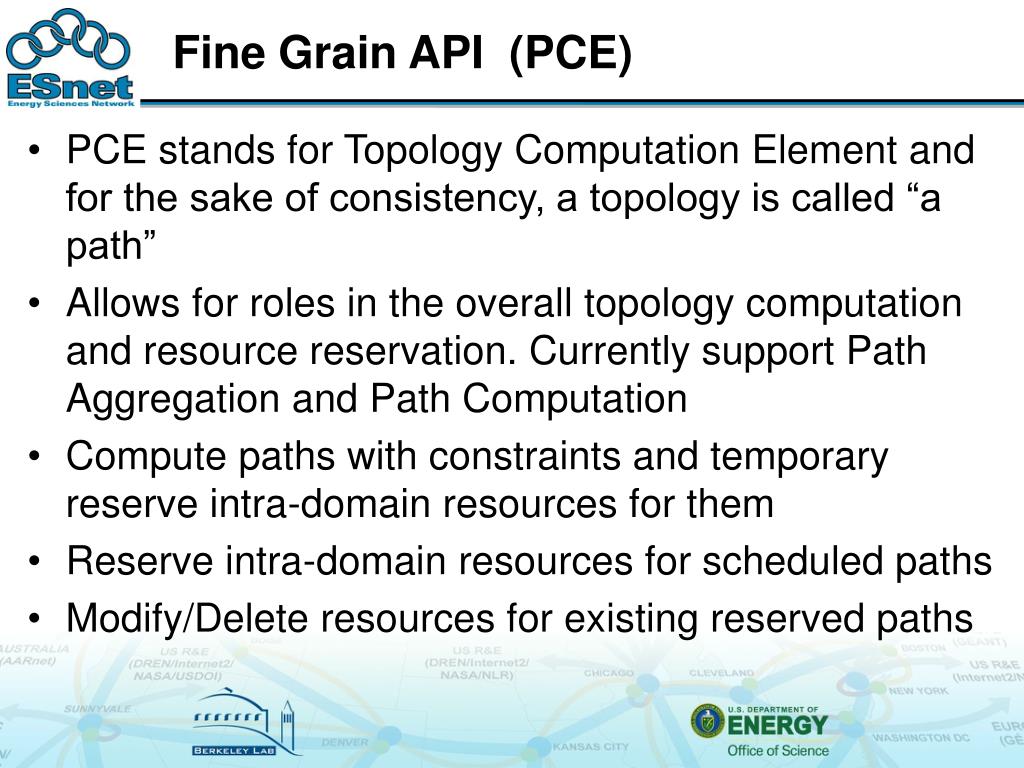

  24. Fine Grain API (PCE) • PCE stands for Topology Computation Element and for the sake of consistency, a topology is called “a path” • Allows for roles in the overall topology computation and resource reservation. Currently support Path Aggregation and Path Computation • Compute paths with constraints and temporary reserve intra-domain resources for them • Reserve intra-domain resources for scheduled paths • Modify/Delete resources for existing reserved paths

  25. Packaged API (PCE) • Standalone library is provided for independent PCE developer • Java packaging is provided in the form of a JAR file containing all classes and packages that are required to run a PCE module (Python and Perl bindings are possible) • Packaged IDC simulator used for testing PCE development, or experiment offline on topologies

  26. Resource Manager Module API • Notification BridgeForward Notifications • Topology Bridge • Topology Information Management • Lookup • Lookup service • PCE • Constrained Path Computations • AuthN • Authentication • Coordinator • Workflow Coordinator • Resource Manager • Manage Reservations • Auditing Web Browser User Interface • AuthZ* • Authorization • Costing • *Distinct Data and Control Plane Functions • Path Setup • Network Element Interface • IDC API • Manages External WS Communications

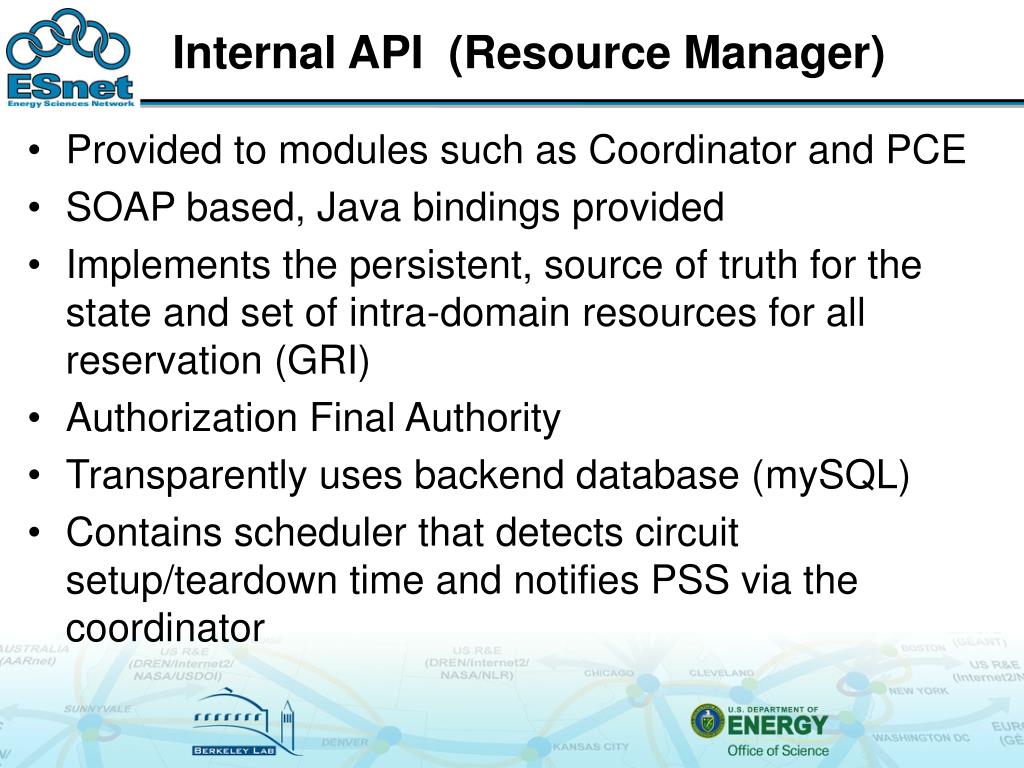

  27. Internal API (Resource Manager) • Provided to modules such as Coordinator and PCE • SOAP based, Java bindings provided • Implements the persistent, source of truth for the state and set of intra-domain resources for all reservation (GRI) • Authorization Final Authority • Transparently uses backend database (mySQL) • Contains scheduler that detects circuit setup/teardown time and notifies PSS via the coordinator

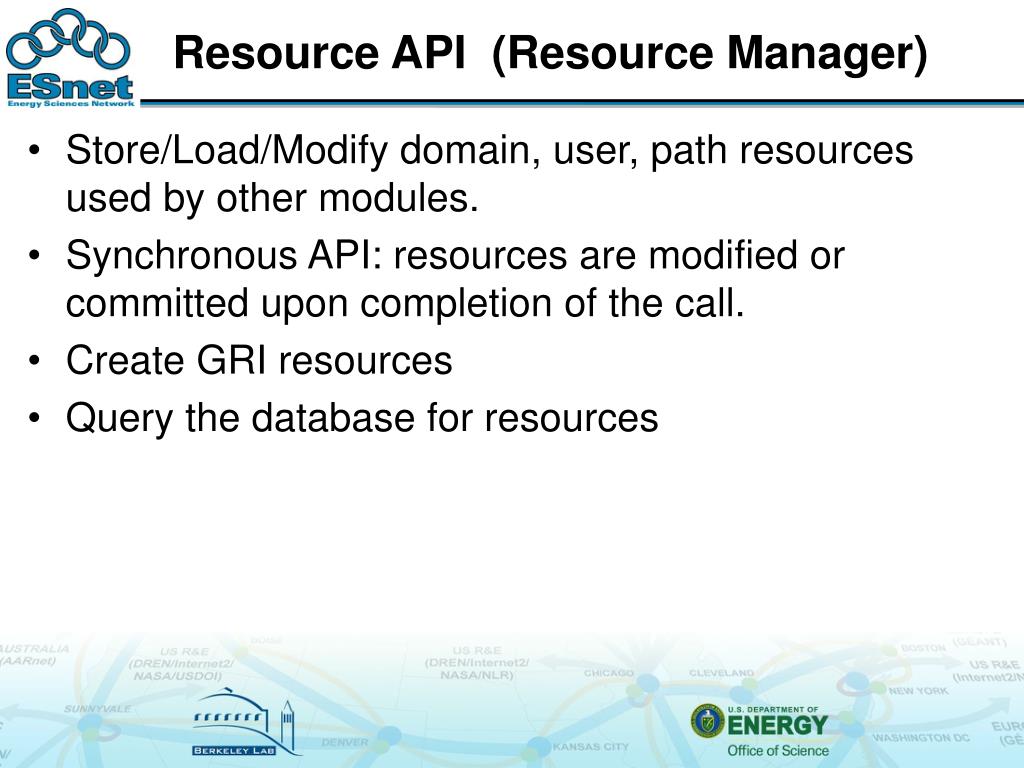

  28. Resource API (Resource Manager) • Store/Load/Modify domain, user, path resources used by other modules. • Synchronous API: resources are modified or committed upon completion of the call. • Create GRI resources • Query the database for resources

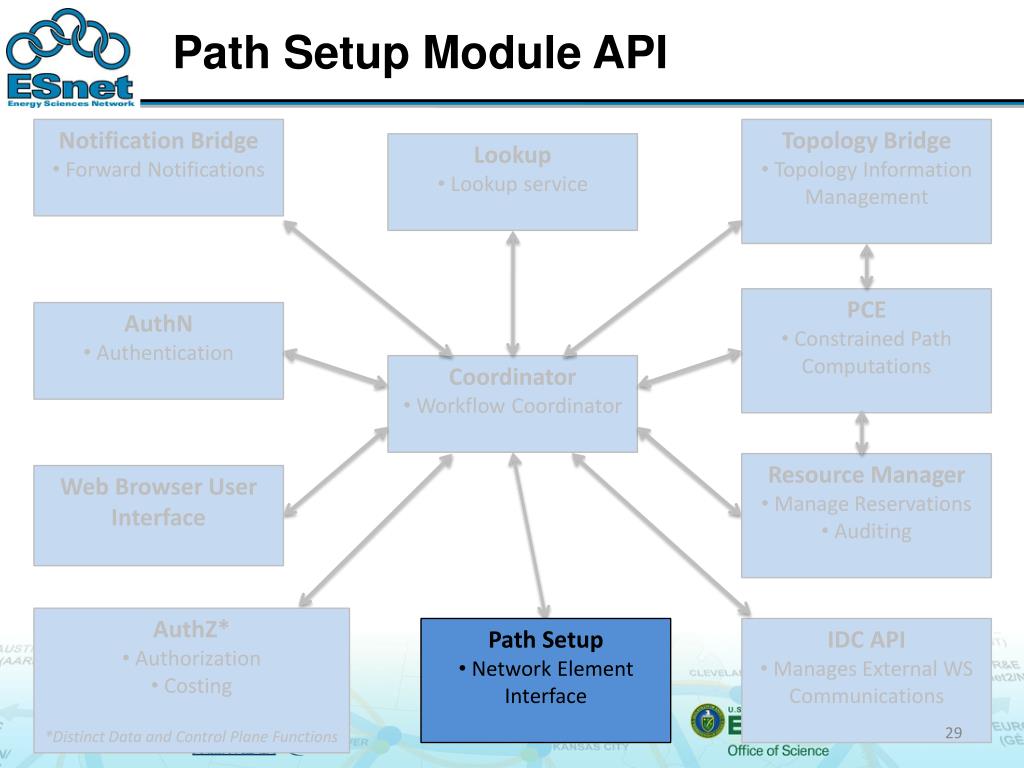

  29. Path Setup Module API • Notification Bridge • Forward Notifications • Topology Bridge • Topology Information Management • Lookup • Lookup service • PCE • Constrained Path Computations • AuthN • Authentication • Coordinator • Workflow Coordinator • Resource Manager • Manage Reservations • Auditing Web Browser User Interface • AuthZ* • Authorization • Costing • *Distinct Data and Control Plane Functions • Path Setup • Network Element Interface • IDC API • Manages External WS Communications

  30. Overview (Path Setup) • Talks to network devices • Is called by the Coordinator on demand – does not have an internal schedule • Fully asynchronous - when a task is done, PSS notifies Coordinator with a callback.

  31. API (Path Setup) • Operations supported: • setup, teardown, status, modify • All calls have as argument a complete OSCARS reservation object. • Possibility for standardization here!

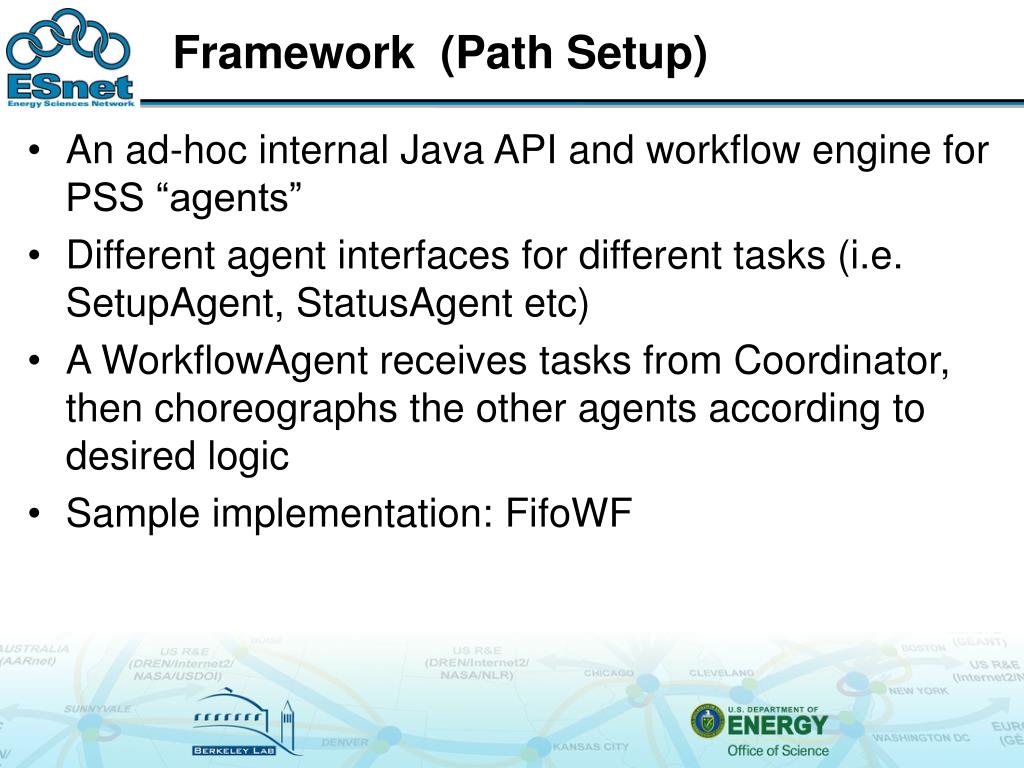

  32. Framework (Path Setup) • An ad-hoc internal Java API and workflow engine for PSS “agents” • Different agent interfaces for different tasks (i.e. SetupAgent, StatusAgent etc) • A WorkflowAgent receives tasks from Coordinator, then choreographs the other agents according to desired logic • Sample implementation: FifoWF

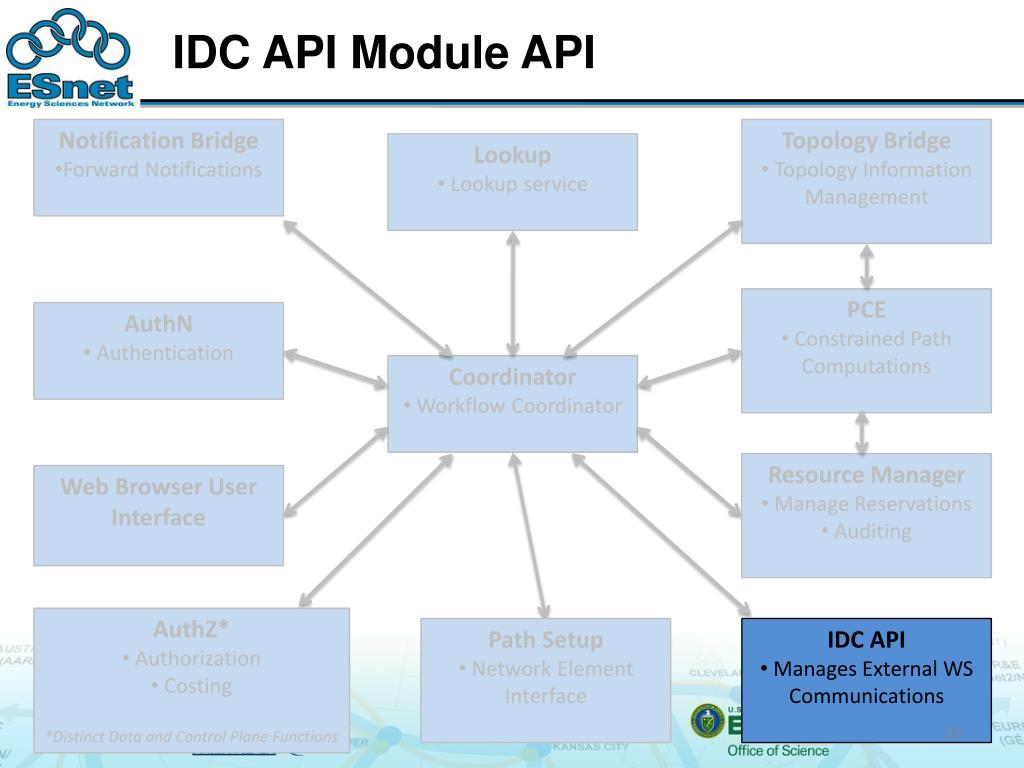

  33. IDC API Module API • Notification Bridge • Forward Notifications • Topology Bridge • Topology Information Management • Lookup • Lookup service • PCE • Constrained Path Computations • AuthN • Authentication • Coordinator • Workflow Coordinator • Resource Manager • Manage Reservations • Auditing Web Browser User Interface • AuthZ* • Authorization • Costing • *Distinct Data and Control Plane Functions • Path Setup • Network Element Interface • IDC API • Manages External WS Communications

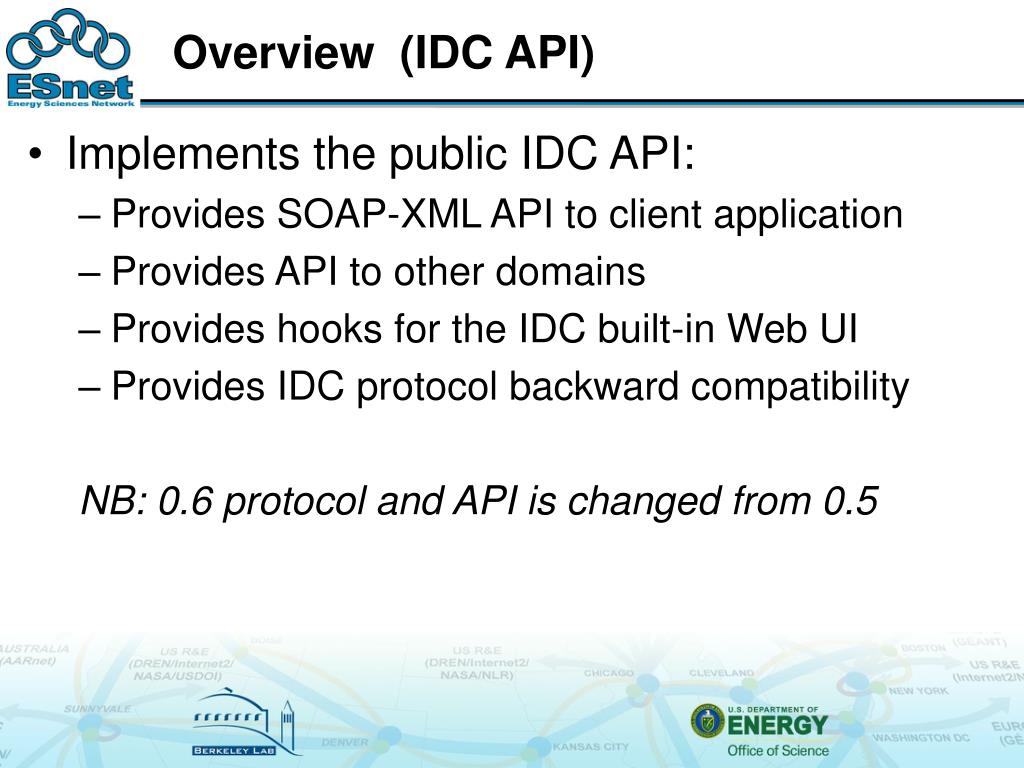

  34. Overview (IDC API) • Implements the public IDC API: • Provides SOAP-XML API to client application • Provides API to other domains • Provides hooks for the IDC built-in Web UI • Provides IDC protocol backward compatibility NB: 0.6 protocol and API is changed from 0.5

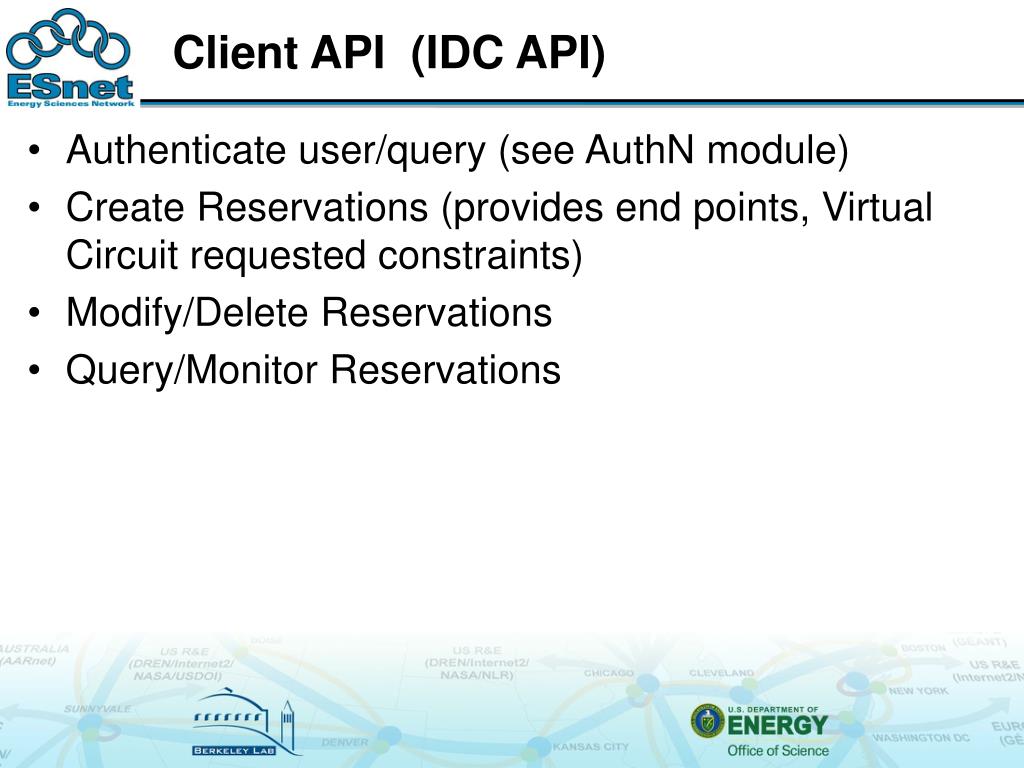

  35. Client API (IDC API) • Authenticate user/query (see AuthN module) • Create Reservations (provides end points, Virtual Circuit requested constraints) • Modify/Delete Reservations • Query/Monitor Reservations

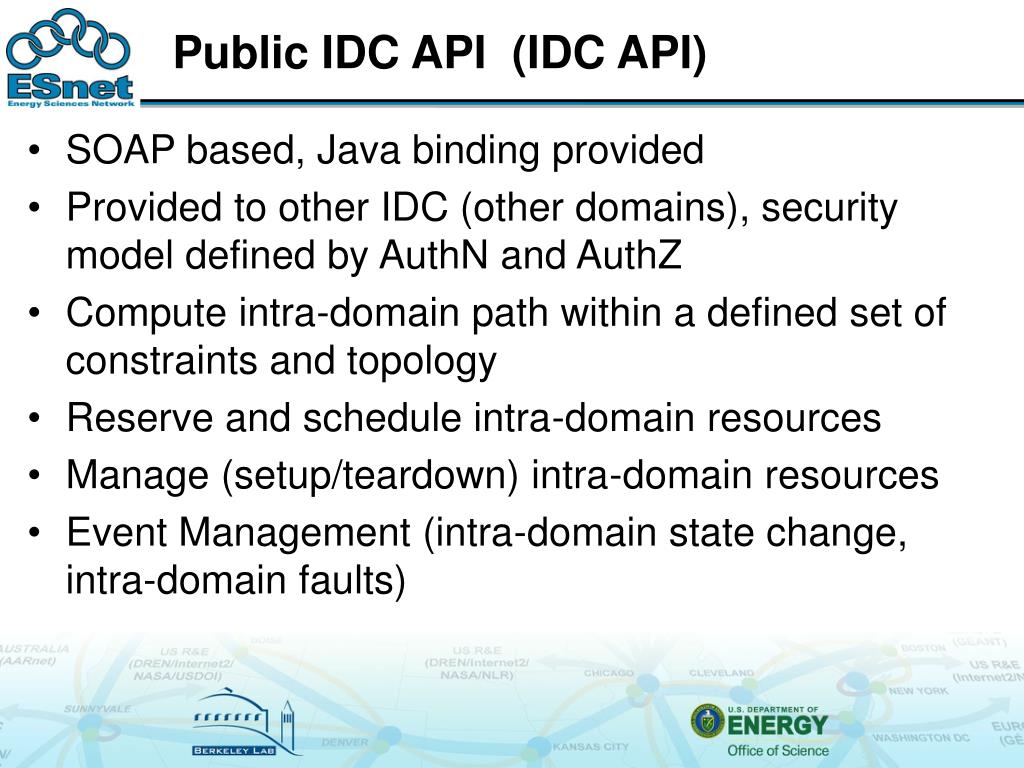

  36. Public IDC API (IDC API) • SOAP based, Java binding provided • Provided to other IDC (other domains), security model defined by AuthN and AuthZ • Compute intra-domain path within a defined set of constraints and topology • Reserve and schedule intra-domain resources • Manage (setup/teardown) intra-domain resources • Event Management (intra-domain state change, intra-domain faults)

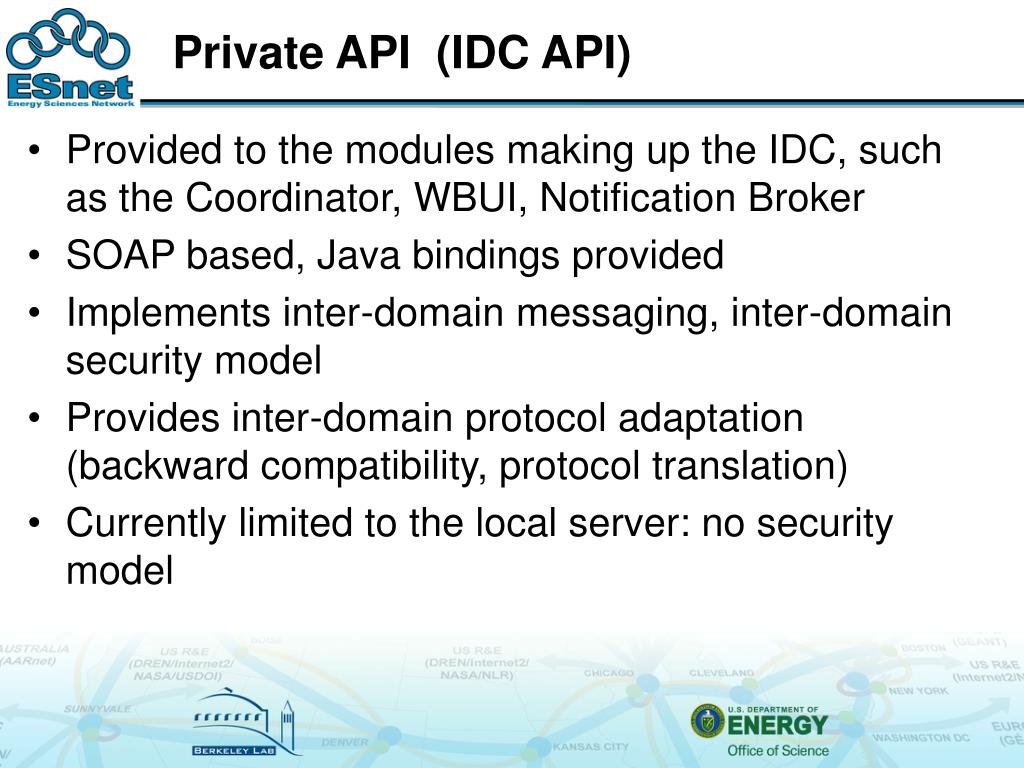

  37. Private API (IDC API) • Provided to the modules making up the IDC, such as the Coordinator, WBUI, Notification Broker • SOAP based, Java bindings provided • Implements inter-domain messaging, inter-domain security model • Provides inter-domain protocol adaptation (backward compatibility, protocol translation) • Currently limited to the local server: no security model

  38. OSCARS 0.6 Code and Directory Structure

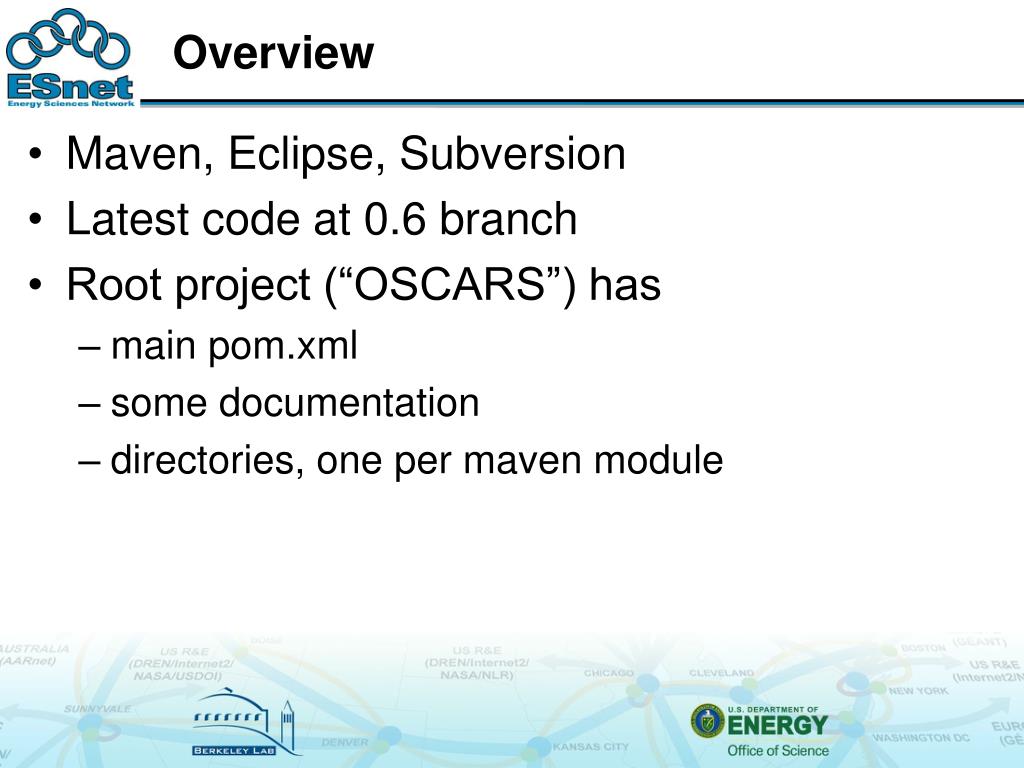

  39. Overview • Maven, Eclipse, Subversion • Latest code at 0.6 branch • Root project (“OSCARS”) has • main pom.xml • some documentation • directories, one per maven module

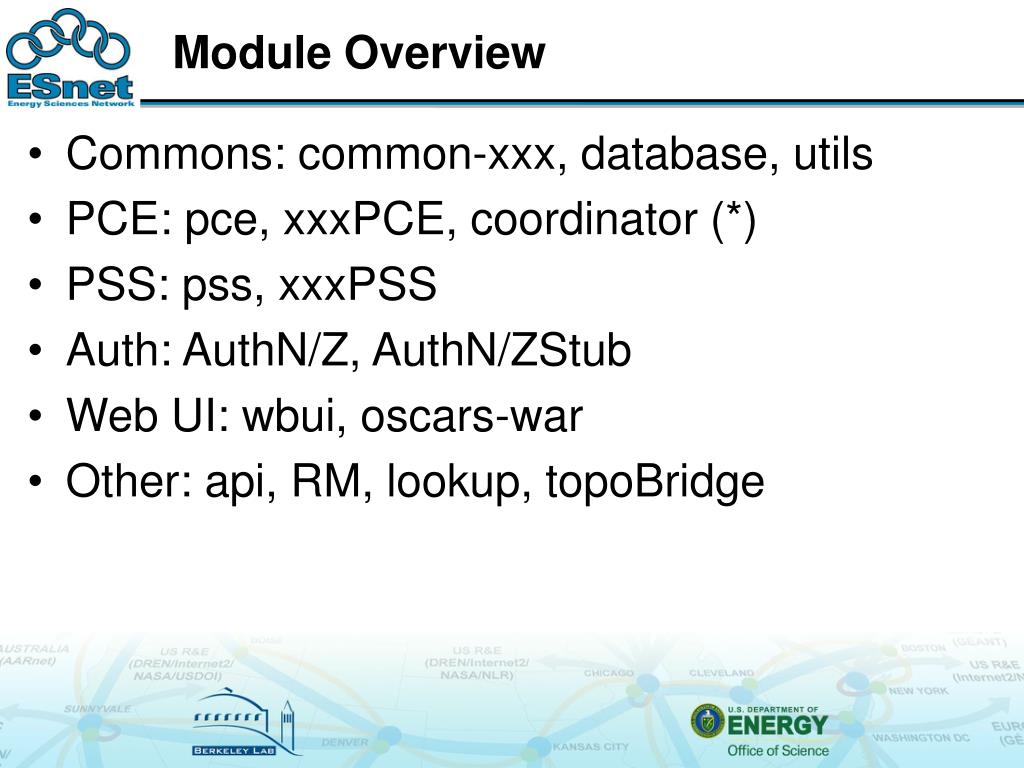

  40. Module Overview • Commons: common-xxx, database, utils • PCE: pce, xxxPCE, coordinator (*) • PSS: pss, xxxPSS • Auth: AuthN/Z, AuthN/ZStub • Web UI: wbui, oscars-war • Other: api, RM, lookup, topoBridge

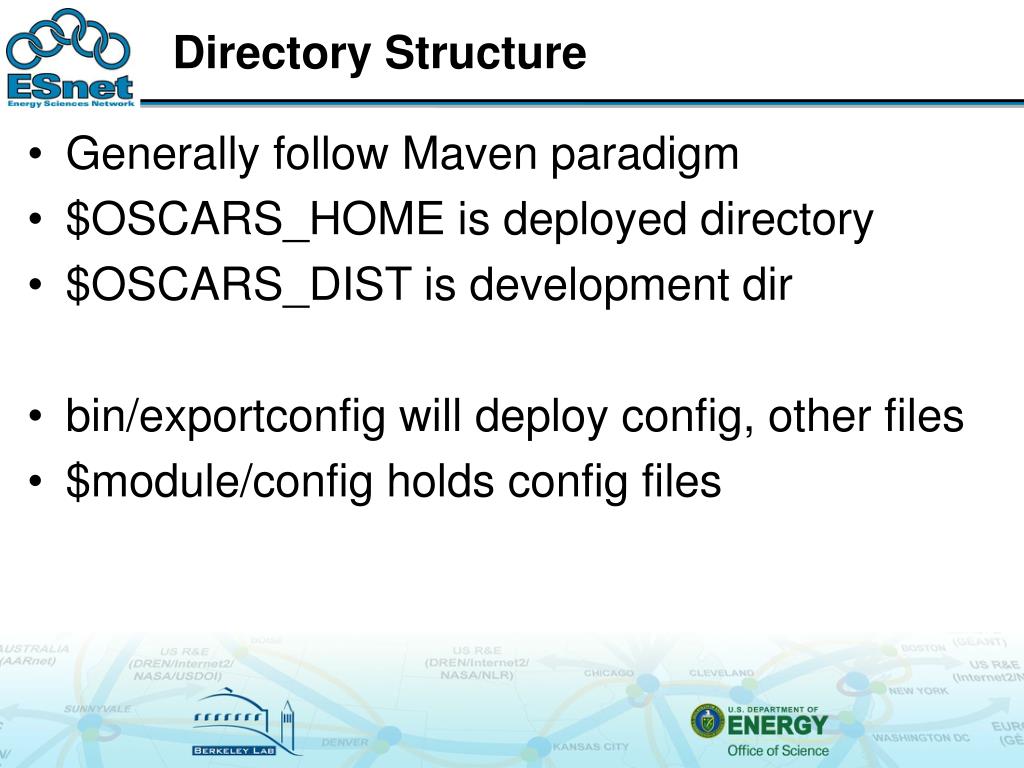

  41. Directory Structure • Generally follow Maven paradigm • $OSCARS_HOME is deployed directory • $OSCARS_DIST is development dir • bin/exportconfig will deploy config, other files • $module/config holds config files

  42. OSCARS_HOME • Where certs, config files, etc will be during production • One directory per module / category • Plus misc stuff (wsdls, logs) • By default will not get overwritten during exportconfig

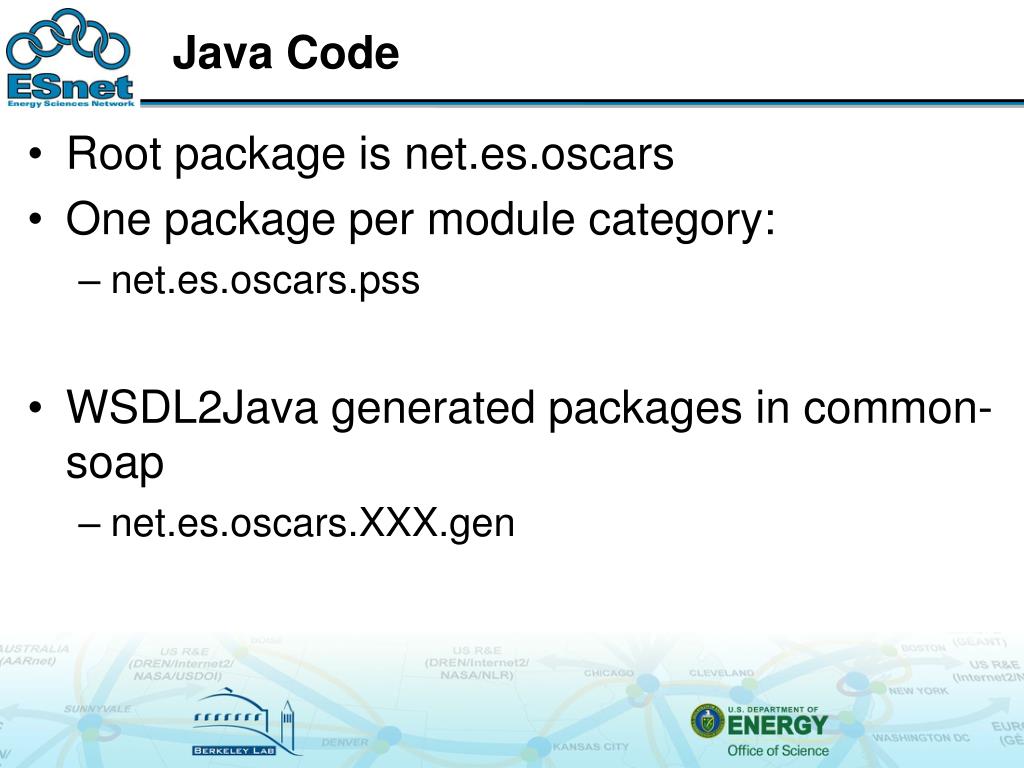

  43. Java Code • Root package is net.es.oscars • One package per module category: • net.es.oscars.pss • WSDL2Java generated packages in common-soap • net.es.oscars.XXX.gen

  44. Dependencies • Generally kept to a minimum, managed with Maven • Pretty much all modules depend on utils • Most are either SOAP servers or clients, so they get common-soap • Implementation modules (“stubPSS”) generally depend on the category libraries (“pss”)
