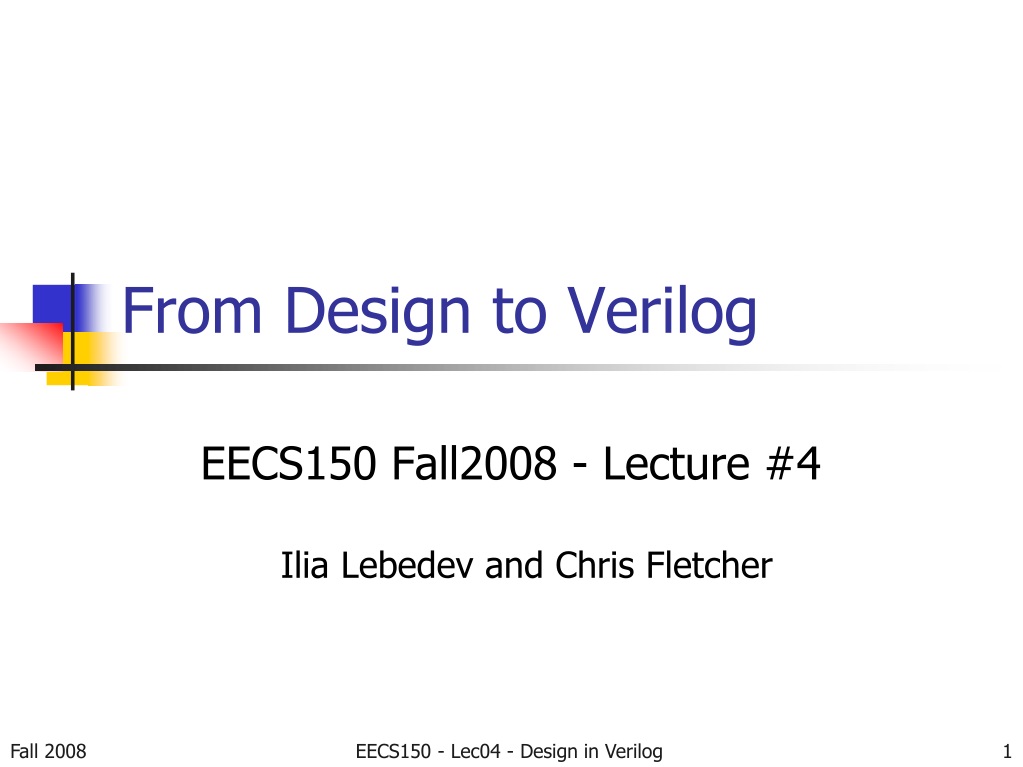

  1. From Design to Verilog • EECS150 Fall2008 - Lecture #4 • IliaLebedev and Chris Fletcher EECS150 - Lec04 - Design in Verilog

  2. Administrivia • If you have not yet done so: • Create a website login • Get on the newsgroup • Get a computer account • Webcasts: • Working to get the Lecture webcast. • Lab Lecture (audio + slides) • Missed Lab Lecture 2? Read the slides! EECS150 - Lec04 - Design in Verilog

  3. Design Problem Implement a speeding alert system. • Approach: • Define the problem • Identify available resources • Partition the problem • Design Interfaces • Draw a block diagram • Implement blocks using Verilog HDL EECS150 - Lec04 - Design in Verilog

  4. Identifying the Problem • Rural Highway, 50 mph limit • Many cars speed • Want to flash a warning if a car speeds “217 mph” “YOU ARE SPEEDING!” EECS150 - Lec04 - Design in Verilog

  5. Identifying the Resources Examine what we have to work with: • Two car sensors buried under the road • Warning sign with simple interface • An FPGA • A 1 MHz clock We need to design the glue logic EECS150 - Lec04 - Design in Verilog

  6. Car Sensor (1) • Coiled wire buried in the pavement • Passing car changes inductance, which is detected by the sensor • Logic “1” when the car is close • Logic “0” otherwise EECS150 - Lec04 - Design in Verilog

  7. Car Sensor (2) • We have two coils • Coils are 16 ft. apart • Measure time from sensor 1 to sensor 2, • Use math to calculate speed EECS150 - Lec04 - Design in Verilog

  8. Warning Sign • The sign is self-contained • Exposes the following interface: • Inputs: • 32-bit sensor reading. • ‘Flash' Strobe • Outputs: • (what the driver sees) EECS150 - Lec04 - Design in Verilog

  9. Interface-Driven Design • Design should partition naturally • Small pieces better than giant mess! • Interface = contract between partitions • Design good interfaces • Hides unnecessary details • Makes your circuits reusable • Makes your design simpler EECS150 - Lec04 - Design in Verilog

  10. Interface for Car Sensor (1) • Want : Detect car entering, and leaving • Define the interface you want • Don’t want : Interpret sensor reading • Abstract details away • What about cars longer than 16ft? • Must work for these too • Don't need to worry about cars < 16ft apart EECS150 - Lec04 - Design in Verilog

  11. Interface for Car Sensor (2) • Detecting a car entering (Start) • Sensor 1 on, sensor 2 off • Detecting a car leaving (Stop) • Sensor 2 on, Sensor 1 : don’t care • We should know this: EECS150 - Lec04 - Design in Verilog

  12. Interface to Measure Time (1) • 16 ft in <0.2 seconds  speeding • What is time in our system? • We have a 1MHz clock • Each cycle is 1 μsecond • < 200,000 cycles  speeding • How do we count the cycles? EECS150 - Lec04 - Design in Verilog

  13. Interface to Measure Time (1) • Count clock cycles using a Counter • Every cycle, we increment 'count' by 1 • Also, we can • Reset the counter to 0 • Pause the counter • This should look very familiar (HW2): EECS150 - Lec04 - Design in Verilog

  14. Designing Control Logic (1) • Have everything except control • Control orchestrates the system • Control needs to • Read at sensor inputs • Manage the counter • Talk to the sign occasionally EECS150 - Lec04 - Design in Verilog

  15. Designing Control Logic (2) Algorithm for our control: • Whenever a car enters • count cycles until car leaves • If # of cycles exceeds threshold, signal the sign. • Otherwise do nothing EECS150 - Lec04 - Design in Verilog

  16. Finite State Machine (1) • Algorithm maps well to FSM paradigm • FSM = Finite State Machine • More over next few lectures • We only use Moore Machines • Output depends on state only • Next state depends on state and inputs and only EECS150 - Lec04 - Design in Verilog

  17. Finite State Machine (2) Our Algorithm • Whenever a car enters • count cycles until car leaves • If # of cycles exceeds threshold, signal the sign • Otherwise do nothing EECS150 - Lec04 - Design in Verilog

  18. Ready to Implement • We now have the high-level design • Always draw a block diagram! EECS150 - Lec04 - Design in Verilog

  19. Verilog HDL • Go and read the Verilog PDFs! • Verilog is a tool, not what CS150 is about • Learn it quickly, don't go into detail • Textual representation of block diagram • Looks like C, but NOT A PROGRAM • CS150 is not about software • Everything happens concurrently EECS150 - Lec04 - Design in Verilog

  20. Verilog Modules • vocabulary: • “module” • “input”, “output” module SensorInterface ( input wire s1, input wire s2, output wire start, output wire stop ); /* Logic */ endmodule EECS150 - Lec04 - Design in Verilog

  21. Verilog Assign Statements assignX = A | ~B; assignY = 1’b0; • vocabulary: • “assign” • “wire” • “1’b0” = “1-bit wide wire with a binary representation of 0” • assign statements make combinational logic only. EECS150 - Lec04 - Design in Verilog

  22. Sensor Interface in Verilog module SensorInterface ( input wire s1, input wire s2, output wire start, output wire stop ); assign start = s1&~s2; assign stop = s2; endmodule EECS150 - Lec04 - Design in Verilog

  23. Taking Stock so Far • Finished simple elements in Verilog • Need more powerful constructs for the rest EECS150 - Lec04 - Design in Verilog

  24. always@ Blocks • Describe… • When • How • And under what conditions … to update multiple circuit elements • Behavioral Verilog: Less code • always@ blocks come in 2 flavors EECS150 - Lec04 - Design in Verilog

  25. always@(posedge Clock) • Sequential logic: registers • <= (non-blocking) assignments only • Assign each reg at most 1 time/block always@(posedge Clock) begin … your registers here … end EECS150 - Lec04 - Design in Verilog

  26. Counter (1) • Block Diagram … to Verilog module Counter( input wire Clock, input wire Reset, input wire Enable, output reg [31:0] Count ) … Counter code here … endmodule EECS150 - Lec04 - Design in Verilog

  27. Counter (2) • always@(posedge Clock) block always @ (posedge Clock) begin if (Reset) Count <= 32'h0; else Count <= Count + 32'h1; end EECS150 - Lec04 - Design in Verilog

  28. Counter (3) • Adding an Enable signal… always @ (posedge Clock) begin if (Reset) Count <= 32'h0; else if (Enable) Count <= Count + 32'h1; end EECS150 - Lec04 - Design in Verilog

  29. The TrafficFSM (revisited) • Looking back at our diagrams… EECS150 - Lec04 - Design in Verilog

  30. The TrafficFSM in Verilog • Steps • Module wrapper • State encoding • Storing the current state (CS) • State transitions • Output EECS150 - Lec04 - Design in Verilog

  31. Module Wrapper (1) • Define name, inputs and outputs module TrafficFSM( input wire Clock, input wire Start, // also serves as Reset input wire Stop, input wire [31:0] Count, output wire Reset, // Reset to the Counter output wire Enable, output wire Flash, output reg [31:0] TimeOutput ); … the module … endmodule EECS150 - Lec04 - Design in Verilog

  32. State Encoding (1) • Tell Verilog about your states • Use localparam • Human/Machine readable • Local scope • Cannot be overridden! EECS150 - Lec04 - Design in Verilog

  33. State Encoding (2) • In binary (2’b …) • In decimal (2’d …) localparam STATE_Counting = 2‘b00, STATE_Flash = 2‘b01, STATE_Idle = 2‘b10; Both are 2 bits! localparam STATE_Counting = 2'd0, STATE_Flash = 2'd1, STATE_Idle = 2'd2; EECS150 - Lec04 - Design in Verilog

  34. State Encoding (3) • Place-holder states • 2 options • Specify as localparams • Use default (stay tuned) localparam STATE_Counting = 2'd0, STATE_Flash = 2'd1, STATE_Idle = 2'd2, STATE_PlaceHolder = 3’d3; EECS150 - Lec04 - Design in Verilog

  35. State Encoding (4) • One last step! • Specify other localparams • The Counter threshold • Use ’d localparam THRESHOLD = 32’d200000; EECS150 - Lec04 - Design in Verilog

  36. Storing CS (1) • Store state as a reg • reg width = width of state localparams localparam STATE_Counting = 2'd0, STATE_Flash = 2'd1, STATE_Idle = 2'd2; reg [1:0] CS; EECS150 - Lec04 - Design in Verilog

  37. State Transitions (1) • Steps • 1: Store the next state (NS) • 2: Specify transition at the Clock-edge • 3: State transition arcs 2 3 1 EECS150 - Lec04 - Design in Verilog

  38. State Transitions (2) • Storing the next state (NS) • Same as storing CS! reg [1:0] CS, reg [1:0] NS; EECS150 - Lec04 - Design in Verilog

  39. State Transitions (3) • Specify transitions at the Clock-edge • State registers(CS) get NS • Inferred always@(posedge Clock) • Same for every FSM! always@(posedge Clock) begin if (Start) CS <= STATE_Counting; else CS <= NS; end EECS150 - Lec04 - Design in Verilog

  40. State Transitions (4) • State transition arcs • Unconditional transitions • Conditional transitions • Loop backs • No transitions • We need … • Combinational logic • The power of an always@ block or EECS150 - Lec04 - Design in Verilog

  41. always@( * ) • Combinational logic: gates • = (blocking) assignments only • Assign each reg at least 1 time • Stick to ( * ) not (A or B or …) always@( * ) begin … your combinational logic here … end EECS150 - Lec04 - Design in Verilog

  42. State Transitions (5) • always@( * ) block structure: If we didn’t specify place-holder states… always@( * ) begin NS = CS; casex (CS) … 1 case for each state … default : begin NS = 2’bxx; end endcase end EECS150 - Lec04 - Design in Verilog

  43. State Transitions (6) • The casex STATE_Counting : begin if (Stop & (Count <= THRESHOLD)) NS = STATE_Flash; else if (Stop & (Count > THRESHOLD)) NS = STATE_Idle; end STATE_Flash : begin NS = STATE_Idle; end STATE_Idle : begin end EECS150 - Lec04 - Design in Verilog

  44. State Transitions (7) • Specify missing states: 2 options Place-holders default + + casex statement case statement STATE_PlaceHolder: begin NS = STATE_Counting; end …one case/place-holder state default : begin NS = 2’bxx; end EECS150 - Lec04 - Design in Verilog

  45. Outputs (1) • Outputs can be… • 1-bit • Multi-bit • Output during… • 1 state • Multiple states • Based on CS EECS150 - Lec04 - Design in Verilog

  46. Outputs (2) • 1-bit outputs • Simple assign statements! assign Reset = (CS == STATE_Idle); assign Enable = (CS == STATE_Counting); assign Flash = (CS == STATE_Flash); EECS150 - Lec04 - Design in Verilog

  47. Outputs (3) • Multi-bit outputs • Inferred always@( * ) block always@( * ) begin TimeOutput = 32'b0; case (CS) STATE_Flash : begin TimeOutput = Count; end endcase end EECS150 - Lec04 - Design in Verilog

  48. Outputs (4) • More ways to handle Multi-bit • Move to transitions always@( * ) block • assign • Ternary statement • wire vs. reg assign TimeOutput = (CS == STATE_Flash) ? Count : 32’b0; EECS150 - Lec04 - Design in Verilog

  49. The Complete Design • Code is posted on the website • Slides are posted on the website • Run through Simulation & Synthesis EECS150 - Lec04 - Design in Verilog
