Tracking Index Test Apparatus (1)

DESCRIPTION

Pego Electronics (Yichun) Company Limited was founded by Pego Group in 2020, aiming to bring high-precision, high-quality, cost-effective electrical laboratory testing equipment Made-in-China to the world. PEGO has been deeply involved in lab testing equipment for household appliances, lighting and electric vehicle charging stations (EVCS) for decades, the equipment are strictly designed according to IEC, ISO, BS, UL, GB, BIS, ANSI and other relative standards.

1 / 5

Télécharger la présentation

Tracking Index Test Apparatus (1)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

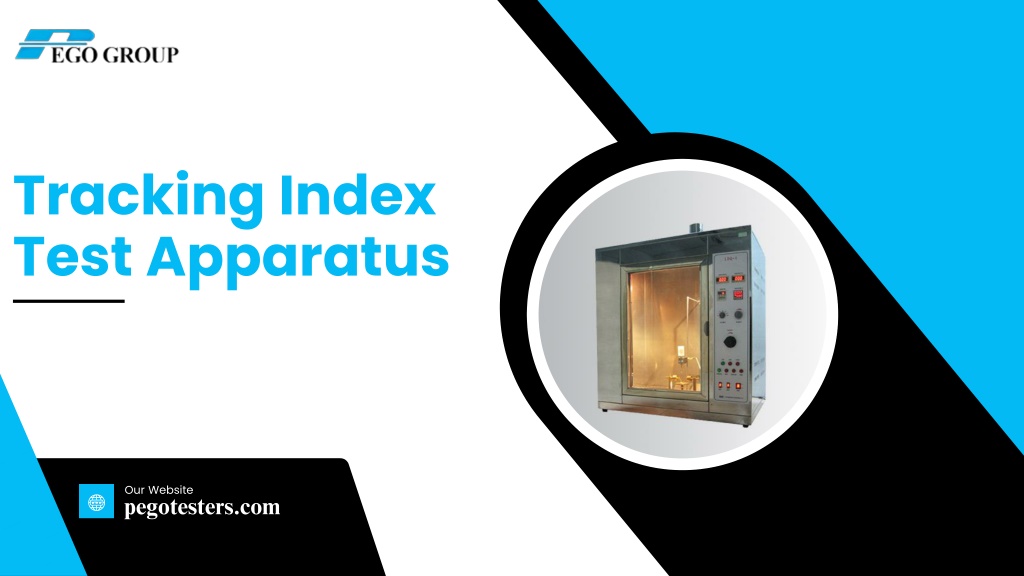

  1. Tracking Index Test Apparatus • Our Website • pegotesters.com

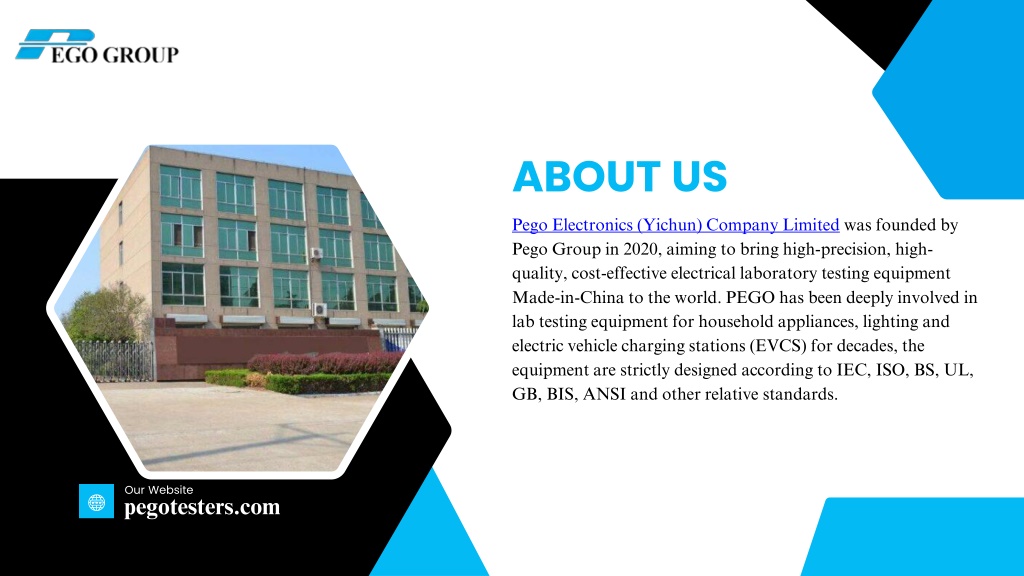

  2. ABOUT US Pego Electronics (Yichun) Company Limited was founded by Pego Group in 2020, aiming to bring high-precision, high-quality, cost-effective electrical laboratory testing equipment Made-in-China to the world. PEGO has been deeply involved in lab testing equipment for household appliances, lighting and electric vehicle charging stations (EVCS) for decades, the equipment are strictly designed according to IEC, ISO, BS, UL, GB, BIS, ANSI and other relative standards. • Our Website • pegotesters.com

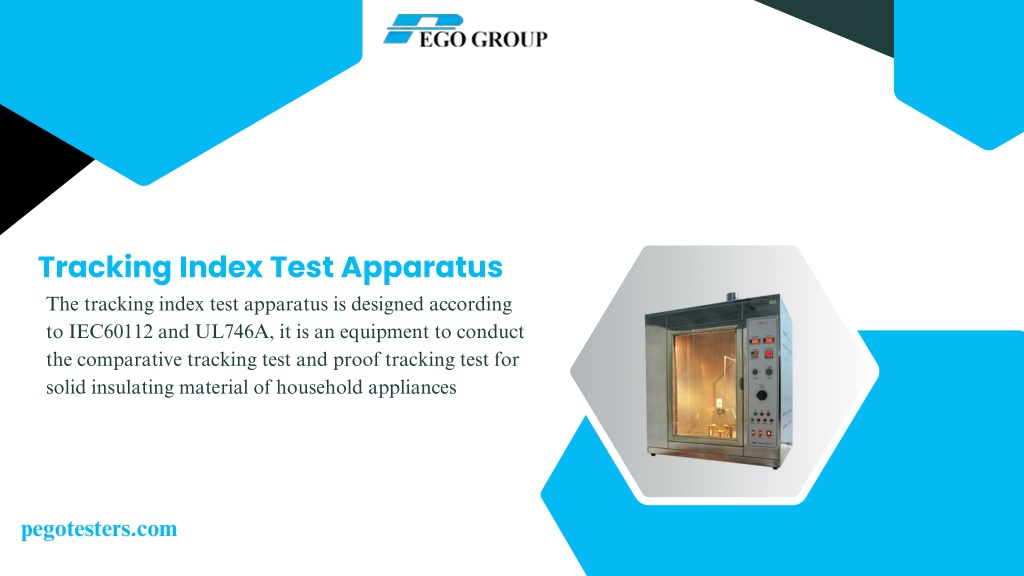

  3. Tracking Index Test Apparatus The tracking index test apparatus is designed according to IEC60112 and UL746A, it is an equipment to conduct the comparative tracking test and proof tracking test for solid insulating material of household appliances • pegotesters.com

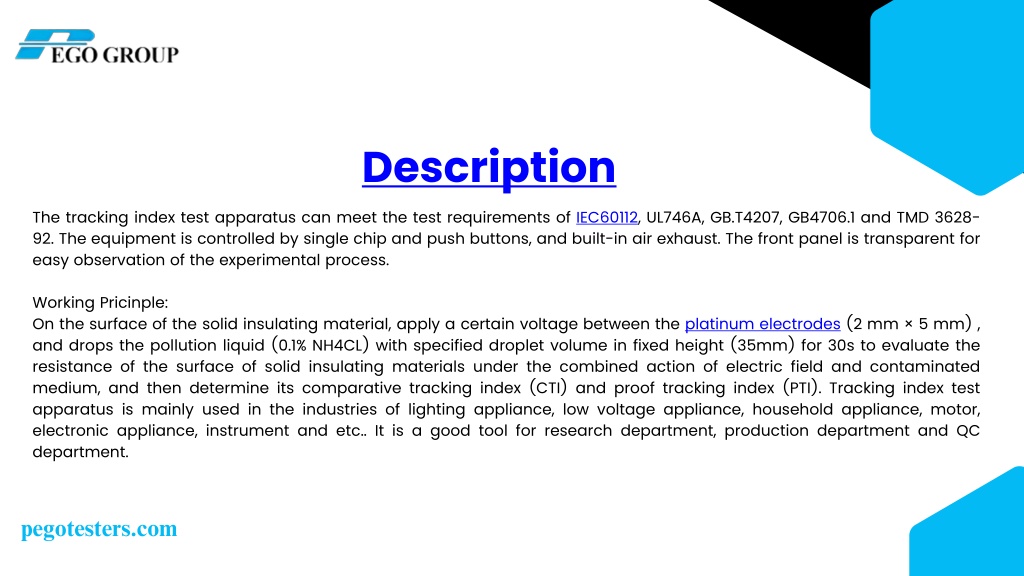

  4. Description The tracking index test apparatus can meet the test requirements of IEC60112, UL746A, GB.T4207, GB4706.1 and TMD 3628-92. The equipment is controlled by single chip and push buttons, and built-in air exhaust. The front panel is transparent for easy observation of the experimental process. Working Pricinple: On the surface of the solid insulating material, apply a certain voltage between the platinum electrodes (2 mm × 5 mm) , and drops the pollution liquid (0.1% NH4CL) with specified droplet volume in fixed height (35mm) for 30s to evaluate the resistance of the surface of solid insulating materials under the combined action of electric field and contaminated medium, and then determine its comparative tracking index (CTI) and proof tracking index (PTI). Tracking index test apparatus is mainly used in the industries of lighting appliance, low voltage appliance, household appliance, motor, electronic appliance, instrument and etc.. It is a good tool for research department, production department and QC department. • pegotesters.com

  5. Thank You For Contact Us: • +86(0)795-3560528 • pegotesters.com • Jiangxi, 336000, China
