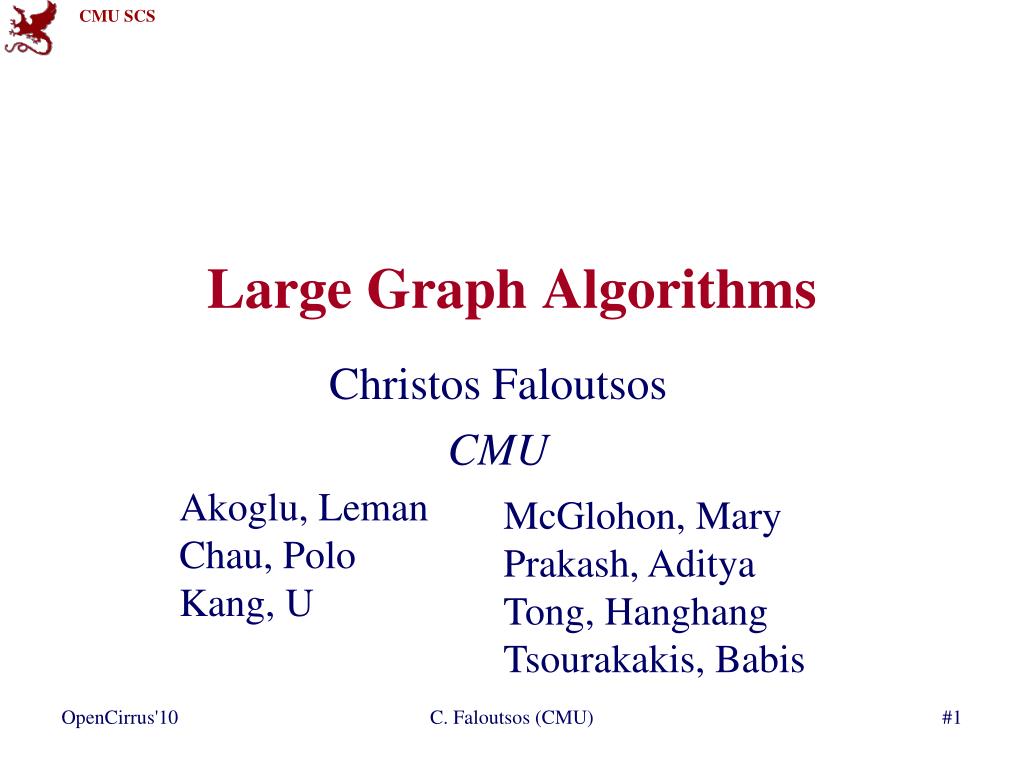

  1. Large Graph Algorithms Christos Faloutsos CMU Akoglu, Leman Chau, Polo Kang, U McGlohon, Mary Prakash, Aditya Tong, Hanghang Tsourakakis, Babis C. Faloutsos (CMU)

  2. Graphs - why should we care? Internet Map [lumeta.com] Food Web [Martinez ’91] Protein Interactions [genomebiology.com] Friendship Network [Moody ’01] C. Faloutsos

  3. T1 D1 ... ... DN TM Graphs - why should we care? • IR: bi-partite graphs (doc-terms) • web: hyper-text graph • Social networking sites (Facebook, twitter) • Users posing and answering questions • Click-streams (user – page bipartite graph) • ... and more – any M:N db relationship C. Faloutsos

  4. Our goal: One-stop solution for mining huge graphs: PEGASUS project (PEta GrAph mining System) • www.cs.cmu.edu/~pegasus • Open-source code and papers C. Faloutsos (CMU)

  5. Outline – Algorithms & results C. Faloutsos (CMU)

  6. HADI for diameter estimation • Radius Plots for Mining Tera-byte Scale Graphs U Kang, Charalampos Tsourakakis, Ana Paula Appel, Christos Faloutsos, Jure Leskovec, SDM’10 • Naively: diameter needs O(N**2) space and up to O(N**3) time – prohibitive (N~1B) • Our HADI: linear on E (~10B) • Near-linear scalability wrt # machines • Several optimizations -> 5x faster C. Faloutsos (CMU)

  7. ???? Count ?? 19+? [Barabasi+] Radius • YahooWeb graph (120Gb, 1.4B nodes, 6.6 B edges) • Largest publicly available graph ever studied. C. Faloutsos (CMU)

  8. YahooWeb graph (120Gb, 1.4B nodes, 6.6 B edges) • effective diameter: surprisingly small. • Multi-modality: probably mixture of cores . C. Faloutsos (CMU)

  9. YahooWeb graph (120Gb, 1.4B nodes, 6.6 B edges) • effective diameter: surprisingly small. • Multi-modality: probably mixture of cores . C. Faloutsos (CMU)

  10. Radius Plot of GCC of YahooWeb. C. Faloutsos (CMU)

  11. Running time - Kronecker and Erdos-Renyi Graphs with billions edges. C. Faloutsos (CMU)

  12. Outline – Algorithms & results C. Faloutsos (CMU)

  13. Generalized Iterated Matrix Vector Multiplication (GIMV) PEGASUS: A Peta-Scale Graph Mining System - Implementation and Observations. U Kang, Charalampos E. Tsourakakis, and Christos Faloutsos. (ICDM) 2009, Miami, Florida, USA. Best Application Paper (runner-up). C. Faloutsos (CMU)

  14. Generalized Iterated Matrix Vector Multiplication (GIMV) • PageRank • proximity (RWR) • Diameter • Connected components • (eigenvectors, • Belief Prop. • … ) Matrix – vector Multiplication (iterated) C. Faloutsos (CMU)

  15. Example: GIM-V At Work • Connected Components Count Size C. Faloutsos (CMU)

  16. Example: GIM-V At Work • Connected Components Count 300-size cmpt X 500. Why? 1100-size cmpt X 65. Why? Size C. Faloutsos (CMU)

  17. Example: GIM-V At Work • Connected Components Count suspicious financial-advice sites (not existing now) Size C. Faloutsos (CMU)

  18. Outline – Algorithms & results C. Faloutsos (CMU)

  19. Triangles Real social networks have a lot of triangles C. Faloutsos

  20. Triangles Real social networks have a lot of triangles Friends of friends are friends Q1: how to compute quickly? Q2: Any patterns? C. Faloutsos

  21. Triangles : Computations [Tsourakakis ICDM 2008] Q: Can we do that quickly? Triangles are expensive to compute (3-way join; several approx. algos) C. Faloutsos

  22. Triangles : Computations [Tsourakakis ICDM 2008] But: triangles are expensive to compute (3-way join; several approx. algos) Q: Can we do that quickly? A: Yes! #triangles = 1/6 Sum ( li3 ) (and, because of skewness, we only need the top few eigenvalues! C. Faloutsos

  23. Triangles : Computations [Tsourakakis ICDM 2008] 1000x+ speed-up, high accuracy C. Faloutsos

  24. Triangles • Easy to implement on hadoop: it only needs eigenvalues (working on it, using Lanczos) C. Faloutsos (CMU)

  25. Triangles Real social networks have a lot of triangles Friends of friends are friends Q1: how to compute quickly? Q2: Any patterns? C. Faloutsos

  26. Triangle Law: #1 [Tsourakakis ICDM 2008] HEP-TH ASN X-axis: # of Triangles a node participates in Y-axis: count of such nodes Epinions C. Faloutsos

  27. Triangle Law: #2 [Tsourakakis ICDM 2008] Reuters SN X-axis: degree Y-axis: mean # triangles Notice: slope ~ degree exponent (insets) Epinions C. Faloutsos

  28. Outline – Algorithms & results C. Faloutsos (CMU)

  29. Visualization: ShiftR • Supporting Ad Hoc Sensemaking: Integrating Cognitive, HCI, and Data Mining ApproachesAniket Kittur, Duen Horng (‘Polo’) Chau, Christos Faloutsos, Jason I. HongSensemaking Workshop at CHI 2009, April 4-5. Boston, MA, USA. C. Faloutsos (CMU)

  30. Conclusions One-stop shopping for large graph mining: • www.cs.cmu.edu/~pegasus Akoglu, Leman Tsourakakis, Babis Kang, U Chau, Polo McGlohon, Mary THANKS: NSF, Yahoo (M45), LLNL C. Faloutsos (CMU)
