ELEC 303 – Random Signals

1. ELEC 303 – Random Signals Lecture 3 – Conditional probability FarinazKoushanfar ECE Dept., Rice University Sept 1, 2009

2. Lecture outline • Reading: Sections 1.4, 1.5 • Review • Independence • Event couple • Multiple events • Conditional • Independent Trials and Binomial

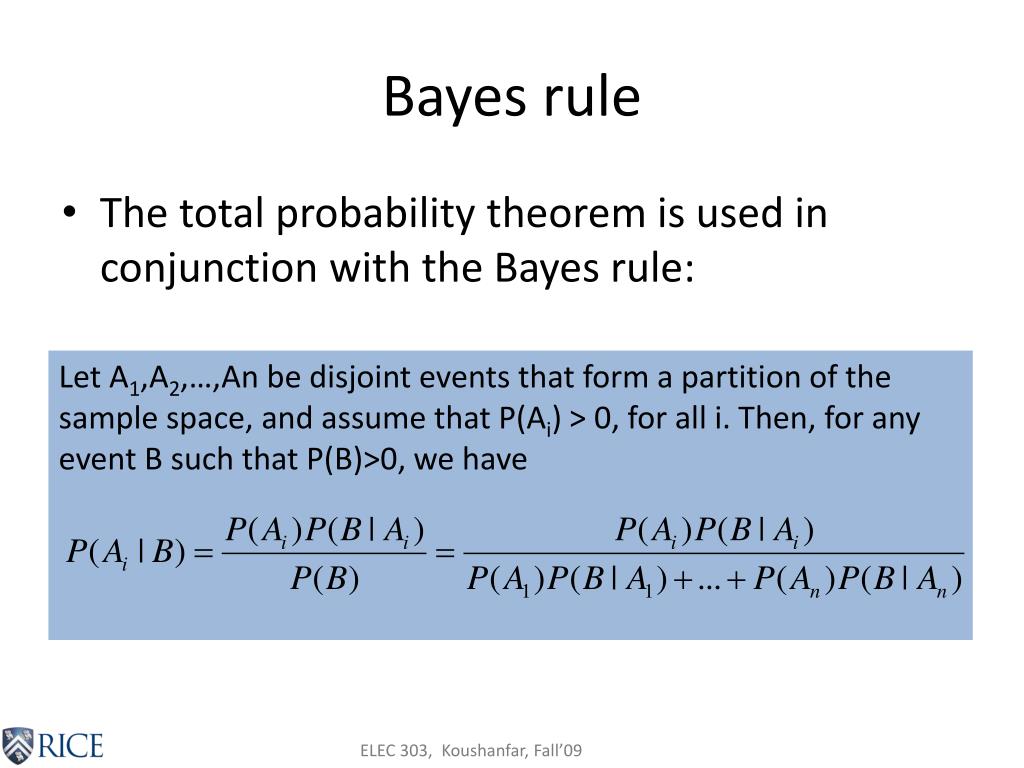

3. Bayes rule Let A1,A2,…,An be disjoint events that form a partition of the sample space, and assume that P(Ai) > 0, for all i. Then, for any event B such that P(B)>0, we have The total probability theorem is used in conjunction with the Bayes rule:

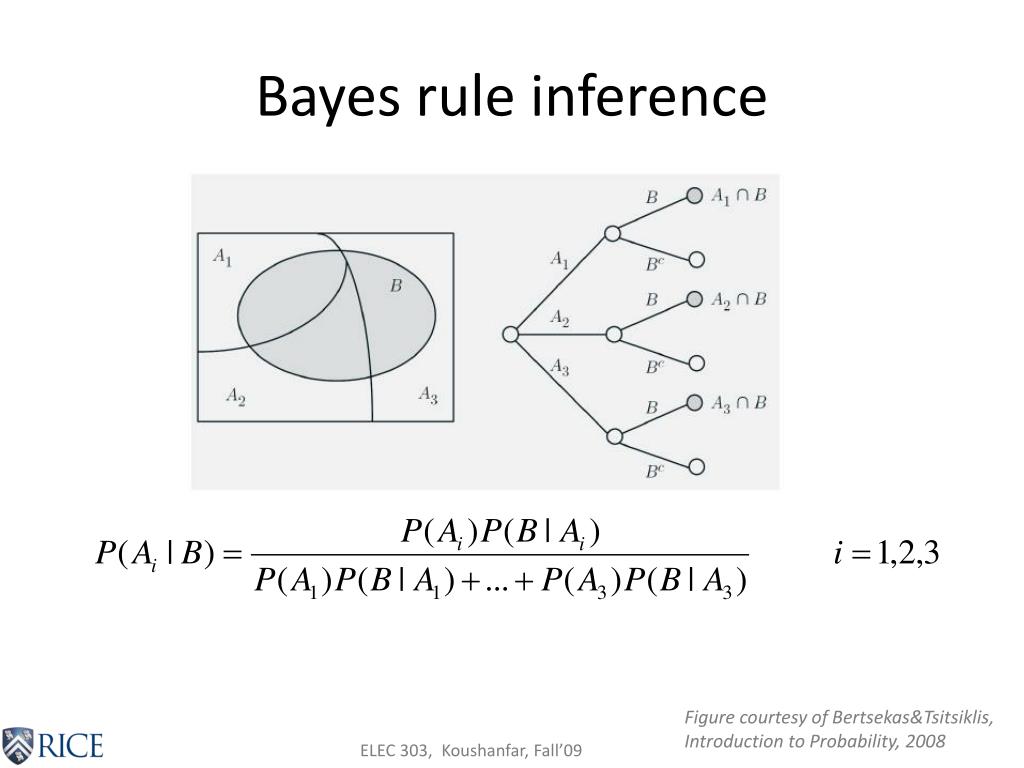

4. Bayes rule inference Figure courtesy of Bertsekas&Tsitsiklis, Introduction to Probability, 2008

5. The false positive puzzle Test for a certain rare disease is correct 95% of times, and if the person does not have the disease, the results are negative with prob .95 A random person drawn from the population has probability of .001 of having the disease Given that a person has just tested positive, what is the probability of having the disease?

6. Independence • The occurrence of B does not change the probability of A, i.e., P(A|B)=P(A)  P(AB)=P(A).P(B) • Symmetric property • Can we visualize this in terms of the sample space?

7. Independence? A and B disjoint  A and Bc are disjoint P(A|B) = P(A|Bc)

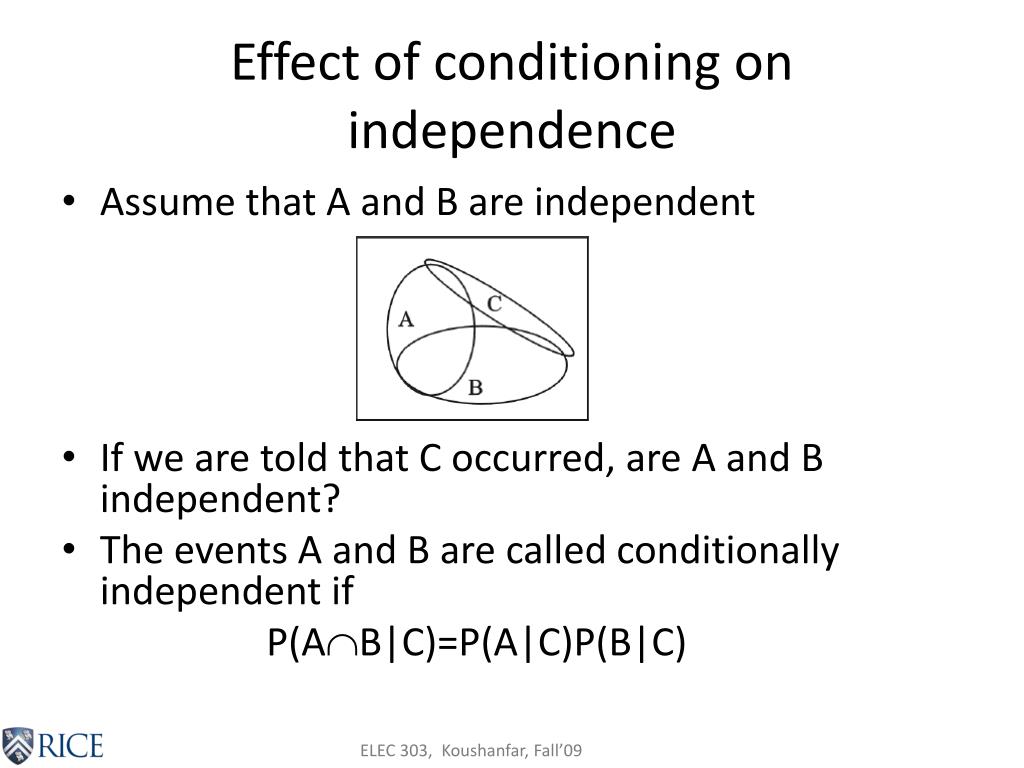

8. Effect of conditioning on independence Assume that A and B are independent If we are told that C occurred, are A and B independent? The events A and B are called conditionally independent if P(AB|C)=P(A|C)P(B|C)

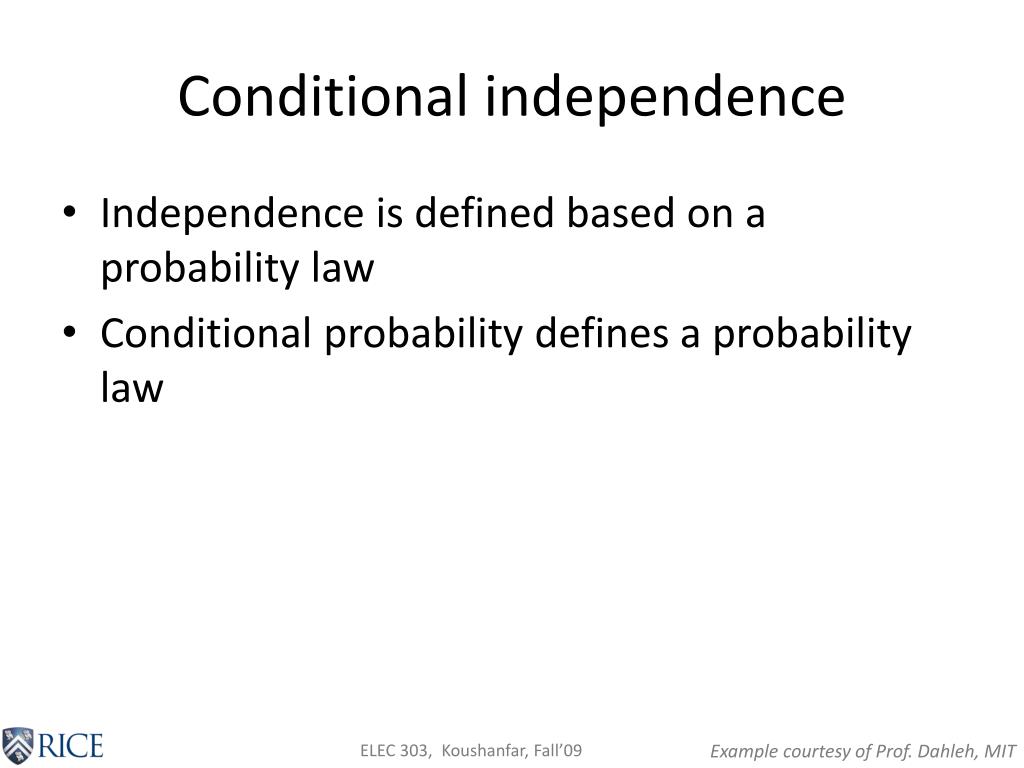

9. Conditional independence Independence is defined based on a probability law Conditional probability defines a probability law Example courtesy of Prof. Dahleh, MIT

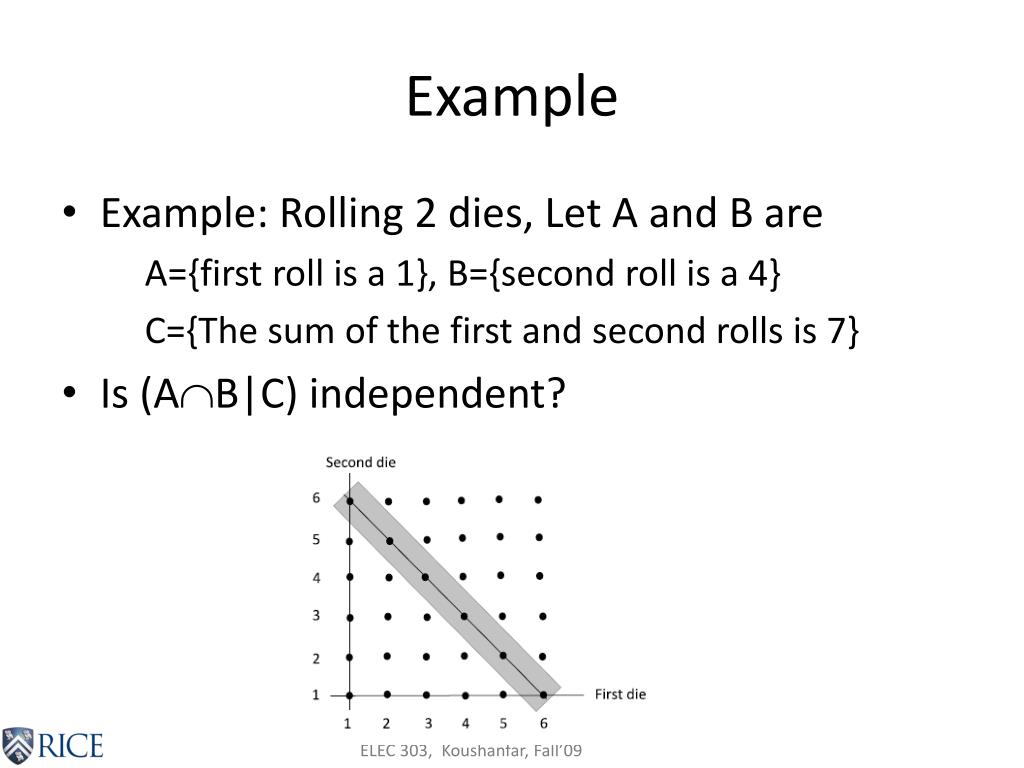

10. Example • Example: Rolling 2 dies, Let A and B are A={first roll is a 1}, B={second roll is a 4} C={The sum of the first and second rolls is 7} • Is (AB|C) independent?

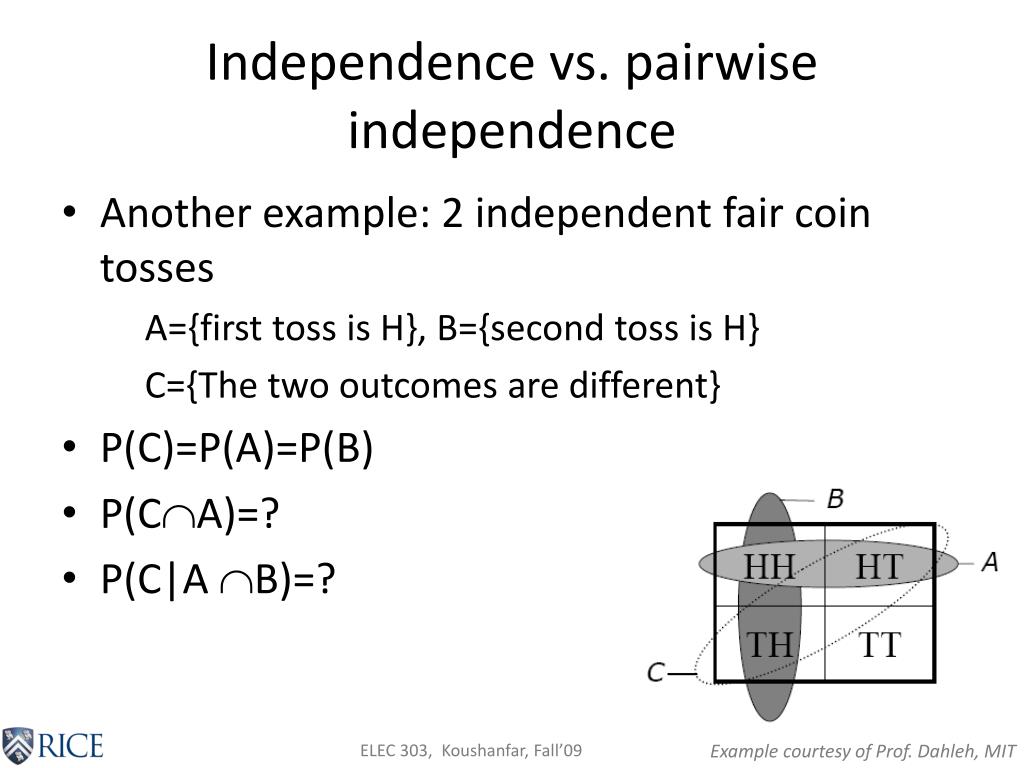

11. Independence vs. pairwise independence • Another example: 2 independent fair coin tosses A={first toss is H}, B={second toss is H} C={The two outcomes are different} • P(C)=P(A)=P(B) • P(CA)=? • P(C|A B)=? Example courtesy of Prof. Dahleh, MIT

12. Independence of a collection of events • Events A1,A2,…,An are independent if For every subset S of {1,2,…,n} • For 3 events, this amounts to 4 conditions: • P(A1A2) • P(A1A3) • P(A2A3) • P(A1A2A3)

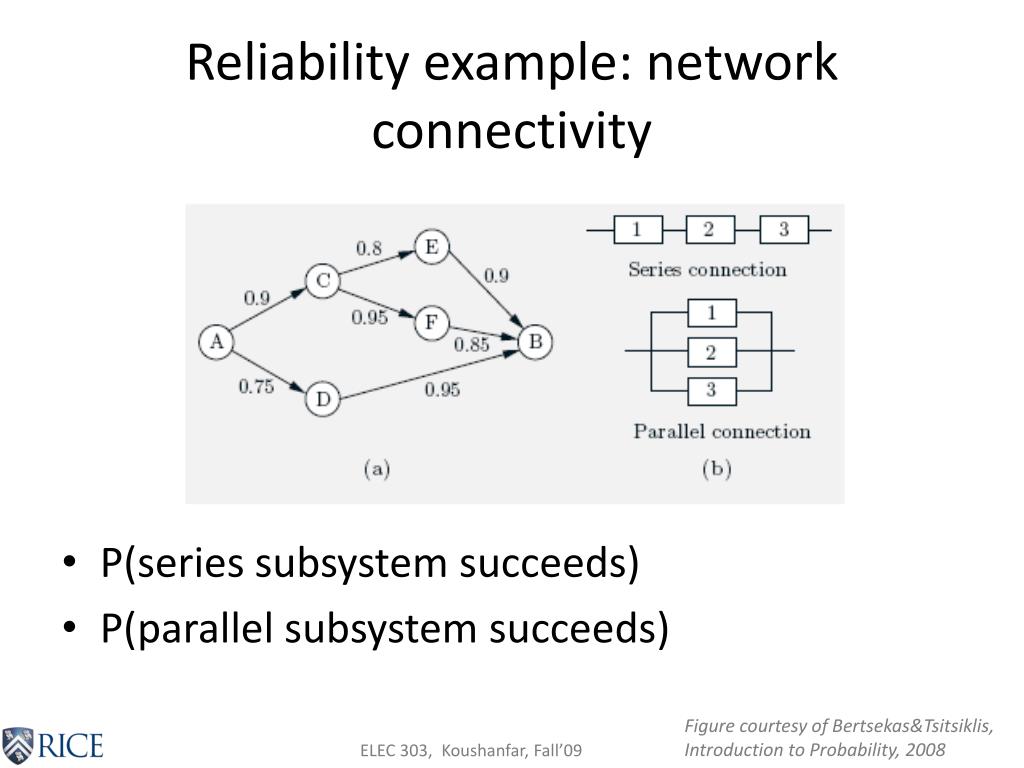

13. Reliability example: network connectivity P(series subsystem succeeds) P(parallel subsystem succeeds) Figure courtesy of Bertsekas&Tsitsiklis, Introduction to Probability, 2008

14. Independent trials and the Binomial probabilities Independent trials: sequence of independent but identical stages Bernoulli: there are 2 possible results at each stage Figure courtesy of Bertsekas&Tsitsiklis, Introduction to Probability, 2008

15. Bernoulli trial P(k)=P(k heads in an n-toss sequence) From the previous page, the probability of any given sequence having k heads: pk(1-p)n-k The total number of such sequences is Where we define the notation

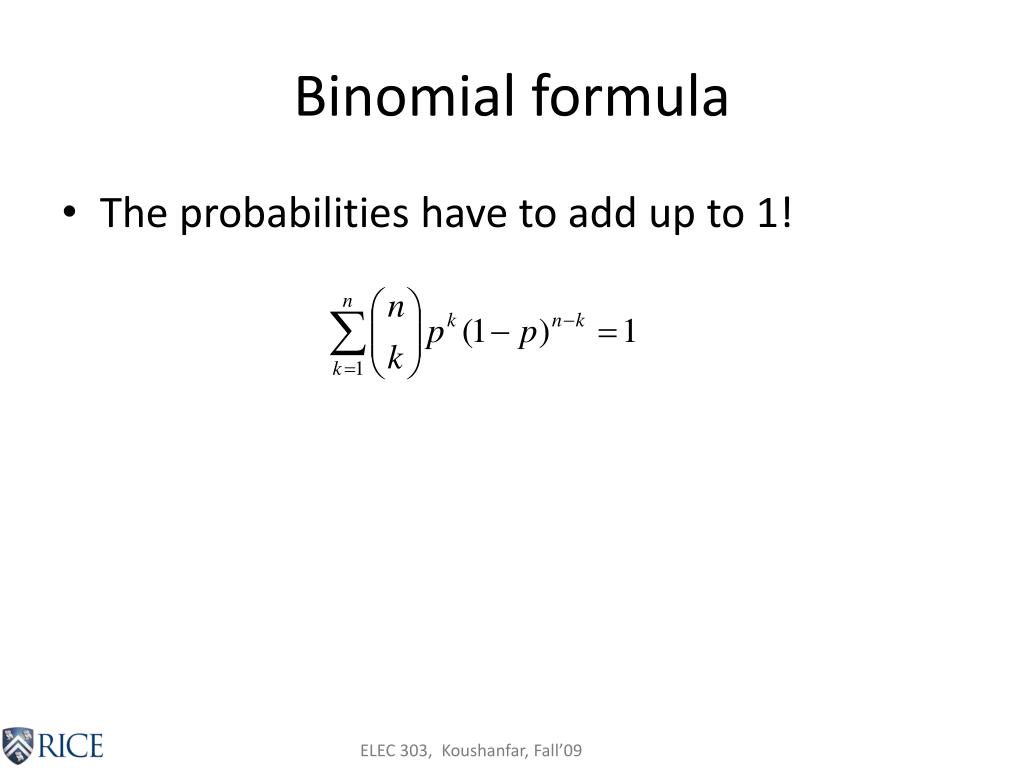

16. Binomial formula The probabilities have to add up to 1!
