  1. Chapter 1 – Token Rings Monday, January 22, 2001

  2. Token Rings • Originally proposed by Olaf Soderblum in 1969 • IBM purchased the rights and released its product in 1984 • IEEE 802.5 standard finalized in 1985 • Operates at 4-16 Mbps

  3. Features of Token Ring Network • Highly reliable network • More complex than Ethernet • 802.3 standard is physically a star but is logically a ring • Uses a “free” token that is passed around the ring in one direction • If a node receives the “free” token, it can change the token from “free” to “busy” attach data and send it onto the ring • Each station receives the data and sends the data and token to the next node

  4. Token Ring – Cont. • The receiving station reads the data and sends it to the upper level protocols • The token is marked to indicate that the data has been received (2 bits are switched) • The token with data is then retransmitted and finally gets back to the sender • This serves as an acknowledgement that the data was received • This process is a “collision avoidance” system

  5. Fault Management Techniques • No circulating token • Persistent busy token • To address these, one station is designated as the active token monitor • See handout for details

  6. Advantages of Token Ring • Operates under heavy load with significantly superior performance to Ethernet • Known upper bound to the amount of time any station must wait before transmitting • Built-in diagnostic and recovery mechanisms (beaconing, auto-reconfiguration)

  7. Disadvantages of Token Ring • Token ring cards and equipment are more expensive than Ethernet • Can be very difficult to troubleshoot • Requires considerable expertise

  8. Operation of Token Ring – See Handout • Eight levels of priority • Priority field • Reservation fields

  9. Token Ring (802.5) Frame Format • 802.5 Header • 802.2 Header (Logical Link Control) • Data • 802.5 Trailer • See p. 16 for specific fields

  10. 802.5 Header • Start Delimiter – 1 byte – provides synchronization for the receiver • Question –Why is only one byte used here instead of the 8 bytes used by Ethernet II? • Access Control – one byte – • 3 bits for priority of token • 3 bits for reservation level. These set the priority of the token once the token is released • 1 bit to indicate the ring monitor station has been passed. What does ring monitor do if it sees this bit set? • 1 bit to indicate whether the frame that follows is a token or a frame

  11. Frame Control • One byte • Indicates whether the frame that follows is a management frame or an LLC frame (2 bits) • Indicates the type of management frame

  12. Destination Address • 6 bytes long • Unicast address • Universal broadcast address (all 1s) • Token ring broadcast (C0-00-FF-FF-FF-FF) • Multicast address

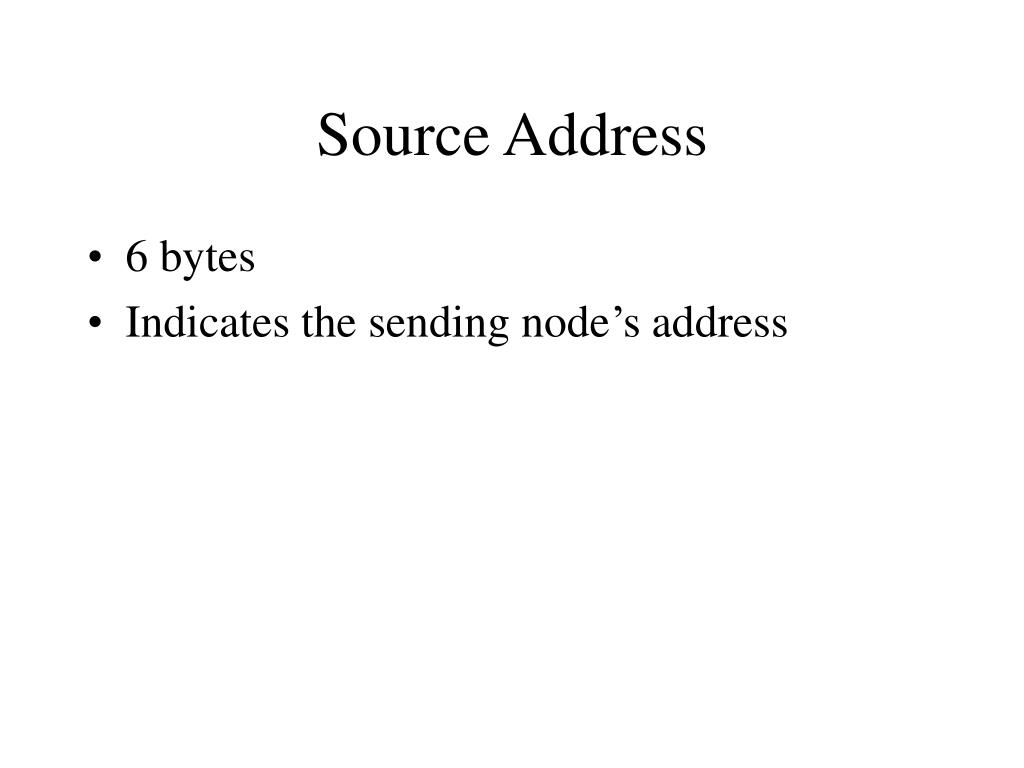

  13. Source Address • 6 bytes • Indicates the sending node’s address

  14. Payload • No minimum frame size • Maximum size depends upon bit rate and token holding time

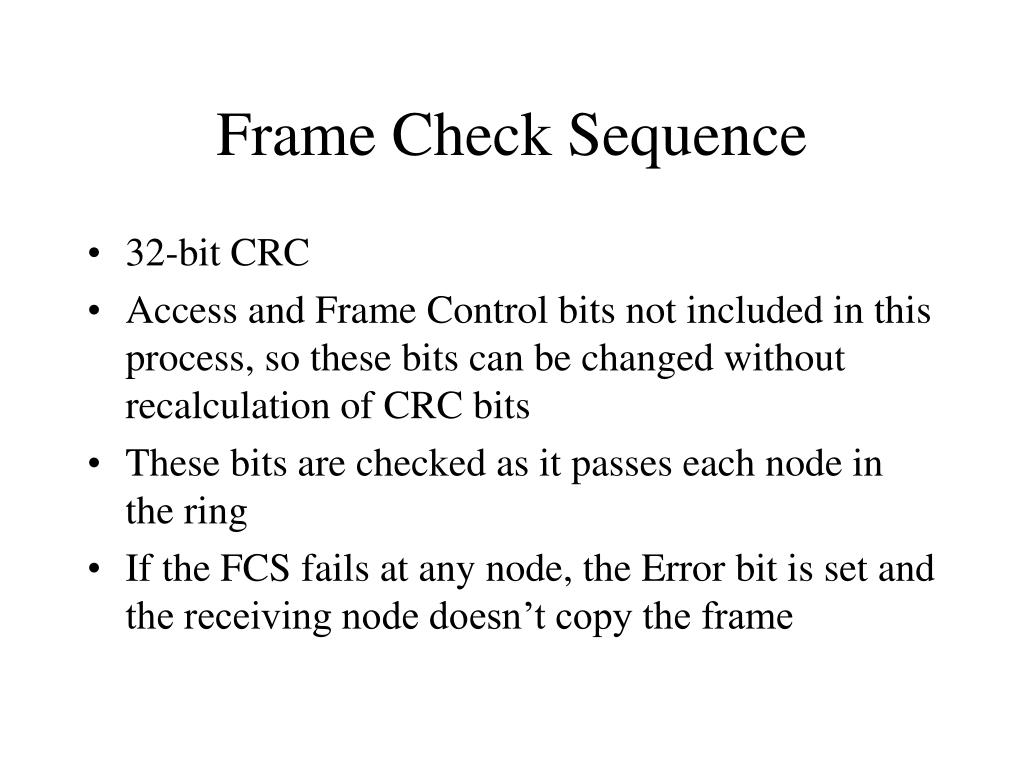

  15. Frame Check Sequence • 32-bit CRC • Access and Frame Control bits not included in this process, so these bits can be changed without recalculation of CRC bits • These bits are checked as it passes each node in the ring • If the FCS fails at any node, the Error bit is set and the receiving node doesn’t copy the frame

  16. FDDI • Network developed by ANSI • Uses fiber optics • Token ring that operates at 100Mbps • Designed to operate over long distances • Usually acts as a high-speed backbone • Allows for several frames on ring • Station can release token as soon as it is through transmitting frames • Uses two counter-rotating rings

  17. Homework • Begin reading Chapter 2 • Be ready for possible quiz – Chapter 1
