Charging by Contact 2: CONDUCTION

perry avatar
perry
11 diapositives · 429 Views · Oct 08, 2014

Charging by Contact 2: CONDUCTION. Name two ways that objects can receive an electric charge. Describe how a material can be charged by contact (conduction). KEY WORDS Conduction Pith ball Charge separation Electroscope Particle model for electrostatics.

#charging by contact 2: conduction #charging by contact 2: conduction ppt #powerpoint #presentation

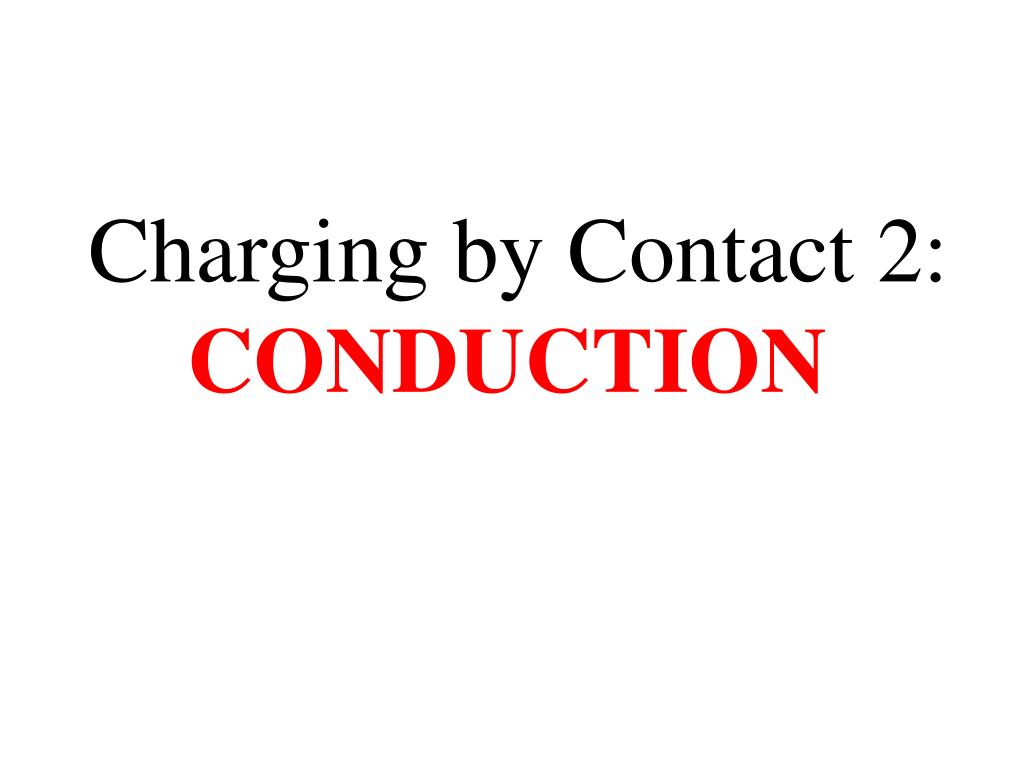

Charging by Contact 2: CONDUCTION - slide 1
01 / 11Charging by Contact 2: CONDUCTION
1 / 17

Télécharger la présentation

Charging by Contact 2: CONDUCTION
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Charging by Contact 2: CONDUCTION

  2. Name two ways that objects can receive an electric charge. • Describe how a material can be charged by contact (conduction). KEY WORDS Conduction Pith ballCharge separation Electroscope Particle model for electrostatics

  3. Because of the ability of electrons to move, it is possible to induce a charge separationin objects. Charge separation is deliberatemovement of electrons to one part of a material. It is responsible for most attraction forces seen in objects. This works better for some materials (conductors)than others (insulators).

  4. Attraction Electrons move - causes charge separation.

  5. Electroscope is a tool for determining whether or not an electrical charge is present in an object. • It can provide 3 kinds of measurement: • detect the presence of an electrostatic charge. • determine the type of charge on an object. • determine the amount of charge on an object. We will use two kinds: pith ball electroscopes and foil electroscopes (Pith is a light plant material).

  6. Charged object moves away – electrons redistribute - leaves fall back down.

  7. 1. Triboelectric Charging • Twoneutral objects are rubbed together, which transfers electrons resulting in charged objects. • 2. Conduction • Electric charge can travel by touching a • charged object to a neutral object. • Results in a neutral object gaining a charge. • Electrons move towards the more positive object - impartingcharge.

  8. CONDUCTION– with (-) rod e- Negative charge (excess e-) Negative charge (excess e-) • Charged rod. 2. Charge separation in pith ball (attraction) 3. Pith touches rod – electrons move towards positives. 4. Charge transferred to pith - same as rod. (repulsion)

  9. CONDUCTION– with (+) rod e- Positive charge (lost e-) Positive charge (lost e-) • Charged rod. 2. Charge separation in pith ball (attraction) 3. Pith touches rod – electrons move towards positives. 4. Charge transferred to pith - same as rod. (repulsion)

  10. Particle model of electrostatics: • Charge is a particle that is conserved – can’t be created or destroyed. • Two kinds of charge - positive and negative / attraction and repulsion. • Neutral objects have equal numbers of positive and negative charges. • Only negative charges move. • Two neutral objects can be charged by rubbing (friction) against each other – triboelectric charging. • Charged object can charge neutral object by touching – conduction. • Materials, which allow charges to move easily, are called conductors. Materials in which charges do not move easily are called insulators
