  1. Introducing the TDS3000C Series Oscilloscopes Continuing to deliver the industry standard

  2. Key Specifications Tektronix Confidential

  3. Introducing the TDS3000C Series Performance you need at a price you can afford Tektronix Confidential

  4. Performance Digital Phosphor Oscilloscope • Capture, store, display and analyze three dimensions of signal information in real time • Amplitude • Time • Distribution of amplitude over time • Enables fast waveform capture rates • Enables real-time intensity graded display Real-time intensity grading highlights the history of a signal’s activity. The history remains even after the acquisition is stopped! Tektronix Confidential

  5. Performance 5.0 GS/s on all channels! Digital Real-Time Sampling Technology • Accurately characterize a wide range of signal types on all channels simultaneously • Full rated bandwidth on single-shot or non-repetitive signals • Capture high-frequency information, such as glitches and edge anomalies • No change in sample rate when additional channels are turned on Tektronix Confidential

  6. Performance Robust Math and Measurement System • 25 Automatic Measurements • Use the full acquisition or isolate a specific occurrence within an acquisition • Display and 4 measurements or all measurement snapshot feature • Waveform math add, subtract, multiple and divide (and FFT) • Use the full acquisition • Use any active waveform or reference waveform for math source Tektronix Confidential

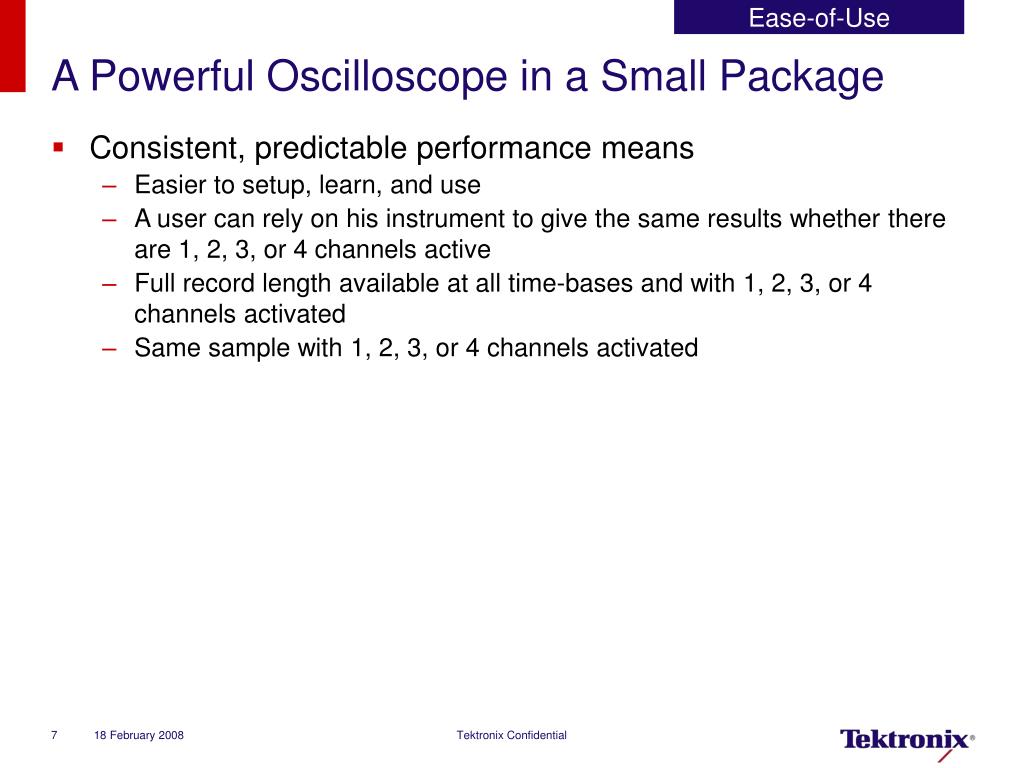

  7. Ease-of-Use A Powerful Oscilloscope in a Small Package • Consistent, predictable performance means • Easier to setup, learn, and use • A user can rely on his instrument to give the same results whether there are 1, 2, 3, or 4 channels active • Full record length available at all time-bases and with 1, 2, 3, or 4 channels activated • Same sample with 1, 2, 3, or 4 channels activated Tektronix Confidential

  8. Ease-of-Use 10/100Base-T Ethernet Optional module includes: Video out, GPIB, RS-232 port USB thumb drive port on front of instrument A Powerful Oscilloscope in a Small Package • Modern PC connectivity is included standard • Tektronix OpenChoice Desktop • NI LabVIEW SignalExpress Tektronix Edition New NI LabVIEW SignalExpress TE LESupports 100s of instruments of various brands and series Tektronix Confidential

  9. Compact Design 5.9 inches(149 mm) deep! A Powerful Oscilloscope in a Small Package At just under six inches deep, the TDS3000C Series frees up bench space Optional battery pack provides 3 hours of operation away from an AC power source. Allows floating measurements up to 30VRMS. Tektronix Confidential

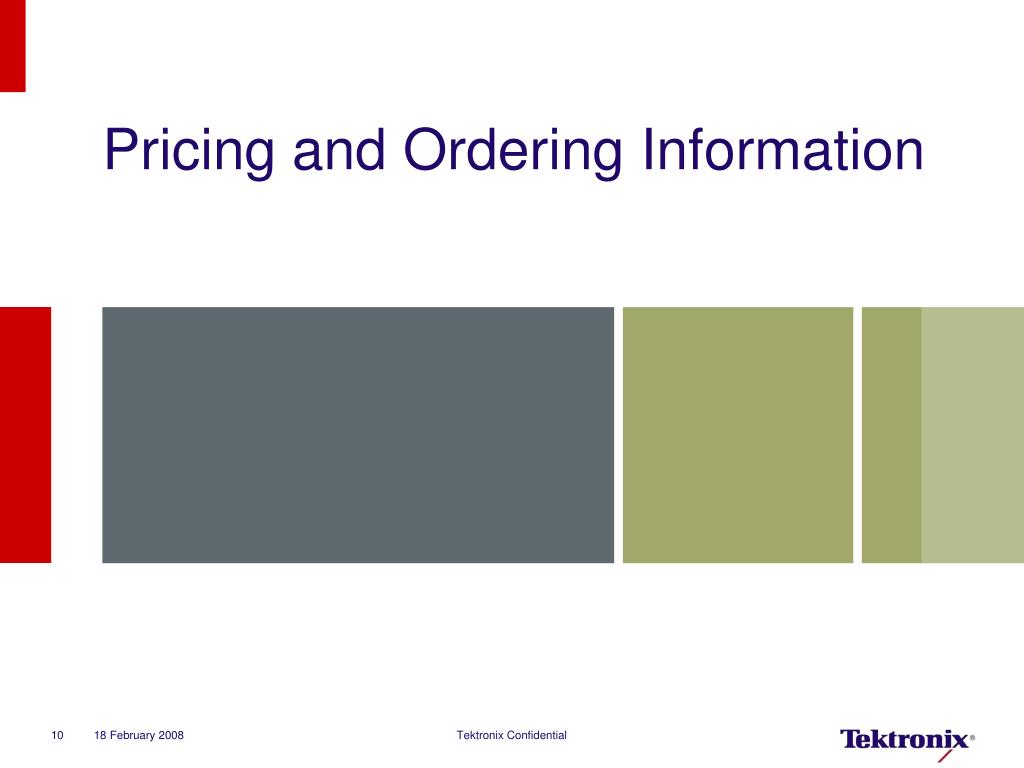

  10. Pricing and Ordering Information Tektronix Confidential

  11. TDS3000C Series: Product Ordering Information Note: Accessories and Recommended Probes in Back of Presentation Tektronix Confidential

  12. TDS3000C Series: Application Modules Note: Accessories and Recommended Probes in Back of Presentation Tektronix Confidential

  13. Key Dates Tektronix Confidential

  14. Key Dates Tektronix Confidential

  15. Thank You Tektronix Confidential

  16. Tektronix Confidential

  17. Backup Slides Tektronix Confidential

  18. Differences Between TDS3000C series and TDS3000B series Tektronix Confidential

  19. Whole Product SolutionsStandard Accessories that Come with each TDS3000C Series Tektronix Confidential

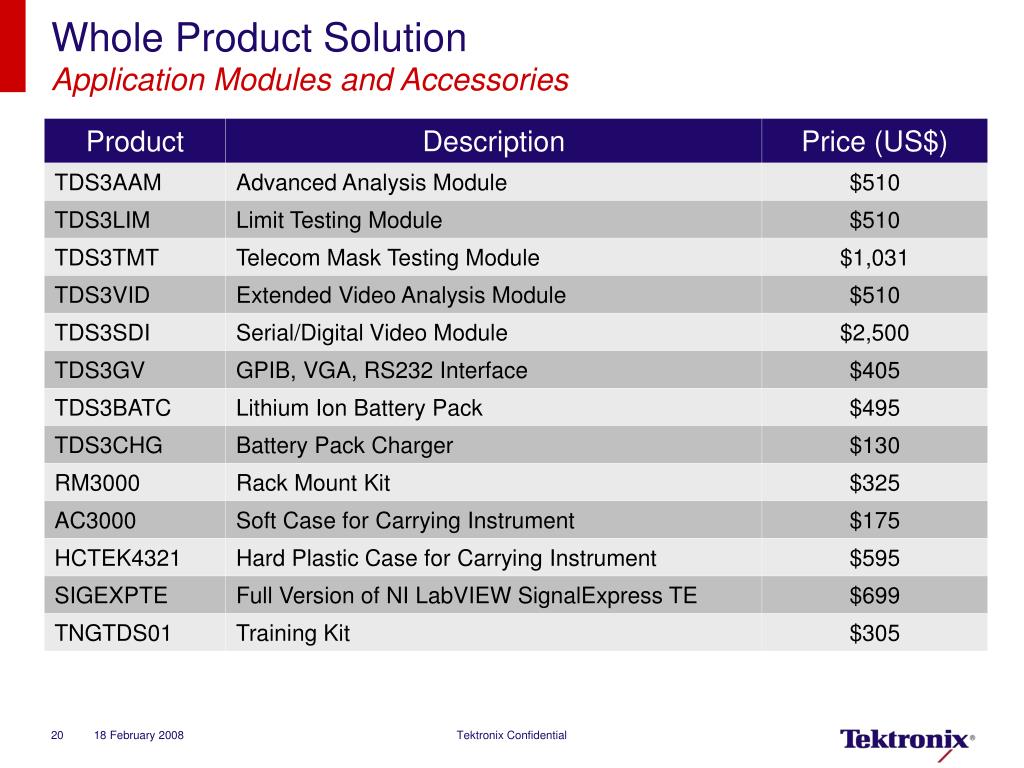

  20. Whole Product SolutionApplication Modules and Accessories Tektronix Confidential

  21. End of Presentation Tektronix Confidential
