  1. GENISYS TECHNICIAN TRAINING Steve Zack - SPX

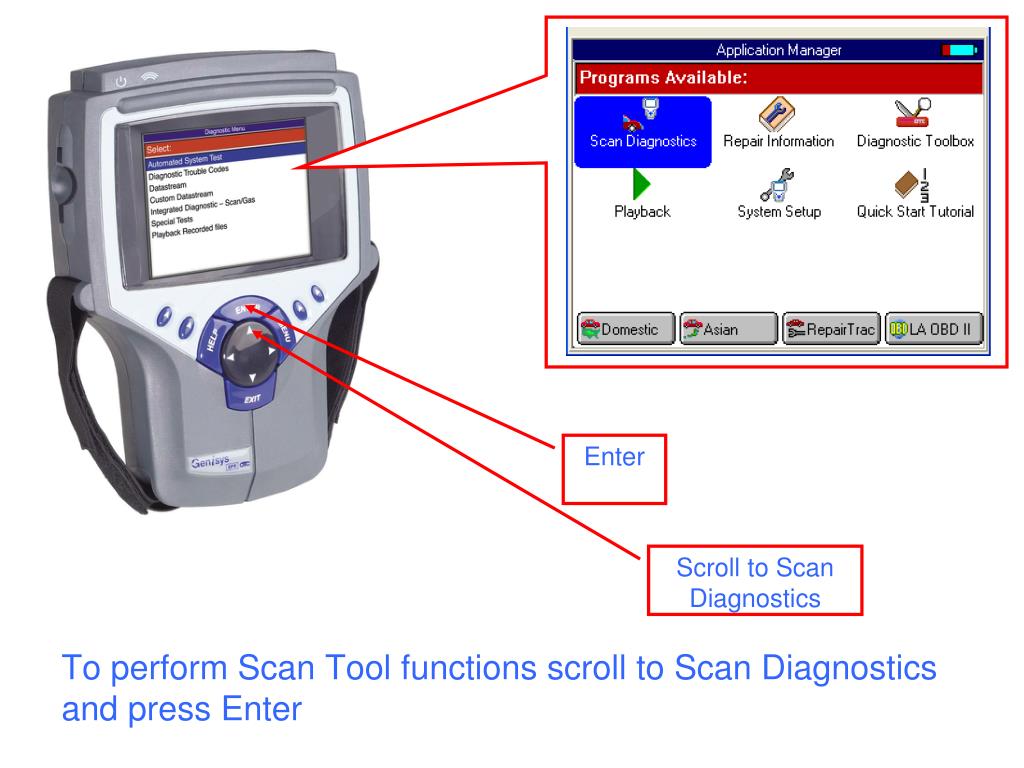

  2. To perform Scan Tool functions scroll to Scan Diagnostics and press Enter Enter Scroll to Scan Diagnostics

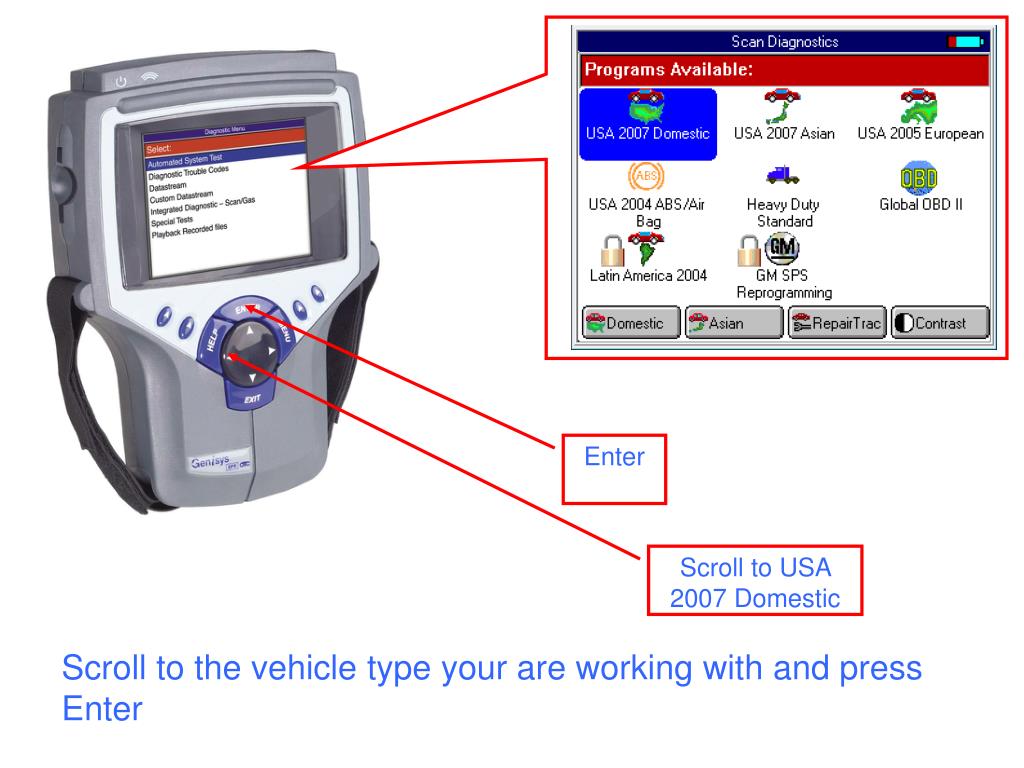

  3. Scroll to the vehicle type your are working with and press Enter Enter Scroll to USA 2007 Domestic

  4. Scroll to the brand of vehicle your are working on and press Enter Enter Scroll to GM

  5. Scroll to the Year Range of the vehicle and press Enter Enter Scroll to 2000 - 2007

  6. Scroll to the year of the vehicle and press Enter Enter Scroll to 2003

  7. Scroll to the make of the vehicle your are working on and press Enter Enter Scroll to Chevrolet

  8. Select Car or Truck and press Enter Enter Scroll to Car

  9. Scroll to the Carline and press Enter Enter Scroll to Impala

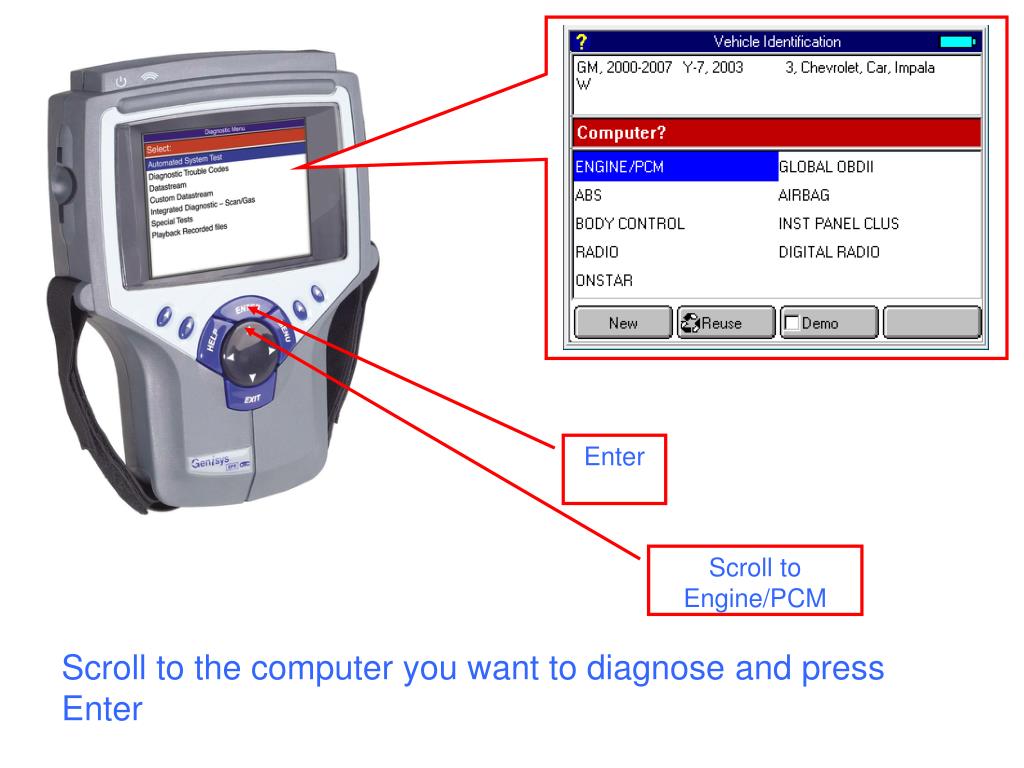

  10. Scroll to the computer you want to diagnose and press Enter Enter Scroll to Engine/PCM

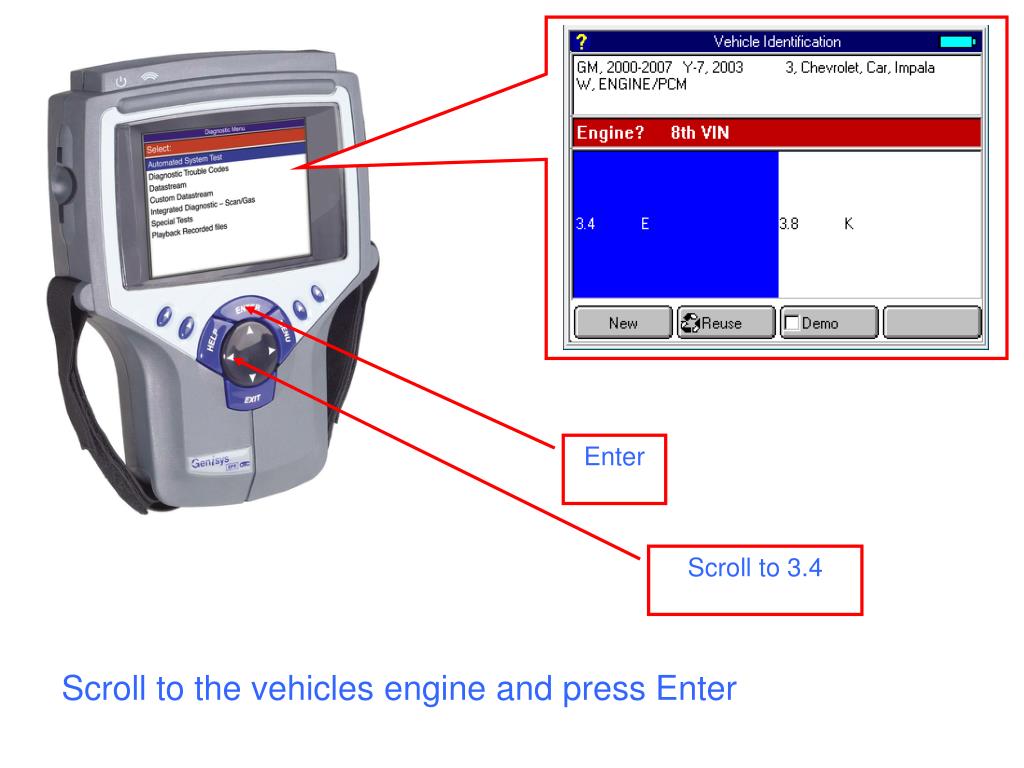

  11. Scroll to the vehicles engine and press Enter Enter Scroll to 3.4

  12. Select the Smart Cable as shown from the tool box, install it on the Scan Tool and to the Vehicle

  13. For training purposes, press the Demo soft key and then press Enter Enter Press the Demo soft key

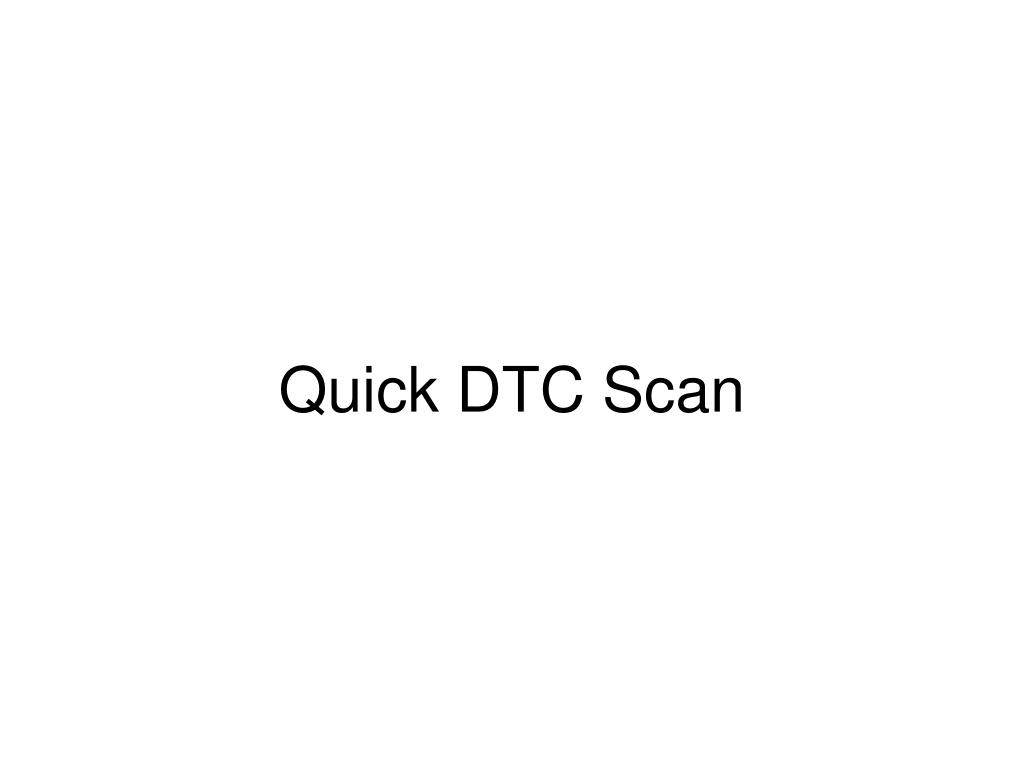

  14. Quick DTC Scan

  15. Scroll to Quick DTC and press Enter Enter Scroll to Quick DTC

  16. Processing OEM DTCs for you to review at the end of the test

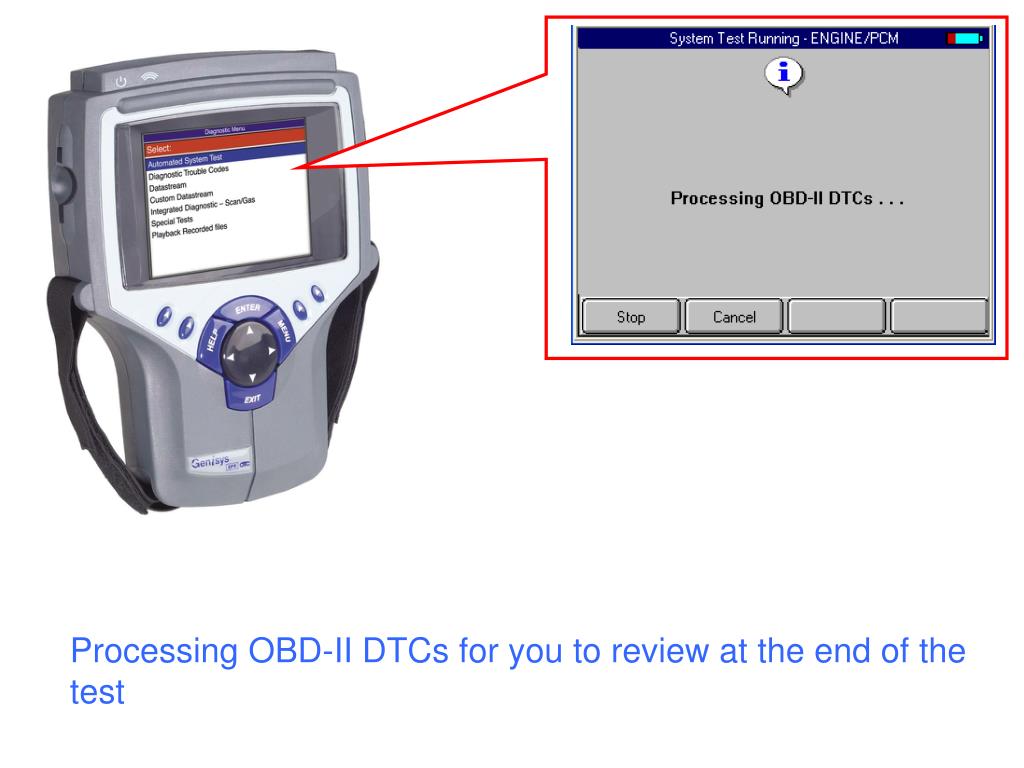

  17. Processing OBD-II DTCs for you to review at the end of the test

  18. Processing comprehensive data for you to review at the end of the test

  19. Scroll to the DTC you wish to diagnose and press Enter Enter Scroll to DTC P0101B

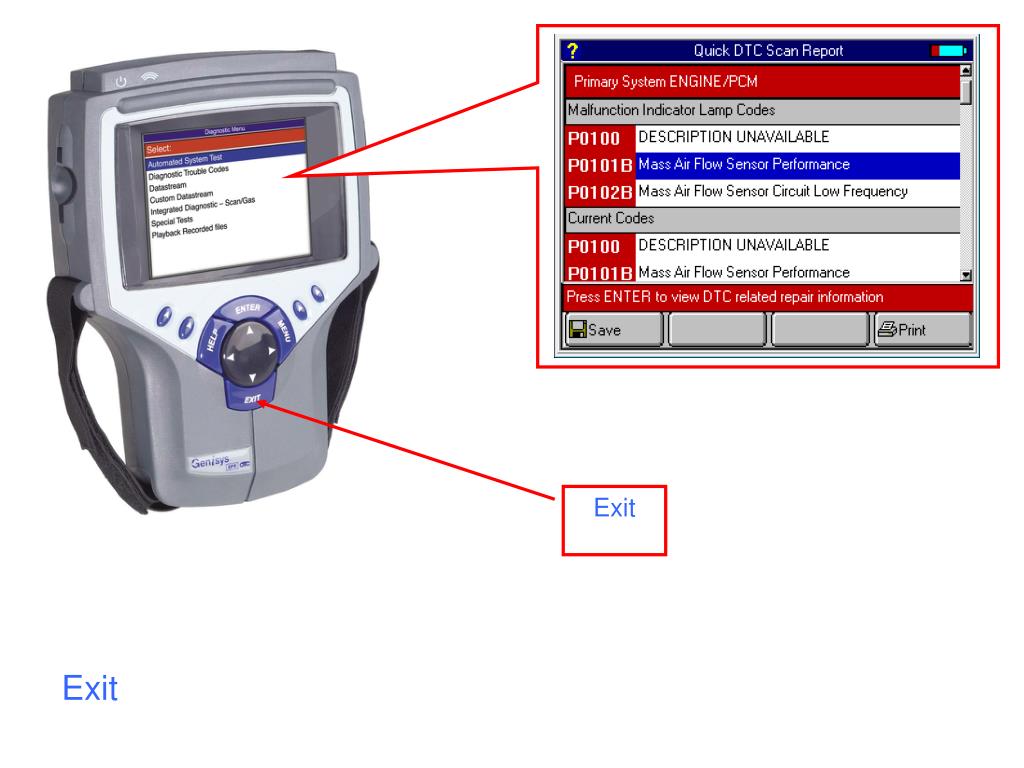

  20. Exit Exit

  21. Exit Exit

  22. Automated Systems Tests

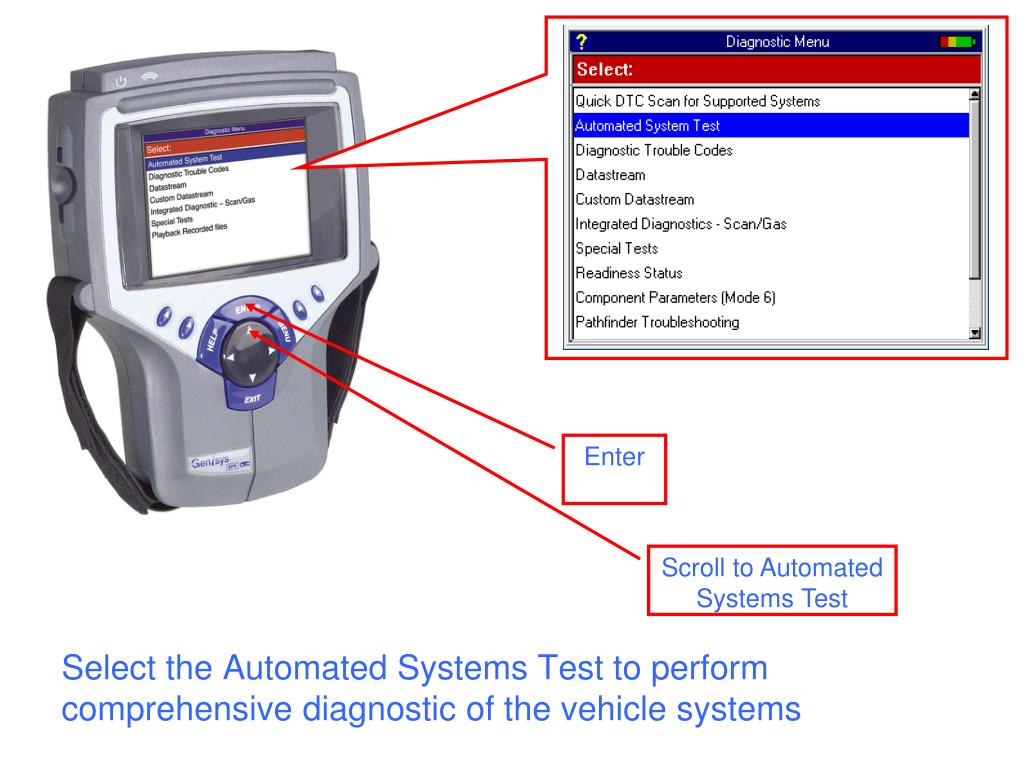

  23. Select the Automated Systems Test to perform comprehensive diagnostic of the vehicle systems Enter Scroll to Automated Systems Test

  24. Processing Freeze Frame data for you to review at the end of the test

  25. Processing O2 Sensor Test data for you to review at the end of the test

  26. Processing OBD-II DTCs for you to review at the end of the test

  27. Processing OEM DTCs for you to review at the end of the test

  28. Processing Datastream for you to review at the end of the test

  29. Processing OEM DTCs for you to review at the end of the test

  30. Scroll to Trouble Codes and press Enter Enter Scroll to Trouble Codes

  31. Scroll to the Trouble Code you wish to diagnose and press Enter for diagnostic information Enter Scroll to fault code P0101B

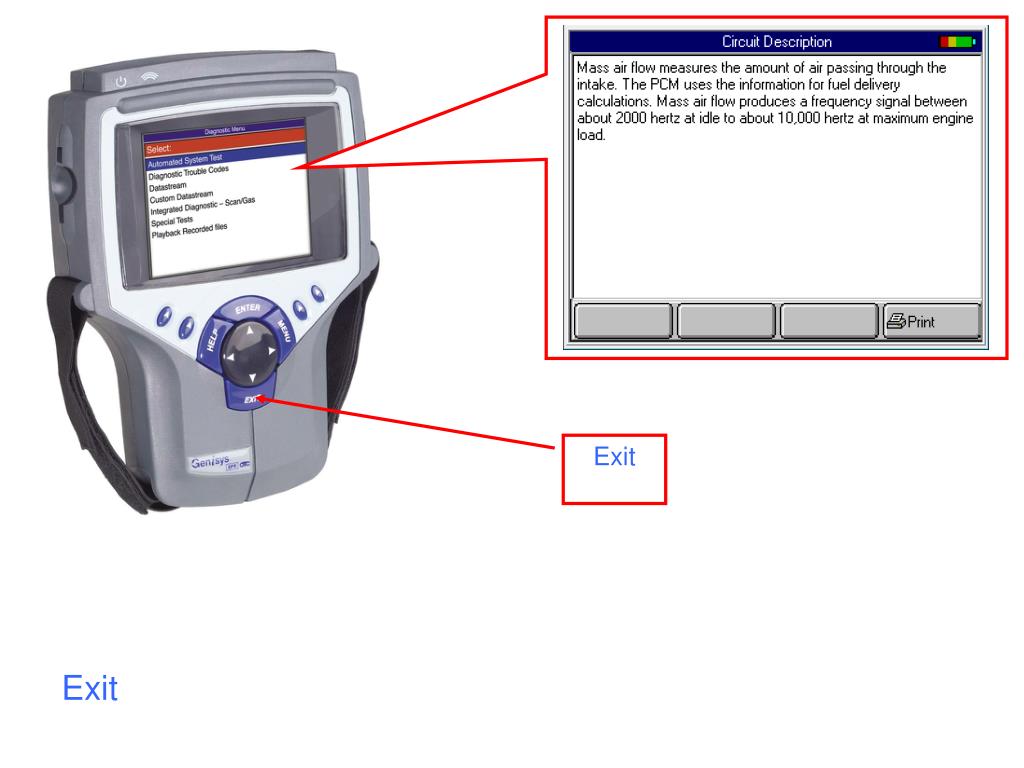

  32. Scroll to Circuit Description to determine how the circuit at fault functions Enter Scroll to Circuit Description

  33. Exit Exit

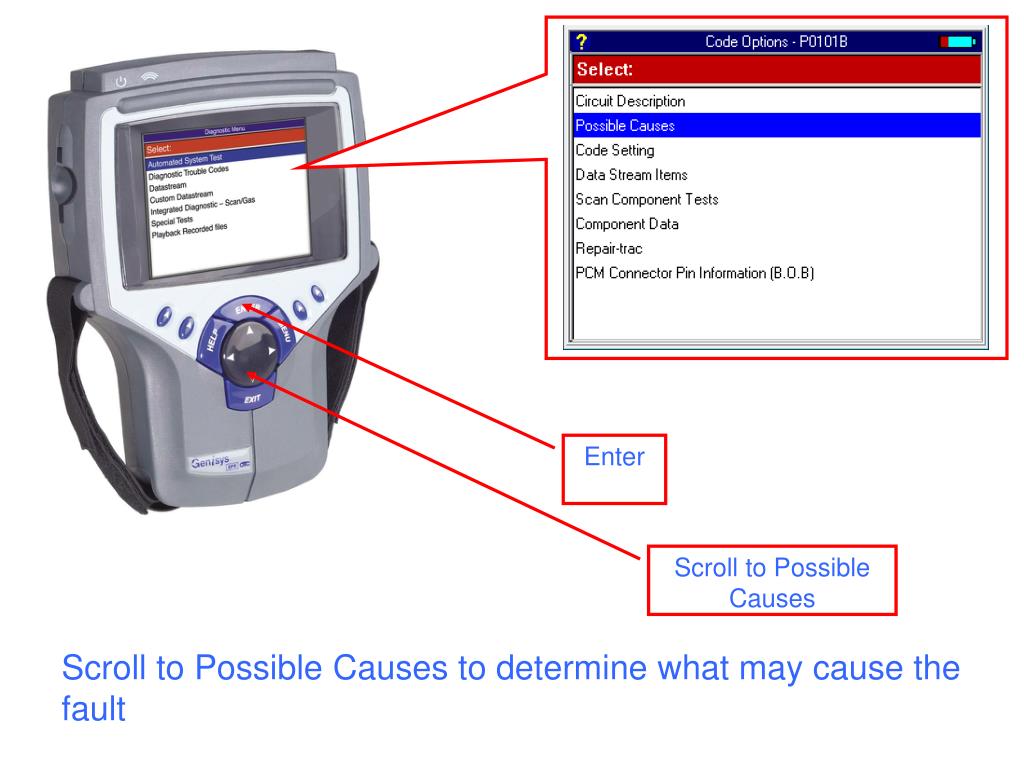

  34. Scroll to Possible Causes to determine what may cause the fault Enter Scroll to Possible Causes

  35. Exit Exit

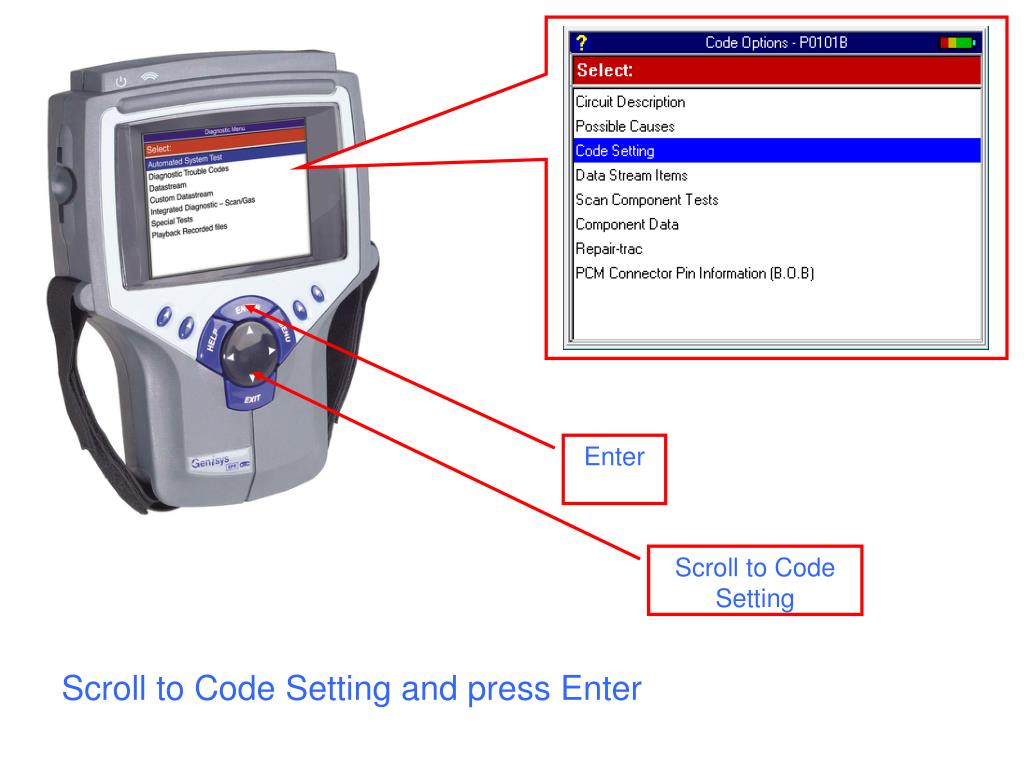

  36. Scroll to Code Setting and press Enter Enter Scroll to Code Setting

  37. Enter Enter

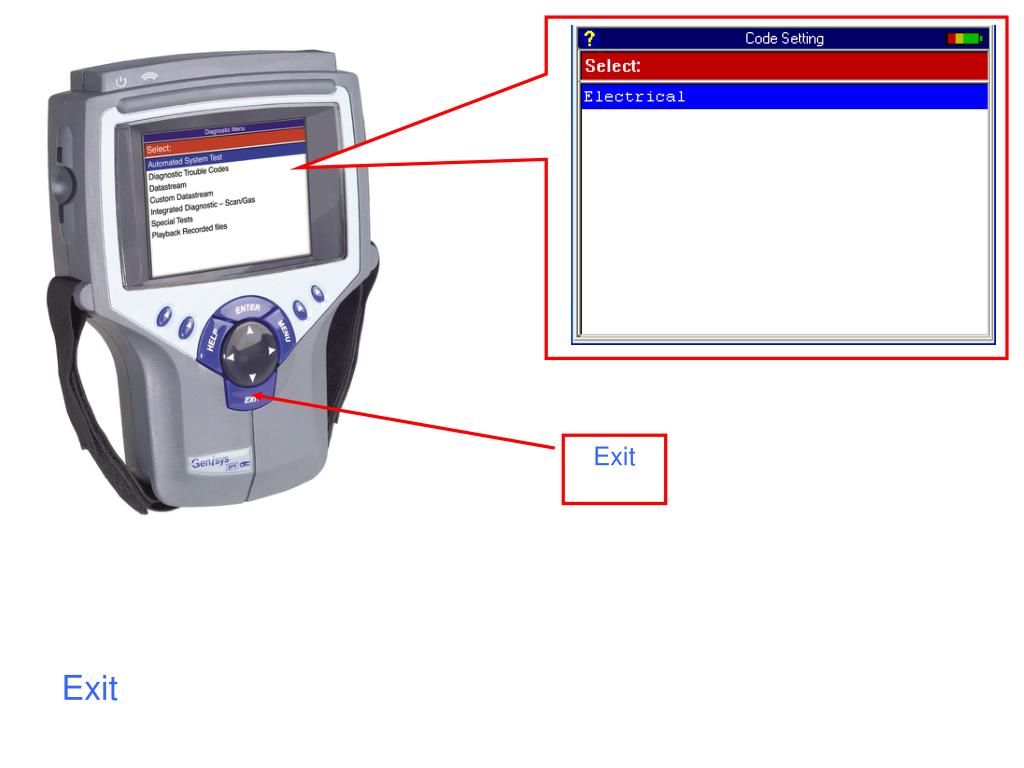

  38. Exit Exit

  39. Exit Exit

  40. Scroll to Data Stream items and press Enter to review related freeze frame datastream Enter Scroll to Data Stream Items

  41. Exit Exit

  42. Scroll to Scan Component Tests and press Enter to review diagnostic test procedures Enter Scroll to Scan Component Tests

  43. Press the Datastream soft key to review related Datastream Press Datastream soft key

  44. Exit Exit

  45. Exit Exit

  46. Scroll to Component Data and press Enter Enter Scroll to Component Data

  47. Enter Enter

  48. Scroll to the type of component and press Enter Enter Scroll to Digital HF

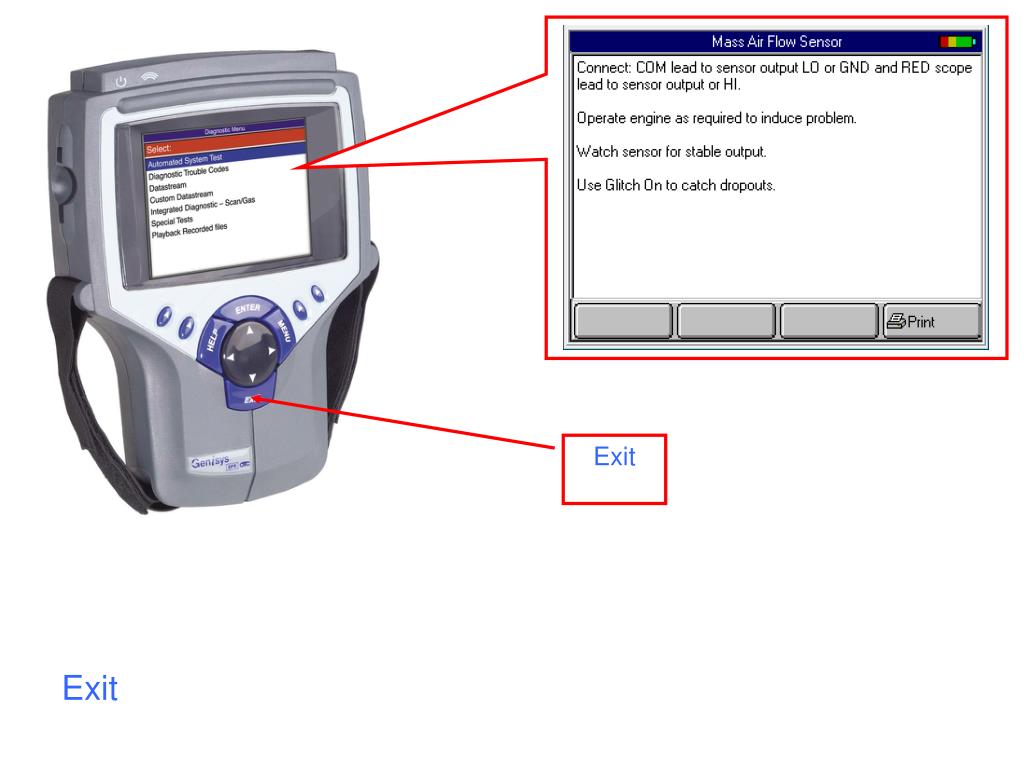

  49. Exit Exit

  50. Exit Exit
