  1. MEASUREMENT OF LENGTH

  2. LENGTHISSHOWS THE DISTANCE BETWEEN TWO POINTONE STANDARD METER IS THE SAME AS THE DISTANCE TRAVELED BY LIGTH IN A VACUUM 1/299792458 SECOND OR = 1/3.108 SECOND

  3. SOME TOOLS FOR MEASURING LENGTHrule , meter tape ,vernier caliper etc

  4. How to use the Vernier caliper ? (JANGKA SORONG)

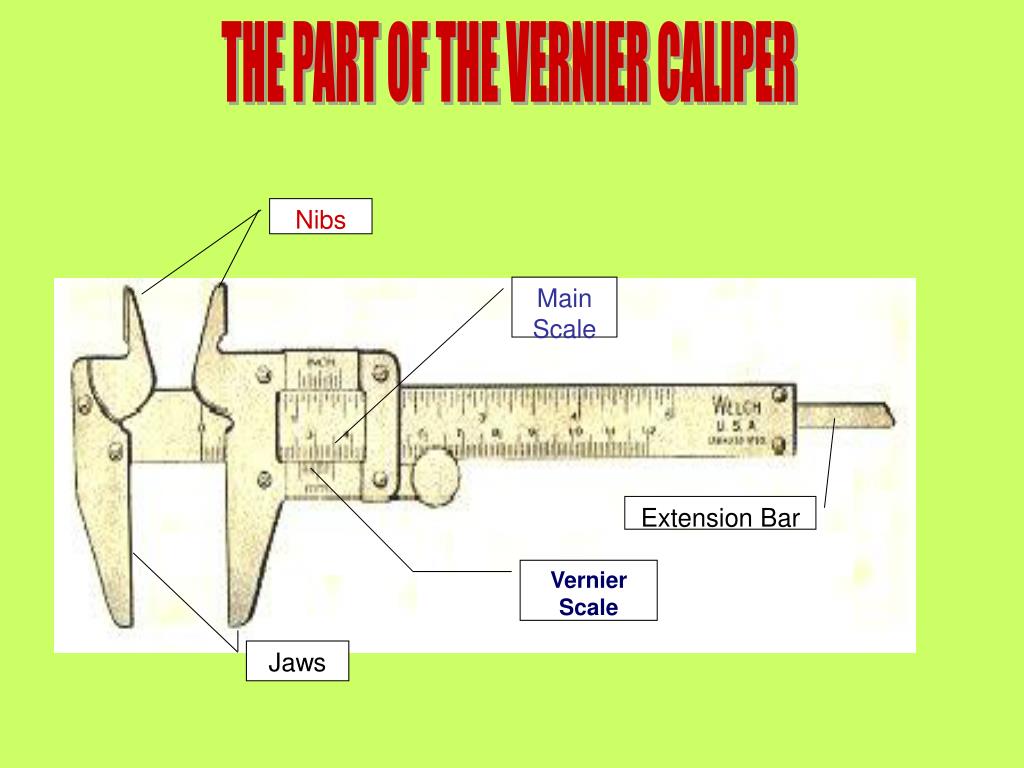

  5. Nibs Main Scale Extension Bar Vernier Scale Jaws THE PART OF THE VERNIER CALIPER

  6. 0 cm 1 cm 2 cm Main Scale Vernier Scale 0 10

  7. Main Scale Vernier Scale

  8. How to read the result of measuring by using the Vernier caliper

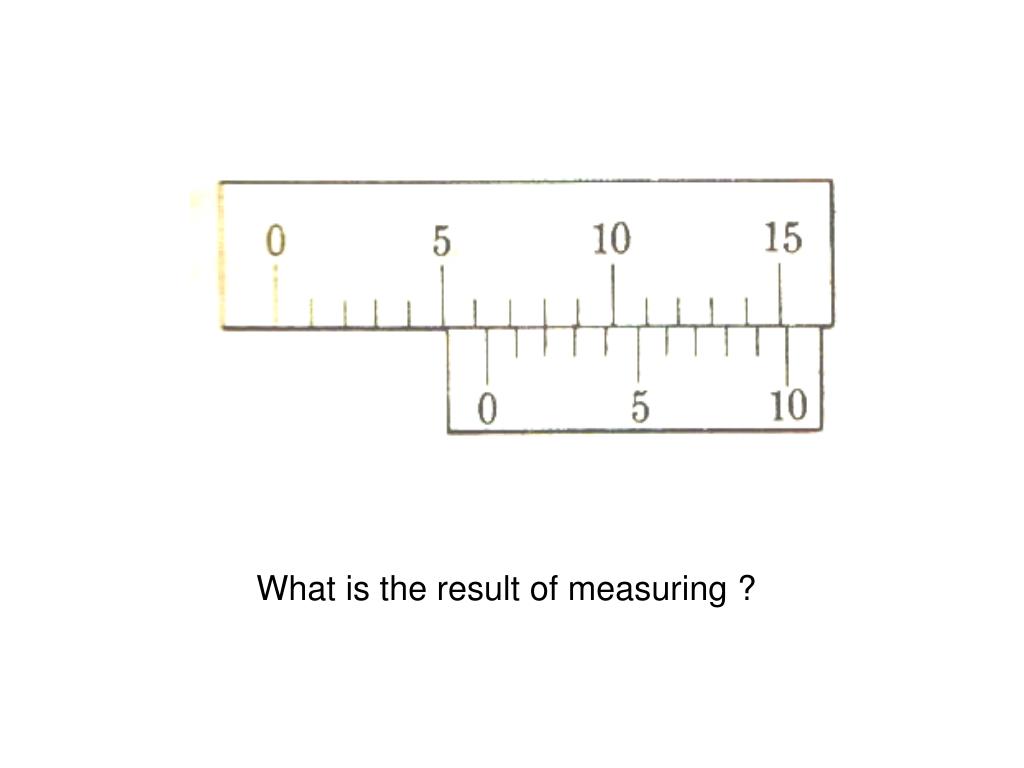

  9. What is the result of measuring ?

  10. What does it mean ?

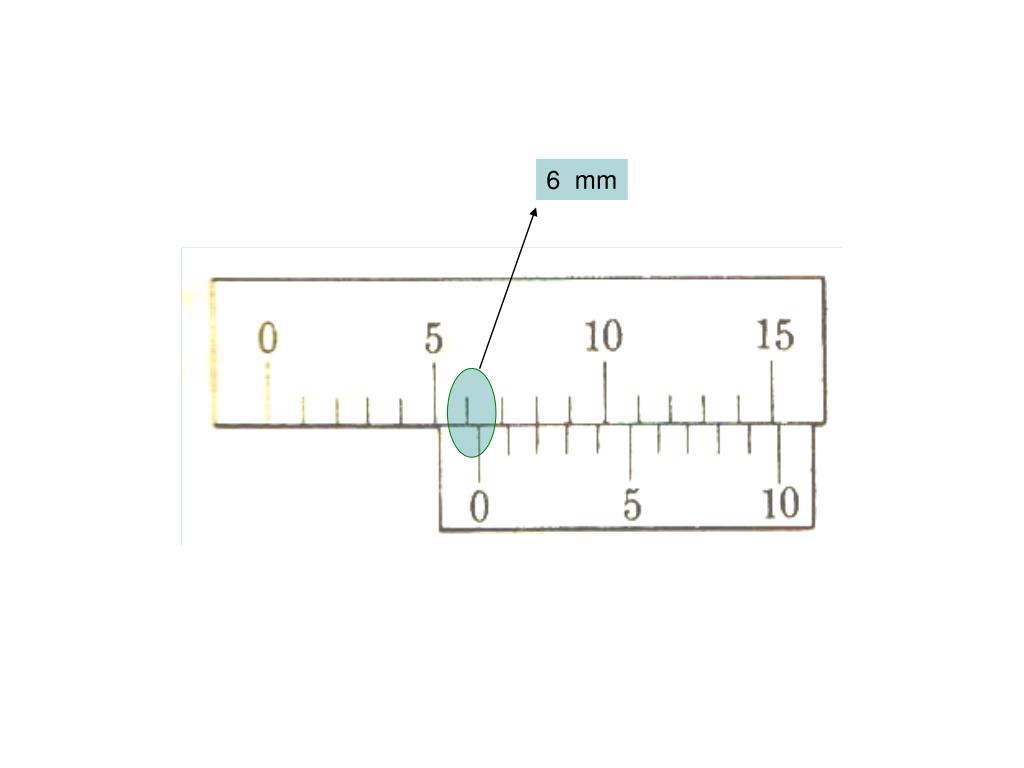

  11. 6 mm

  12. What does it mean ?

  13. ( 2 x 0.1 ) mm

  14. 6 mm ( 2 x 0.1 ) mm The result of measuring is ( 6 mm + 0.2 mm ) = 6.2 mm

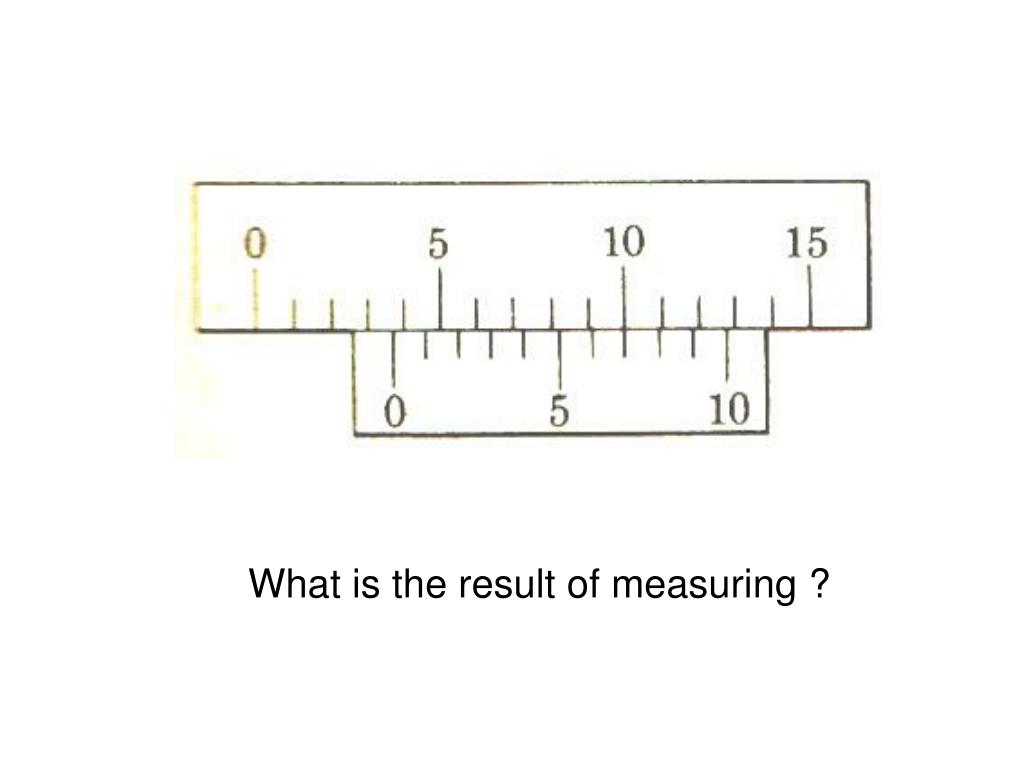

  15. What is the result of measuring ?

  16. The result of measuring is : ( 3 mm + ( 7 x 0.1 ) mm ) = 3.7 mm

  17. Now, measure the cube of iron and the others using Vernier caliper and write down the result of measuring on your worksheet.

  18. Student Worksheet Topic : To measure by using the Vernier caliper

  19. Main scale Lock Vernier Scale The Vernier caliper

  20. The result of measuring is : ( 20 mm + ( 3 x 0.05 ) mm ) = 20.15 mm

  21. Home Work for groups What is the relationship between multiplier and subdivisions in Vernier caliper ?

  22. 6 mm The result of measuring is ( 6 mm + 0.2 mm ) = 6.2 mm 20 mm 20 mm ( 3 x 0.05 ) mm ( 3 x 0.05 ) mm The result of measuring is ( 20 mm + 0.15 mm ) = 20.15 mm The result of measuring is ( 20 mm + 0.15 mm ) = 20.15 mm ( 2 x 0.1 ) mm

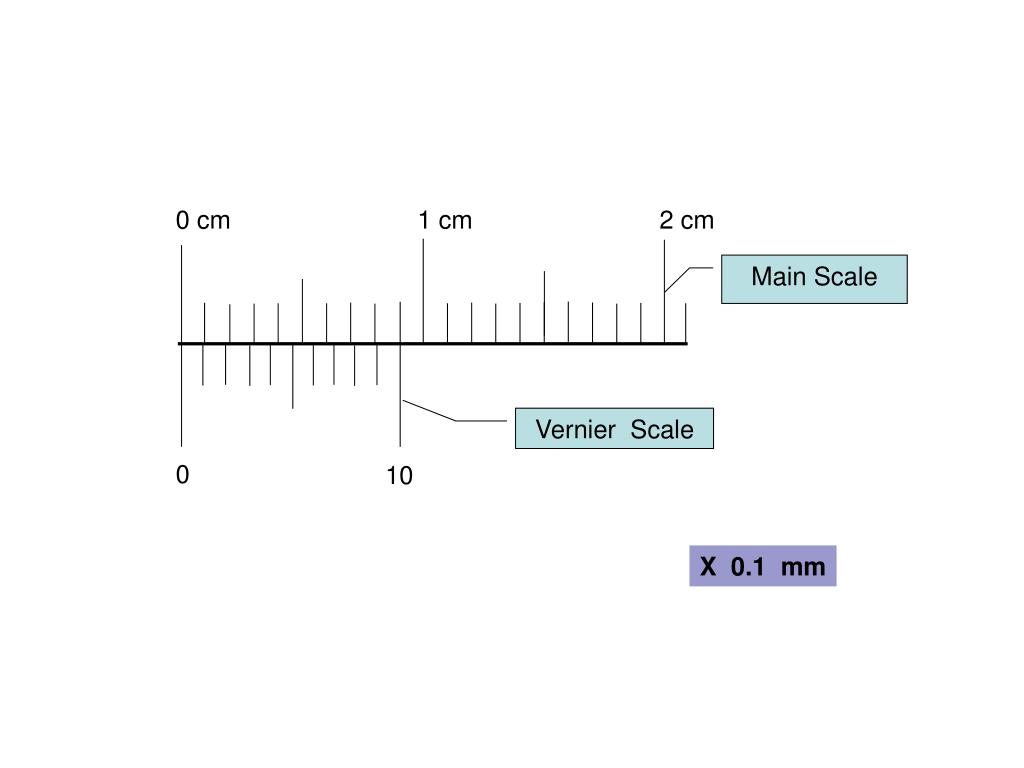

  23. 0 cm 1 cm 2 cm Main Scale Vernier Scale 0 10 X 0.1 mm

  24. 0 cm 1 cm 2 cm Main Scale Vernier Scale 0 2 4 6 8 10 X 0.05 mm

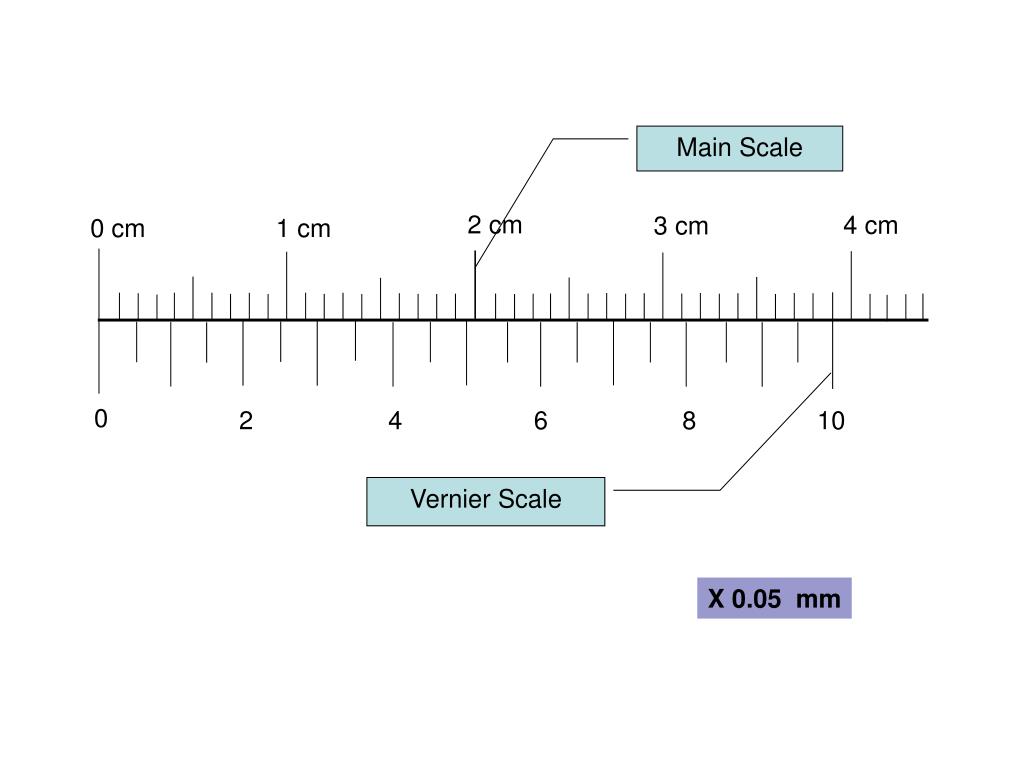

  25. Main Scale 2 cm 4 cm 3 cm 0 cm 1 cm 0 2 4 6 8 10 Vernier Scale X 0.05 mm
