  1. Chapter 12 TROUBLESHOOTING

  2. Chapter 12: TROUBLESHOOTING OVERVIEW • Determine whether a network communications problem is related to TCP/IP. • Understand how TCP/IP client configuration problems can affect computer performance. • List the reasons why a DHCP client might fail to obtain an IP address from a DHCP server. • List the reasons a DNS client might experience name resolution failures, might supply incorrect information, and might be unable to resolve names for which it is not the authority.

  3. Chapter 12: TROUBLESHOOTING OVERVIEW (continued) • Use TCP/IP tools to isolate a router problem. • Check an RRAS installation for configuration problems. • Troubleshoot static and dynamic routing problems. • Determine the location of an Internet access problem.

  4. Chapter 12: TROUBLESHOOTING OVERVIEW (continued) • Understand client configuration problems and router, NAT, and proxy server problems that can interrupt Internet access. • List possible causes of IPSec policy mismatches. • Describe the functions of the IP Security Monitor and the Resultant Set of Policy (RSoP) snap-ins.

  5. Chapter 12: TROUBLESHOOTING TROUBLESHOOTING TCP/IP ADDRESSING • Isolating TCP/IP problems • Troubleshooting client configuration problems

  6. Chapter 12: TROUBLESHOOTING ISOLATING TCP/IP PROBLEMS • Many problems can cause what appears to be a TCP/IP error when in fact the underlying hardware or network infrastructure is at fault. • Determine if there is a problem with the physical configuration of the system by attempting to access the network using a different protocol. • Check physical elements, such as networking cabling, and hardware devices, such as hubs, switches, and routers.

  7. Chapter 12: TROUBLESHOOTING TROUBLESHOOTING CLIENT CONFIGURATION PROBLEMS • Duplicate IP addresses are a cause of many problems on networks that use static IP address configuration. • Attempting to connect a system to the network with a duplicate IP address will prevent the system from communicating on the network. • Implementing DHCP all but eliminates issues with IP address conflicts.

  8. Chapter 12: TROUBLESHOOTING INCORRECT SUBNET MASKS • Two systems on the same physical network segment with two different subnet masks will be unable to communicate. • Use ipconfig /all to determine that the correct subnet mask values have been configured. • Configuring IP addressing via DHCP should eliminate subnet mask addressing conflicts.

  9. Chapter 12: TROUBLESHOOTING INCORRECT DEFAULT GATEWAY ADDRESSES • An incorrect default gateway address will prevent communication with systems on other subnets or networks. • Use ipconfig /all to view the configured default gateway address.

  10. Chapter 12: TROUBLESHOOTING NAME RESOLUTION FAILURES • Ensure that a name resolution failure is not due to a connectivity problem. • Attempt to connect to the target system using an IP address instead of a host name. • Examine name resolution methods such as the HOSTS file, DNS server configurations, LMHOSTS file, or WINS for possible problems.

  11. Chapter 12: TROUBLESHOOTING TROUBLESHOOTING DHCP PROBLEMS • Failure to contact a DHCP server • Failure to obtain an IP address • Failure to obtain correct DHCP options

  12. Chapter 12: TROUBLESHOOTING FAILURE TO CONTACT A DHCP SERVER • On non-APIPA-capable systems, an IP address of 0.0.0.0 will be assigned by the system. • On systems that support APIPA, an address in the 169.254 range will be assigned by the system, provided connectivity to the network can be established. • For DHCP servers on different subnets, relay agents will be required to forward DHCP broadcasts across routers.

  13. Chapter 12: TROUBLESHOOTING FAILURE TO OBTAIN AN IP ADDRESS • Check the configuration of the DHCP scopes on the server. • Ensure that the DHCP server has a scope for each of the subnets it is designed to service. • Ensure that sufficient IP addresses are available within the scope to service requests.

  14. Chapter 12: TROUBLESHOOTING FAILURE TO OBTAIN CORRECT DHCP OPTIONS • If a system is able to obtain an IP address but cannot connect to a remote system, the default gateway specified in the scope may be incorrect. • Server scope options apply to all scopes on the DHCP server. Scope options are specific to each scope.

  15. Chapter 12: TROUBLESHOOTING TROUBLESHOOTING NAME RESOLUTION • Troubleshooting client configuration problems • Troubleshooting DNS server problems

  16. Chapter 12: TROUBLESHOOTING TROUBLESHOOTING CLIENT CONFIGURATION PROBLEMS • Commence name resolution troubleshooting only after verifying the correct operation of TCP/IP. • Use ipconfig /all to determine that at least one valid DNS server is configured. • Verify connectivity to that server using Ping.

  17. Chapter 12: TROUBLESHOOTING TROUBLESHOOTING DNS SERVER PROBLEMS • Non-functioning DNS servers • Incorrect name resolutions • Outside name resolution failures

  18. Chapter 12: TROUBLESHOOTING NON-FUNCTIONING DNS SERVERS

  19. Chapter 12: TROUBLESHOOTING TROUBLESHOOTING INCORRECT NAME RESOLUTIONS • An incorrect name resolution occurs when a host address is resolved to the wrong IP address. • Incorrect name resolutions can be caused by • Incorrect resource records • Failure of dynamic updates • Zone transfer failures

  20. Chapter 12: TROUBLESHOOTING TROUBLESHOOTING OUTSIDE NAME RESOLUTION FAILURES

  21. Chapter 12: TROUBLESHOOTING TROUBLESHOOTING TCP/IP ROUTING • Isolating router problems • Troubleshooting the Routing and Remote Access configuration • Troubleshooting the routing table

  22. Chapter 12: TROUBLESHOOTING ISOLATING ROUTER PROBLEMS • Three primary tools are used for isolating router problems: • Ping.exe • Tracert.exe • Pathping.exe

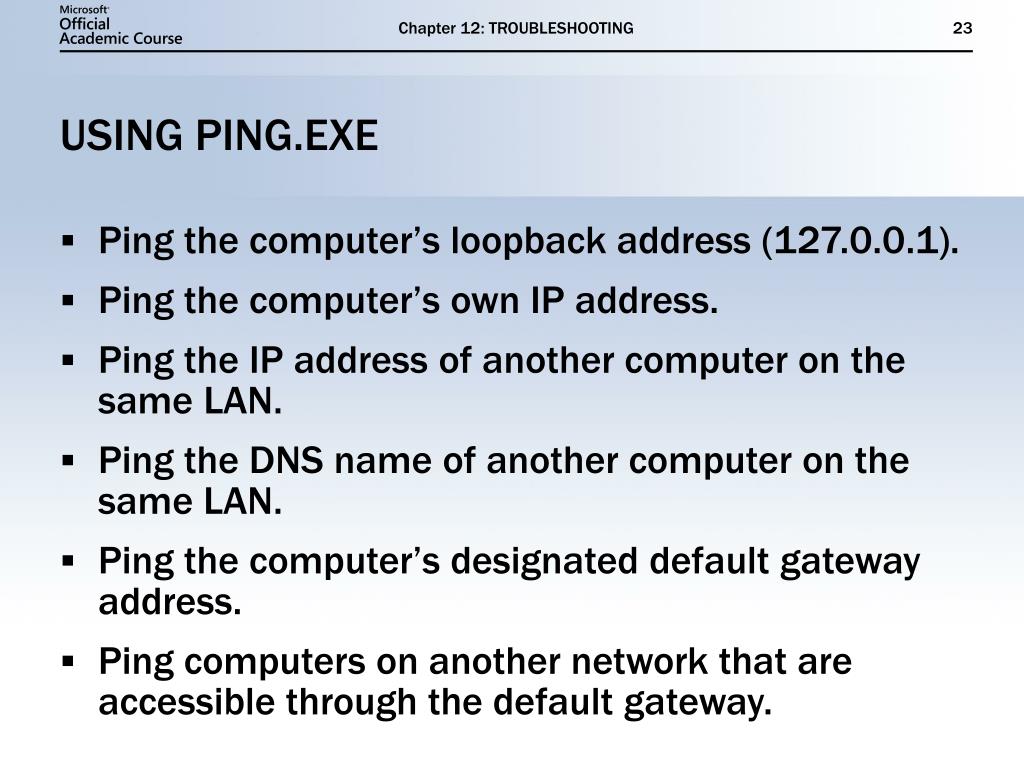

  23. Chapter 12: TROUBLESHOOTING USING PING.EXE • Ping the computer’s loopback address (127.0.0.1). • Ping the computer’s own IP address. • Ping the IP address of another computer on the same LAN. • Ping the DNS name of another computer on the same LAN. • Ping the computer’s designated default gateway address. • Ping computers on another network that are accessible through the default gateway.

  24. Chapter 12: TROUBLESHOOTING USING TRACERT.EXE • Like Ping, allows you to verify that a remote system is available on the network • Reports on every hop between source and destination and reports the time taken to complete the round trip • Allows you to identify the point on the journey at which the problem exists

  25. Chapter 12: TROUBLESHOOTING USING PATHPING.EXE • Traces a path to a particular destination and displays the names and addresses of the routers along the path • Reports packet loss rates at each of the routers on the path • Useful for diagnosing issues where data loss or transmission delays are being experienced

  26. Chapter 12: TROUBLESHOOTING TROUBLESHOOTING THE ROUTING AND REMOTE ACCESS SERVICE CONFIGURATION (RRAS) • Verify that the Routing and Remote Access Service is running. • Verify that routing is enabled. • Check the TCP/IP configuration settings. • Check the IP addresses of the router interfaces.

  27. Chapter 12: TROUBLESHOOTING TROUBLESHOOTING THE ROUTING TABLE • Troubleshooting static routing • Troubleshooting dynamic routing

  28. Chapter 12: TROUBLESHOOTING TROUBLESHOOTING STATIC ROUTING

  29. Chapter 12: TROUBLESHOOTING TROUBLESHOOTING ROUTING PROTOCOLS

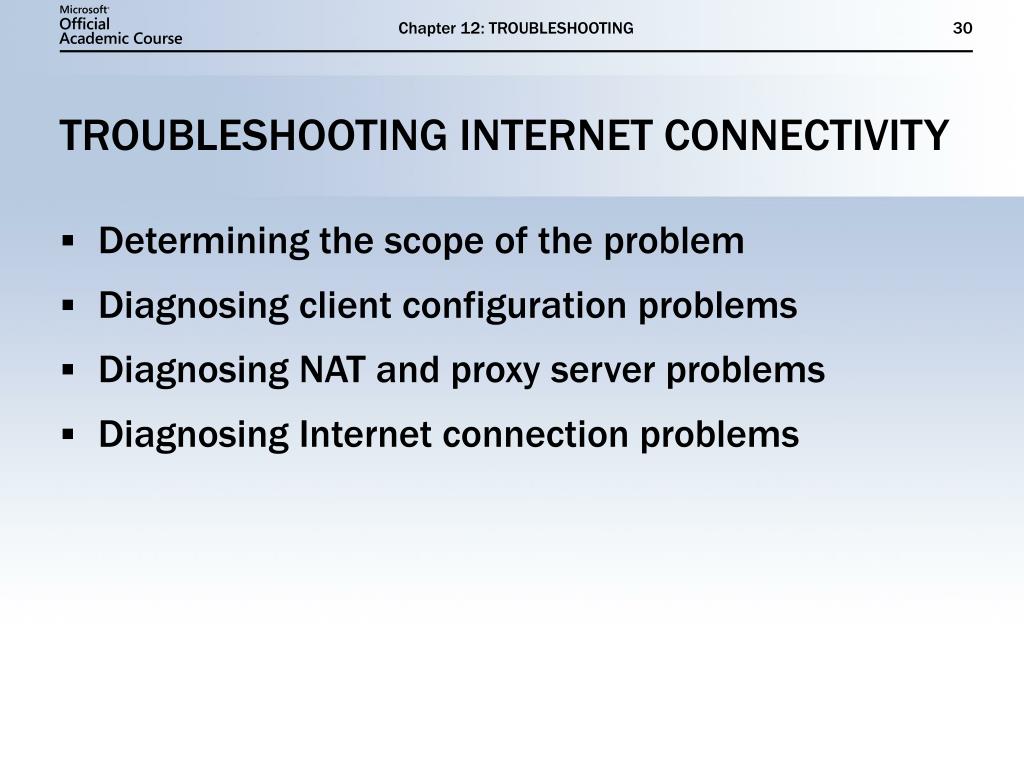

  30. Chapter 12: TROUBLESHOOTING TROUBLESHOOTING INTERNET CONNECTIVITY • Determining the scope of the problem • Diagnosing client configuration problems • Diagnosing NAT and proxy server problems • Diagnosing Internet connection problems

  31. Chapter 12: TROUBLESHOOTING DETERMINING THE SCOPE OF THE PROBLEM • Try to reproduce the Internet connectivity error and note the results. • Determine if the problem is a general connectivity issue or is confined only to Internet access. • Determine the source of the issue and troubleshoot as appropriate.

  32. Chapter 12: TROUBLESHOOTING DIAGNOSING CLIENT CONFIGURATION PROBLEMS • Check the basic TCP/IP configuration parameters. • Check that the default gateway configuration is correct. • Check that the router acting as the default gateway is configured to forward Internet traffic properly.

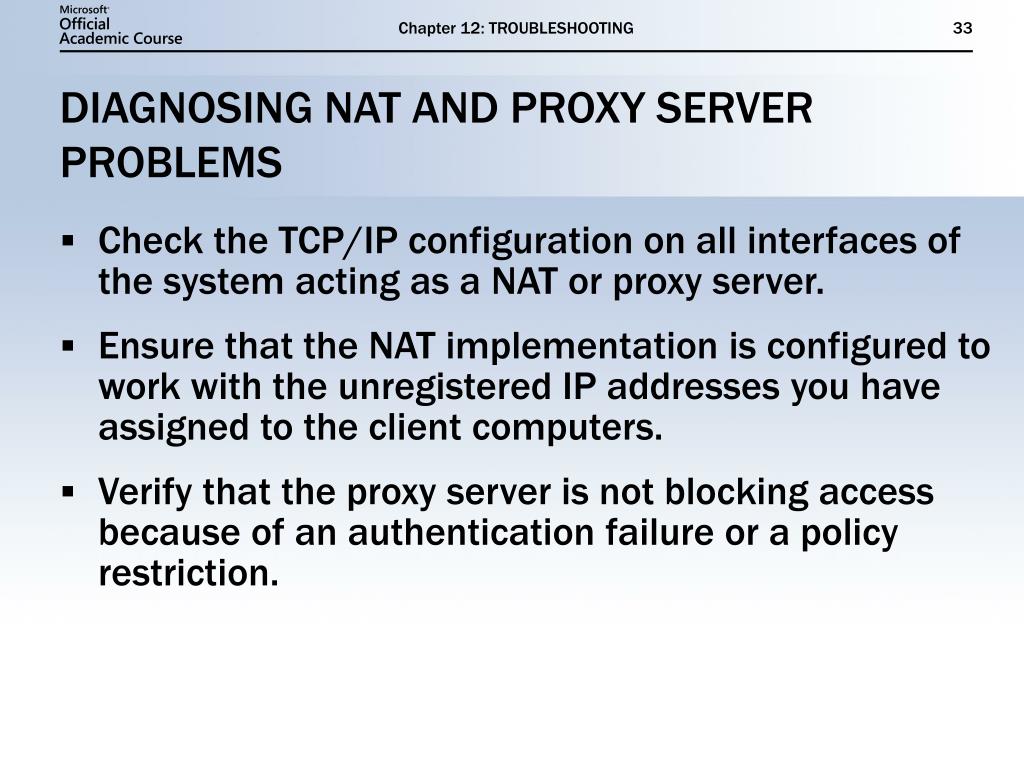

  33. Chapter 12: TROUBLESHOOTING DIAGNOSING NAT AND PROXY SERVER PROBLEMS • Check the TCP/IP configuration on all interfaces of the system acting as a NAT or proxy server. • Ensure that the NAT implementation is configured to work with the unregistered IP addresses you have assigned to the client computers. • Verify that the proxy server is not blocking access because of an authentication failure or a policy restriction.

  34. Chapter 12: TROUBLESHOOTING DIAGNOSING INTERNET CONNECTION PROBLEMS • If the Internet access router is a system other than that acting as the NAT or proxy server, check the configuration and physical connectivity. • If you have WAN hardware such as CSU/DSU, cable modem, or external ISDN adapters, cycle the power on those devices. • Contact your ISP to determine if they are aware of a problem or can assist in diagnosing and correcting your problem.

  35. Chapter 12: TROUBLESHOOTING TROUBLESHOOTING DATA TRANSMISSION SECURITY • Troubleshooting policy mismatches • Using the IP Security Monitor snap-in • Using the Resultant Set of Policy snap-in • Examining IPSec traffic

  36. Chapter 12: TROUBLESHOOTING TROUBLESHOOTING POLICY MISMATCHES • Incompatible IPSec policies or policy settings can be a common source of problems. • Policy mismatches are recorded in the Security log of Event Viewer. • Current policy settings can be viewed via the Security Monitor snap-in or the Resultant Set of Policy snap-in.

  37. Chapter 12: TROUBLESHOOTING USING THE IP SECURITY MONITOR SNAP-IN

  38. Chapter 12: TROUBLESHOOTING USING THE RESULTANT SET OF POLICY SNAP-IN

  39. Chapter 12: TROUBLESHOOTING EXAMINING IPSEC TRAFFIC

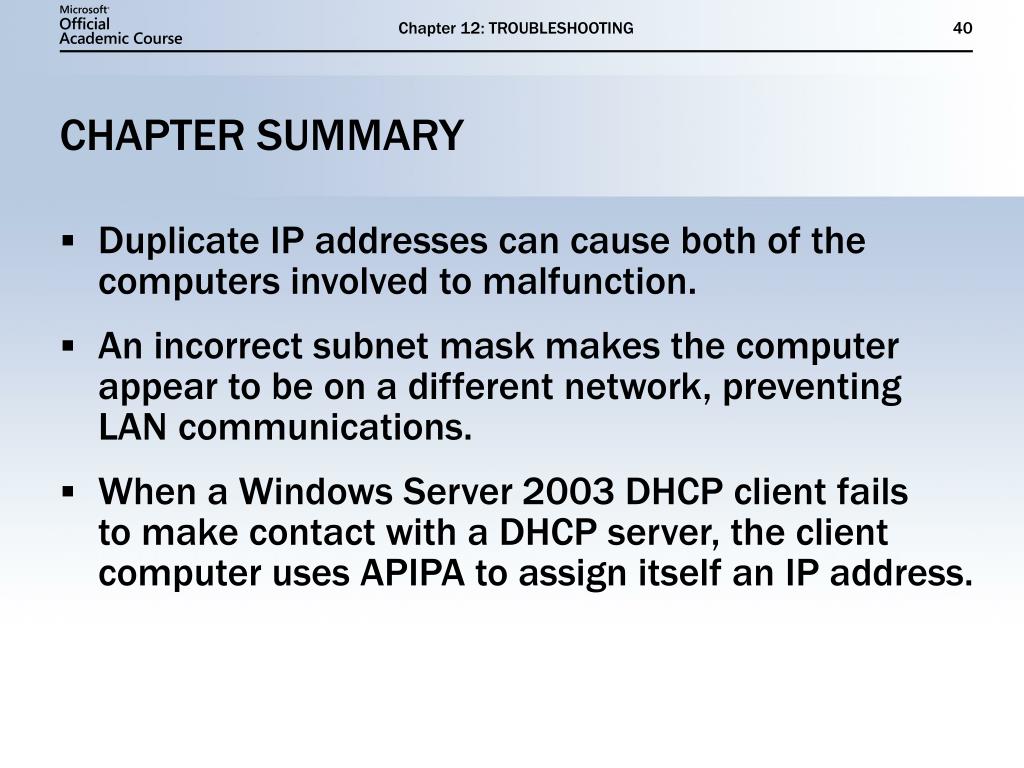

  40. Chapter 12: TROUBLESHOOTING CHAPTER SUMMARY • Duplicate IP addresses can cause both of the computers involved to malfunction. • An incorrect subnet mask makes the computer appear to be on a different network, preventing LAN communications. • When a Windows Server 2003 DHCP client fails to make contact with a DHCP server, the client computer uses APIPA to assign itself an IP address.

  41. Chapter 12: TROUBLESHOOTING CHAPTER SUMMARY (continued) • Ping.exe, the most basic TCP/IP connectivity testing tool, uses ICMP Echo messages to determine if another system on the network is functioning properly. • Tracert.exe is a command line tool that can help you locate a nonfunctioning router on the network. • Pathping.exe is a tool that sends large numbers of test messages to each router on the path to a destination and compiles statistics regarding dropped packets.

  42. Chapter 12: TROUBLESHOOTING CHAPTER SUMMARY (continued) • For an RRAS router to use either Routing Information Protocol (RIP) or OSPF, you must install the routing protocol and select the interfaces over which it will transmit messages. • If a Windows Server 2003 DNS server computer is accessible from the network but is not resolving names, the DNS Server service might not be running. • An incorrect default gateway address or a malfunctioning default gateway router can hinder Internet connectivity while leaving local communications intact.

  43. Chapter 12: TROUBLESHOOTING CHAPTER SUMMARY (continued) • NAT routers and proxy servers have network interfaces just like client computers, and they must have correct TCP/IP client configuration parameters. • If no other components are at fault, the Internet access router or the WAN connection to the ISP might be the cause of an Internet connection problem. • The IP Security Monitor snap-in displays information about the IPSec policy currently in effect on a particular computer, as well as IPSec statistics.
