  1. PBL: Maximizing Use of Sunlight Group 1: Tham Shi Yuan Wong Yi Ren Benjamin Heng Tan Shao Yuan

  2. Contents • Introduction to problem • Product • Concepts • Cost Effectiveness • Problem Faced

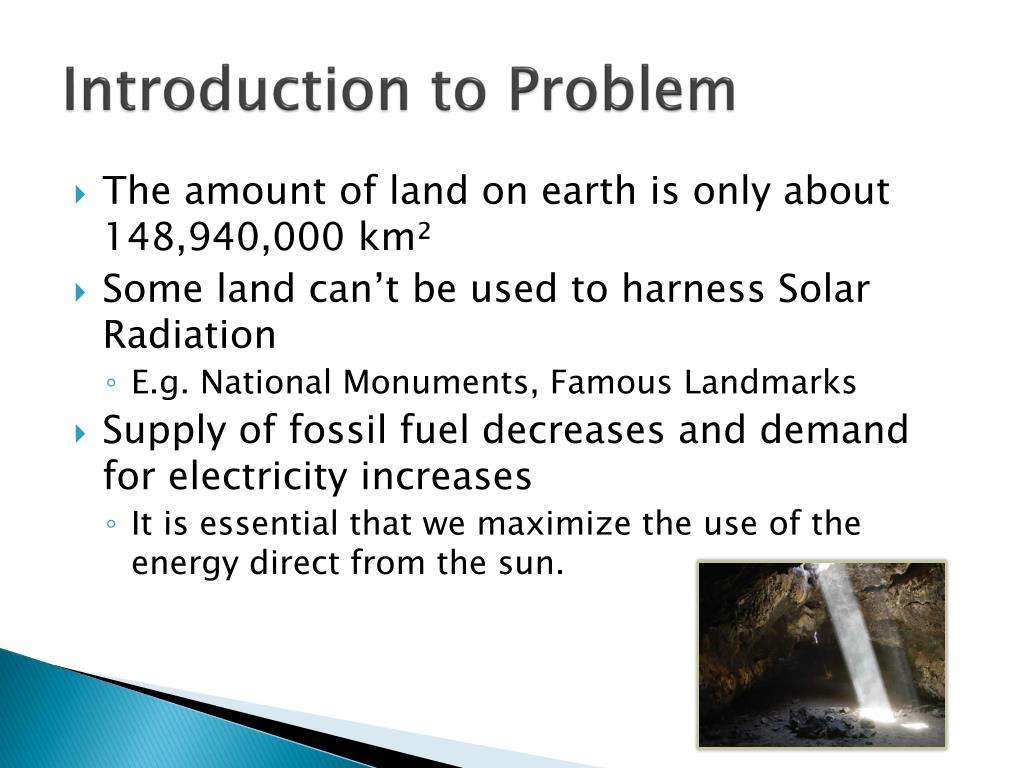

  3. Introduction to Problem • The amount of land on earth is only about 148,940,000 km² • Some land can’t be used to harness Solar Radiation • E.g. National Monuments, Famous Landmarks • Supply of fossil fuel decreases and demand for electricity increases • It is essential that we maximize the use of the energy direct from the sun.

  4. Product • The product is made of 3 stages: Separating, Focusing, Harnessing • Prism separates the visible and infrared light • Lenses focus the onto the solar panel and food • Solar panel produces electricity to turn skewer for even cooking of food

  5. Concepts – Prism • The prism refracts the components of sunlight • Visible light, infrared light • Due to the different speeds of visible and infrared light, the refract at different angles • Thus, separating these two forms of radiation in sunlight

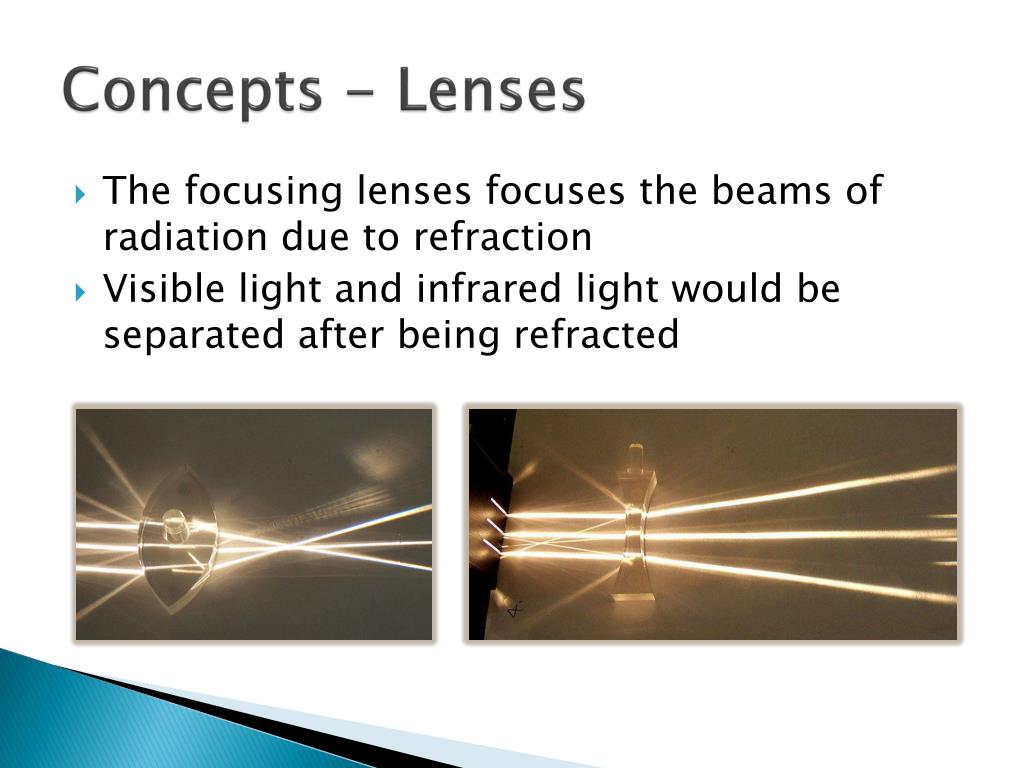

  6. Concepts - Lenses • The focusing lenses focuses the beams of radiation due to refraction • Visible light and infrared light would be separated after being refracted

  7. Concepts – Solar Panel • Made of p-type and n-type semiconductor

  8. Concepts – Aluminum Foil • Thermal Radiation is reflected off the Aluminum Foil and towards the food • Shiny surfaces are good reflectors of radiation • Food absorbs Thermal Radiation and temperature increases • Food gets cooked =D

  9. Expected Outcome

  10. The materials involved are cheap and easily available. Solar energy is free Prisms and solar panels cost less than $15 each A cheap motor costs less than $8. Total Cost – about $40 Cost Effectiveness

  11. Cost Effectiveness • Compared to other cookers that run on electricity or charcoal, our product is: • Cheaper • No Fuel needed • Materials less expensive • More time-consuming • Take longer time to reach a certain temperature

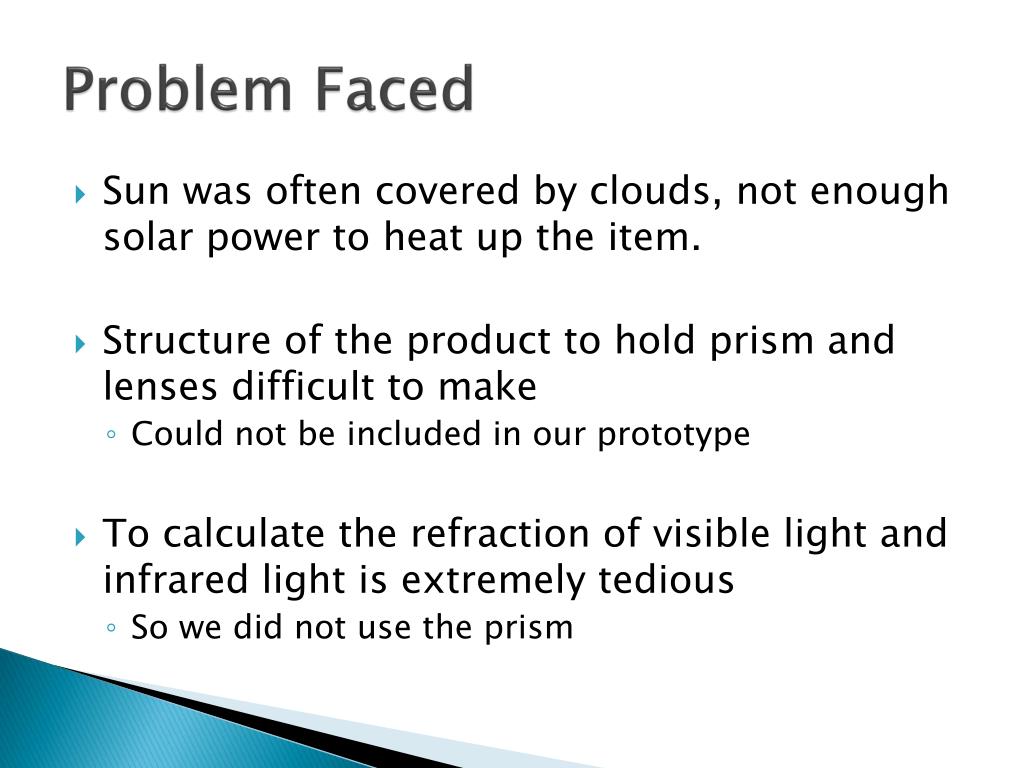

  12. Problem Faced • Sun was often covered by clouds, not enough solar power to heat up the item. • Structure of the product to hold prism and lenses difficult to make • Could not be included in our prototype • To calculate the refraction of visible light and infrared light is extremely tedious • So we did not use the prism

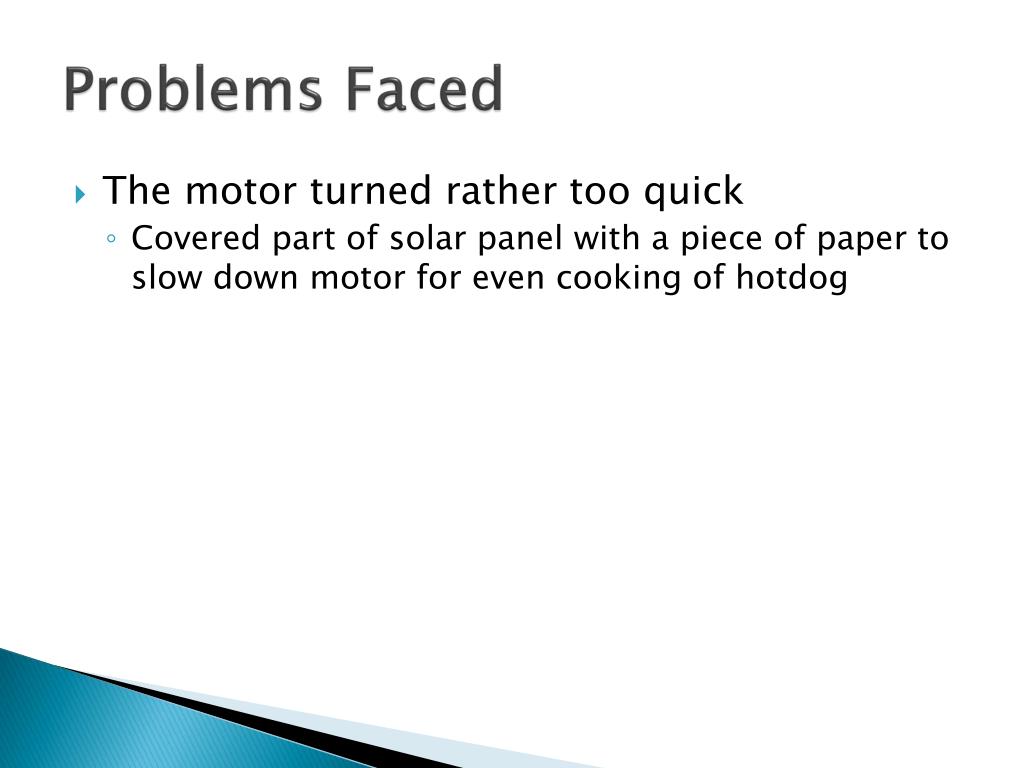

  13. Problems Faced • The motor turned rather too quick • Covered part of solar panel with a piece of paper to slow down motor for even cooking of hotdog

  14. However… • The result of our experiment shows that sunlight manipulated in our set-up can: • Power up the motor • Heat the food

  15. However… • We can be sure that the prism can refract infrared light • Since the lenses can be used to focus the heat energy from the sun, means that these infrared rays can be refracted by glass • Note: Visible light does not increase temperature of food significantly.

  16. Acknowledgements • http://www.visitusa.com/california/images/mojave-national-preserve/lavatube-sunlight.jpg • http://en.wikipedia.org/wiki/Earth • http://vle.hci.edu.sg/physics/WebTeach/Optics/Optics_YVONNE/index.htm • http://science.howstuffworks.com/solar-cell.htm • http://www.horizonmeats.ca/images/sausage.jpg

  17. Thank You!
