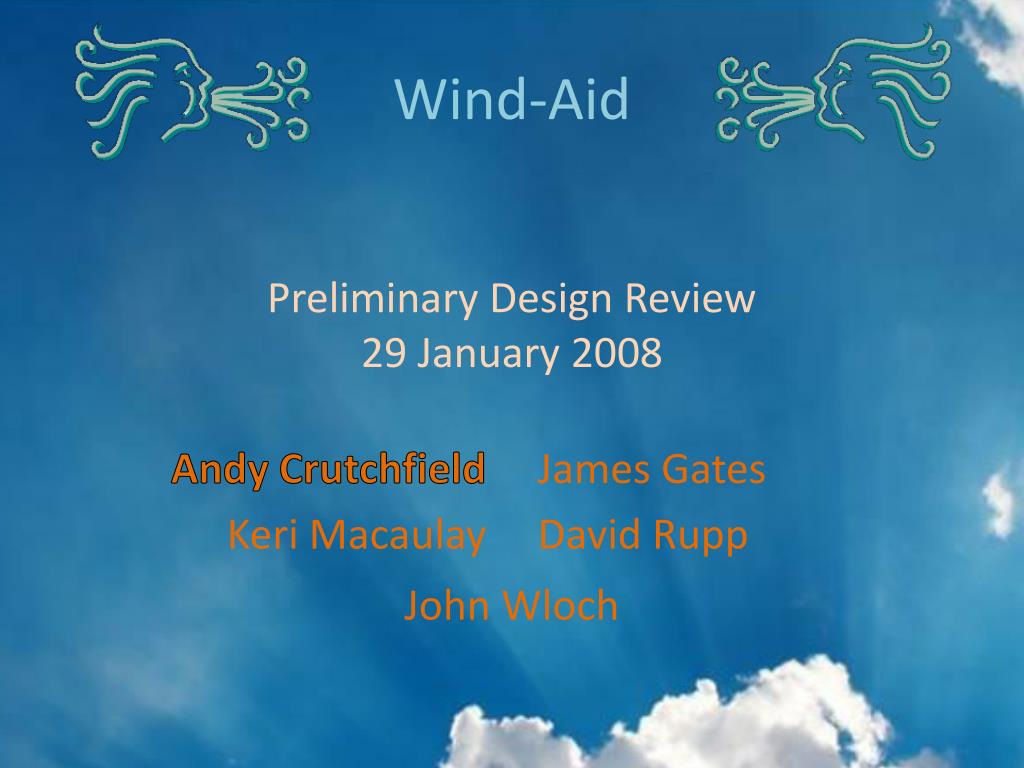

Wind-Aid. Preliminary Design Review 29 January 2008. Andy Crutchfield Keri Macaulay James Gates David Rupp. John Wloch. Problem Statement. Wind-Aid. Convert wind energy to storable electric energy Easily deployable (compact, portable, robust)

pia
Télécharger la présentation

Wind-Aid

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Wind-Aid Preliminary Design Review 29 January 2008 Andy Crutchfield Keri Macaulay James Gates David Rupp John Wloch

  2. Problem Statement Wind-Aid • Convert wind energy to storable electric energy • Easily deployable (compact, portable, robust) • Operate in wind speed of nominally 15 mph (wind speed varies over a 24 hr. period from 0-30 mph – so need a storage capability) • Power an emergency communication system with 20W at 12V continuous DC • Able to be carried on a person’s back or dropped from a helicopter at 20ft without a parachute

  3. Current Status – On Schedule • Key Design Requirements • Transporter • Lightweight (<40lbs) • Compact (12”x18”x36”) • Operator • Easy to use (no training necessary) • Easy to set up (by one person in <1hr) • Operates a communications device (20W at 12V) • Can operate under varying wind conditions (store 18 hrs of energy and operate in 7-30 mph wind) • Easy to assemble (done by 1 person) • Relief Organization • Cost (<$2000) • Durable (lasts >1 mo.) • Potential Design Solutions • Horizontal Axis Wind Turbine (HAWT) • Vertical Axis Wind Turbine (VAWT) • WindBelt Wind-Aid

  4. Last Week • Action Items: • Created design requirements • Quantitative and qualitative • Individual Concept Memos • Shared concepts in group brainstorming session • Began work on webpage • Began to convert brainstorming into a cohesive concept • Researched suggested options • Developed PDR format • Group project planning Wind-Aid

  5. Next Week • Action Items: • Analysis on turbine design (HAWT v. VAWT v. WindBelt) • Further, quantitative research • Investigate electric generators • Continue to construct webpage • Choose final concept • Discuss potential topics for trade studies • Show Stoppers: • Adding frames to webpage • Ensuring feasibility of final concept choice Wind-Aid

  6. Questions? Wind-Aid
