Column Oriented Database Vs Row Oriented Databases

Column Oriented Database Vs Row Oriented Databases. By Rakesh Venkat. Index. Introduction- Column Oriented Databases List of Column Oriented Databases Pros and Cons MonetDB Performance Analysis LucidDB Performance Analysis Conclusion. Introduction.

pink
Télécharger la présentation

Column Oriented Database Vs Row Oriented Databases

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

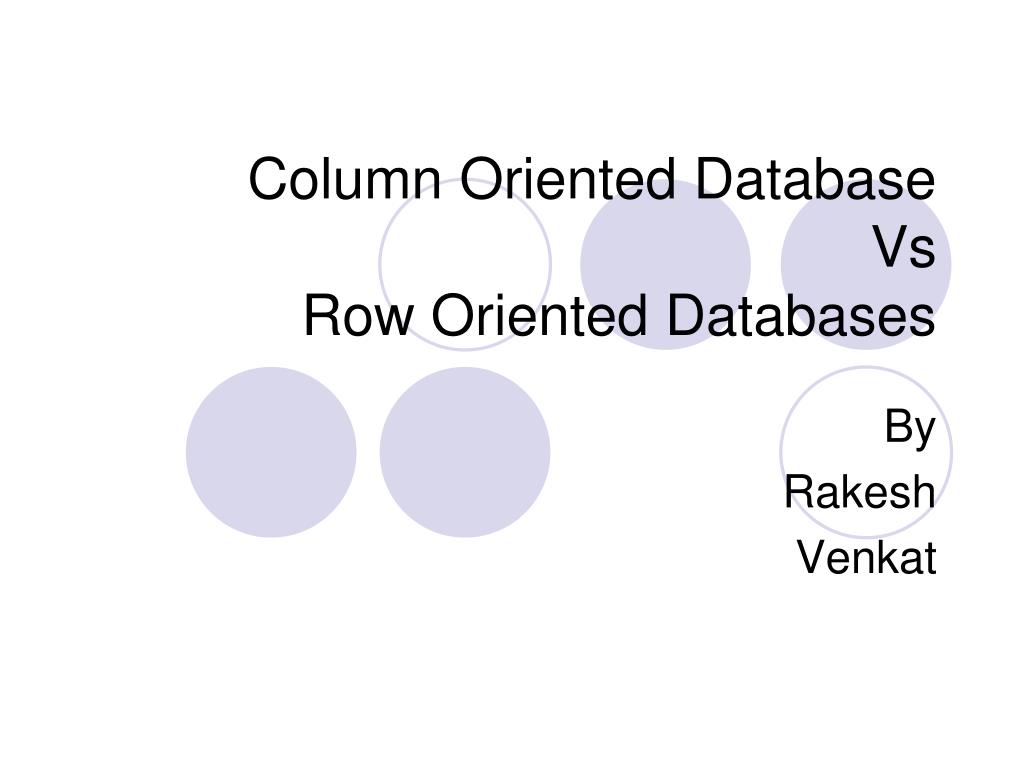

  1. Column Oriented Database VsRow Oriented Databases By Rakesh Venkat

  2. Index • Introduction- Column Oriented Databases • List of Column Oriented Databases • Pros and Cons • MonetDB • Performance Analysis • LucidDB • Performance Analysis • Conclusion

  3. Introduction • The Column Oriented Database stores data in columns . • It is mainly used in OLAP(online Analytical Processing), Data Mining oprerations.

  4. Pros • Data compression • Improved Bandwidth Utilization • Improved Code Pipelining • Improved cache locality

  5. Cons • Increased Disk Seek Time • Increased cost of Inserts • Increases tuple reconstruction costs

  6. List of Databases • Vertica • SybaseIQ • C-Store • BigTable • MonetDB • LucidDB

  7. MonetDB

  8. MonetDB(contd)

  9. MonetDB- Demo

  10. LucidDB • LucidDb tables are column store tables • Data in LucidDB is stored in Operating System in a file name as db.dat • Column store table consists of set of clusters. • Each column maps to single cluster. • A single cluster page, therefore, stores the values for a specific set of rowIDs for all columns in that cluster.

  11. Each cluster also has associated with it a btree index. • The btree index maps rid values to pageIds. • The rid values correspond to the first rid value stored on each page within a cluster, and the cluster pages are identified by their pageIds.

  12. LucidDB(contd)

  13. LucidDB(contd) • Within a cluster page, column values, by default, are stored in a compressed format, which allows LucidDB to minimize storage requirements. • The idea here is instead of storing each column value for every rid value on a page, we instead store just the unique column values. • We then associate with each column value a bit-encoded vector

  14. LucidDB • Demo

  15. Conclusion • Column architecture doesn’t read unnecessary columns • Avoids decompression costs and perform operations faster. • Use compression schemes allow us to lower our disk space requirements.

  16. References • Wikipedia, http://en.wikipedia.org/wiki/Column-oriented_DBMS Accessed – 14-sep-2007 • http://db.lcs.mit.edu/projects/cstore/abadisigmod06.pdf Accessed – 14-sep-2007 • http://marklogic.blogspot.com/2007/03/whats-column-oriented-dbms.html Accessed – 14-sep-2007 • http://en.wikipedia.org/wiki/MonetDB Accessed – 14-sep-2007 • http://monetdb.cwi.nl/projects/monetdb/SQL/QuickTour/index.html Accessed – 14-sep-2007 • Compression and Query Execution within Column Oriented Databases by Miguel C. Ferreira , MASSACHUSETTS INSTITUTE OF TECHNOLOGY June 2005 • http://www.luciddb.org/ Accessed by 30-nov-2007.
