Dynamic Auscultation

Dynamic Auscultation. Listening to the change in character, behaviour and the intensity of the heart sounds and murmurs to physiological and pharmacological maneuvers……. “AUSCULTATE WITH ALTERED HEMODYNAMICS”. Dynamic Auscultation.

piper
Télécharger la présentation

Dynamic Auscultation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Dynamic Auscultation Listening to the change in character, behaviour and the intensity of the heart sounds and murmurs to physiological and pharmacological maneuvers……. “AUSCULTATE WITH ALTERED HEMODYNAMICS”

  2. Dynamic Auscultation • Source of murmur : Right Heart ~ Left Heart • Differentiate closely simulating murmurs Outflow ~ Regurgitatnt murmur • Differentiate flow murmurs from those of structural deformity : Austin Flint ~ MS • Differentiate Dynamic from Fixed Obstructions

  3. Maneuvres PHYSI(OLOGI)CAL • Postural change Supine / L Lateral Standing Squatting • Valsalva • Handgrip • Cycle length change PHARMACOLOGICAL • Amyl nitrite • Phenylephrine

  4. Position • Left lateral decubitus : Augments the murmur of MS, MR, Austin Flint, MVP & S1, LV S3 & S4 • Sitting & Leaning forward : ↑ AR murmur • Sitting with arms raised above the head : ↑ AR • Knee chest position : AR, Pericardial Rub • Passive leg raising : ↑ VR >↑ Right Heart events

  5. Respiration • Inspiration augments right sided events, as the venous return increases : TR & TS , PR & PS murmurs ; RV S3,S4 & TV OS S1 & S2 split widen. • Exception is PES – augmented in expiration # Preferably quiet respiration # Avoid apnea # Listen the first few beats # In erect posture if Venous pressure is high

  6. Carvallo’s sign • Inspiratory accentuation of TR murmur • Early systolic murmur > holosystolic • Blowing quality > musical • Absent in severe RV failure associated TS is severe • If venous pressure is very high, listening in upright posture may help

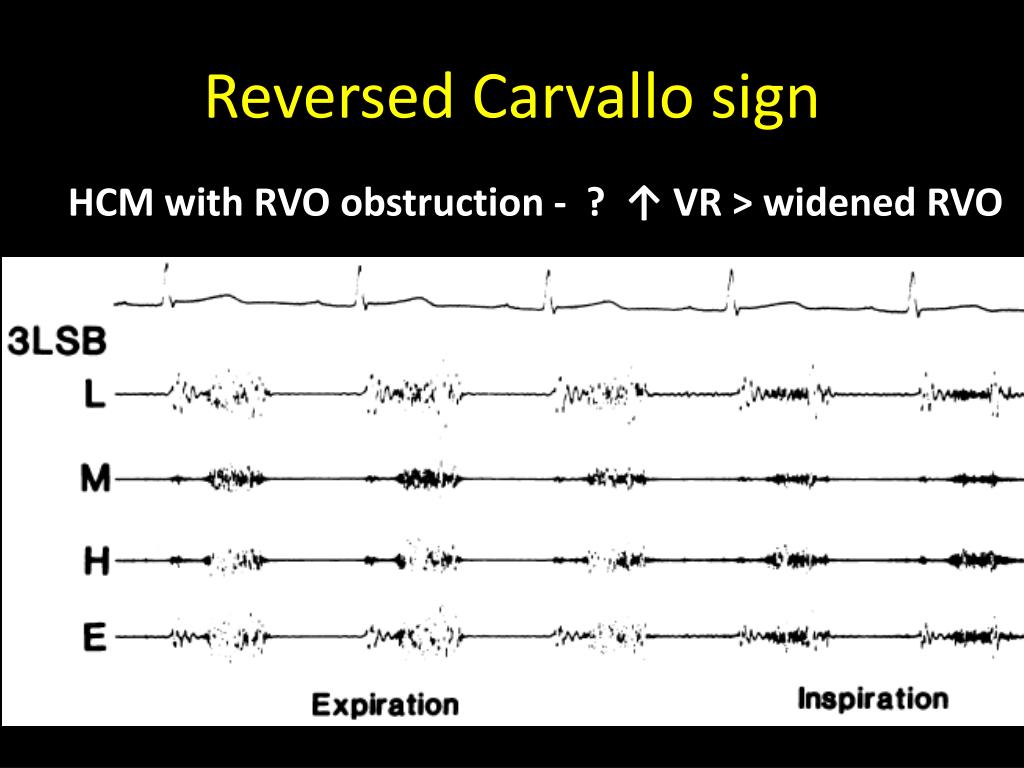

  7. Reversed Carvallo sign HCM with RVO obstruction - ? ↑ VR > widened RVO

  8. Respiration • Left sided events are better heard in expiration MR, MS, AS & AR murmurs LV S3 & S4, Mitral OS Click & murmur of MVP occur later @ PV – LA gradient increases > ↑ LV filling @ Lung overlap decreases @ Apnea for faint AR murmur

  9. Pms = mean systemic pressure; Ppc = pulmonary capillary hydrostatic pressure; Ppi = pulmonary interstitial hydrostatic pressure; Ptm = pulmonary capillary transmural pressure

  10. Abrupt standing • S2 split which may be wide, may narrow down , while the fixed split may persist • A2 OS interval widens – differentiates from wide split of S2 • All murmurs ( except MVP/HOCM) decrease • ESM of HOCM becomes louder and longer • Click occurs earlier, murmur becomes longer in MVP – loudness shows variable response

  11. Isometric Hand Grip HAND DYNAMOMETER

  12. Physiological changes of ISOMETRIC HANDGRIP EXERCISE

  13. Isometric Hand Grip • LV S3 & S4 get augmented • Murmurs of MR,AR,VSD intensify • Mitral stenotic murmur may augment • Systolic murmur of HOCM may diminish • Click & late sytolic murmur of MVP get delayed

  14. Transient Arterial Occlusion

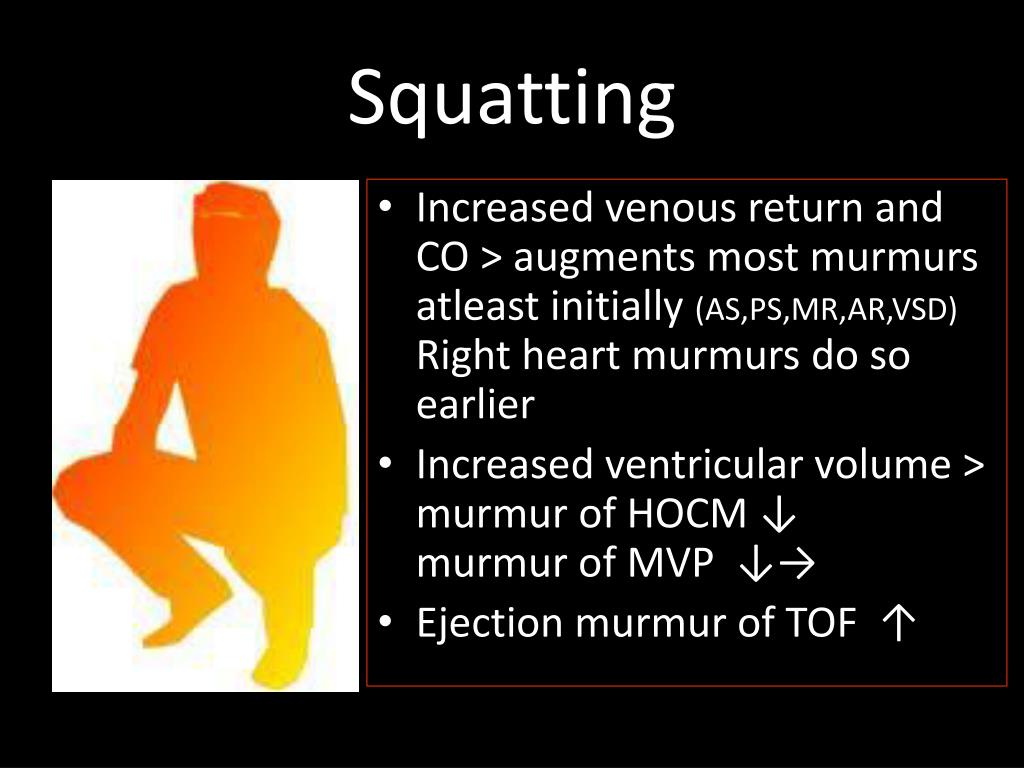

  15. Squatting • Increased venous return and CO > augments most murmurs atleast initially (AS,PS,MR,AR,VSD) Right heart murmurs do so earlier • Increased ventricular volume > murmur of HOCM ↓ murmur of MVP ↓→ • Ejection murmur of TOF ↑

  16. P Hanson Br HeartJ7 1995;74:154

  17. Central Aortic Pressure T Murakami AHJ 2002; 15:986–988

  18. Hemodynamics of Squatting T Murakami AHJ 2002; 15:986–988

  19. T Murakami AHJ 2002; 15:986–988

  20. Valsalva Maneuver Decreased venous return & CO, HR ↑; PP↓ S2 split narrows down, S3 & S4 diminish

  21. Valsalva Maneuver • Reduces the intensity of all murmurs except that of HOCM & MVP • Murmur of HOCM intensifies as the LV cavity size decreases • Click occurs earlier, the murmur lengthens in MVP – may not intensify • During release, the intensity of right heart murmurs returns earlier - 1 to 3 vs 5 beats for left heart murmurs

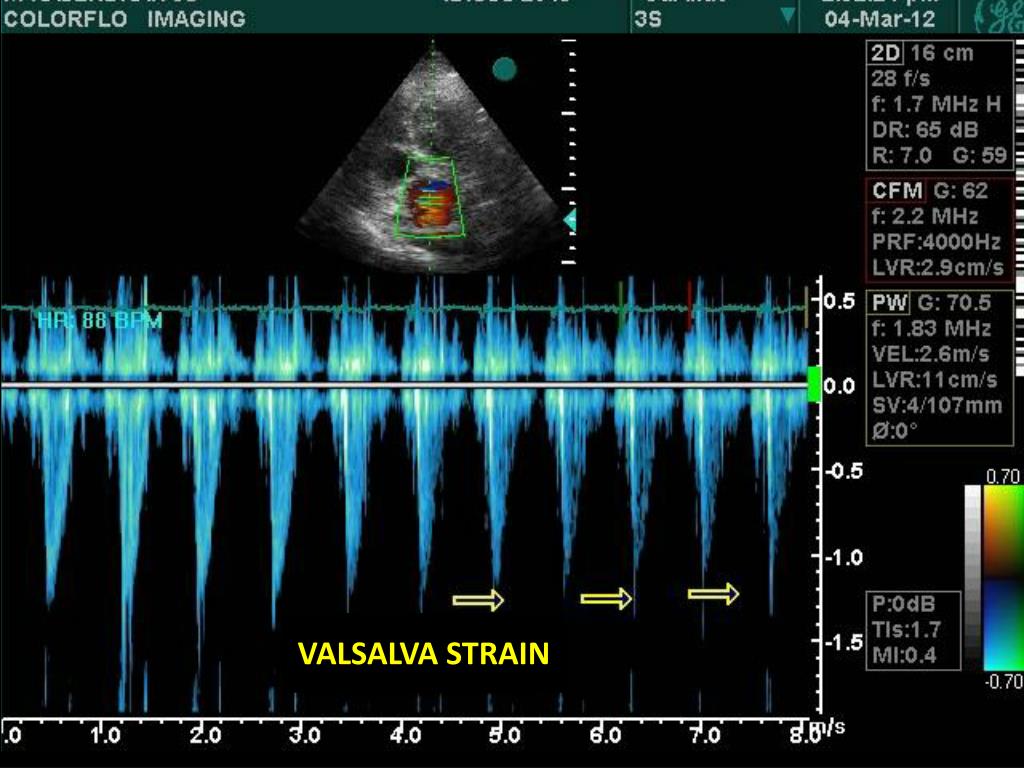

  22. VALSALVA STRAIN

  23. ASD, HF, MS

  24. Cycle Length VariationPost premature beat / Long cycle short cycle of AF • Post VPD / Long > Short cycle of AF : Outflow murmurs ( AS/PS) accentuate Regurgitant murmurs do not change

  25. Aortic Stenosis HOCM

  26. Amylnitrite Inhalation • < 30 secs : Systemic vasodilatation • 30 – 60 secs : ↑ HR & CO • Augments S1, LV S3 & S4, TV & MV OS, murmurs of AS,PS,TR & HOCM • A2 – OS may widen • Diminishes the murmurs of MR, AR, VSD, PDA & Systemic AVF • Click & Murmur of MVP occur earlier

  27. Amyl Nitrite Inhalation Augments Diminishes • Aortic stenosis Mitral regurgitation • Pulmonary stenosis TOF • Tricuspid regurgitation Mitral regurgitation • Mitral stenosis Austin Flint • Pulmonary regurgitation Aortic Regurgitaation

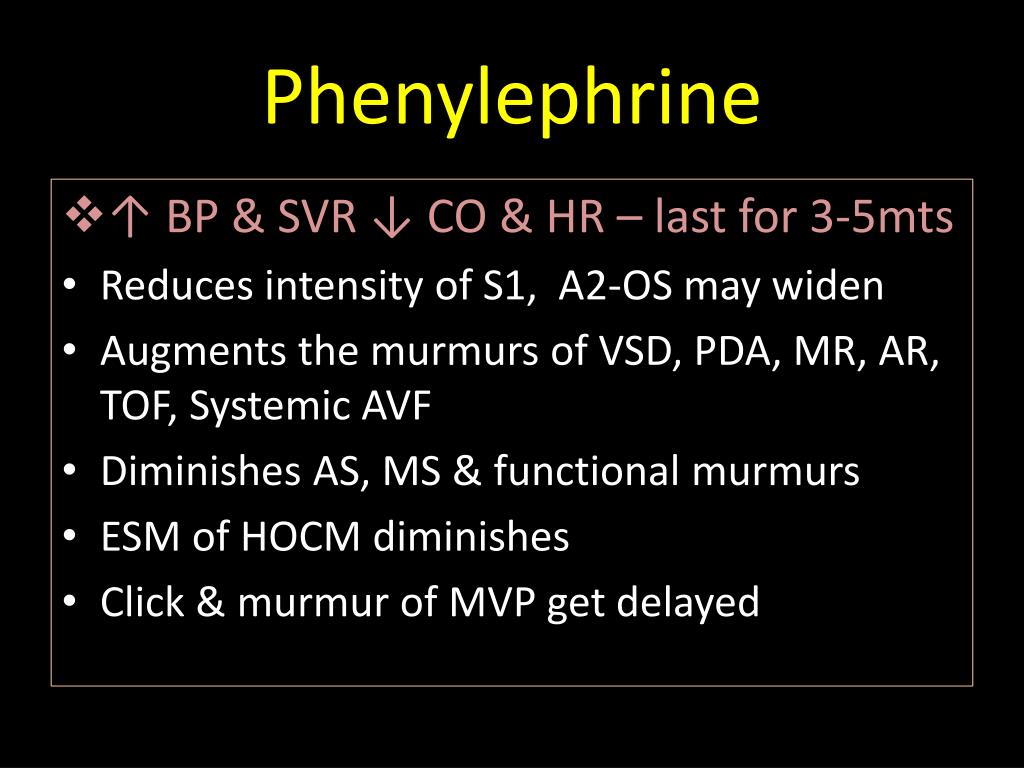

  28. Phenylephrine • ↑ BP & SVR ↓ CO & HR – last for 3-5mts • Reduces intensity of S1, A2-OS may widen • Augments the murmurs of VSD, PDA, MR, AR, TOF, Systemic AVF • Diminishes AS, MS & functional murmurs • ESM of HOCM diminishes • Click & murmur of MVP get delayed
