G radients of Inverse Trig Functions Use the relationship

G radients of Inverse Trig Functions Use the relationship . Ex y = sin –1 x This is the same as siny = x ie sin both sides So x = siny. Differentiate this expression. Remember the letter that comes 1 st goes on top The letter that comes 2 nd goes underneath. x = siny.

plato
Télécharger la présentation

G radients of Inverse Trig Functions Use the relationship

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

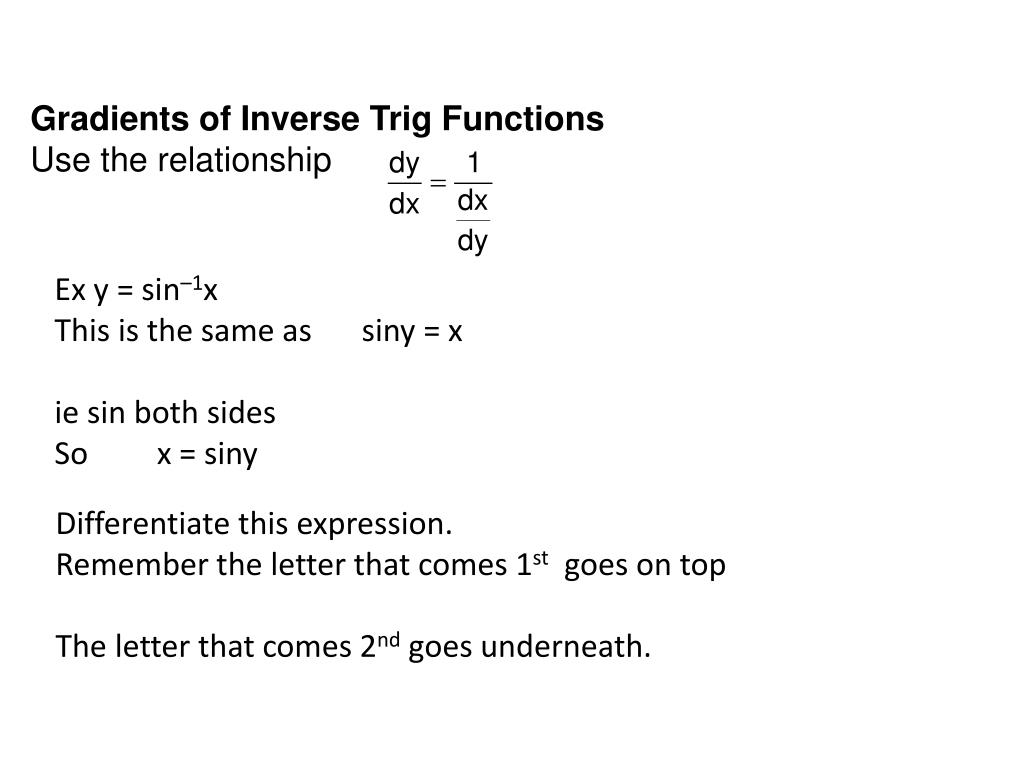

  1. Gradients of Inverse Trig Functions Use the relationship Ex y = sin–1x This is the same as siny = x iesin both sides So x = siny Differentiate this expression. Remember the letter that comes 1st goes on top The letter that comes 2nd goes underneath.

  2. x = siny Using sin2x + cos2x = 1 replace y by x. So sin2y + cos2y = 1 Make cosy the subject cos2y = 1 – sin2y But x = siny So

  3. This technique can be used to differentiate y = cos–1x and y = tan–1x (use 1 + tan2x = sec2x) Find the gradient of y = cos–1x and y = tan–1x

  4. Differentiating Hyperbolic Functions y = sinh x = • y = cosh x = • y = tanh x = Prove it using the quotient rule

  5. Using techniques from C4 (DIFIU) y = sinh 2x y = cosh x y = tanh (3x+2)

  6. Differentiating Inverse Hyperbolic Functions • y = sinh–1x so x = sinhy cosh2x – sinh2x = 1 Using Osbornes Rule

  7. Differentiating Inverse Hyperbolic Functions • y = cosh–1x so x = coshy cosh2x – sinh2x = 1 Using Osbornes Rule

  8. Differentiating Inverse Hyperbolic Functions • y = tanh–1x so x = tanhy 1 – tanh2x = sech2x Using Osbornes Rule See FP2 Notes for further examples
