This study explores the reliability of the splint-aided ligation process in DNA computing, specifically focusing on the occurrence of errors due to mismatches during the ligation of DNA nodes. We examined the dependence of error rates on the number of mismatches and the combination of bases using T4 DNA ligase. Experiments revealed an 8% error rate with single mismatches, indicating that the combination of bases and competitive conditions significantly affect ligation outcomes. Our findings highlight the importance of ensuring accurate ligation for reliable DNA computing applications.

ponce
Télécharger la présentation

Ligation Errors in DNA Computing

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

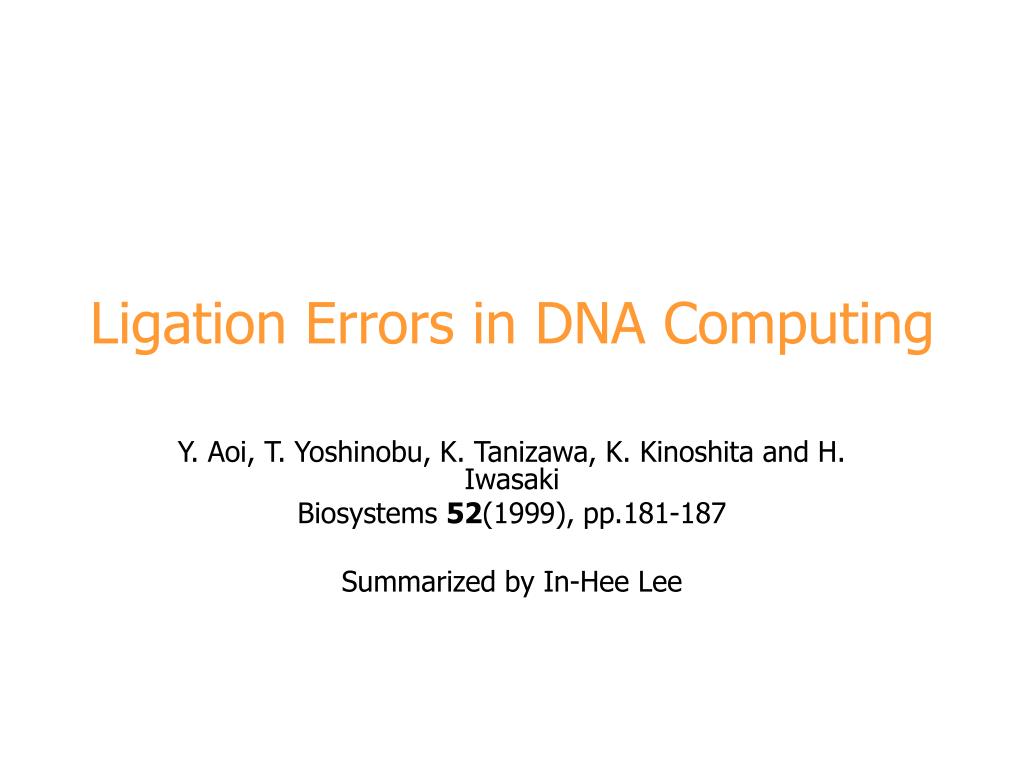

  1. Ligation Errors in DNA Computing Y. Aoi, T. Yoshinobu, K. Tanizawa, K. Kinoshita and H. Iwasaki Biosystems 52(1999), pp.181-187 Summarized by In-Hee Lee

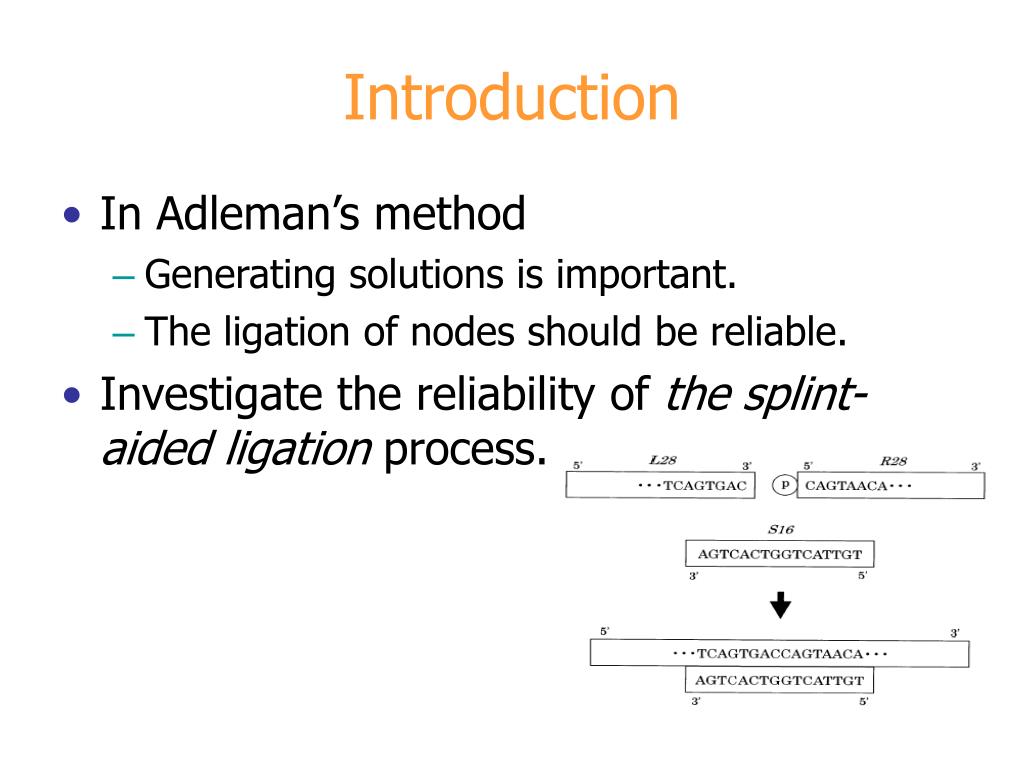

  2. Introduction • In Adleman’s method • Generating solutions is important. • The ligation of nodes should be reliable. • Investigate the reliability of the splint-aided ligation process.

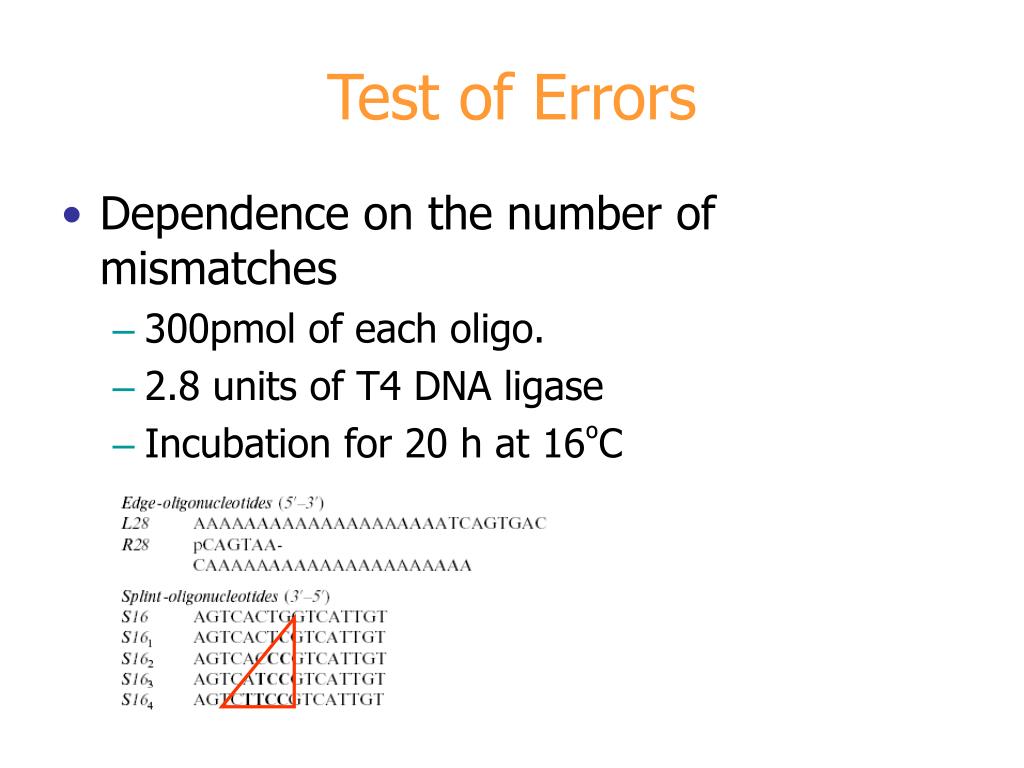

  3. Test of Errors • Dependence on the number of mismatches • 300pmol of each oligo. • 2.8 units of T4 DNA ligase • Incubation for 20 h at 16ºC

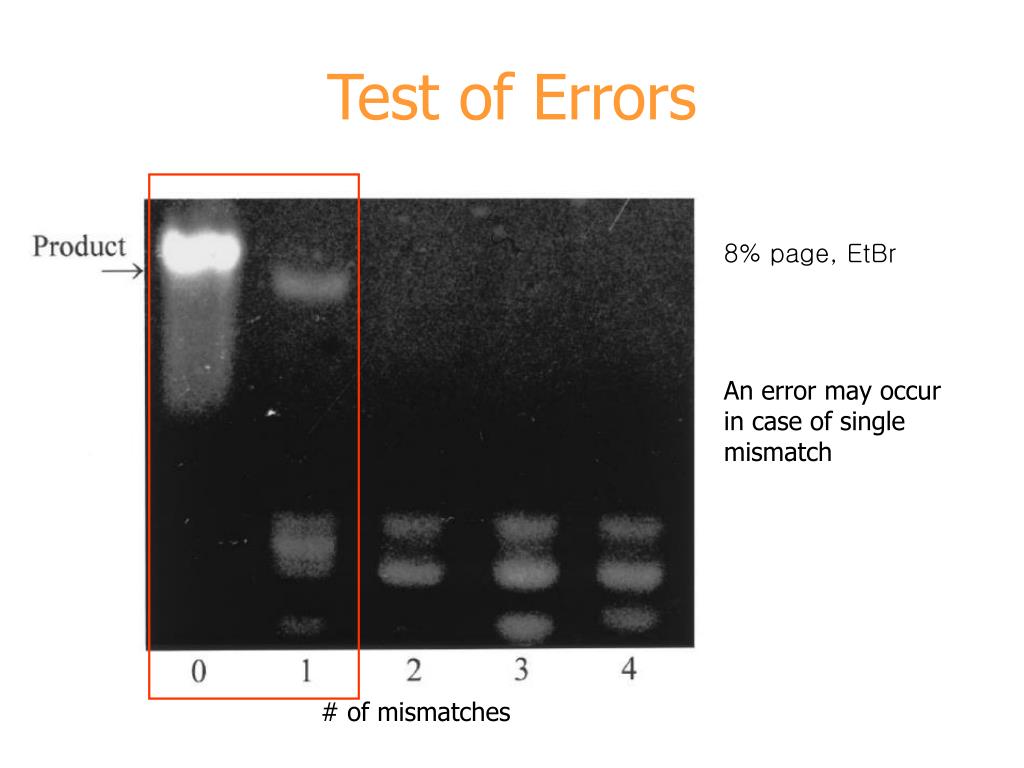

  4. Test of Errors 8% page, EtBr An error may occur in case of single mismatch # of mismatches

  5. Test of Errors • Dependence on the combination of bases Fluorescein isothiocyanate (FITC)

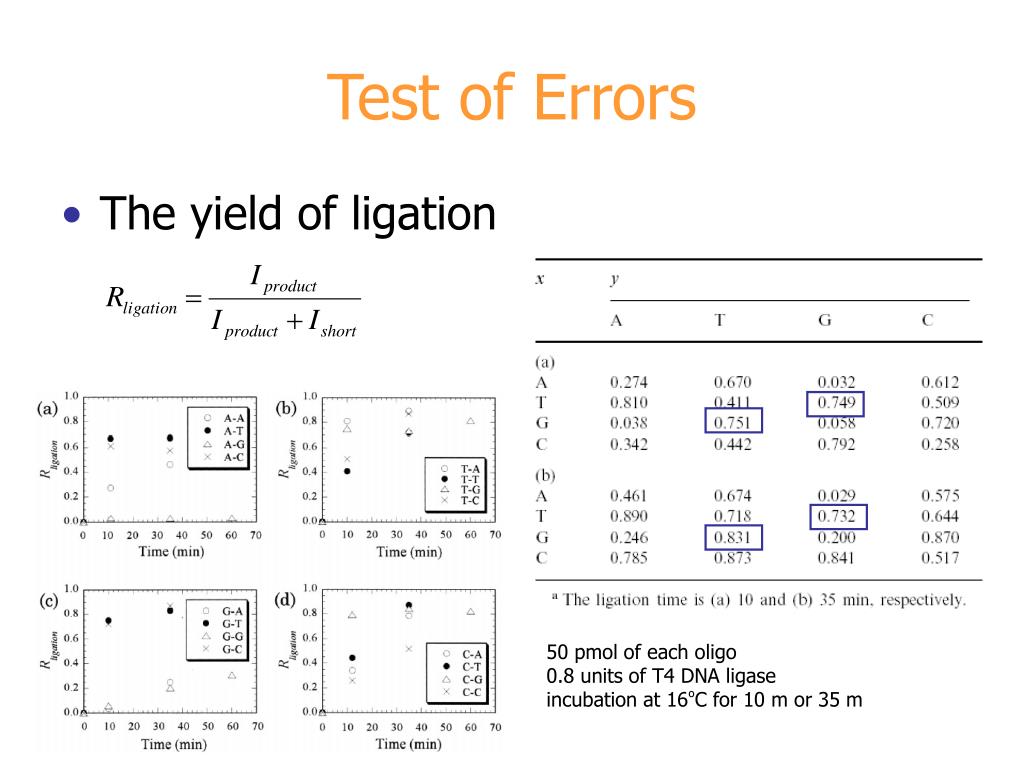

  6. Test of Errors • The yield of ligation 50 pmol of each oligo0.8 units of T4 DNA ligaseincubation at 16ºC for 10 m or 35 m

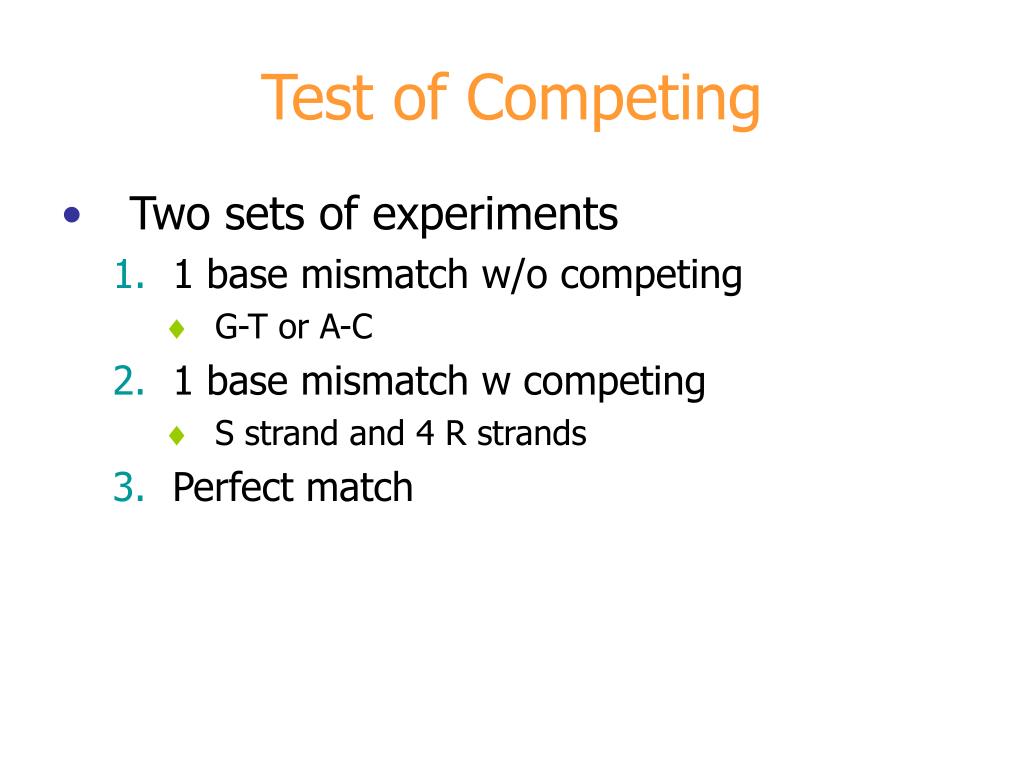

  7. Test of Competing • Two sets of experiments • 1 base mismatch w/o competing • G-T or A-C • 1 base mismatch w competing • S strand and 4 R strands • Perfect match

  8. Test of Competing • 100 pmol of each oligo • 1.4 units of T4 DNA ligase • Incubated for 30 m at 16ºC FITC EtBr staining

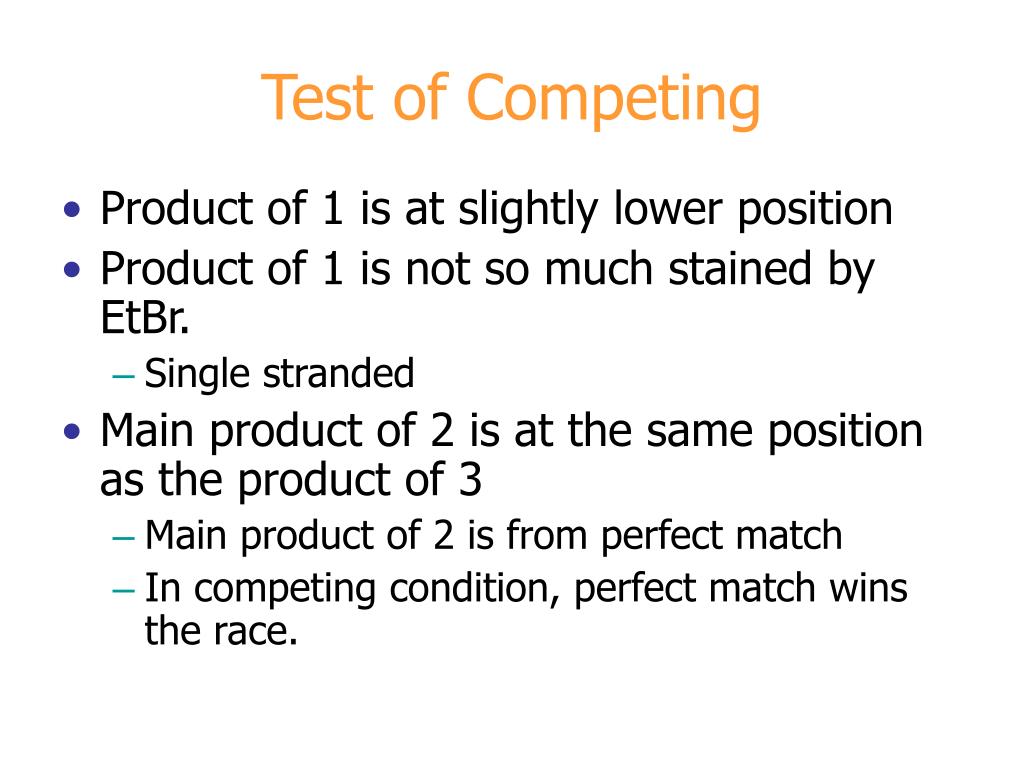

  9. Test of Competing • Product of 1 is at slightly lower position • Product of 1 is not so much stained by EtBr. • Single stranded • Main product of 2 is at the same position as the product of 3 • Main product of 2 is from perfect match • In competing condition, perfect match wins the race.
