  1. Introduction to Databases

  2. Case Example: File based Processing • Real Estate Agent’s office • Property for sale or rent • Potential Buyer/renter • Staff/employees

  3. Queries • 3-bed room apts for sales? • Flats within 3 miles of the city? • Average price of house? • Average rent for 2 BR flat? • Total annual salary for staff?

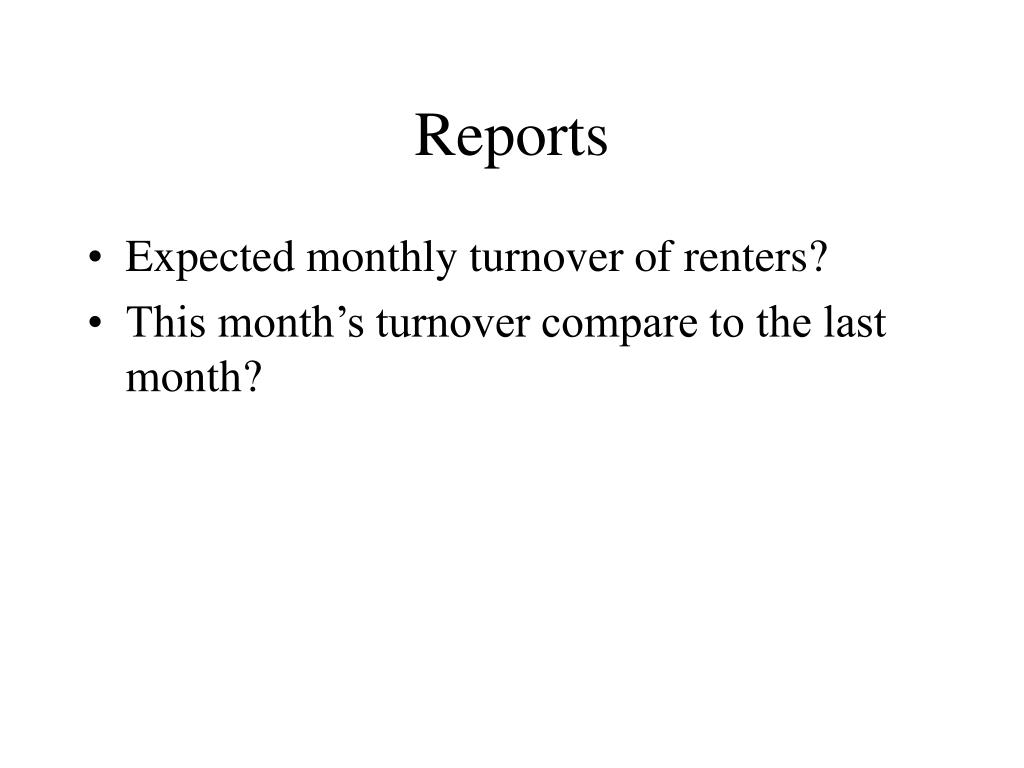

  4. Reports • Expected monthly turnover of renters? • This month’s turnover compare to the last month?

  5. Files in Sales Dept Selling and renting of properties • Property_for_rent (Pno, Street, Area, City, Pcode, Type, Rooms, Rent, Ono) • Owner (Ono, Fname, Lname, Address, Tel_no, Pref_Type, Max_rent) Potential renters Renter (Rno, Fname, Lname, Address, Tel_No, Pref_Type, Max_rent)

  6. Files in Contract Dept • Lease(Lno, Pno, Rent, Payment, Deposit, paid, Start, Finish, Duration) • Property_for_rent (Pno, Street, Area, City, Pcode, Rent) • Renter (Rno, Fname, Lname, Address, Tel_No) • Data entry • File maintenance • Reports generation

  7. Another example Payroll Dept Staff_salary(Staff No, First Name, Last Name, Address, Date_of_Birth, Salary, National Insurance Number, Branch Number) Personnel Dept: Staff(Staff No, First Name, Last Name, Address, Telephone Number, Position, Date_of_Birth, Salary, National Insurance Number, Branch Number)

  8. File Based Processing File handling routines Data entry and reports File definition Sales Sales application programs File handling routines Data entry and reports File definition Contracts Contracts application programs

  9. Limitations of File-Based Processing • Separation and Isolation of data • Duplication of data • Data dependence • Incompatibility of files • Fixed queries/ proliferation of application programs

  10. Database • “A shared collection of logically related data (and a description of this data) designed to meet the information needs of an organization.”

  11. Entity Relationship Diagram Staff IsAllocated Oversees Property_for_Rent Has Branch Viewing Takes Requests Owns Owner Renter

  12. Parts of ER diagram • Six entities (the rectangles): Branch, Staff, Property_for_Rent, Owner, Renter and Viewing. • Six relationships (the diamonds): IsAllocated, Has, Overseas, Owns, Requests, and Takes

  13. DBMS • “ A software system that enables users to define, create and maintain the database and provides controlled access to this database.” • Data definition Language (DDL): data types, structures and constraints on the data. • Data Manipulation Language (DML): insert, update, delete, and retrieve data • Query Language: general enquiry facility

  14. Two types of DML: • Procedural: manipulates the database record by record. • Non-Procedural: operates on a set of records. • Most common is Structured Query Language (SQL) • Controlled Access to the database: • security system • integrity system • Concurrency controlled, shared access • recovery control system • user accessible catalog

  15. Database Processing Data entry and reports Sales application programs Sales DBMS Property, Owner, Renter and Lease details + File Definitions Database Data entry and reports Contracts application programs Contracts

  16. Components of DBMS environment Data Hardware Software Procedures People Machine Bridge Human

  17. Hardware • Some DBMS run only on particular hardware and operating systems • Minimum amount of main memory and disk space to run • Client -Server architecture: • Central computer runs the backend of the DBMS • Other computers run the frontend

  18. Dream Home hardware configuration Northern Office Western Office Database server Eastern Office Southern Office Database

  19. Software • The DBMS software • Application programs: C, COBOL, Fortran, Ada etc. • Using a fourth level language such as SQL • Fourth generation tools: • rapid development of applications • non-procedural query languages • report generators • form generators • graphic generators • application generators • Fourth generation tools can improve productivity.

  20. Data • The structure of the database is called the schema. • Tables: Property_for_Rent, Owner, Renter and Lease • Attributes • System Catalog contains: • Names, types, and sizes of data items • Integrity constraints on data • Names of authorized users who have access to the data • What indexes and storage structures are being used- Tree structures.

  21. Procedures: • Log on to the DBMS • Use particular DBMS facility or application program • Start and stop the DBMS • Make backup copies of the database • Handle hardware and software failures • Change the structure of the table, reorganize the data across multiple disks, improve performance, or archive data to secondary storage. PEOPLE: • DB engineers, DB designers, DB developers/ programmers

  22. Data and database administrators • Data Administrator (DA) • management of data (database planning, development, maintenance of standards, policies, procedures and conceptual and logical database design). • Database Administrators: • Physical database design and implementation, security and integrity control, maintanence of the operational system and ensuring satisfactory performance for the applications and users.

  23. Database designers • Logical database designers: • Entities, attributes, relationships, constraints Business rules • Physical database designers: • Decides how it is to be physically realized.

  24. Application Programmers • Retrieving, inserting, updating and deleting • Programs • Third Generation Language (3GL) • Fourth Generation Language (4GL) • End Users: • Inexperienced Users • Sophisticated users

  25. The Paradigm Shift • The structure of the database is determined using the database design. • Paradigm shift: think of the data first and the application later. • Poorly designed database --> errors • Well designed database --> correct information • A complete methodology for database design. • Entity- Relationship diagram • Guidelines to help identify the entities, attributes and relationships

  26. Advantages of Databases • Control of data redundancy • Data consistency • More information from the same amount of data • Sharing the data • Improve data integrity and improve security • Enforce standards • Economies of scale • Balance the conflicting requirements • Improve data accessibility and responsiveness • Increase productivity • Improve maintenance through data interdependencies (pgm-data independence) • Increase concurrency • Improve backend recovery services

  27. Disadvantages of Databases • Complexity • Size • Cost of DBMS • Additional hardware costs • Cost of conversion • Performance • High impact of a failure
