  1. Security Tracker By Jered Olckers SUPERVISOR: MR. J. CONNAN

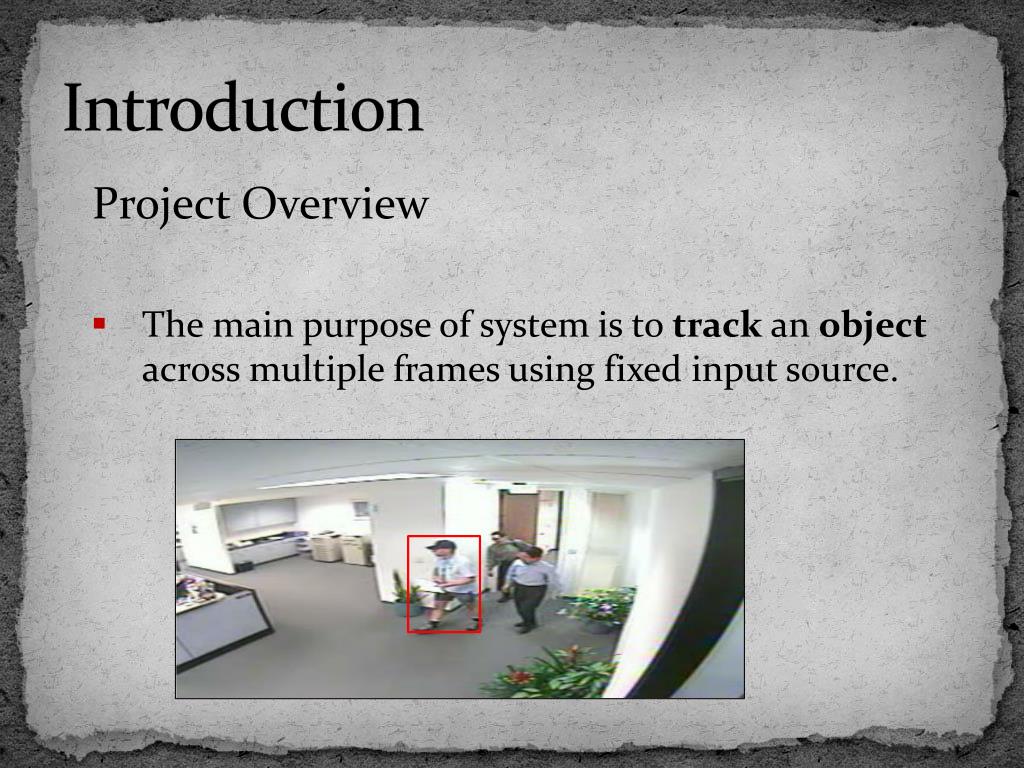

  2. Introduction • Project Overview • The main purpose of system is to track an object across multiple frames using fixed input source.

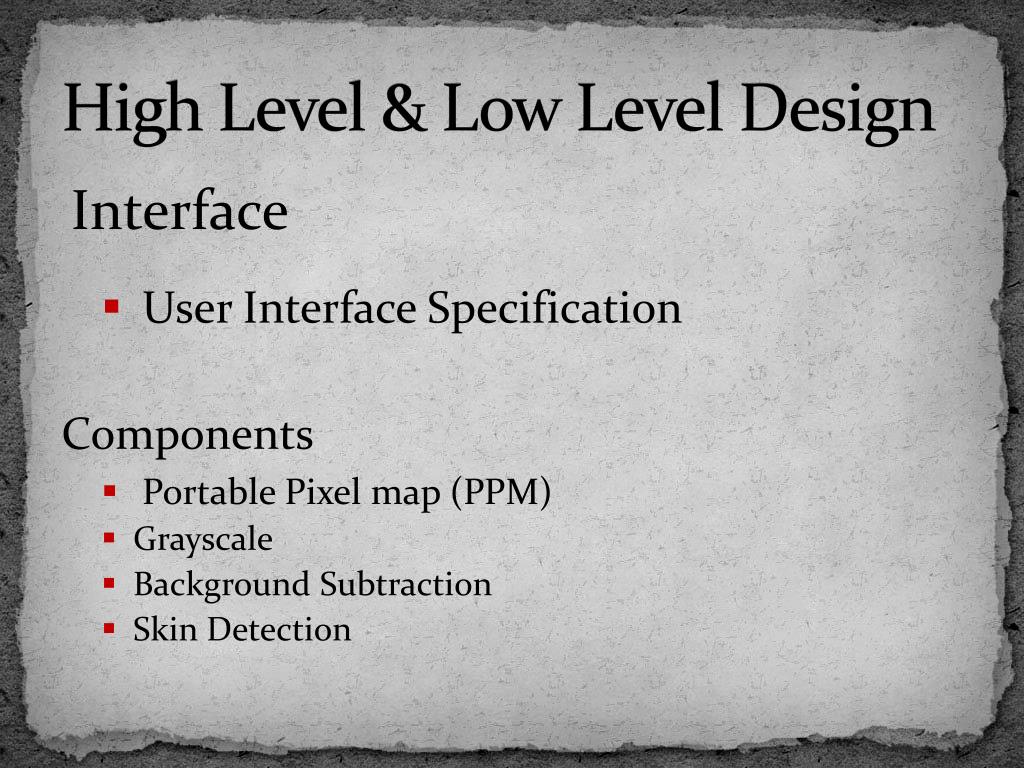

  3. High Level & Low Level Design Interface • User Interface Specification Components • Portable Pixel map (PPM) • Grayscale • Background Subtraction • Skin Detection

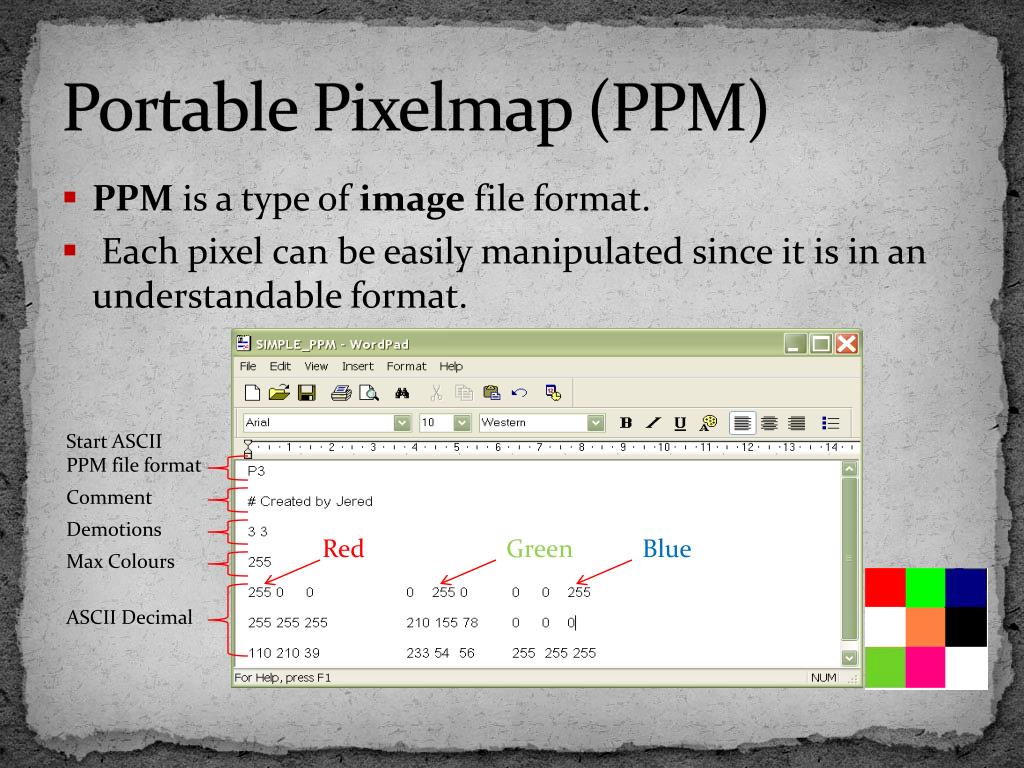

  4. Portable Pixelmap (PPM) • PPM is a type of image file format. • Each pixel can be easily manipulated since it is in an understandable format. Start ASCII PPM file format Comment Demotions Red Green Blue Max Colours ASCII Decimal

  5. Grayscale • Every colour image a pixel consists of 3 values; red, green and blue. • A Grayscaleimage value of each pixel is the same. • To convert pixel colour to its appropriate level of grey, the following calculation is needed. Greyscale Red X 30% Green X 59% Blue X 11%

  6. Greyscale Picture Convert

  7. Background Subtraction minus

  8. Skin colour detection • This is used to identify whether a set of pixels is a potential skin area. • Convert from RGB to HSV colour space. • The threshold values is used to distinguish between skin and non skin pixels.

  9. Skin colour detection (2) • The skin colourdetection will be used to identify whether a person has been detected in a video. Skin pixels detected. .

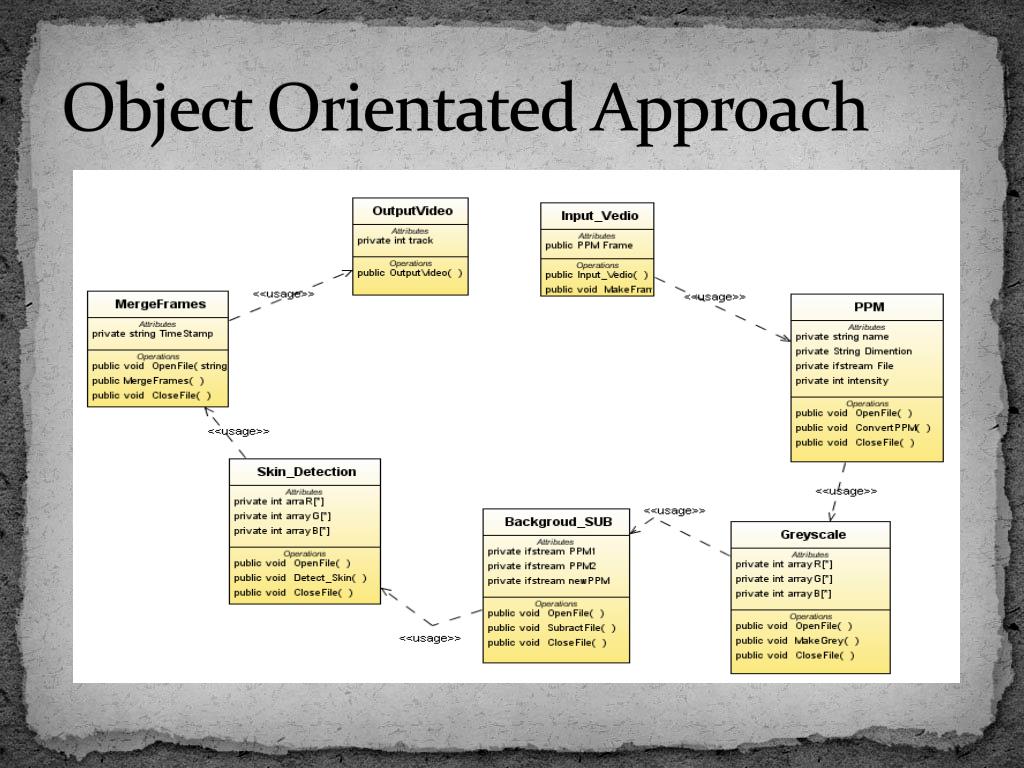

  10. Object Orientated Approach

  11. Interface

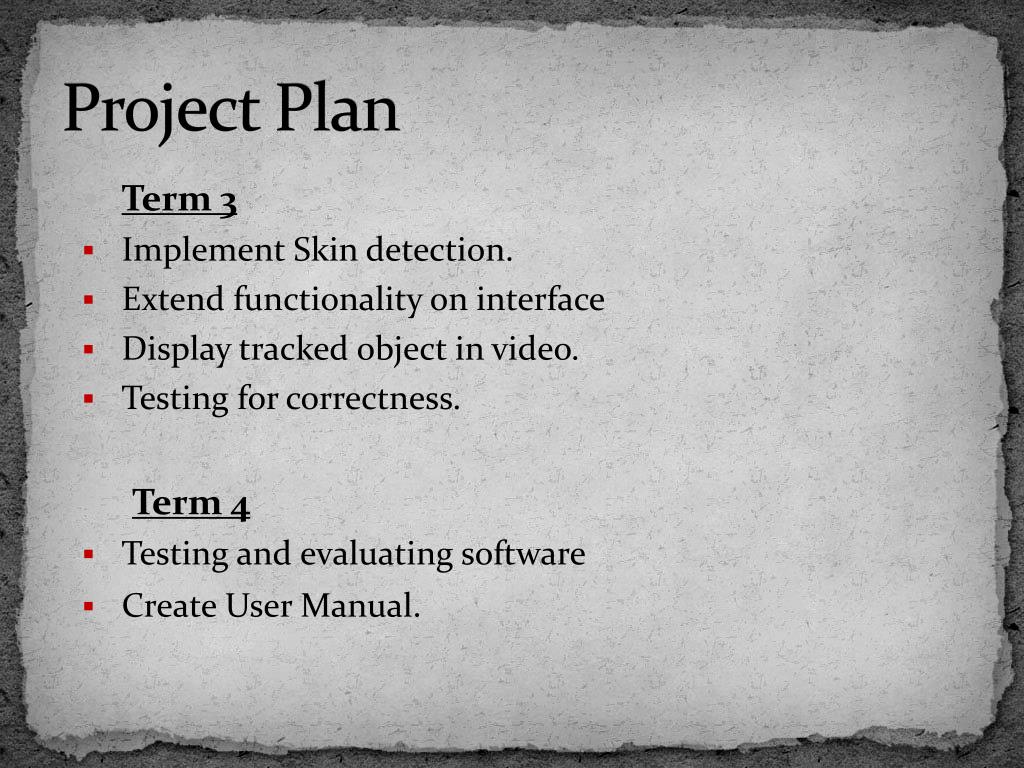

  12. Project Plan • Term 3 • Implement Skin detection. • Extend functionality on interface • Display tracked object in video. • Testing for correctness. Term 4 • Testing and evaluating software • Create User Manual.

  13. References • Skin Detection in Luminance Images using Threshold Technique: Hani. K. Almohair, Abd Rahman Ramli, Elsadig A. M, Shaiful J. Hashim • A Robust Vision-based Moving Target Detection and Tracking System. • Using PPM to make high-quality color pictures • Frame-skipping tracking for single object with global motion detection!: Ming Anlong, Ma Huadong
