  1. Electronics Boxes: a Change to the LAYOUT? F. Grancagnolo, R. Perrino INFN Lecce ATLAS-RPC Meeting / Roma, Nov. 5th, 2002.

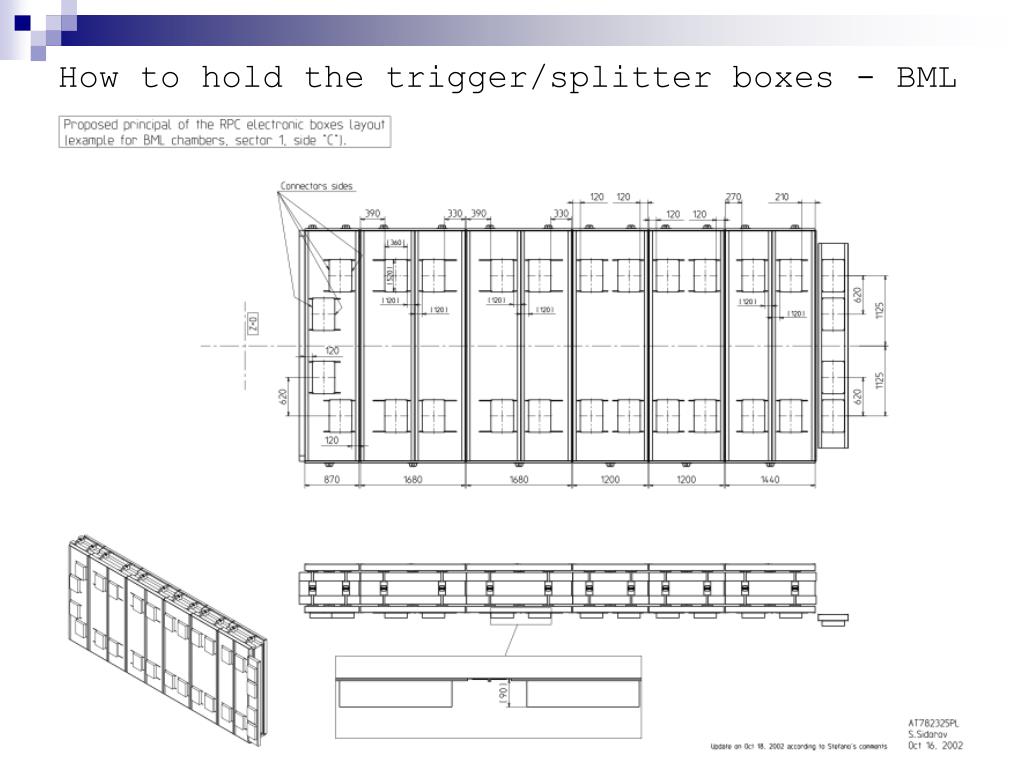

  2. How to hold the trigger/splitter boxes - BML

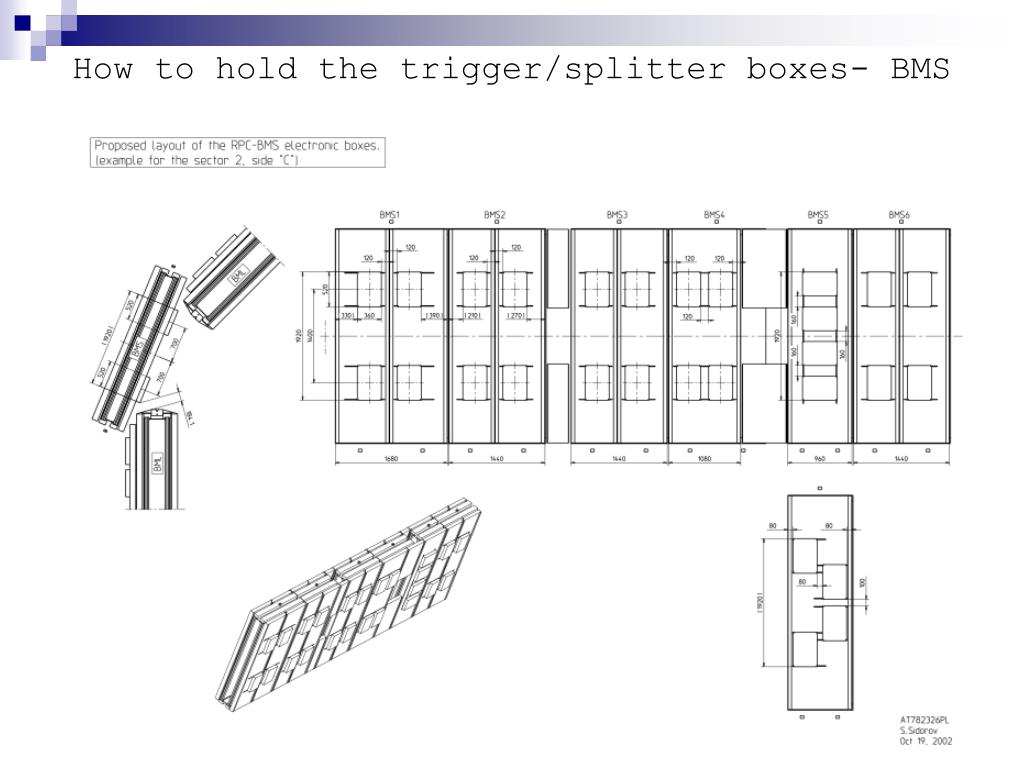

  3. How to hold the trigger/splitter boxes- BMS

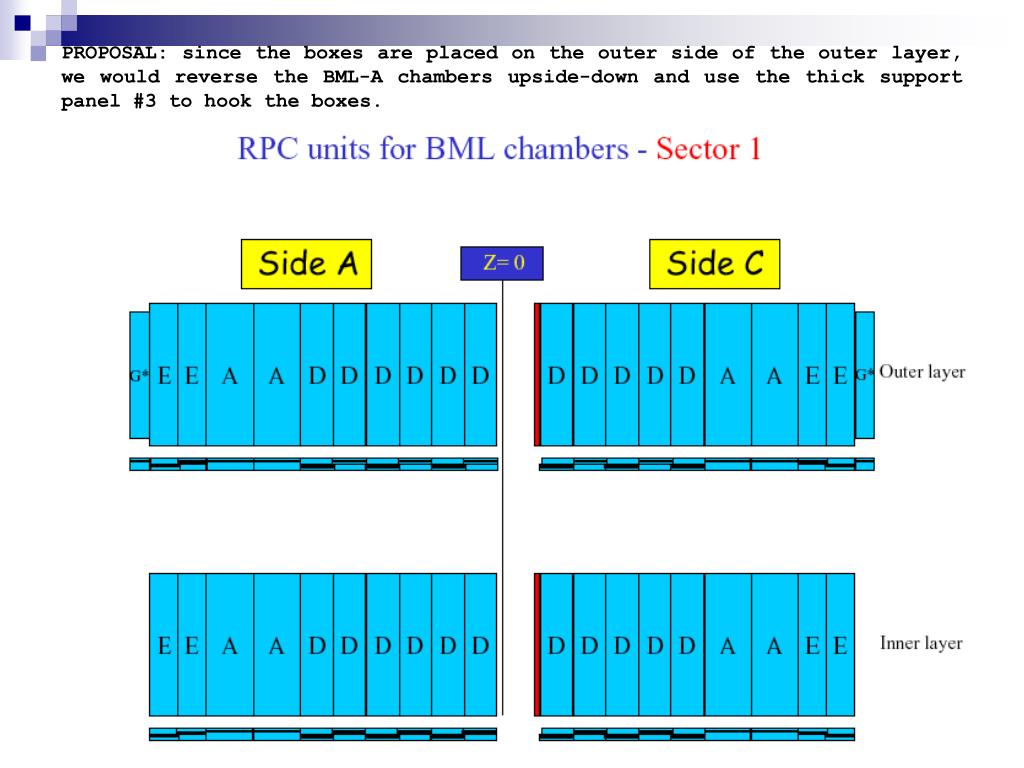

  4. PROPOSAL: since the boxes are placed on the outer side of the outer layer, we would reverse the BML-A chambers upside-down and use the thick support panel #3 to hook the boxes.

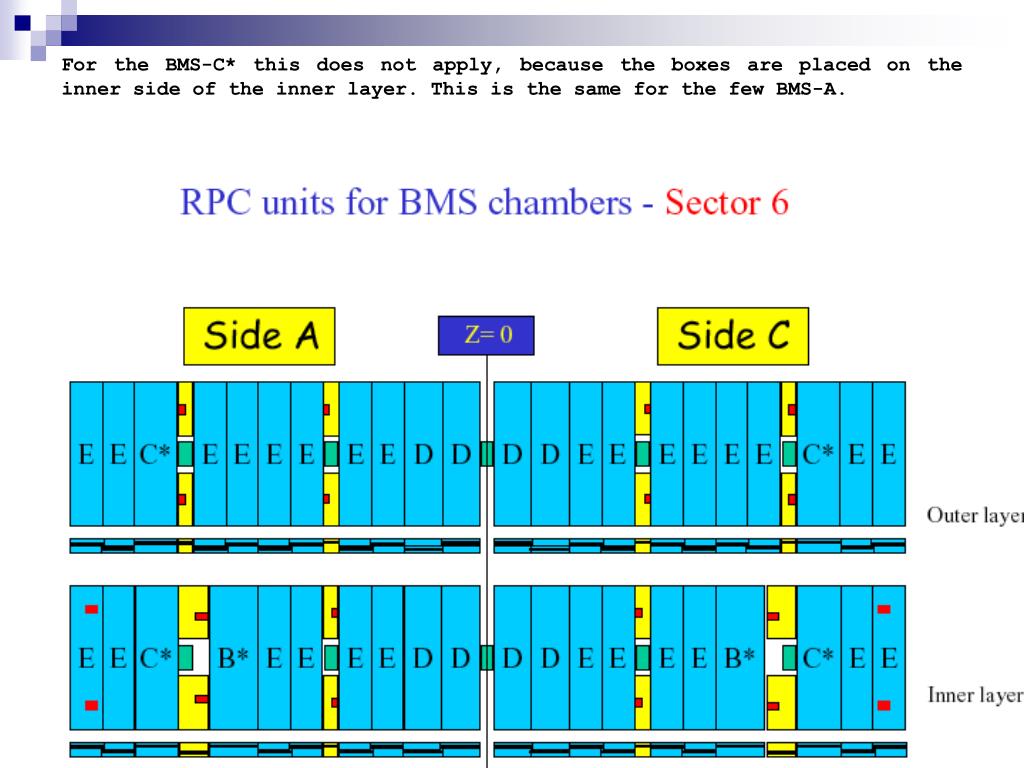

  5. For the BMS-C* this does not apply, because the boxes are placed on the inner side of the inner layer. This is the same for the few BMS-A.
