  1. Chapter 7. Newton’s Third Law Chapter Goal: To use Newton’s third law to understand interacting objects.

  2. Ch. 7 – Student Learning Objectives • To learn how two objects interact. • To identify action/reaction pairs of forces. • To understand and use Newton’s third law. • To understand how to use propulsion forces and tension forces.

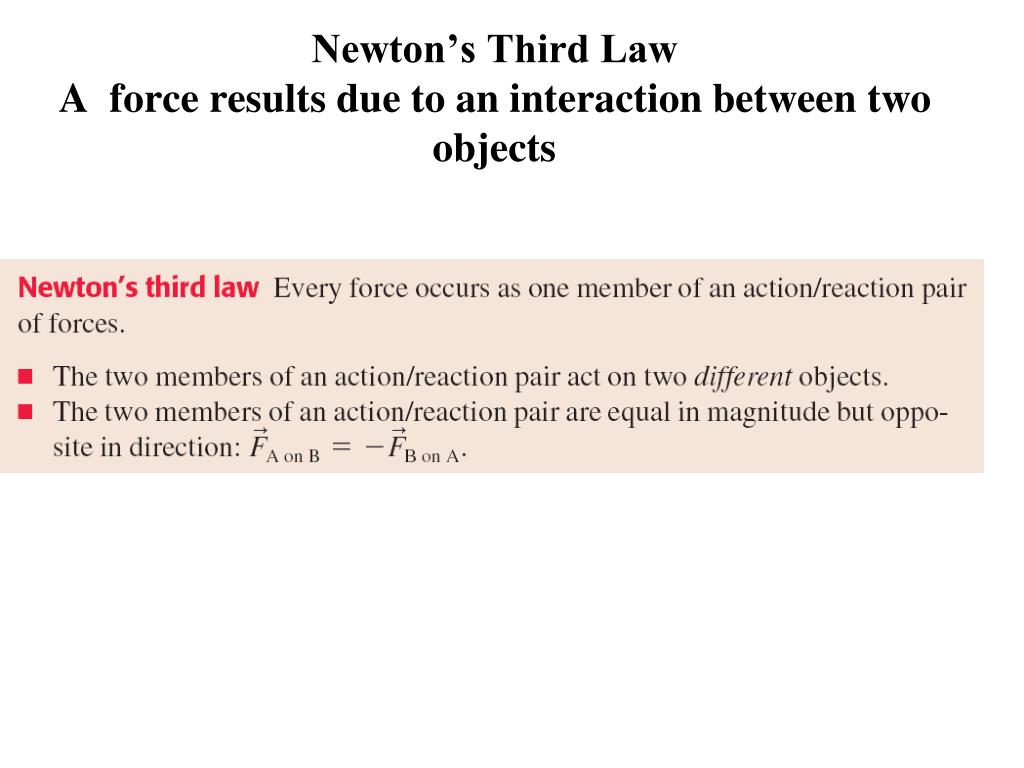

  3. Newton’s Third LawA force results due to an interaction between two objects

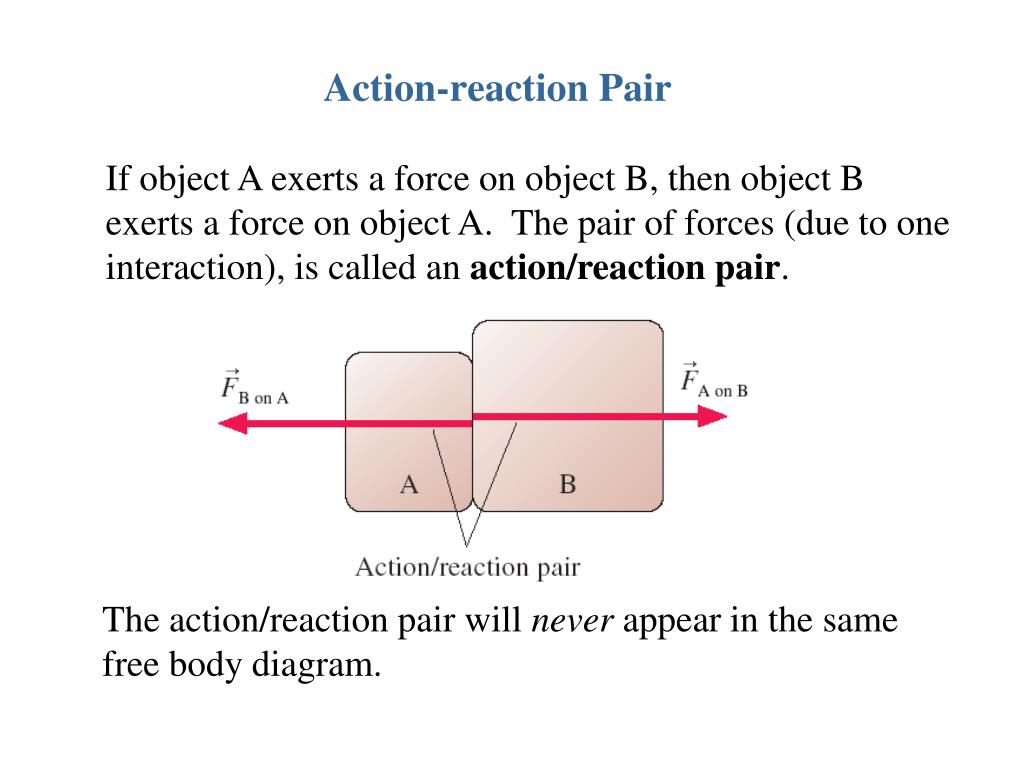

  4. Action-reaction Pair If object A exerts a force on object B, then object B exerts a force on object A. The pair of forces (due to one interaction), is called an action/reaction pair. The action/reaction pair will never appear in the same free body diagram.

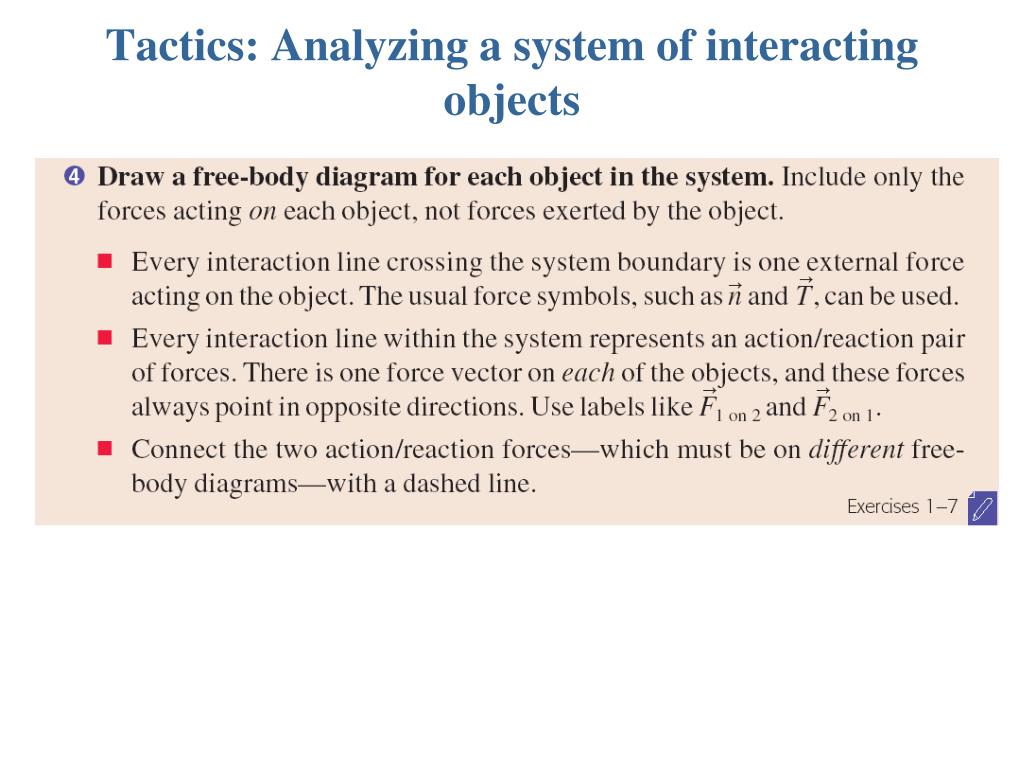

  5. Tactics: Analyzing a system of interacting objects

  6. Example - analyzing interacting objects A person pushes a large crate across a rough surface. • Identify the objects that are systems of interest • Draw free-body diagrams for each system of interest. • Identify all action/reaction pairs with a dashed line.

  7. Forces involved in pushing a crate – FBD of person and crate

  8. Propulsion Force • The force label fp shows that the static friction force on the person is acting as a propulsion force. • This is a force that a system with an internal source of energy uses to drive itself forward.

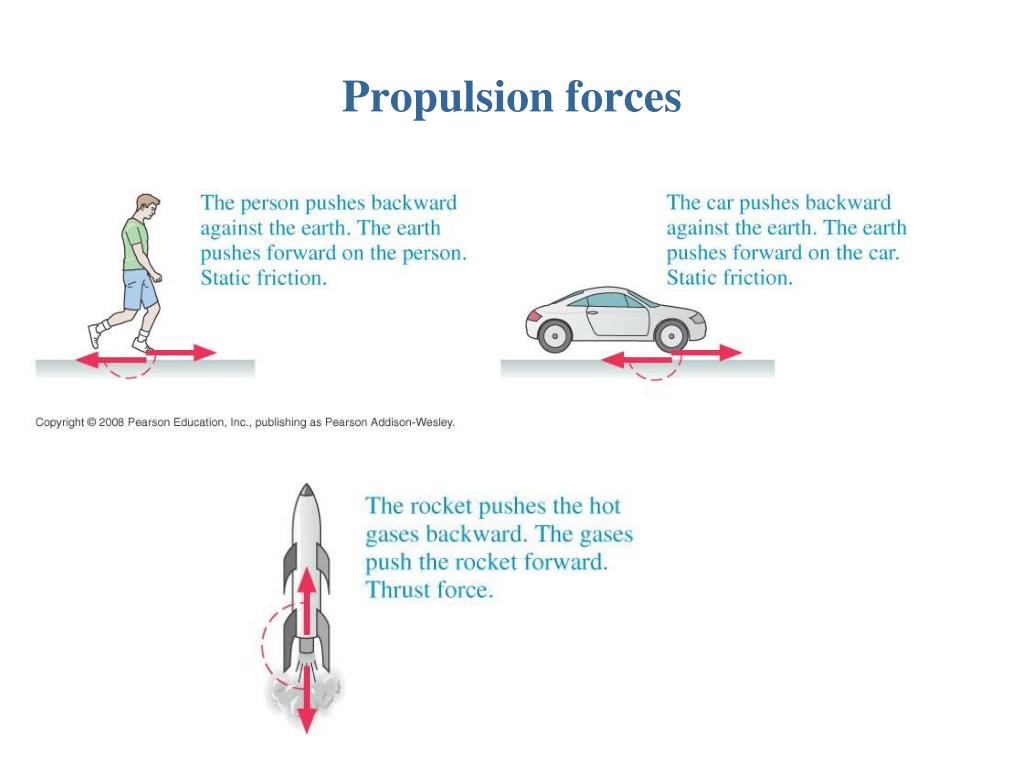

  9. Propulsion forces

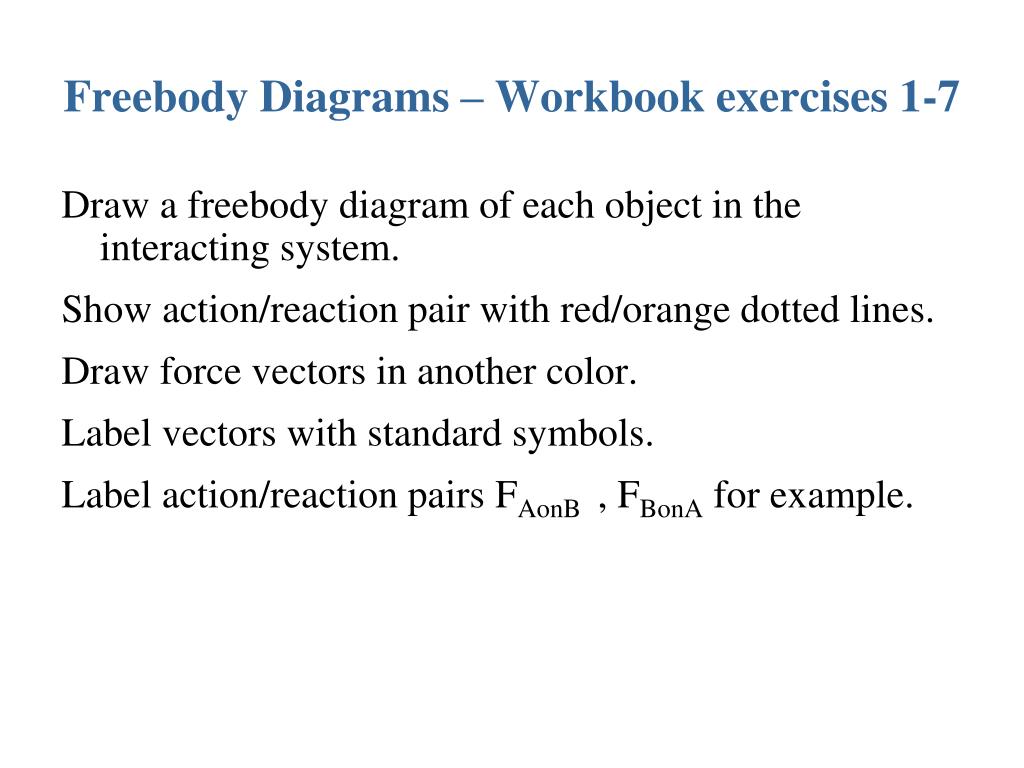

  10. Freebody Diagrams – Workbook exercises 1-7 Draw a freebody diagram of each object in the interacting system. Show action/reaction pair with red/orange dotted lines. Draw force vectors in another color. Label vectors with standard symbols. Label action/reaction pairs FAonB , FBonA for example.

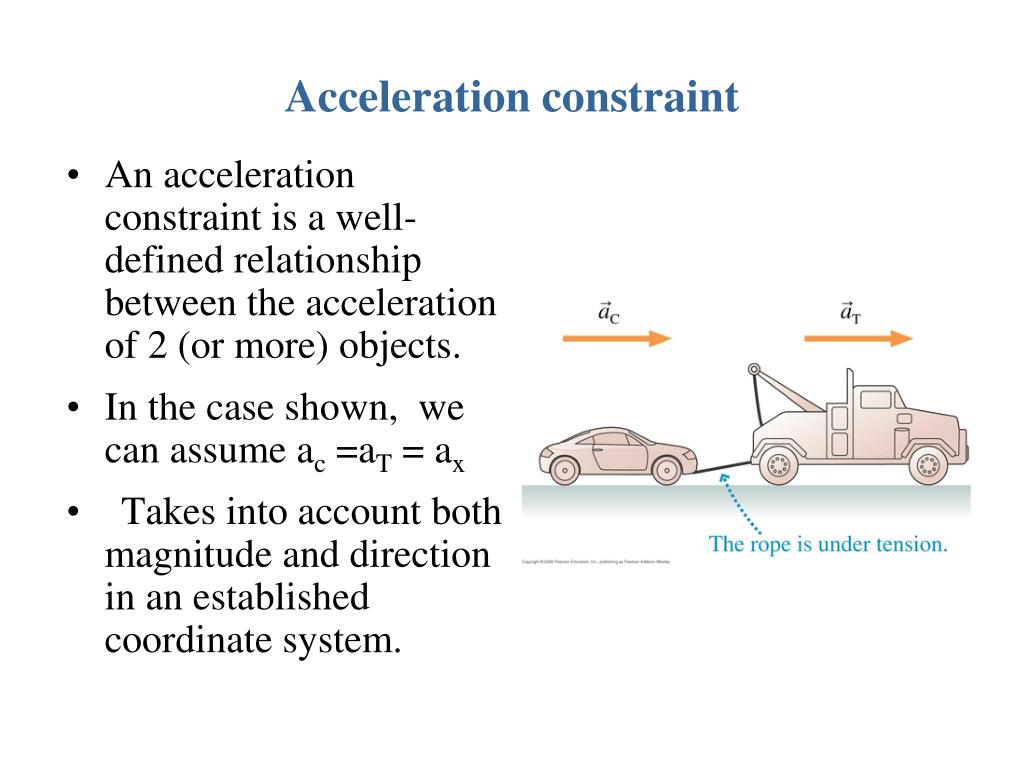

  11. Acceleration constraint • An acceleration constraint is a well-defined relationship between the acceleration of 2 (or more) objects. • In the case shown, we can assume ac =aT = ax • Takes into account both magnitude and direction in an established coordinate system.

  12. What is the acceleration constraint in this situation? • aA = aB • aA = - aB • - aA = aB • Both B and C • None

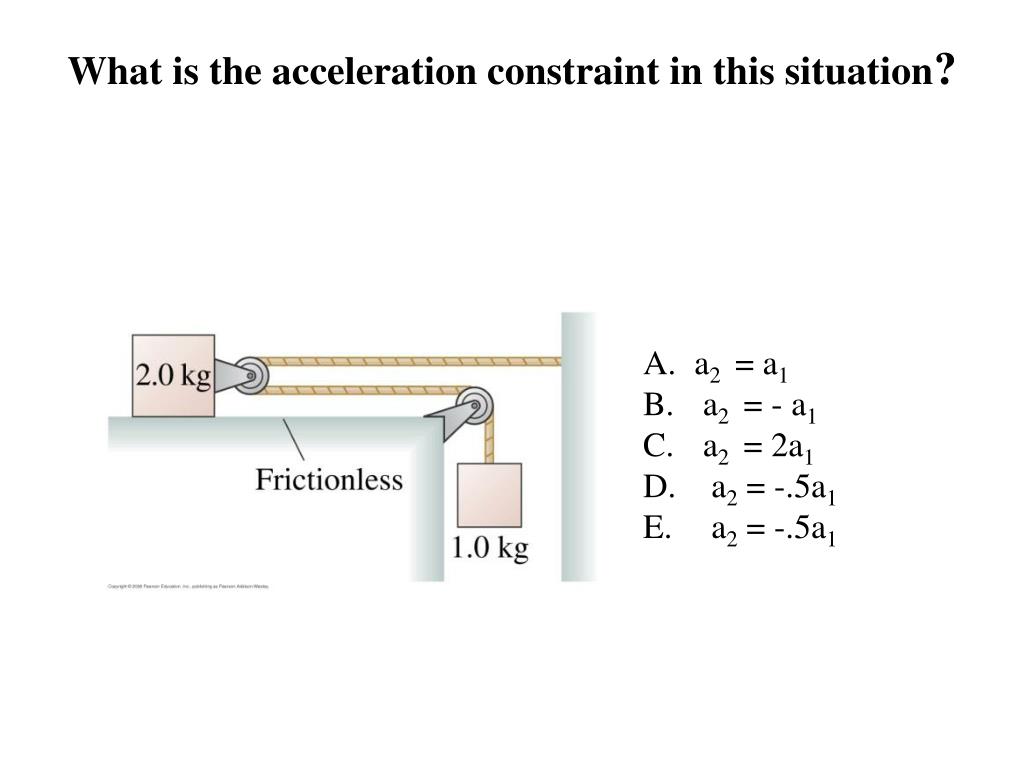

  13. What is the acceleration constraint in this situation? • a2 = a1 • a2 = - a1 • a2 = 2a1 • a2 = -.5a1 • a2 = -.5a1

  14. Problem-Solving Strategy: Interacting-Objects Problems

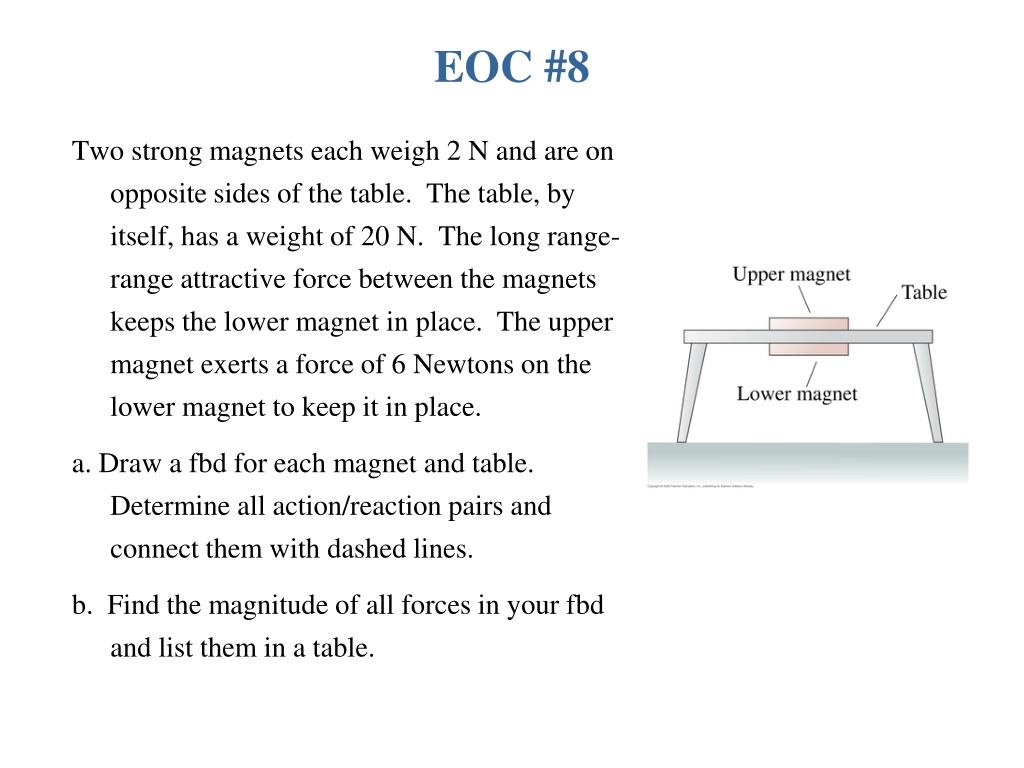

  15. EOC #8 Two strong magnets each weigh 2 N and are on opposite sides of the table. The table, by itself, has a weight of 20 N. The long range-range attractive force between the magnets keeps the lower magnet in place. The upper magnet exerts a force of 6 Newtons on the lower magnet to keep it in place. a. Draw a fbd for each magnet and table. Determine all action/reaction pairs and connect them with dashed lines. b. Find the magnitude of all forces in your fbd and list them in a table.

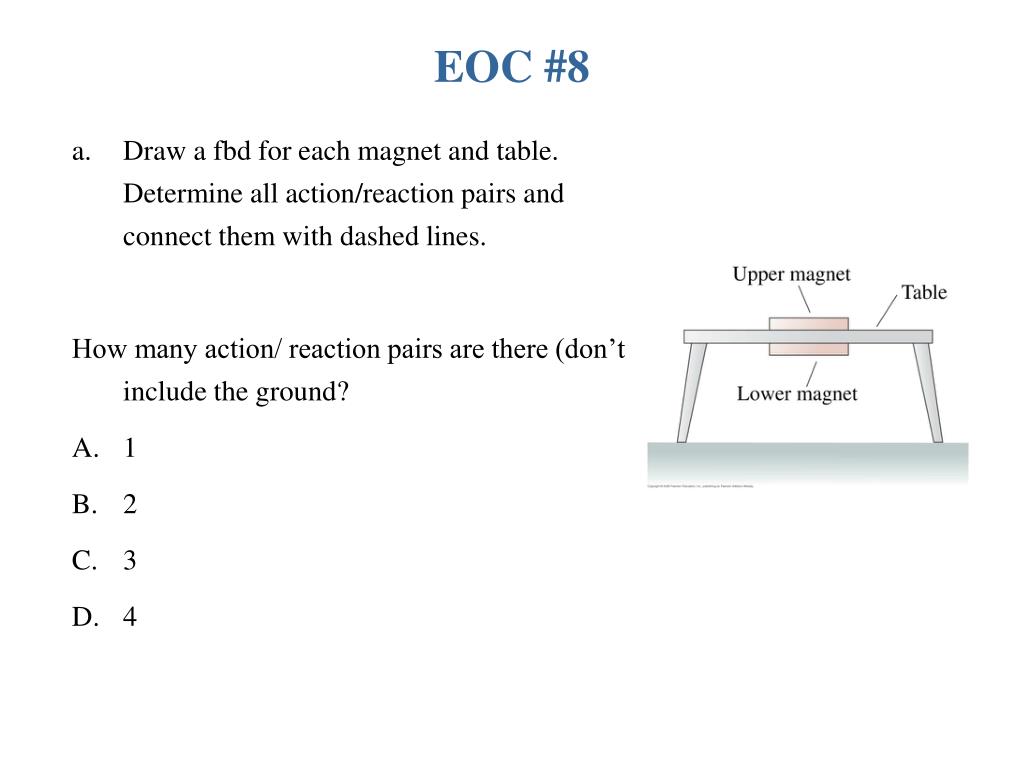

  16. EOC #8 • Draw a fbd for each magnet and table. Determine all action/reaction pairs and connect them with dashed lines. How many action/ reaction pairs are there (don’t include the ground? • 1 • 2 • 3 • 4

  17. EOC #8 Upper Table Lower

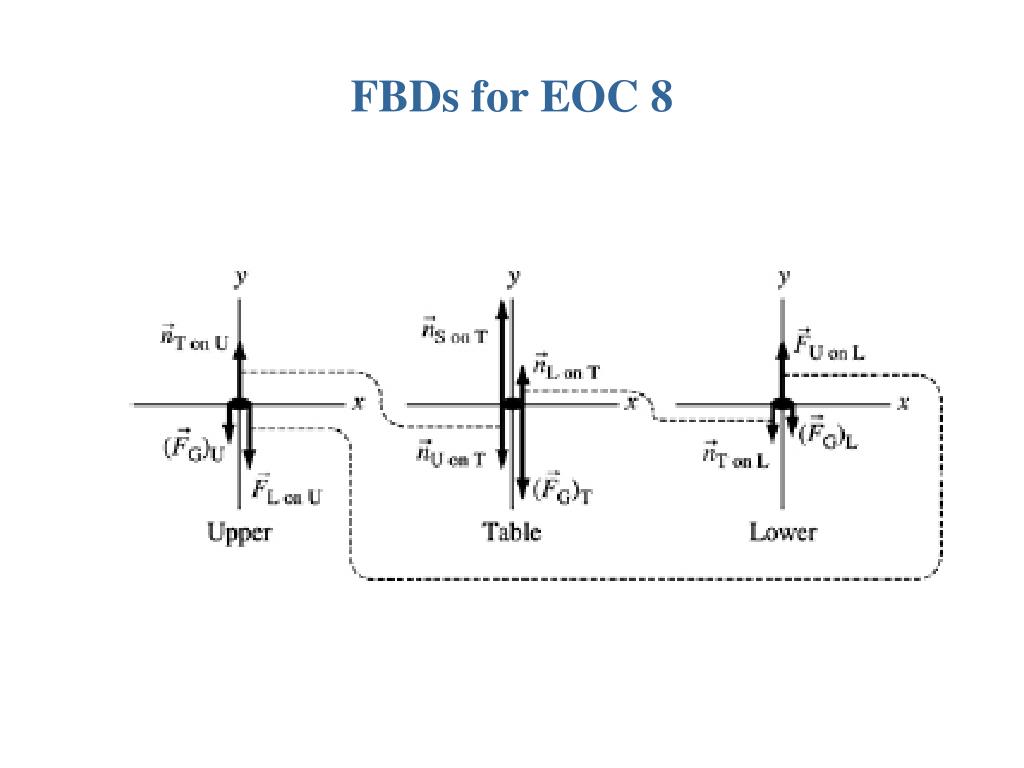

  18. FBDs for EOC 8

  19. EOC #8 - Answer

  20. Ranking Task – Pushing blocks Block 1 has a mass of m, block 2 has a mass of 2m, block 3 has a mass of 3m. The surface is frictionless. Rank these blocks on the basis of the net force on each of them, from greatest to least. If the net force on each block is the same, state that explicitly • 1,2,3 • 3,2,1 • 1,3,2 • 1=2=3

  21. EOC #10 Block 1 has a mass of 1 kg, block 2 has a mass of 2 kg, block 3 has a mass of 3 kg. The surface is frictionless. a. Draw a fbd for each block. Use dashed lines to connect all action/ reaction pairs. b. How much force does the 2-kg block exert on the 3-kg block? c. How much force does the 2-kg block exert on the 1-kg block?

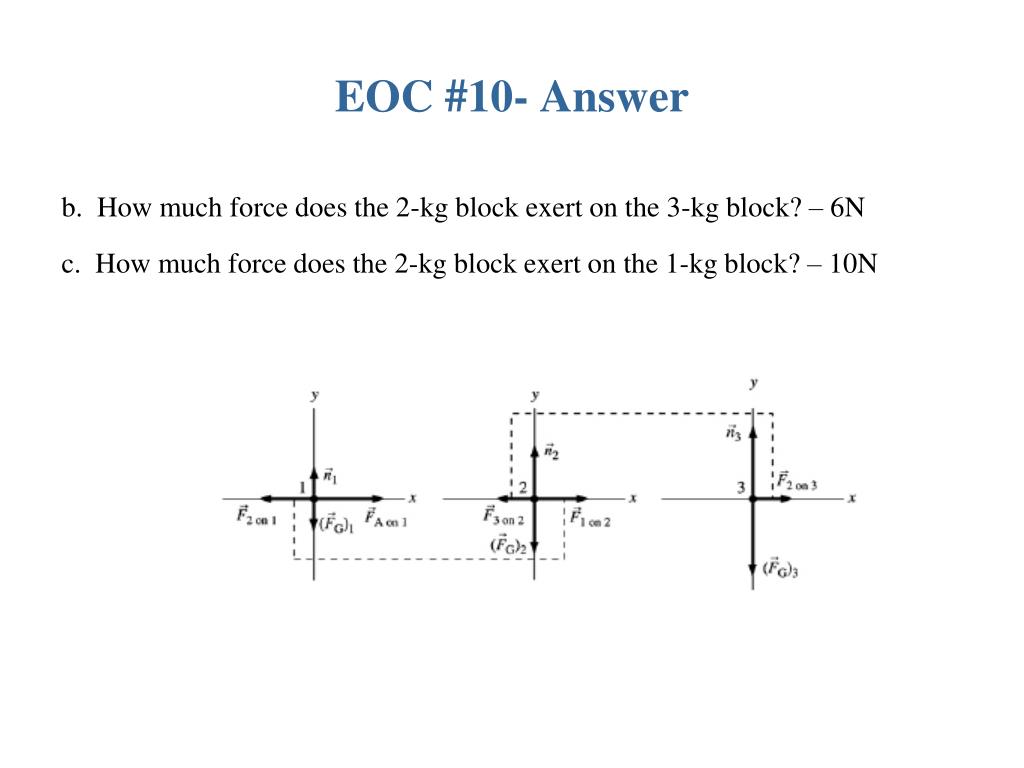

  22. EOC #10- Answer b. How much force does the 2-kg block exert on the 3-kg block? – 6N c. How much force does the 2-kg block exert on the 1-kg block? – 10N

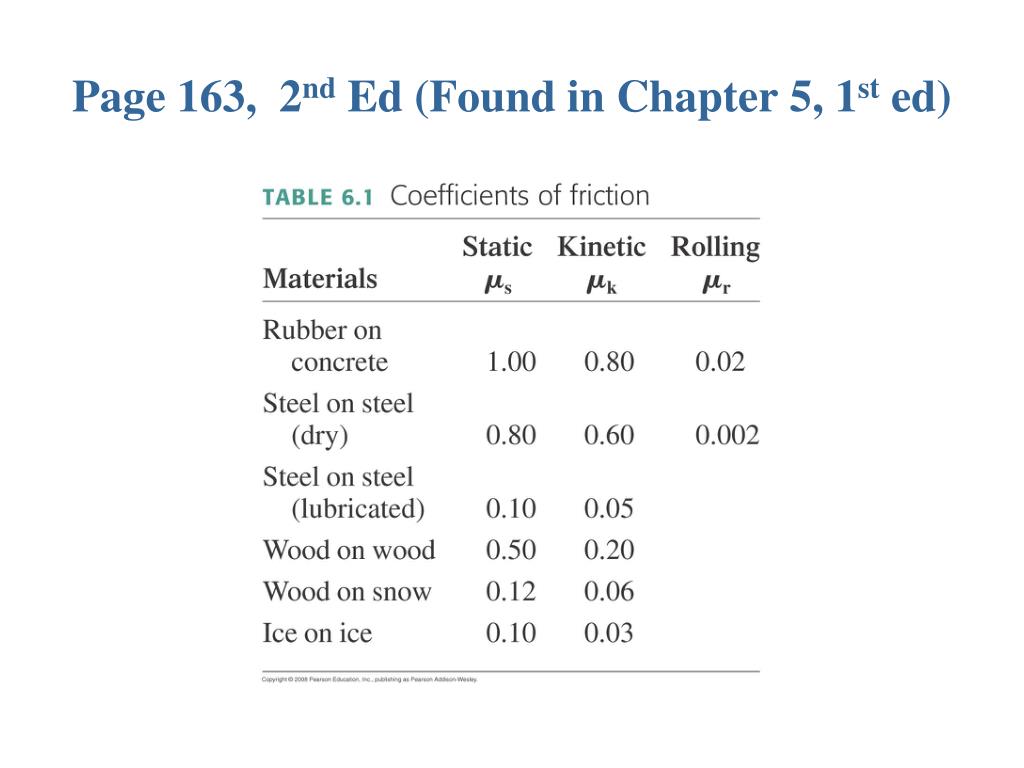

  23. Page 163, 2nd Ed (Found in Chapter 5, 1st ed)

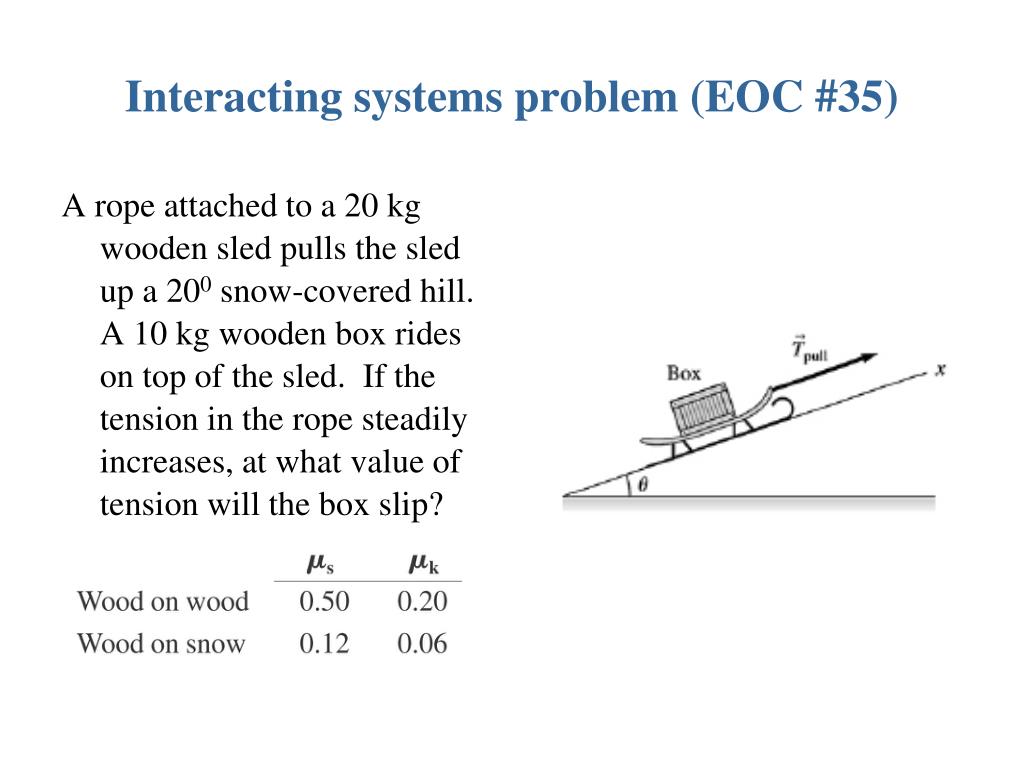

  24. Interacting systems problem (EOC #35) A rope attached to a 20 kg wooden sled pulls the sled up a 200 snow-covered hill. A 10 kg wooden box rides on top of the sled. If the tension in the rope steadily increases, at what value of tension will the box slip?

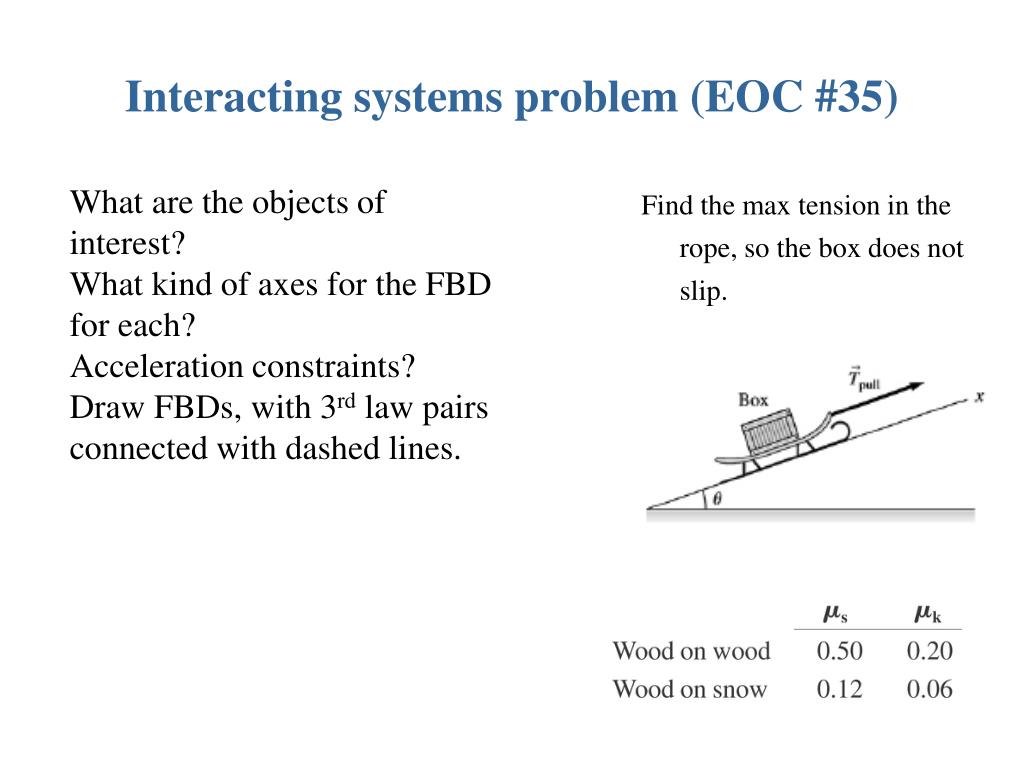

  25. Interacting systems problem (EOC #35) Find the max tension in the rope, so the box does not slip. What are the objects of interest?What kind of axes for the FBD for each?Acceleration constraints?Draw FBDs, with 3rd law pairs connected with dashed lines.

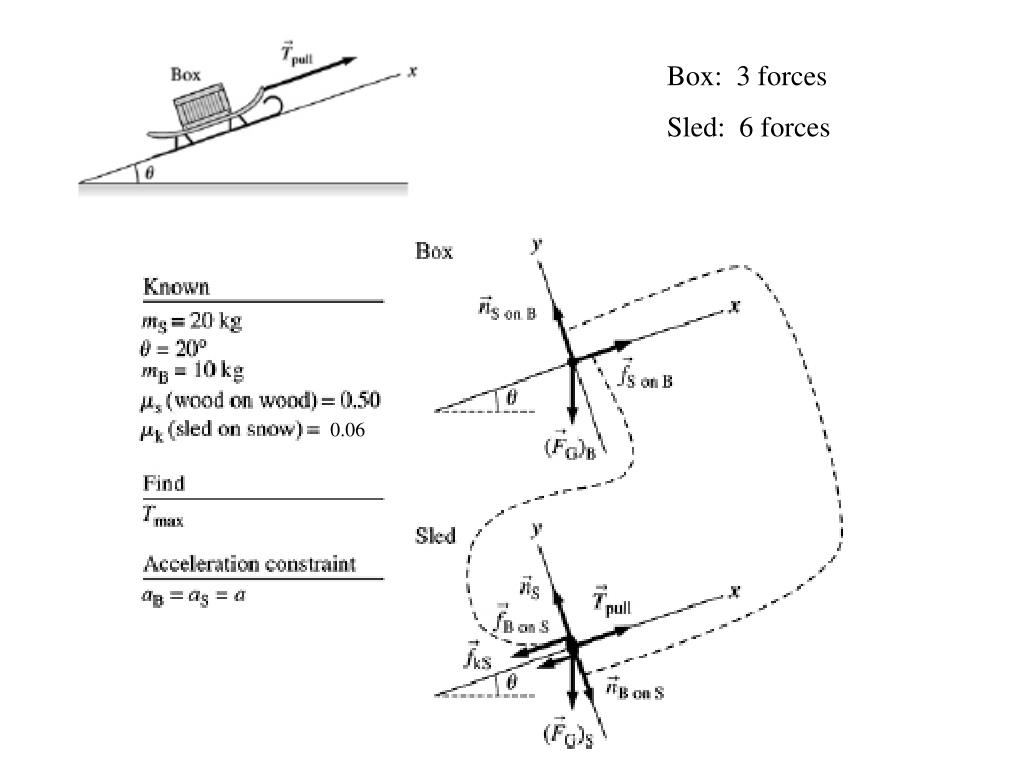

  26. Box: 3 forces Sled: 6 forces 0.06

  27. I suggest starting with the equations for the box; its easier to deal with. Since friction is involved solve N’s 2nd Law in both y and x • Now, identify quantities in sled equations that you already solved for in box equations. • Use subscripts to avoid mixups. • Plug and chug. 0.06

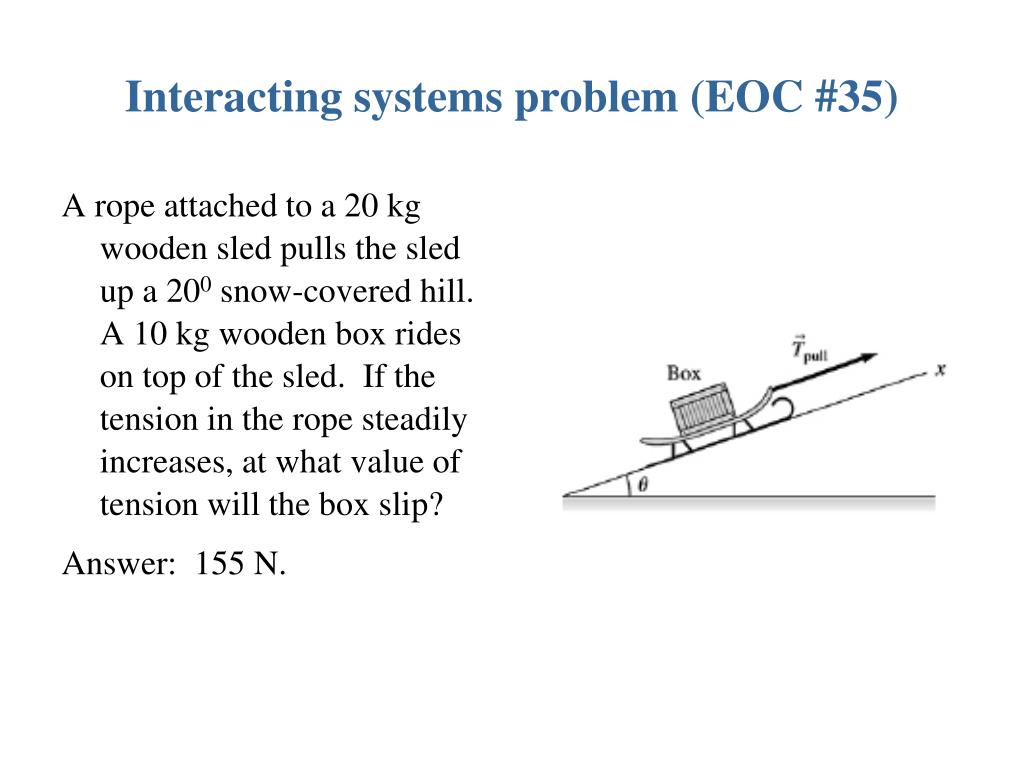

  28. Interacting systems problem (EOC #35) A rope attached to a 20 kg wooden sled pulls the sled up a 200 snow-covered hill. A 10 kg wooden box rides on top of the sled. If the tension in the rope steadily increases, at what value of tension will the box slip? Answer: 155 N.

  29. Pulleys If we assume that the string is massless and the pulley is both massless and frictionless, no net force is needed to turn the pulley. TAonB and TBonA act “as if” they are an action/reaction pair, even though they are not acting in opposite directions.

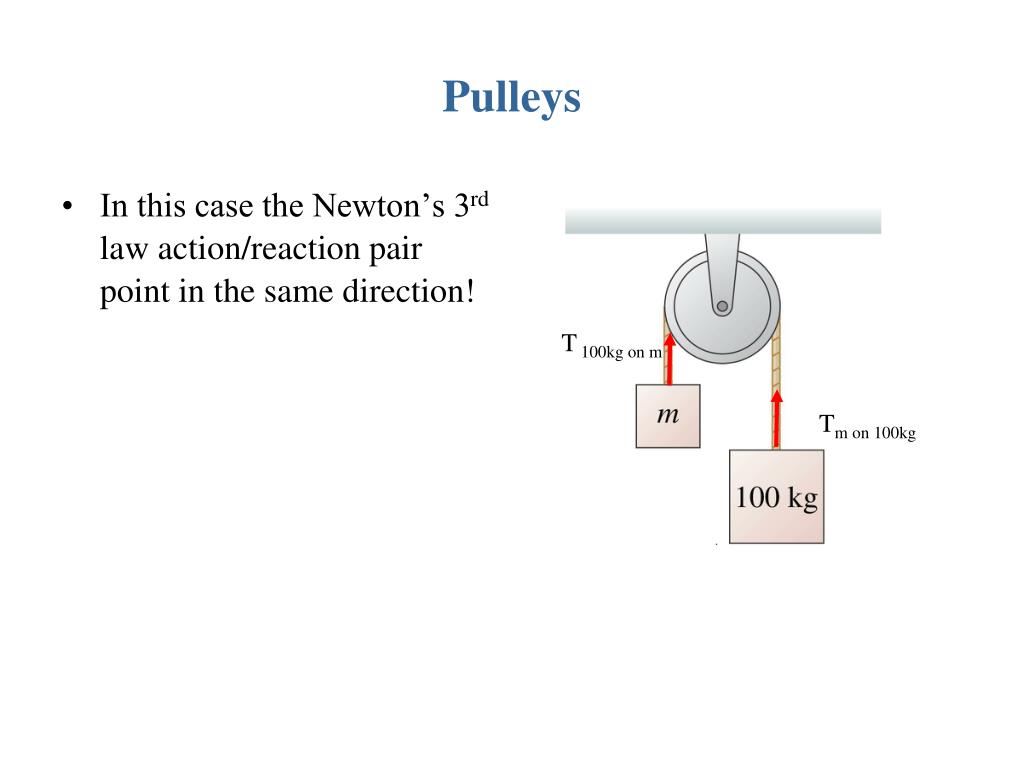

  30. Pulleys • In this case the Newton’s 3rd law action/reaction pair point in the same direction! T 100kg on m Tm on 100kg

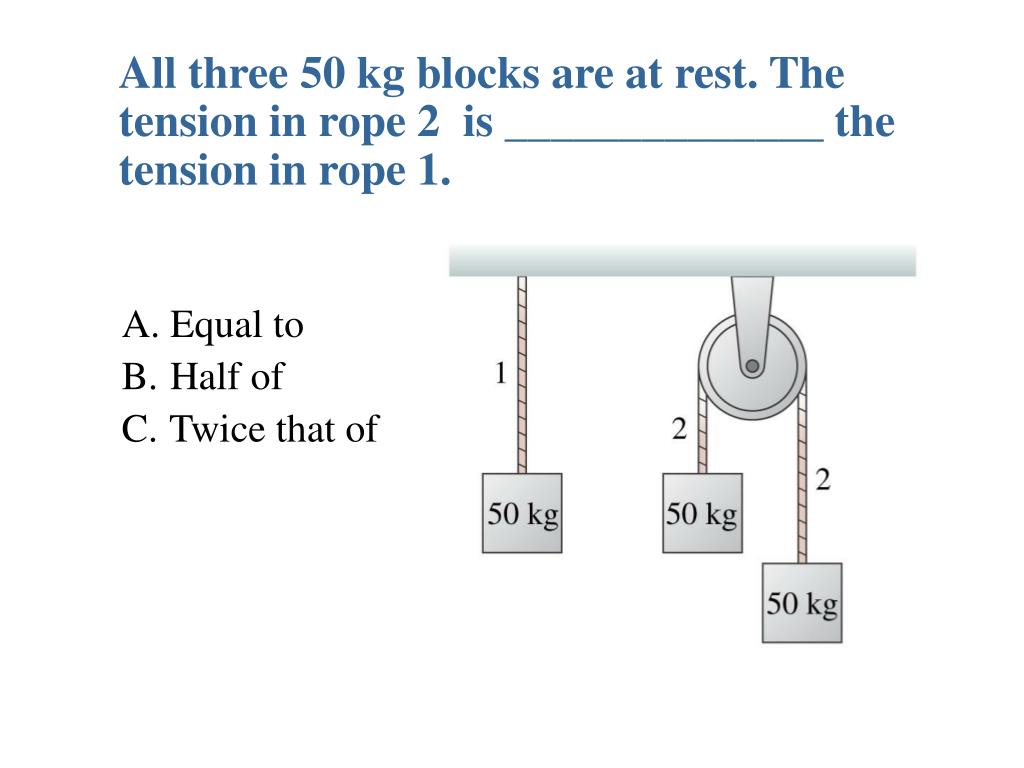

  31. All three 50 kg blocks are at rest. The tension in rope 2 is ______________ the tension in rope 1. • Equal to • Half of • Twice that of

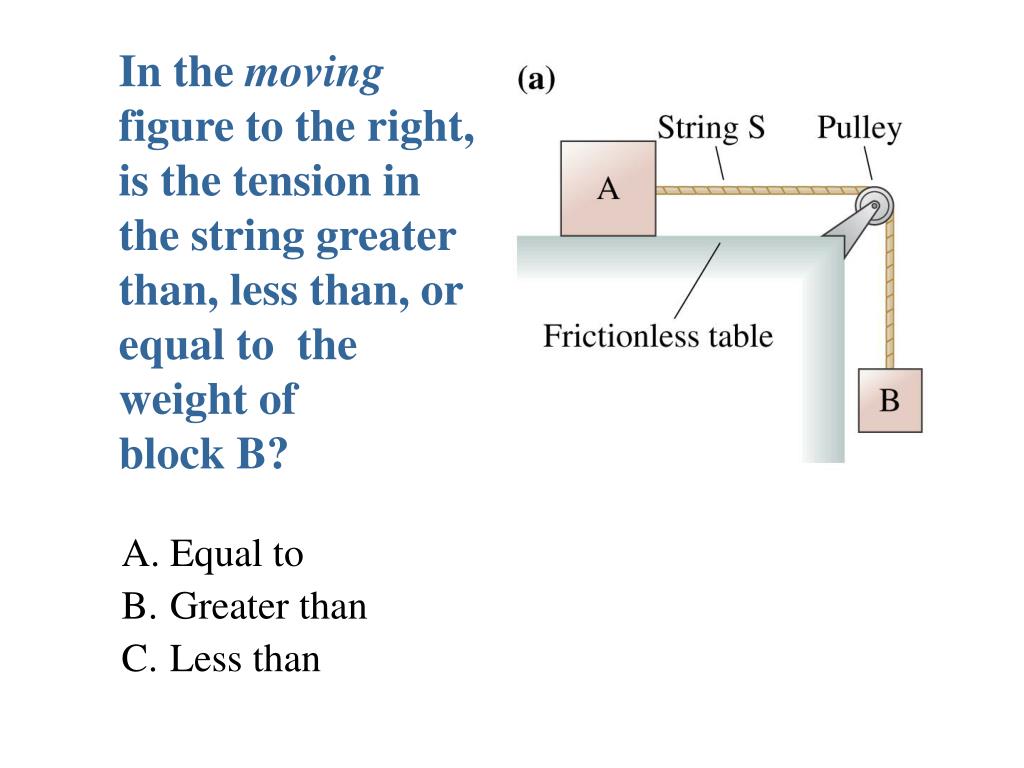

  32. In the moving figure to the right, is the tension in the string greater than, less than, or equal to the weight ofblock B? • Equal to • Greater than • Less than

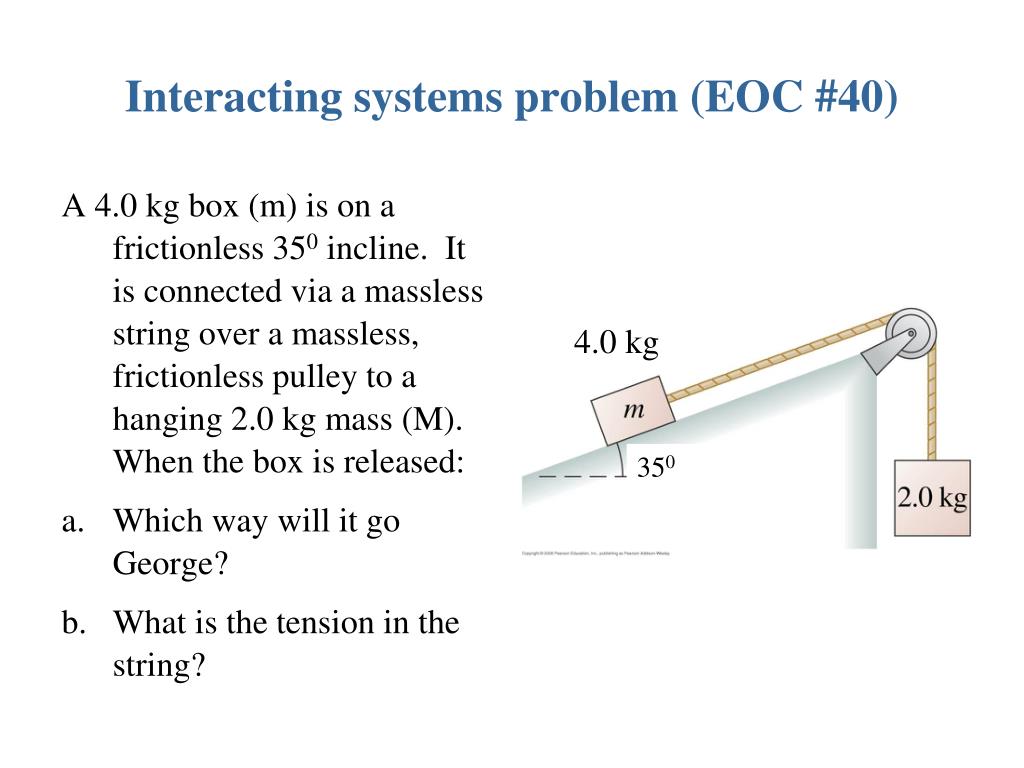

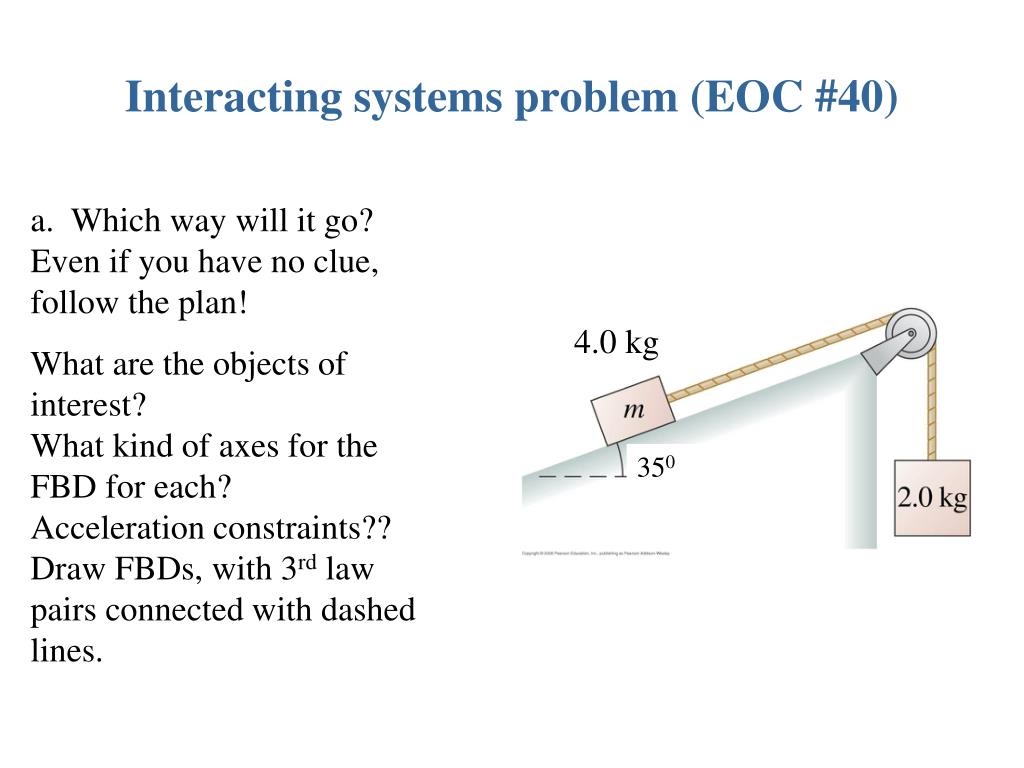

  33. Interacting systems problem (EOC #40) A 4.0 kg box (m) is on a frictionless 350 incline. It is connected via a massless string over a massless, frictionless pulley to a hanging 2.0 kg mass (M). When the box is released: • Which way will it go George? • What is the tension in the string? 4.0 kg 350

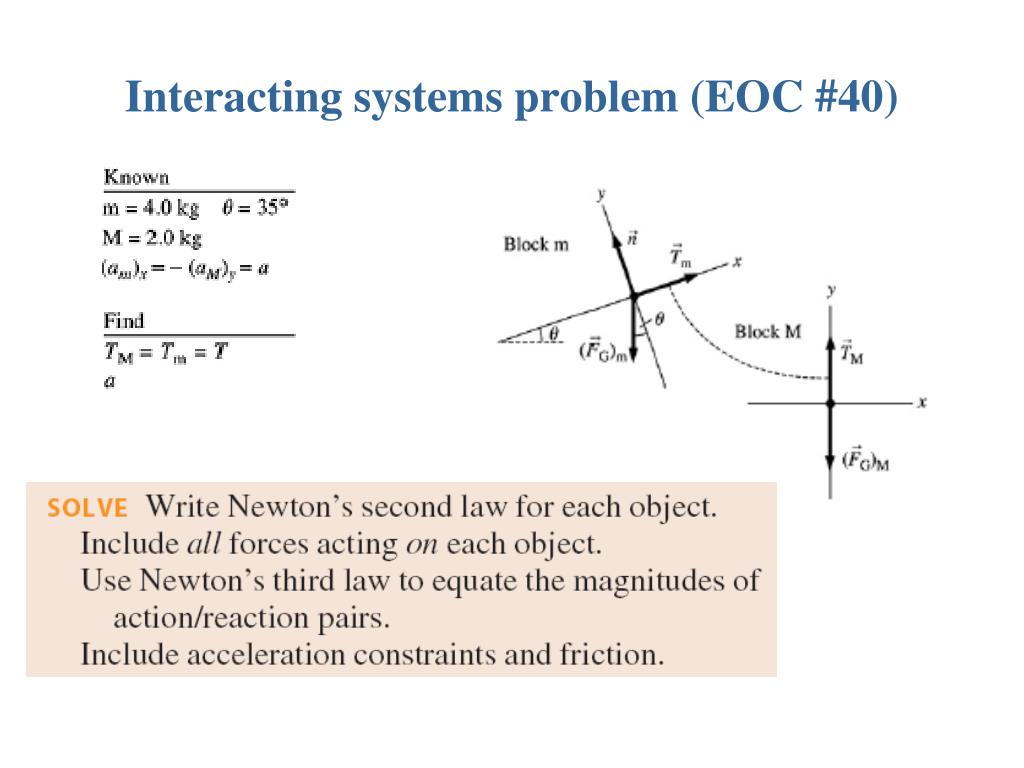

  34. Interacting systems problem (EOC #40) a. Which way will it go? Even if you have no clue, follow the plan! What are the objects of interest?What kind of axes for the FBD for each?Acceleration constraints??Draw FBDs, with 3rd law pairs connected with dashed lines. 4.0 kg 350

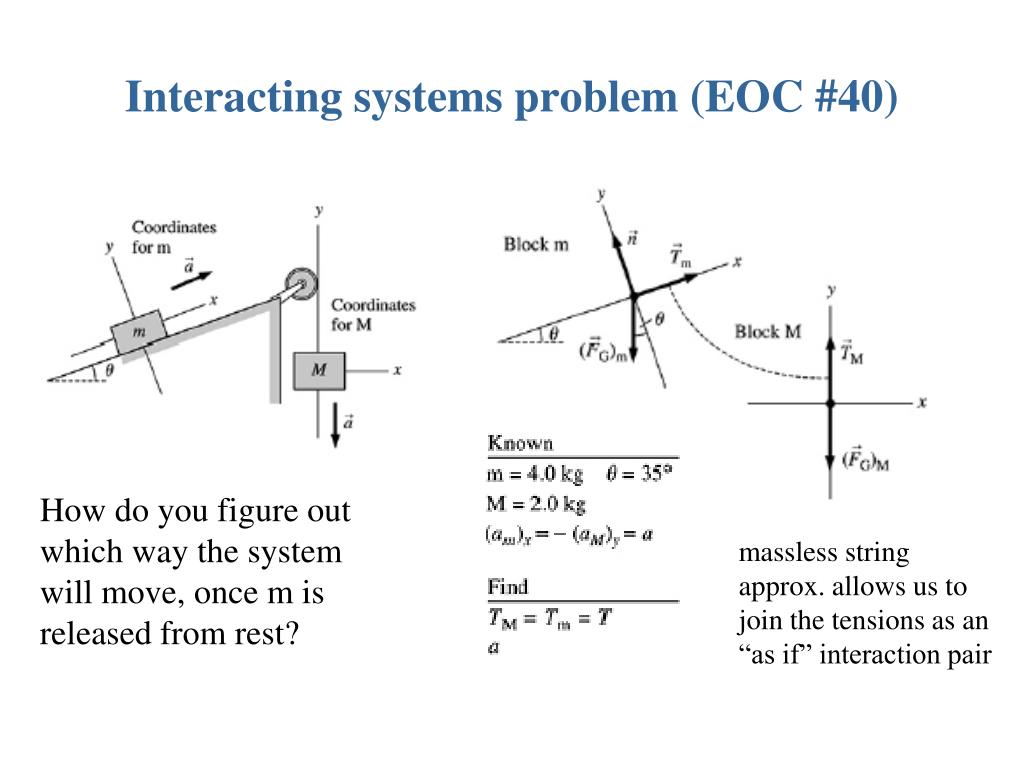

  35. Interacting systems problem (EOC #40) How do you figure out which way the system will move, once m is released from rest? massless string approx. allows us to join the tensions as an “as if” interaction pair

  36. Interacting systems problem (EOC #40)

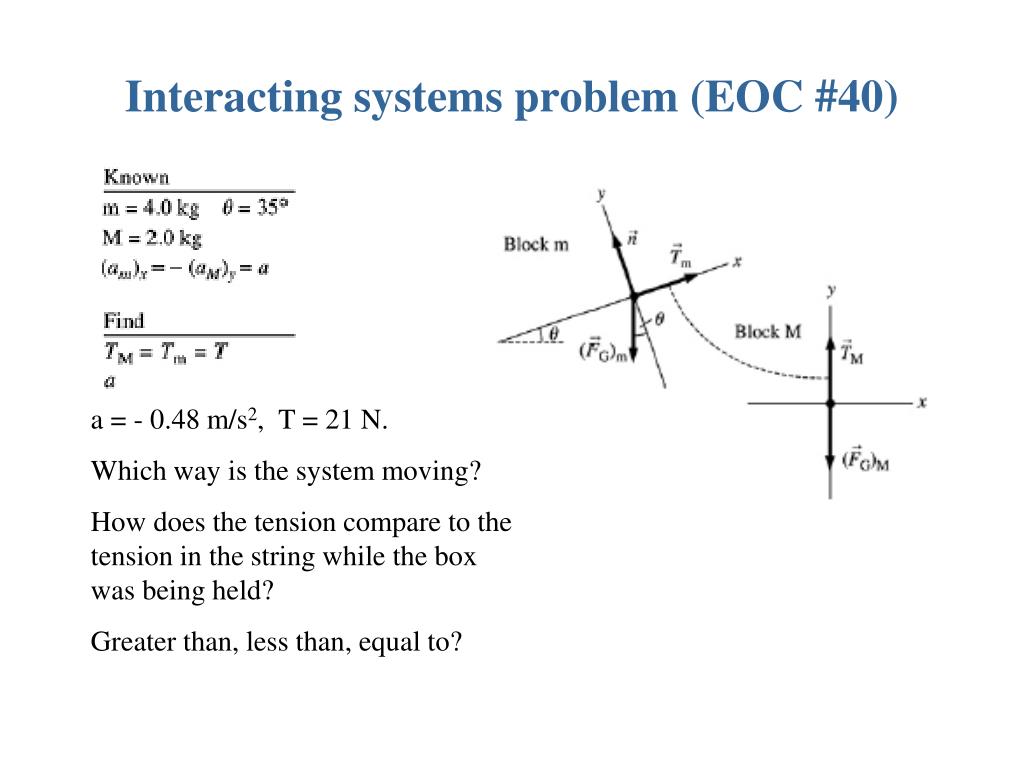

  37. Interacting systems problem (EOC #40) a = - 0.48 m/s2, T = 21 N. Which way is the system moving? How does the tension compare to the tension in the string while the box was being held? Greater than, less than, equal to?

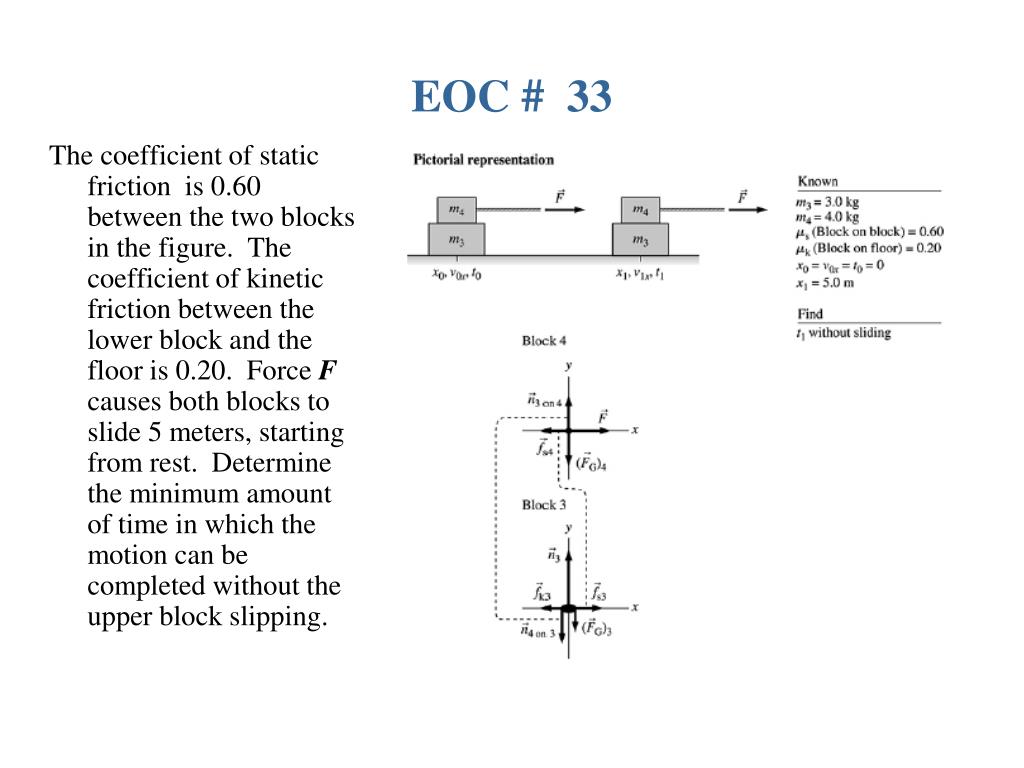

  38. EOC # 33 The coefficient of static friction is 0.60 between the two blocks in the figure. The coefficient of kinetic friction between the lower block and the floor is 0.20. Force Fcauses both blocks to slide 5 meters, starting from rest. Determine the minimum amount of time in which the motion can be completed without the upper block slipping.

  39. EOC # 33 The coefficient of static friction is 0.60 between the two blocks in the figure. The coefficient of kinetic friction between the lower block and the floor is 0.20. Force Fcauses both blocks to slide 5 meters, starting from rest. Determine the minimum amount of time in which the motion can be completed without the upper block slipping.

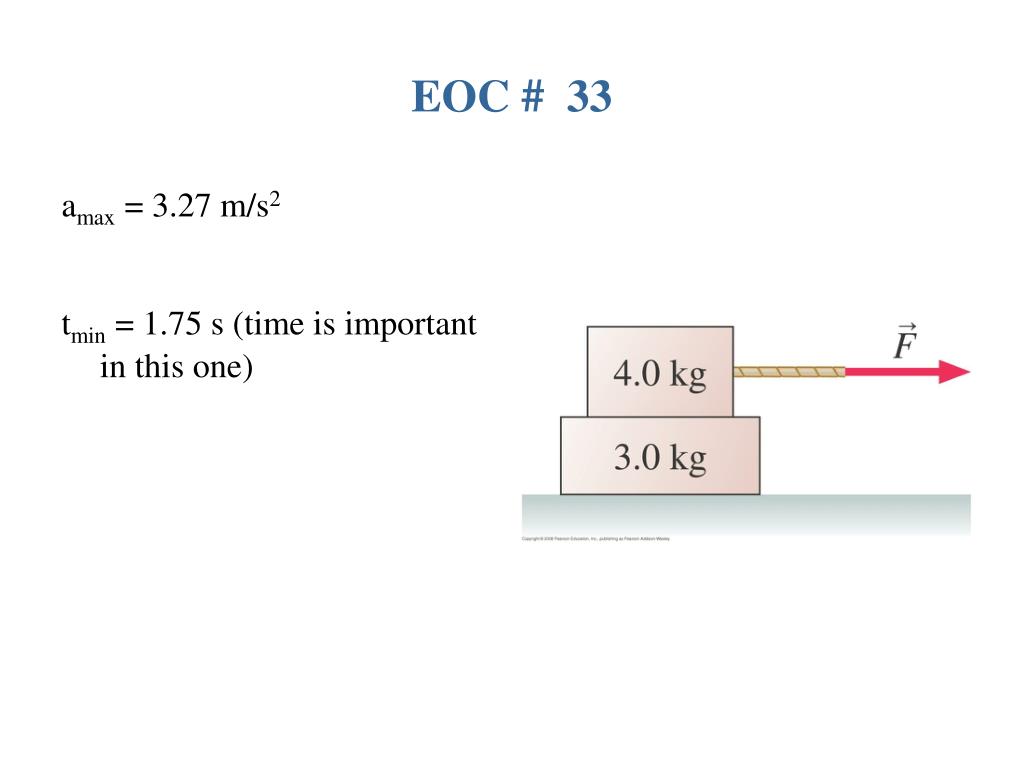

  40. EOC # 33 amax = 3.27 m/s2 tmin = 1.75 s (time is important in this one)

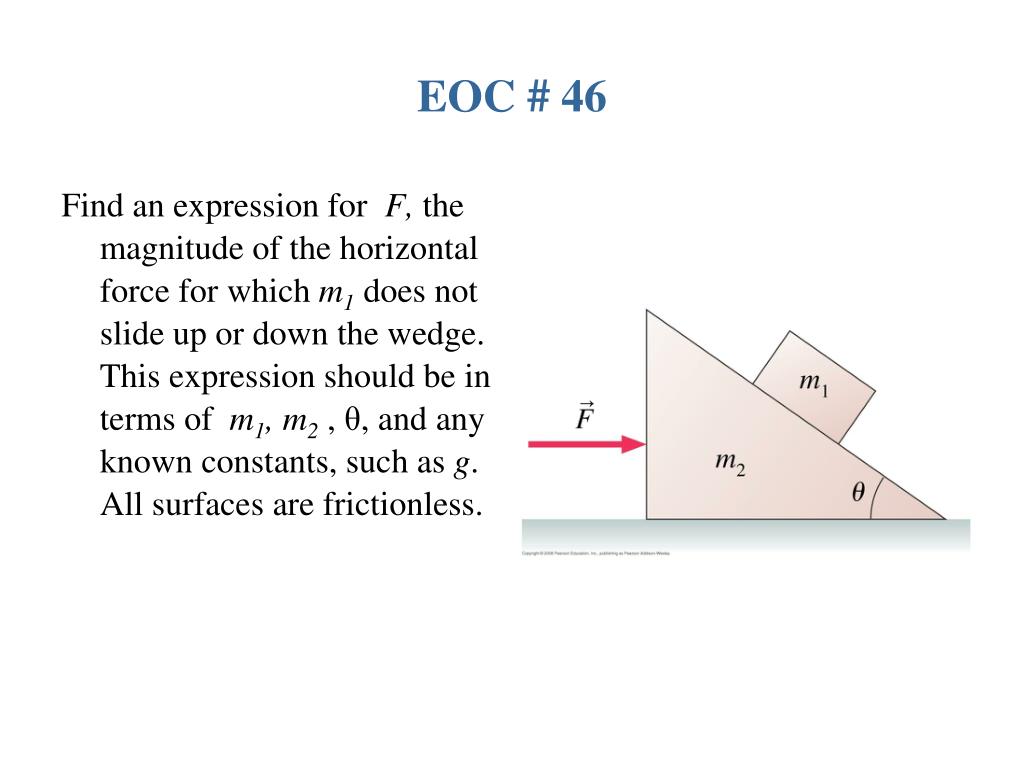

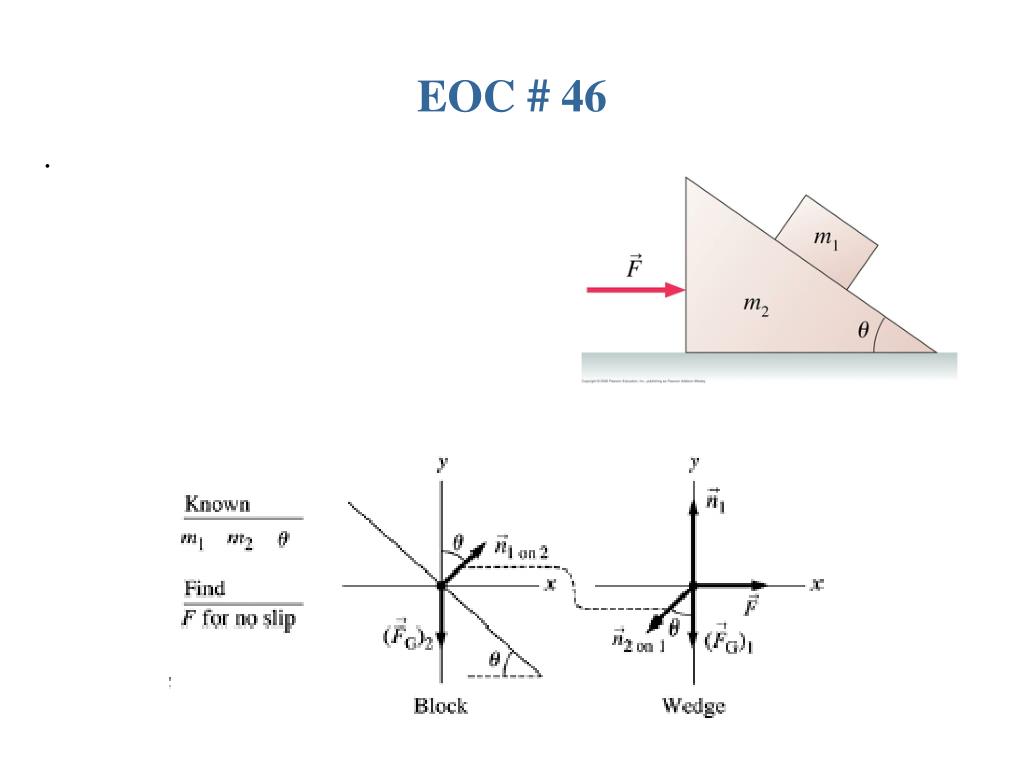

  41. EOC # 46 Find an expression for F, the magnitude of the horizontal force for which m1does not slide up or down the wedge. This expression should be in terms of m1, m2, θ, and any known constants, such as g.All surfaces are frictionless.

  42. EOC # 46 .

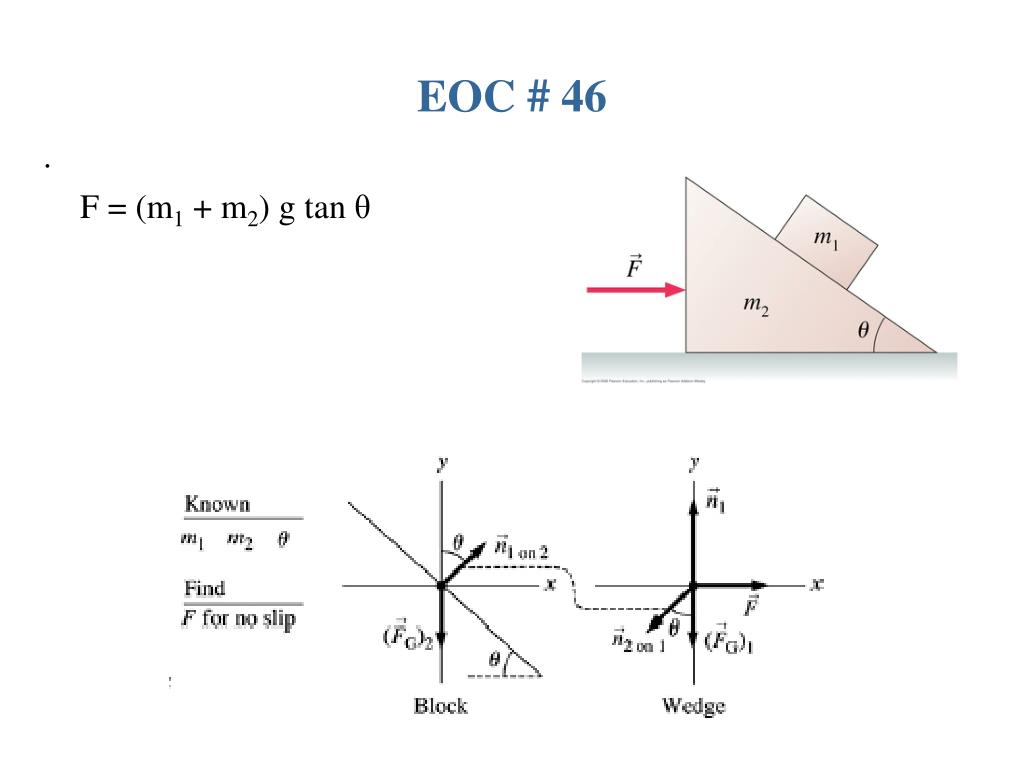

  43. EOC # 46 . F = (m1 + m2) g tan θ

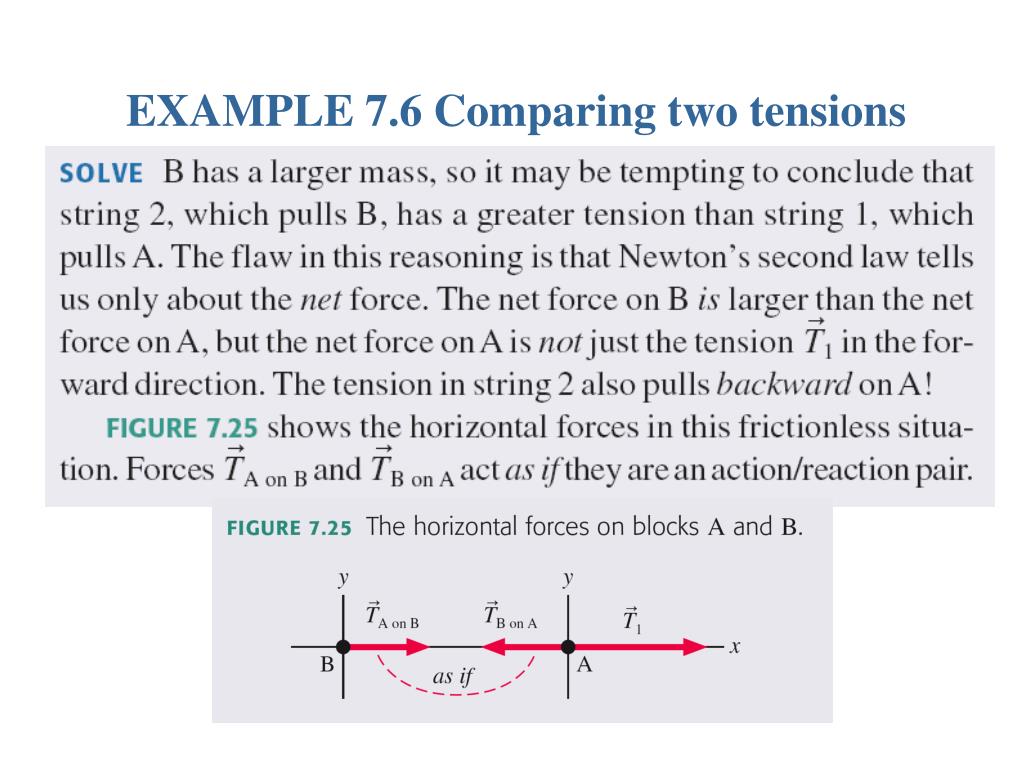

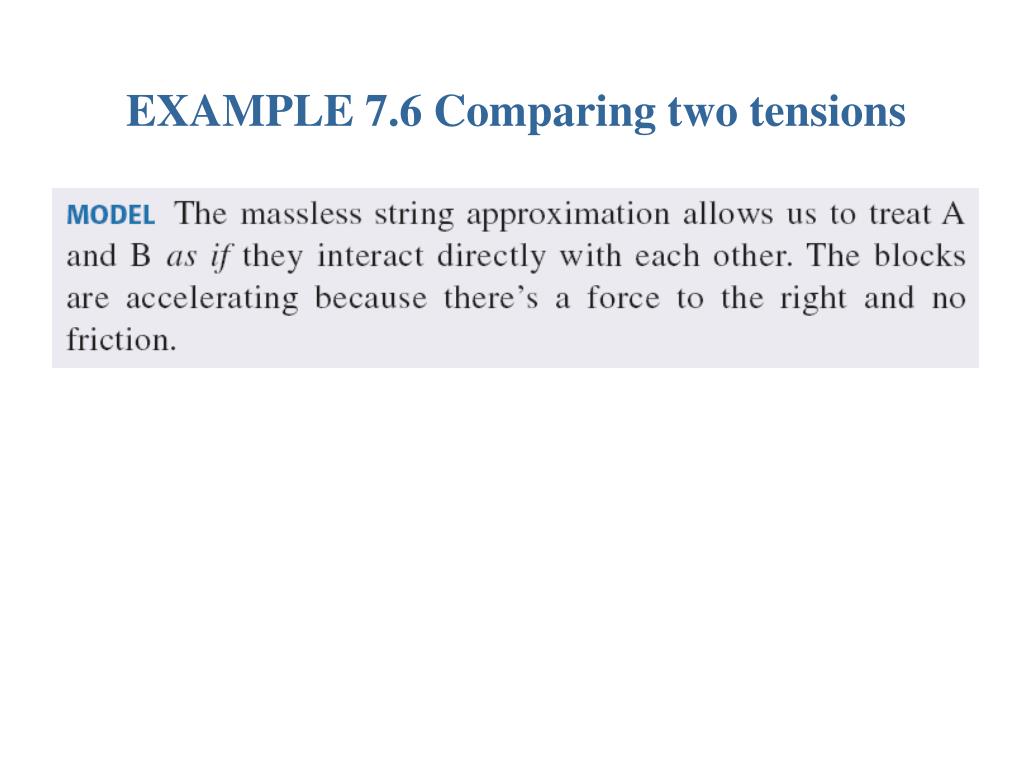

  44. EXAMPLE 7.6 Comparing two tensions QUESTION:

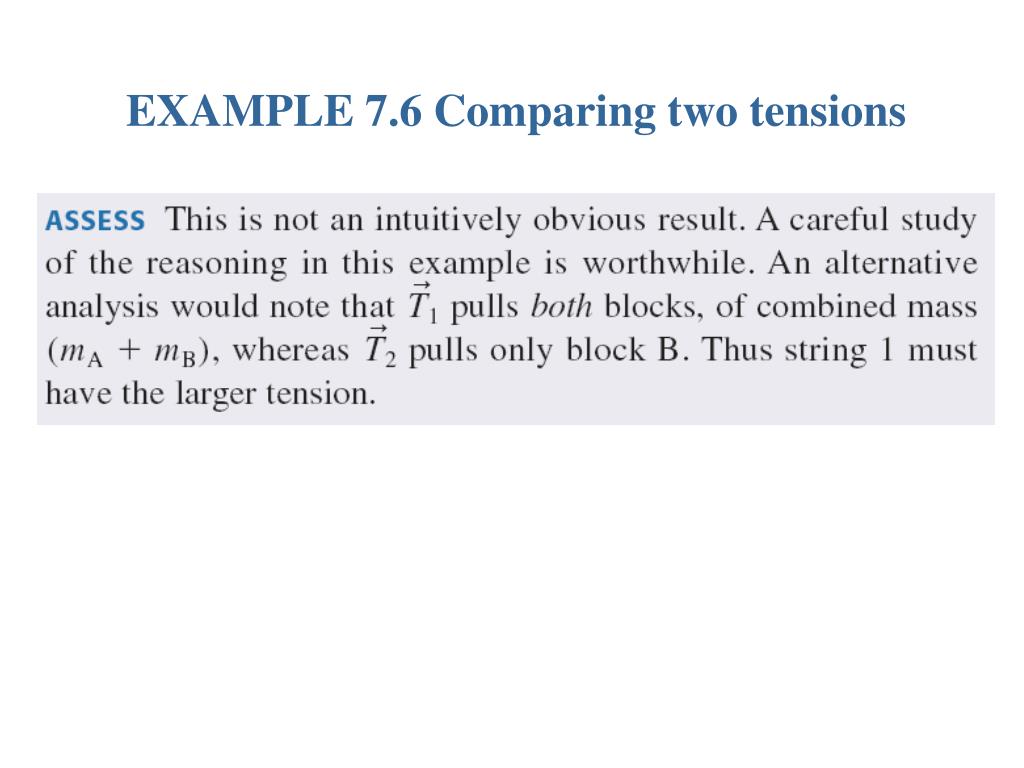

  45. EXAMPLE 7.6 Comparing two tensions

  46. EXAMPLE 7.6 Comparing two tensions

  47. EXAMPLE 7.6 Comparing two tensions

  48. EXAMPLE 7.6 Comparing two tensions

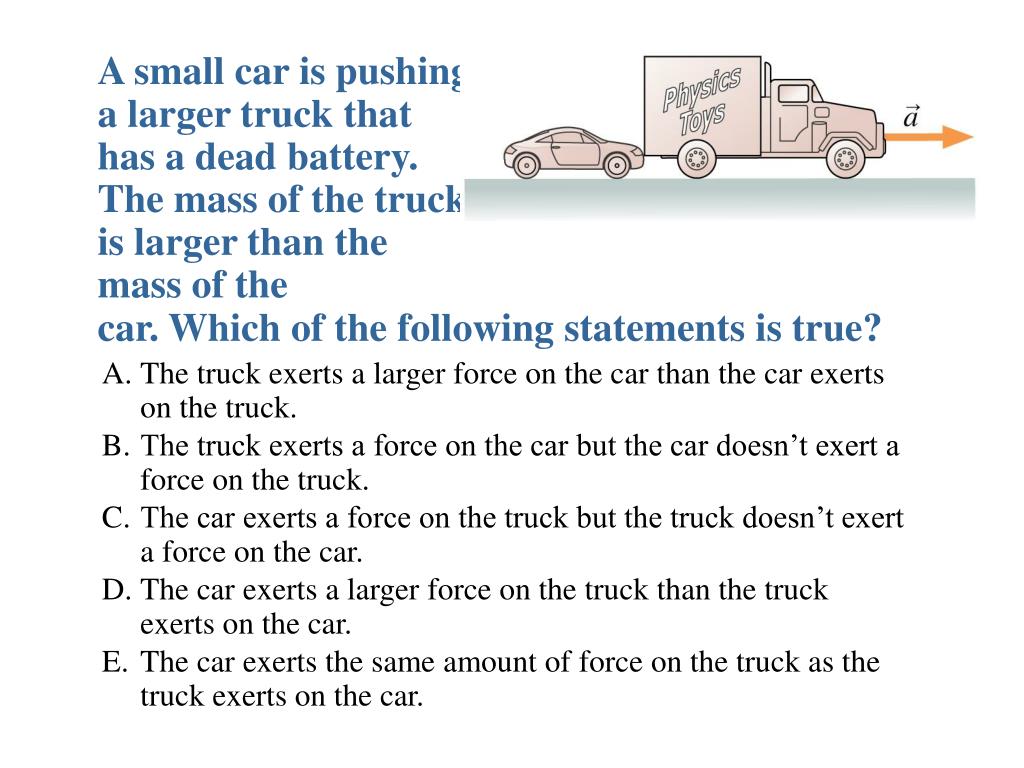

  49. A small car is pushing a larger truck that has a dead battery. The mass of the truck is larger than the mass of the car. Which of the following statements is true? • The truck exerts a larger force on the car than the car exerts on the truck. • The truck exerts a force on the car but the car doesn’t exert a force on the truck. • The car exerts a force on the truck but the truck doesn’t exert a force on the car. • The car exerts a larger force on the truck than the truck exerts on the car. • The car exerts the same amount of force on the truck as the truck exerts on the car.

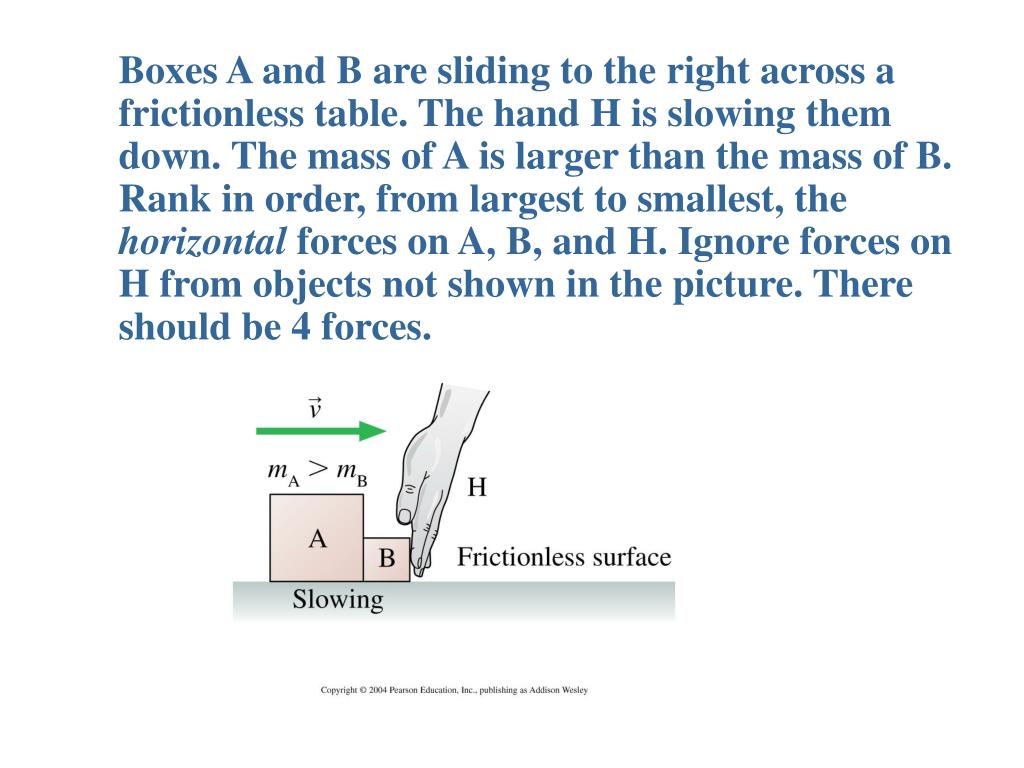

  50. Boxes A and B are sliding to the right across a frictionless table. The hand H is slowing them down. The mass of A is larger than the mass of B. Rank in order, from largest to smallest, the horizontal forces on A, B, and H. Ignore forces on H from objects not shown in the picture. There should be 4 forces.
