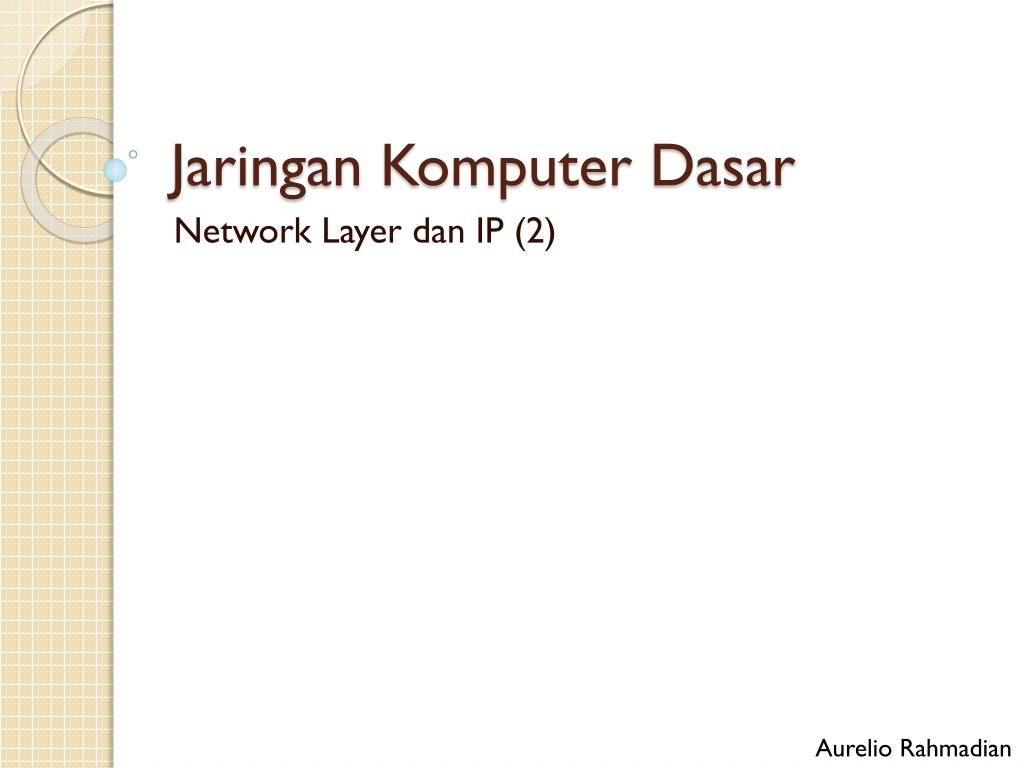

  1. JaringanKomputerDasar Network Layer dan IP (2) Aurelio Rahmadian

  2. Objektif • Pengalamatan • Network Address • Kalkulasi Address

  3. Pengalamatan • The allocation of addresses inside the networks should be planned and documented for the purpose of: • Preventing duplication of addresses • Providing and controlling access • Monitoring security and performance

  4. Pengalamatan

  5. Pengalamatan

  6. Pengalamatan

  7. Pengalamatan • Internet Assigned Numbers Authority (IANA) (http://www.iana.net)

  8. Pengalamatan

  9. Pengalamatan • Tier 1 • These ISPs are large national or international ISPs that are directly connected to the Internet backbone. • The customers of Tier 1 ISPs are either lower-tiered ISPs or large companies and organizations. Because they are at the top of Internet connectivity, they engineer highly reliable connections and services. • The primary advantages for customers of Tier 1 ISPs are reliability and speed. Because these customers are only one connection away from the Internet, there are fewer opportunities for failures or traffic bottlenecks. The drawback for Tier 1 ISP customers is its high cost.

  10. Pengalamatan • Tier 2 • Tier 2 ISPs acquire their Internet service from Tier 1 ISPs. Tier 2 ISPs generally focus on business customers. • Tier 2 ISPs usually offer more services than the other two tiers of ISPs. These tier 2 ISPs tend to have the IT resources to operate their own services such as DNS, e-mail servers, and web servers. Other services that Tier 2 ISPs may offer include website development and maintenance, e-commerce/e-business, and VoIP. • The primary disadvantage of Tier 2 ISPs, as compared to Tier 1 ISPs, is slower Internet access. Because Tier 2 ISPs are at least one more connection away from the Internet backbone, they also tend to have lower reliability than Tier 1 ISPs.

  11. Pengalamatan • Tier 3 • Tier 3 ISPs purchase their Internet service from Tier 2 ISPs. The focus of these ISPs is the retail and home markets in a specific locale. • Tier 3 customers typically do not need many of the services required by Tier 2 customers. Their primary need is connectivity and support. • These customers often have little or no computer or network expertise. Tier 3 ISPs often bundle Internet connectivity as a part of network and computer service contracts for their customers. • While they may have reduced bandwidth and less reliability than Tier 1 and Tier 2 providers, they are often good choices for small to medium size companies.

  12. Network Address

  13. Network Address • Subnet mask pattern: • 00000000 = 0 • 10000000 = 128 • 11000000 = 192 • 11100000 = 224 • 11110000 = 240 • 11111000 = 248 • 11111100 = 252 • 11111110 = 254 • 11111111 = 255

  14. Network Address • AND-ing host address with its subnet mask • 1 AND 1 = 1 • 1 AND 0 = 0 • 0 AND 1 = 0 • 0 AND 0 = 0

  15. Network Address

  16. Network Address

  17. Kalkulasi Address

  18. Kalkulasi Address

  19. Kalkulasi Address

  20. Kalkulasi Address

  21. Kalkulasi Address 5 15 10

  22. Kalkulasi Address • Divisi Host A 10 B 2 C 5 D 2 E 15 • IP address192.168.10.0 /24 • Host Terbanyak E: 15 • Setiap subnet harus mampu menampung 32 host (/27) • Divisi Network Broadcast A 192.168.10.0 192.168.10.31 B 192.168.10.32 192.168.10.63 C 192.168.10.64 192.168.10.95 D 192.168.10.96 192.168.10.127 E 192.168.10.128 192.168.10.159 Unused 192.168.10.160 192.168.10.191 Unused 192.168.10.192 192.168.10.223 Unused 192.168.10.224 192.168.10.255

  23. Kalkulasi Address • A Variable Length Subnet Mask (VLSM) is a means of allocating IP addressing resources to subnets according to their individual need rather than some general network-wide rule.

  24. Kalkulasi Address 5 15 10

  25. Kalkulasi Address • Divisi Host E 15 A 10 C 5 B 2 D 2 • IP address 192.168.10.0 /24 • Divisi Network Broadcast E 192.168.10.0 /27 192.168.10.31 A 192.168.10.32 /28 192.168.10.47 C 192.168.10.48 /29 192.168.10.55 B 192.168.10.56 /30 192.168.10.59 D 192.168.10.60 /30 192.168.10.63 • Unused 192.168.10.64 - 192.168.10.255

  26. Kalkulasi Address

  27. Kalkulasi Address • Divisi Host IP address: 172.16.10.0 /16 H 1021 C 512 E 321 A 300 I 60 B 2 D 2 F 2 G 2 • Divisi Network Broadcast H 172.16.10.0 /22 172.16.13.255 C 172.16.14.0 /22 172.16.17.255 E 172.16.18.0 /23 172.16.19.255 A 172.16.20.0 /23 172.16.21.255 I 172.16.22.0 /26 172.16.22.63 B 172.16.22.64 /30 172.16.22.67 D 172.16.22.68 /30 172.16.22.71 F 172.16.22.72 /30 172.16.22.75 G 172.16.22.76 /30 172.16.22.79 • Unused 172.16.22.80 - 172.16.255.255
