  1. ARCs cut definition for TEC modules Javier Fernandez Menendez Institut für Experimentelle Kernphysik Karlsruhe University TEC meeting 14th July 2004

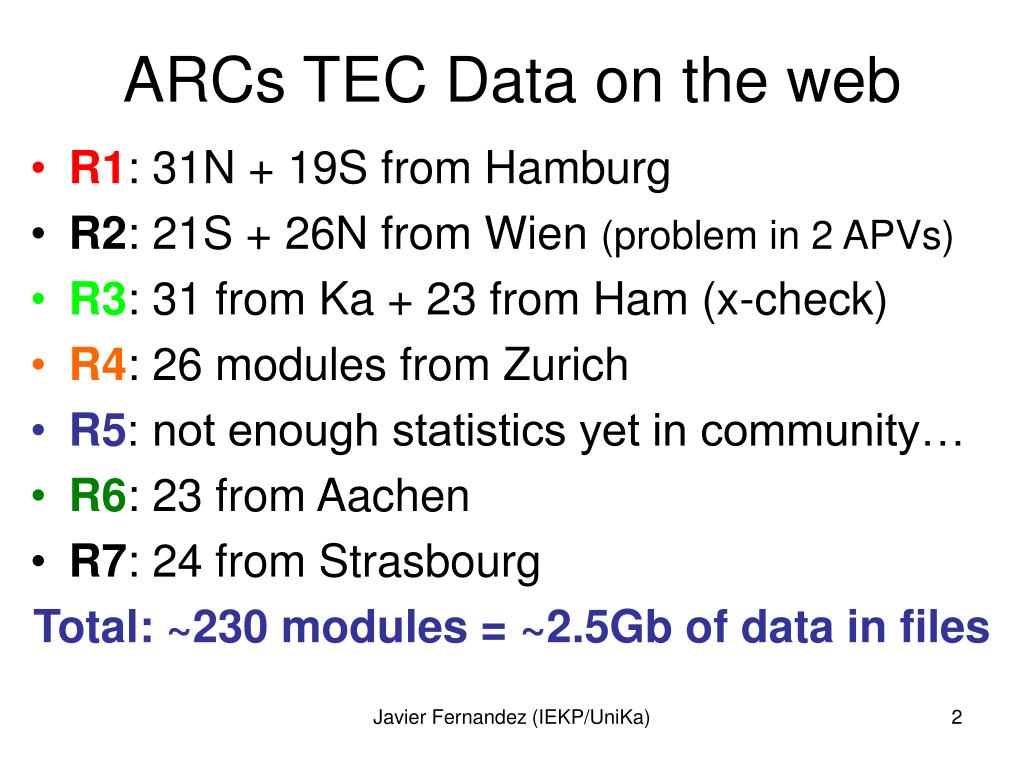

  2. ARCs TEC Data on the web • R1: 31N + 19S from Hamburg • R2: 21S + 26N from Wien (problem in 2 APVs) • R3: 31 from Ka + 23 from Ham (x-check) • R4: 26 modules from Zurich • R5: not enough statistics yet in community… • R6: 23 from Aachen • R7: 24 from Strasbourg Total: ~230 modules = ~2.5Gb of data in files Javier Fernandez (IEKP/UniKa)

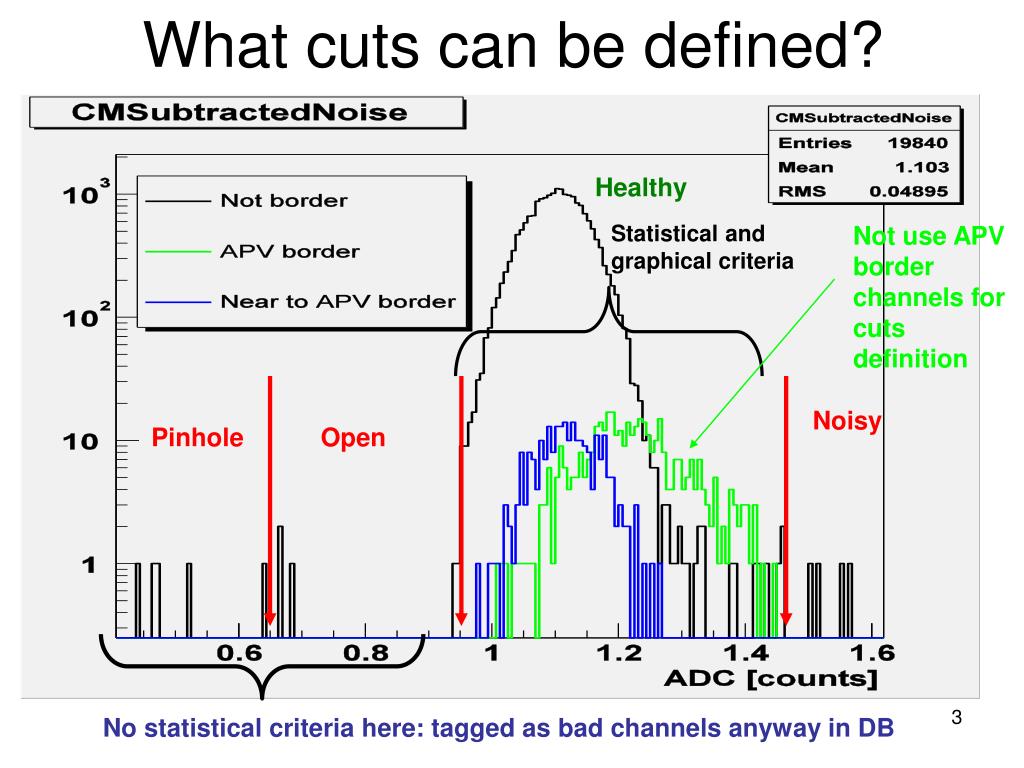

  3. What cuts can be defined? Healthy Statistical and graphical criteria Not use APV border channels for cuts definition Noisy Pinhole Open Javier Fernandez (IEKP/UniKa) No statistical criteria here: tagged as bad channels anyway in DB

  4. Methodology Noise for all modules from one geometry in one single APV mode Javier Fernandez (IEKP/UniKa)

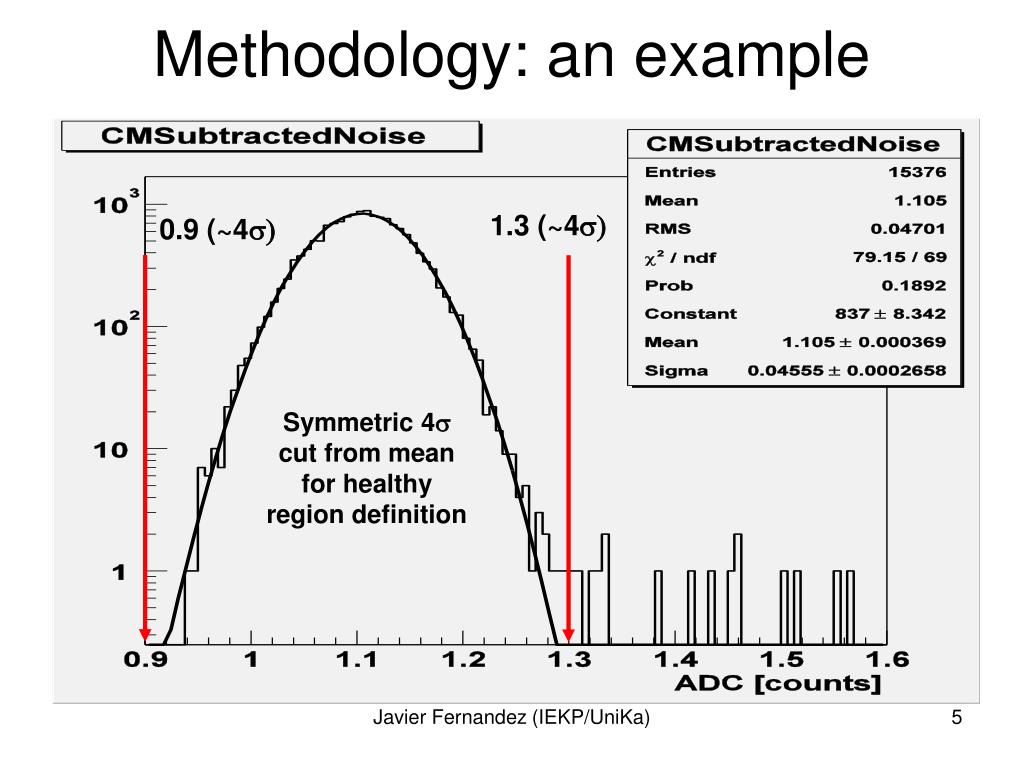

  5. Methodology: an example Border Channels: 1,2, 128, 129, 255, 256, 384, 385, 511, 512 1.3 (~4s) 0.9 (~4s) Next to border channels: 127, 130, 254, 258, 383, 386 Symmetric 4s cut from mean for healthy region definition Javier Fernandez (IEKP/UniKa)

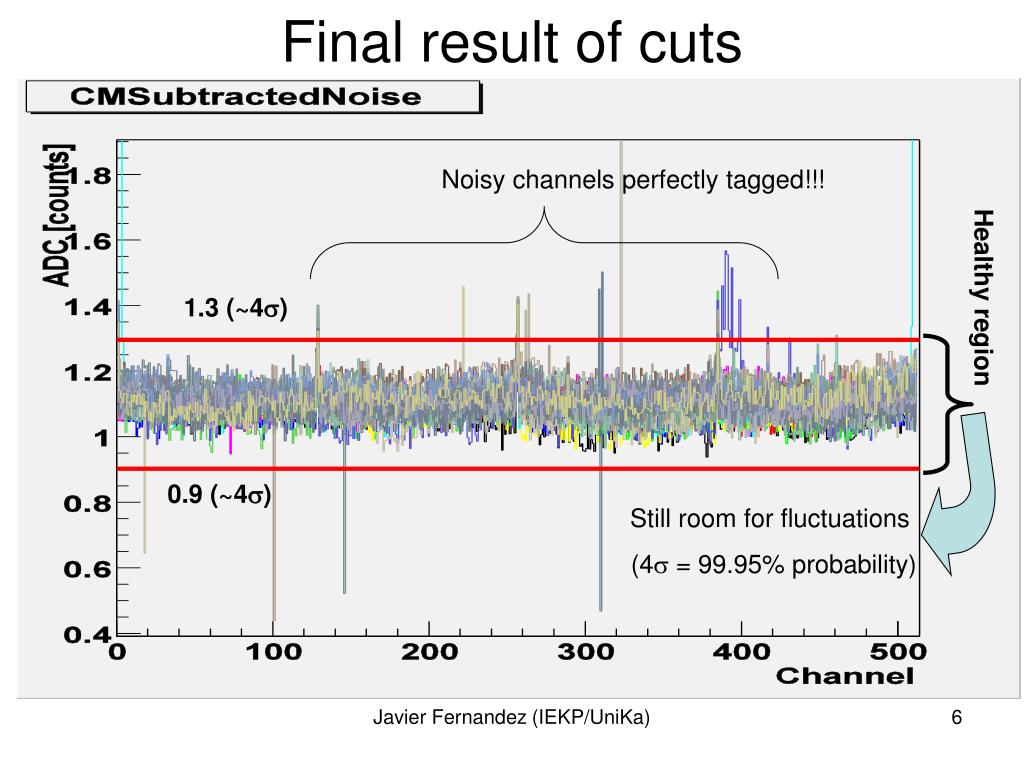

  6. Final result of cuts Noisy channels perfectly tagged!!! Healthy region 1.3 (~4s) 0.9 (~4s) Still room for fluctuations (4s = 99.95% probability) Javier Fernandez (IEKP/UniKa)

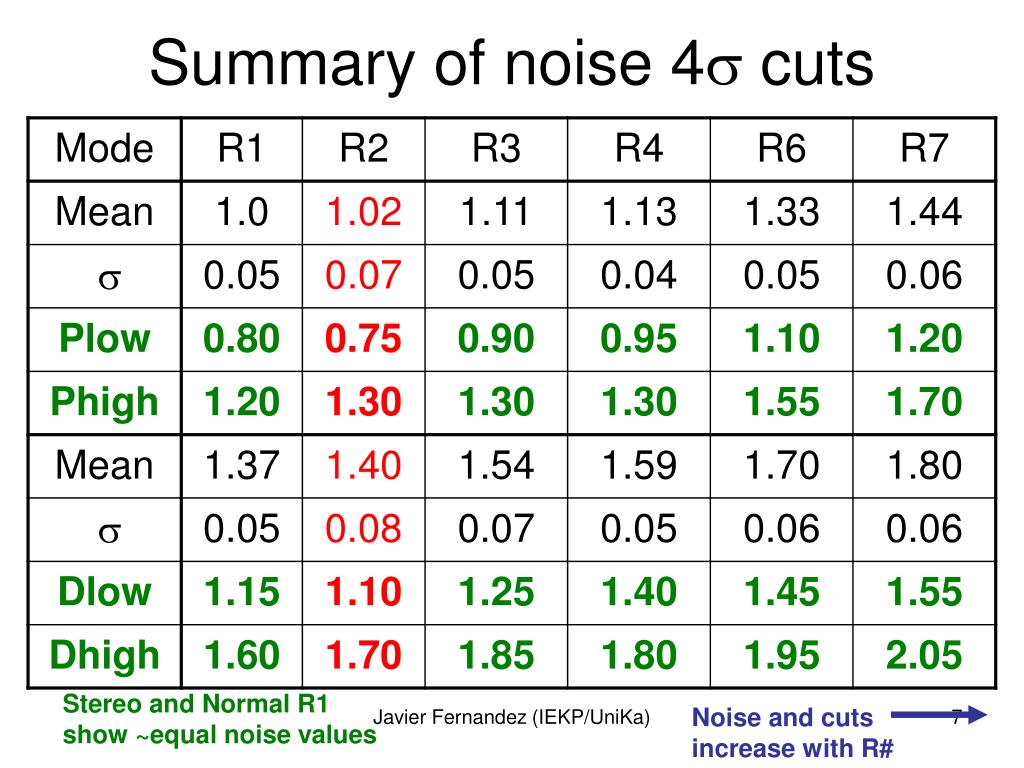

  7. Summary of noise 4s cuts Stereo and Normal R1 show ~equal noise values Noise and cuts increase with R# Javier Fernandez (IEKP/UniKa)

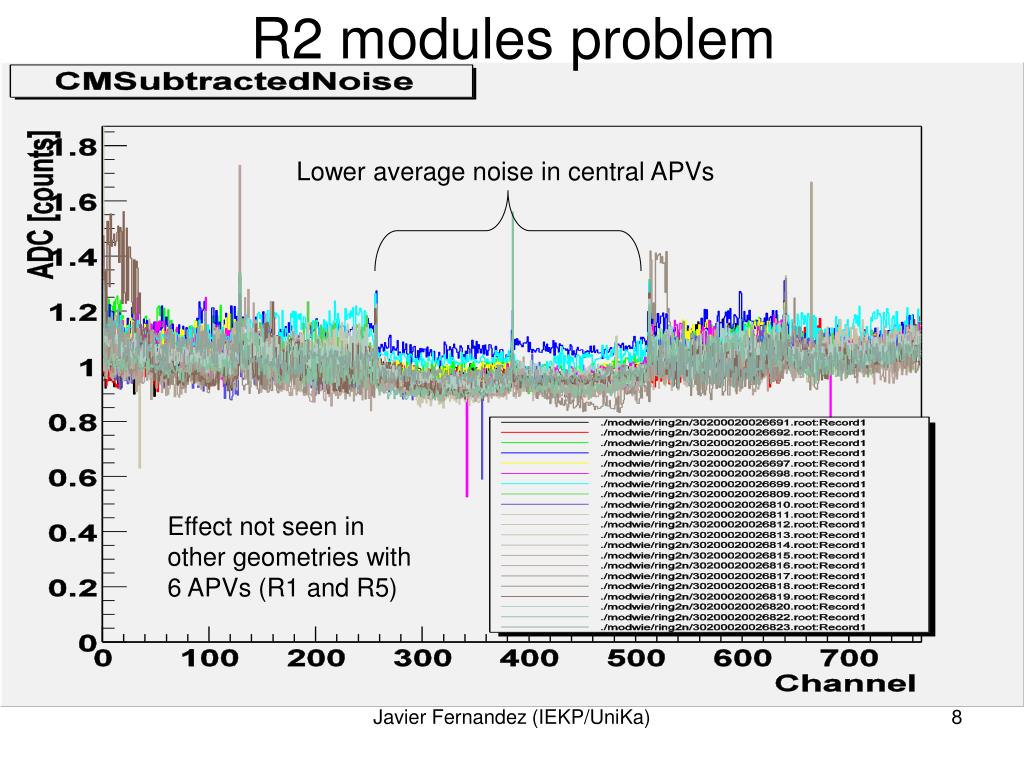

  8. R2 modules problem Lower average noise in central APVs Effect not seen in other geometries with 6 APVs (R1 and R5) Javier Fernandez (IEKP/UniKa)

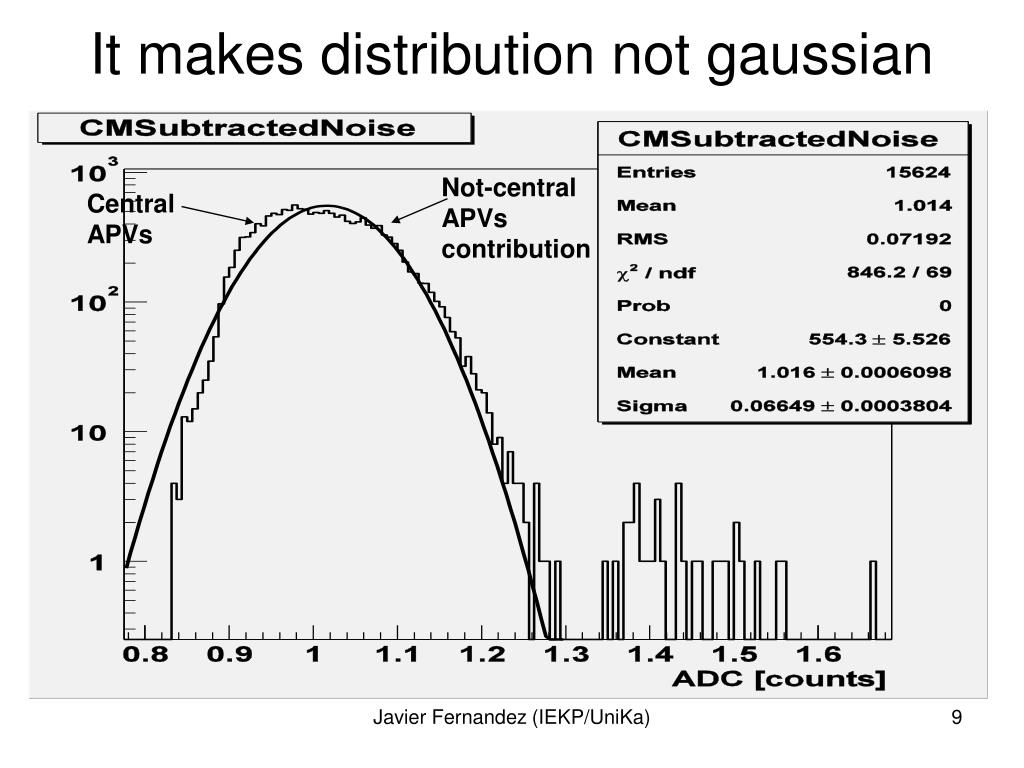

  9. It makes distribution not gaussian Not-central APVs contribution Central APVs Javier Fernandez (IEKP/UniKa)

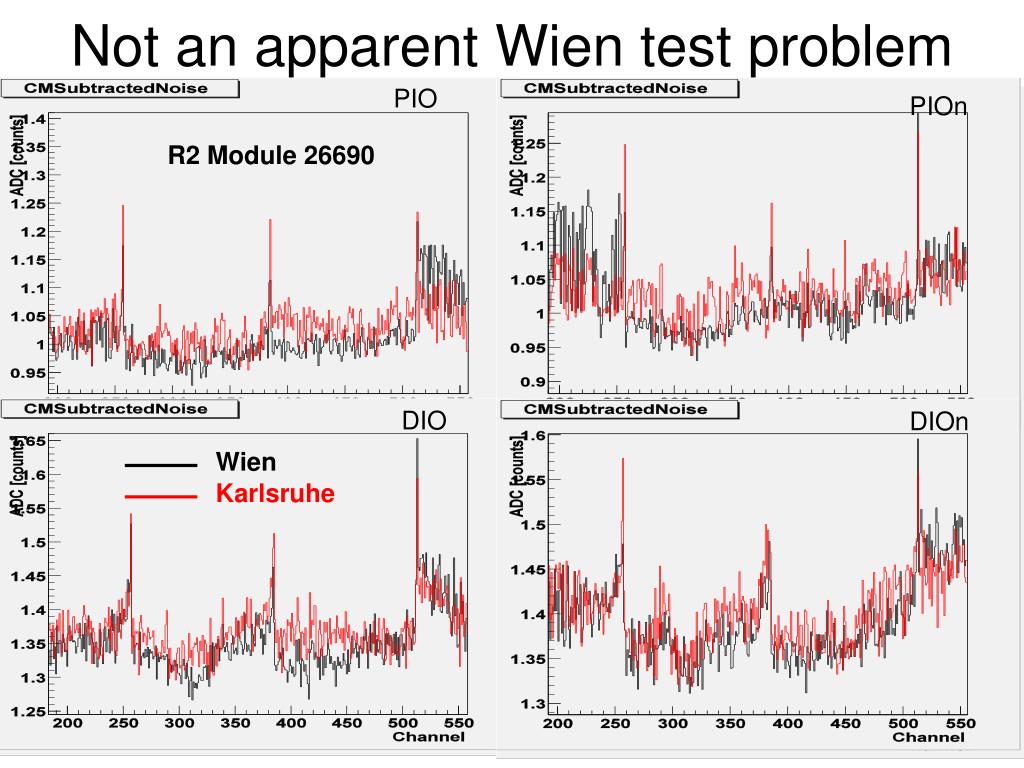

  10. Not an apparent Wien test problem PIO PIOn R2 Module 26690 DIO DIOn Wien Karlsruhe Javier Fernandez (IEKP/UniKa)

  11. Not an apparent Wien test problem PIO PIOn R2 Module 26697 DIO DIOn Wien Aachen Javier Fernandez (IEKP/UniKa)

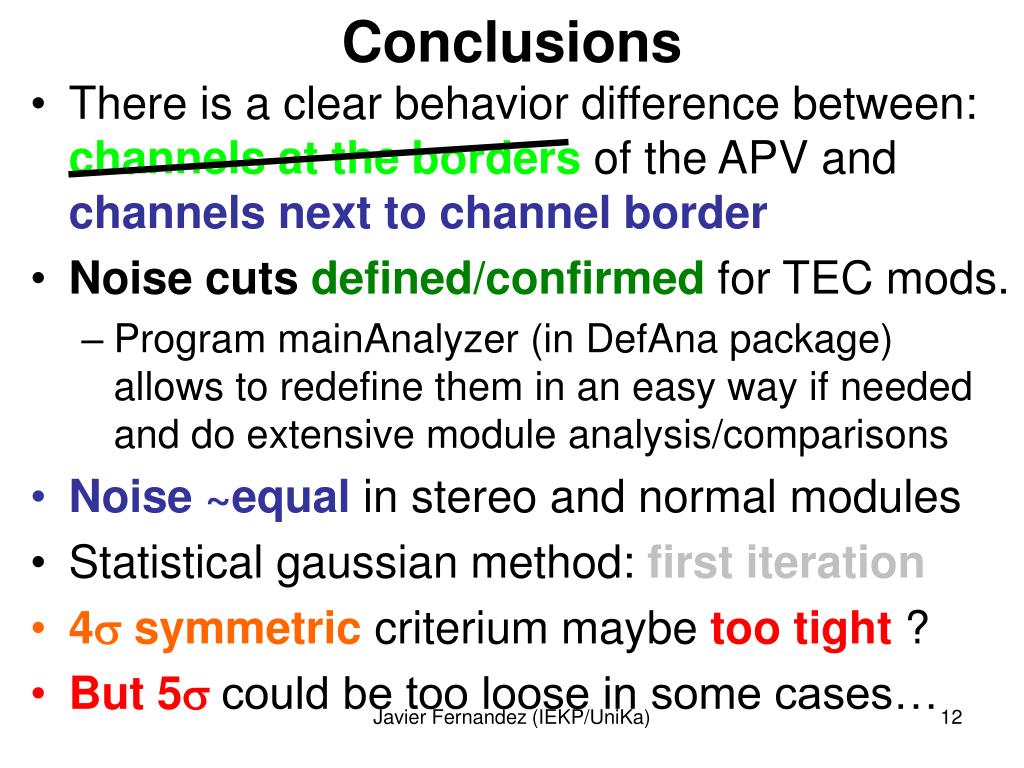

  12. Conclusions • There is a clear behavior difference between: channels at the borders of the APV and channels next to channel border • Noise cutsdefined/confirmed for TEC mods. • Program mainAnalyzer (in DefAna package) allows to redefine them in an easy way if needed and do extensive module analysis/comparisons • Noise ~equal in stereo and normal modules • Statistical gaussian method: first iteration • 4s symmetric criterium maybe too tight ? • But 5scould be too loose in some cases… Javier Fernandez (IEKP/UniKa)
