Securing an Information Resource Management System

1. Securing an Information Resource Management System

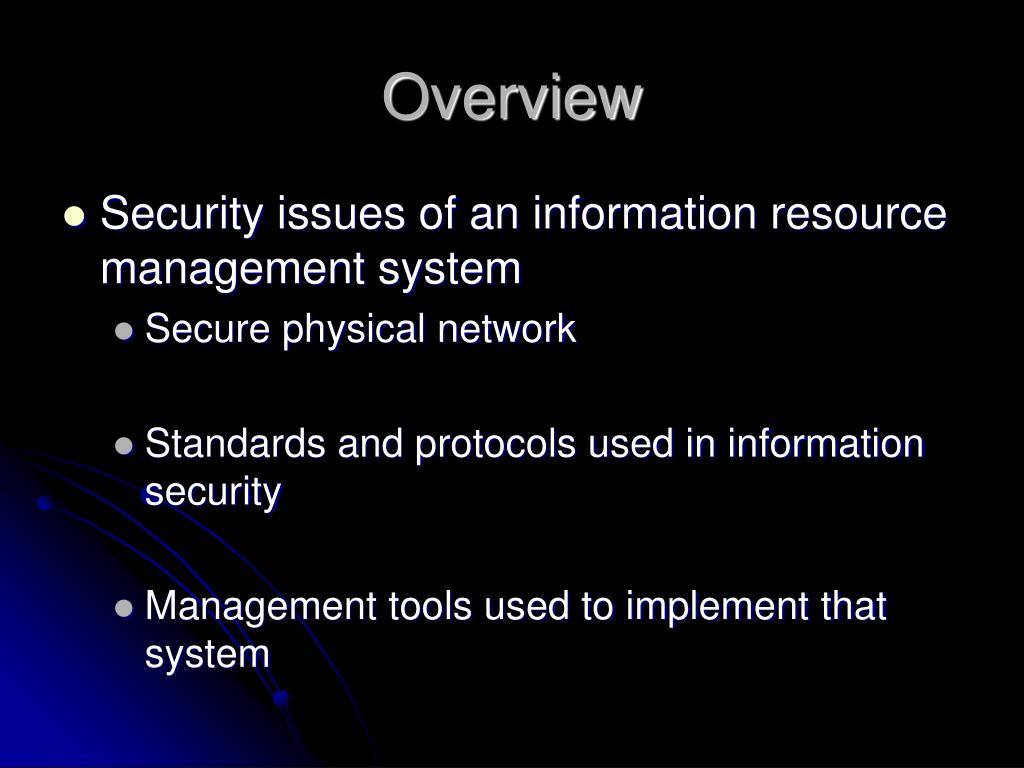

2. Overview • Security issues of an information resource management system • Secure physical network • Standards and protocols used in information security • Management tools used to implement that system

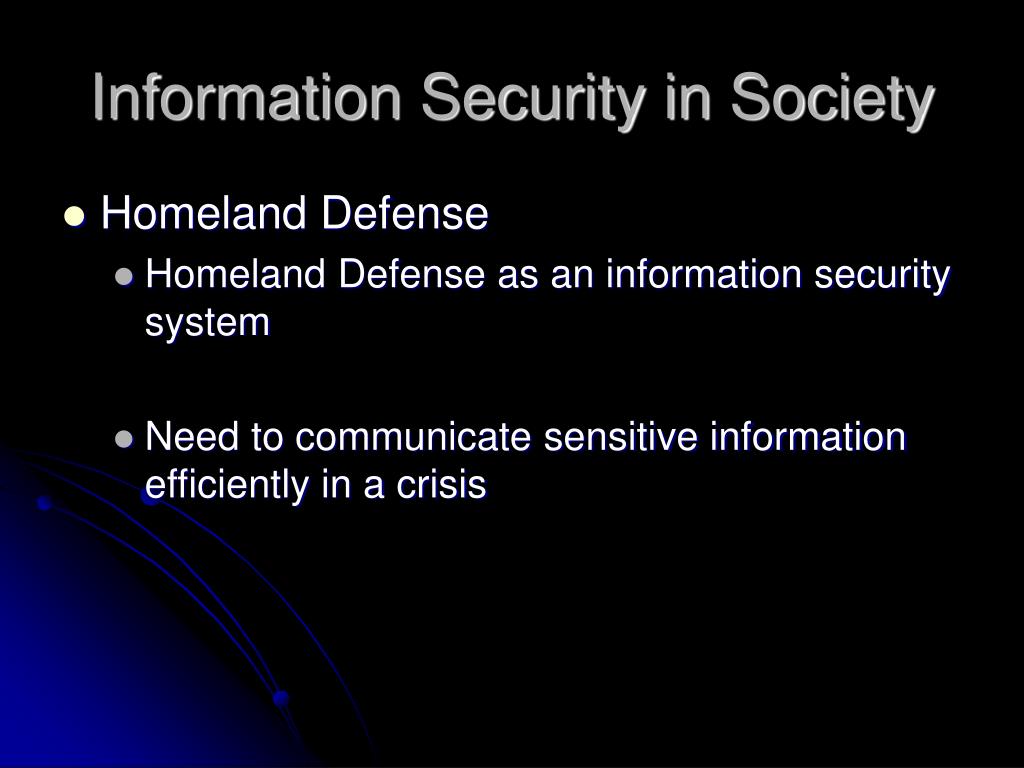

3. Information Security in Society • Homeland Defense • Homeland Defense as an information security system • Need to communicate sensitive information efficiently in a crisis

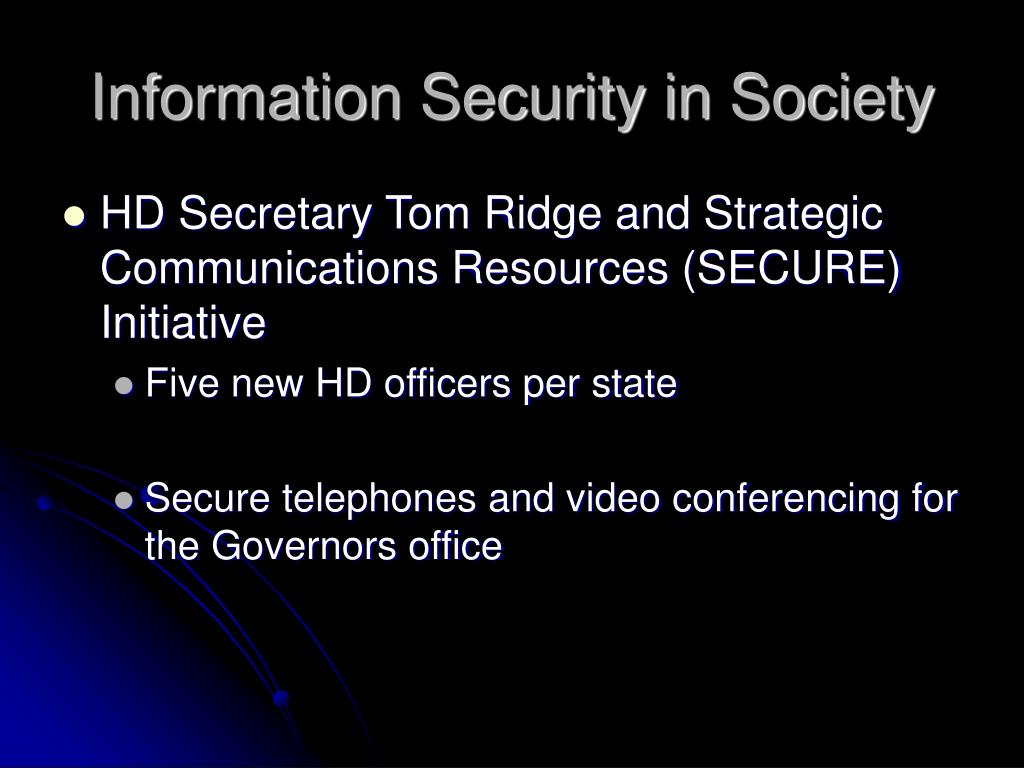

4. Information Security in Society • HD Secretary Tom Ridge and Strategic Communications Resources (SECURE) Initiative • Five new HD officers per state • Secure telephones and video conferencing for the Governors office

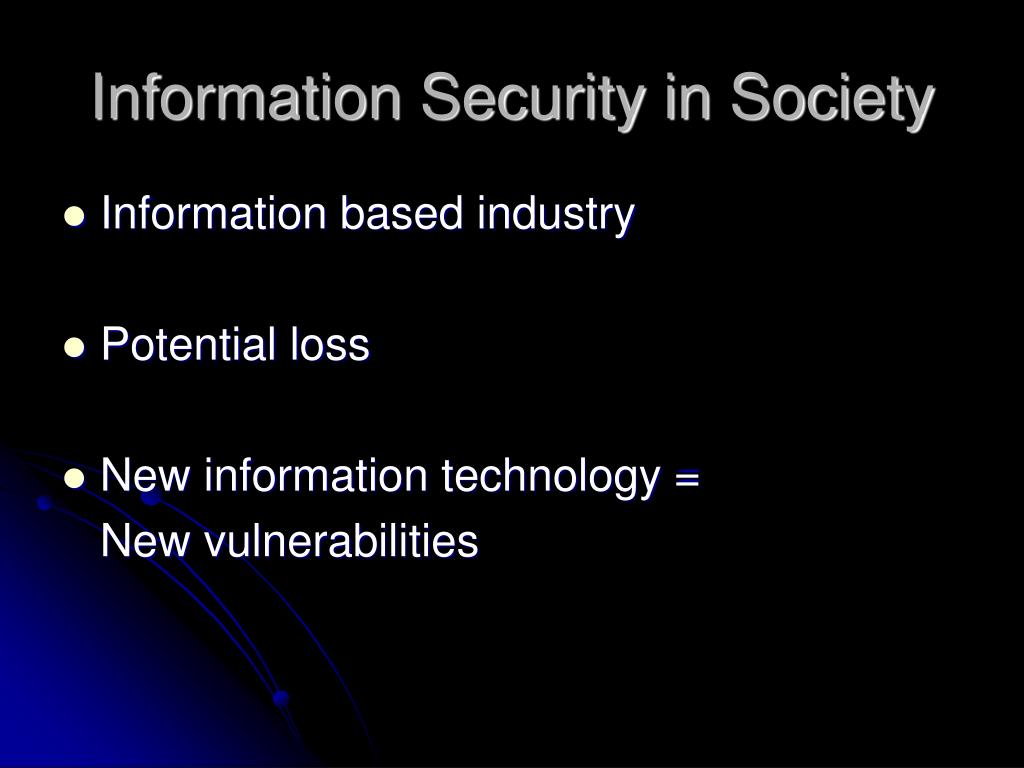

5. Information Security in Society • Information based industry • Potential loss • New information technology = New vulnerabilities

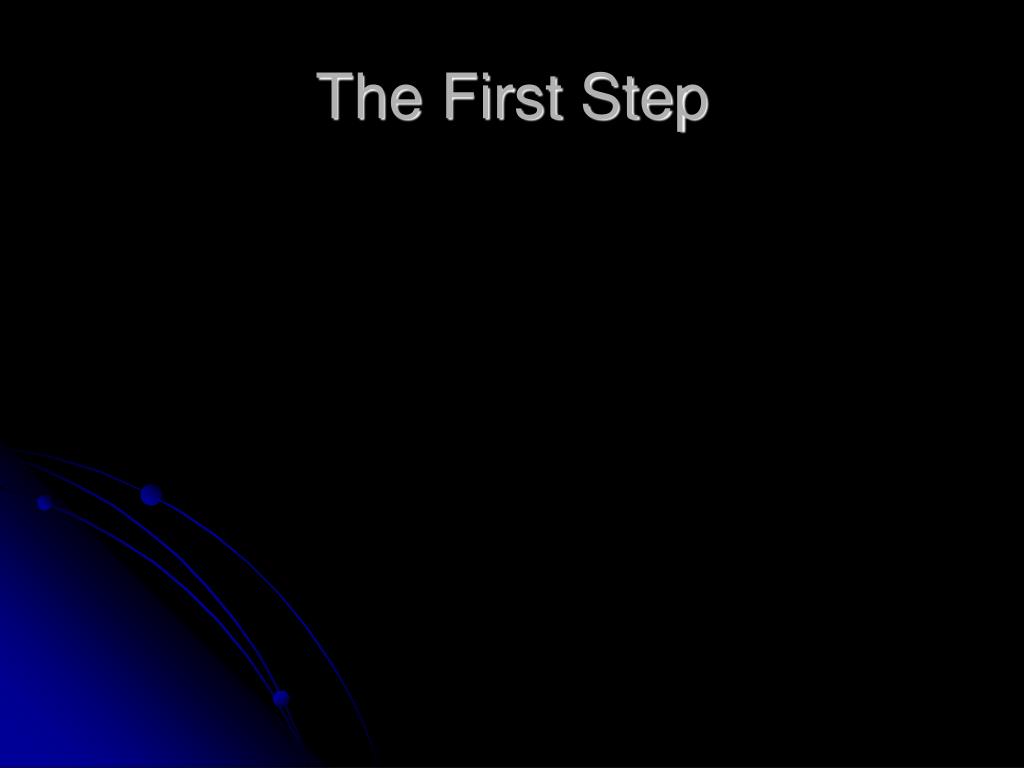

6. The First Step

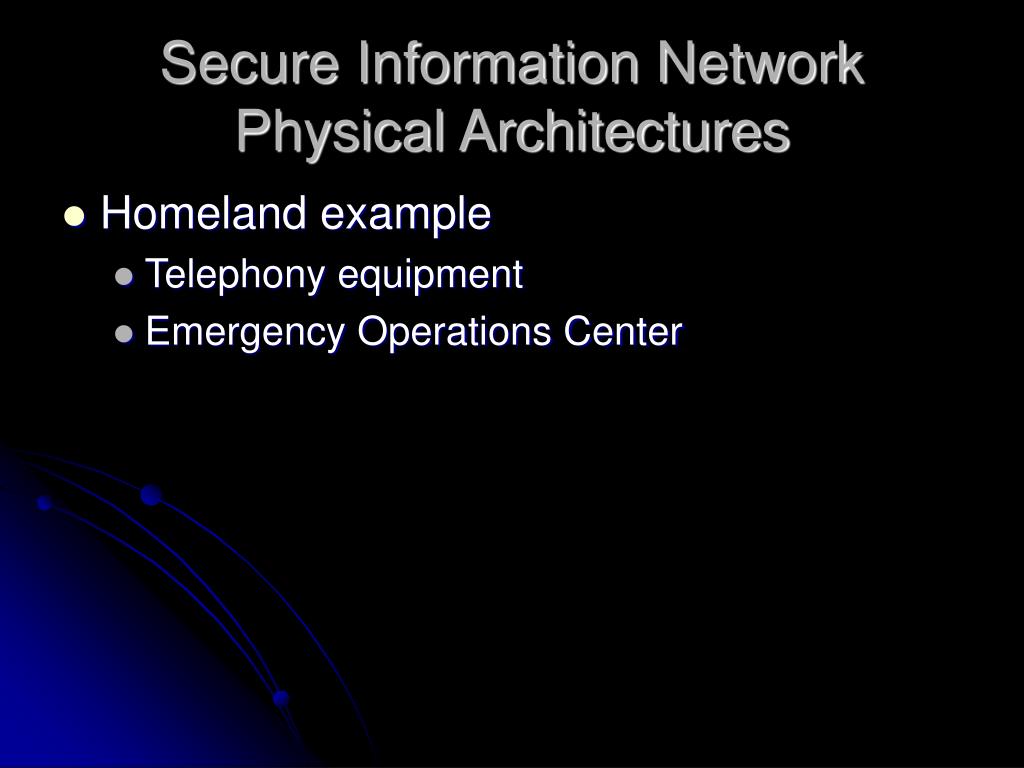

7. Secure Information Network Physical Architectures • Homeland example • Telephony equipment • Emergency Operations Center

8. FIPS 140-2 • FIPS 140-2(Federal Information Processing Standard) • Crypto-modules • tests hardware, software, firmware • crypto algorithms • key-generation

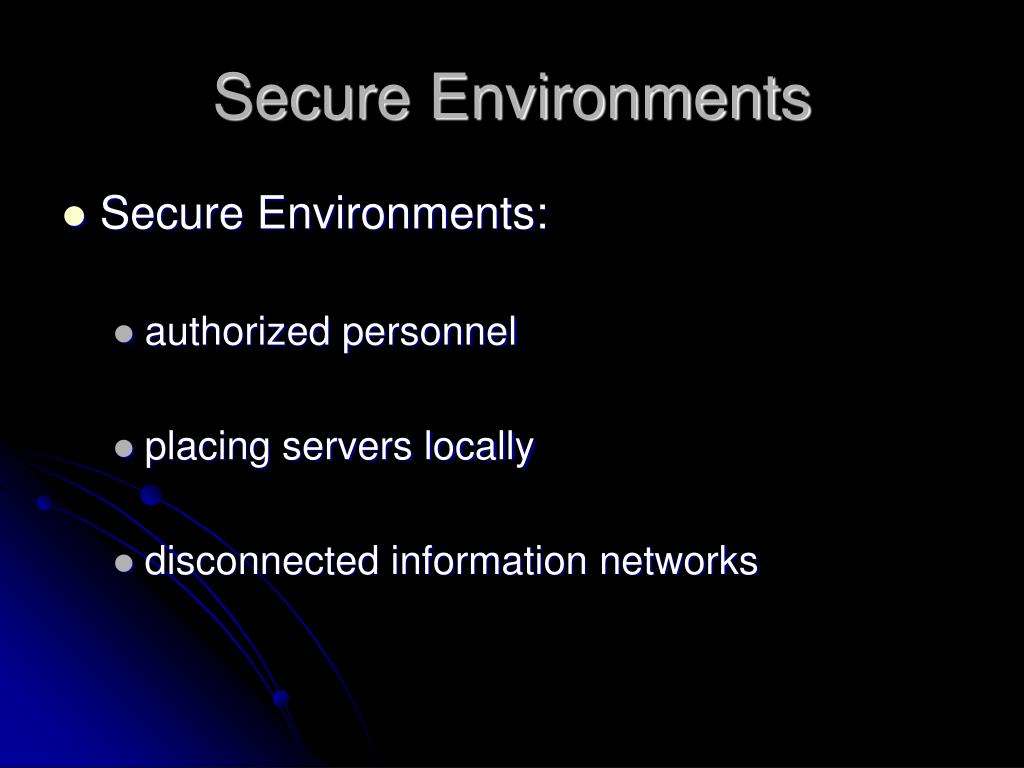

9. Secure Environments • Secure Environments: • authorized personnel • placing servers locally • disconnected information networks

10. Smart Cards • Used in combination with other id-securing methods • Portable • Secure • Difficult to replicate, useless to steal • Appearance; gold-contacts • Microprocessor • Also can be used to facilitate secure communications

11. Smart Cards • Little interoperability between software and hardware of different vendors • Difficult implementation and maintenance • NIST (National Institute of Standards and Technology) • NIST is working on guidlines/specifications (as we’ll see in the next section)

12. Firewalls • Located on routers or servers • Blocks specific communications and allows specific communication

13. FIREWALL Telnet SSH Web Browsing FTP SFTP

14. Firewalls • Located on routers or servers • Blocks specific communications and allows specific communication • useful in preventing viruses

15. Connected Networks • Can be physically isolated to provide security • Controlled communication access points

16. VLANS • By remote login, a server can make it appear as though the user is on a network • Secure tunneling

18. WIFI • Wi-Fi (short for "wireless fidelity") • Ever-growing WiFI networks

20. WIFI • Wi-Fi (short for "wireless fidelity") • Ever-growing WiFI networks • Unsecured

21. WIFI • Current business trends Demand Robust Security Networks (RSNs) on WiFi: • RSN • Dependable • Secure • Versatile

22. WIFI • WIFI products need to • Provide security • Multi-vendor interoperability • Long security lifecycle to lengthen usability • Support hotspots connectivity

23. WIFI and FIPS 140-2 • 802.11b IEE standard • Minimal security • FIPS 140-2 and 802.11 and Bluetooth standard (for WiFi) • IEEE, IETF, NIST working to create effective standards • Theory: higher level crypto protocols, like IPSec (next section)

24. WIFI • Interim methods to minimizing WIFI losses: • Detailed wireless topology • Inventory of devices • Frequent back-ups • Random security audits of WiFi infrastructure • Monitor WIFI technology changes

25. Oregano Break!

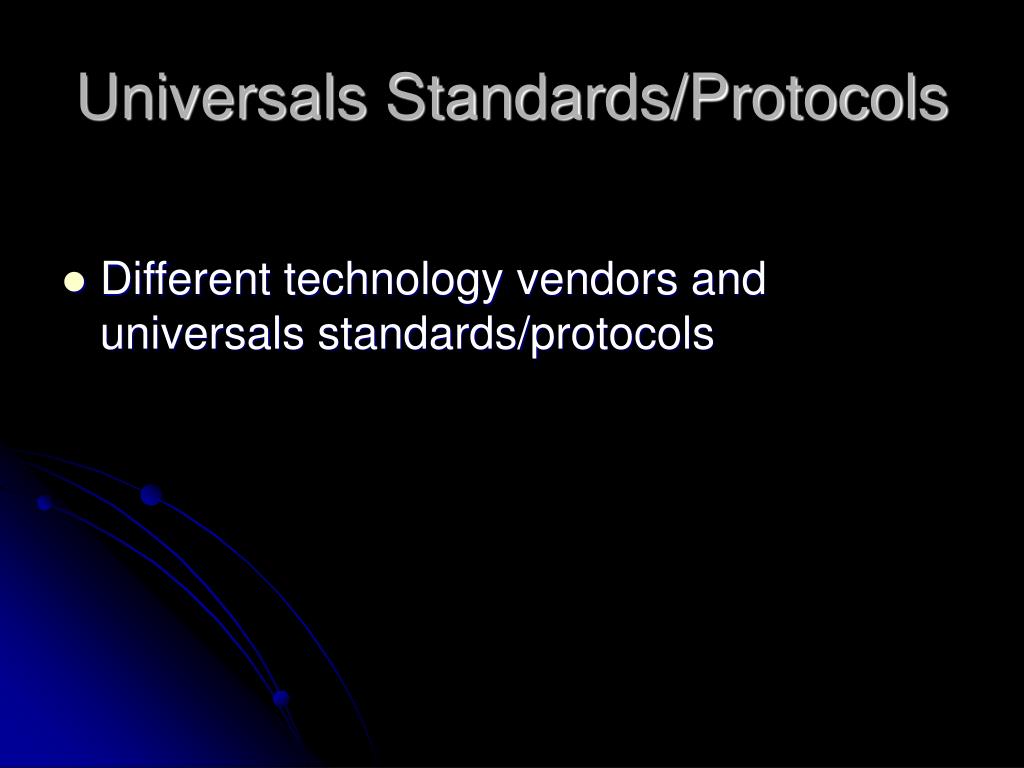

26. Universals Standards/Protocols • Different technology vendors and universals standards/protocols

27. Standards and Protocols • Information security standards/protocols are also policy

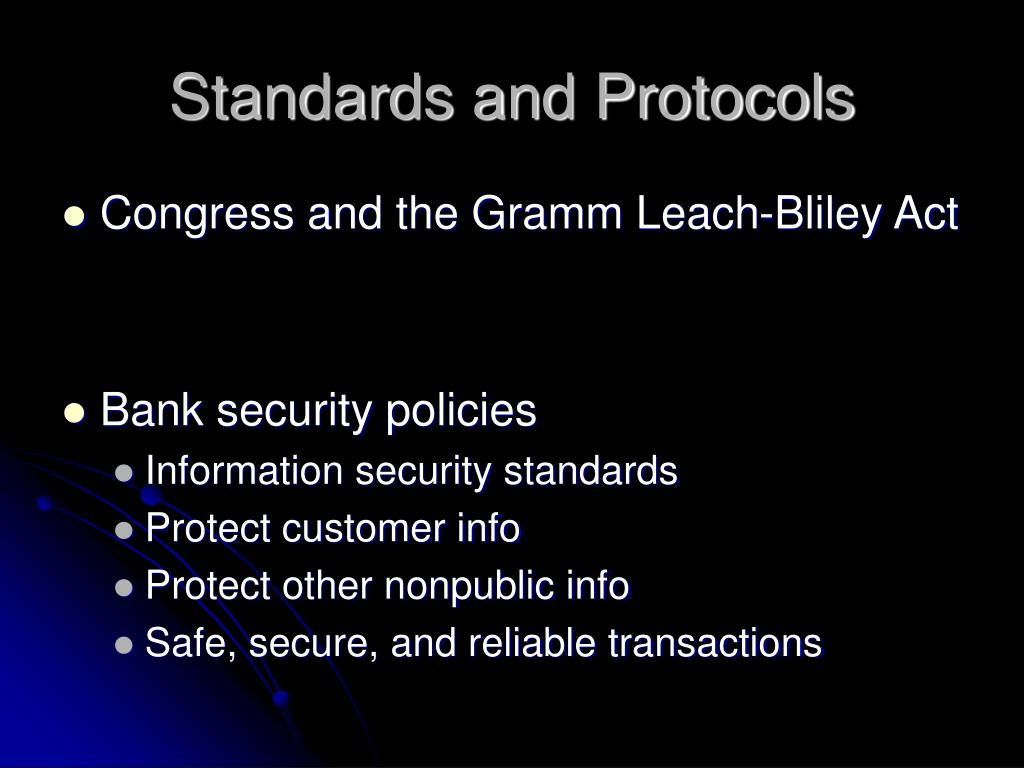

28. Standards and Protocols • Congress and the Gramm Leach-Bliley Act • Bank security policies • Information security standards • Protect customer info • Protect other nonpublic info • Safe, secure, and reliable transactions

29. Standards and Protocols • ISO 17799, ISF, NIST: • Guidelines that have standards for information security • Security communication protocols • Cryptographic standards • What are common cryptographic standards?

30. Cryptographic Standards • Common cryptographic standards • Integrity • Authenticity • Authorization/access control model • Non-repudation

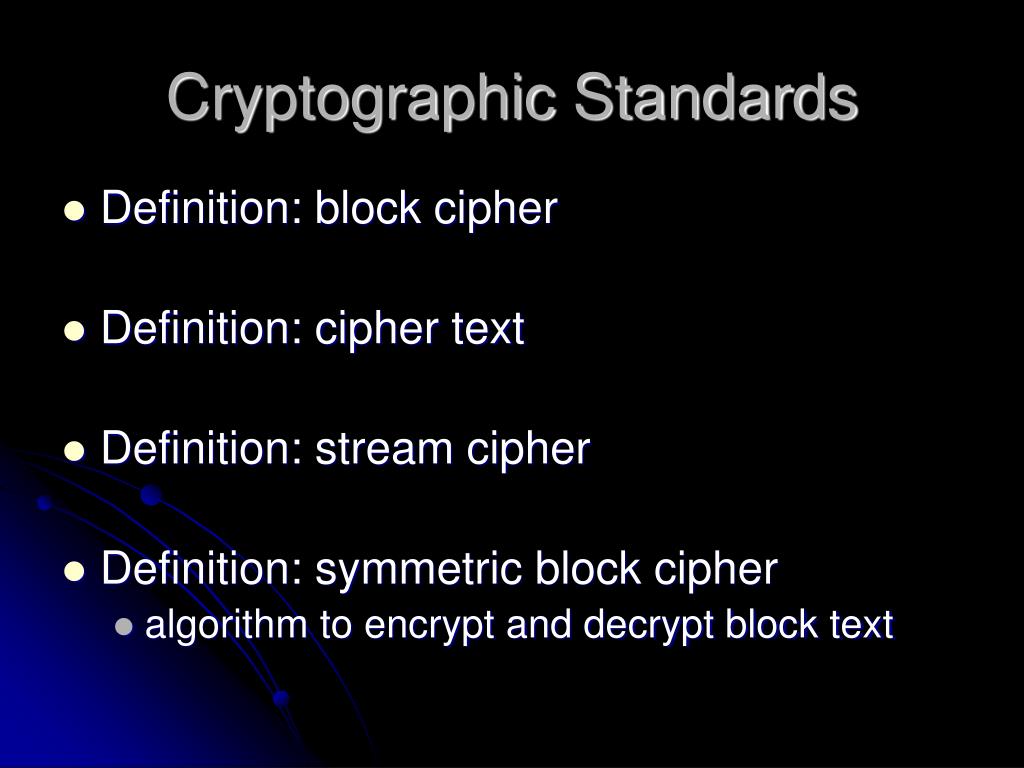

31. Cryptographic Standards • Definition: block cipher • Definition: cipher text • Definition: stream cipher • Definition: symmetric block cipher • algorithm to encrypt and decrypt block text

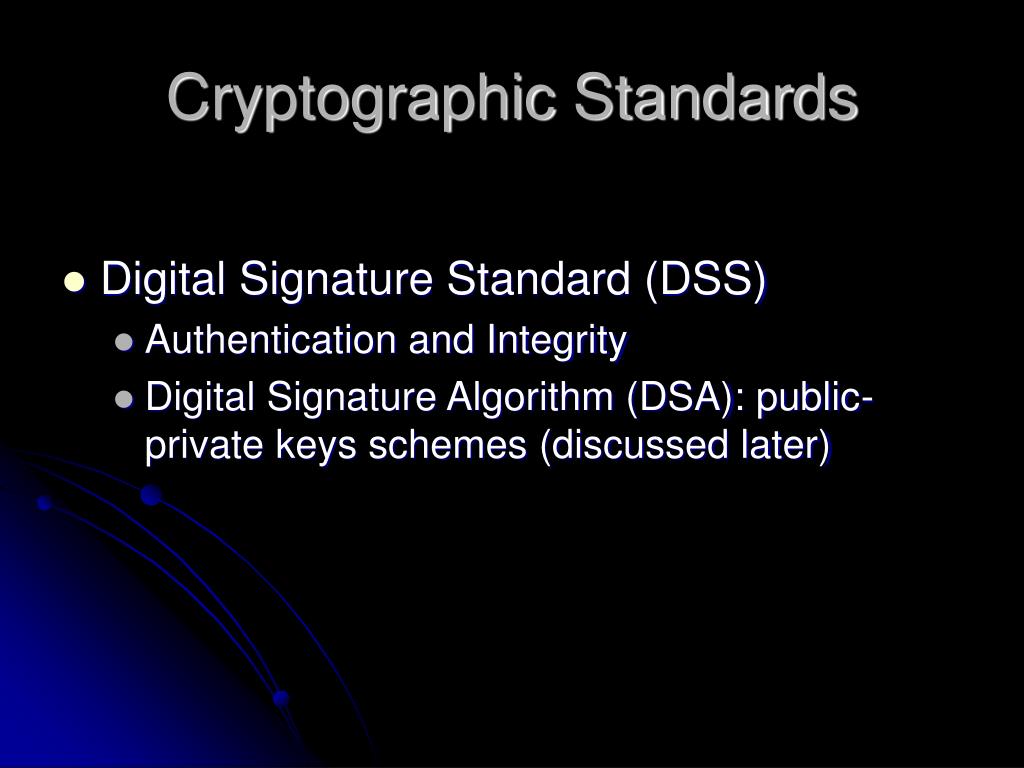

32. Cryptographic Standards • Digital Signature Standard (DSS) • Authentication and Integrity • Digital Signature Algorithm (DSA): public-private keys schemes (discussed later)

33. DSA • Hashing • Definition: message digest • Digest encrypted with DSA

35. DSA • FIPS 180-1 (FIPS Hashing standard) • SHA-1, SHA-256 blocks <2^64 bits • SHA-384, SHA-512 blocks <2^128 bits • changes to a message results in a different digest (high probability) • also used with stored data

36. Keys • Secret keys

37. Secret Key Original Key Copy Key

39. Keys • Public-Private Keys

40. Public Key Secret Key Private Key

41. Public Key Private Key Message Encrypted Message Decrypted Message

42. Keys • Key certificates • Key lifecycle

44. Keys • Key-substitution vulnerability

45. Keys • Key-destruction vulnerability

46. Keys • Controlling the key lifecycle • Crypto-periods

47. PKI • Public Key Infrastructure (PKI) • Certificate Authorities • Electronic transport • Manual key transport • Trust

48. Lets look at some examples

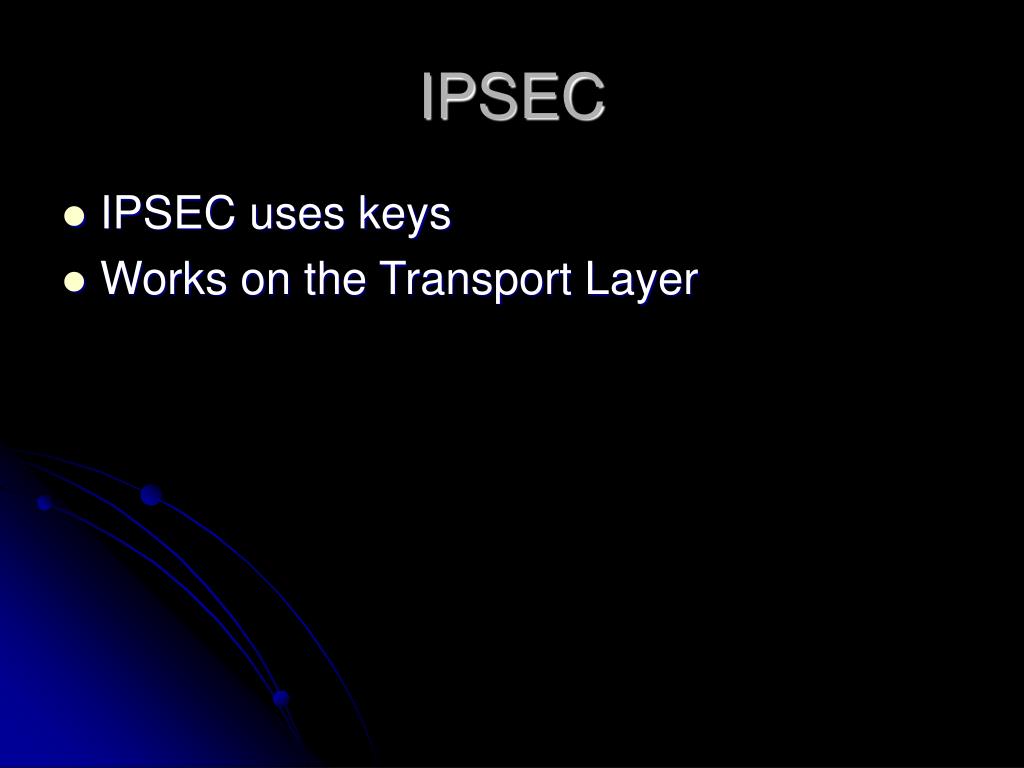

49. IPSEC • IPSEC uses keys • Works on the Transport Layer
