  1. Chapter 12 Upper End Theory and Service

  2. Cylinder Heads • Made of cast iron or aluminum • Contains valves, valve seats, valve guides, springs, rocker arm supports, and the upper portion of the combustion chamber • Contains coolant and oil return passages • Head design is one of the most influential factors in overall engine performance

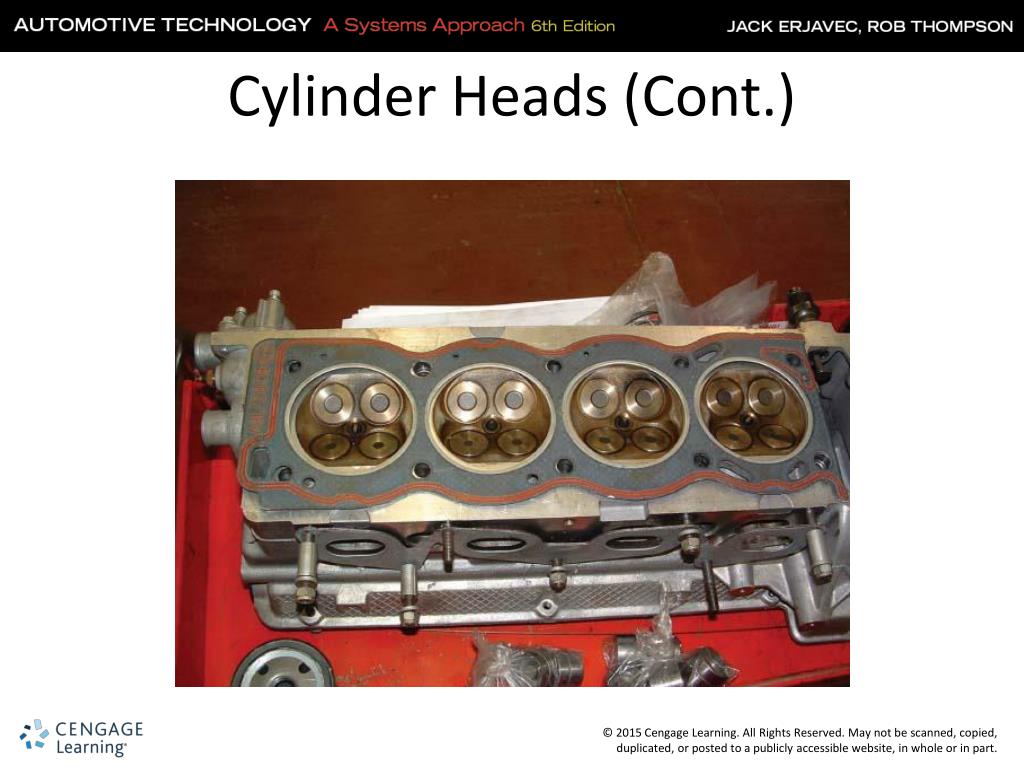

  3. Cylinder Heads (Cont.)

  4. Cylinder Heads (Cont.) • Intake and exhaust ports are cast into the head • Most heads are aluminum to reduce weight • Heads can have crossflow or Siamese port

  5. Crossflow and Siamese Heads

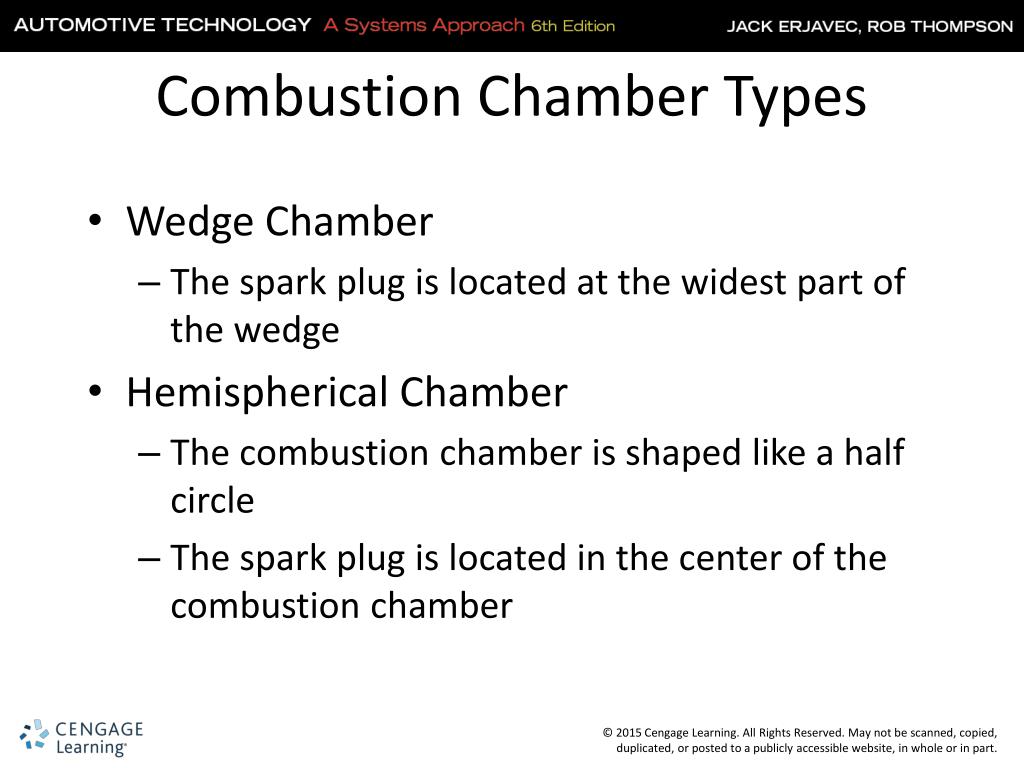

  6. Combustion Chamber Types • Wedge Chamber • The spark plug is located at the widest part of the wedge • Hemispherical Chamber • The combustion chamber is shaped like a half circle • The spark plug is located in the center of the combustion chamber

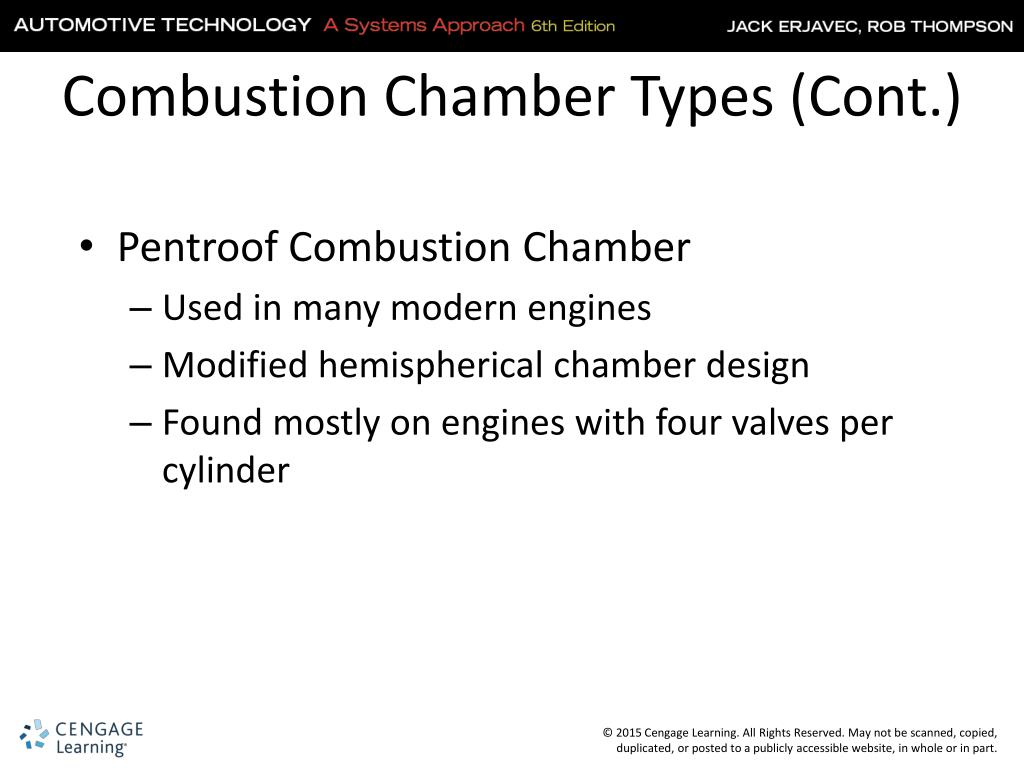

  7. Combustion Chamber Types (Cont.) • Pentroof Combustion Chamber • Used in many modern engines • Modified hemispherical chamber design • Found mostly on engines with four valves per cylinder

  8. Wedge Combustion Chamber

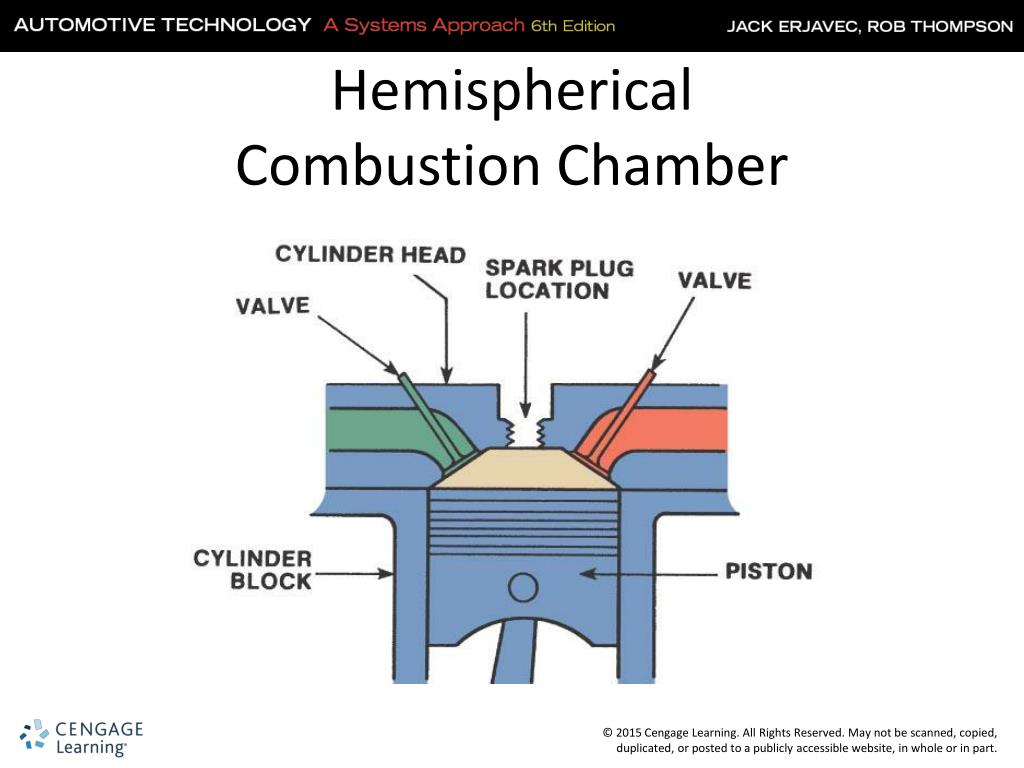

  9. HemisphericalCombustion Chamber

  10. Pentroof Combustion Chamber

  11. Intake and Exhaust Valves • Commonly called poppet valves • Allow air to flow into and exhaust out of the combustion chamber • Seal the upper portion of combustion chamber • Intake valves are larger than exhaust valves

  12. Valve Construction • Most valves are hardened steel, steel alloys, or stainless steel • Intake and exhaust valves are usually made of different materials • Valves can be one or two pieces • Some exhaust valves are sodium filled • Some high performance engines use titanium valves

  13. Valve Terminology

  14. Valve Seats • May be cast into or inserted into head • Seals the valve and transfers heat

  15. Valve Guides • Support the valve and allow only up and down motion • Close clearance to valve stem • Keeps valve aligned with valve seat • Can be cast into or insert into the head

  16. Valve Guides (Cont.)

  17. Valve SpringRetainers and Oil Seals

  18. Rocker Arms and Pushrods • Change the direction of the cam’s lifting force • Pushrods link the cam to the rocker arm

  19. Cam Followers • Used on some OHC engines • Can be used to hydraulically adjust valve lash • Increases contact between cam and valve

  20. Camshaft Bearings • Most OHC cylinder heads are machined for the camshaft to ride directly on the head

  21. Knowledge Check • Technician A says the part of the valve that moves through the guide is called the valve face. Technician B says the part of the valve that moves through the guide is called the valve stem. Who is correct?

  22. Multivalve Engines • Used to improve airflow in and out of combustion chamber • Larger valves require increased spring tension • Three, four, and five valves per cylinder used • Four is most common

  23. Variable Valve Timing • VVT can be intake only, intake and exhaust, or vary lift and timing of all valves • Staged systems allow two valve timing and lift settings – Honda’s VTEC • Continuously variable systems change cam phasing

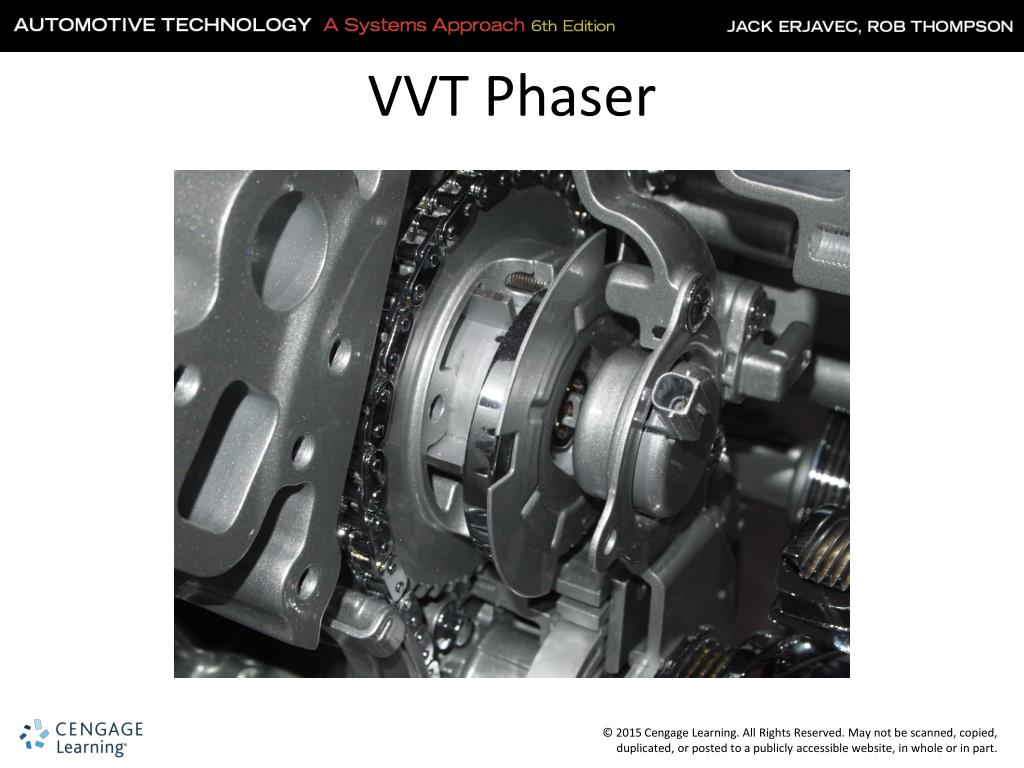

  24. VVT Phaser

  25. Fiat MultiAir • Provides variable lift and duration of intake valves • PCM controlled hydraulic solenoid controls valve opening

  26. BMW Valvetronic System • Varies intake valve lift • Combined with VANOS, provides variable lift and valve timing

  27. Cylinder Deactivation • Keeps valves closed on specific cylinders • Decreases the working displacement • OHC engines may lock and unlock the rocker arms • OHV engines deactivate lifters – Chrysler and GM displacement on demand

  28. Cylinder Head Disassembly • On some OHC engines, the rocker arms must be removed first • Remove the camshaft • Keep bearing caps and follow assemblies in order

  29. Knowledge Check • What are two advantages gained by using VVT systems in modern engines?

  30. Cylinder Head Disassembly (Cont.) • Measure spring installed height before disassembly

  31. Cylinder Head Disassembly (Cont.) • Use a socket and mallet to loosen the valve keepers • Attach and adjust the valve spring compressor • Compress the spring and remove the keepers • Remove retainer, spring(s), and seal

  32. Compressing Valve Springs

  33. Cylinder Head Inspection • Replace a head showing severe damage to valve sealing areas • Check for dents, scratches, cracks, and corrosion damage • Check intake and exhaust manifold mounting surface flatness

  34. Measure Head Warpage

  35. Cylinder Head Inspection (Cont.) • Inspect aluminum heads for porosity leaks • Check head thickness and compare to specifications • Check OHC style heads for proper cam bore alignment

  36. Valve Inspection • Check each valve face for signs of burning • Discard any valves that are burned, worn, bent, or has the plating flaking off or chipped • Look for oil buildup on the back of the valve

  37. Inspect the Stem for Wear

  38. Valves Seats • Inspect for damage, burning, cracks, and deterioration • Check for loose seats • Inspect for sunken valve seats • Seats should be replaced if the valve was broken or bent

  39. Checking for Loose Valve Seats

  40. Retainers and Keepers • Worn retainers will allow the spring to move away from the valve centerline • Uneven wear on the stem tip indicates rotators not working properly

  41. Valve Springs • Check for cracks, breaks, damage, and rust • Perform tests to determine valve spring condition • Freestanding height test • Squareness test • Open/close pressure test

  42. (A) Freestanding height (B) Closed valve spring height (C) Open valve spring height

  43. Inspection of the Valve Train • Timing Belts • Normally replaced when the engine or head is rebuilt • Ensure there are no fluid leaks that can damage the belt • Timing Chains • Measure chain for stretch • Idler Pulleys • Check for smooth operation and lubricant leakage • Tensioners • Check for smooth operation and lubricant leakage

  44. Inspection of the Valve Train (Cont.) • Gears and Sprockets • Check for cracks and tooth wear • Cam Phasers • Perform air testing of advance and retard action • Cam Followers and Lash Adjusters • Check for movement of shim

  45. Inspection of the Valve Train (Cont.) • Rocker Arms • Inspect contact points and oil feed hole • Pushrods • Check oil passage and for straightness • Camshaft and Bearings • Inspect lobe and bearing journals • Check cam straightness

  46. Knowledge Check • What are three conditions valve springs are checked for?

  47. Servicing Cylinder Heads • Cracks are common between spark plug bore and valve seat • Cracks between seats are also common

  48. Resurfacing a Cylinder Head • Resurface • Makes the sealing surface flat so the gasket seals properly • Raises the compression ratio • Squares the deck to the main bores
