Chapter 17: Electricity

Chapter 17: Electricity. Section 1. Electric Charge and Force. Electric charge. An imbalance of protons and electrons Negative charge: more electrons than protons. Positive charge: more protons than electrons. SI unit : coulomb (C ). Opposite charges attract Like charges repel.

quant
Télécharger la présentation

Chapter 17: Electricity

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

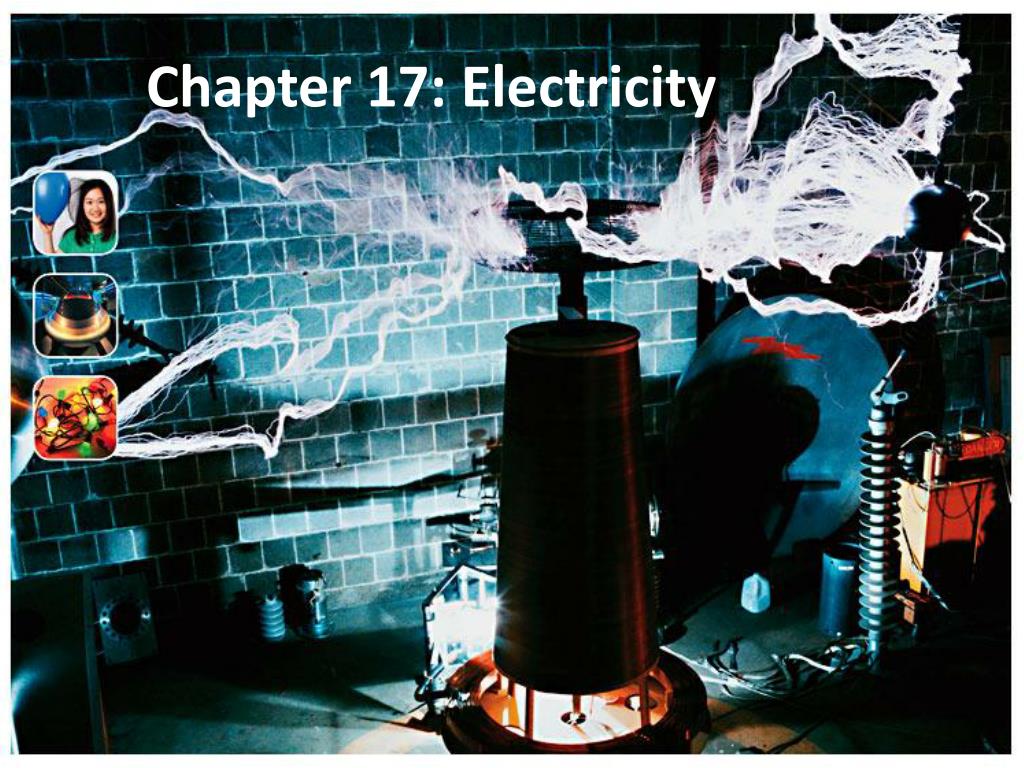

  1. Chapter 17: Electricity

  2. Section 1 Electric Charge and Force

  3. Electric charge • An imbalance of protons andelectrons • Negative charge: more electrons than protons. • Positive charge: more protons than electrons. • SI unit : coulomb(C)

  4. Opposite charges attract • Like charges repel

  5. Electric Force • attraction or repulsion between objects due to an electric field • The greater the electric charge, the greater the electric force. • As distance between objects increases, electric force decreases.

  6. Fields • Electric field: the space around a charged object in which another charged object experiences an electric force • One way to show an electric field is by drawing electric fieldlines.

  7. Field lines show direction and strength of each charge.

  8. Section 2 Current

  9. Electrical Potential Energy (V) • Movement of electric charge (often referred to as voltage) • SI unit: volts(V)

  10. Current (I) • how fast charges move (thru a wire) • SI unit: amperes(A) 1 ampere = 1 Coulomb in 1 second A = C/s

  11. Resistance (R) • caused by internal friction, which slows the movement of charges through a conducting material. • Brightness of light bulb depends on resistance of the filament. The filament of a 40 W light bulb has a higher resistance than the filament of a 100 W light bulb.

  12. Conductors have low resistance • Resistor: special type of conductor used to control current • Insulators have high resistance • Semiconductors have moderate resistance, depending on the materials they are made out of

  13. Calculating Resistance • This equation also known as Ohm’s law. • SI unit: ohms (Ω)

  14. Superconductors • Materials with zero resistance • Once a current is established in a superconductor, the current continues even if the applied voltage is removed. • One useful application of these materials is in superconducting magnets. These magnets are strong enough to levitate commuter trains above the tracks to eliminate friction.

  15. Section 3 Circuits

  16. Electrical Circuits • paths that allow the movement of charges

  17. Closed circuit: a complete path for electrons to flow along • Example: string of christmas lights plugged into the wall • Open circuit: an incomplete path • Example: string of Christmas lights that is not plugged in

  18. Switches are used to open and close a circuit

  19. Schematic Diagram • Drawing of a circuit that uses lines and symbols to represent wires and components

  20. Series circuits: single path for current • Parallel circuits: multiple paths for current

  21. Electrical Power • how fast electrical energy is converted into other forms of energy (often referred to as wattage) power = current × voltage P = IV • Power companies track energy consumption using the electric meters on the side of your house. • Cost of energy ranges from 5 to 20 cents per kilowatt-hour (the amount of energy delivered to your home in 1 hour at a rate of 1 kW).

  22. Fuse: device that contains a metal strip that melts when current in the circuit becomes too great

  23. Circuit breaker: a switch that opens a circuit automatically when the current exceeds a certain value

  24. Ground fault circuit interrupter (GFCI): special kind of electrical outlet that acts as a small circuit breaker. • often found in bathrooms and kitchens, where water is used near electricity
